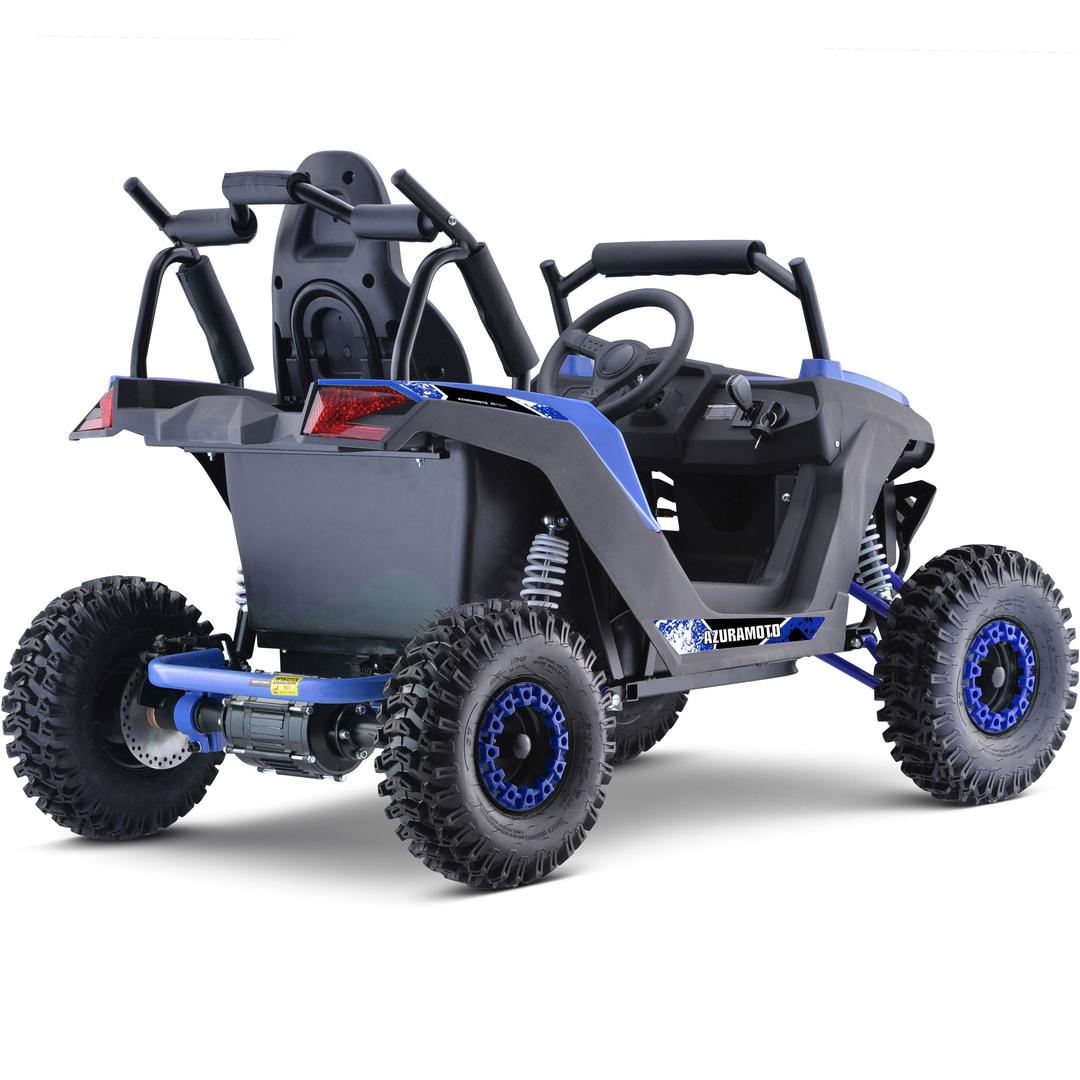

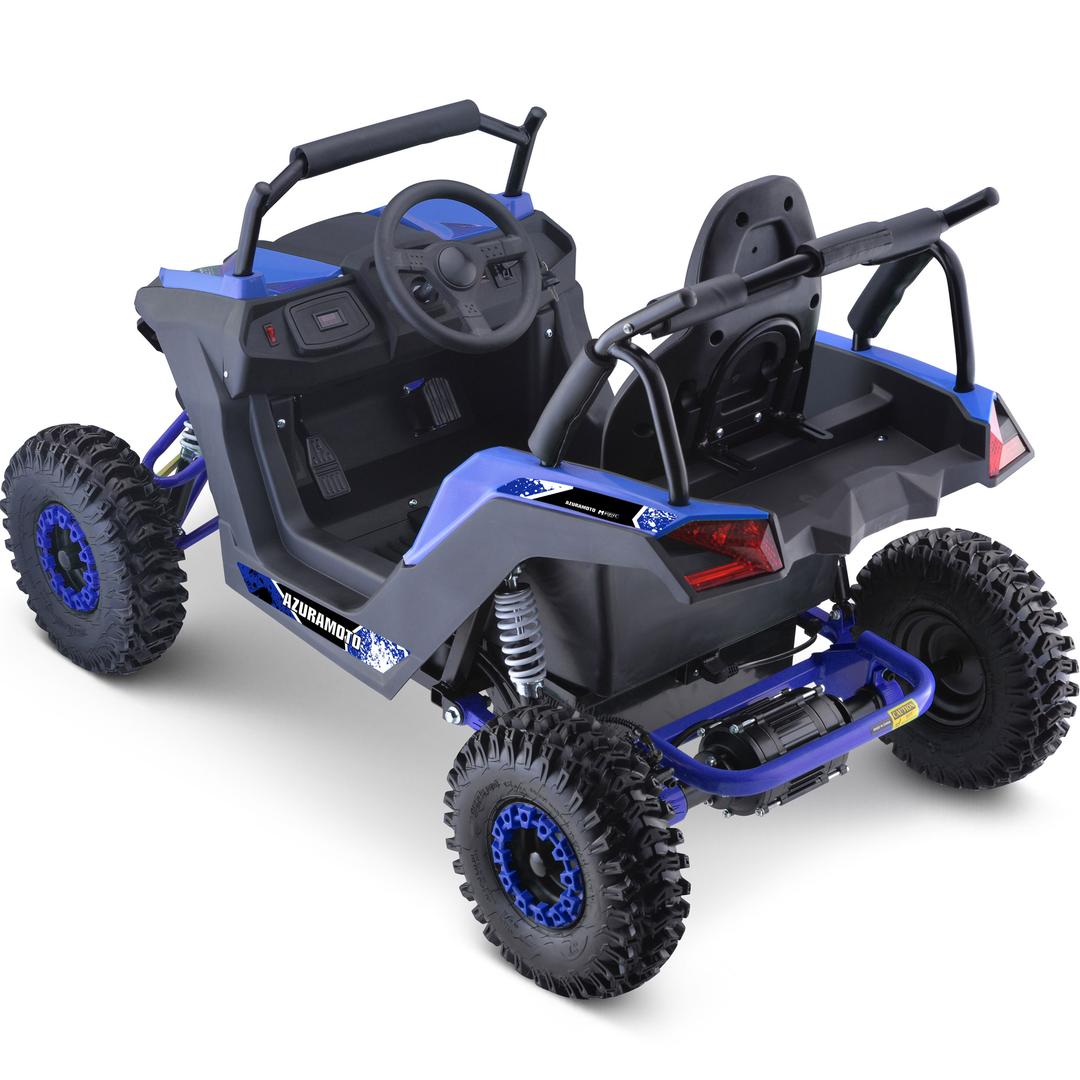

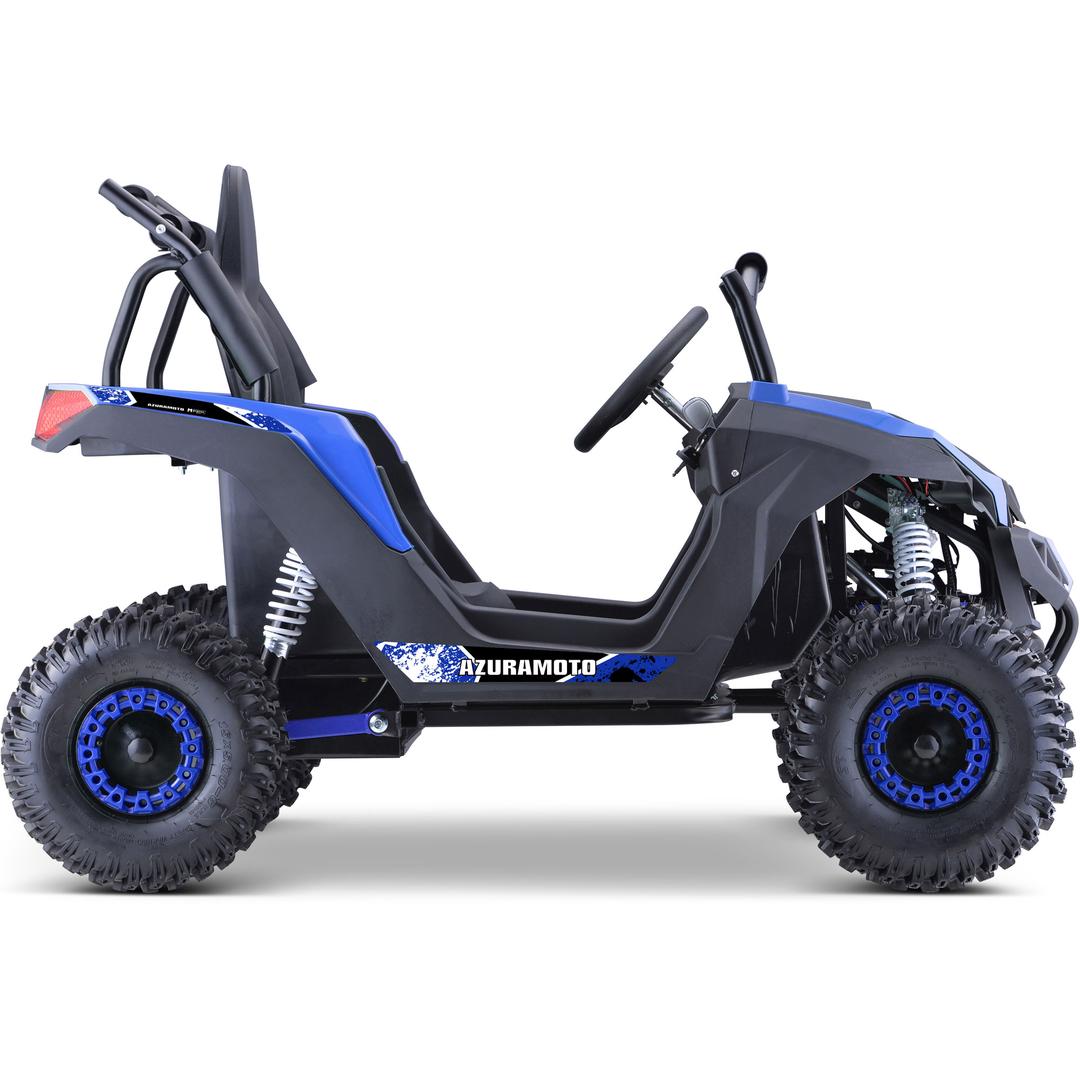

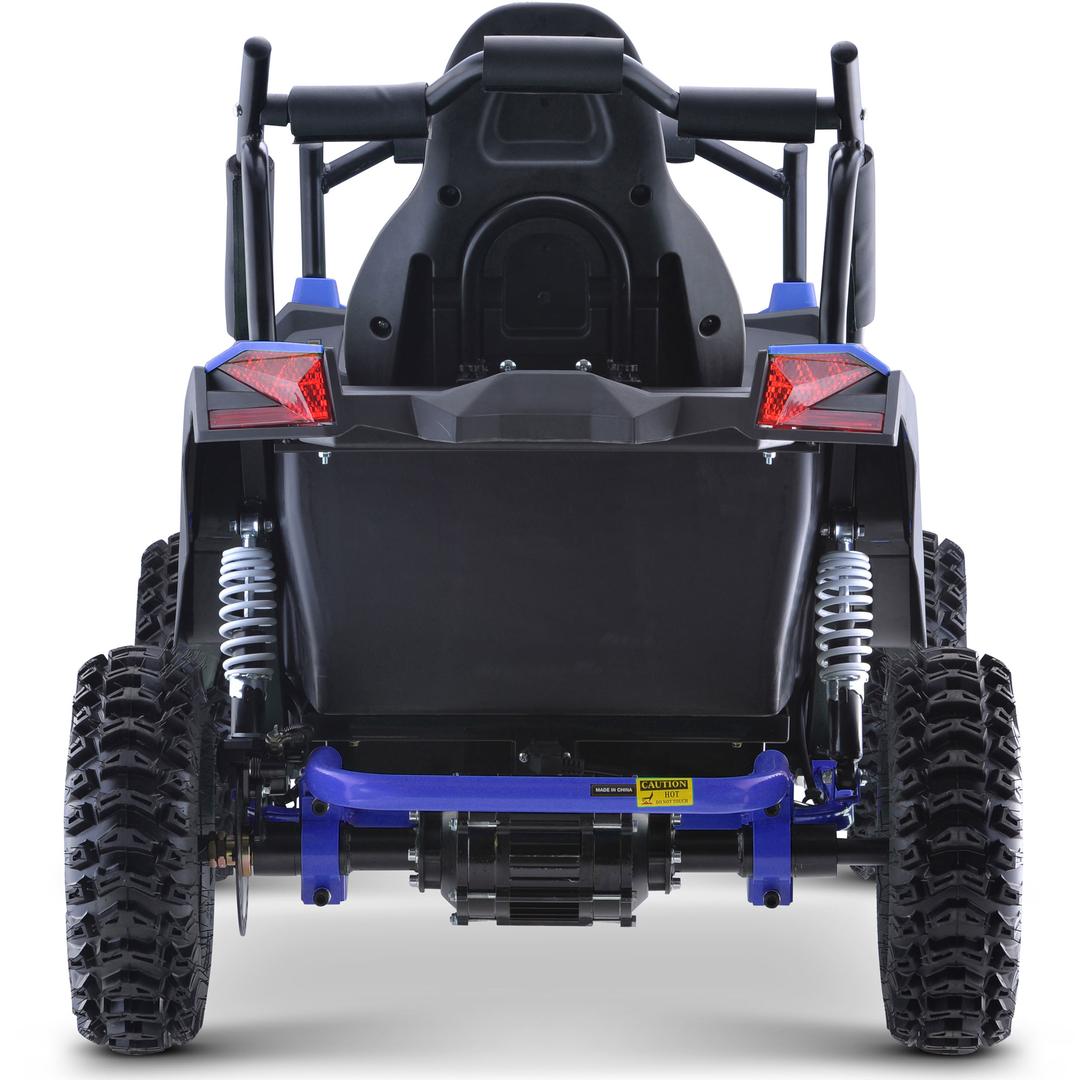

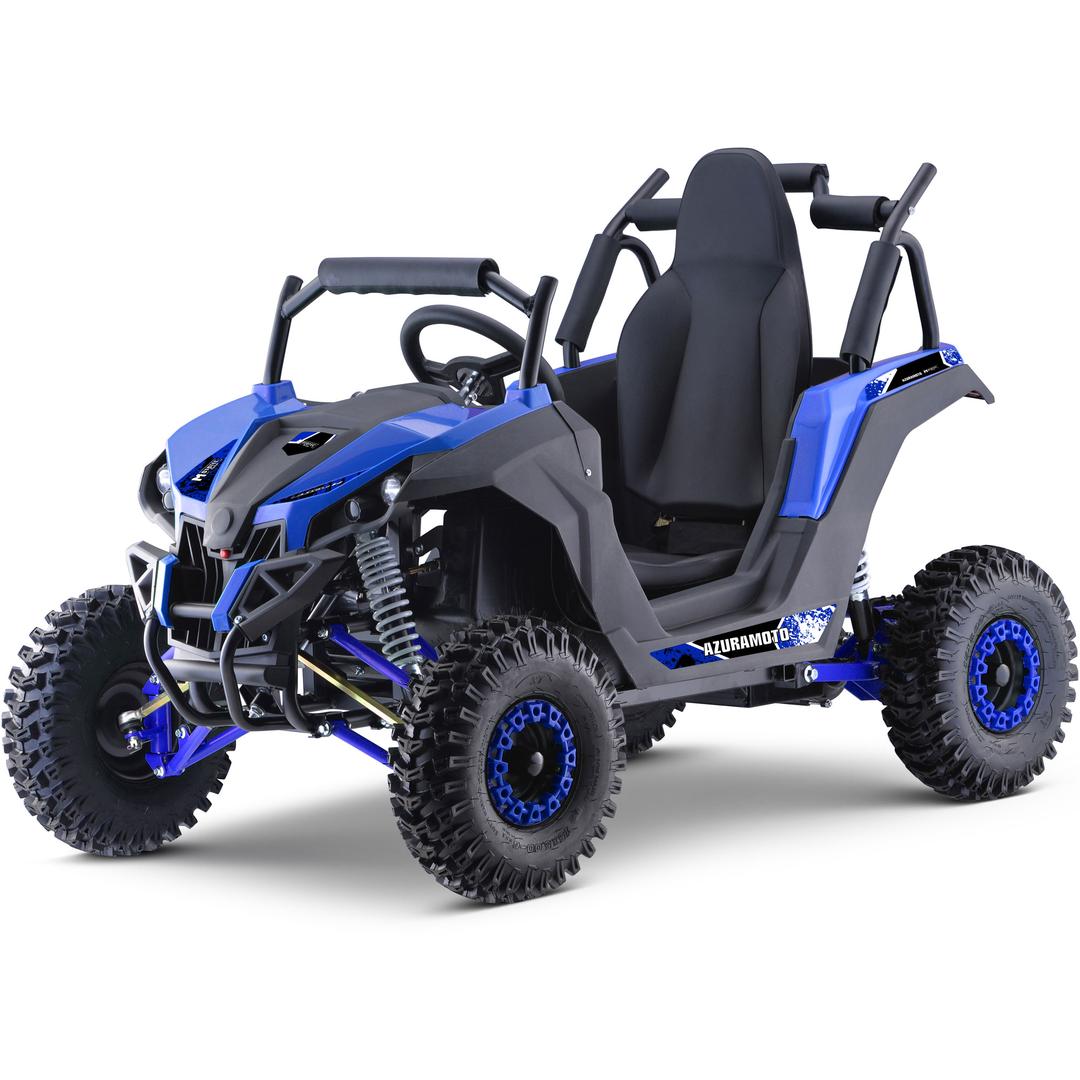

MotoTec Raider Kids UTV 48V 1200W Full Suspension Blue
The MotoTec Raider Kids UTV 48V 1200W Full Suspension Blue is a off-road recreational utility kart designed for outdoor recreational riding on private property, dirt tracks, open fields, trails, and approved off-road recreation areas. It is built for recreational use only and is not intended for public streets, highways, sidewalks, bike lanes, parking lots, or any public right-of-way.
This UTV includes four 12V 12Ah sealed lead-acid batteries, dual front shocks, dual rear shocks, 15 x 5.0-6 wheels, and a foot-operated hydraulic rear disc brake. It is recommended for riders ages 13 and up, with a maximum rider weight of 165 lbs.
Performance, range, speed, and battery life may vary based on rider weight, terrain, riding mode, surface conditions, temperature, and overall riding style.
At a Glance
| Motor / Engine |
48v 1200w (Permanent Magnet DC Brushless) |
| Battery |
Four 12v/12ah Sealed Lead Acid (48v 12ah Total) |
| Top Speed |
8mph/15mph/23mph |
| Max Rider Weight |
165 lbs |
| Recommended Age |
13 and up |
Key Features

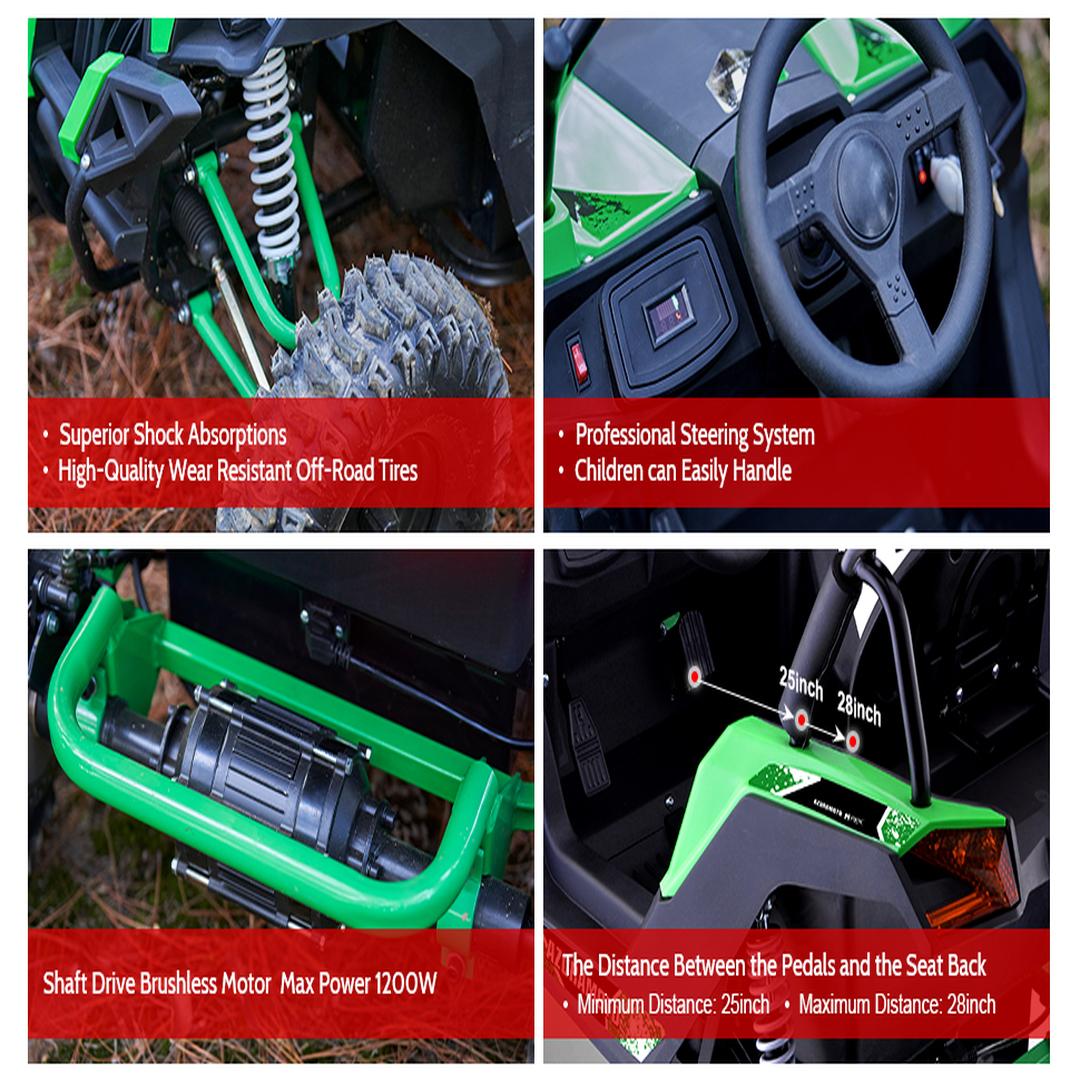

- 48V 1200W permanent magnet DC brushless motor
- Four 12V 12Ah sealed lead-acid batteries
- Shaft drive transmission
- 3 forward speeds and 1 reverse speed
- 5–20 miles distance per charge depending on weight and terrain
- Forward and reverse operation
- Dual front shocks and dual rear shocks
- Foot-operated hydraulic rear disc brake
- Steel tubular frame
- Roll cage safety bar
- Adjustable seat and seat belt
- Metal throttle and brake pedals
- Front 15 x 5.0-6 inch wheels
- Rear 15 x 5.0-6 inch wheels
- 15-degree climbing angle
- Recommended for ages 13 and up
Specifications

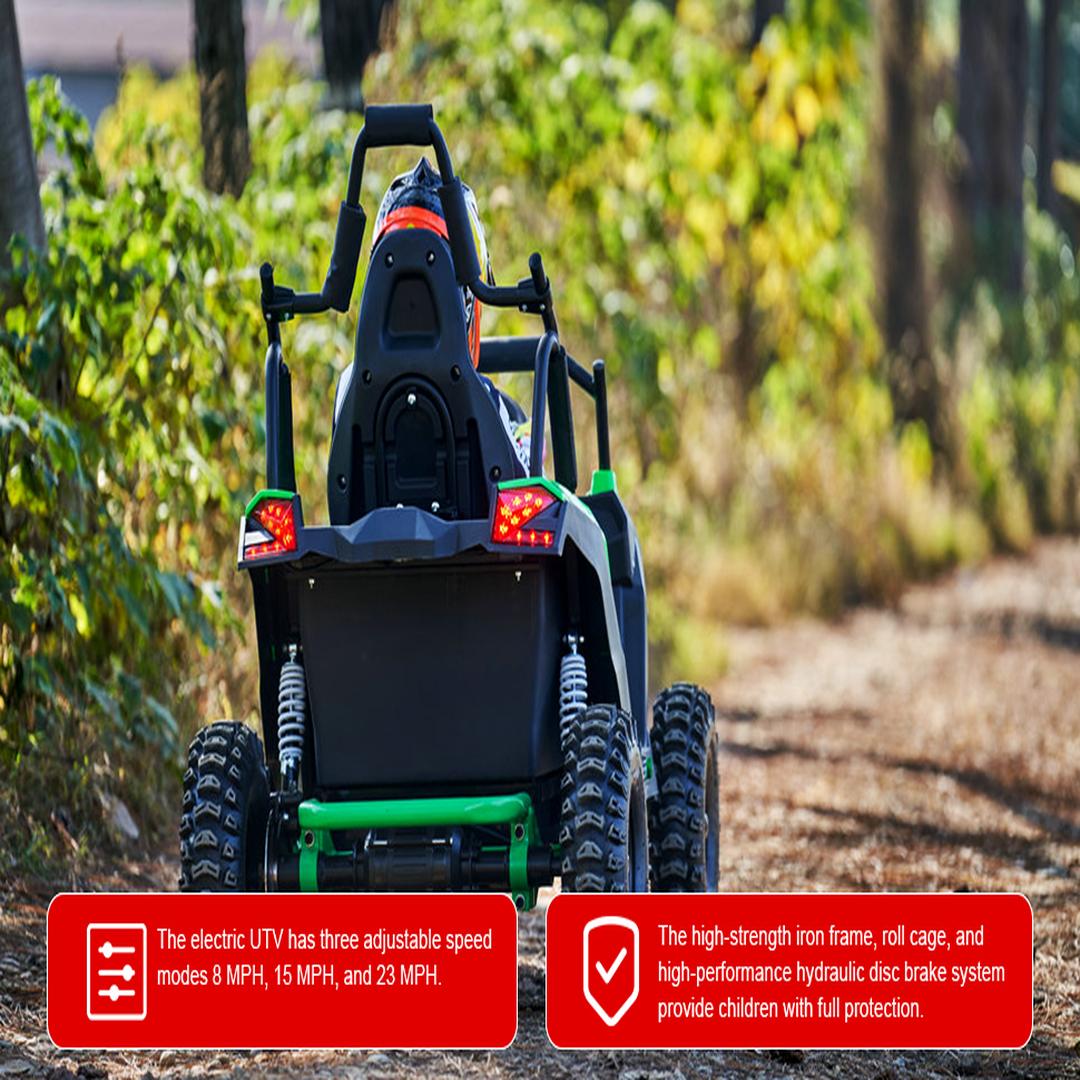

| Speed settings |
8 MPH, 15 MPH, and 23 MPH |
| Maximum rider weight |
165 lbs |
| Minimum ground clearance |
5 inches |
| Motor |
48v 1200w (Permanent Magnet DC Brushless) |
| Battery |
Four 12v/12ah Sealed Lead Acid (48v 12ah Total) |
| Recommended Age |
13 and up |
| Gears |
F/N/R |
| Transmission |
Shaft Drive |
| Max Rider Weight |
165lbs |
| Seat to Pedal Distance |
Approx 24 inches |
| Top Speed |
8mph/15mph/23mph |
| Distance Per Charge |
5 to 20 miles (weight, terrain dependent) |
| Forward & Reverse |
Yes |
| Safety Features |
Seat Belt, Roll Bar, Adjustable Seat |
| Suspension |
Dual Front Shock, Dual Rear Shock |
| Frame |
Steel Tubular |
| Front Wheels |
15x5.0-6 inches |
| Rear Wheels |
15x5.0-6 inches |
| Brake |
Foot operated Hydraulic Rear Disc |
| Climbing Angle |
15 degrees |
| Go Kart Weight |
196lbs |

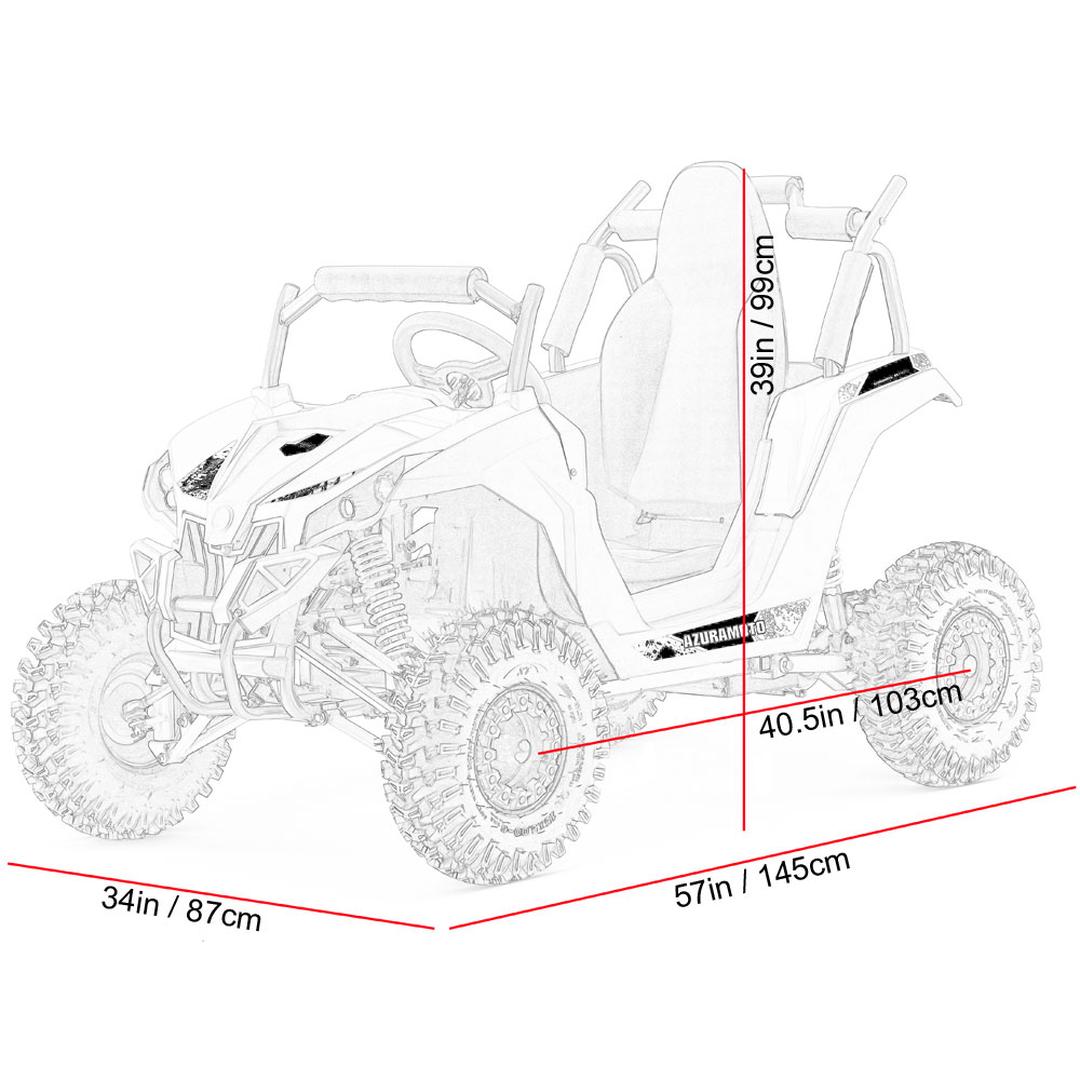

| Go Kart Size |
57x34x39 inches |
| Wheelbase |
40.5 inches |
| Min Ground Clearance |
5 inches |
| Box Weight |
232lbs |
| Box Size |
57x35x26 inches |
| Warranty |
60 Day Parts Replacement |
Safety and Riding Guidelines
-
Wear proper protective gear. Always wear an approved helmet. Goggles, gloves, elbow and knee pads, and long pants are strongly recommended. Wear lace-up shoes with rubber soles.
-
Ride only in safe, permitted areas. Use only on private property, dirt tracks, open fields, trails, and approved off-road recreation areas. Do not use on public streets, highways, sidewalks, bike lanes, or any public right-of-way.
-
Supervise younger riders. Adult supervision is required for all riders under 18. Confirm the rider meets the age, height, and weight guidance listed above.
-
Operate responsibly. Keep both hands on the controls, avoid high-risk maneuvers, and never operate while impaired or unwell.
-
Inspect before every ride. Check brakes, tire pressure, fasteners, throttle response, and battery or fuel level before riding.
-
Observe weight and weather limits. Do not exceed the maximum rider weight. Avoid riding in rain, storms, fog, or other extreme conditions, and keep electrical components away from water.
Assembly and Delivery
Assembly Option Explained: If you choose the assembly option, your product will be assembled and tested by our professional installers and strapped to a wood pallet and arrive Ready-To-Ride. Please allow an additional 1 to 5 days for the item to ship. If you are ordering 2 more products with assembly, please place individual orders for each single unit, our website does not calculate shipping correctly, we cannot stack multiple units per pallet. Failure to do so will delay your order because we will have to contact you to pay the additional shipping charge.
If you choose no assembly, the product will ship in the factory sealed box and will require assembly. Most items are 70% to 90% assembled in the box.
Lift Gate Service Explained: If you choose the lift gate option, the shipping company will arrive with a hydraulic lift on the back of their semi-trailer to lower your box/pallet to the ground. In most cases, 2 people can lift the box off the back of the truck.
Important — Recreational Outdoor Use Only
The MotoTec Raider Kids UTV 48V 1200W Full Suspension Blue is intended for off-road recreational use only. It is not a motor vehicle, is not street legal, and is not designed, sold, or approved for use on public streets, highways, sidewalks, bike lanes, or public roadways. Use only in safe, permitted off-road recreation areas with the landowner's permission. Always follow local rules and regulations and wear appropriate safety gear, including a helmet.
