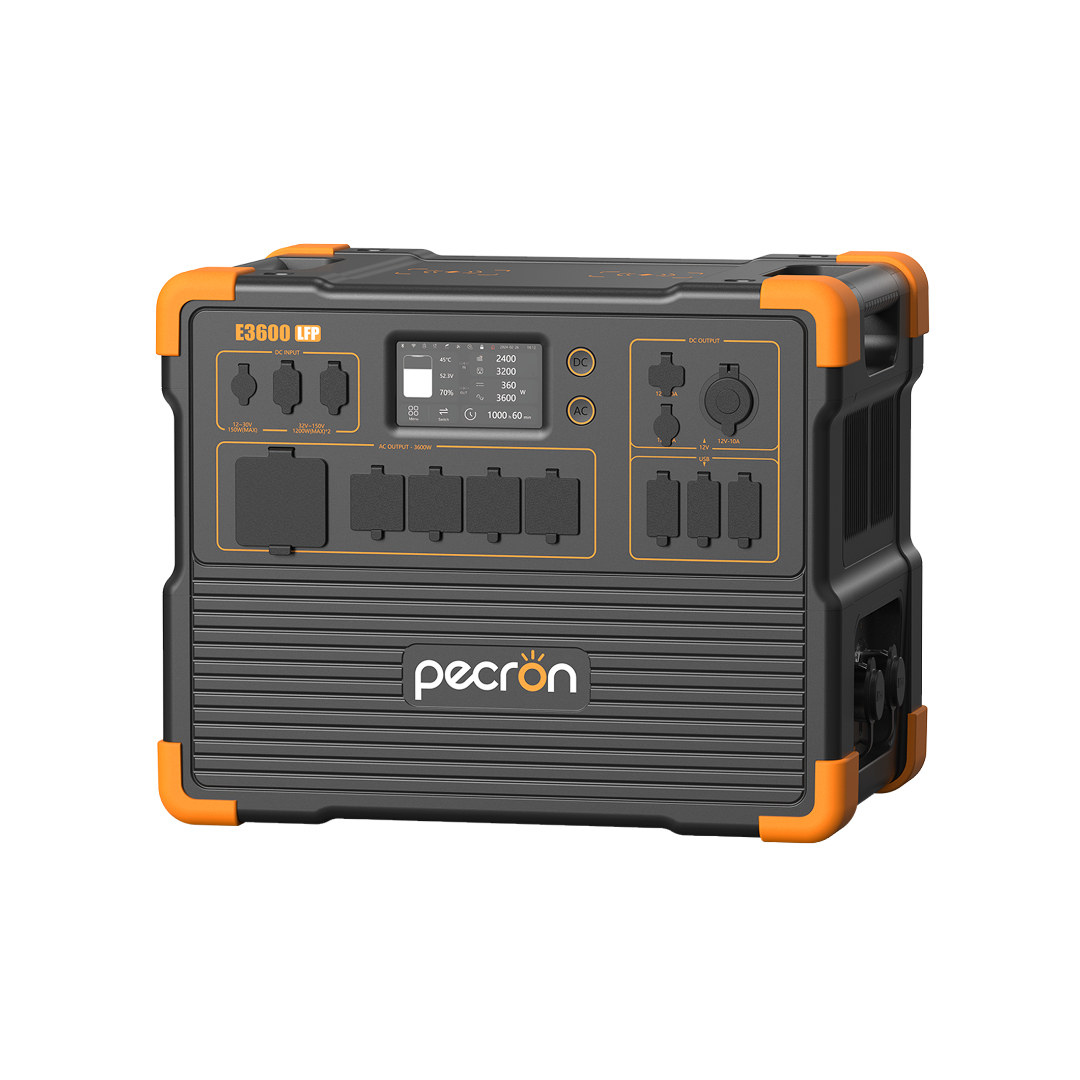

The PECRON E3600LFP is a high-capacity portable power station designed for home backup, outdoor use, mobile work, and other applications requiring dependable portable power. It combines a 3,072Wh LiFePO4 battery with a 3,600W pure sine wave AC output for operating compatible appliances and electronic equipment.

The system supports AC, solar, and vehicle charging, along with pass-through charging and UPS functionality. Multiple AC, USB, DC, and wireless outputs allow several compatible devices to be powered from one unit. Its capacity can also be expanded by connecting compatible EP3000-48V expansion batteries.

Key Features

  • High-Capacity Power: Provides 3,072Wh of battery capacity with a rated 3,600W pure sine wave AC output.
  • LiFePO4 Battery: Uses a LiFePO4 battery rated for more than 3,500 cycles before reaching 80% of its original capacity.

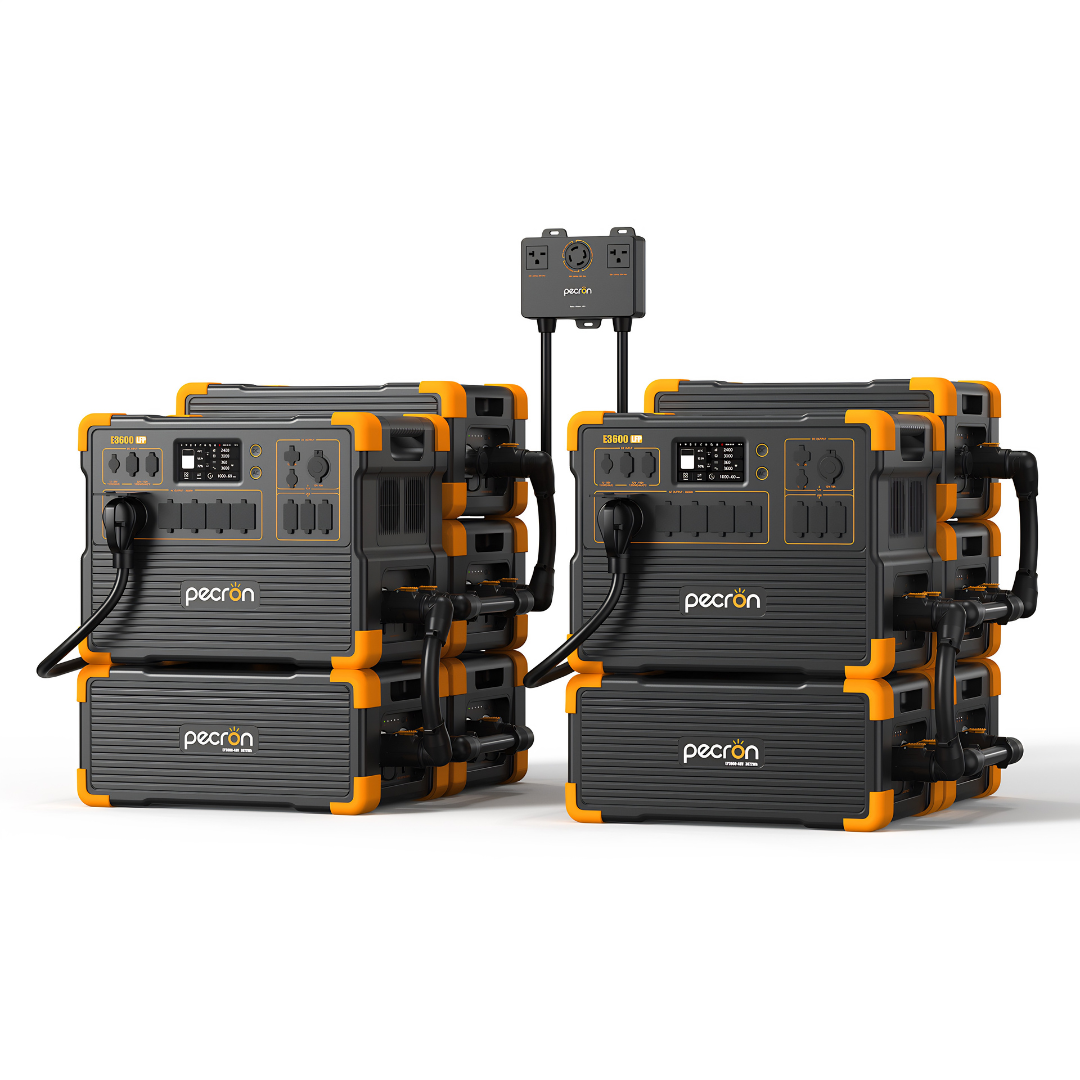

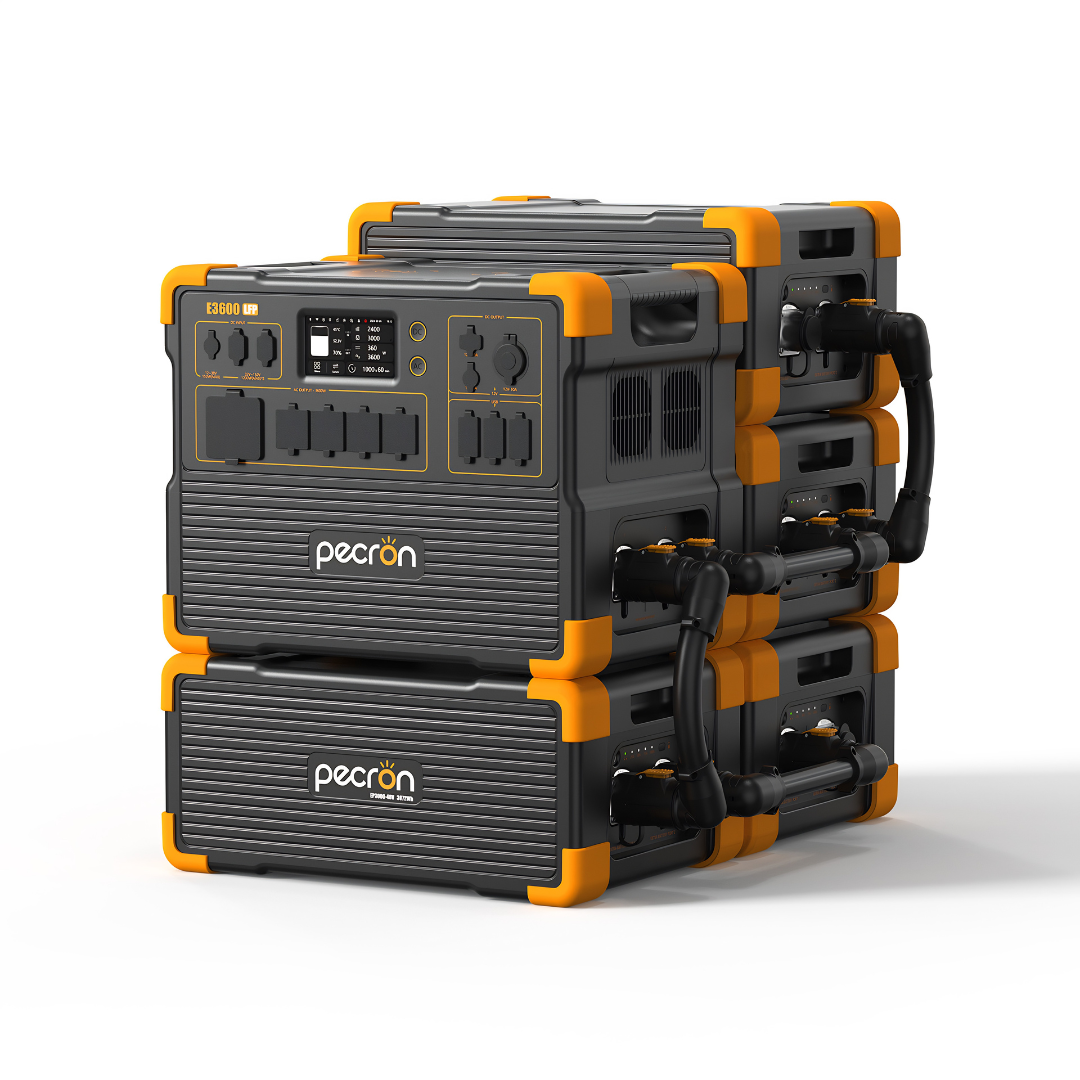

  • Expandable Capacity: Supports up to four compatible EP3000-48V expansion battery packs for a maximum confirmed system capacity of 15,360Wh.
  • Fast AC Charging: Supports up to 1,800W AC input with a 15A charging cable and up to 3,200W with a compatible 30A charging cable.
  • Solar Charging: Features two independent high-voltage MPPT inputs rated at up to 1,200W each, plus a low-voltage input rated at up to 150W.
  • Multiple Outputs: Includes four AC outlets, one TT30-R outlet, four USB-A ports, two USB-C ports, XT60-F output, cigar lighter output, DC5525 output, and two wireless charging areas.
  • UPS Function: Provides an automatic transfer time of approximately 8–20 milliseconds for compatible loads below 3,600W.
  • App Connectivity: Supports Wi-Fi connectivity for compatible app-based monitoring and control.
  • Pass-Through Charging: Can power connected devices while the power station itself is charging.
  • Touchscreen Display: Displays battery level, battery temperature, voltage, input and output power, estimated charging or discharging time, expansion battery status, and operating indicators.

Specifications

  • Battery Capacity: 3,072Wh (51.2V, 60Ah)
  • Battery Type: LiFePO4
  • Battery Cycle Life: More than 3,500 cycles to 80% capacity
  • Rated AC Output: 3,600W maximum
  • AC Output Waveform: Pure sine wave
  • AC Output Voltage: 100V–120V
  • AC Outlets: Four BS-U20 outlets and one TT30-R outlet
  • USB-A Outputs: Four ports, each supporting 5V, 9V, or 12V output up to 18W
  • USB-C Outputs: One port supporting up to 18W and one port supporting up to 100W
  • XT60-F Output: 12V, 30A
  • Cigar Lighter Output: 12V, 10A
  • DC5525 Output: 12V, 5A
  • Wireless Charging: Two charging areas, up to 15W each
  • AC Input: 100V–120V, 50/60Hz
  • AC Charging Input with 15A Cable: Up to 1,800W
  • AC Charging Input with Compatible 30A Cable: Up to 3,200W
  • Low-Voltage DC Input: 12V–30V, 7A maximum, 150W maximum
  • High-Voltage DC Inputs: Two 32V–150V inputs, 20A maximum and 1,200W maximum per input
  • Maximum Confirmed Solar Input: 2,400W through the two high-voltage inputs
  • Expansion Battery Support: Up to four EP3000-48V expansion batteries
  • Maximum Expanded Capacity: 15,360Wh
  • UPS Transfer Time: Approximately 8–20 milliseconds
  • Charging Temperature: 32°F–113°F
  • Discharging Temperature: -4°F–113°F
  • Dimensions: 17.5 × 12.1 × 13.8 inches
  • Net Weight: Approximately 79 lb.

Included

  • PECRON E3600LFP Portable Power Station
  • 15A AC charging cable
  • Single-port XT60-to-MC4 solar charging cable
  • Parallel dual-port XT60-to-MC4 solar charging cable
  • Slotted screwdriver
  • Accessory pouch
  • User instructions
