Product Description

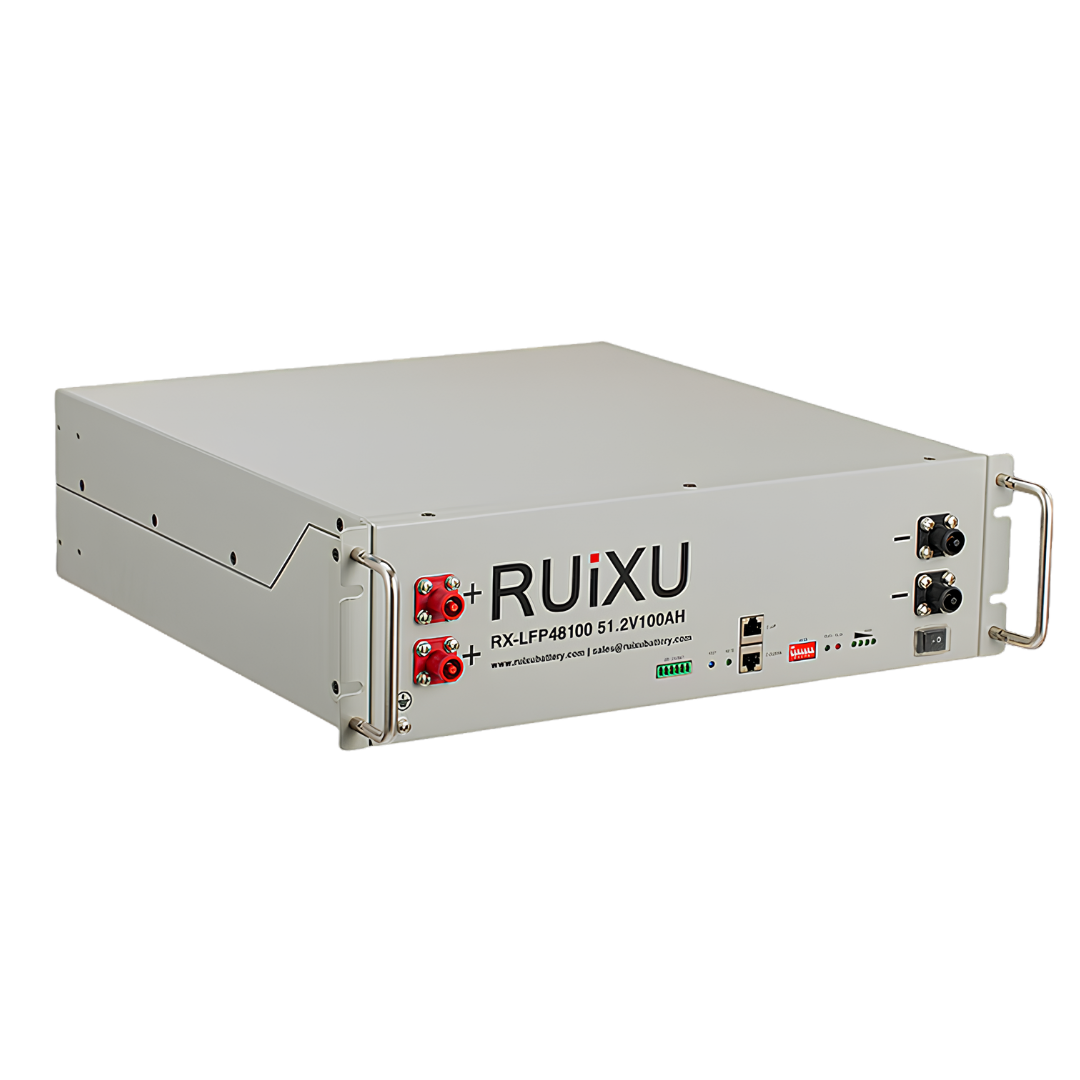

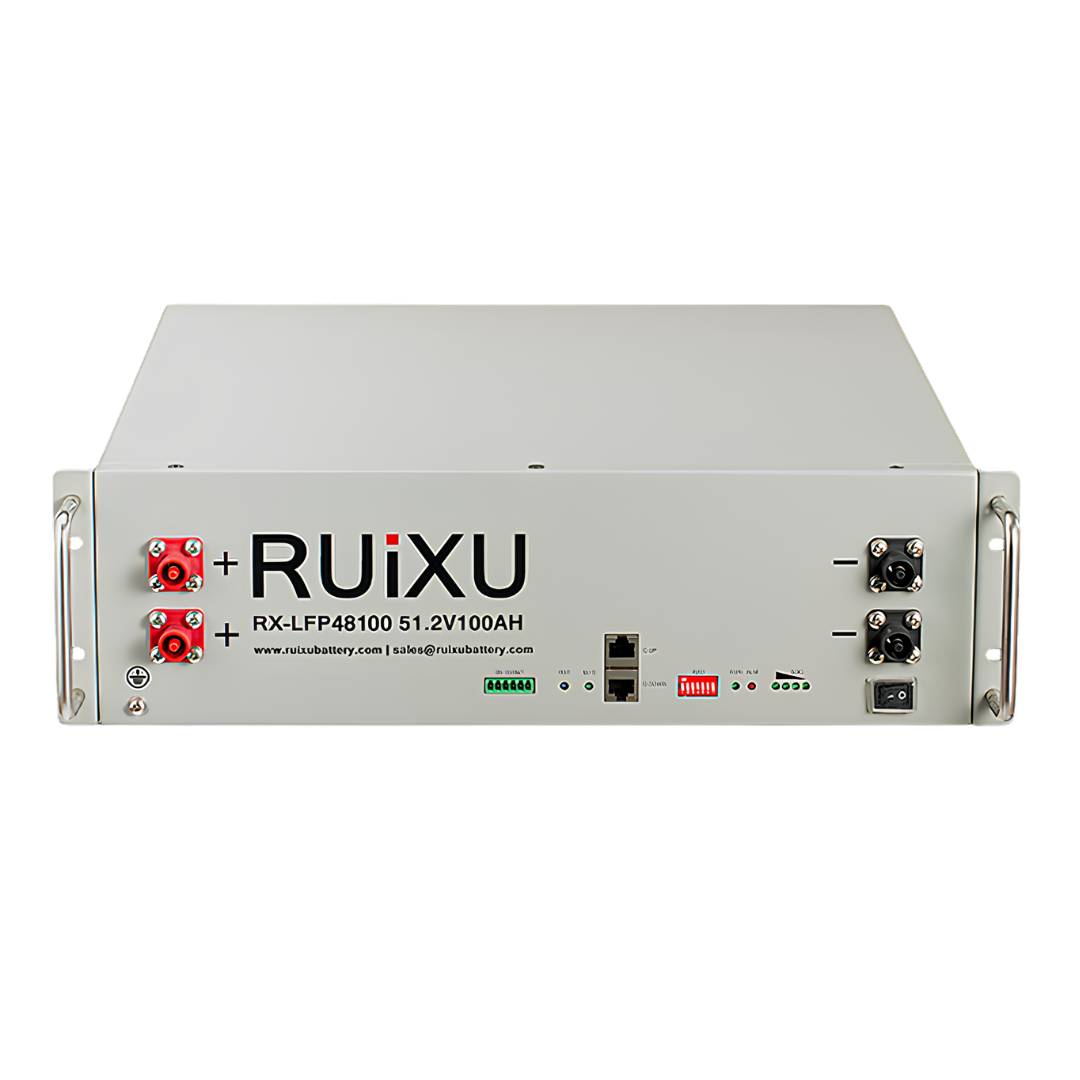

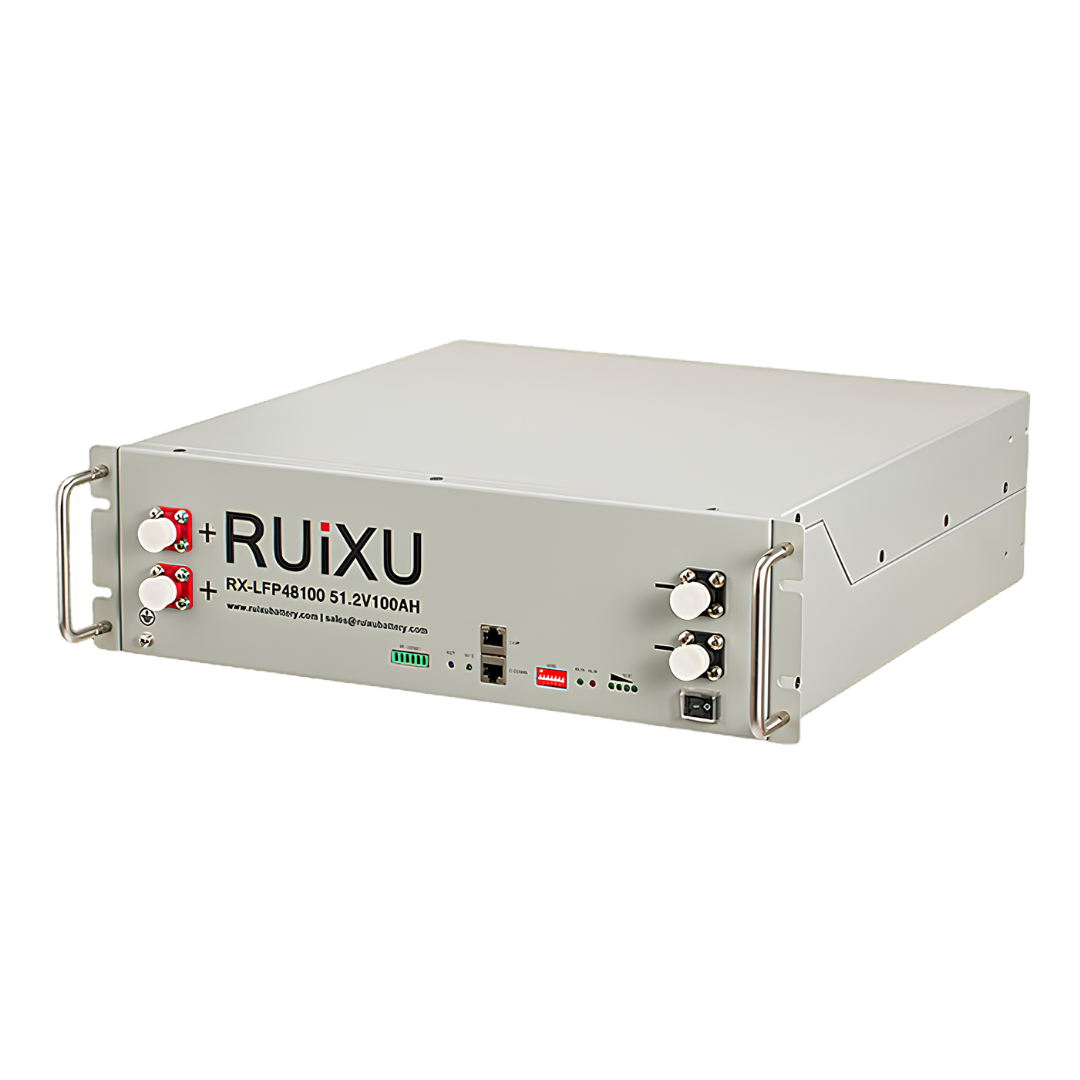

The RX-LFP48100 is a 19-inch rack-mounted 3U lithium iron phosphate battery module designed for expandable 48V energy storage systems. It provides 5.12kWh of nominal energy, 4.92kWh of usable energy, and a 100Ah nominal capacity.

The modular design supports up to 32 units in parallel, allowing the battery system to scale from 5kWh to 160kWh without an external controller. RS485 and CAN communication provide support for the inverter protocols confirmed on the product page.

The battery supports rack-mounted, wall-mounted, floor-mounted, and stacked installations. It is certified to UL1973 and has completed UL9540A testing.

Key Features

Rack-Mounted Design: Built as a 19-inch 3U battery module for space-efficient installation.
Expandable Configuration: Supports up to 32 units in parallel and system configurations from 5kWh to 160kWh without an external controller.
Inverter Protocol Selection: DIP address settings are used to select the RS485 baud rate and inverter protocol.
CAN Communication Compatibility: Compatible protocols listed on the product page include Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
RS485 Communication Compatibility: Compatible protocols listed on the product page include MPP, Voltronic, RCT, Alpha, and OutBack.
Multiple Installation Options: Supports wall-mounted, floor-mounted, stacked, and rack-mounted installation.
Certified Battery Module: Certified to UL1973 and tested to UL9540A.

Specifications

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Energy: 5.12kWh
Usable Energy: 4.92kWh
Operating Voltage Range: 44.8V–56.0V
Charge Voltage: 56V
Float Voltage: 54.6V
Recommended Charge Current: 50A
Maximum Charge Current: 70A
Recommended Discharge Current: 50A
Maximum Discharge Current: 100A
Communication: RS485 and CAN
Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
IP Rating: IP20
Cycle Life: At least 6,000 cycles at 90% depth of discharge
Net Weight: Approximately 103.6 lb.
Dimensions: 18.9 in. W × 5.2 in. H × 18.1 in. D
Cell Type: Lithium iron phosphate (LiFePO4)
Design Life: 15 years
Operating Temperature: 14°F–122°F
Storage Temperature: 14°F–113°F
Relative Humidity: 5%–90%, non-condensing
Maximum Installation Altitude: 13,123 ft.
Installation Location: Indoor
Installation: Wall mounted, floor mounted, stacked, or rack mounted
Certifications: UL9540A, CE, IEC 62619, UL1973, and UN38.3
Test Conditions: 90% depth of discharge with a 0.2C charge and discharge rate at 77°F
Usable Energy Note: System usable energy may vary depending on the inverter brand
Temperature Derating: Derating occurs from 14°F–50°F and from 104°F–122°F

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cables
(1) Ground Cable
(1) Set of Parallel 4AWG Cables per battery
