Ruixu

RUiXU Lithium Batteries Kits | 15kWH, 20kWH, 25kWH, 30kWH | CEC | SGIP

SKU RX-15kWH-C
$3,776.00
$3,776.00
🔥 — sold in the last —
— people are looking at this right now

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

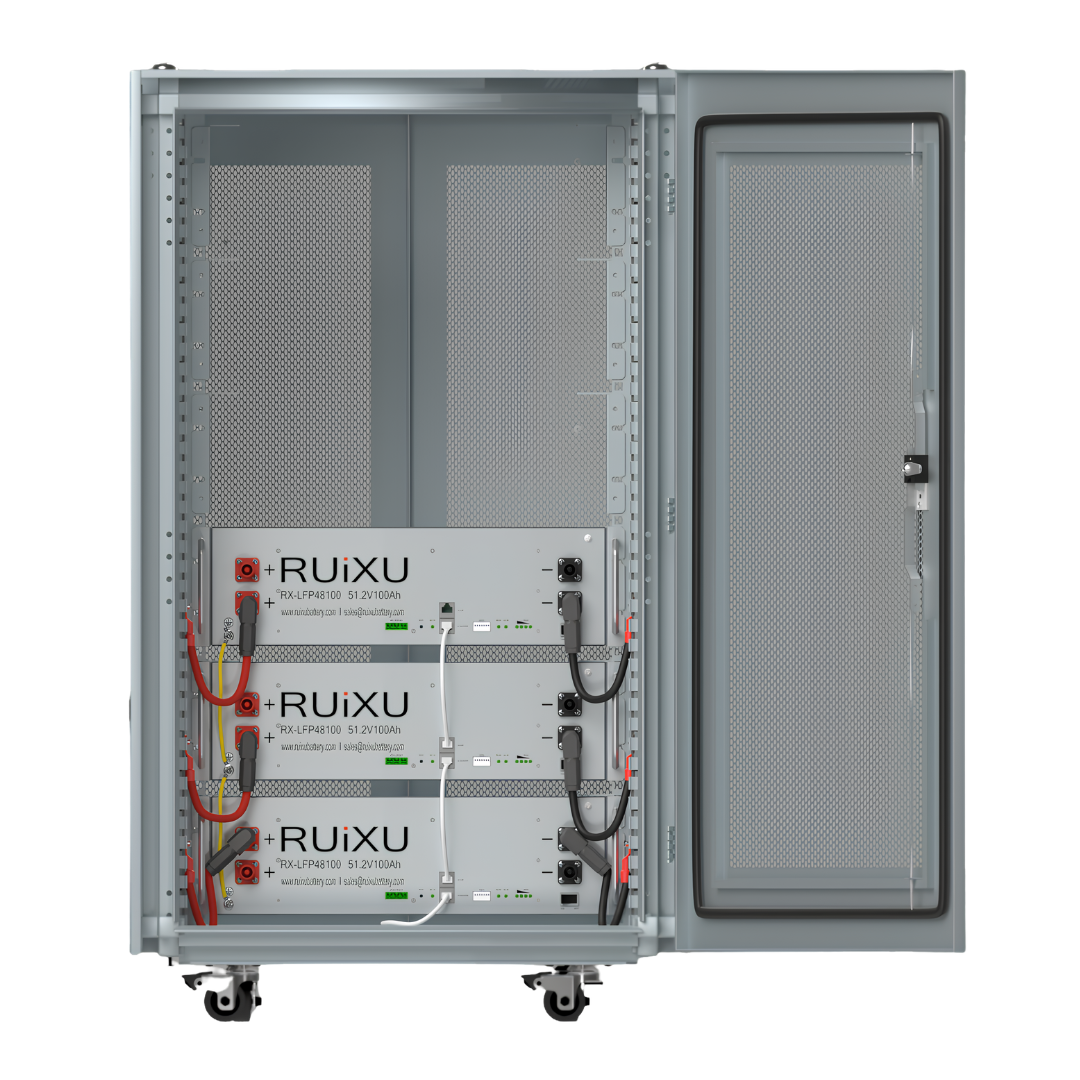

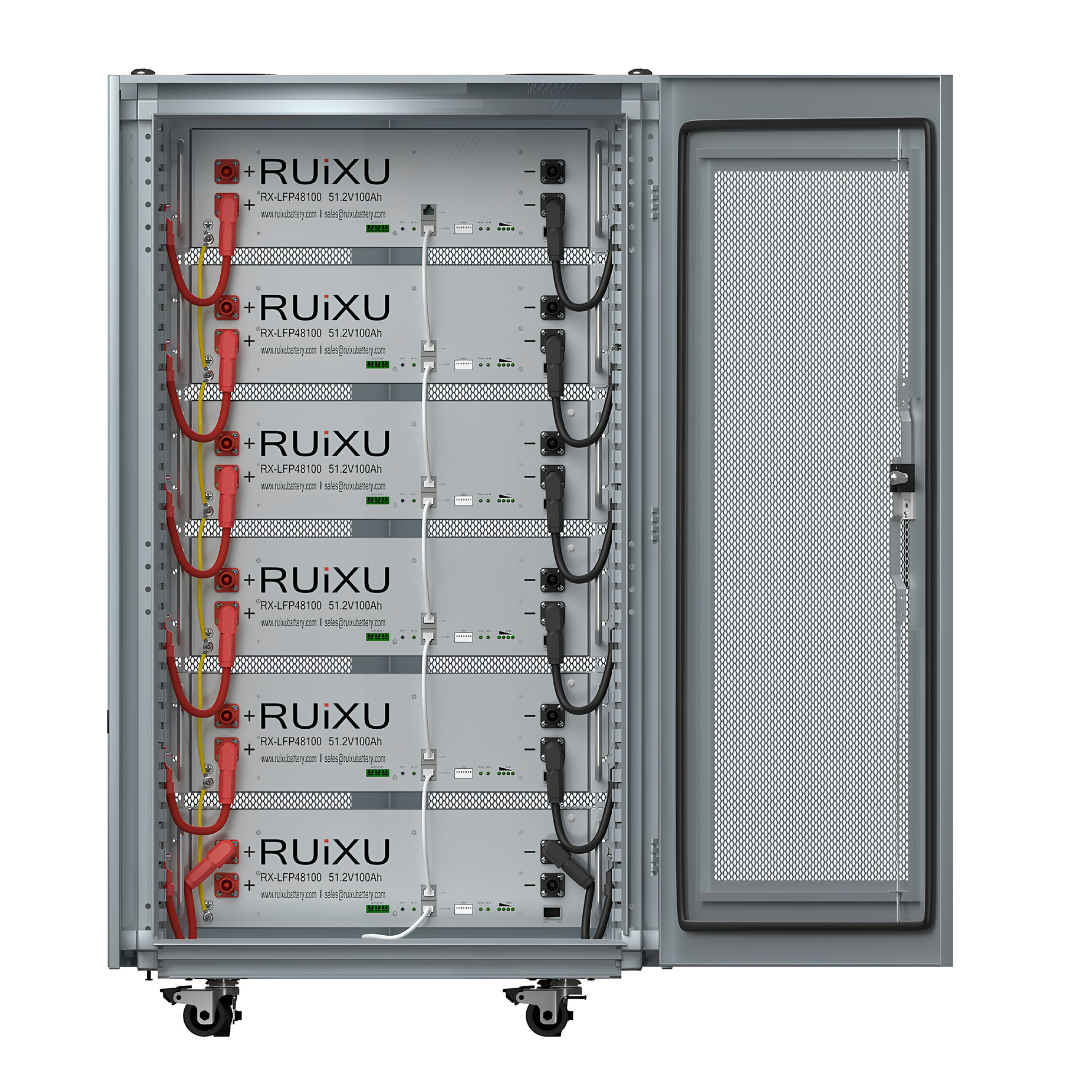

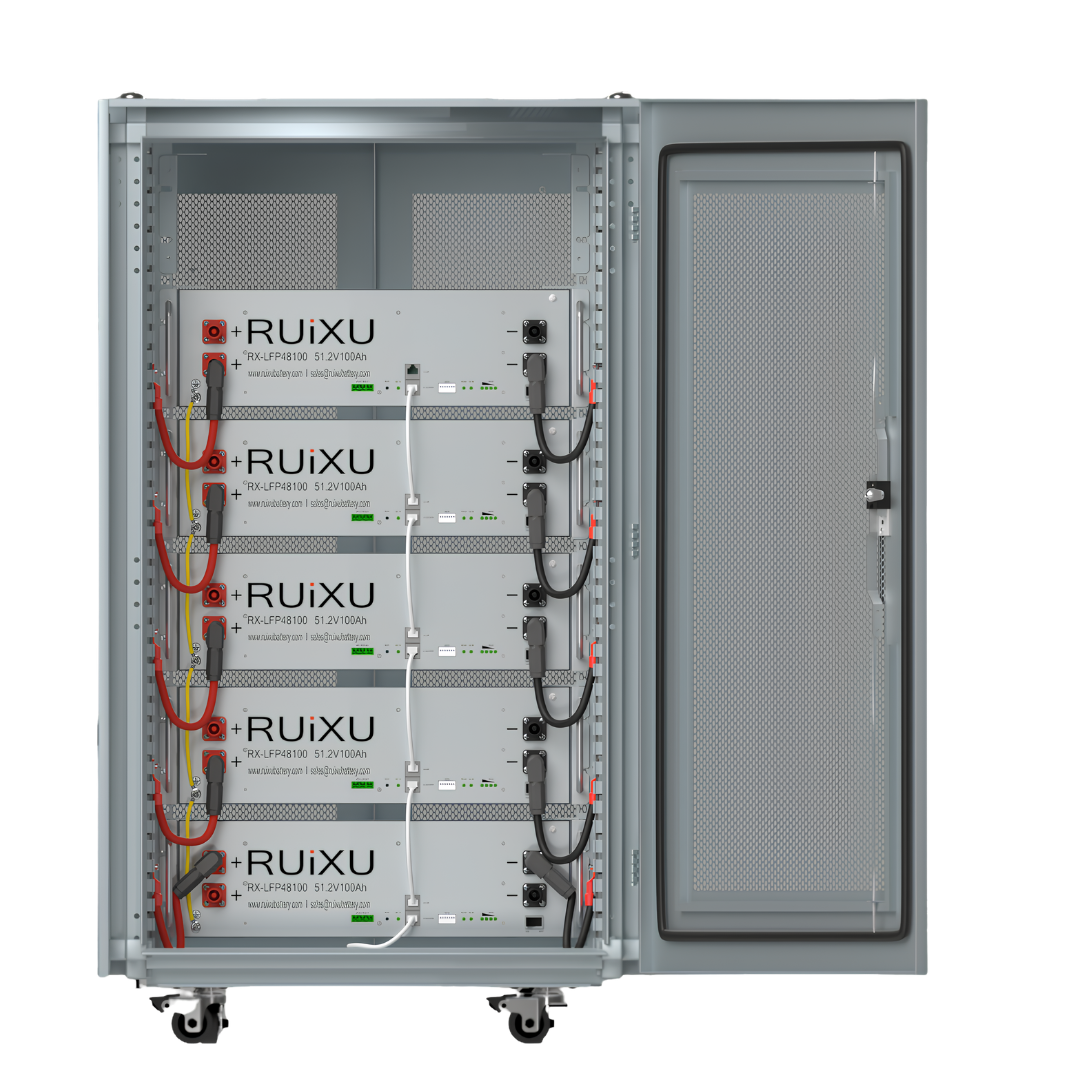

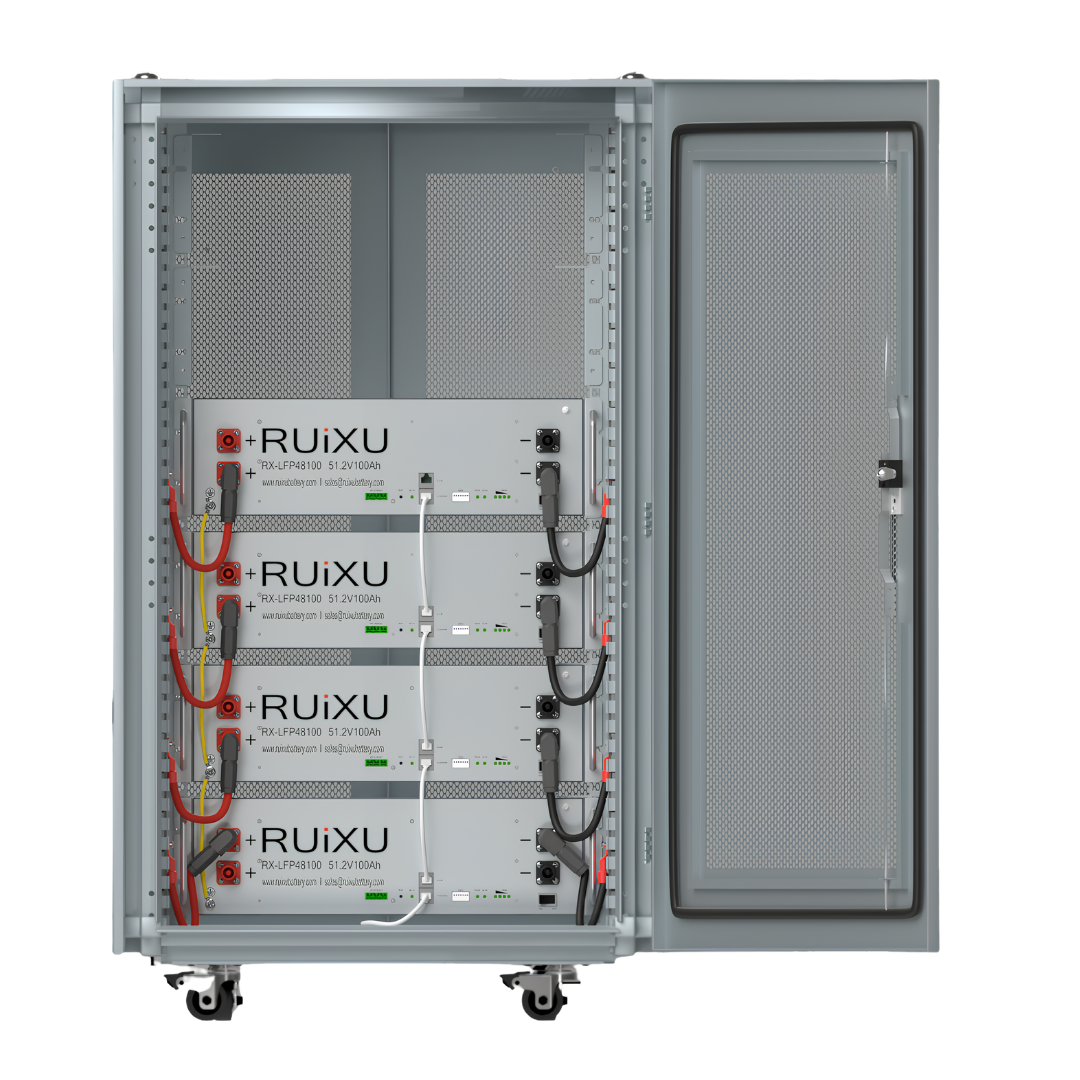

The RUiXU Lithium Batteries Kits provide centralized 48V lithium iron phosphate energy storage in 15kWh, 20kWh, 25kWh, and 30kWh configurations. Each configuration uses the RX-LFP48100 19-inch 3U server rack battery, with each battery providing 5.12kWh of nominal energy and 4.92kWh of usable energy.

The modular system supports up to 32 batteries in parallel and can scale from 5kWh to 160kWh without an external controller. DIP address settings allow selection of the RS485 baud rate and inverter protocol, while RS485 and CAN communication support the inverter protocols confirmed on the product page.

The batteries support rack-mounted, floor-mounted, wall-mounted, and stacked installation. The product page identifies the kits as CEC and SGIP and confirms UL1973 certification and completed UL9540A testing.

Key Features

  • Multiple Kit Configurations: Available in 15kWh, 20kWh, 25kWh, and 30kWh configurations.
  • 3U Server Rack Design: Uses an ultra-thin 19-inch 3U battery format for compact and flexible installation.
  • Expandable Battery System: Supports up to 32 batteries in parallel and configurations from 5kWh to 160kWh without an external controller.
  • Inverter Protocol Selection: DIP address settings are used to select the RS485 baud rate and inverter protocol.
  • CAN Communication Compatibility: Compatible protocols listed on the product page include Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
  • RS485 Communication Compatibility: Compatible protocols listed on the product page include MPP, Voltronic, RCT, Alpha, and OutBack.
  • Multiple Installation Options: Supports rack-mounted, floor-mounted, wall-mounted, and stacked installation.
  • Pre-Charge Capability: Each battery has a confirmed pre-charge capability of 1,000,000µF.
  • Certifications and Testing: The product page confirms UL1973 certification and completed UL9540A testing.

Specifications

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah per battery
  • Nominal Energy: 5.12kWh per battery
  • Usable Energy: 4.92kWh per battery
  • Operating Voltage Range: 44.8V–56.0V
  • Charge Voltage: 56V
  • Float Voltage: 54.6V
  • Recommended Charge Current: 50A
  • Maximum Charge Current: 70A
  • Recommended Discharge Current: 50A
  • Maximum Discharge Current: 100A
  • Communication: RS485 and CAN
  • Peak Discharge Current: 101–119A for 5 minutes; 120–149A for 15 seconds
  • IP Rating: IP20
  • Cycle Life: At least 6,000 cycles at 90% depth of discharge
  • Net Weight: Approximately 103.6 lb. per battery
  • Dimensions: 18.9 in. W × 5.2 in. H × 18.1 in. D per battery
  • Cell Type: Lithium iron phosphate (LiFePO4)
  • Design Life: 15 years
  • Operating Temperature: 14°F–122°F
  • Storage Temperature: 14°F–113°F
  • Relative Humidity: 5%–90%, non-condensing
  • Maximum Installation Altitude: 13,123 ft.
  • Installation Location: Indoor
  • Installation: Wall mounted, floor mounted, stacked, or rack mounted
  • Certifications: UL9540A, CE, IEC 62619, UL1973, and UN38.3
  • Test Conditions: 90% depth of discharge with a 0.2C charge and discharge rate at 77°F
  • Usable Energy Note: System usable energy may vary depending on the inverter brand
  • Temperature Derating: Derating occurs from 14°F–50°F and from 104°F–122°F

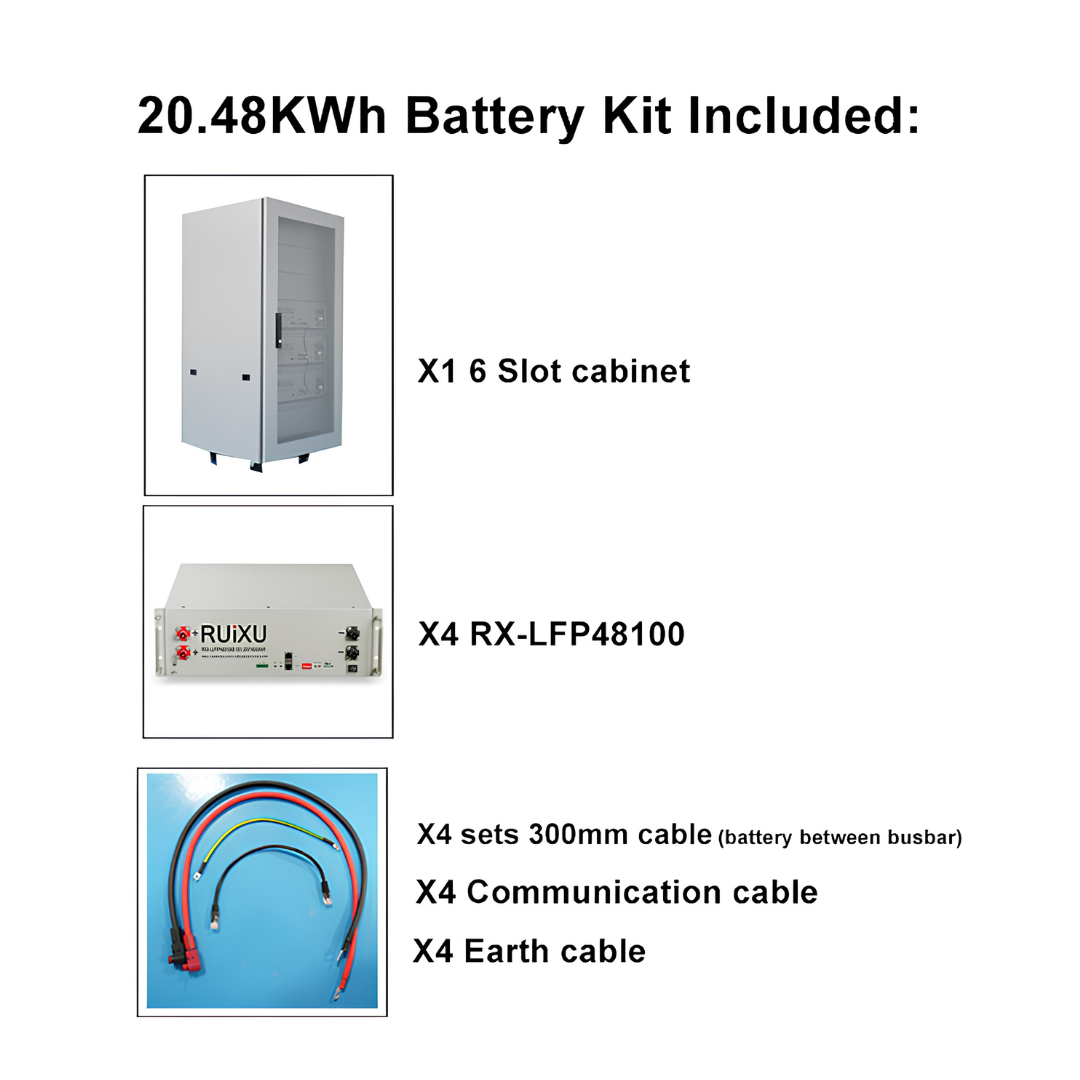

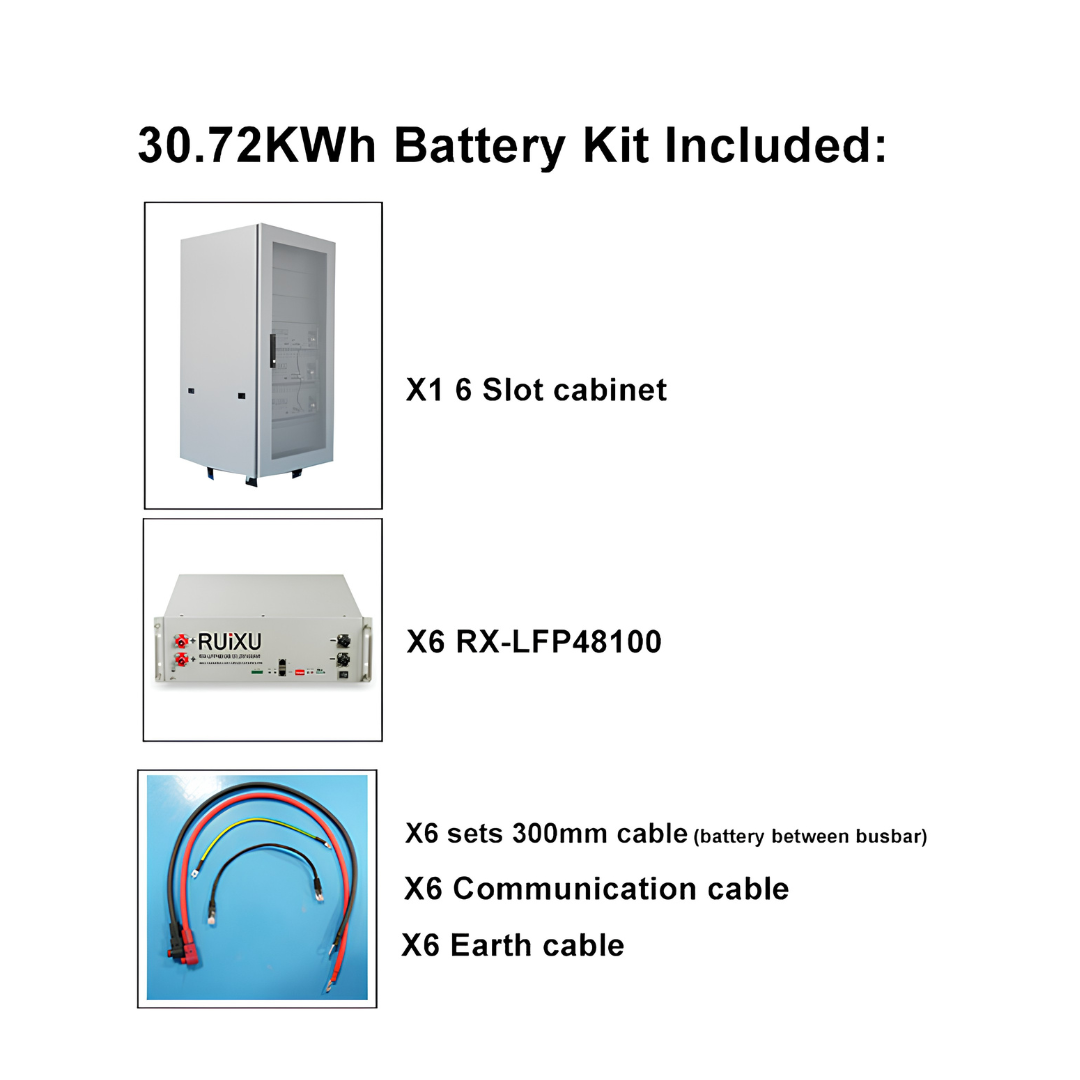

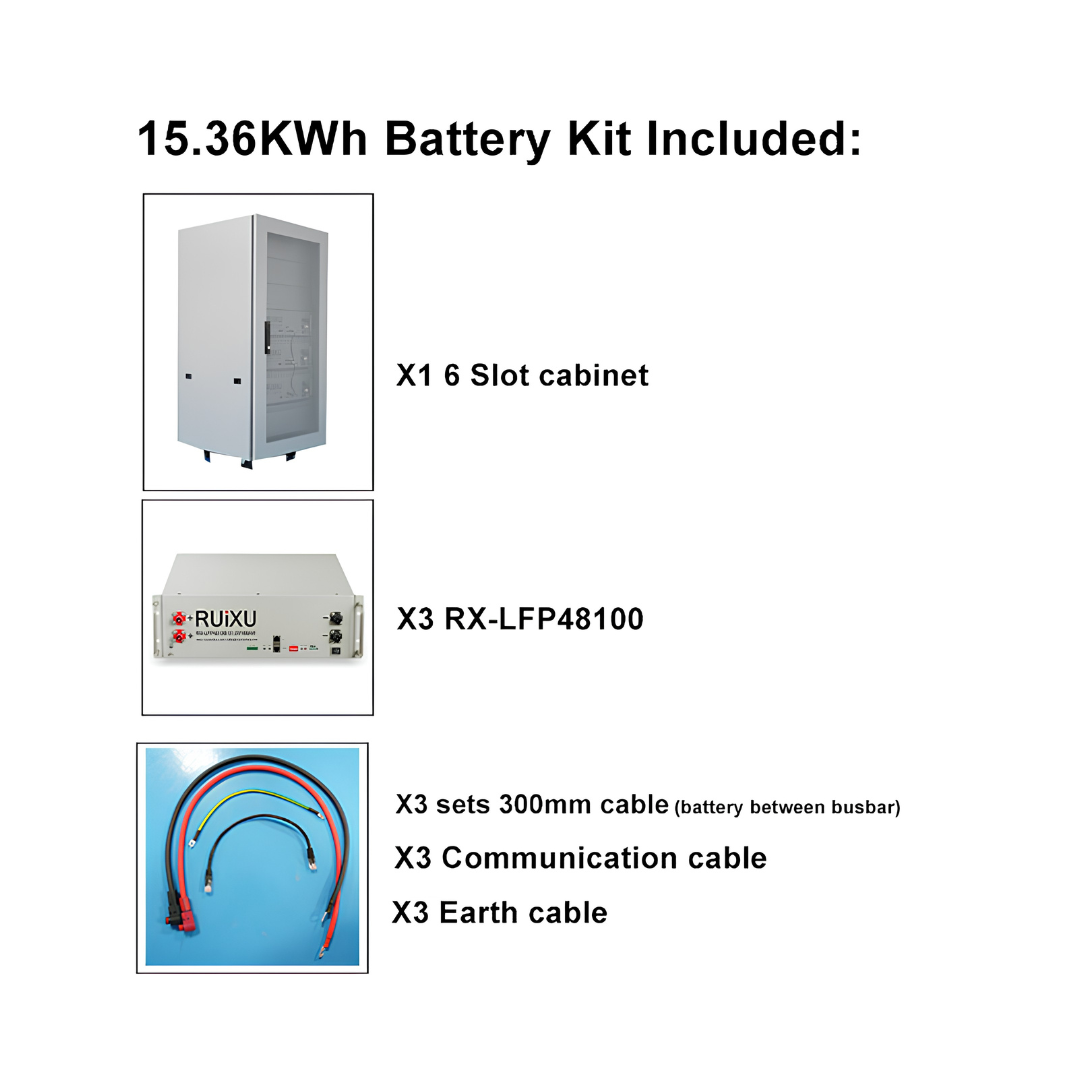

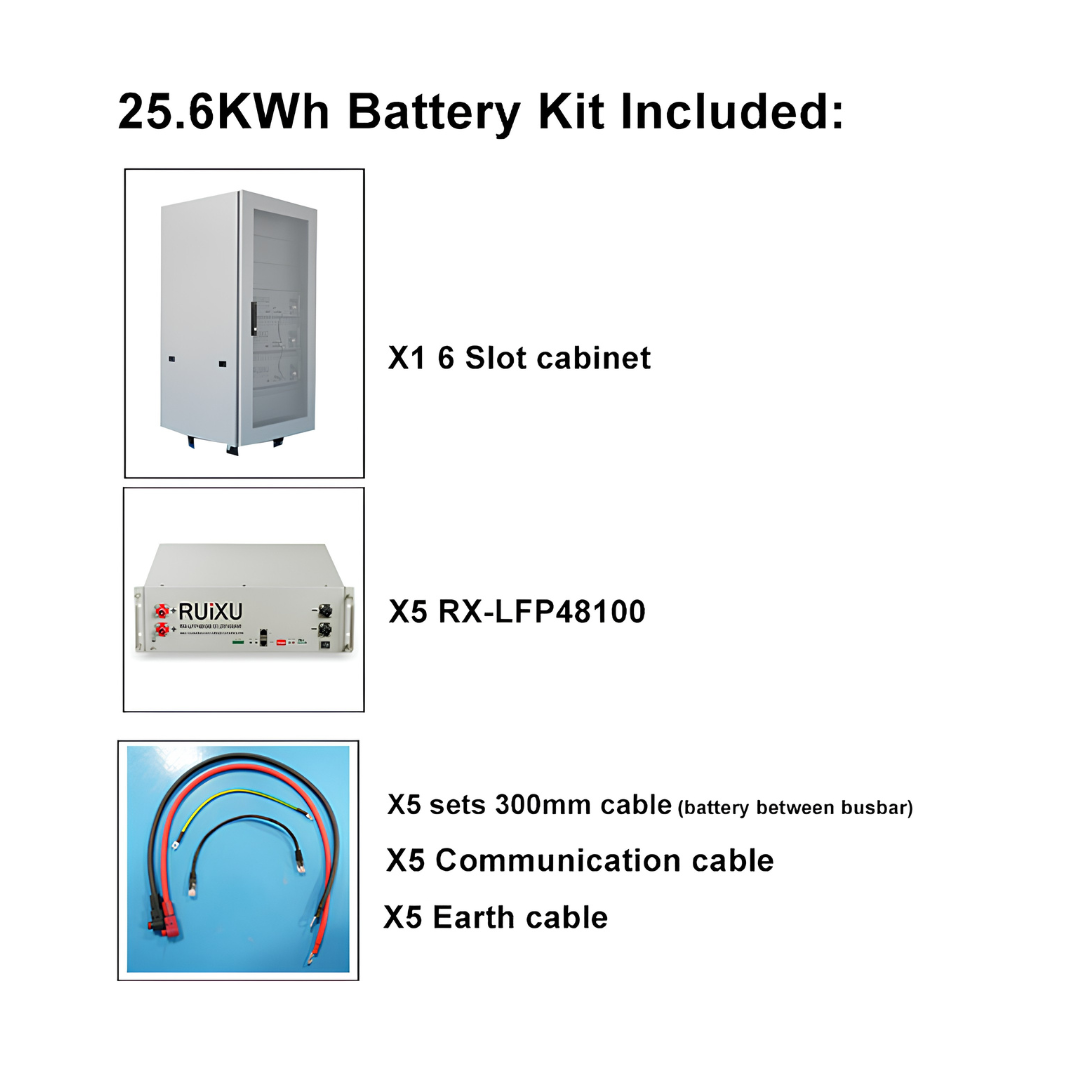

Standard Included

  • (1) RUiXU 48V Server Rack battery (RX-LFP48100)
  • (1) RJ45/CAT5e Patch Cable
  • (1) Ground Cable
  • (1) Set of Parallel 4AWG Cables  per battery
