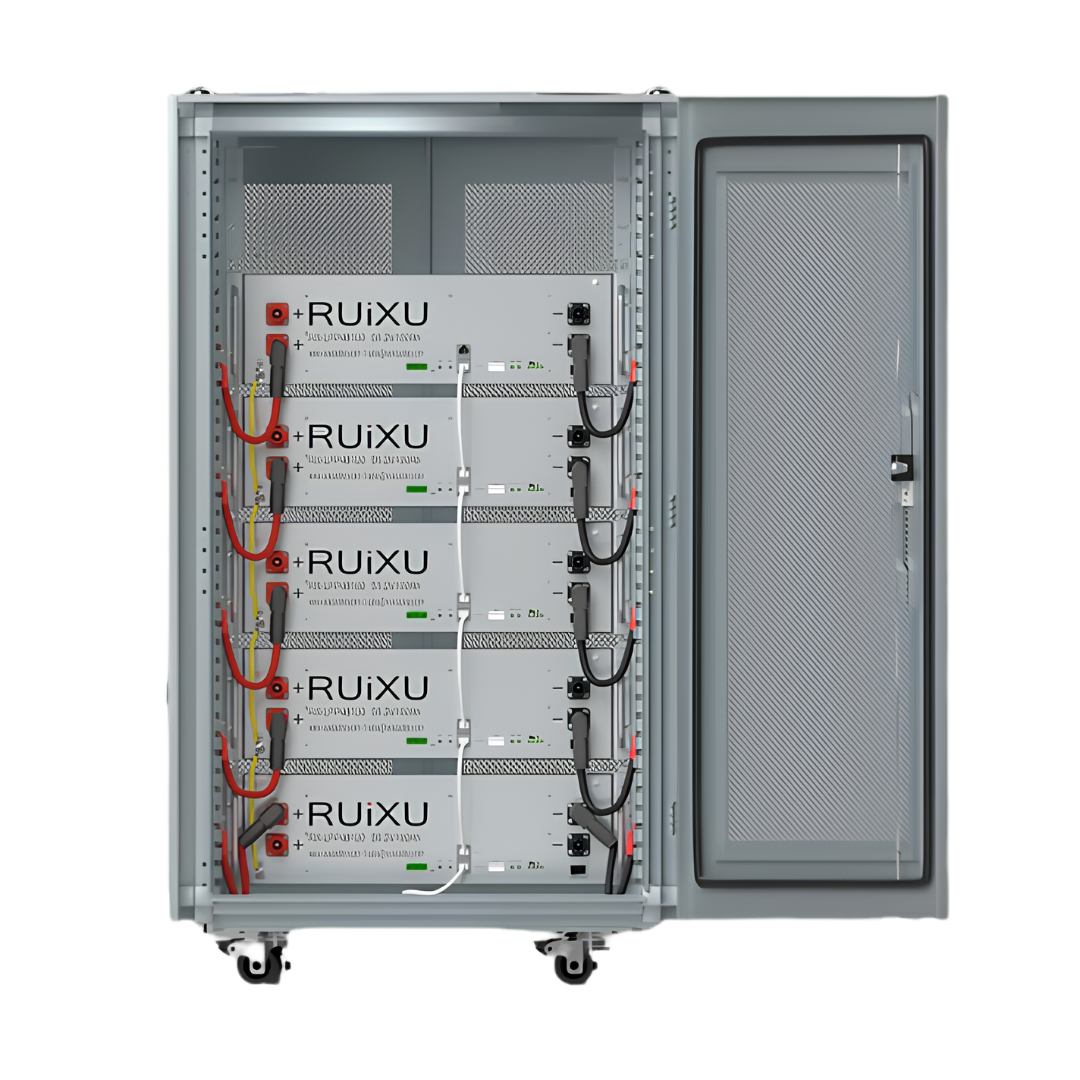

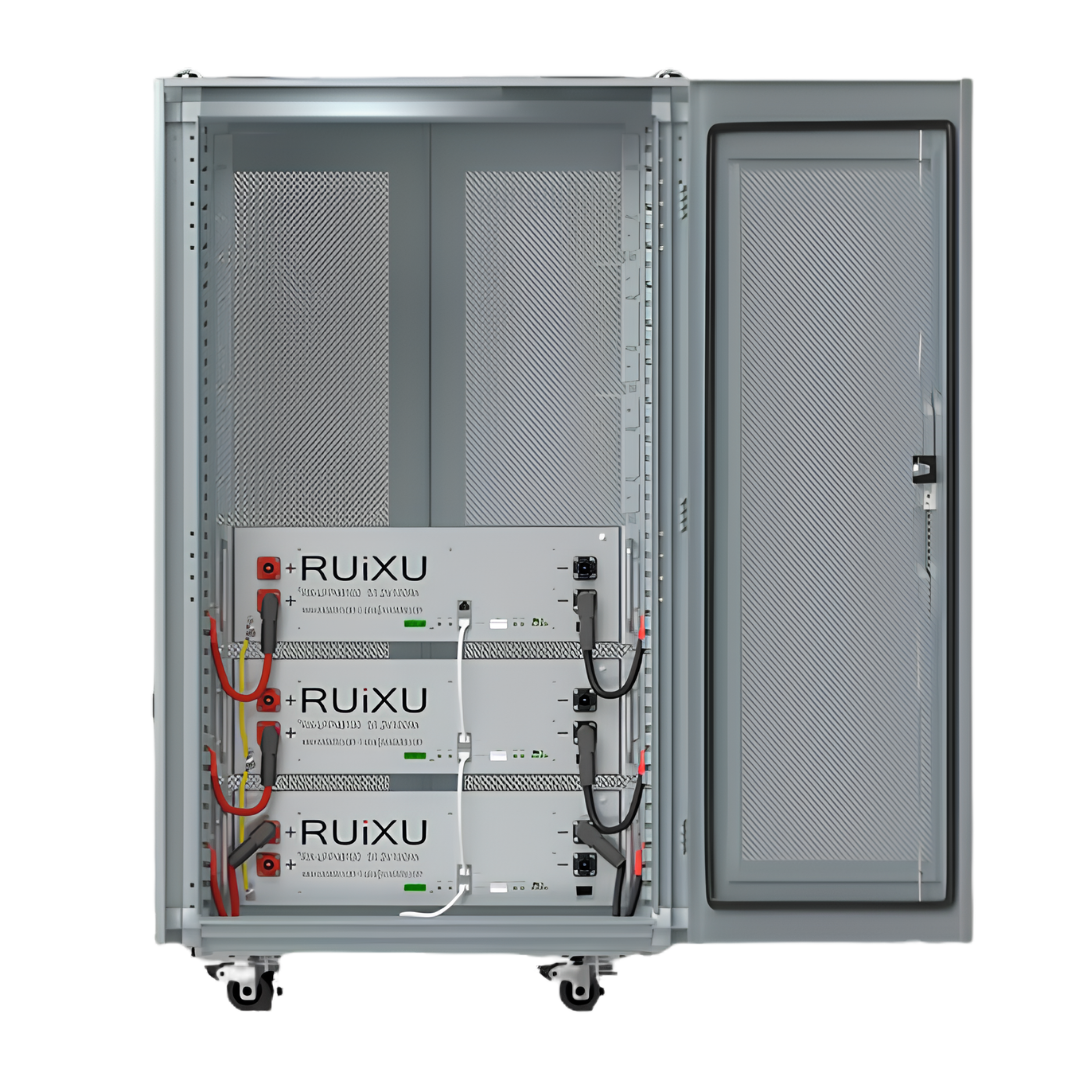

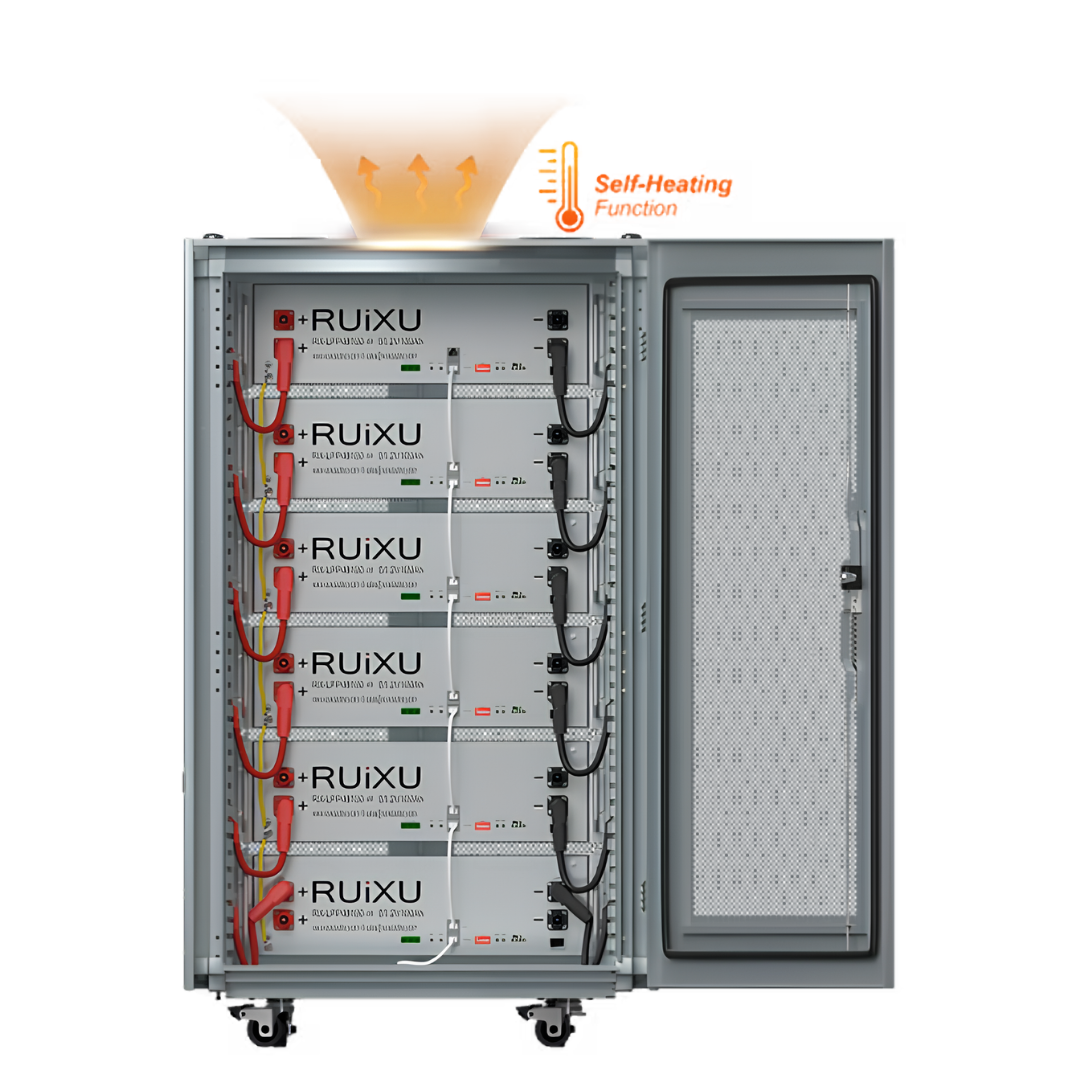

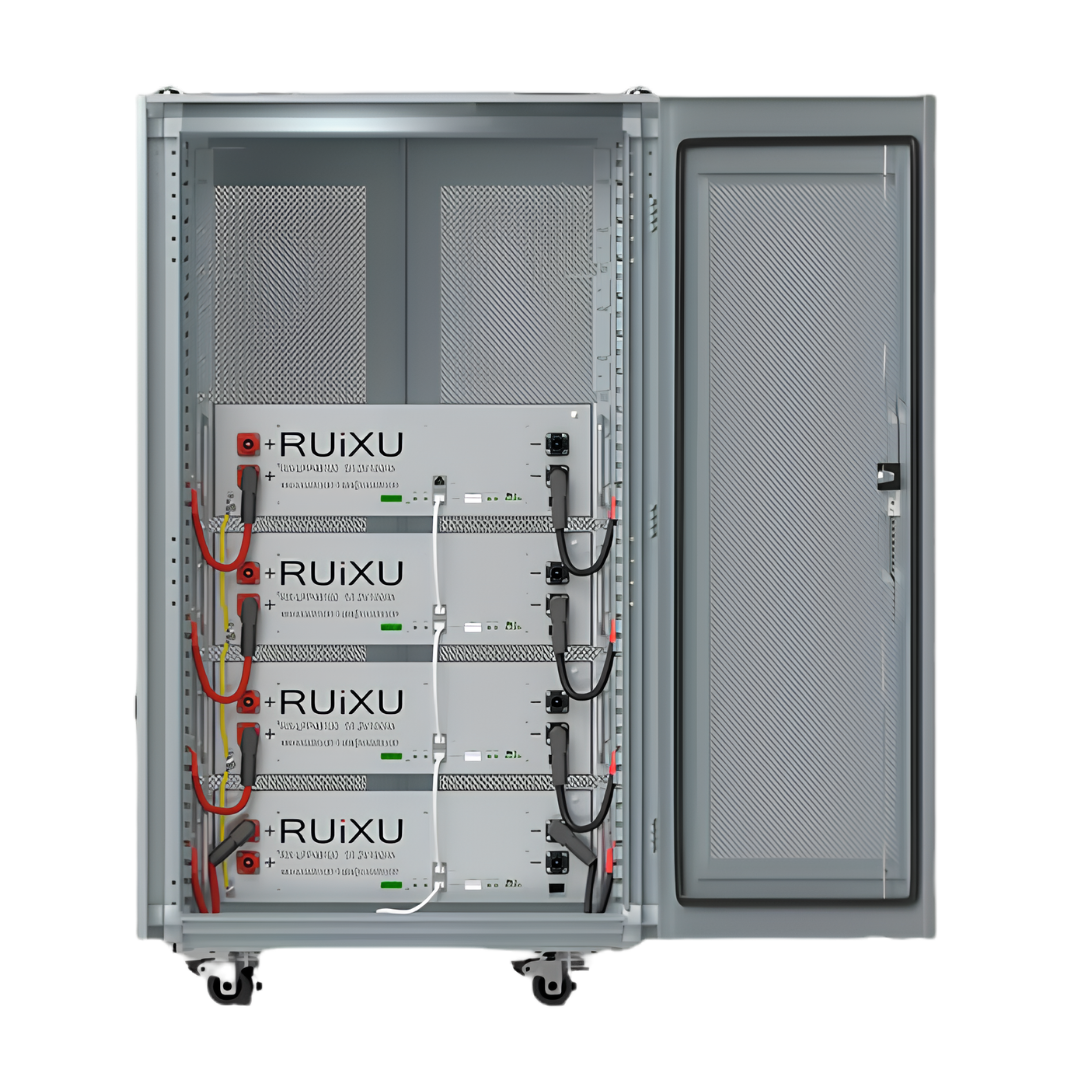

The RUiXU Lithium Batteries Kits combine self-heating 48V server rack batteries with a pre-assembled six-slot battery cabinet. The product is available in 15kWh, 20kWh, 25kWh, and 30kWh configurations, with each configuration including the corresponding number of batteries and connection components.

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Nominal Energy: 5.12kWh
  • Usable Energy: 4.92kWh
  • Operating Voltage Range: 44.8V-56.0V
  • Charge Voltage: 56V
  • Float Voltage: 54.6V
  • Recommended Charge Current: 50A
  • Maximum Charge Current: 70A
  • Recommended Discharge Current: 50A
  • Maximum Discharge Current: 100A
  • Communication: RS485 and CAN
  • Peak Discharge Current: 101-119A for 5 minutes; 120-149A for 15 seconds
  • IP Rating: IP20
  • Cycle Life: At least 6,000 cycles at 90% depth of discharge
  • Net Weight: Approximately 103.6 lb.
  • Dimensions: 18.9 in. W x 5.2 in. H x 18.1 in. D
  • Cell Type: Lithium iron phosphate (LiFePO4)
  • Design Life: 15 years
  • Operating Temperature: 14F-122F
  • Storage Temperature: 14F-113F
  • Relative Humidity: 5%-90%, non-condensing
  • Maximum Installation Altitude: 13,123 ft.
  • Installation Location: Indoor
  • Installation: Wall mounted, floor mounted, stacked, or rack mounted
  • Certifications: UL9540A, CE, IEC 62619, UL1973, and UN38.3
  • Heater Voltage: 56V
  • Heater Power Consumption: 480W
  • Self-Heating Function: Self-heating starts at or below 41F and stops at or above 53.6F
  • Test Conditions: 90% depth of discharge, 0.2C charge and discharge rate at 77F
  • Usable Energy Note: System usable energy may vary by inverter brand
  • Temperature Derating: Derating occurs from 14F-50F and from 104F-122F

  • Self-Heating Operation: Heater pads draw power from the charger and allow the battery to charge safely at temperatures down to -4F.
  • Multiple Kit Configurations: Available in 15kWh, 20kWh, 25kWh, and 30kWh configurations containing three to six self-heating batteries.
  • Expandable Battery System: Supports up to 32 batteries in parallel and can scale from 5kWh to 160kWh without an external controller.
  • Inverter Protocol Selection: DIP address settings are used to select the RS485 baud rate and inverter protocol.
  • CAN Communication Compatibility: Compatible protocols listed on the product page include Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
  • RS485 Communication Compatibility: Compatible protocols listed on the product page include MPP, Voltronic, RCT, Alpha, and OutBack.
  • Installation Flexibility: Supports wall-mounted, floor-mounted, stacked, and rack-mounted installation.
