Ruixu

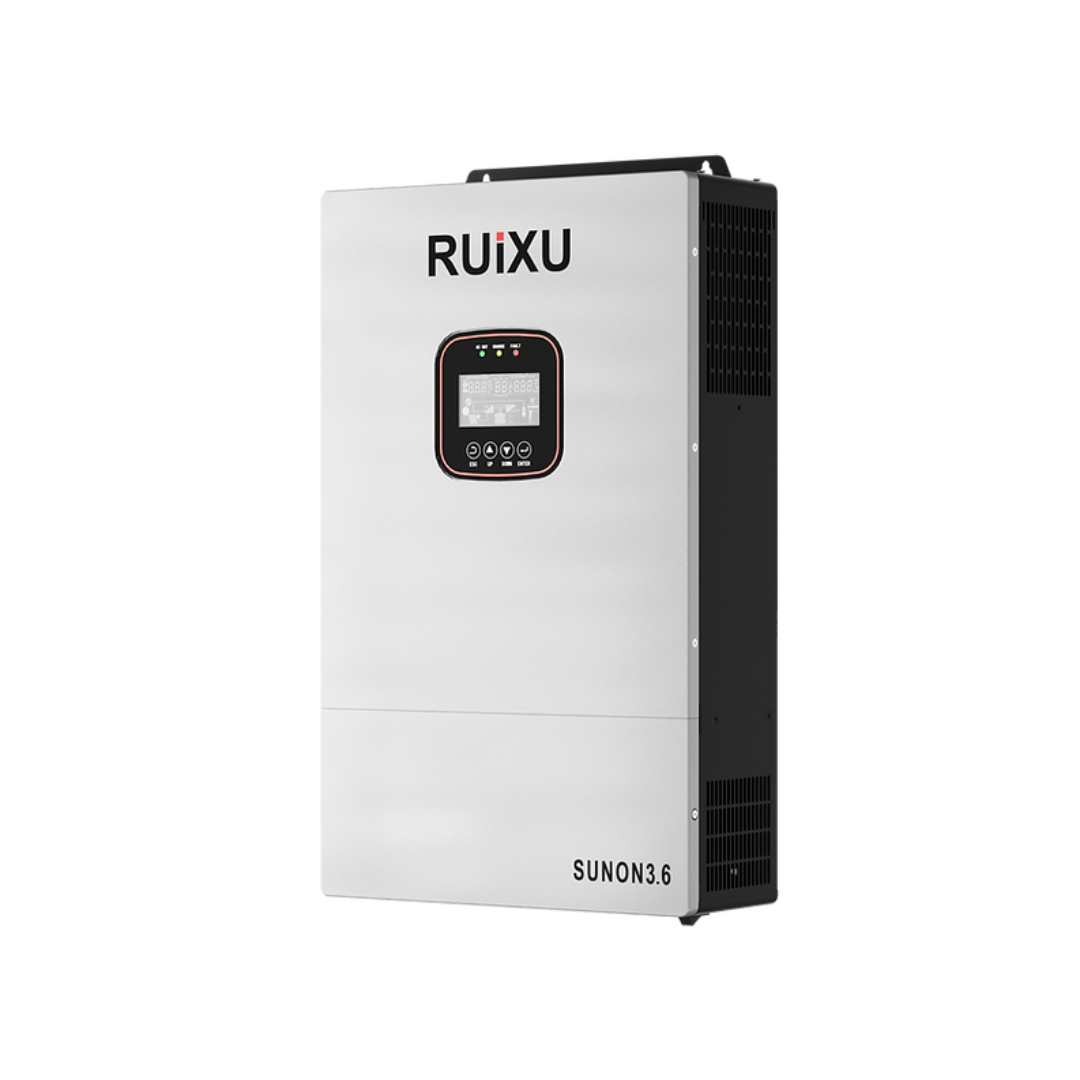

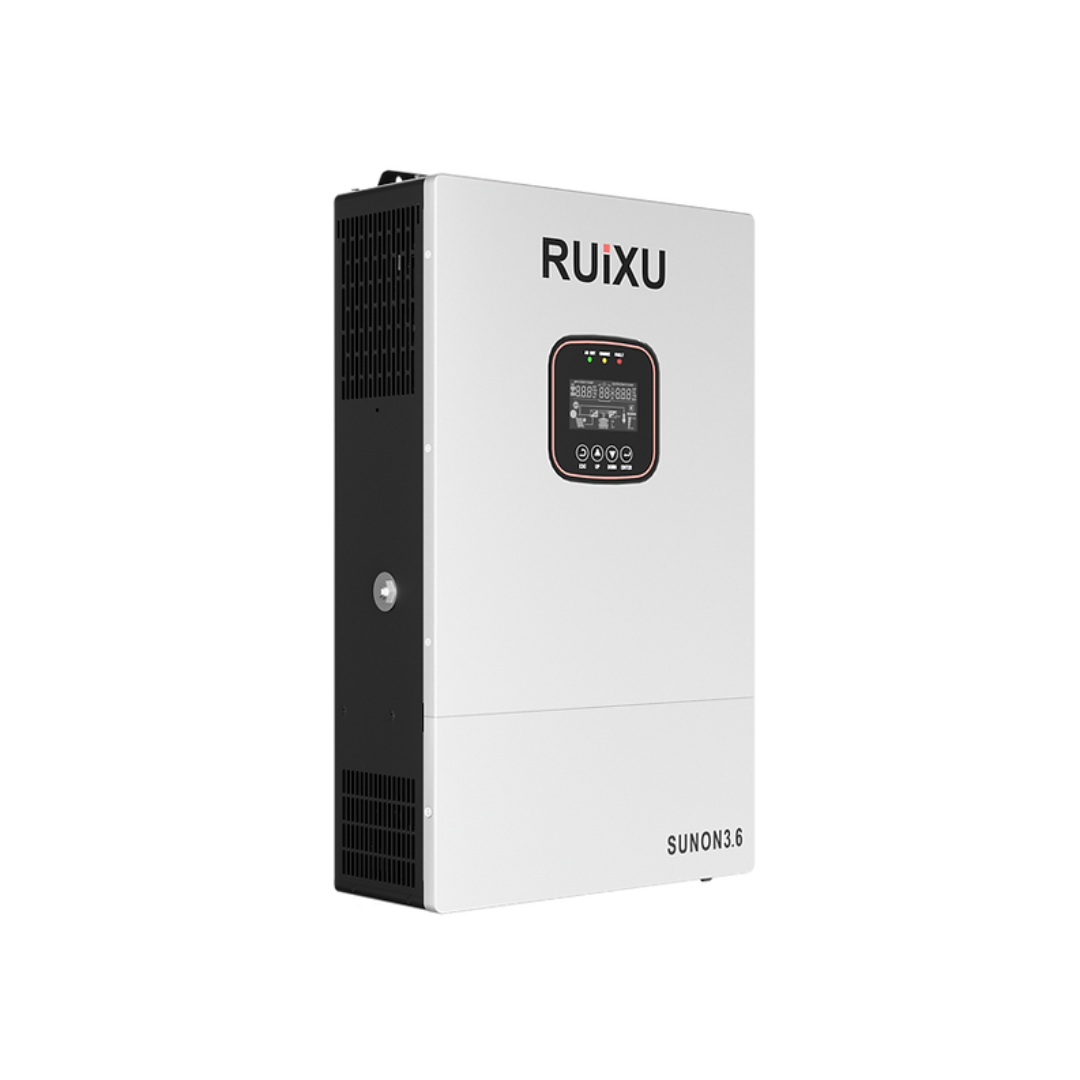

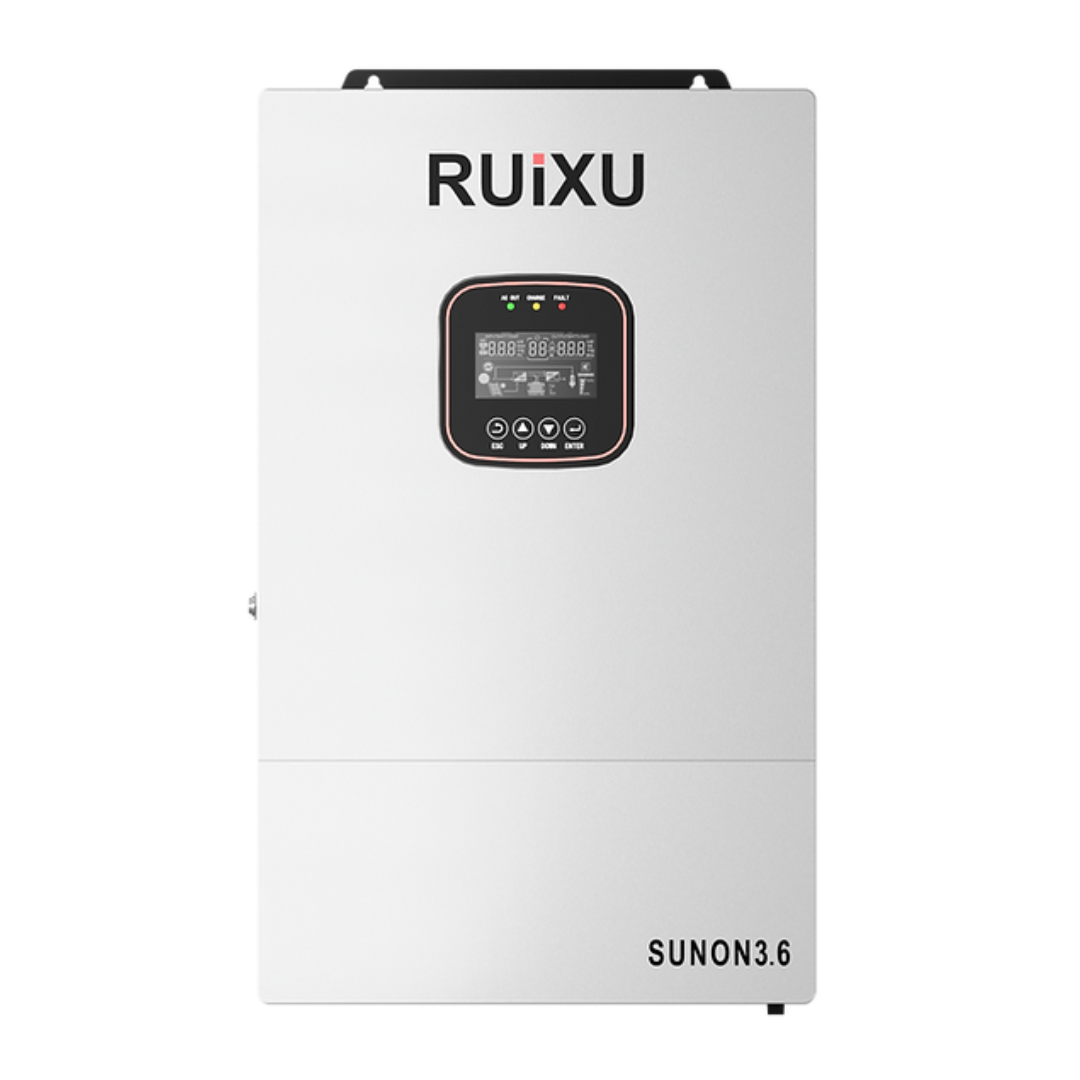

RUiXU Single-Phase Off-Grid Inverter | SUNON3.6 | 3.6kW | UL1741

SKU SUNON3.6
$519.00
$519.00
🔥 — sold in the last —
— people are looking at this right now

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

This 3.6kW all-in-one off-grid inverter provides 120 Vac single-phase pure sine wave output for residential and commercial solar energy systems. It supports 48V lithium-ion, lead-acid, and user-defined battery configurations.

The inverter accepts up to 4,500W of solar input and supports solar, grid, and generator charging. Parallel operation allows up to six units to be combined, including supported split-phase and three-phase configurations.

Key Features

  • Hybrid Charging: Combines solar and grid charging with a maximum mixed charging current of 80A.
  • Time-Sharing Control: Allows charging and discharging to be scheduled for flexible energy management.
  • Parallel Operation: Supports up to six units for a combined rated output of 21.6kW.
  • Expandable Phase Configuration: More than two parallel units can form a split-phase output, while more than three can form a three-phase output.
  • MPPT Solar Charging: A single MPPT input supports up to 4,500W of PV input with 99% tracking efficiency.
  • Rapid Shutdown: Quickly de-energizes the solar PV system to help protect first responders.
  • Wireless Monitoring: Supports optional Wi-Fi or GPRS connectivity, with a Wi-Fi dongle included for app-based access and monitoring.
  • Pure Sine Wave Output: Supplies 120 Vac pure sine wave power.

Specifications

  • Rated Output Power: 3,600W
  • Maximum Output Power: 7,200VA
  • Rated Output Voltage: 120 Vac
  • Phase Configuration: Single-phase
  • Motor Load Capacity: 2 HP
  • Rated Frequency: 50/60Hz
  • Output Waveform: Pure sine wave
  • Switching Time: 10ms typical
  • Supported Battery Types: Lithium-ion, lead-acid, and user-defined battery
  • Rated Battery Voltage: 48V
  • Battery Voltage Range: 40-60 Vdc
  • Maximum Solar Charging Current: 80A
  • Maximum Grid/Generator Charging Current: 40A
  • Maximum Mixed Charging Current: 80A
  • Number of MPPT Inputs: 1
  • Maximum PV Input Power: 4,500W
  • Maximum PV Input Current: 27A
  • Maximum PV Open-Circuit Voltage: 300 Vdc
  • MPPT Voltage Range: 90-260 Vdc
  • Grid/Generator Input Voltage Range: 90-140 Vac
  • Grid/Generator Input Frequency Range: 50/60Hz
  • Bypass Overload Current: 40A
  • MPPT Tracking Efficiency: 99%
  • Maximum Efficiency: 91%
  • Parallel Capacity: 1-6 units
  • Noise Level: Less than 60dB
  • Cooling Method: Intelligent fan
  • Protection Degree: IP20, indoor use only
  • Operating Temperature: Approximately 14°F-131°F; derating above approximately 113°F
  • Communication Interfaces: RS485, CAN, USB, and dry contact
  • Optional External Modules: Wi-Fi and GPRS
  • Certifications: FCC Part 15 Class B and UL 1741
  • Overload Recovery: Output is restored after three minutes once overload protection is enabled; after five overload events, output remains off until the inverter is restarted.

Size Guide

  • Dimensions: 16.85 x 12.99 x 4.33 in
  • Weight: 17.86 lb

Compatibility

Compatible With: 48V lithium-ion, lead-acid, and user-defined battery systems

Included

  • (1) 3.6kW inverter
  • (1) approximately 78.74 in CAT6 battery communication cable
  • (1) operation manual
  • (1) Wi-Fi dongle
