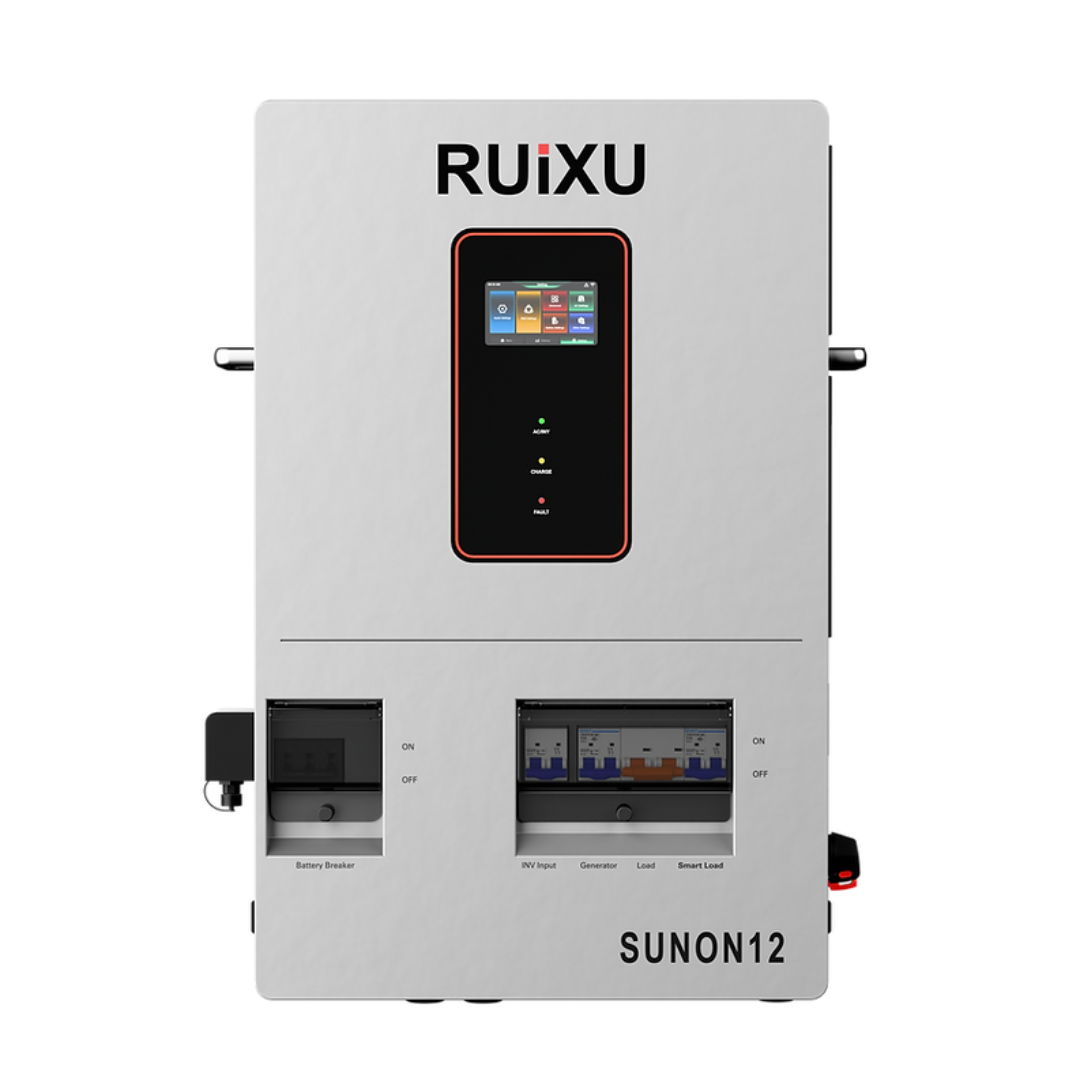

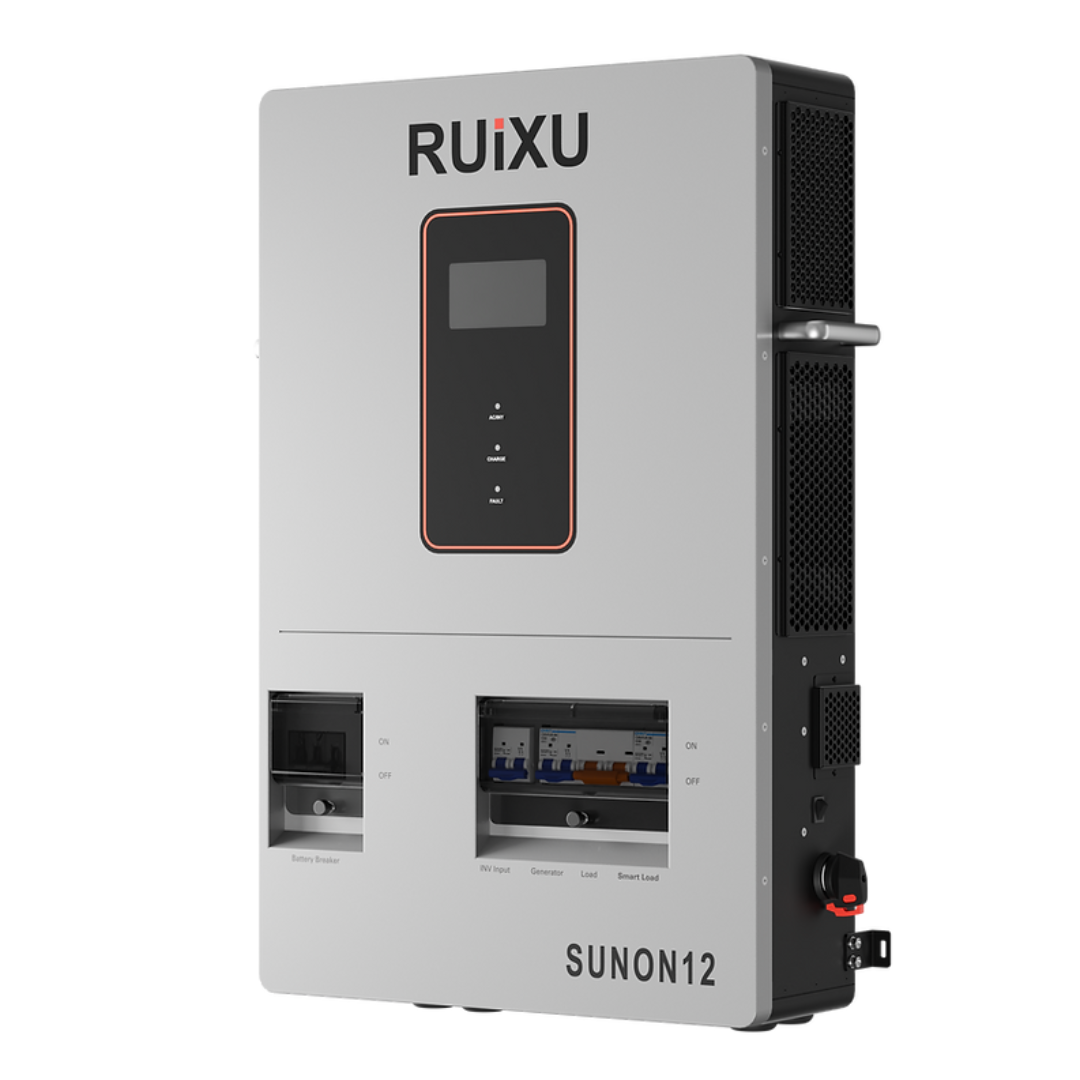

This 12kW all-in-one off-grid inverter is designed for residential and commercial solar energy systems. It supports single-phase and split-phase output, provides 120/240 Vac power, and works with 48V battery systems.

Dual MPPT inputs accommodate up to 24kW of combined PV input. Solar, grid, and generator charging options, time-sharing controls, smart-load management, rapid shutdown, and parallel operation provide flexible energy-management capabilities.

Key Features

  • Hybrid Charging: Supports combined solar and grid charging with a maximum mixed charging current of 250A.
  • Time-Sharing Control: Allows charging and discharging to be scheduled for more flexible energy use.
  • Parallel Operation: Supports one to six parallel units, providing up to 72kW of total rated output.
  • Dual MPPT Technology: Two MPPT inputs support up to 24kW of combined PV input with 99.9% MPPT tracking efficiency.
  • Single-Phase and Split-Phase Output: Provides 120/240 Vac output for supported residential and commercial applications.
  • Smart Load Output: Provides a 63A capacity with adaptive control based on voltage, state of charge, and PV input.
  • Dedicated Generator Input: Supports selectable 120V or 240V generator operation.
  • Bypass Output: Supports up to 125A with switching managed through the energy-management system.
  • Rapid Shutdown: Quickly de-energizes the solar PV system to help protect first responders.
  • Wireless Monitoring: Connects through Wi-Fi to an app for access to system information and monitoring.
  • Integrated Circuit Breakers: Includes protection for inverter input, generator, load, smart load, battery, and PV connections.

Specifications

  • Rated Output Power: 12,000W
  • Maximum Output Power: 18,000VA
  • Rated Output Voltage: 120/240 Vac, single-phase or split-phase
  • Motor Load Capacity: 6 HP
  • Rated Frequency: 50/60Hz
  • Output Waveform: Pure sine wave
  • Bypass Overload Current: 125A
  • Bypass-to-Inverter Switching Time: 10ms typical
  • Smart Load Overload Current: 63A
  • Supported Battery Types: Lithium-ion, lead-acid, and user-defined battery
  • Rated Battery Voltage: 48V
  • Battery Voltage Range: 40–60 Vdc
  • Maximum Solar Charging Current: 250A
  • Maximum Grid/Generator Charging Current: 160A
  • Maximum Mixed Charging Current: 250A
  • Number of MPPT Inputs: 2
  • Maximum PV Input Power: 12,000W + 12,000W
  • Maximum PV Input Current: 32A/32A
  • Maximum PV Open-Circuit Voltage: 500 Vdc
  • MPPT Voltage Range: 90–450 Vdc
  • Generator Rated Input Voltage: 120 Vac (L1/N and L2/N) or 240 Vac (L1/L2)
  • Generator Input Phase-Voltage Range: 85–140 Vac × 2%
  • Generator Input Frequency Range: 50/60Hz
  • Generator Overload Current: 63A
  • Grid Rated Input Voltage: 120 Vac (L1/N and L2/N) or 240 Vac (L1/L2)
  • Grid Input Phase-Voltage Range: 85–140 Vac × 2%
  • Grid Input Frequency Range: 50/60Hz
  • MPPT Tracking Efficiency: 99.9%
  • Maximum Efficiency: 91%
  • Parallel Capacity: 1–6 units
  • Noise Level: Less than 60dB
  • Cooling Method: Intelligent fan
  • Protection Degree: IP20, indoor use only
  • Operating Temperature: Approximately 14°F–131°F; derating above approximately 113°F
  • Communication Interfaces: RS485, CAN, USB, and dry contact
  • Optional External Module: Wi-Fi
  • Integrated Circuit Breakers: Inverter input, generator, load, smart load, battery, and PV
  • Certifications: FCC Part 15 Class B and UL 1741

Size Guide

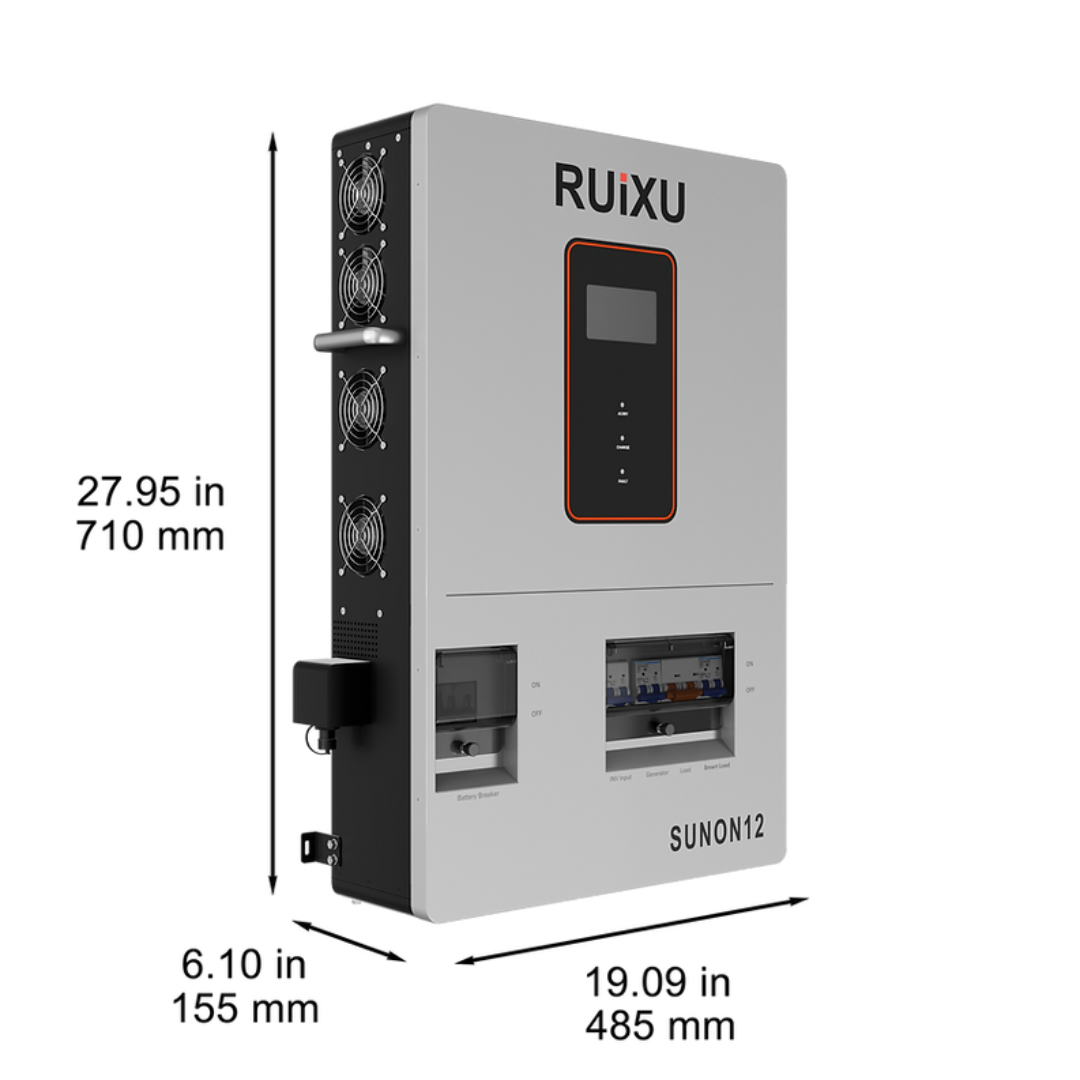

  • Dimensions: 27.95 × 19.09 × 6.10 in
  • Weight: 84.88 lb
  • Compatibility
  • Compatible With: 48V lithium-ion, lead-acid, and user-defined battery systems

Included

  • (1) 12kW inverter
  • (1) approximately 78.74 in CAT6 battery communication cable
  • (1) operation manual
  • (1) Wi-Fi dongle
