HIGHLIGHTS

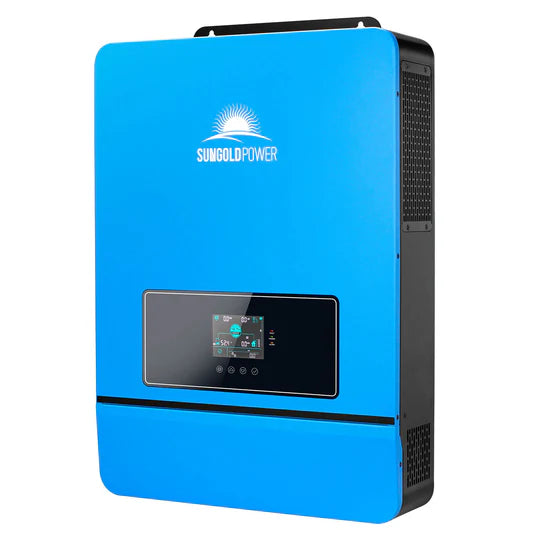

The SunGold Power 10KW is a high-capacity, all-in-one pure sine wave solar inverter designed for robust off-grid energy storage systems. It features dual built-in MPPT solar controllers and supports versatile output configurations, including 120V/240V split-phase and 120V single-phase. This unit is UL 1741 certified by ETL for off-grid applications and includes a WiFi module for seamless remote monitoring and adjustment via a mobile app.

Product Highlights

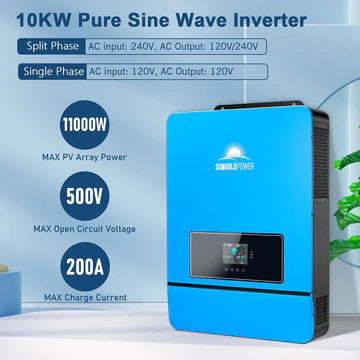

  • High Power Capacity: Delivers 10,000W rated power with a 20,000W peak surge and supports motor loads up to 6HP.
  • Dual MPPT Controllers: Features built-in solar controllers with a maximum open-circuit PV input of 500VDC at each input.

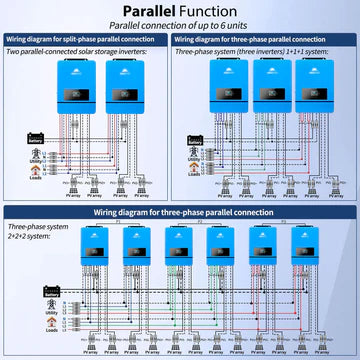

  • Massive Scalability: Supports parallel connection of up to 6 units for a total output of 60kW.
  • Flexible Phase Support: Capable of 120V single-phase, 120V/240V split-phase, and 208V 3-phase output when 3 or more units are connected.
  • Rapid Battery Charging: Supports up to 200A battery charging for quick energy replenishment.

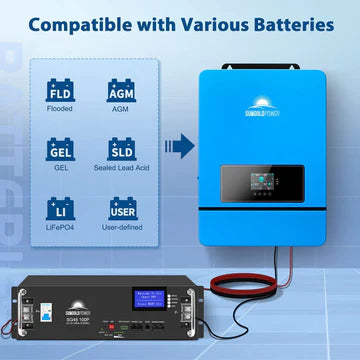

  • Broad Battery Compatibility: Works with 48V AGM, Gel, Flooded, and LiFePO4 batteries, including a customizable User Mode.
  • Advanced Communication: Includes CAN and RS485 communication support specifically for SunGoldPower batteries.

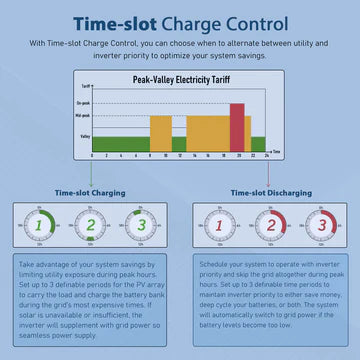

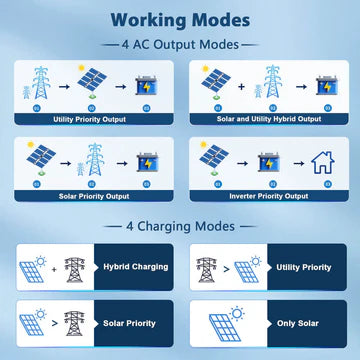

  • Smart Rate Optimization: Features time-slot charging and discharging functions to take advantage of peak and off-peak utility rates.

  • Model: SPH10048P
  • Rated Output Power: 10,000W; Max. Peak Power: 20,000W
  • DC Input: 48V
  • AC Output: 120V/240V split-phase (settable), 50/60Hz
  • MPPT Solar Controllers: 2, max. 500VDC open-circuit PV input
  • Max. Battery Charging Current: 200A
  • Parallel: up to 6 units (60kW max combined output)
  • Certification: UL1741 (ETL Listed)

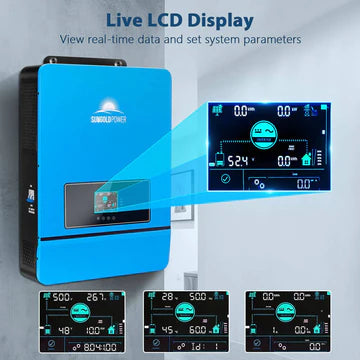

WiFi Monitoring Configured with Wi-Fi components allowing quick and easy access to inverter data via mobile app. System Connection PV panels supply charge to the battery and power to the load as top priority. The system will look for grid or generator power if no solar/battery is available.
