The EI Series from HPC Fire is a premium ignition system designed for maximum safety and convenience. The Safety Pilot ensures gas only flows when a flame is detected. If extinguished, the system shuts off gas and automatically restarts the ignition sequence—no user input required.

What Are the Options When Ordering

A variety of sizes and configurations are available to suit your project.

Select Your Size

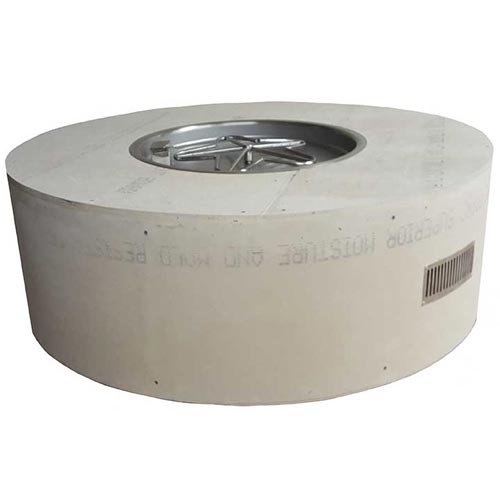

  • Available in  45" inch Round "45x18h" tall and weighs 150lbs.

  • Sizes reflect the internal pan diameter and exclude the 1.3″ lip.

Select Your Gas

  • Choose Natural Gas or Propane.

  • EI Series requires permanent fixed gas piping (not compatible with small LP tanks).

Select Your Ignition

On/Off Model

  • Remote control optional (not compatible with 120VAC remotes).

  • Operates via wall switch or compatible low-voltage control system.

  • Designed for 24VAC setups and requires a Class II 24VAC, 4 amp, 100W transformer.

High/Low Model

  • Not compatible with whole-house automation systems.

  • Bluetooth control via the HPC Fire App (up to 20 ft range).

  • Displays timer, diagnostics, operating hours, and internal temperature monitoring.

  • Includes Smart Remote to switch between High and Low flame (45% reduction on Low).

Select Your Voltage

  • Available in 120VAC or 24VAC.

  • Power supply must meet 100W minimum for proper performance.

  • 24VAC models require a Class II 24VAC, 4 amp, 100W transformer (HPC SEBCO recommended).

Operating Instructions

  • Turning Off: Switch off via wall switch, remote, App, or control system.

  • Start-Up: Turn on via wall switch, remote, or App. System performs safety checks, ignites pilot, then lights the main burner.

  • Operation: Continuously monitors flame, temperature, and voltage. If flame loss occurs, gas shuts off and system automatically restarts.

Features

HPC EI Kits are built for safety and durability:

  • Mesh spider guards included

  • Fully assembled for easy installation

  • Drip-leg design protects electronics

  • Flame sensor with auto gas shutoff

  • 24VAC option for low-voltage setups
  • #304, 18-gauge stainless steel construction

  • Internal temperature monitoring with auto-shutoff
  • Sealed burner hubs with weep holes to prevent water damage

Warranty

  • Stainless Steel Burners – Lifetime

  • Pilot Assembly – 2 Years Residential / 1 Year Commercial
  • Electronics & Gas Valve – 3 Years Residential / 1 Year Commercial
  • Stainless Steel Pan & Valve Box – 5 Years Residential / 1 Year Commercial

Recommendations & Optional Extras

  • HPC recommends installing a wall switch for added safety.

  • Optional accessories include remote controls, SEBCO 24VAC transformer, timers, and emergency stop buttons (lockable option available).

Downloads

  • ON/OFF Installation & Operating Instructions

  • HI/LO Installation & Operating Instructions
