HIGHLIGHTS

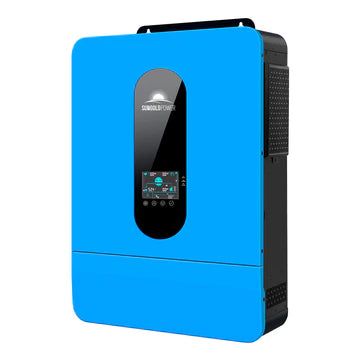

The SunGold Power 6.5KW is a high-performance, all-in-one pure sine wave solar inverter designed for flexible off-grid energy storage systems. It features dual built-in MPPT solar controllers and supports versatile output configurations, including 120V/240V split-phase and 120V single-phase. This unit is UL 1741 certified by ETL for off-grid use and includes a WiFi module for seamless remote monitoring and parameter adjustment via a mobile app.

Product Highlights

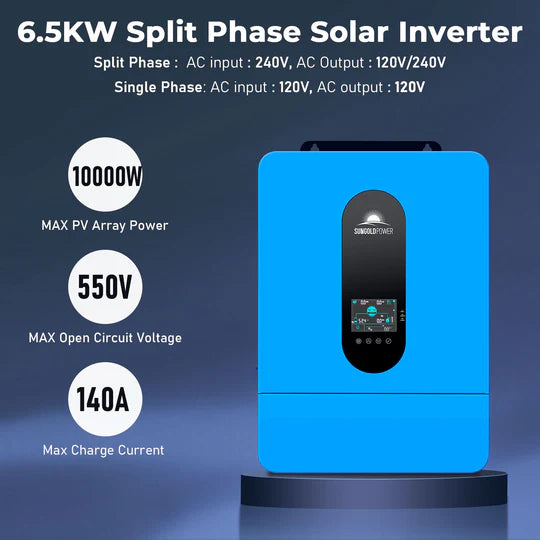

  • High Power Capacity: Delivers 6500W rated power with a 13,000VA maximum peak power.
  • Dual MPPT Controllers: Features built-in solar controllers with a maximum open-circuit PV input of 550VDC.

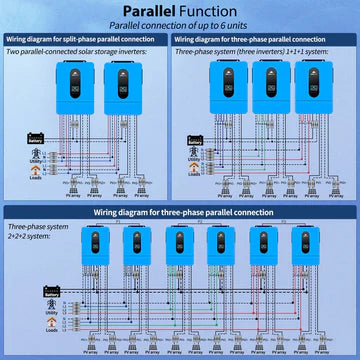

  • Massive Scalability: Supports parallel connection of up to 6 units for a total output of 39KW.
  • Flexible Phase Support: Capable of 120V single-phase, 120V/240V split-phase, and 208V 3-phase output when 3 or more units are connected.
  • Rapid Battery Charging: Supports up to 140A battery charging for quick energy replenishment.

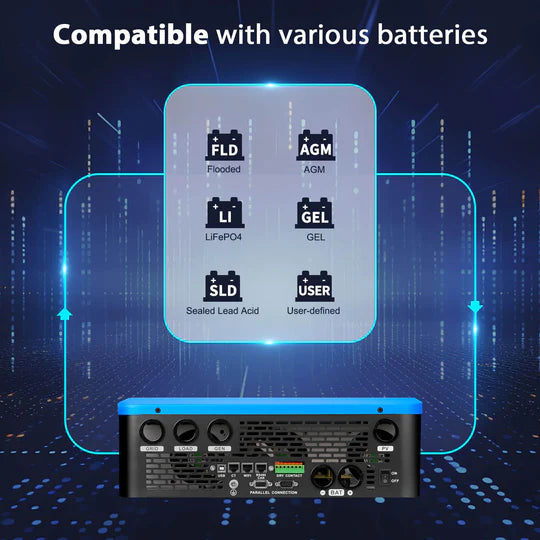

  • Broad Battery Compatibility: Works with 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, including a customizable User Mode.
  • Advanced Communication: Supports CAN and RS485 communication specifically for SunGoldPower batteries.

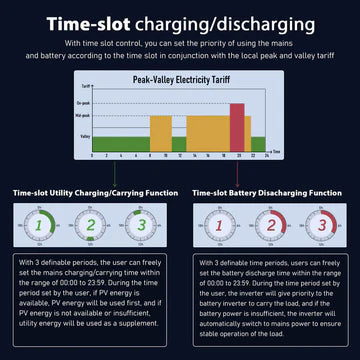

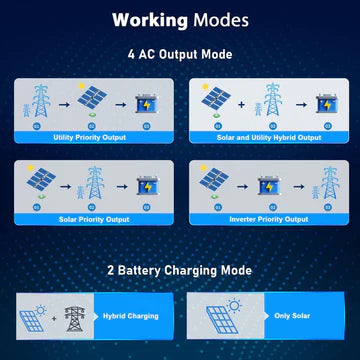

  • Smart Rate Optimization: Features time-slot charging and discharging functions to take advantage of peak and off-peak utility rates.

  • Model: SPH6548P
  • Rated Output Power: 6,500W; Max. Peak Power: 13,000VA
  • DC Input: 48V
  • AC Output: 120V/240V split-phase (settable), 50/60Hz
  • MPPT Solar Controllers: 2, max. 550VDC open-circuit PV input
  • Max. Battery Charging Current: 140A
  • Parallel: up to 6 units (39kW max combined output)
  • Certification: UL1741

  • All-in-one pure sine wave inverter, battery charger and AC auto-transfer switch
  • 2 built-in MPPT solar charge controllers, max. 550VDC open-circuit PV input
  • Max. 140A combined battery charging current
  • 120V/240V split-phase or 120V single-phase selectable output
  • Parallel up to 6 units for up to 39kW total output (120V, 120/240V split-phase, or 208V 3-phase with 3+ units)
  • Compatible with lithium (LiFePO4), AGM, gel, sealed and flooded lead-acid batteries, plus battery-free operation
  • WiFi module for remote monitoring via mobile app
  • Time-slot charging/discharging to optimize against utility rate schedules
  • CAN/RS485 communication with SunGoldPower batteries
