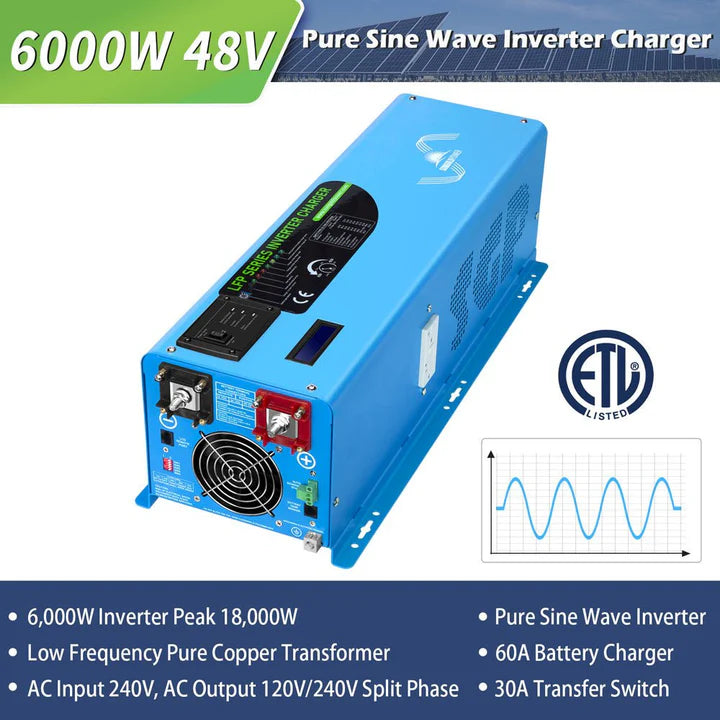

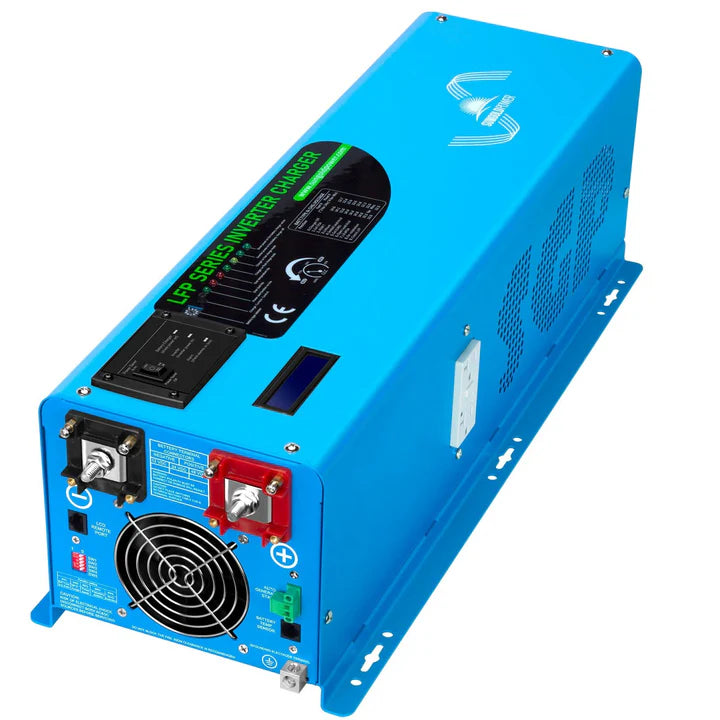

SunGold Power 6000W 24V/48V Split Phase Inverter with Charger The SunGold Power LFP Series 6000W is a high-performance, low frequency split-phase inverter designed for demanding applications, including whole-home power, business backup, and large-scale RV or marine systems. This dependable three-in-one unit integrates a pure sine wave inverter, a high-capacity battery charger, and a lightning-fast AC auto-transfer switch. Capable of transforming DC power into 120VAC or 240VAC output, it is an ideal solution for emergency backup and off-grid energy storage systems.

Product Highlights

  • Three-in-One Functionality: Combines a 6000W inverter, a 60A battery charger, and an 80A transfer switch into one dependable unit.

  • Split-Phase Versatility: Requires 240VAC input to provide flexible 120VAC or 240VAC output power.

  • Seamless Power Transition: Features a built-in 80A transfer switch that automatically toggles between shore and battery power within 10 milliseconds.

  • High-Capacity Charging: Includes a 60A battery charger to quickly recharge battery banks via grid or generator power.

  • Dual-Frequency Support: Selectable 50Hz or 60Hz output frequency controlled via the SW4 switch.

  • Customizable Power Modes: AC priority is the default setting, with an optional battery priority mode available via the SW5 switch.

  • Auto Generator Start (AGS): Automatically manages generator operation based on battery voltage levels to ensure a reliable power supply.

  • Precision Control: Maximum charging current is adjustable from 0% to 100% using a dedicated linear switch.



KEY FEATURE



01 c.webp__PID:473c76b4-df62-4bf0-a09a-2853a552a44f



  • Whole-Home Power Support: Built with sufficient capacity to run small homes, businesses, and complex off-grid systems.

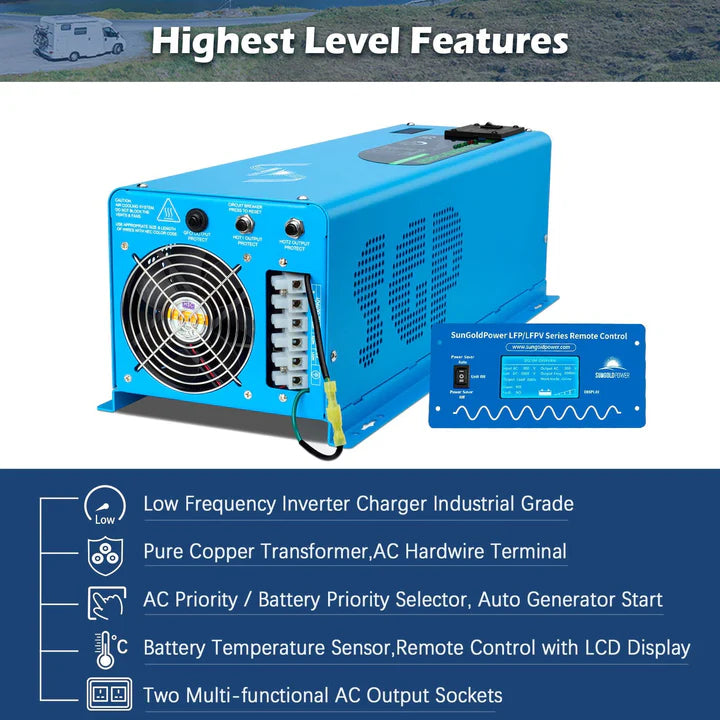

  • Low Frequency Operation: Designed for heavy-duty performance with low idle current and high reliability for motor-driven appliances.

  • Dual Voltage Output: Capable of producing two legs of 110V/120V, making it perfectly compatible with standard 220V/240V electrical panels.

  • Flexible DC Input: Available in 24V and 48V configurations to match various battery bank requirements.

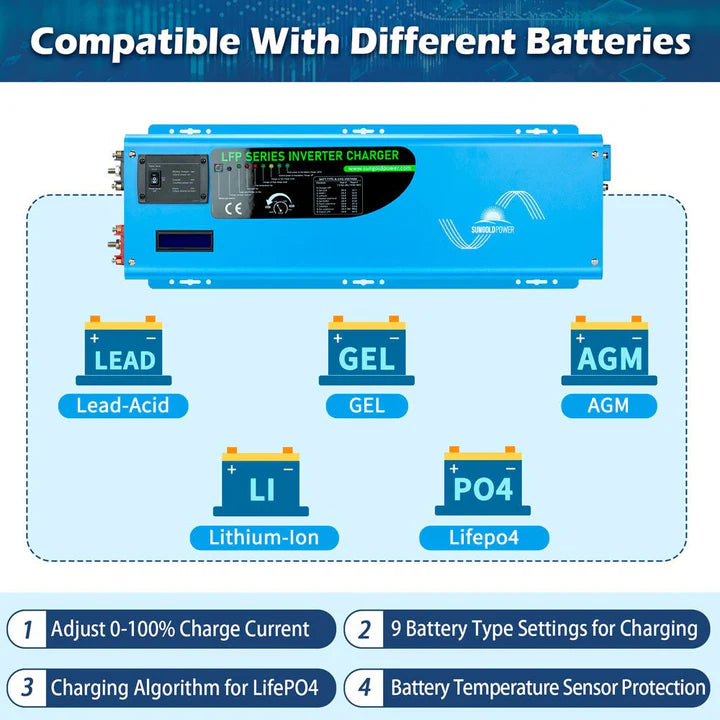

  • Advanced Monitoring & Control: Supports BTS (Battery Temperature Sensor) cables and remote control capabilities for enhanced system management.

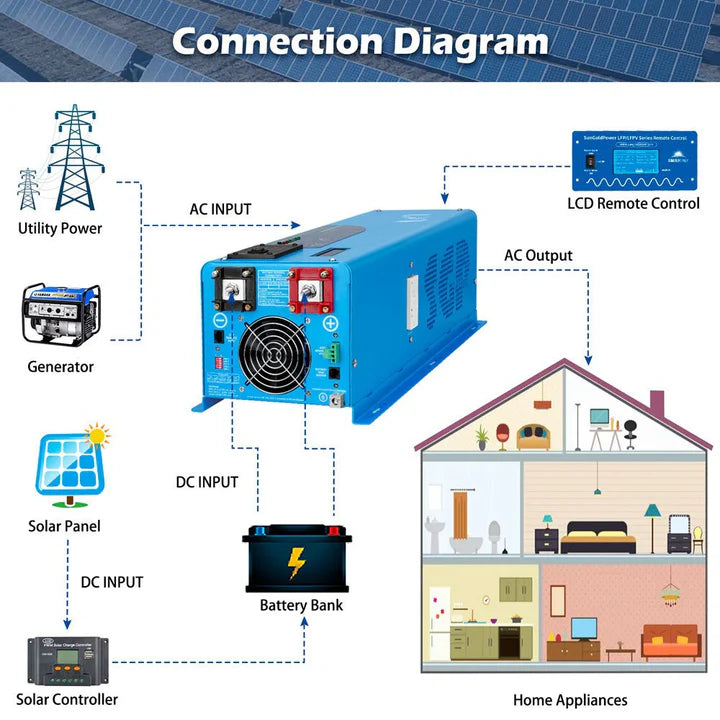

  • Rugged Application Range: Optimized for use in mobile environments like RVs and trailers, as well as stationary off-grid and emergency backup installations.

LFP6K48V-6K24V.jpg__PID:6c65f152-628e-4d5f-a881-08eb56c008d6
02 c.webp__PID:76b4df62-4bf0-409a-a853-a552a44fb7cb
02-1668406550586.webp__PID:2853a552-a44f-47cb-bc9a-cd79e0a18086
pure sine wave
pure sine wave
pure sine wave
pure sine wave
pure sine wave
