P12 Battery Charger Display

Intuitive Battery Monitoring

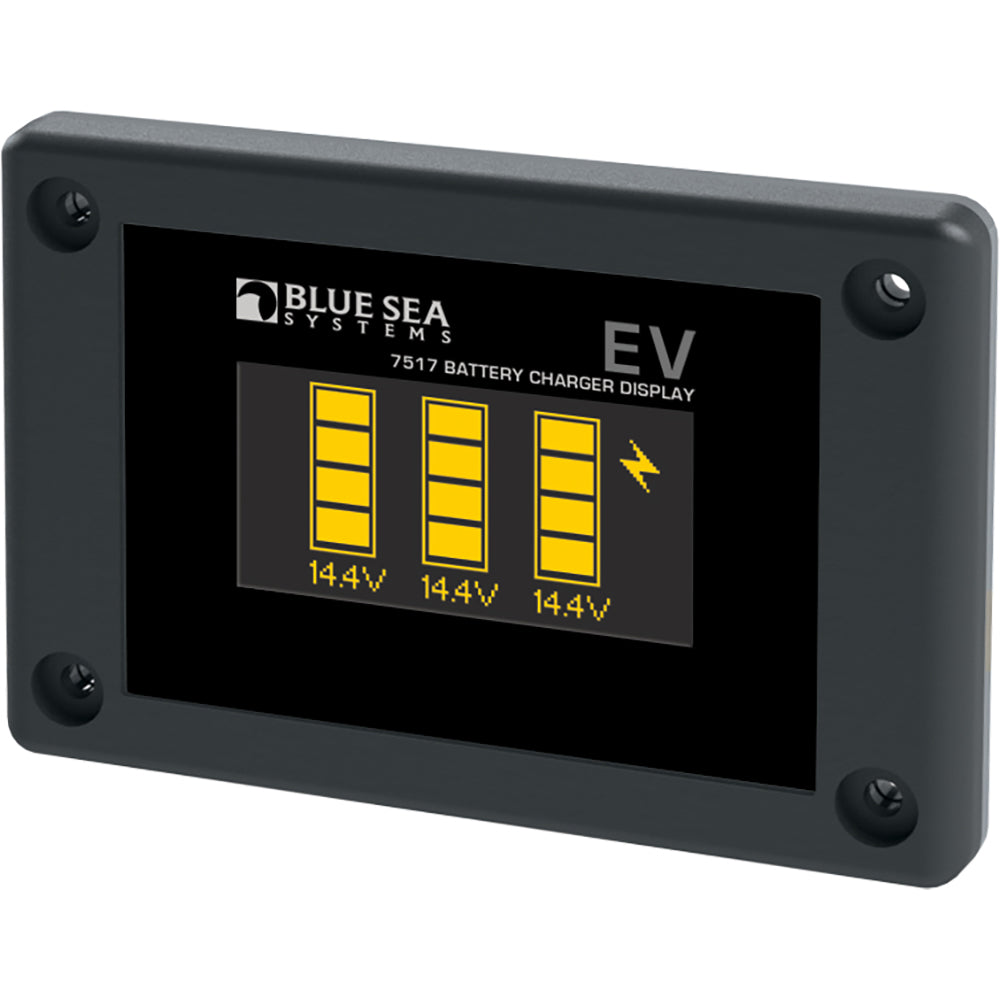

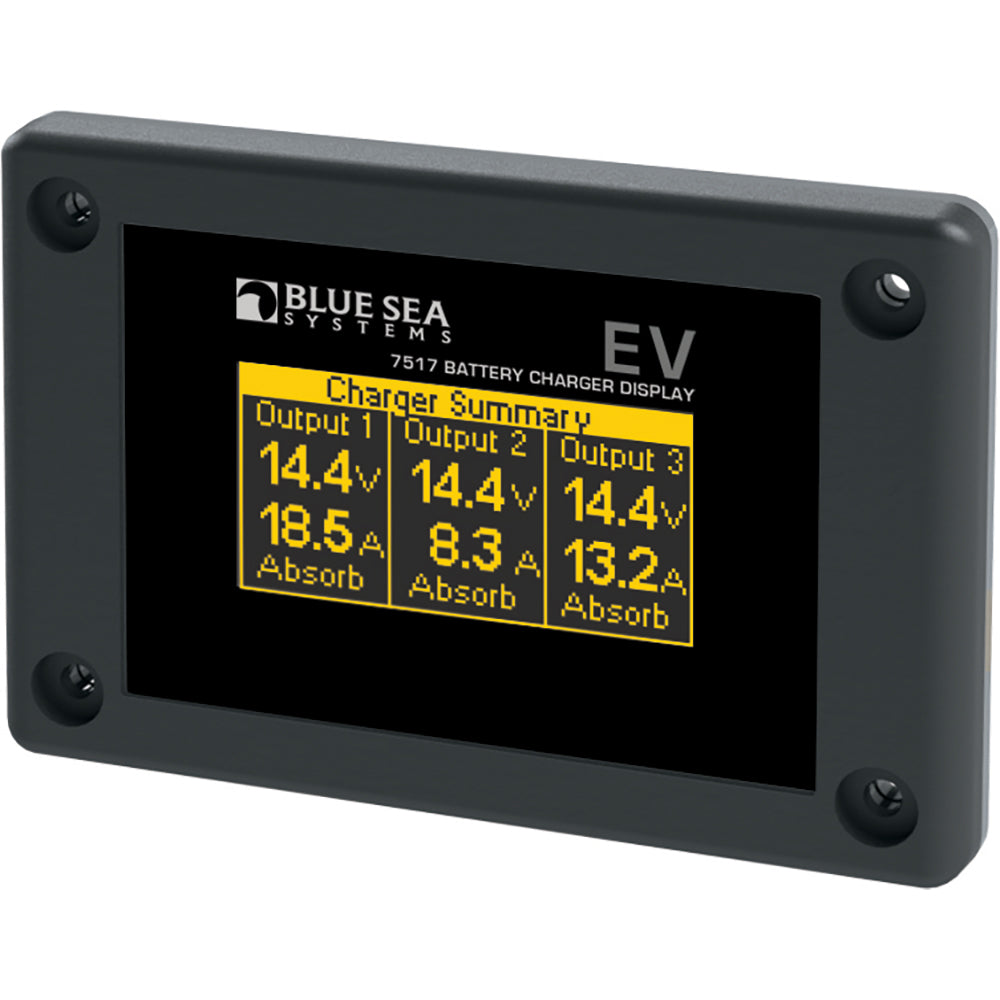

The EV Battery Charger Display provides two options to monitor your battery banks. It can display a graphical representation of voltage for 1 to 3 battery banks with or without connection to a P12 Battery Charger. When connected to a P12 Battery Charger it can display the charger's Summary screen, displaying voltage, current charging stage, and faults from the charger.

Features:

  • Drop in replacement for traditional rectangular displays
  • Automatically detects 1-3 battery banks
  • AC charge indication verifies that power is connected and the battery charger is charging
  • Plain language fault indication relays if there is a fault with the battery charger
  • Dip switch selectable screen configuration allows the display to show voltage bar graphs or the P12 Battery Charger summary screen
  • Displays voltage bar graphs even when AC power is not present
  • Optional standby mode shuts off screen after 4 hours of inactivity
  • Automatic ON based on motion with integrated knock sensor
  • Bright, daylight readable, OLED display

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Charger Output Voltage: 12v
  • Charger Output - Amps: 25a
  • Charging Banks: 3
  • Portable: No
  • Charger Input - Voltage: 120/240v
  • Box Dimensions: 1"H x 5"W x 6"L WT: 2 lbs
  • UPC: 632085075170
