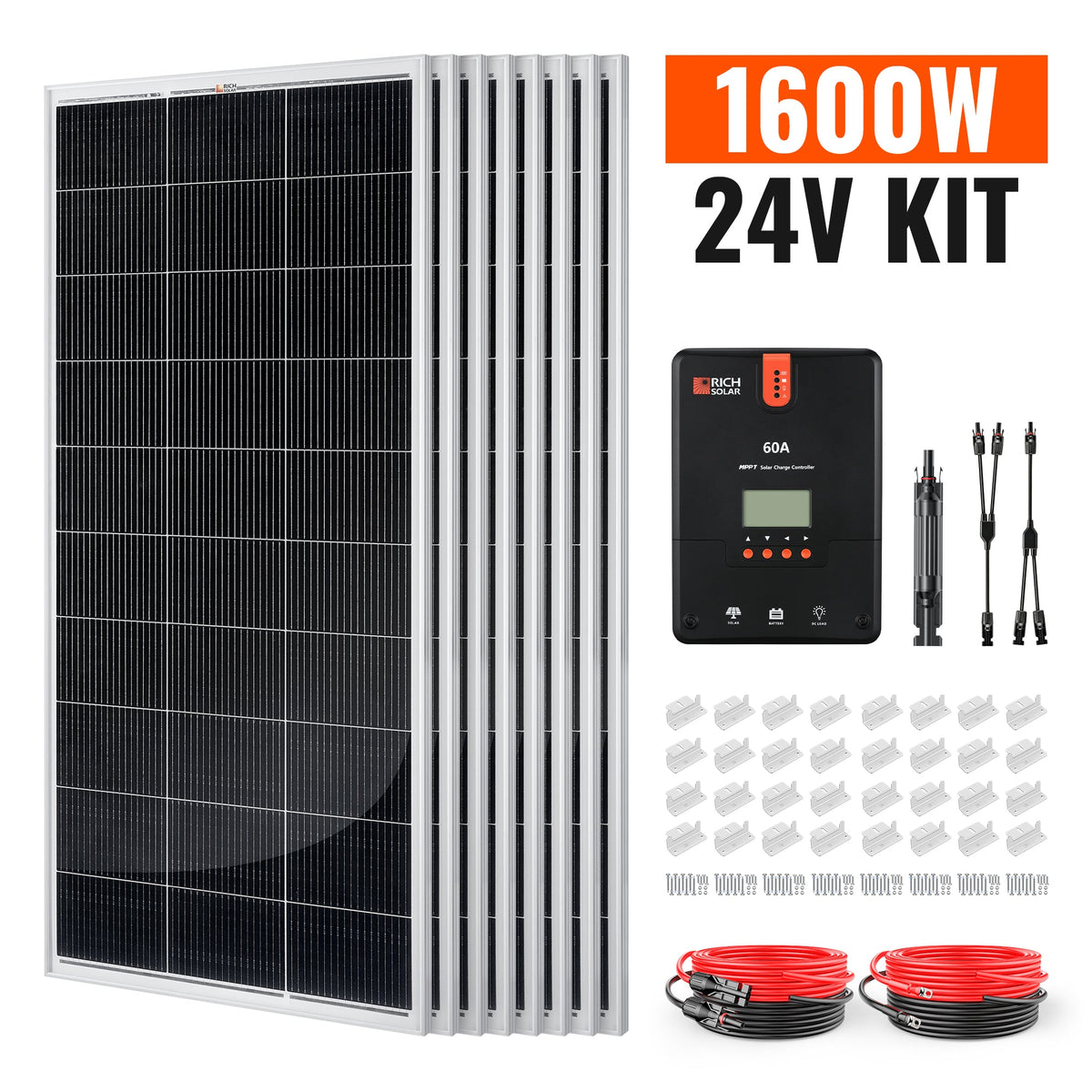

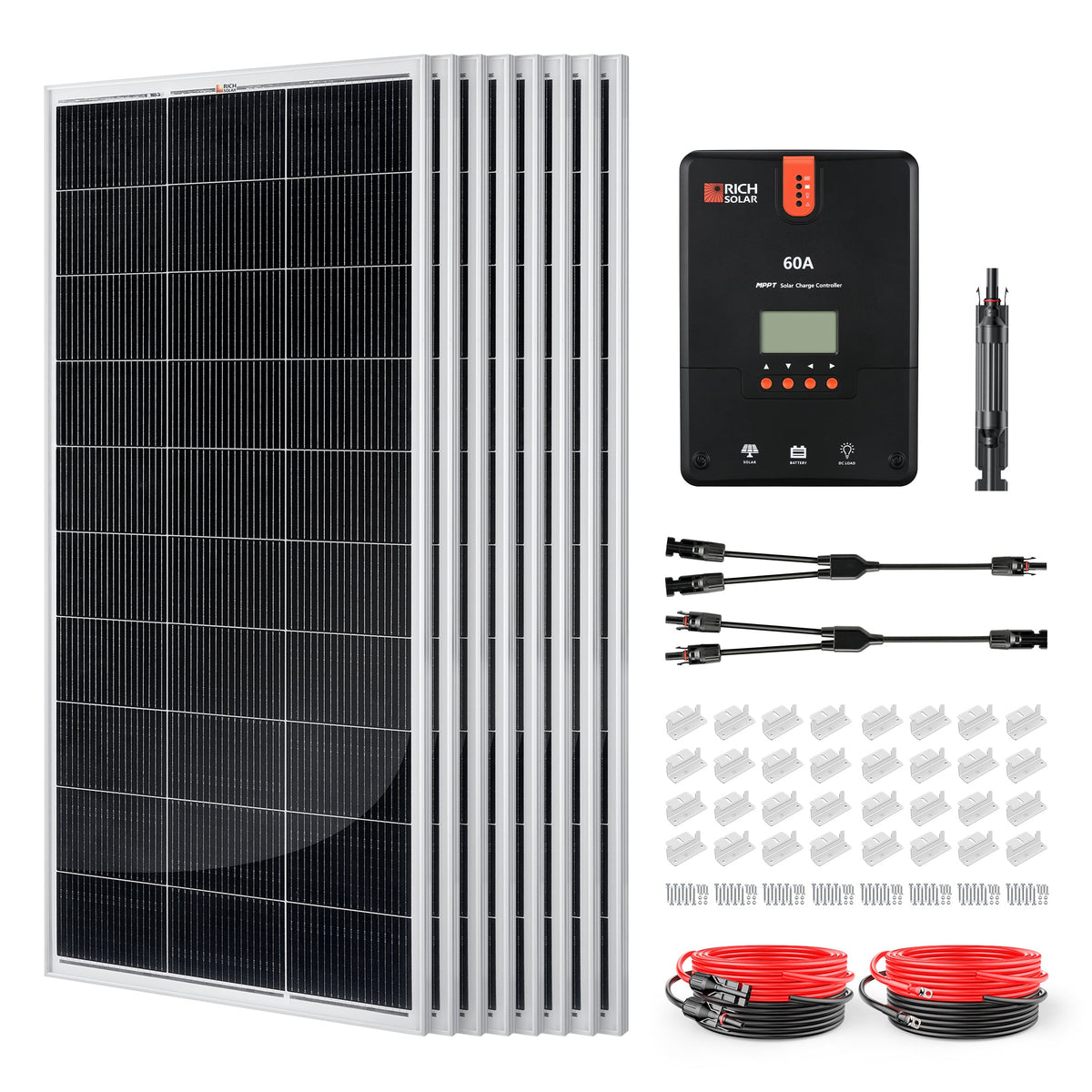

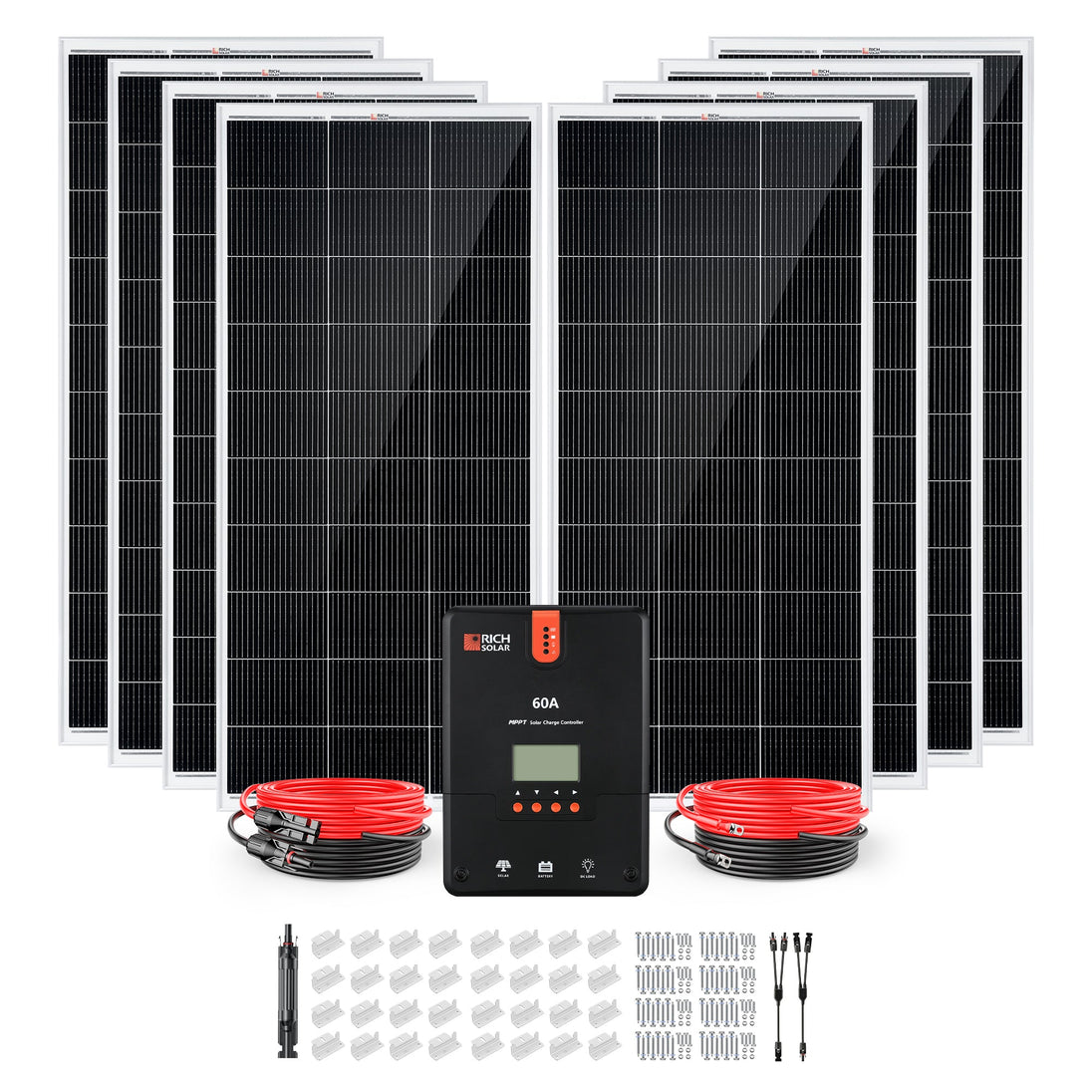

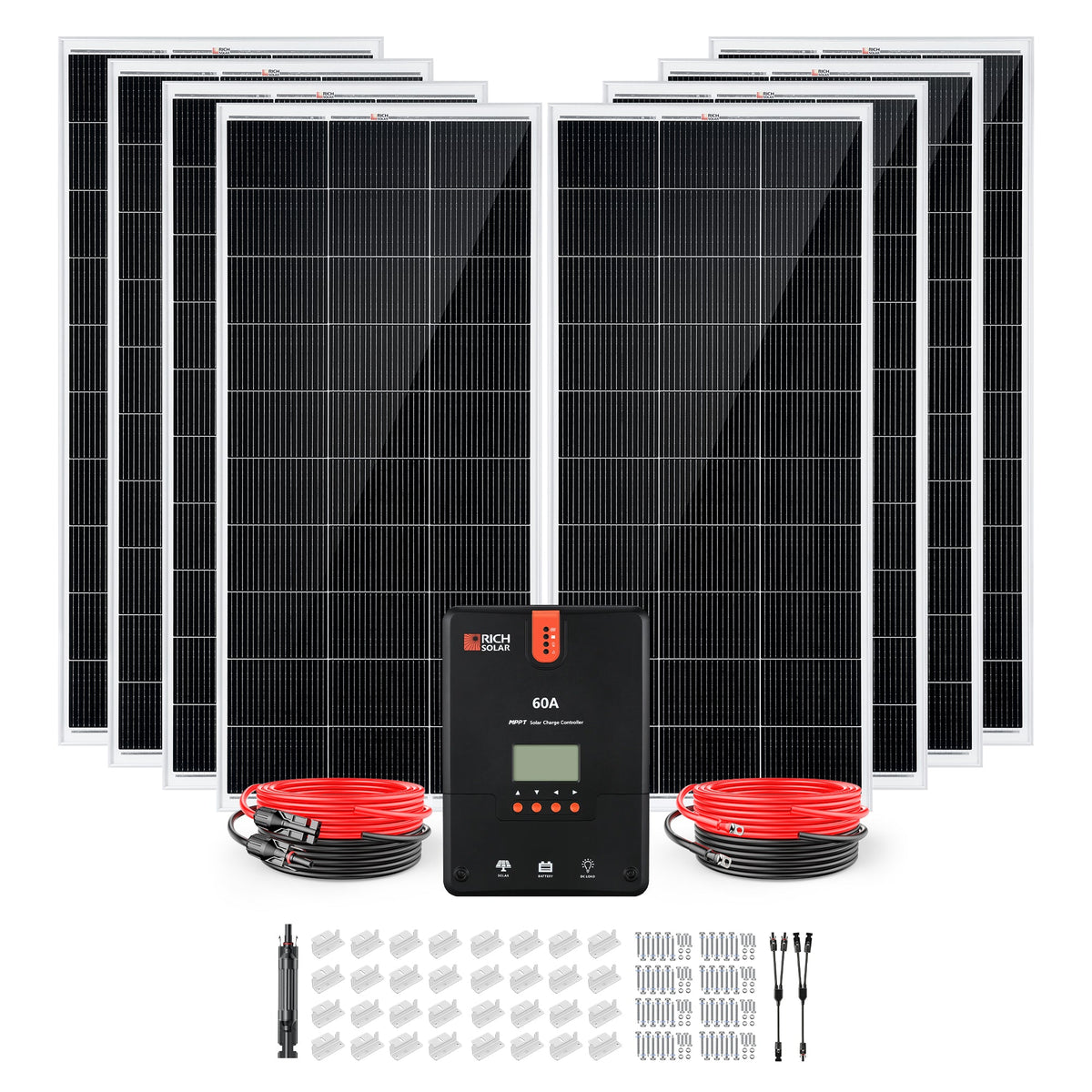

This 1,600W solar charging kit combines eight 200W monocrystalline solar panels with the wiring and mounting components needed for an off-grid solar installation. The Standard Kit also includes a 60A MPPT solar charge controller and inline fuse. The product page describes it as the largest 24V kit in this series and identifies RV, boat, trailer, cabin, and other off-grid/mobile applications.

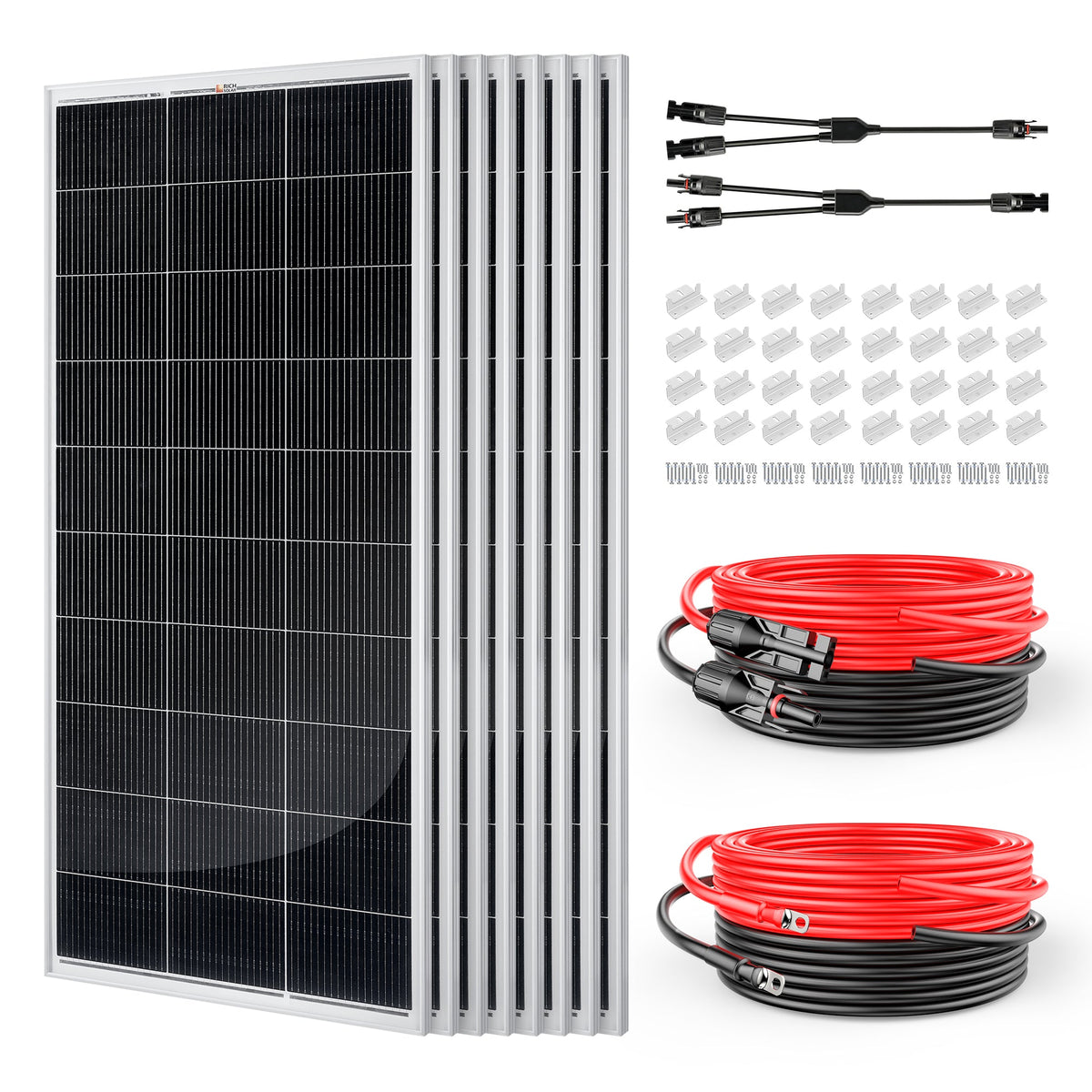

Two selectable configurations are offered: Standard Kit and Standard kit without controller & fuse. The solar-panel information below is centralized because it applies to the shared 1,600W solar array, while controller specifications apply only to the Standard Kit configuration that includes the controller.

RICH SOLAR MEGA 200 1600 Watt Solar Panel Kit

MEGA 200

200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

No. of Panels: 8 x MEGA 200 Watt Solar Panels
Wattage Per Panel: 200W
Total Wattage of Panels: 1600W

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24.0 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR 60 Amp MPPT Solar Charge Controller

60 Amp MPPT Solar Charge Controller

Features:

  • Automatically detects 12V/24V/36V/48V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

  • 2-Year Warranty

Specifications:

Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77°F), 145V(-13°F)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each.
  • Solar Panel Weight: 24 lb each.
  • Charge Controller Dimensions — Standard Kit Only: 11.2 × 8.1 × 3.7 in.
  • Charge Controller Net Weight — Standard Kit Only: 7.94 lb.

Compatibility

Compatible Applications: High-end off-grid and mobile applications, including RVs, cabins, boats, and trailers.

Battery Bank Pairing: The product page states that the kit can be paired with a 400Ah 24V battery bank.

Compatible Panel Mounting: Ground mounts, Z-brackets, pole mounts, and tilt systems.

Compatible Inverters: The included panels are stated to be compatible with on-grid and off-grid inverters and with mainstream inverter and optimizer systems.

Compatible Battery Types — Standard Kit Controller: Sealed, Gel, Flooded, and Lithium deep-cycle batteries.

Bluetooth Communication — Standard Kit Controller: Supports communication with a BT-1 Bluetooth module through the RS232 port.

Included

Standard Kit

  • 8 × 200W monocrystalline solar panels.
  • 1 × 60A MPPT solar charge controller.

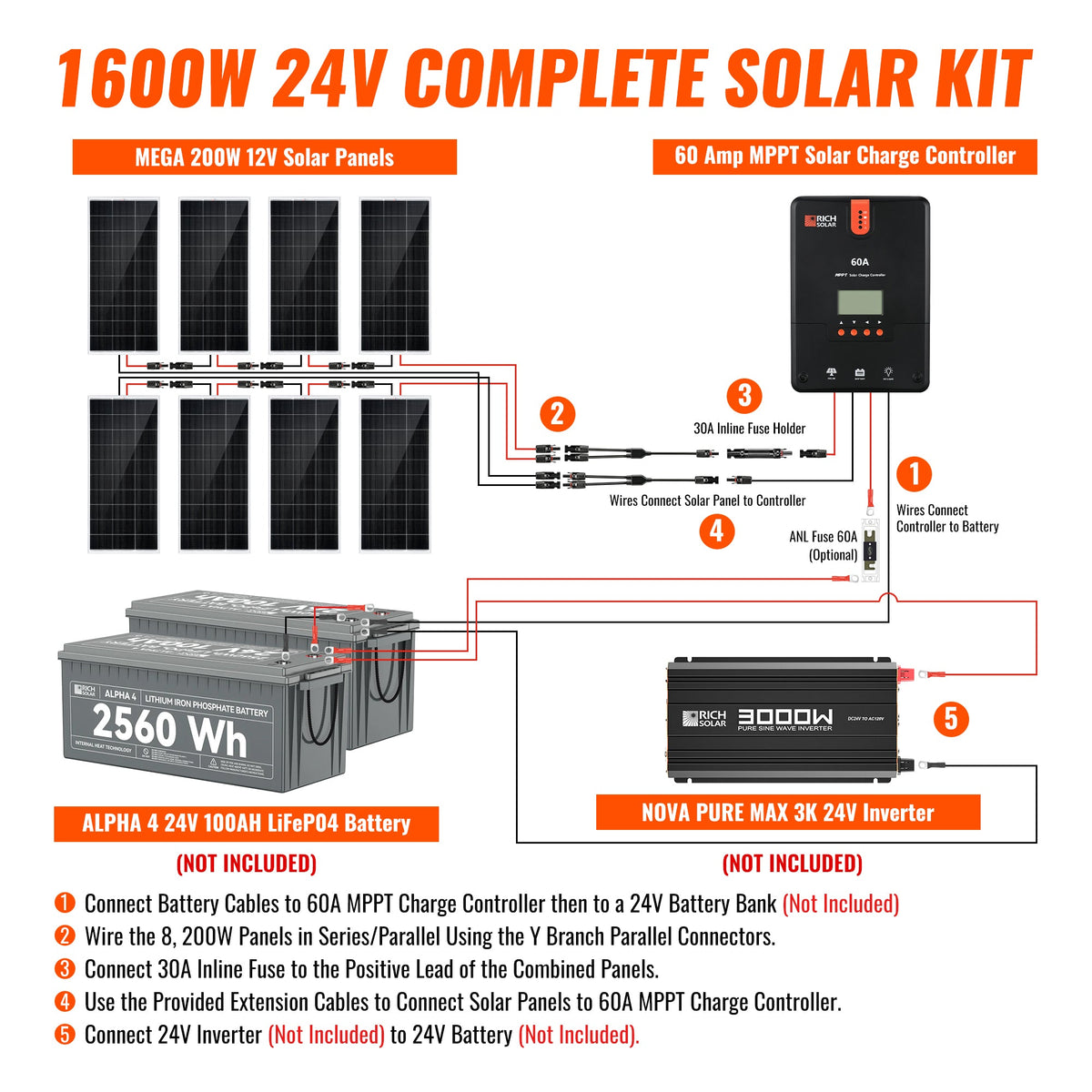

  • 1 × 20 ft #10 gauge red solar cable for panel-to-controller connection.
  • 1 × 20 ft #10 gauge black solar cable for panel-to-controller connection.
  • 1 × 10 ft #8 gauge red battery cable for controller-to-battery connection.
  • 1 × 10 ft #8 gauge black battery cable for controller-to-battery connection.
  • 8 × mounting Z-bracket sets, with four brackets per set.
  • 1 × 30A inline fuse holder with fuse.
  • 1 × Y-branch parallel adapter.

Standard kit without controller & fuse

The page offers a selectable option named Standard kit without controller & fuse. A separate component-by-component package list is not provided for this option, so no additional package contents have been assumed.

Product Support

Full Specification

User Manual:

Warranty: Rigid solar panels — 25-year power output warranty and 10-year workmanship warranty. MPPT controller — 2-year warranty. Controller coverage applies to the configuration that includes the controller.
