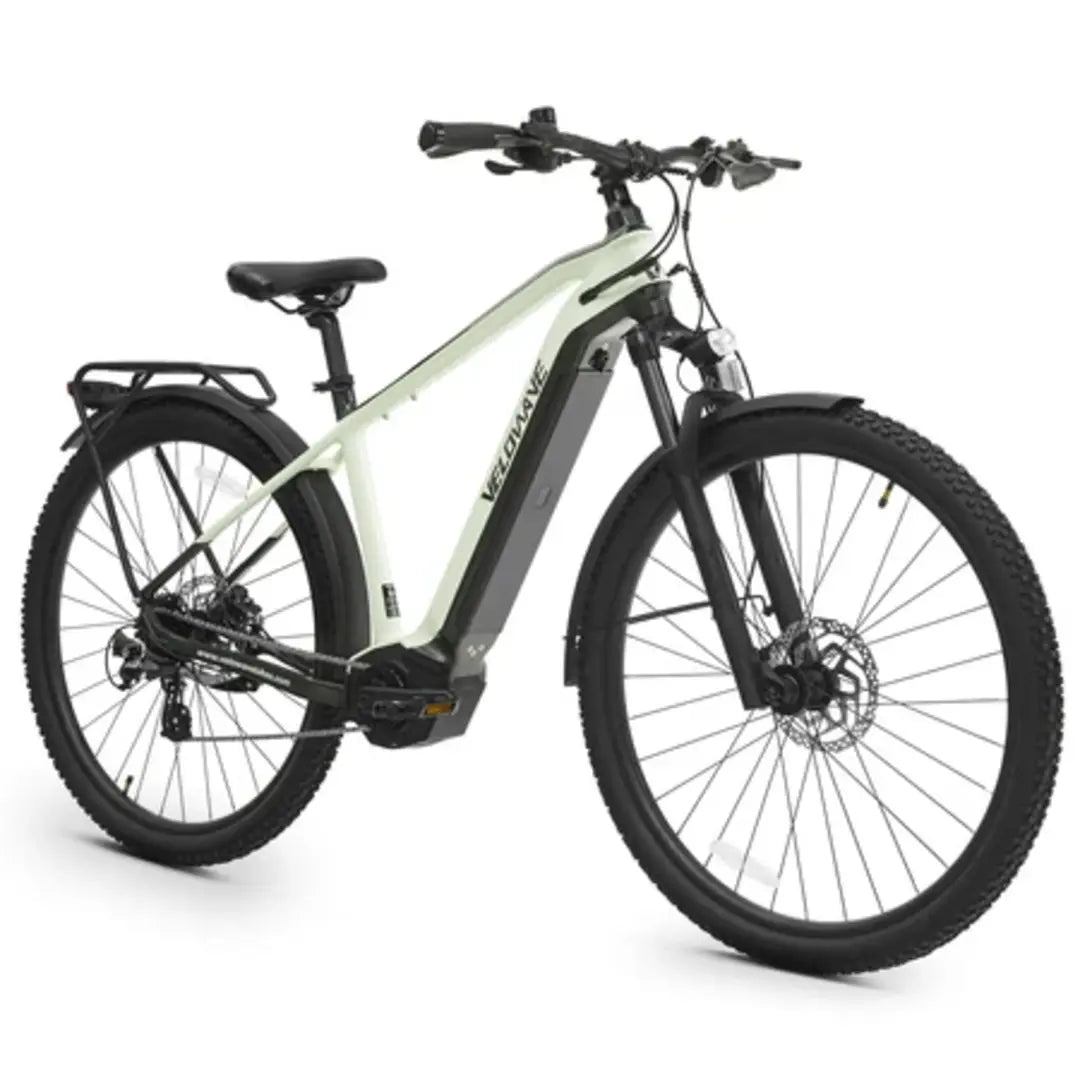

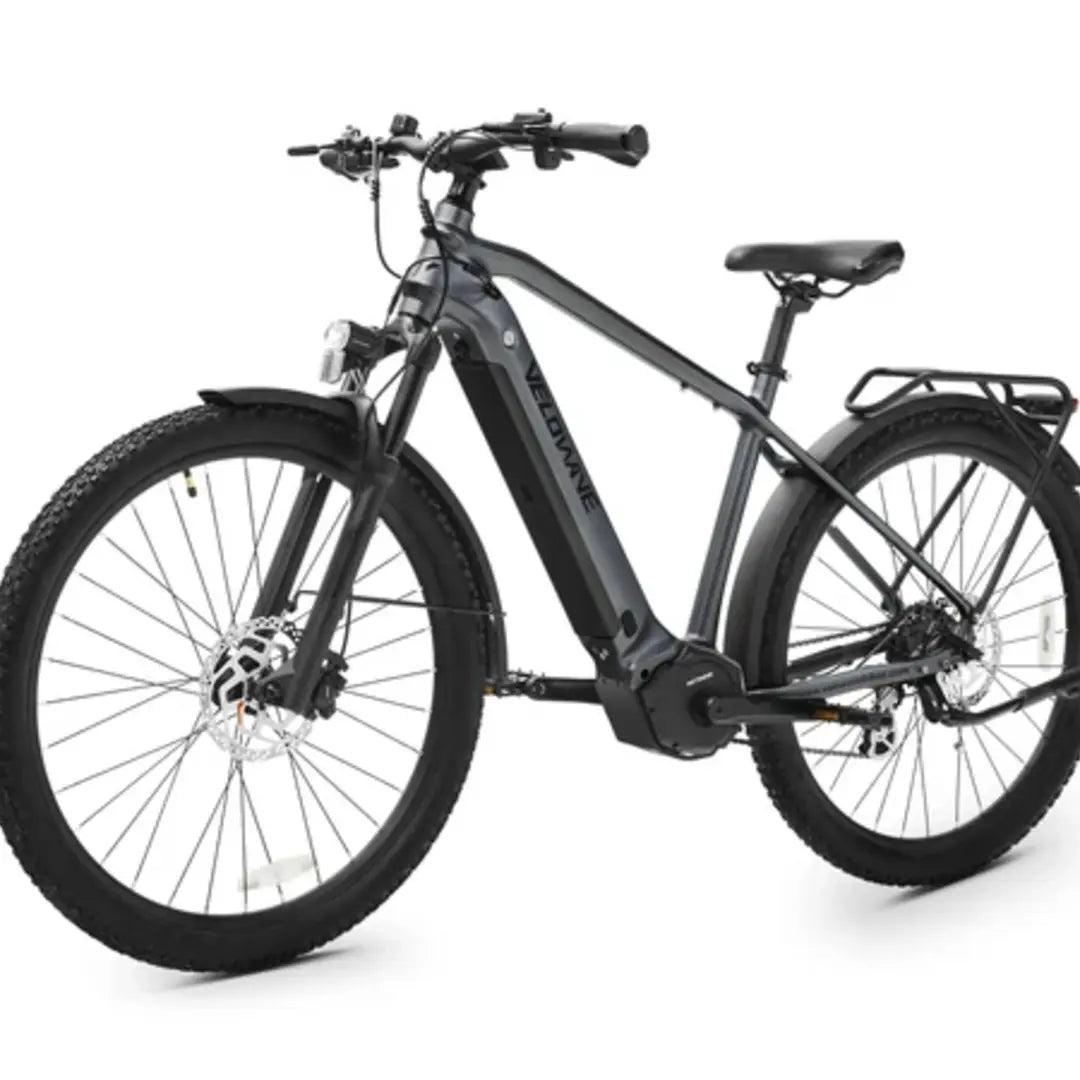

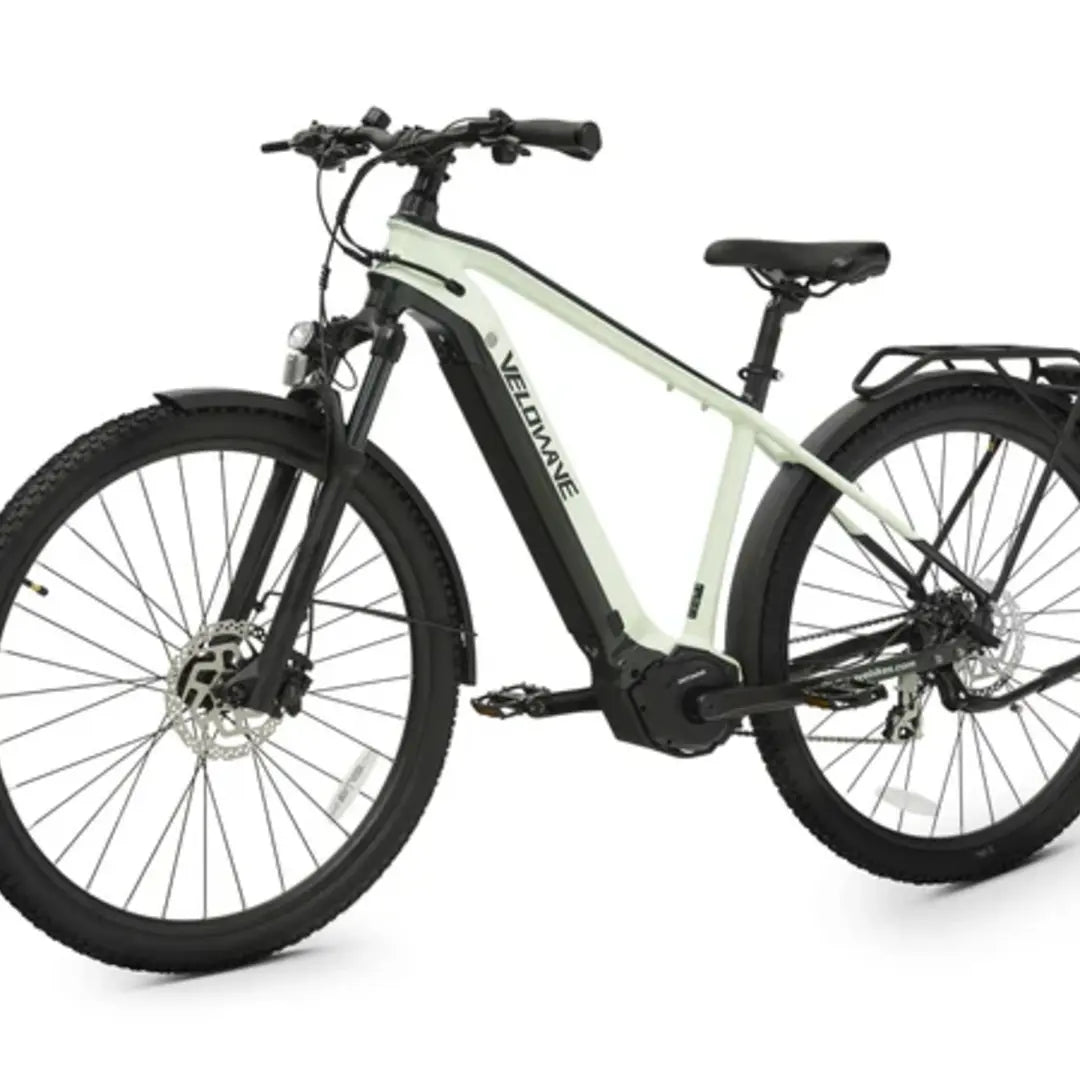

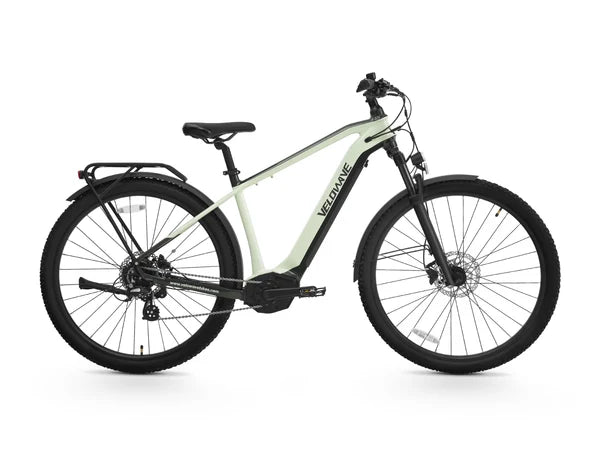

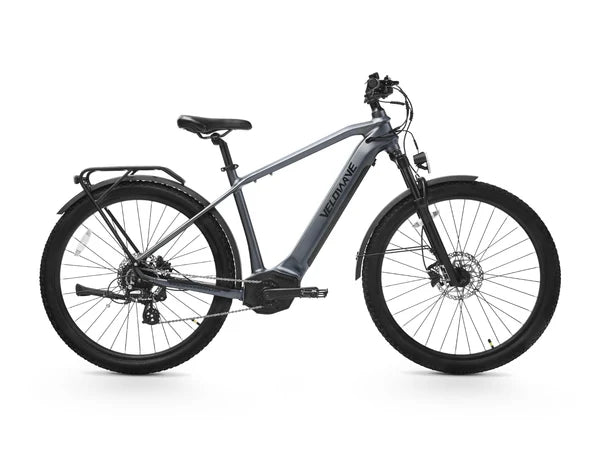

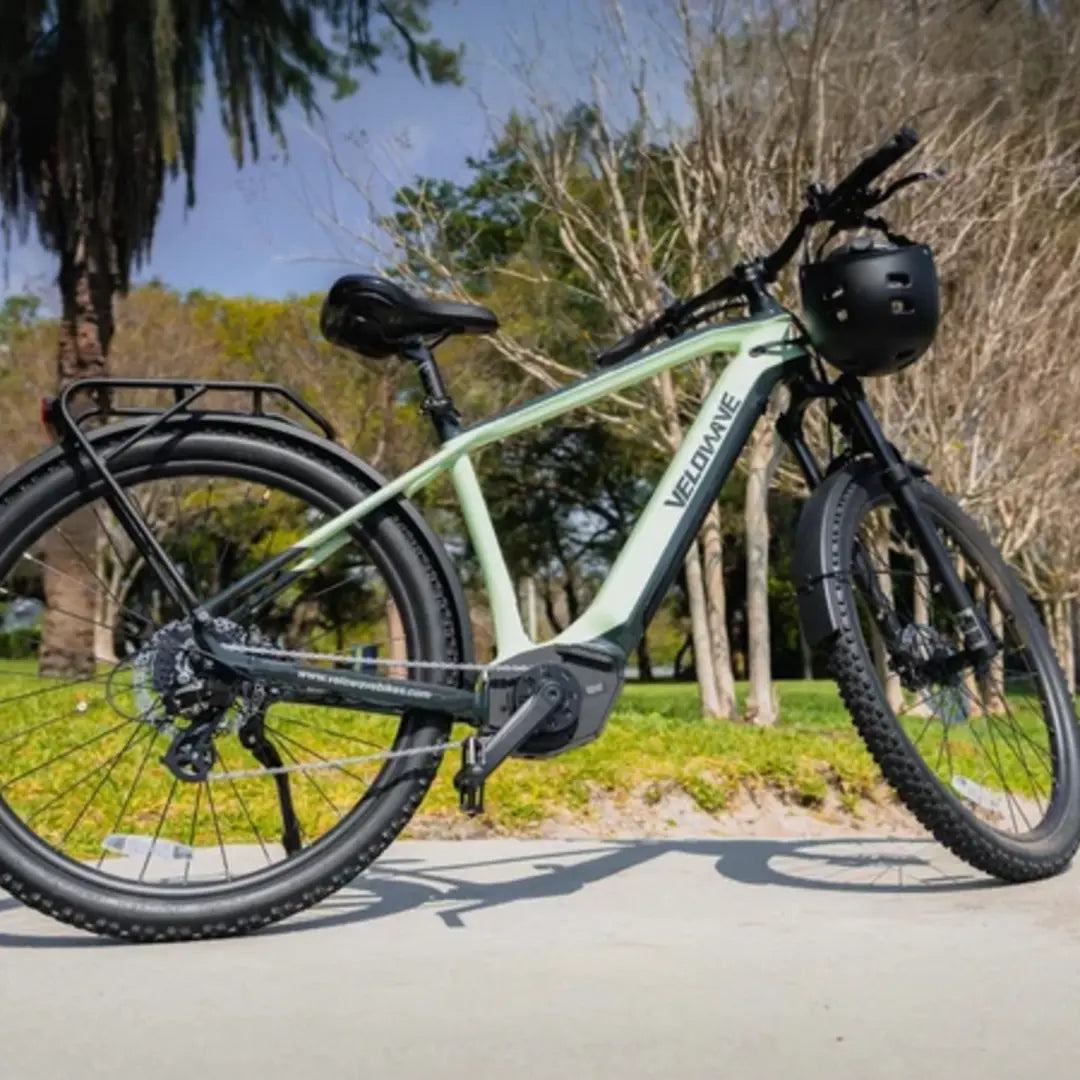

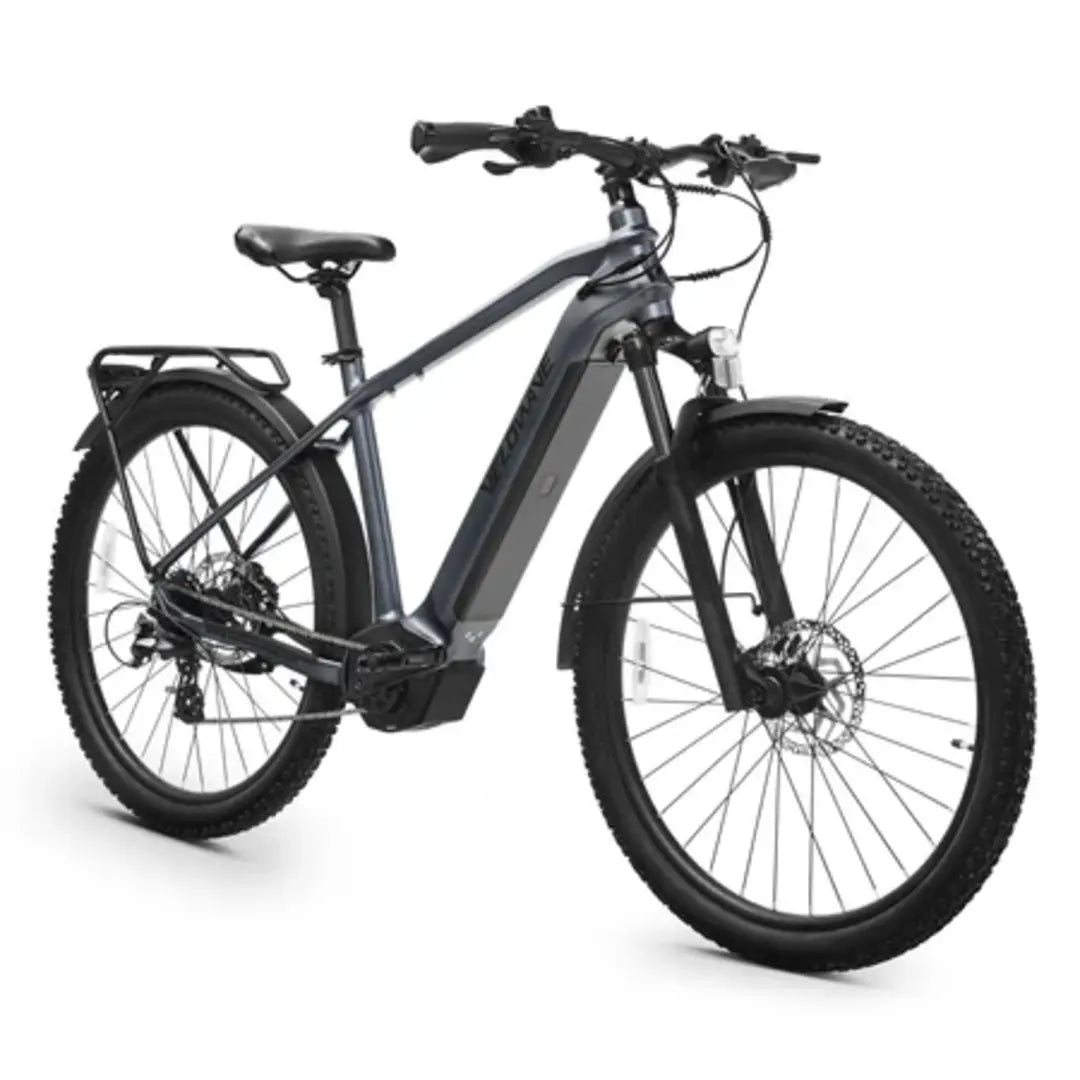

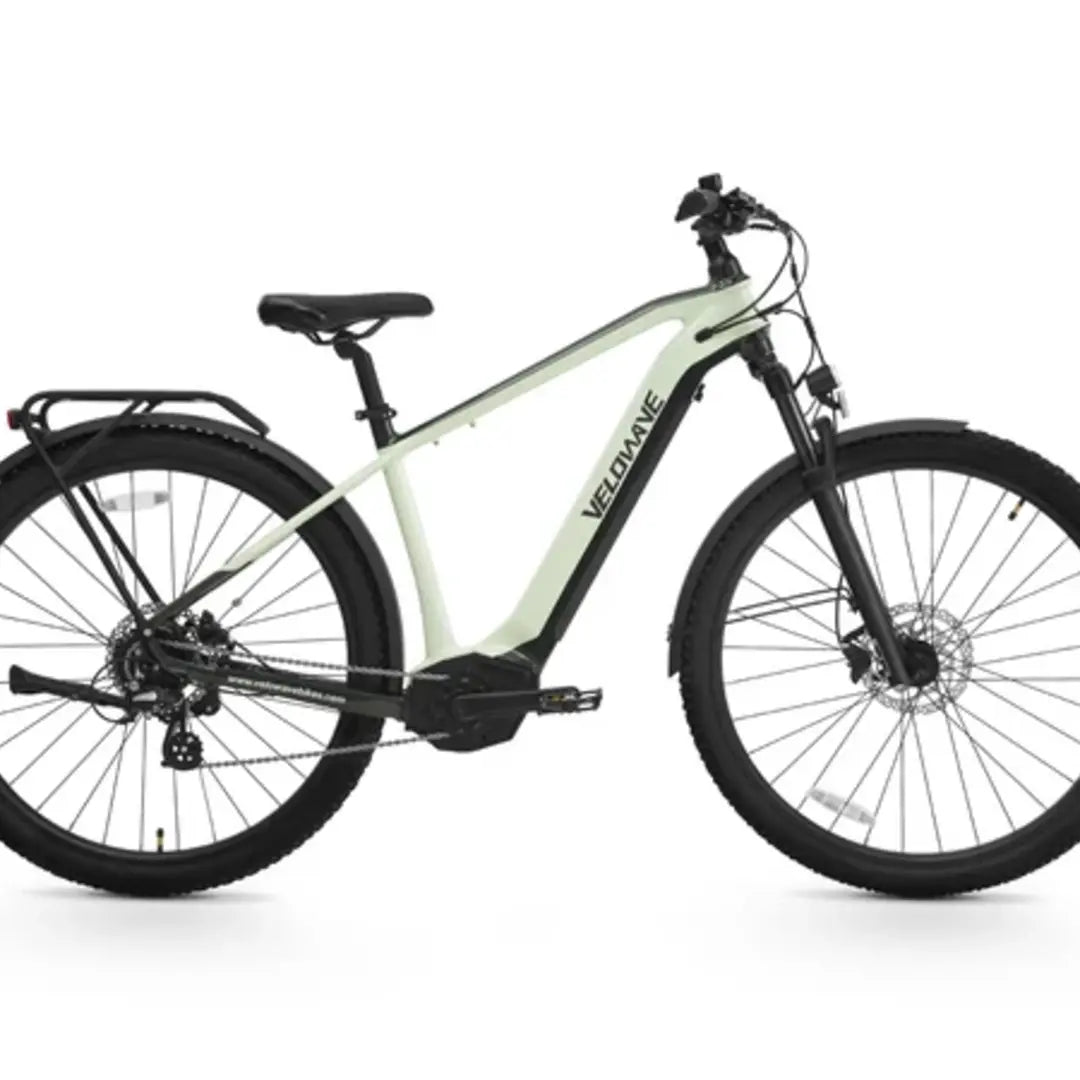

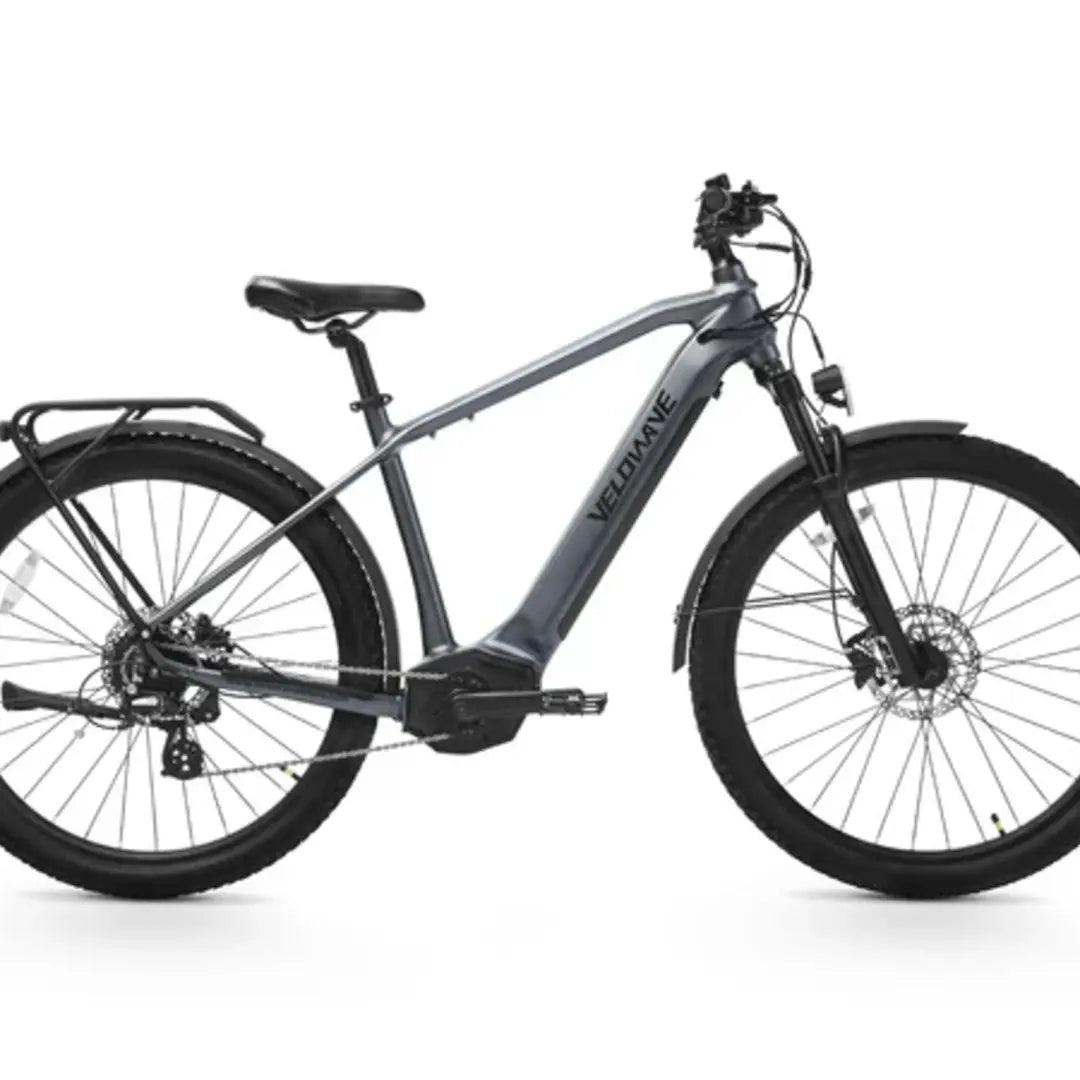

Velowave Swift M Mid-Drive Electric Bike

This mid-drive electric bike is designed for urban mobility and recreational riding, combining a 500W mid-drive motor with a torque sensor that adjusts assistance according to pedaling force. The motor produces up to 100 N·m of torque, while the pedal-assist system provides 5 assistance levels.

A removable 48V 15Ah, 720Wh lithium-ion battery supports an average listed pedal-assist range of 70 miles and up to 80 miles on Level 1. The bike is pedal-assist only and does not include a throttle.

Selectable M/27.5 in. and L/29 in. sizes accommodate different rider dimensions. Both configurations use a 6061 aluminum alloy frame, hydraulic front suspension, hydraulic disc brakes, 8-speed drivetrain, integrated rear rack, aluminum fenders, and front and rear LED lighting.

Key Features

Swift M Mid-Drive

Built for effortless urban mobility, this electric bike features a responsive mid-drive motor and torque sensor technology that intuitively adapts to your ride. A durable, lightweight frame and 2.1" tires ensure stability and comfort across every city journey.

❮

Swift Frame

Light, style, and agility meet in our Swift Frame. Perfect for city commutes or leisurely rides, it offers unmatched performance with a sleek design.

Torque Sensor

The torque sensor measures your pedaling force allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.

Rack & Fenders

Equipped with aluminum mudguards and a rear rack, our bike handles wet terrain and cargo-carrying needs effortlessly, ensuring comfort in any condition.

LED Lights

Illuminate your path with confidence using our LED front and tail lights, ensuring safety on all your nighttime rides.

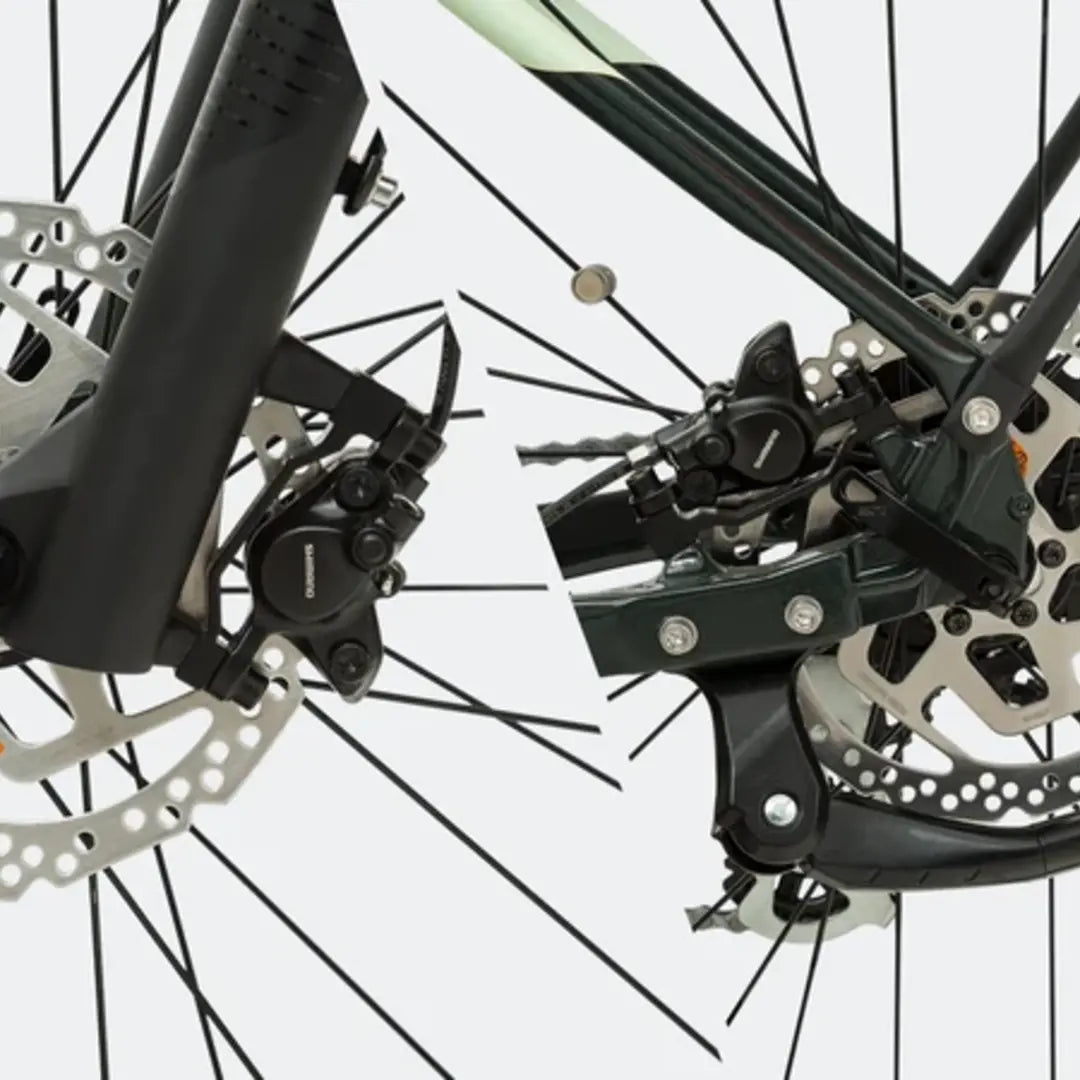

Hydraulic Brakes

Control your ride with precision using our Shimano hydraulic brake system, prioritizing safety in every scenario.

8-Speed Transmission

Experience dynamic riding with our Shimano 8-speed transmission, unleashing tremendous torque for powerful rides.

Dashboard Control

Enhance your experience with our split-type control dashboard, designed for ergonomic comfort and intuitive use.

Long-lasting Battery

Enjoy extended rides with our LG cell battery, balancing high energy storage with a sleek design.

Front Suspension

Smooth out your journey with our front suspension, ensuring a comfortable ride across various landscapes.

❯

Specifications

• Maximum Speed: 20 MPH
• Range: Average 70 miles on PAS; up to 80 miles on Level 1
• Range Test Conditions: Power sufficient, 75 kg load, 86°F / 30°C, 70% humidity, level road, and pedal-assist mode with Eco assistance. Actual results may vary with temperature, load, wind speed, road conditions, and other factors.
• Throttle: Pedal assist only; no throttle
• Frame: 6061 aluminum alloy with internal battery
• Fork: Hydraulic suspension fork with 100 mm travel and lockout
• Rim Material: Aluminum
• Rim Size: 27.5 in. / 29 in., 32H front and rear
• Front Wheel Spokes: Black stainless; 27.5 in. — 13G x 262 mm / 264 mm; 29 in. — 13G x 281 mm / 283 mm
• Rear Wheel Spokes: Black stainless; 27.5 in. — 13G x 262 mm / 264 mm; 29 in. — 13G x 281 mm / 283 mm
• Tubes: Butyl rubber, Schrader valve
• Hubs: Front/rear axles with quick-release mechanism
• Tires: Kenda tires
• Tire Size: 27.5 in. / 29 in. x 2.1 in.
• Battery: Removable internal lithium-ion battery, 48V 15Ah, 720Wh, LG cells
• Charger: 48V 2A charger, approximately 8-hour charging, aviation connector, UL Listed

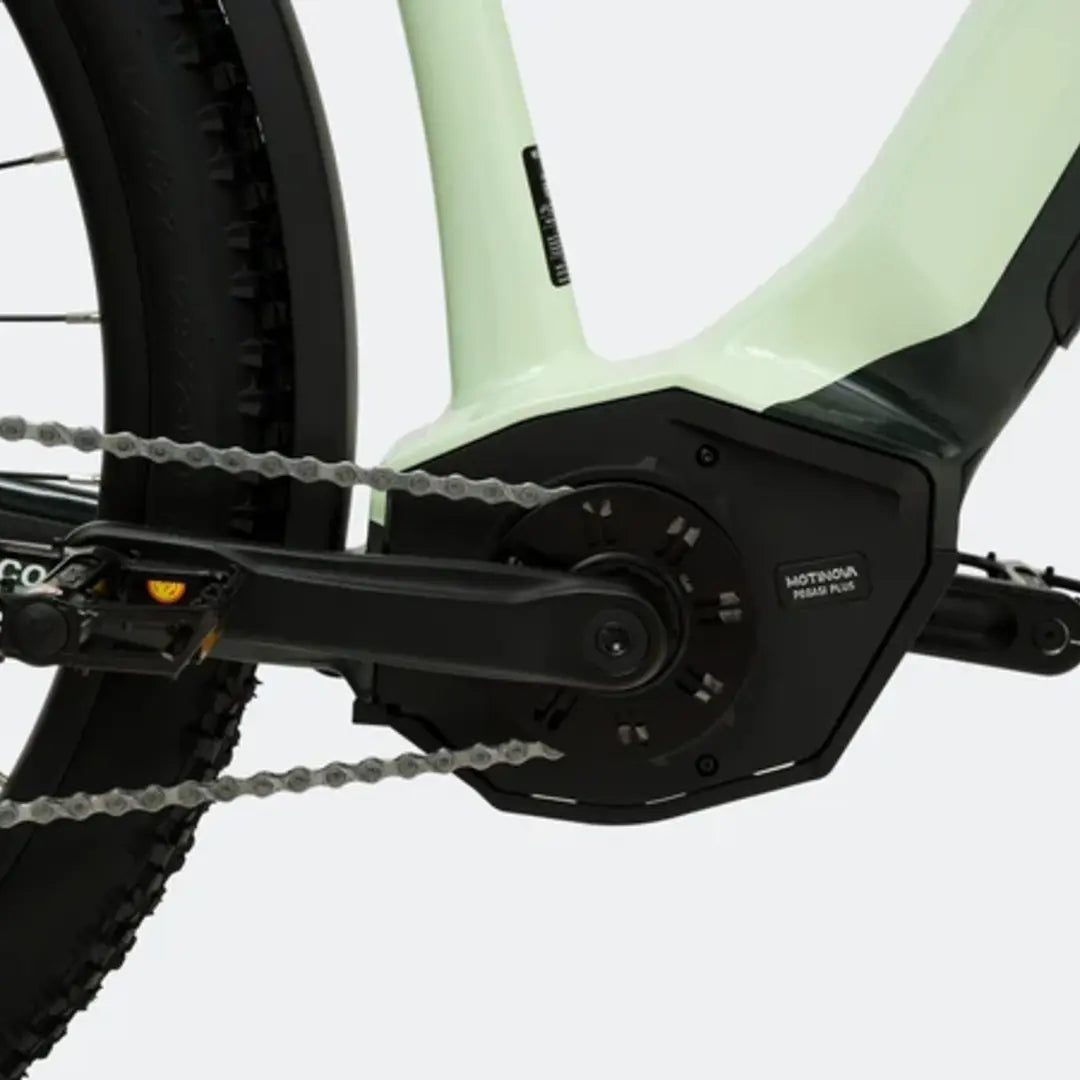

• Motor: MOTINOVA PEGASI PLUS mid-drive motor, rated 500W
• Maximum Motor Torque: 100 N·m
• Display: TFT smart easy-read display with backlight and color screen
• Pedal Assist: 5 levels — 1/2/3/4/Sport
• Sensor: Torque sensor
• Front Light: 6–48V LED light, 30 LUX
• Tail Light: 6–48V LED light, 30 LUX
• Shifter: Shimano 8-speed shift lever
• Rear Derailleur: Shimano ARDM310DLC 8-speed
• Crank & Chainring: 170 mm with 16T
• Cassette: Shimano 12–32T, 8-speed cassette
• Pedals: Alloy platform pedals
• Chain: KMC E8S EPT reinforced electric bicycle chain, 106-link
• Saddle: Comfortable wide saddle
• Seatpost: Forged alloy, Ø30.4 x 350 mm
• Seat Clamp: Ø35 mm quick release
• Stem: Bar bore Ø31.8 mm; clamp I.D. Ø28.6 mm; height 40 mm; rise ±7°
• Handlebar: Aluminum Ø31.8 mm, 700 mm width
• Headset: Sealed bearing headset
• Grips: Nylon lock-on, ergonomic comfort
• Brakes: Shimano hydraulic disc brakes
• Brake Rotors: Shimano 180 mm, 1.9 mm thick
• Kickstand: Alloy side kickstand, rear mount
• Fenders: Aluminum; 27.5 in. x 66 mm / 29 in. x 66 mm
• Rear Rack: Aluminum alloy, integrated rear fender and rack
• Net Weight: 26.8 kg (59.08 lb.), including battery
• Gross Weight: 34.2 kg (75.4 lb.)
• Battery Weight: 3.8 kg (8.37 lb.)
• Payload Capacity: 385 lb.
• Product Size — 27.5 in.: 1850 x 710 x 1070 mm
• Product Size — 29 in.: 1910 x 710 x 1110 mm
• Packing Size: 1600 x 280 x 890 mm

Size Guide

• M/27.5 in.
• Selectable Size: M/27.5 in.
• Recommended Rider Height: 5 ft. 5 in.–6 ft. 5 in. / 165–192 cm
• Recommended Inseam: 30.7–36 in. / 78–92 cm
• Total Length: 1846 mm
• Head Tube Length: 150 mm
• Seat Tube: 480 mm
• Handlebar Height: 1028 mm
• Wheelbase: 1147 mm
• Standover Height: 751 mm
• Reach: 399 mm
• Seat Height Min/Max: 857 mm / 1050 mm
• Tire Size: 27.5 in. x 2.1 in.
• Product Size: 1850 x 710 x 1070 mm
• L/29 in.
• Selectable Size: L/29 in.
• Recommended Rider Height: 5 ft. 6 in.–6 ft. 5 in. / 168–192 cm
• Recommended Inseam: 31.5–36 in. / 80–92 cm
• Total Length: 1899 mm
• Head Tube Length: 150 mm
• Seat Tube: 480 mm
• Handlebar Height: 1058 mm
• Wheelbase: 1174 mm
• Standover Height: 760 mm
• Reach: 397 mm
• Seat Height Min/Max: 870 mm / 1062 mm
• Tire Size: 29 in. x 2.1 in.
• Product Size: 1910 x 710 x 1110 mm
• Size Difference: The M configuration uses 27.5 in. wheels and is recommended for riders 5 ft. 5 in.–6 ft. 5 in., while the L configuration uses 29 in. wheels and is recommended for riders 5 ft. 6 in.–6 ft. 5 in. The L configuration also has a longer wheelbase, higher handlebar and standover measurements, and higher minimum and maximum seat heights.

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Front Light & Reflector Combo x 1
• Spare Screws x 2
• Front Axle Skewer x 1
• Pedals x 2
• Instruction Manual x 1
• Allen Wrench x 1
• Open End Wrench x 1
• Quick Link x 1
• Chain Breaker x 1
• Quick Link Pliers x 1
• Headset Cover Screw Cap x 1

Warranty

2-year initial limited warranty for bikes purchased after March 22, 2024. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years; bicycle frames are covered for 2 years against manufacturing defects; and mechanical components are covered for 1 year against manufacturing defects, subject to the stated warranty terms and exclusions.
