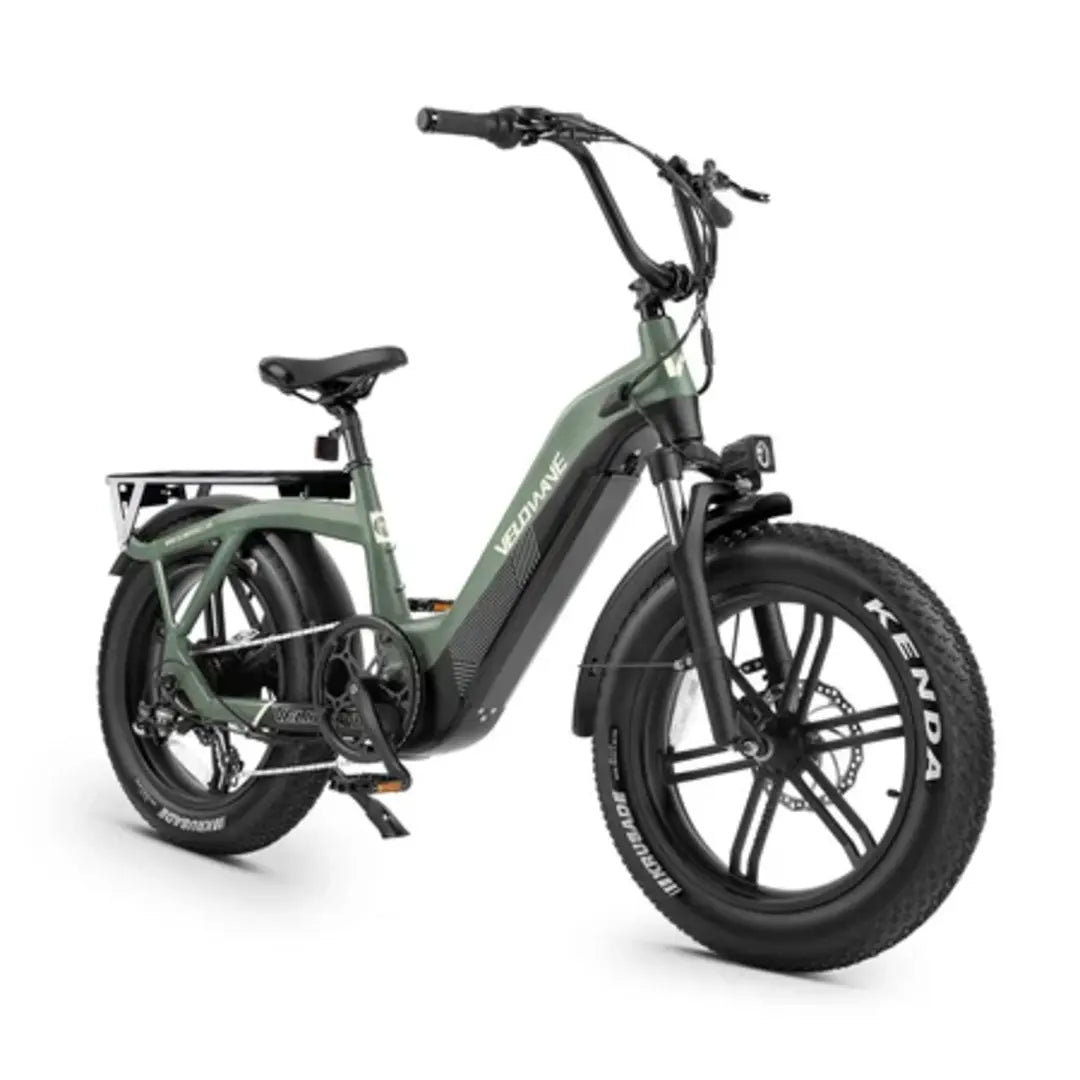

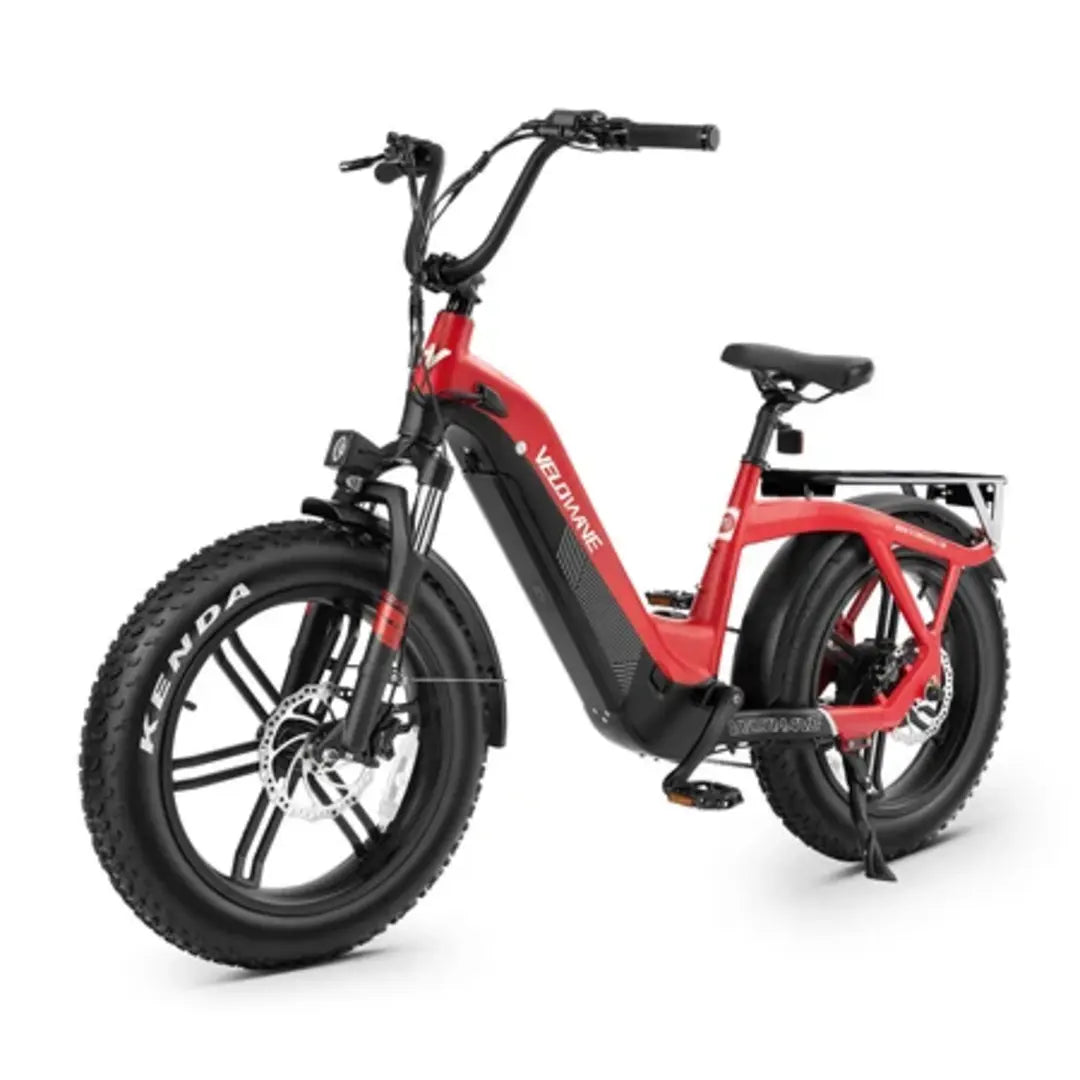

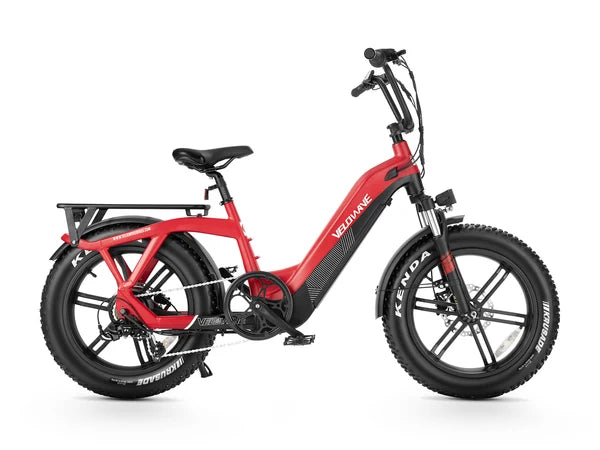

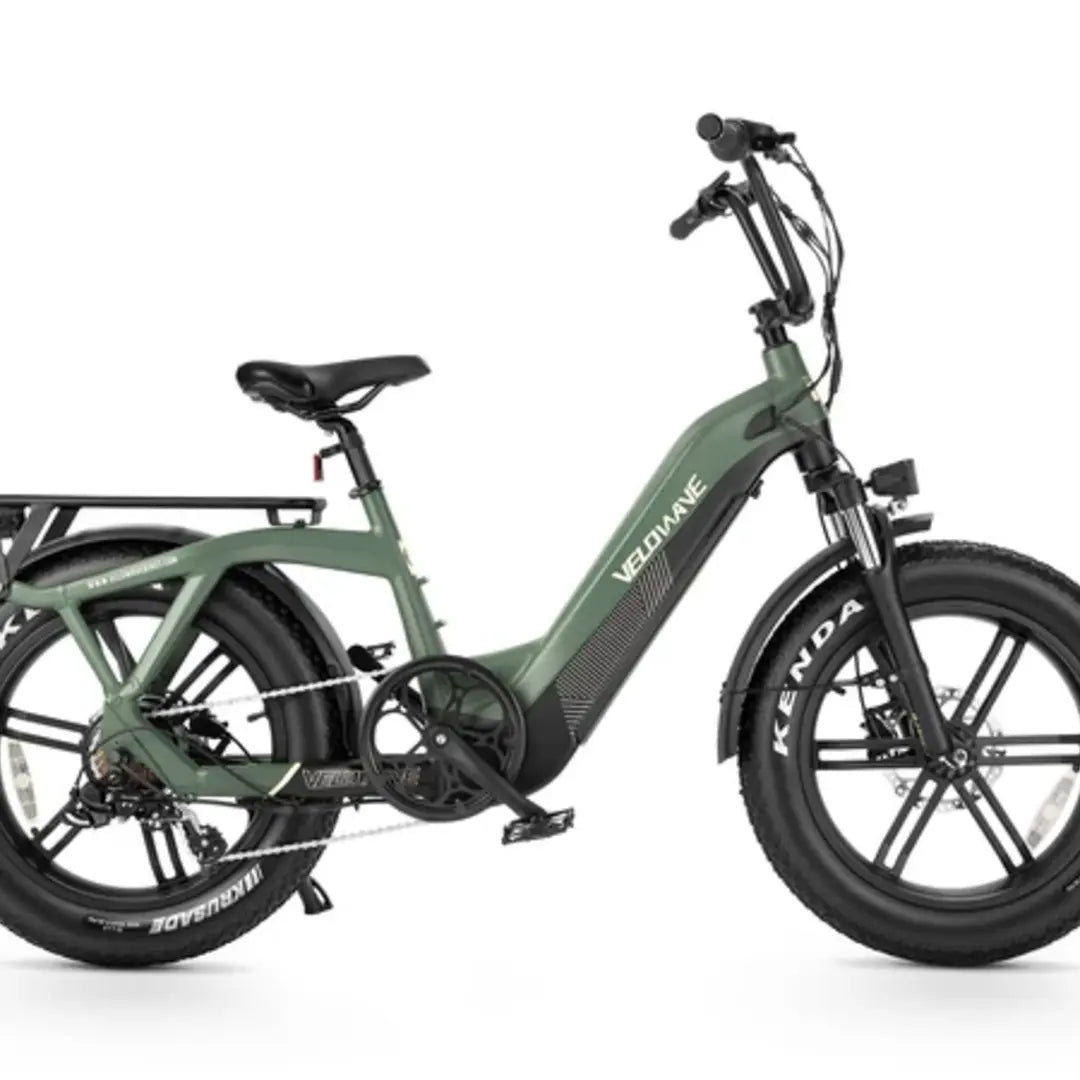

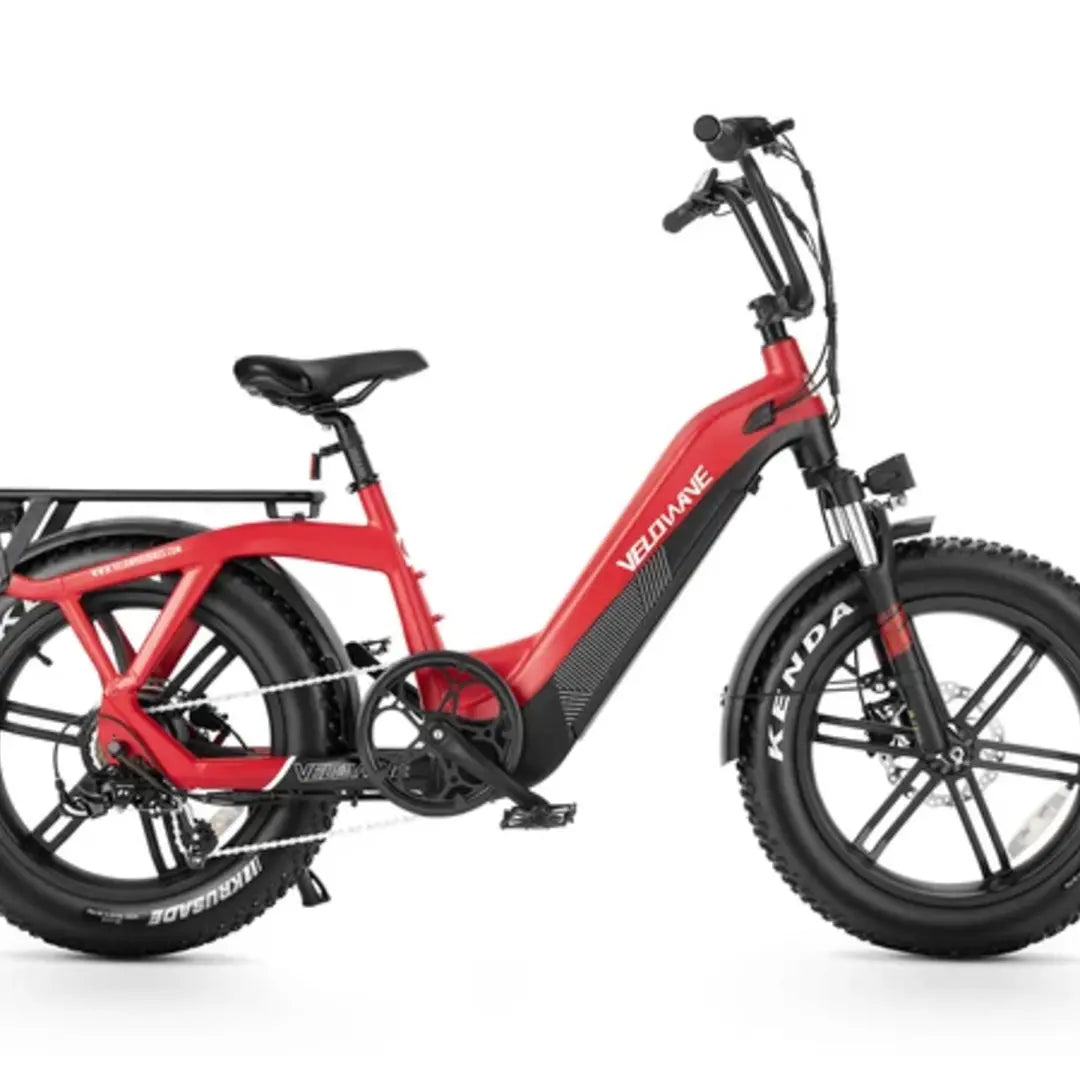

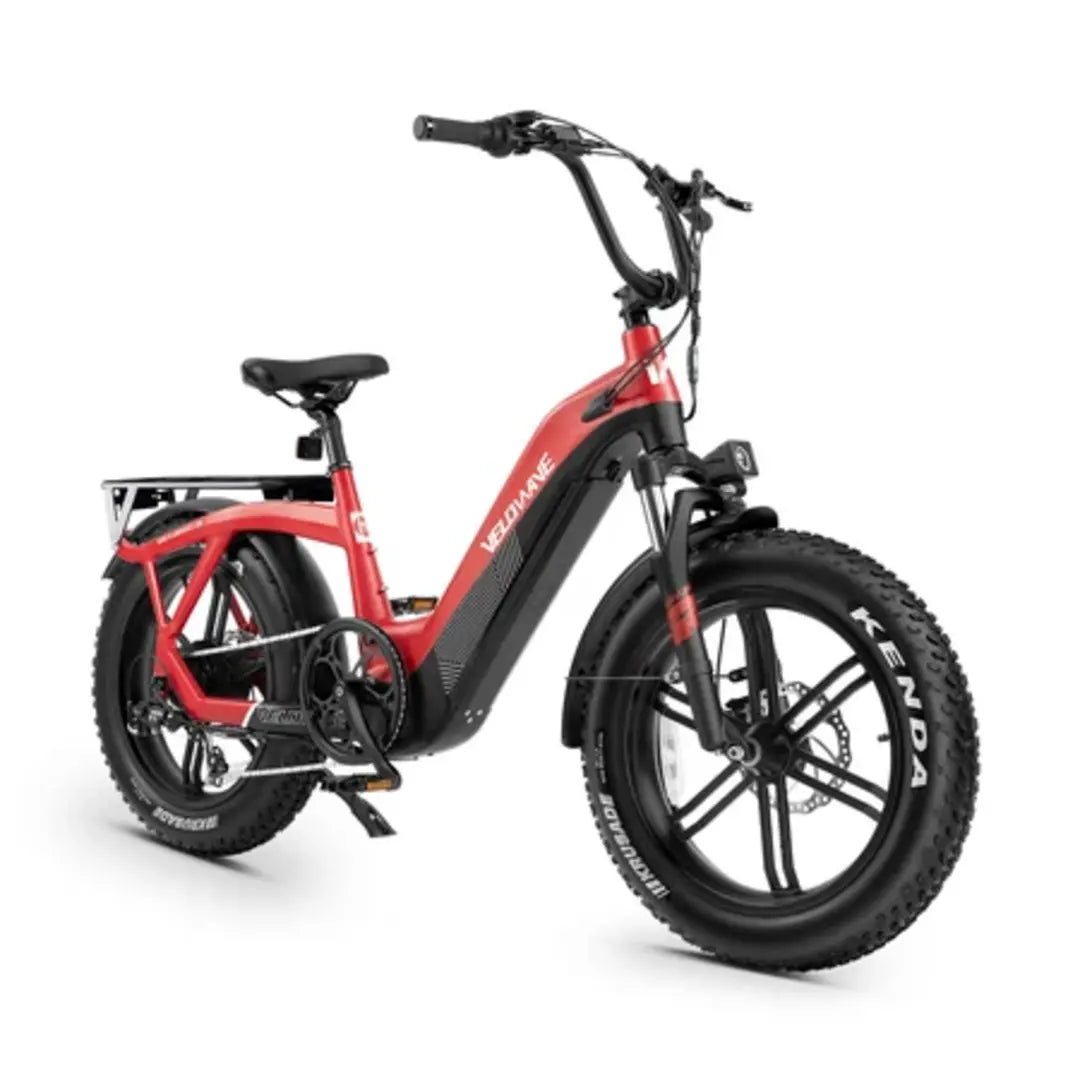

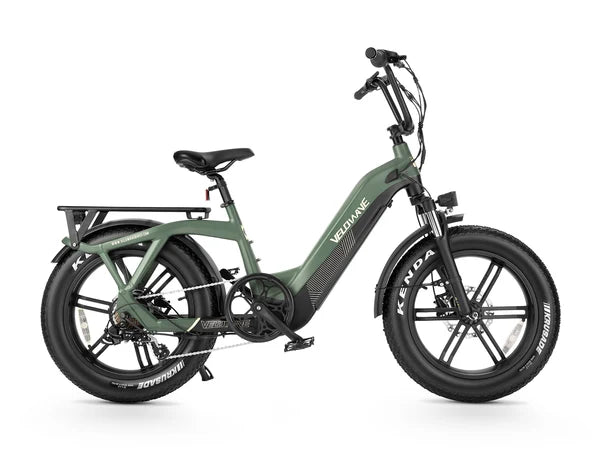

Velowave Pony Compact Step-Thru Electric Bike

The Pony Compact Step-Thru Electric Bike combines a compact step-through frame with 20" x 4.0" Kenda fat tires for daily commuting and riding on surfaces including sand, snow, gravel, and rough trails. Its 6061 aluminum frame uses an internally routed, removable battery design.

A BAFANG geared hub motor delivers 750W rated output, 1000W peak output, and up to 80NM of torque. Power comes from a 48V 15Ah, 720Wh lithium-ion battery with LG 21700 cells, with an average listed pedal-assist range of 40 miles.

The bike also includes hydraulic front suspension, front and rear hydraulic disc brakes, a Shimano 7-speed drivetrain, a multifunctional color display, thumb throttle, and a 330-lb. payload capacity.

Key Features

Pony

The Velowave Pony Compact Step-Thru Electric Bike is a powerful fat tire ebike built for adventure and daily commuting. With a step-thru frame for easy access, a 750-watt electric bike motor for speed and stability, and 20”x4” fat tires for superior grip, it’s ready for any terrain. Its 48V/15Ah LG battery provides up to 40 miles per charge, making it the perfect adventure ebike for city streets and off-road trails alike.

❮

Fat Tire Design

The 20"×4.0" Kenda Fat Tires provide superior traction and stability, making this fat tire ebike suitable for sand, snow, gravel, and rough trails.

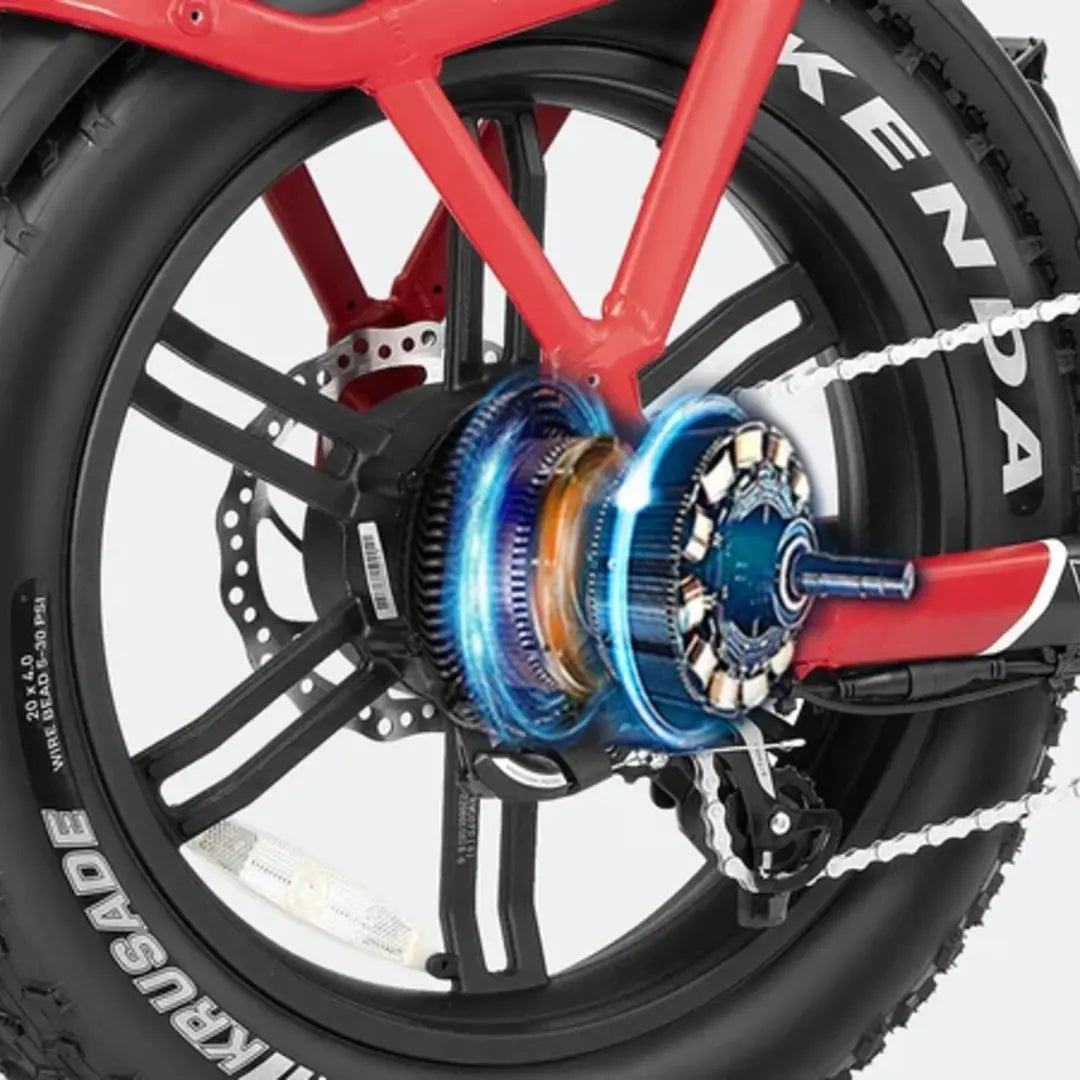

750W BAFANG Motor

This 750-watt electric bike is equipped with a high-speed BAFANG geared motor, ensuring powerful acceleration and a smooth ride at peak speeds.

Comfortable Wide Saddle

Featuring a widened and enlarged seat pad for enhanced comfort during long rides, focusing on every detail for an enjoyable riding experience.

Durable Aluminum Frame

Built with aerospace-grade aluminum, this adventure ebike balances durability and a lightweight structure, offering a sleek yet strong frame.

Long-lasting Battery

The 48V/15AH LG lithium battery delivers a range of up to 40 miles per full charge, supporting fast charging, perfect for long-distance rides.

Front Suspension

Reduces frame vibration on rough roads, enhancing stability, comfort, and control, ensuring a safer and more enjoyable riding experience.

Shimano Drivetrain

Smooth-shifting Shimano 7-speed drivetrain for seamless adjustment of riding speed across different terrains and conditions.

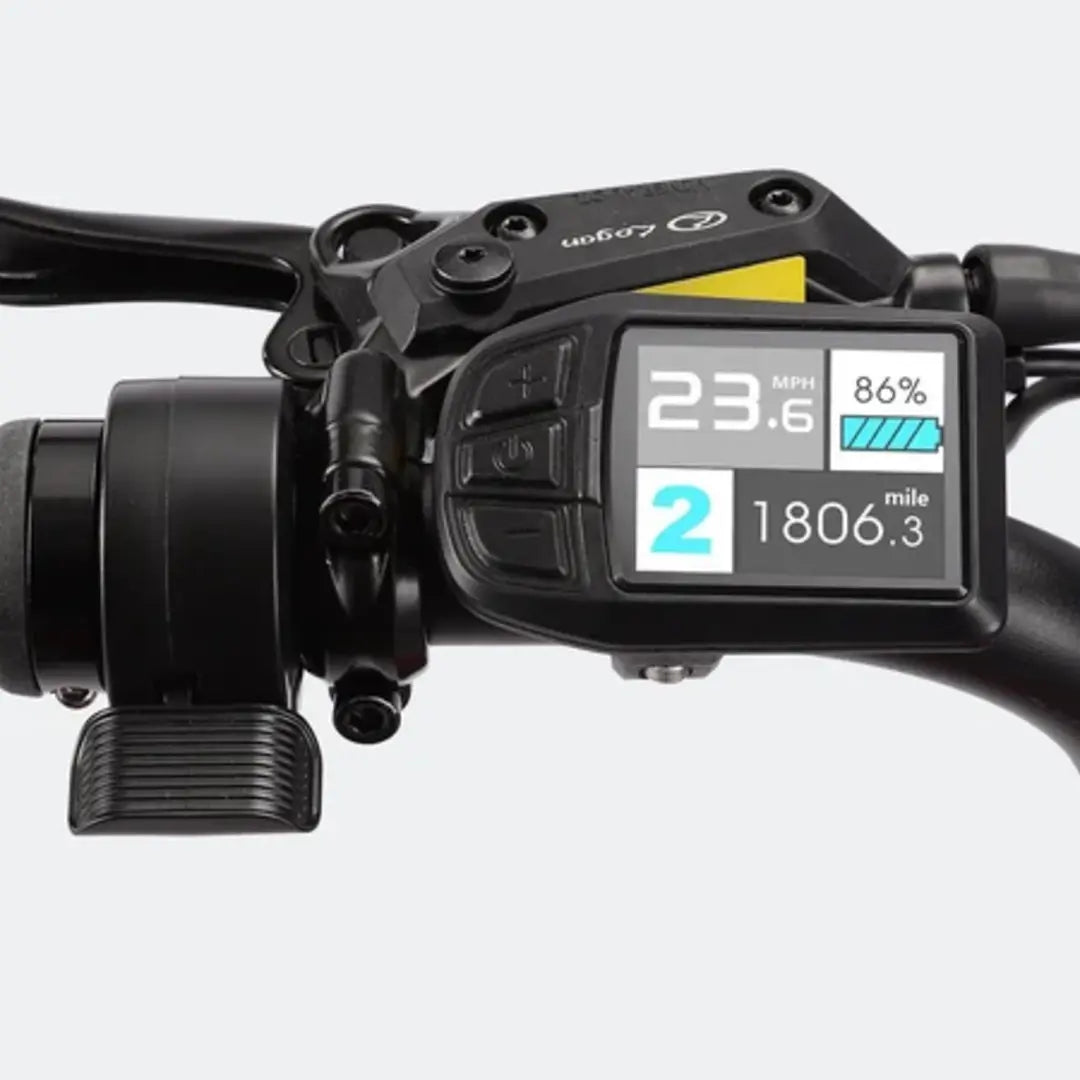

Smart Display

Features front and rear hydraulic disc brake system for smooth braking in any condition, along with essential ride data including assist level, battery indicator, riding speed, and mileage.

Bright Headlight

Equipped with a bright 48V 10W LED headlight for enhanced safety during night rides, ensuring visibility and ease of riding day and night.

❯

Specifications

• Class: Class 2
• Maximum Speed: 25 MPH by pedal assistance; 20 MPH by throttle
• Range: Average 40 miles on PAS; up to 40 miles on Level 1; 23 miles on throttle
• Frame: 6061 aluminum, removable battery, internal routing
• Fork: Hydraulic suspension fork
• Fenders: Included
• Rim Material: Aluminum
• Rim Size: 20 x 3.0
• Rim Type: Wheel with integral hub
• Tires: Kenda fat tires
• Tire Size: 20" x 4.0"
• Battery: 48V 15Ah, 720Wh, LG 21700 cells
• Charger Input: 100-240V~, 2.8A (Max.), 50-60Hz
• Charger Output: 54.6V⎓2.0A
• Charger Connector: Aviation connector
• Charger Listing: UL LISTED
• Motor: BAFANG geared hub motor, rated 750W, peak 1000W, maximum torque 80NM
• Controller: 48V 25A peak
• Display: Multifunctional color-screen display
• Pedal Assist: Speed sensor
• Throttle: Thumb throttle
• Front Light: 48V 10W LED light
• Shifter: Shimano, 7-speed
• Rear Derailleur: Shimano, long cage
• Crank & Chainring: 52T, 170mm alloy crank
• Freewheel: 7-speed
• Pedals: Alloy platform pedals
• Saddle: Comfortable wide saddle
• Grips: Nylon lock-on
• Brakes: Front and rear hydraulic disc brakes
• Brake Rotor: 180mm, 1.9mm thick
• Kickstand: Side kickstand
• Seatpost: Forged alloy, Ø30.4 x 350mm
• Stem: Bar bore Ø31.8mm; clamp I.D. Ø28.6mm; height 40mm; rise 0°
• Net Weight: 36kg (79.4lb)
• Gross Weight: 45.6kg (100.5lb)
• Battery Weight: 4.2kg (9.3lb)
• Payload Capacity: 150kg (330lb)
• Product Size: 1720 x 1130 x 750mm
• Packing Size: 1450 x 320 x 800mm

Size Guide

• Frame Size: 13.7" / 35cm
• Recommended Rider Height: 5'0"–6'1" / 152–185cm
• Handlebar Height: 1130mm
• Reach: 440mm
• Head Tube Length: 173mm
• Seat Tube Length: 349mm
• Standover Height: 670mm
• Wheelbase: 1131mm
• Total Length: 1715mm
• Seat Height Min/Max: 775/990mm

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Headlight x 1
• Pedals x 2
• Front Reflector x 1
• Spare Screws x 2
• Flat Washer x 2
• Three Way Allen Wrench x 1
• Allen Wrench x 1
• Front Axle Skewer x 1
• Y Socket Wrench x 2
• Open End Wrench x 2
• Screw Driver x 1

Warranty

Warranty: 2-year initial warranty for e-bikes purchased after March 22, 2024. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years from the date of purchase. Bicycle frames are covered for 2 years against manufacturing defects, and mechanical components are covered for 1 year against manufacturing defects. Warranty exclusions, limitations, procedures, and conditions apply.
