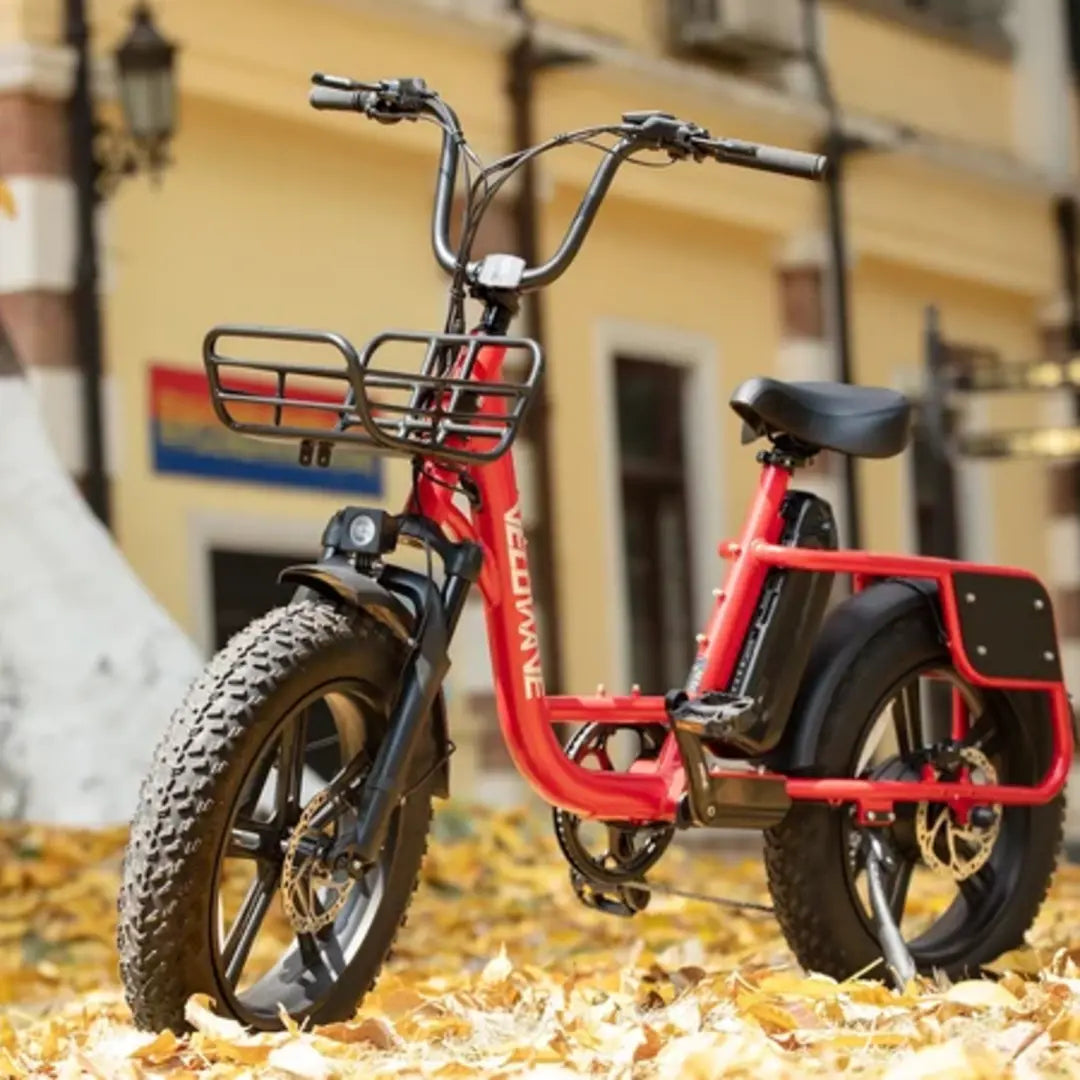

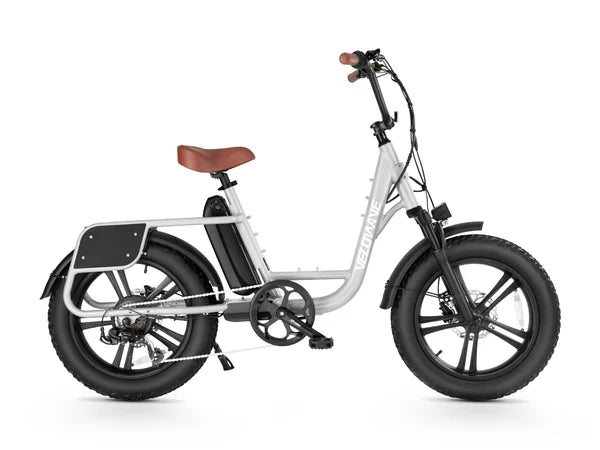

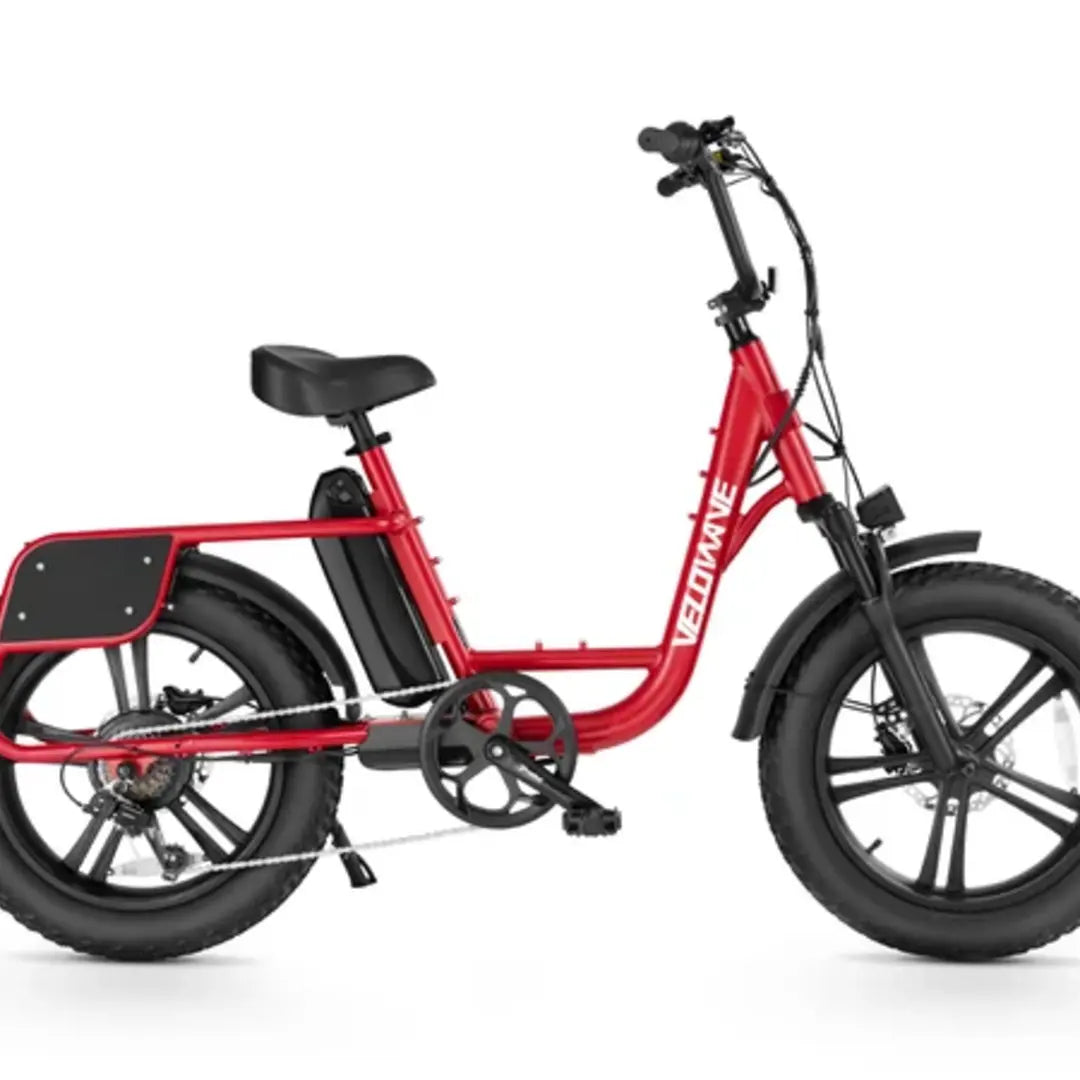

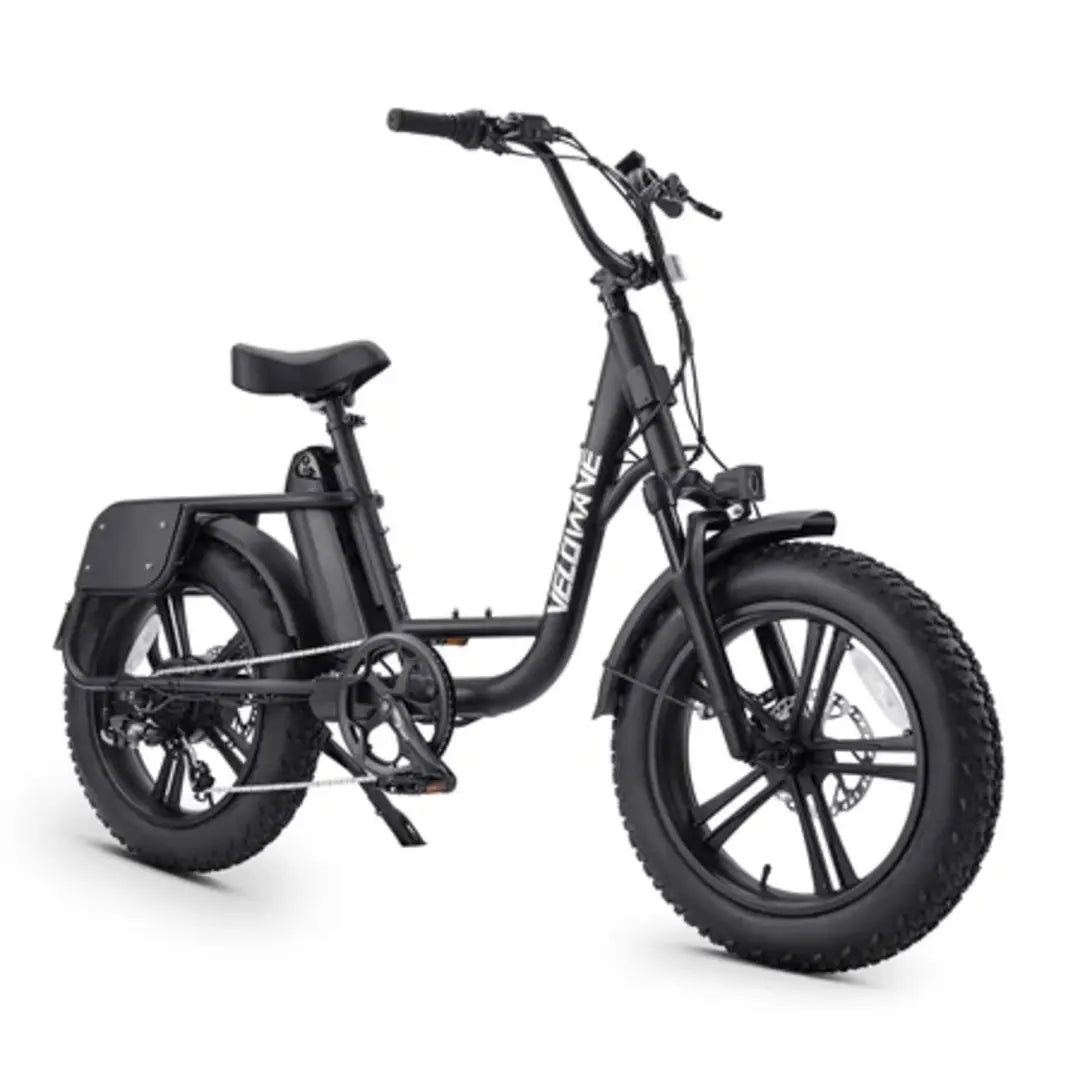

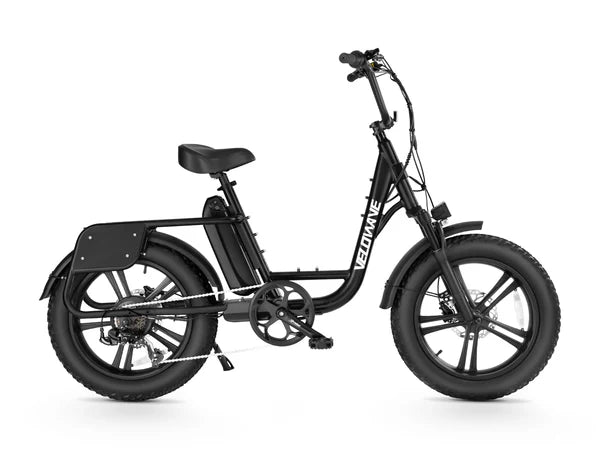

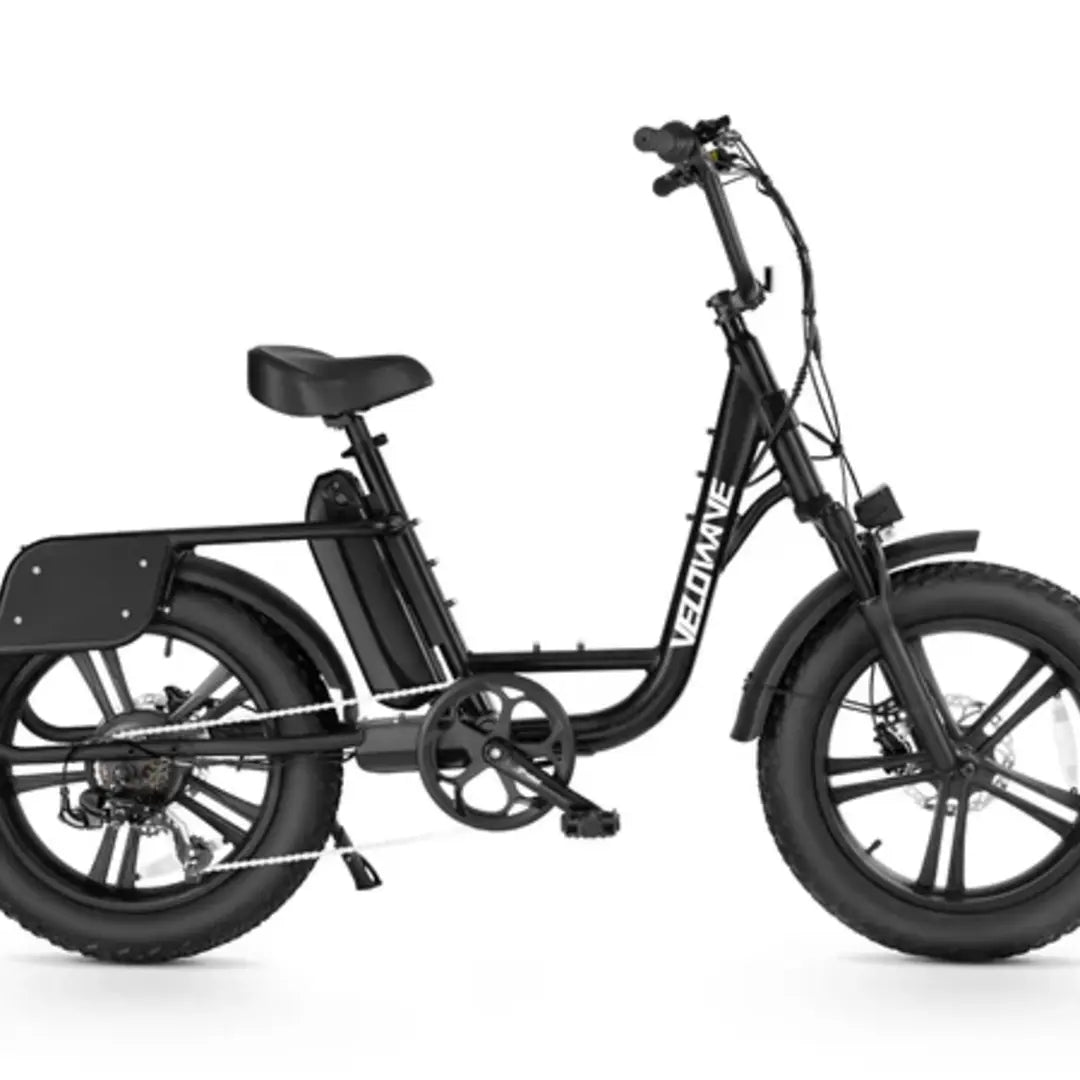

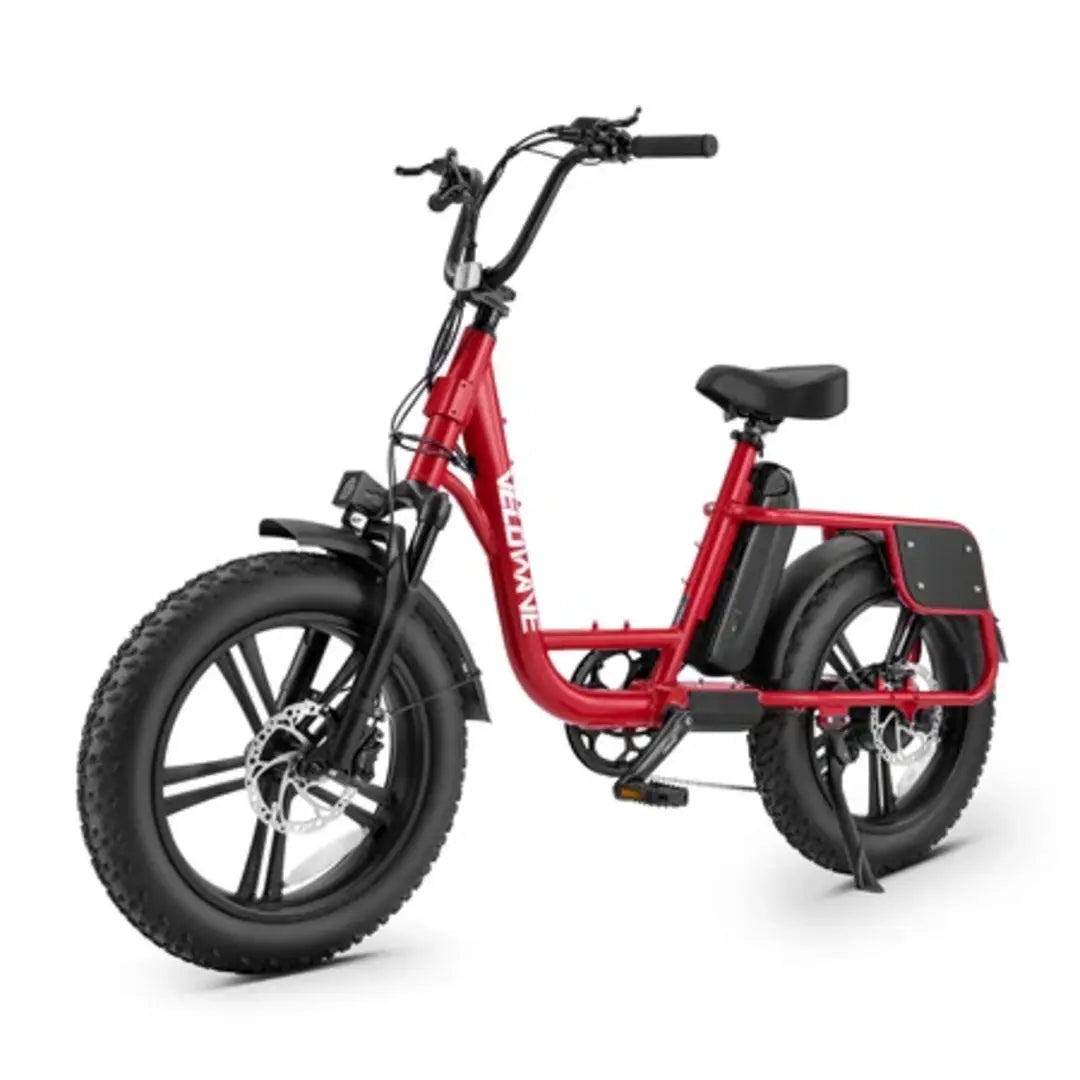

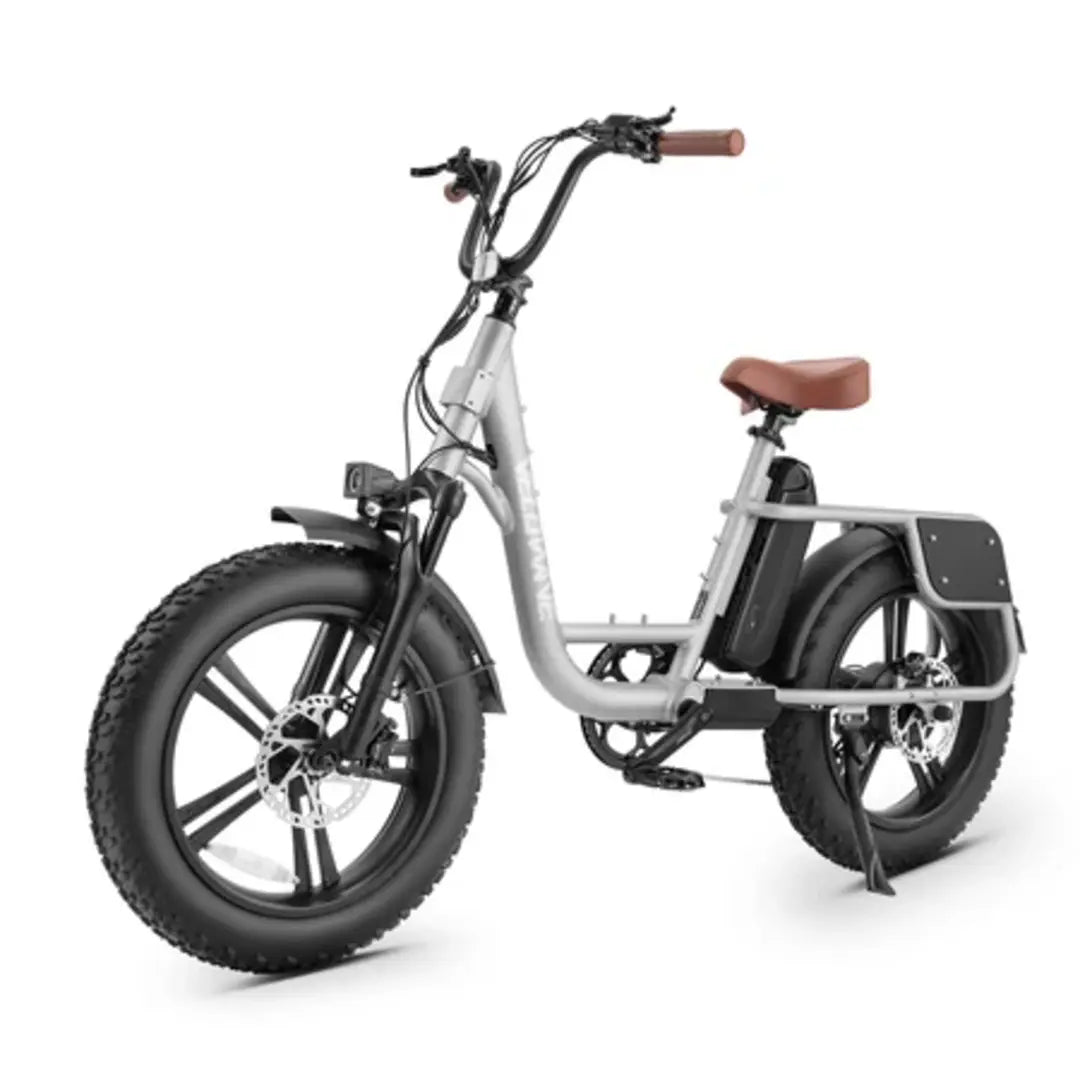

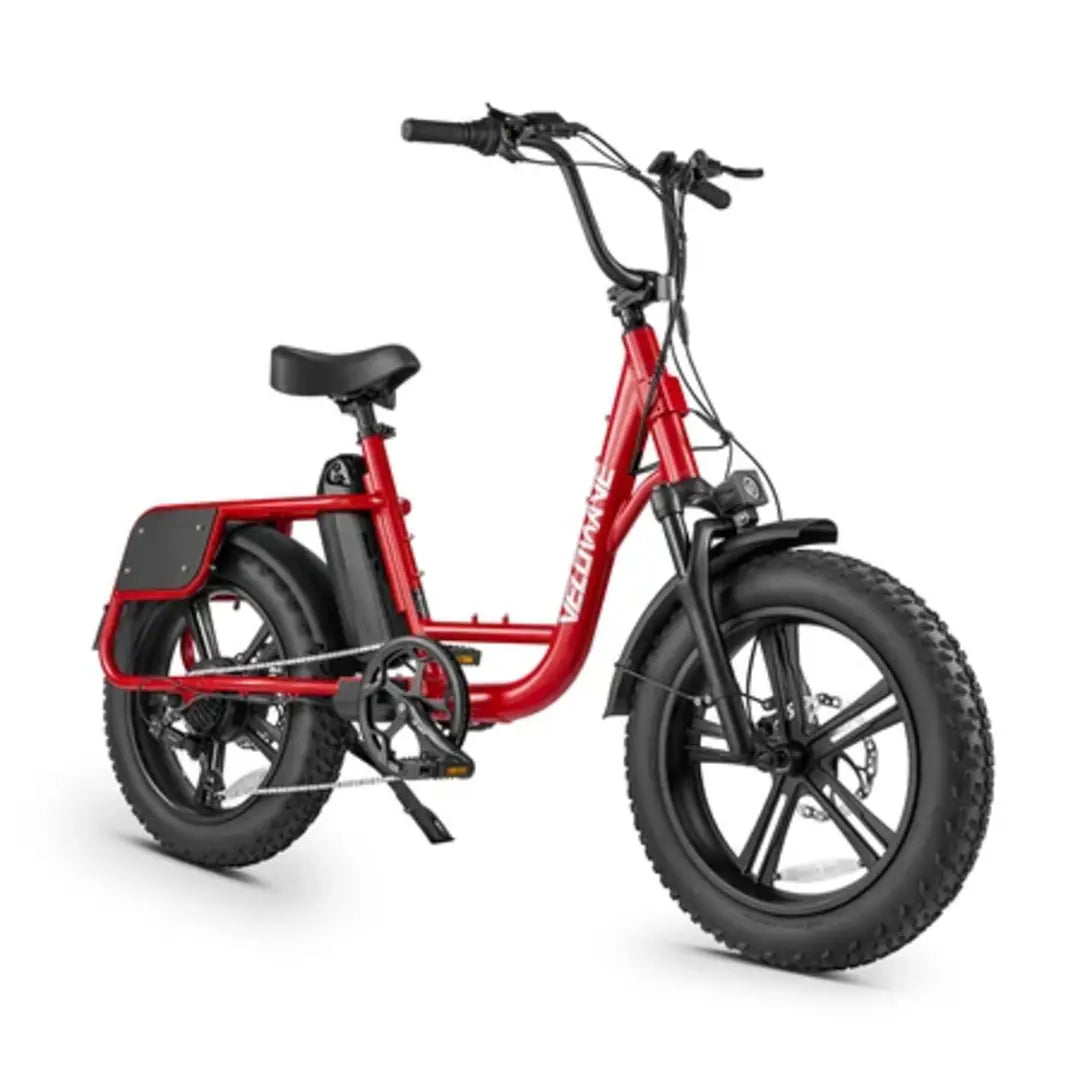

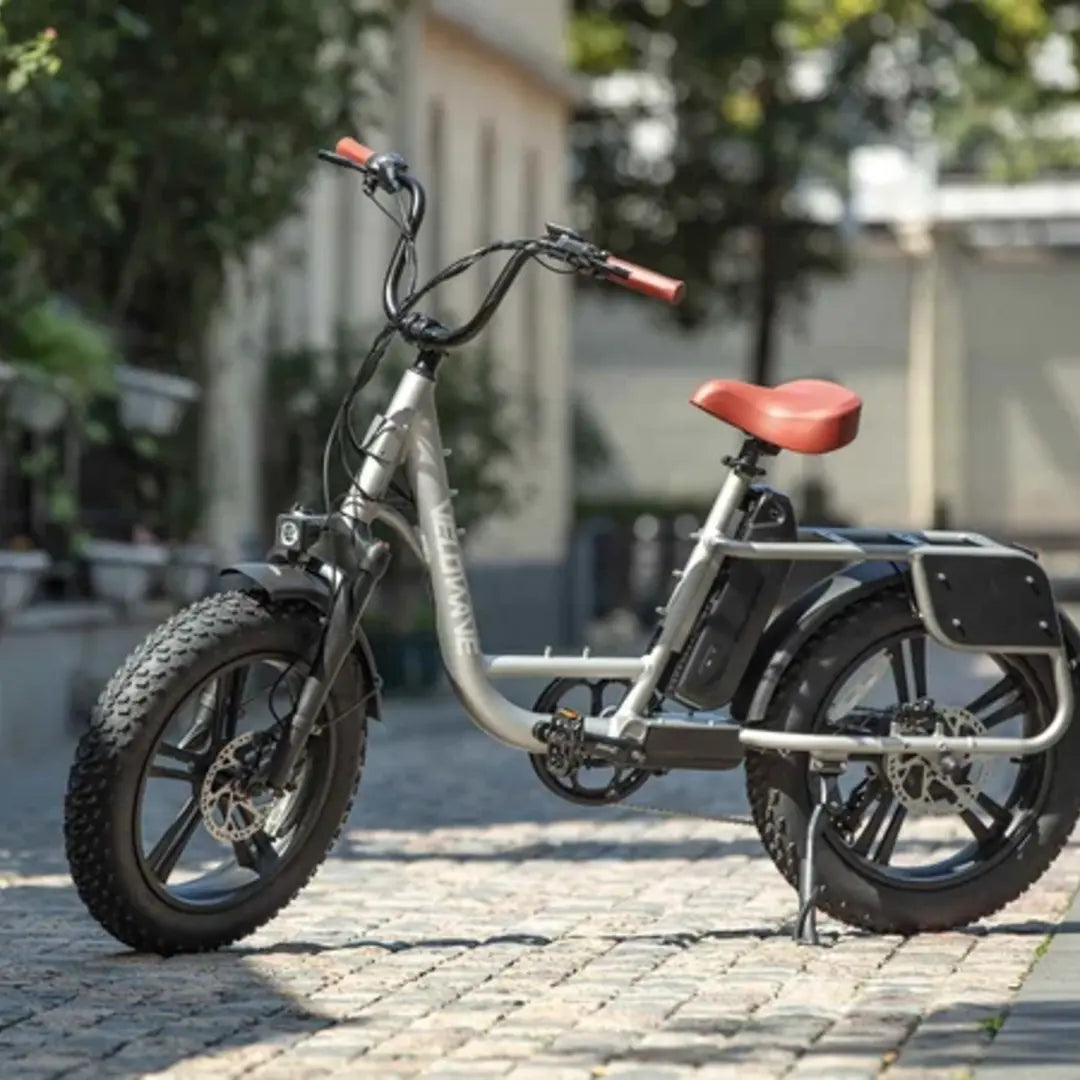

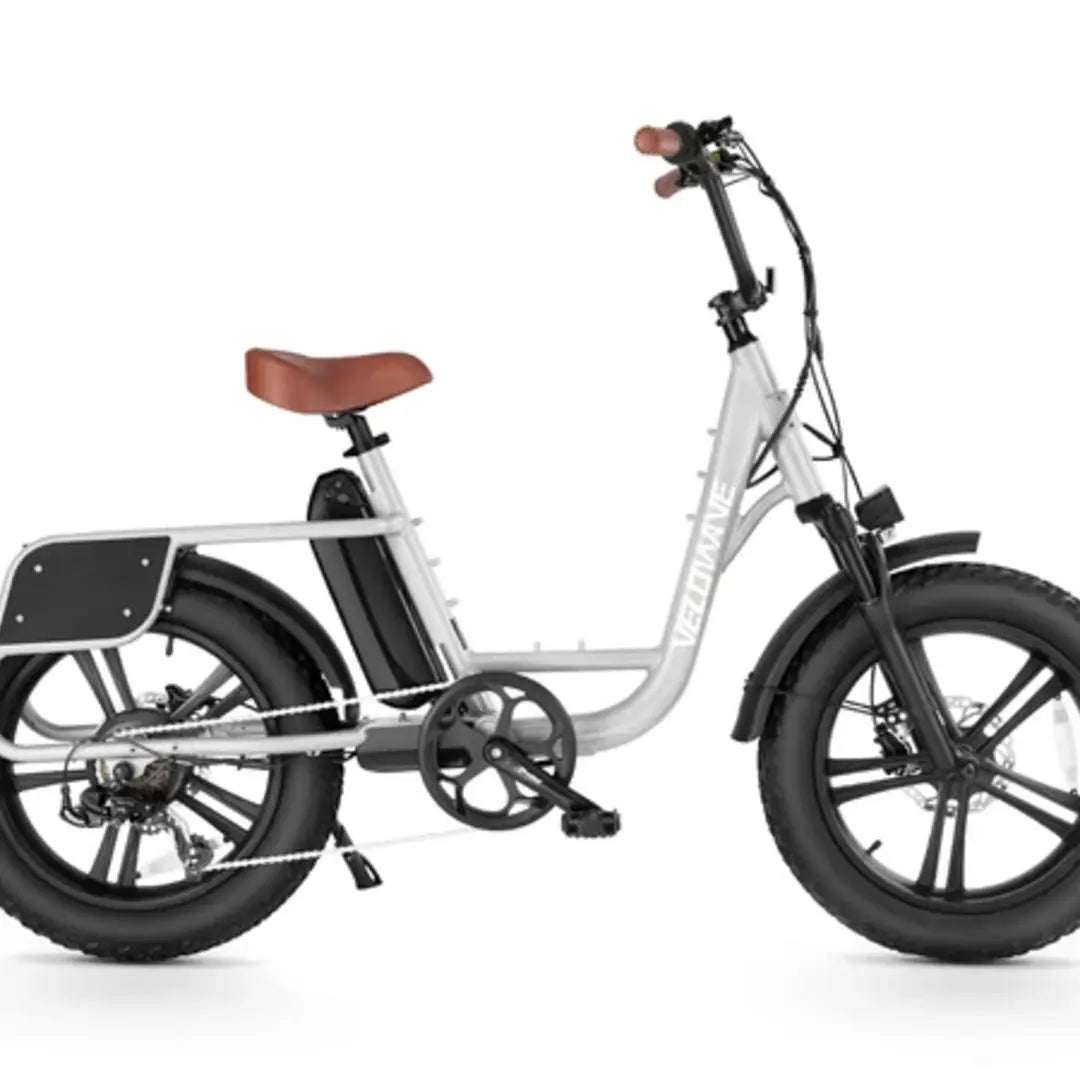

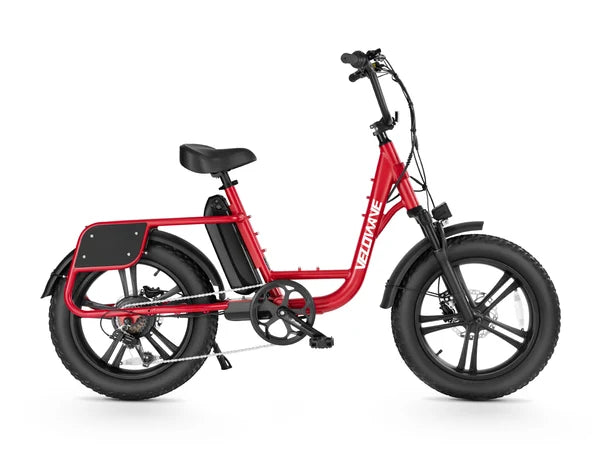

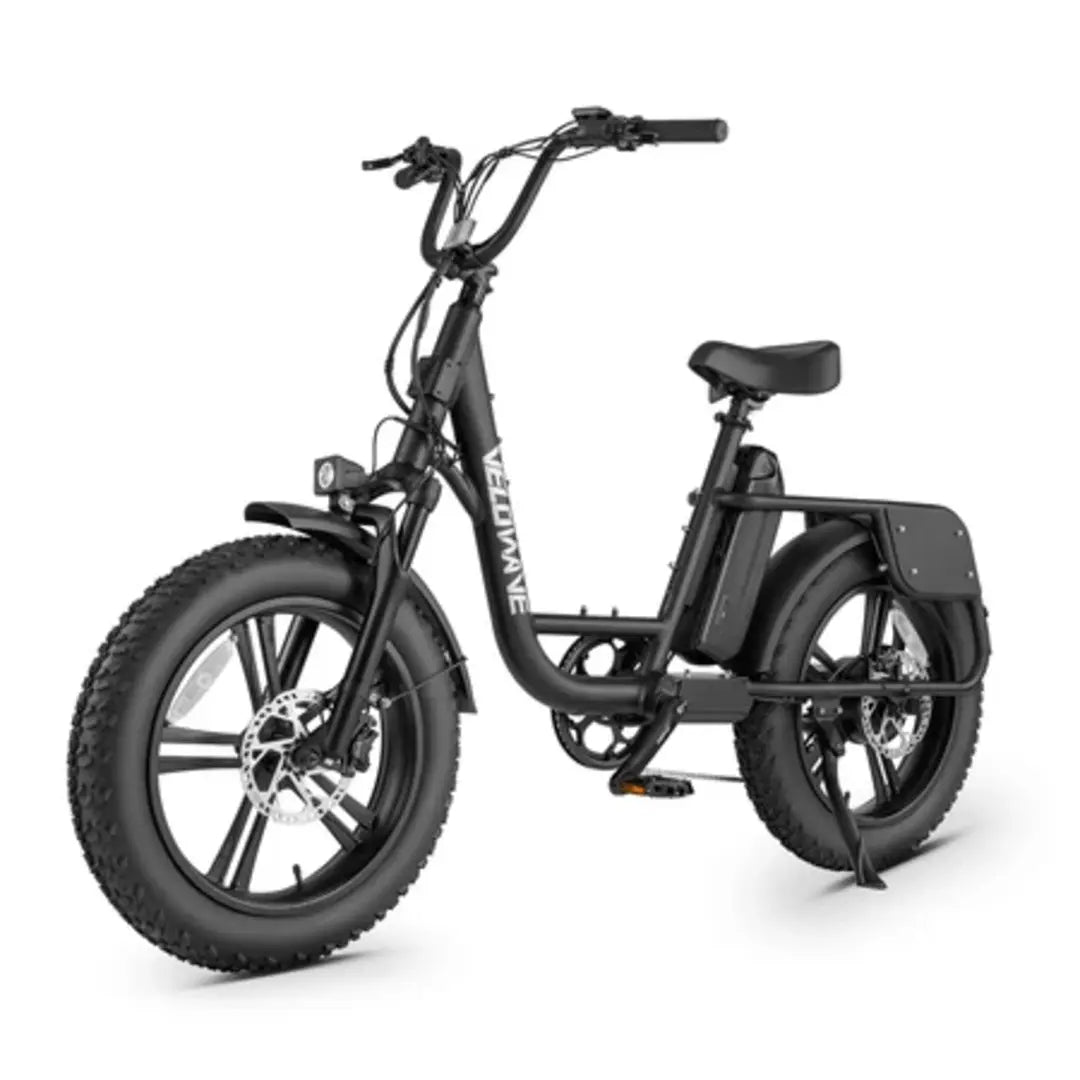

Velowave Prado S Commuter Electric Bike

The Prado S Commuter Electric Bike is designed for city riding and everyday commuting, combining a 6061 aluminum frame with an integrated rear rack, front suspension, fenders, and 20 in. x 4.0 in. fat tires. Swept-back handlebars support an upright riding position, while the wide saddle is designed for riding comfort.

Its electric system uses a 750W BAFANG geared hub motor with 1275W peak output and 55Nm of torque, paired with a removable 48V 15Ah, 720Wh lithium-ion battery using LG 21700 cells. The bike supports speeds up to 25 MPH with pedal assistance and 20 MPH using the thumb throttle.

The drivetrain uses Shimano 7-speed components, while front and rear hydraulic disc brakes provide braking control. A multifunction color display provides information including assist level, battery status, speed, and mileage.

Key Features

Prado S

The Prado E-Bike is designed with city and commuter riders in mind. Its large handlebar provides added comfort during your ride while its mudguards keep you clean on any terrain. Elevate your daily commute experience with Prado, which can travel up to 40 miles per charge - making it the ultimate partner for all your riding needs!

❮

Comfortable Handlebar

Swept-back bars provide a comfortable and upright posture, ideal for commuters. The internal bar can also serve as a bracket.

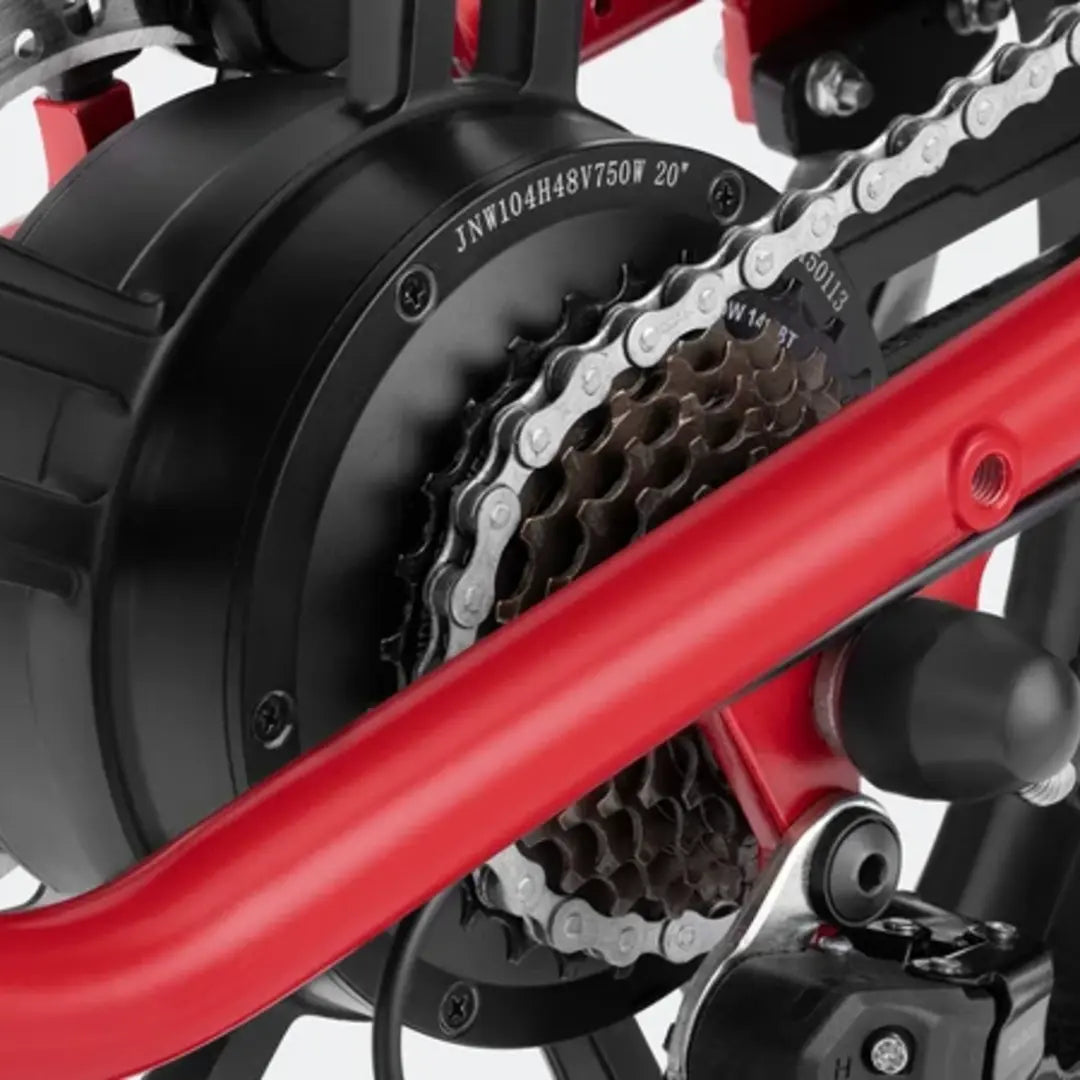

750W BAFANG Motor

Powerful motor providing stable electric power, effortlessly cruising and handling hills with ease.

Fender Design

Includes mudguards to protect against mud and dirt, prolonging the bike's lifespan.

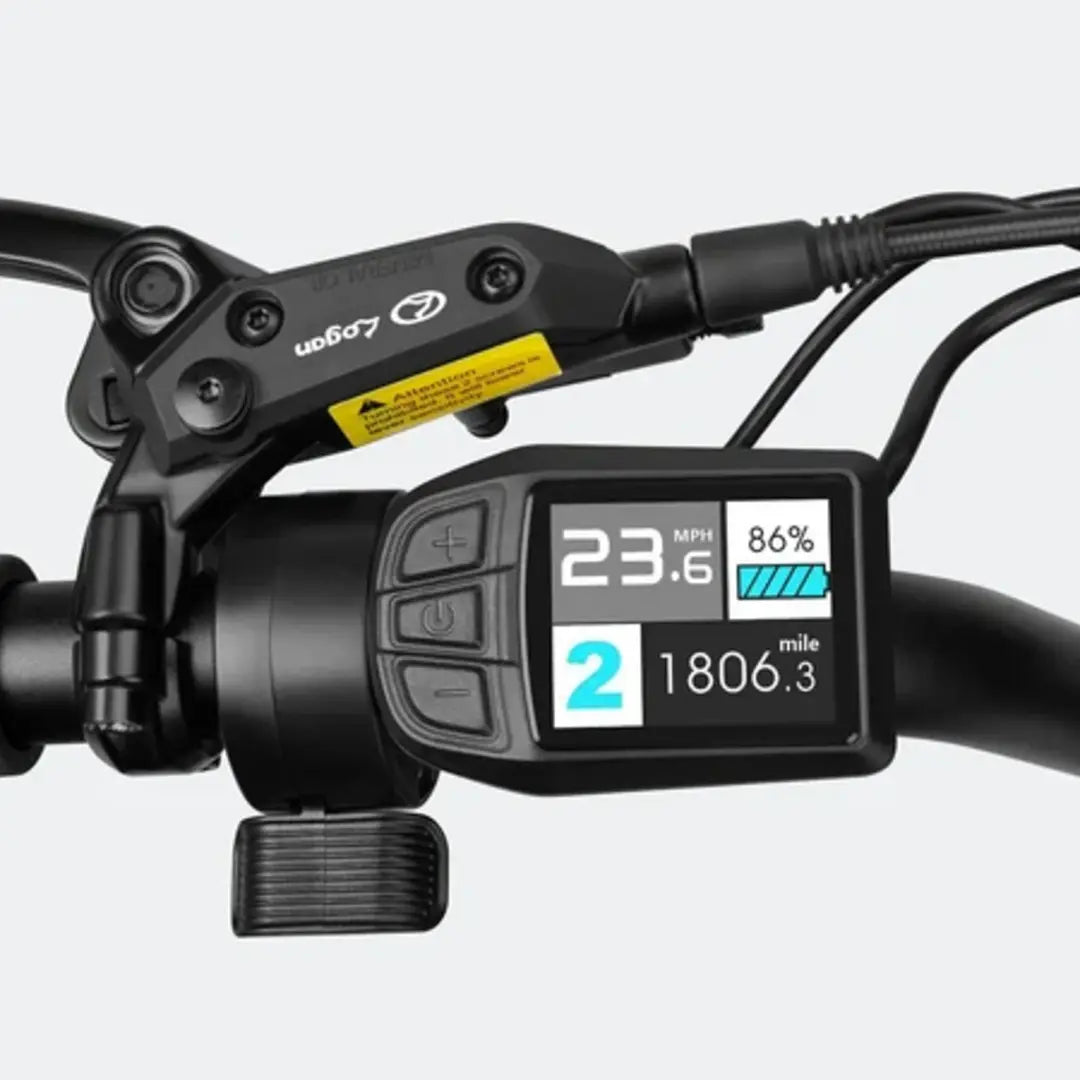

Throttle & Display

Provides power assist level, battery indicator, riding speed, and mileage data for better control and exercise results.

Front Suspension

Reduces frame vibration on rough roads for a stable, comfortable, and safer ride.

Comfortable Cushion

Featuring a widened and enlarged seat pad for enhanced comfort during rides.

Convenient Control

Efficient braking system suitable for riders of all strengths, ensuring easy and safe stops.

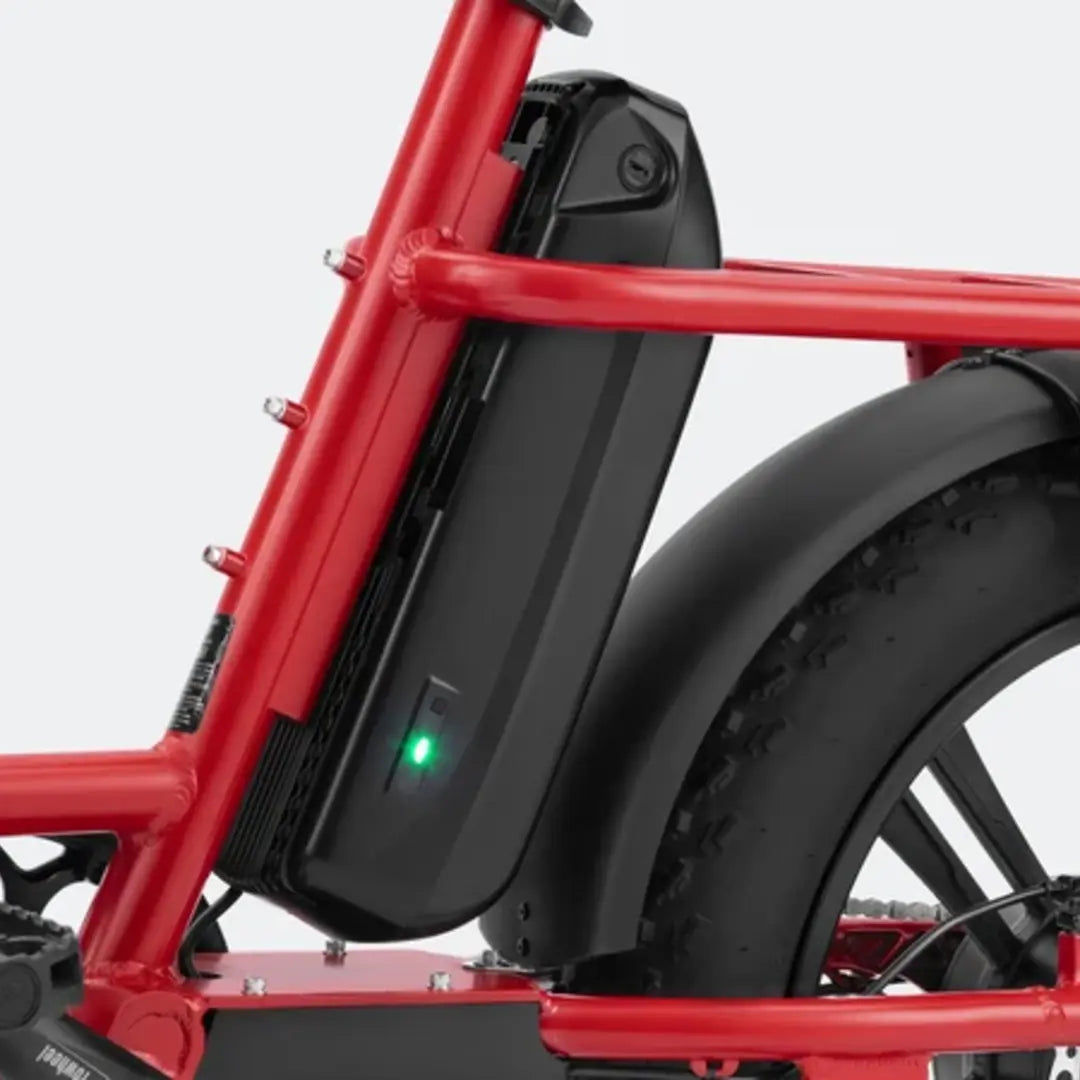

High-Capacity Battery

Equipped with a 48V/15AH lithium battery from LG, providing a range of up to 40 miles per full charge with fast charging capability.

Shimano Drivetrain

Smooth 7-speed drivetrain for seamless shifting and speed adjustment in different conditions.

❯

Specifications

• Class: Class 2
• Maximum Pedal-Assist Speed: 25 MPH
• Maximum Throttle Speed: 20 MPH
• Average PAS Range: 40 miles
• Maximum Level 1 Range: Up to 40 miles
• Throttle Range: 23 miles

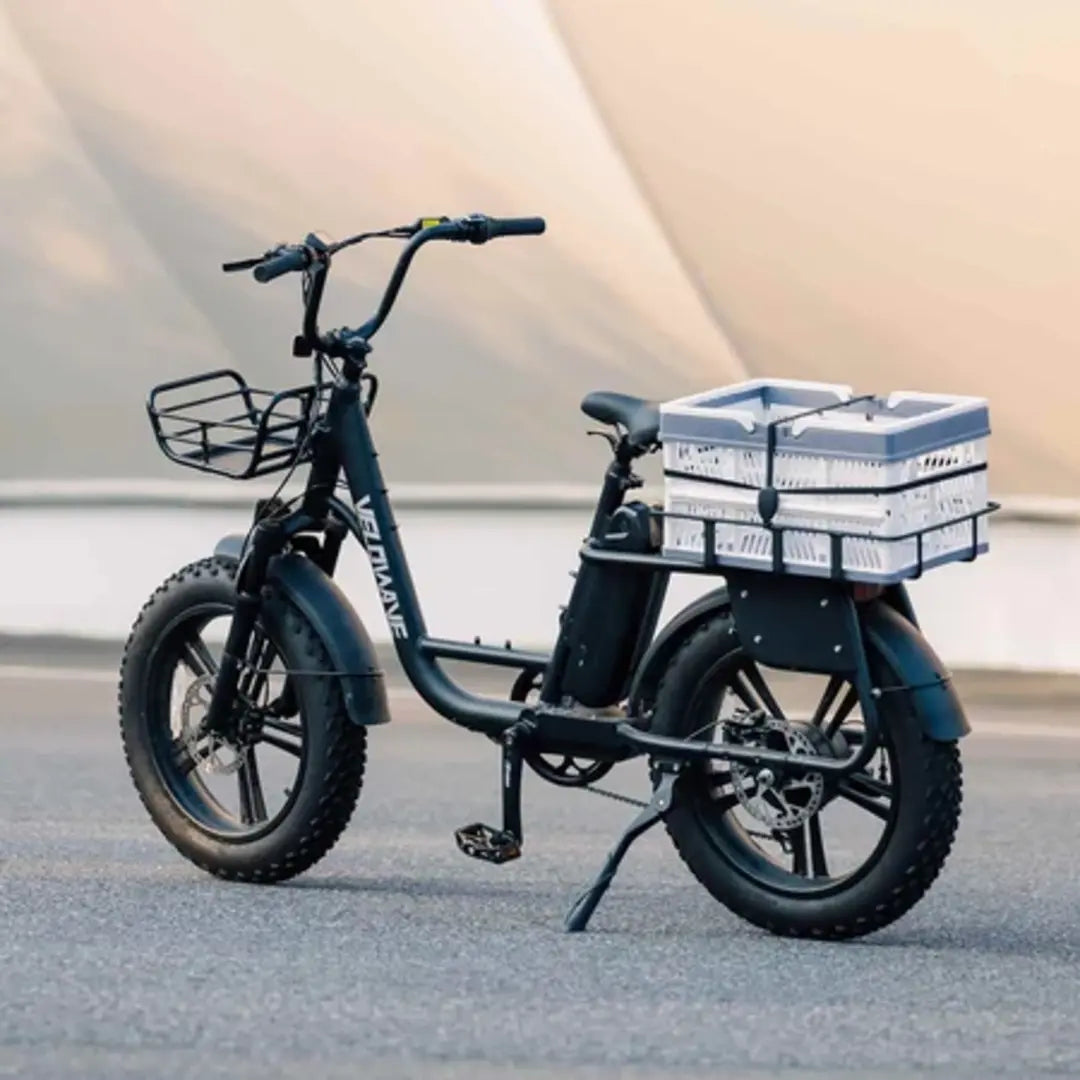

• Frame: 6061 aluminum, removable battery, internal routing, rear rack integrated with frame
• Fork: Hydraulic suspension fork
• Fenders: Included
• Rim Material: Aluminum
• Rim Size: 20 x 3.0
• Rim Type: Wheel with integral hub
• Tires: Kenda fat tires
• Tire Size: 20 in. x 4.0 in.
• Battery: 48V 15Ah, 720Wh, LG 21700 cells
• Charger Input: 100-240V~, 2.8A max., 50-60Hz
• Charger Output: 54.6V⎓2.0A
• Charger Connector: Aviation connector
• Charger Listing: UL LISTED
• Motor: BAFANG geared hub motor, rated 750W, peak 1275W
• Maximum Motor Torque: 55Nm
• Controller: 48V 25A peak
• Display: Multifunctional color-screen display
• Pedal Assist Sensor: Cadence sensor
• Throttle: Thumb throttle
• Front Light: 48V 10W LED light
• Shifter: Shimano 7-speed
• Rear Derailleur: Shimano, long cage
• Crank & Chainring: 52T, 160 mm alloy crank
• Freewheel: 7-speed
• Pedals: Alloy platform pedals
• Saddle: Comfortable wide saddle
• Grips: Nylon lock-on
• Brakes: Front and rear hydraulic disc brakes
• Brake Rotor: 180 mm, 1.9 mm thick
• Kickstand: Side kickstand
• Seatpost: Forged alloy, Ø31.6 x 350 mm
• Stem Bar Bore: Ø31.8 mm
• Stem Clamp I.D.: Ø28.6 mm
• Stem Height: 40 mm
• Stem Rise: 0°
• Handlebar Diameter: Ø31.8 mm
• Net Weight: 35 kg (77.2 lb.)
• Gross Weight: 46 kg (101.4 lb.)
• Battery Weight: 3.5 kg (7.7 lb.)
• Payload Capacity: 150 kg (330 lb.)
• Product Size: 1790 x 730 x 1190 mm
• Packing Size: 1530 x 320 x 860 mm

Size Guide

• Frame Size: 18.9 in. / 48 cm
• Recommended Rider Height: 5 ft. 5 in. - 6 ft. 5 in. / 165 - 192 cm
• Handlebar Height: 1190 mm
• Reach: 370 mm
• Head Tube Length: 240 mm
• Seat Tube Length: 480 mm
• Standover Height: 755 mm
• Wheelbase: 1170 mm
• Total Length: 1970 mm
• Seat Height Min/Max: 840/1050 mm
• Size Difference: No selectable frame-size variants are shown. The verified product page presents one 18.9 in. / 48 cm frame size.

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Headlight x 1
• Pedals x 1
• Front Reflector x 1
• Spare Screws x 2
• Flat Washer x 2
• Three Way Allen Wrench x 1
• Allen Wrench x 1
• Front Axle Skewer x 1
• Y Socket Wrench x 2
• Open End Wrench x 2
• Screw Driver x 1

Warranty

A 2-year initial warranty applies to bikes purchased after March 22, 2024. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years from the date of purchase. Bicycle frames are covered for 2 years against manufacturing defects, and mechanical components are covered for 1 year against manufacturing defects.
