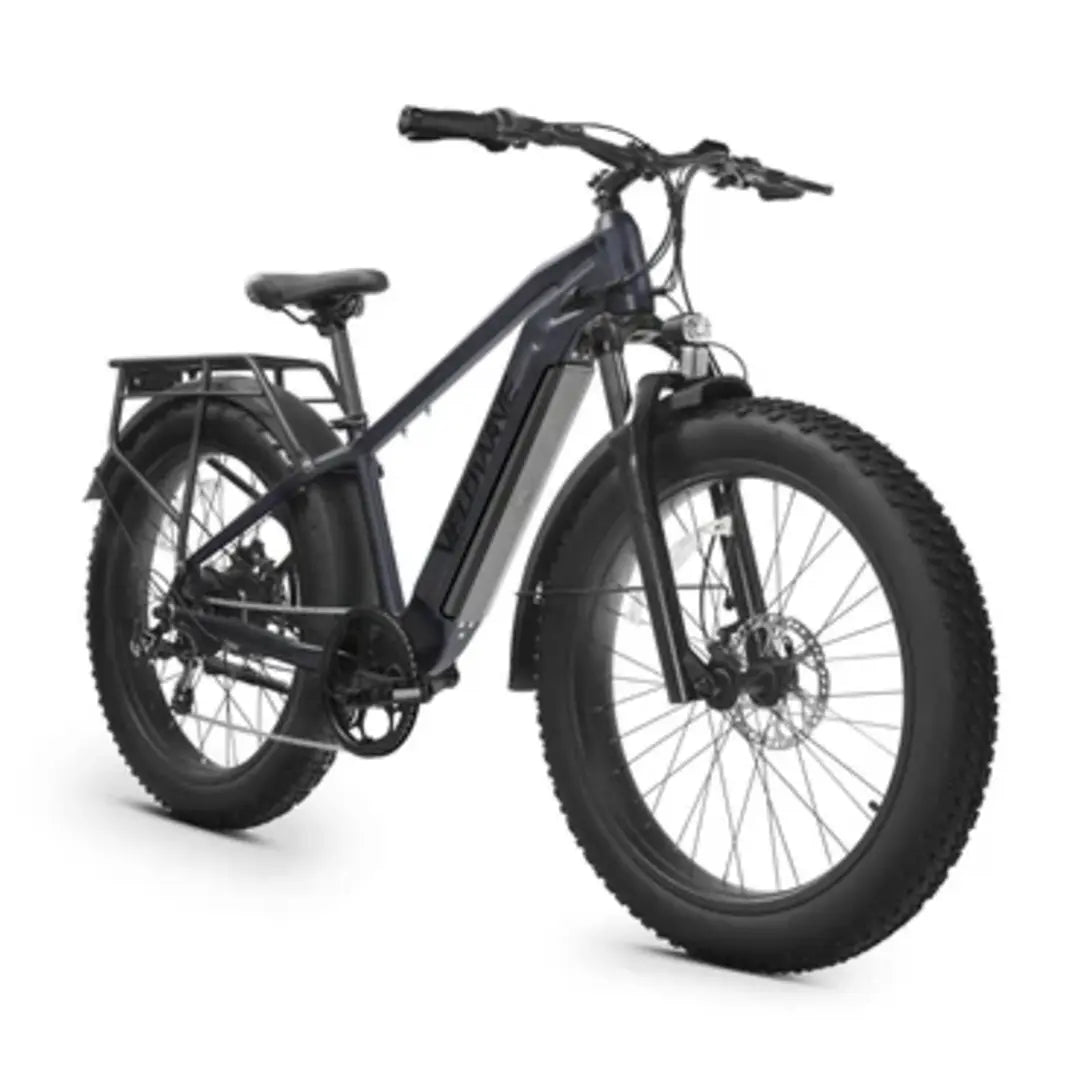

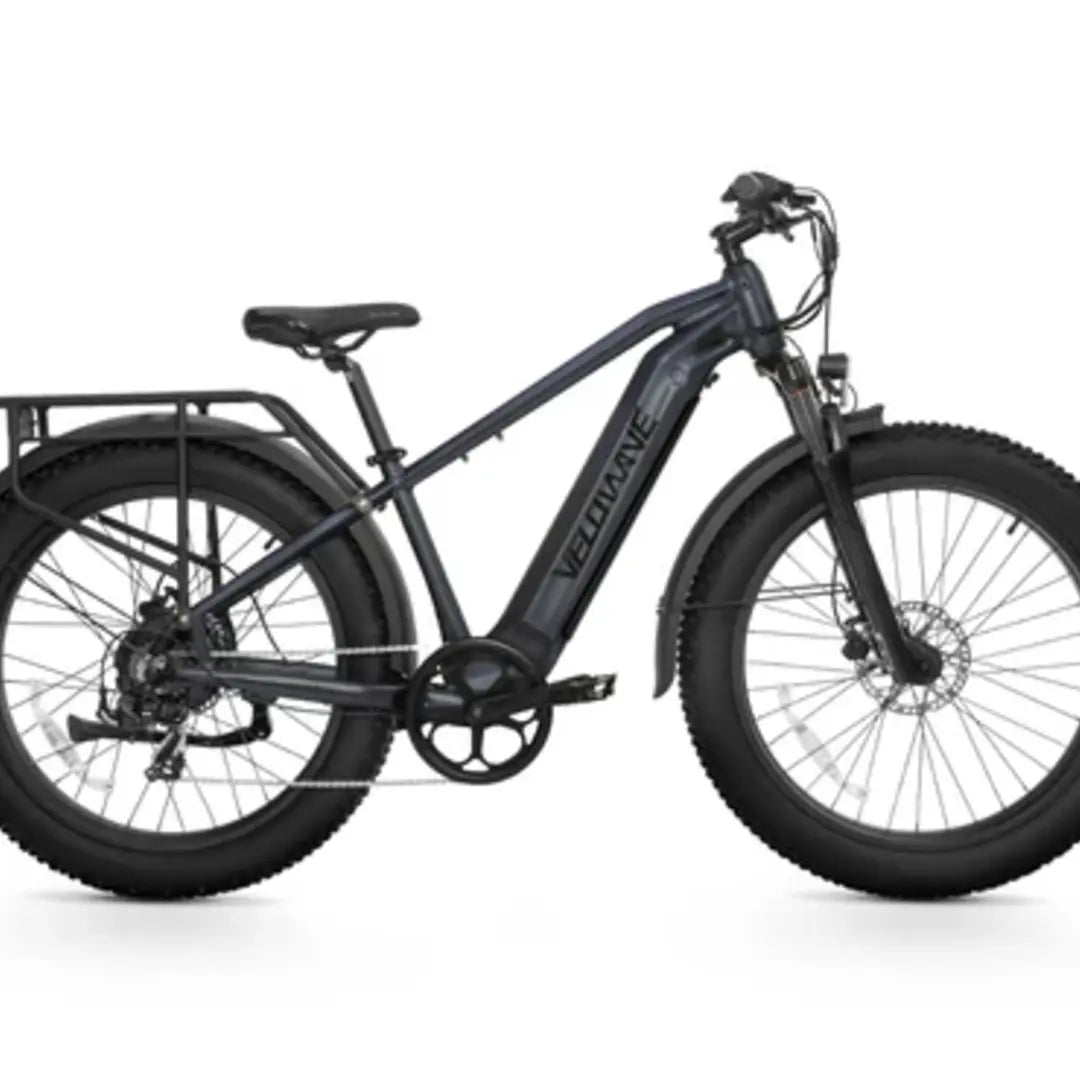

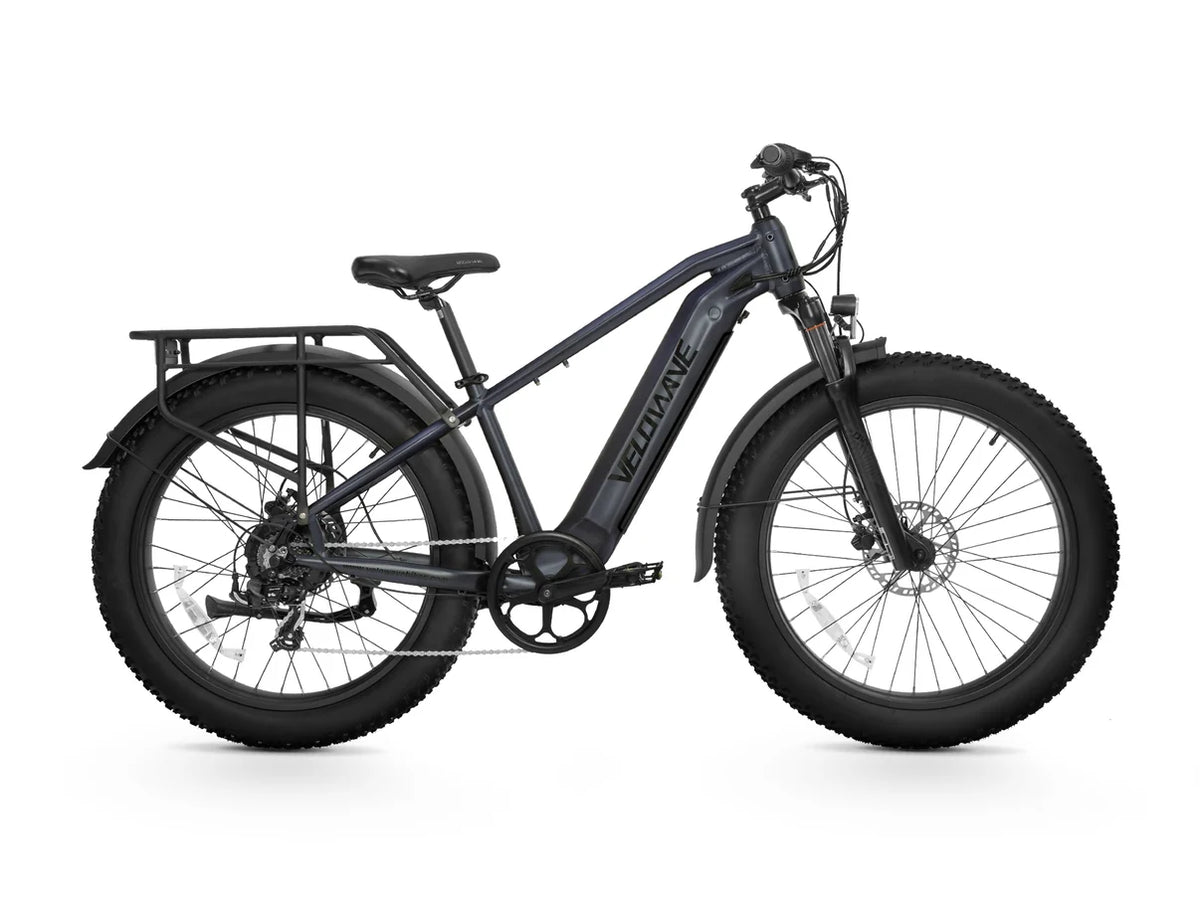

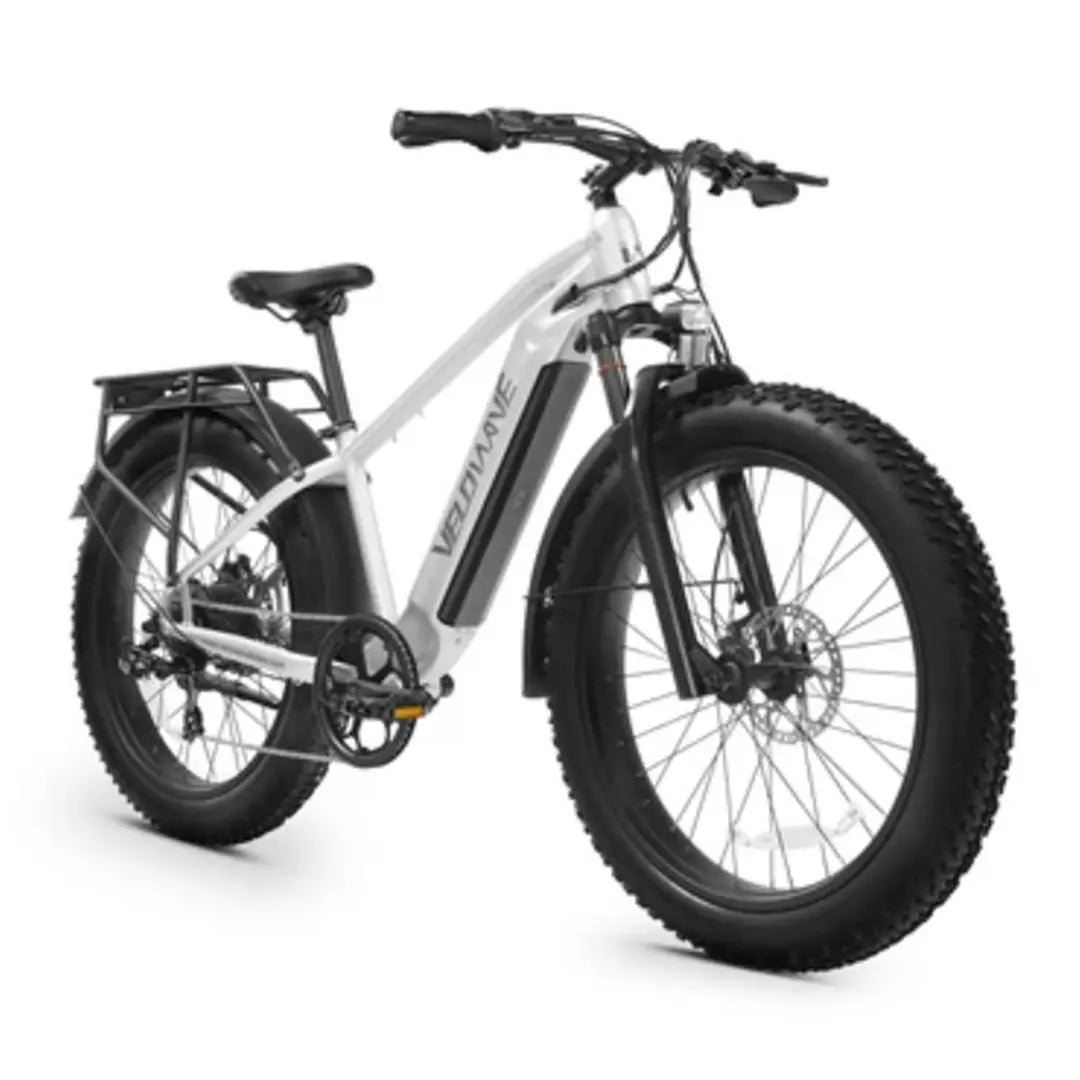

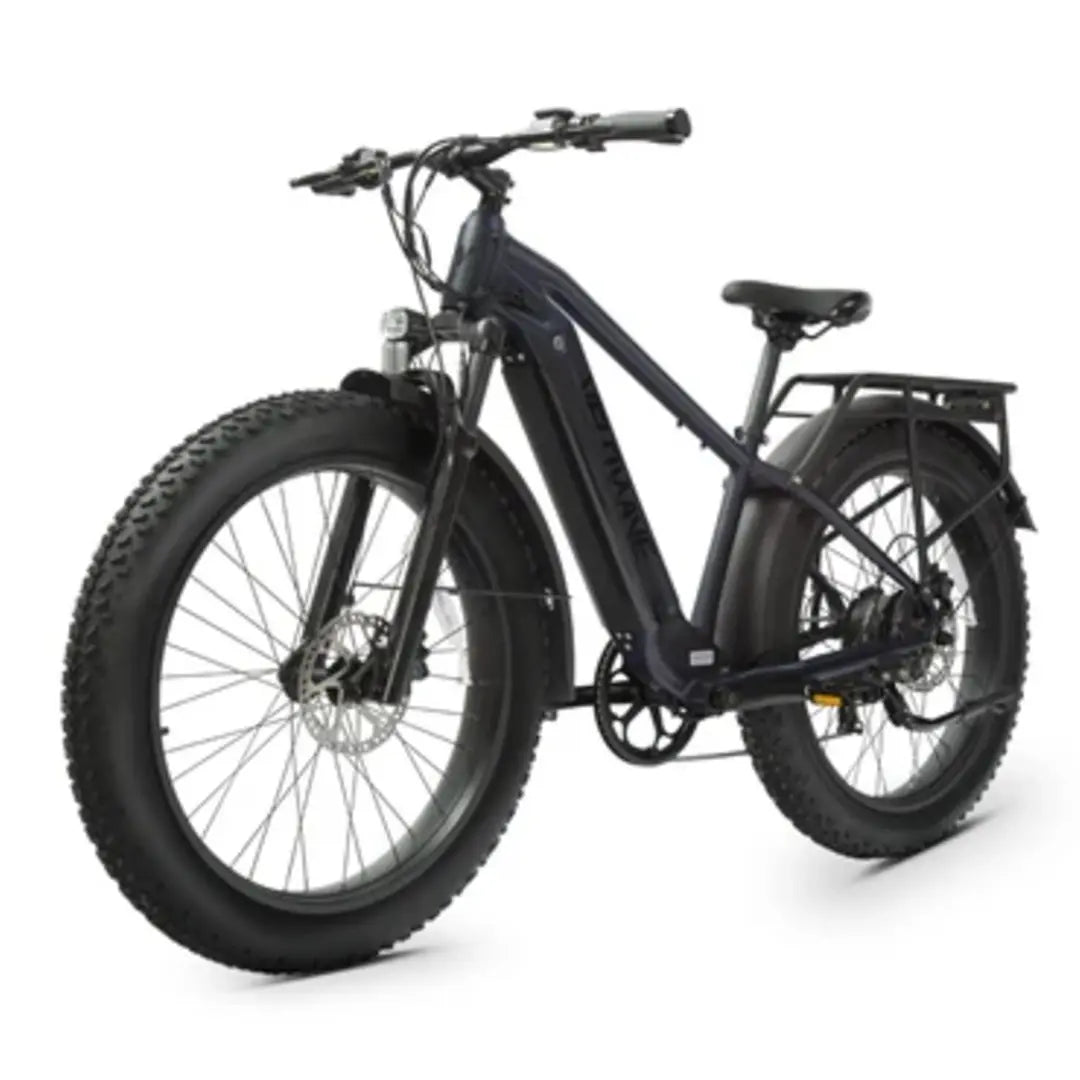

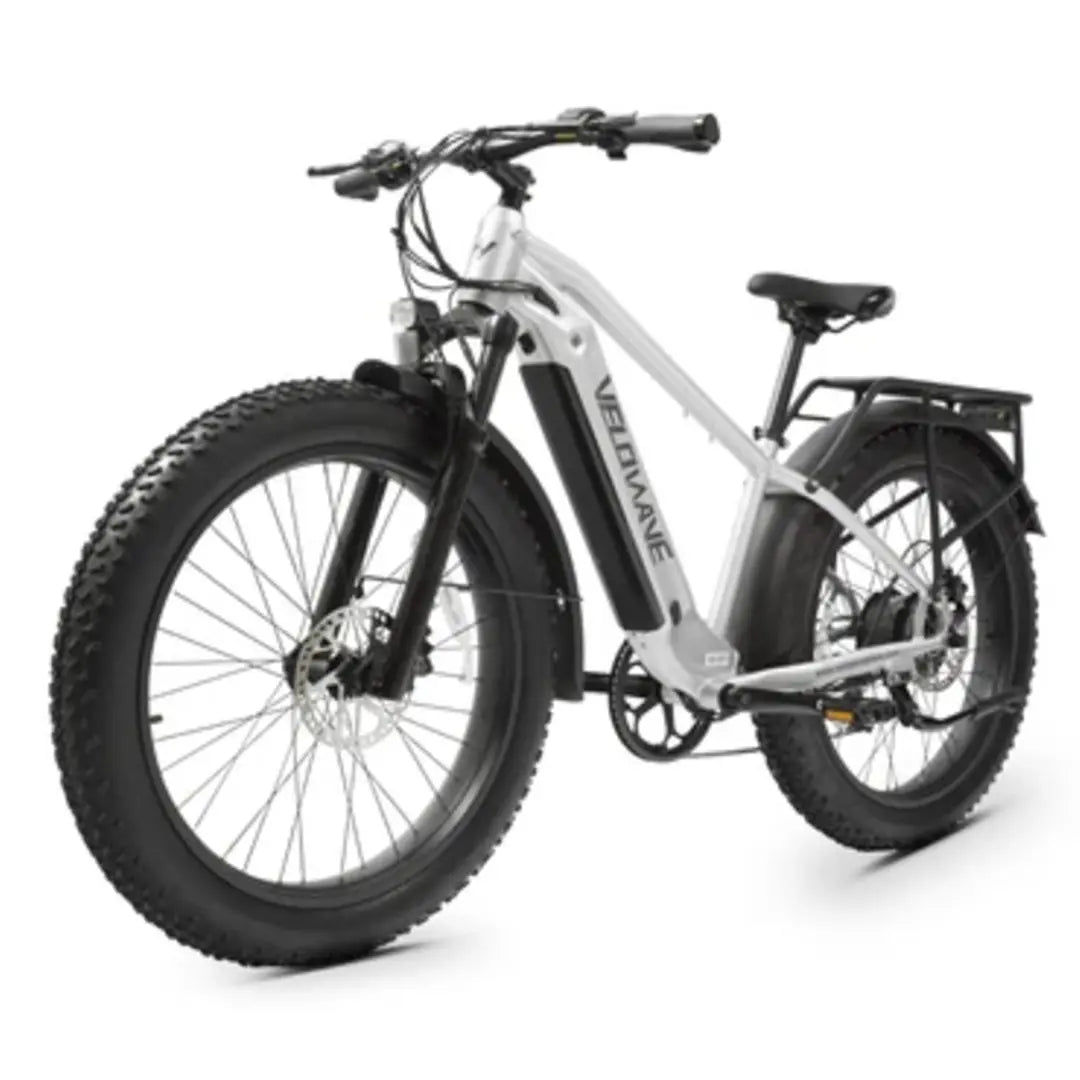

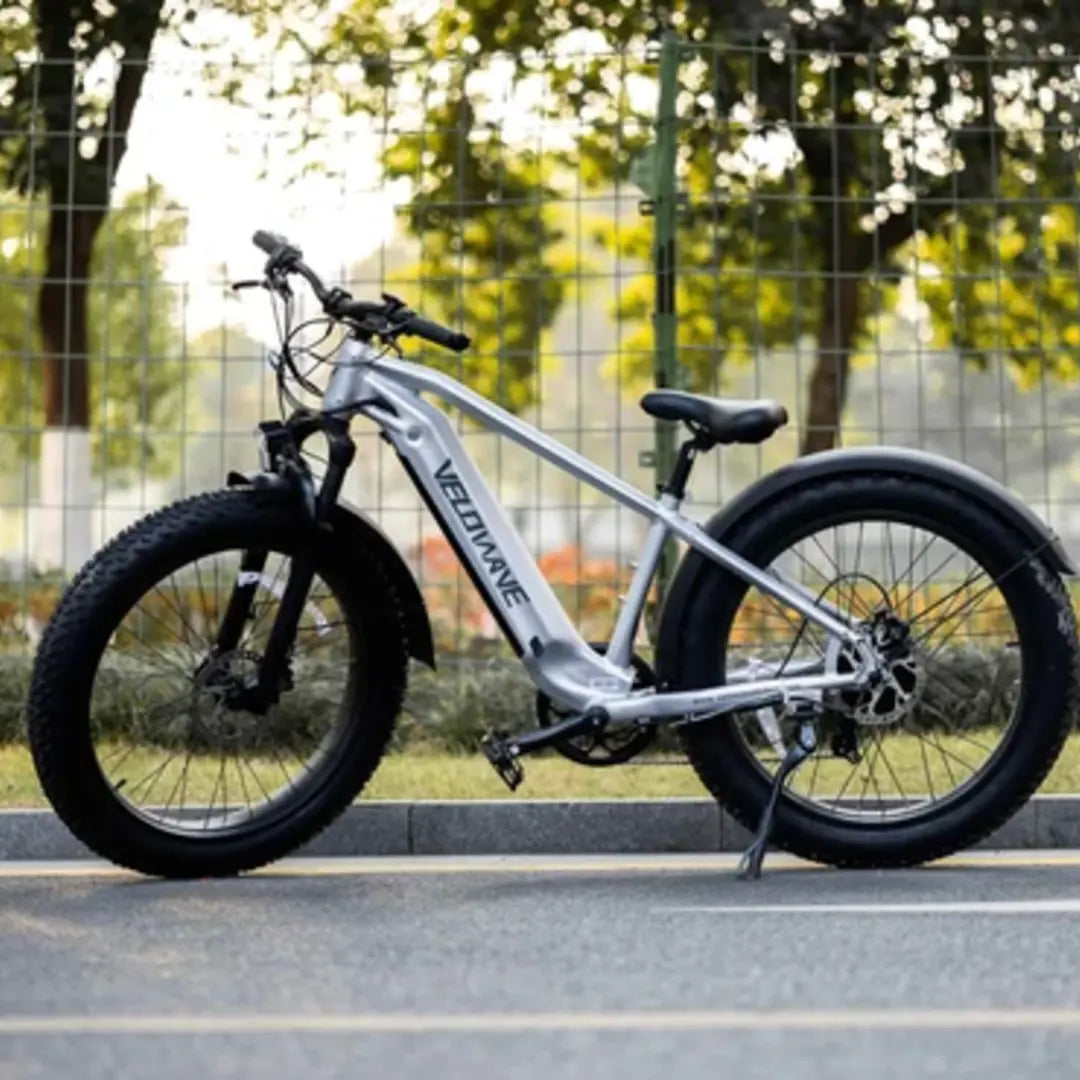

Velowave Ranger 2.0 Fat Tire All-Terrain Electric Bike

The Ranger 2.0 is a Class 3 fat-tire electric bike with a step-over 6061 aluminum frame, a 750W geared hub motor, and 26" x 4.0" Kenda fat tires. Its hydraulic suspension fork, hydraulic disc brakes, and 7-speed drivetrain are designed for riding across varied surfaces.

A removable 48V 15Ah, 720Wh lithium-ion battery with LG cells powers the bike. Official performance figures list an average range of 65 miles with pedal assist, up to 90 miles on Level 1, and 30 miles using the throttle. Maximum speed is listed as 28 MPH with pedal assistance and 20 MPH by throttle.

The bike also features 5 pedal-assist levels, a multifunctional color-screen display, thumb throttle, front LED light, rear rack, and fenders. Its listed payload capacity is 300 lbs.

Key Features

Ranger 2.0

This ranger 2.0 boasts a powerful motor propelling you up to 28 MPH and a lockable, removable battery for hassle-free charging at home or the office, it covers up to 90 Miles by Pedal; 30 Miles by Throttle on a single charge, free from range worries. The 4-inch fat tires conquer anything from snow and sand to rough city streets, 6061 aluminum frame supports up to 300 lbs, ensuring a reliable and sturdy ride.

❮

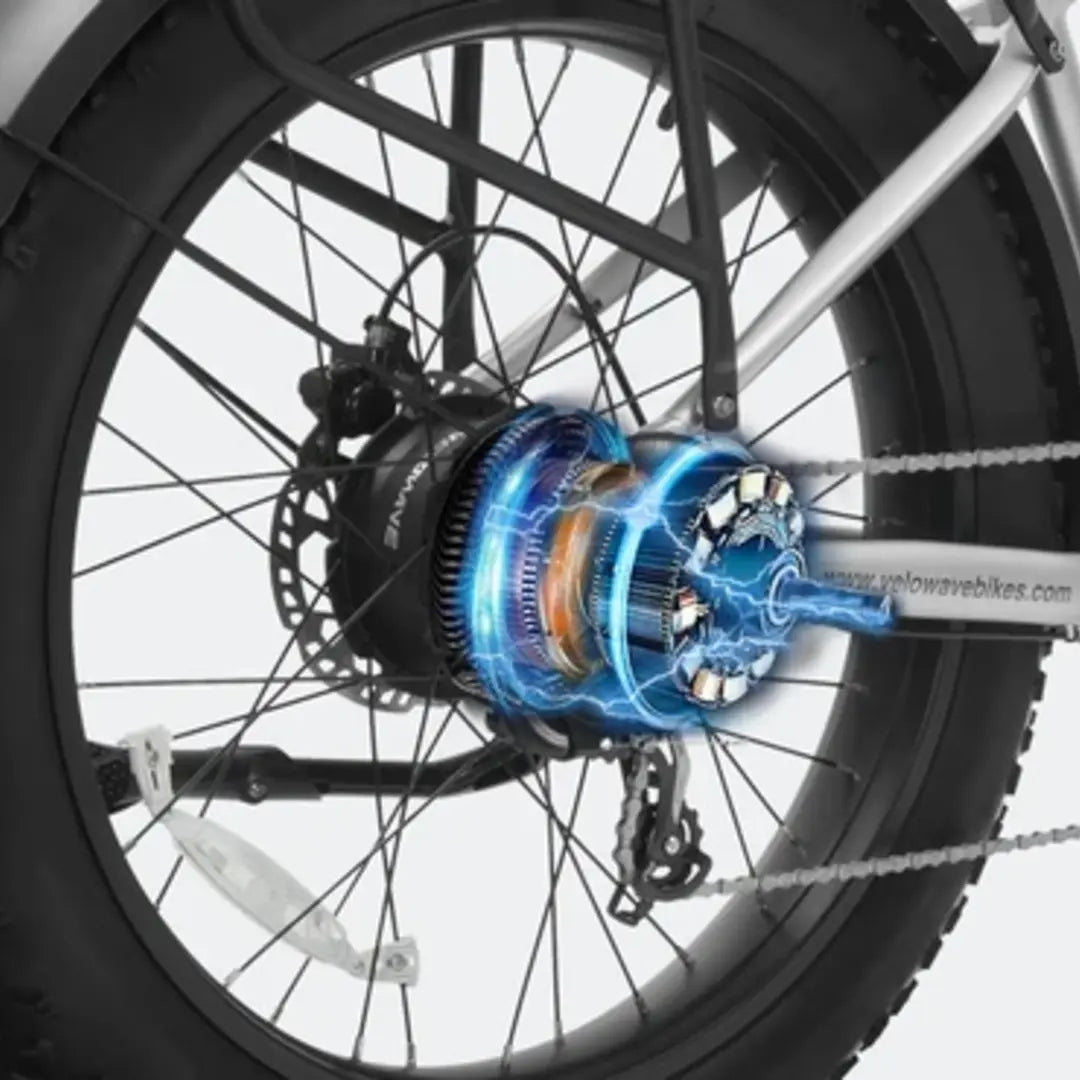

Stable Riding

Experience stability with our 750W Geared Hub Motor. Conquer hills effortlessly and cruise at peak speeds.

Sturdy Build

Crafted with a reliable 6061 aluminum frame, easy access for all riders. Supports up to 350 lbs with a reinforced rear triangle.

Responsive Braking

Seamless control with multiple riding modes. Hydraulic disc brake ensures reliable, sensitive braking.

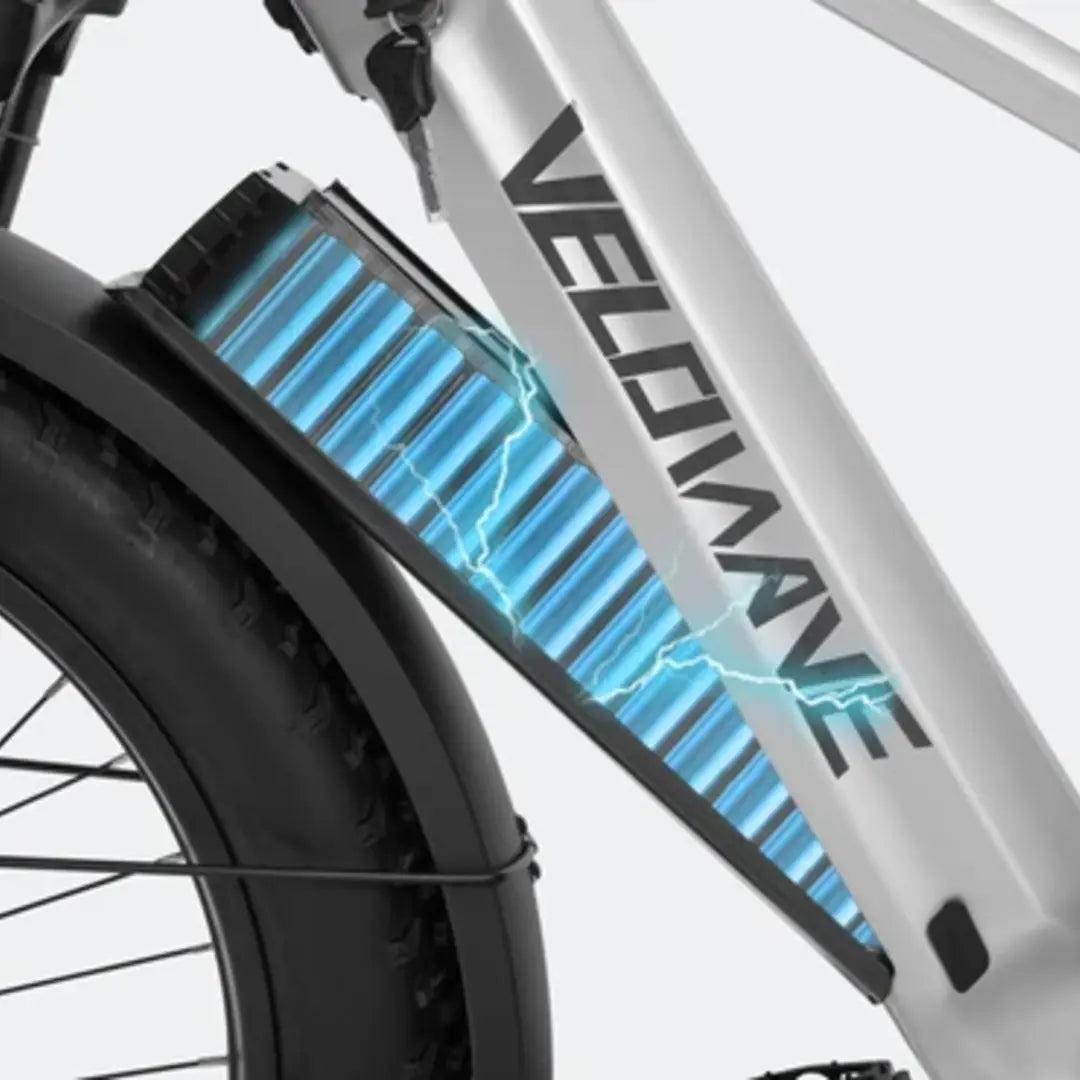

Long-lasting Battery

Powered by a premium 48V 15AH LG battery, covers up to 90 miles on a single charge. Easily lockable and removable.

Shimano Derailleur

Unparalleled riding with the Shimano 7-Speed Derailleur. Conquer hills and cruise effortlessly.

Upgraded Design

Enhance your ride with a rear rack and upgraded fender package. Carry cargo effortlessly and stay stylishly clean.

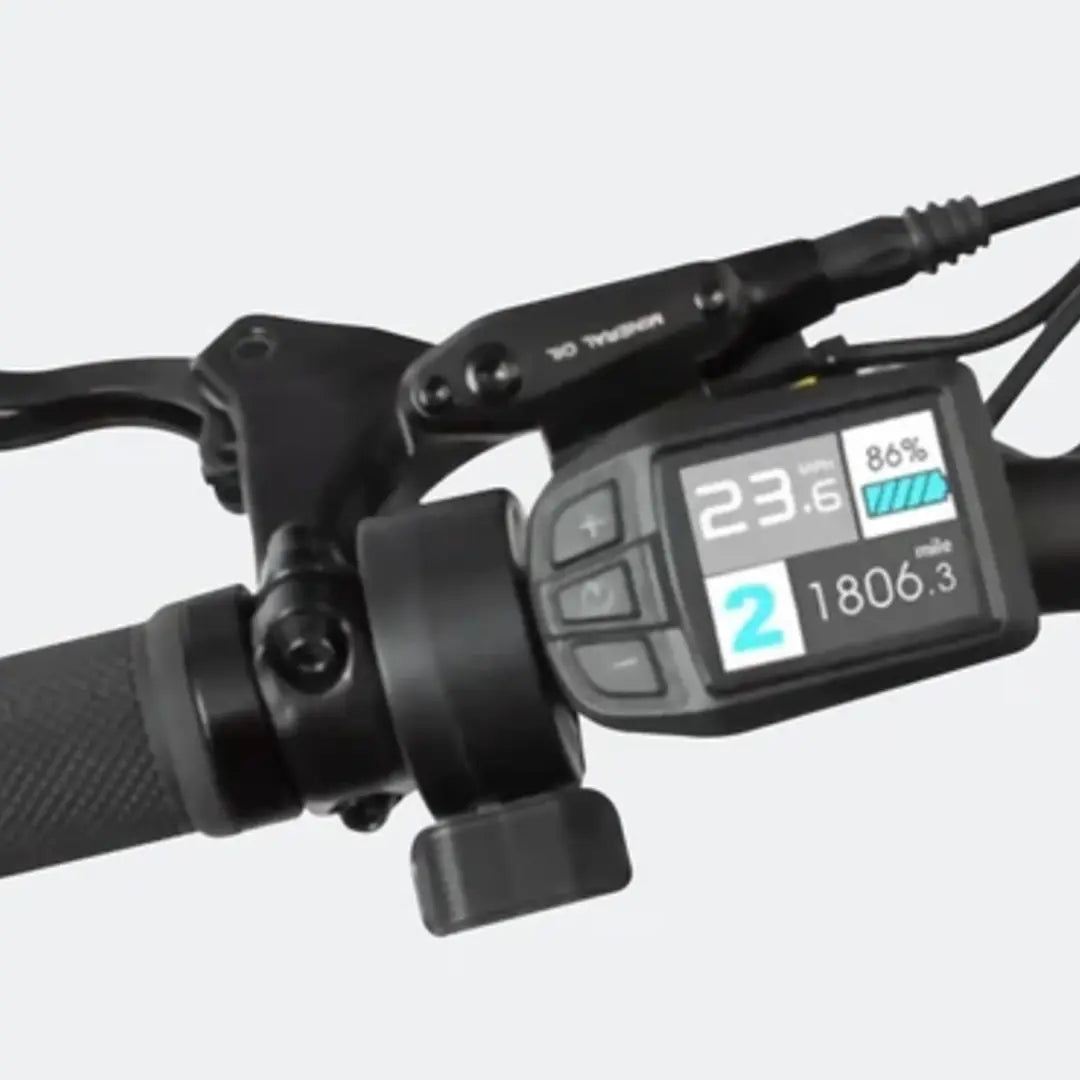

Smart Display

Enjoy instant power with the thumb throttle. Switch between pedal and throttle modes for accelerated rides. Advanced display offers real-time metrics.

Fat Tire Design

Conquer any landscape with our 26"×4.0" Fat Tire e-bike. Enjoy smooth rides with anti-skidding, wear-resistant performance.

Ergonomic Design

Enjoy a comfortable ride with ergonomic lock-on grips. Designed for personalized comfort.

 ❯

Specifications

• Class: Class 3
• Maximum Speed: 28 MPH by pedal assistance; 20 MPH by throttle
• Range: Average 65 miles on PAS; up to 90 miles on Level 1; 30 miles on throttle
• Pedal Assist Levels: 5
• Frame: 6061 aluminum, removable battery, internal routing
• Fork: Hydraulic suspension fork with 60mm travel and lockout
• Rim Material: Aluminum
• Rim Size: 26", 36H front and rear
• Front Wheel Spokes: 13G x 244/246mm, black stainless
• Rear Wheel Spokes: 12G x 217/219mm, black stainless
• Tubes: Butyl rubber, Schrader valve
• Hubs: Disc nutted front/rear axles
• Tires: Kenda fat tires
• Tire Size: 26" x 4.0"
• Battery: Removable internal lithium-ion battery, 48V 15Ah, 720Wh, LG cells
• Charger: 48V 2 Amp charger, approximately 8-hour charging, aviation connector, UL Listed
• Motor: Geared hub motor, rated 750W, peak 1200W, maximum torque 80NM
• Controller: 48V 25A peak
• Display: Multifunctional color-screen display
• Pedal Assist Sensor: Cadence sensor
• Throttle: Thumb throttle
• Front Light: 48V 10W LED light, 30 LUX
• Shifter: Shimano 7-Speed RevoShift
• Rear Derailleur: Shimano ARDTY500D 7-Speed, long cage
• Crank & Chainring: 52T, 170mm alloy crank
• Freewheel: Shimano 14-28T, 7-speed freewheel
• Pedals: Alloy platform pedals
• Chain: KMC 124-link, 7-speed
• Saddle: Comfortable wide saddle
• Seatpost: Forged alloy, Ø30.4 x 350mm
• Seat Clamp: Ø35mm quick release
• Stem: Bar bore Ø31.8mm; clamp I.D. Ø28.6mm; height 70mm; rise ±7°
• Handlebar: Aluminum Ø31.8mm, width 740mm
• Headset: Sealed bearing headset
• Grips: Nylon lock-on, ergonomic comfort
• Brakes: Front and rear hydraulic disc brakes with 180mm discs and power-cut-off function
• Brake Rotor: 180mm, 1.9mm thick
• Kickstand: Alloy side kickstand, rear mount
• Fenders: Plastic, 26" x 110mm
• Rear Rack: Aluminum alloy rear rack
• Net Weight: 33.1 kg (72.97 lb), including battery
• Gross Weight: 43.8 kg (96.56 lb)
• Battery Weight: 4 kg (8.82 lb)
• Payload Capacity: 136 kg (300 lb)
• Product Size: 1930 x 755 x 1110mm
• Packing Size: 1570 x 330 x 900mm
• Total Length: 1914mm
• Head Tube Length: 140mm
• Head Tube Angle: 70°
• Seat Tube: 425mm
• Seat Tube Angle: 70.3°
• Handlebar Height: 1109mm
• Bottom Bracket Height: 361mm
• Chainstay Length: 496mm
• Front-Center: 669mm
• Wheelbase: 1170mm
• Standover Height: 704mm
• Reach: 404mm
• Seat Height Min/Max: 823mm / 1012mm

Size Guide

• Frame Size: 16.7" / 42cm
• Rider Height: 5'4"–6'5" / 162–192cm
• Inseam: 30"–36" / 76cm–96cm

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Front Light & Reflector Combo x 1
• Spare Screws x 2
• Front Axle Skewer x 1
• Pedals x 2
• Instruction Manual x 1
• Allen Wrench x 1
• Open End Wrench x 2

Warranty

Warranty: 2-year initial warranty for e-bikes purchased after March 22, 2024. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years; the bicycle frame is covered for 2 years against manufacturing defects; and mechanical components are covered for 1 year against manufacturing defects. Warranty terms, exclusions, and conditions apply.
