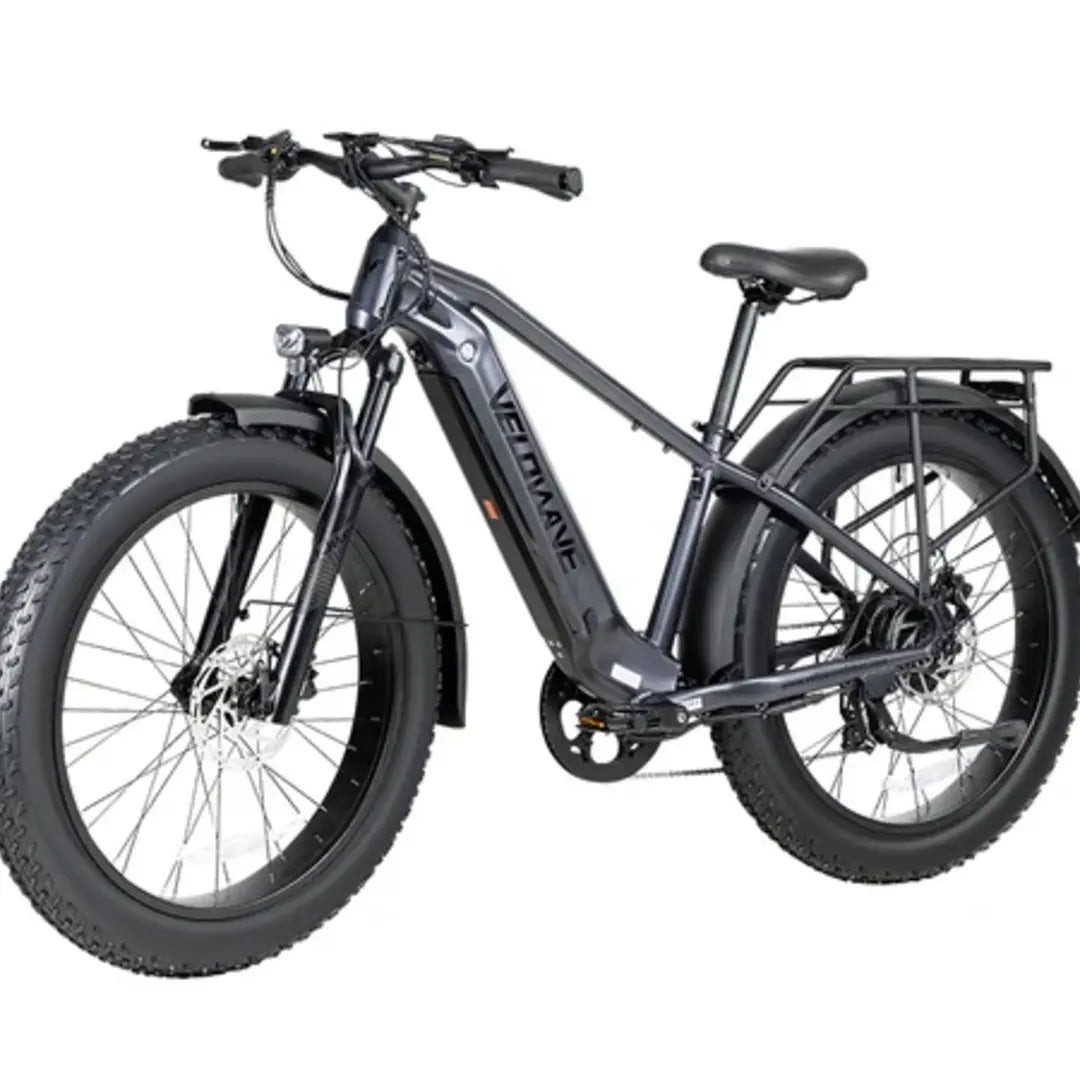

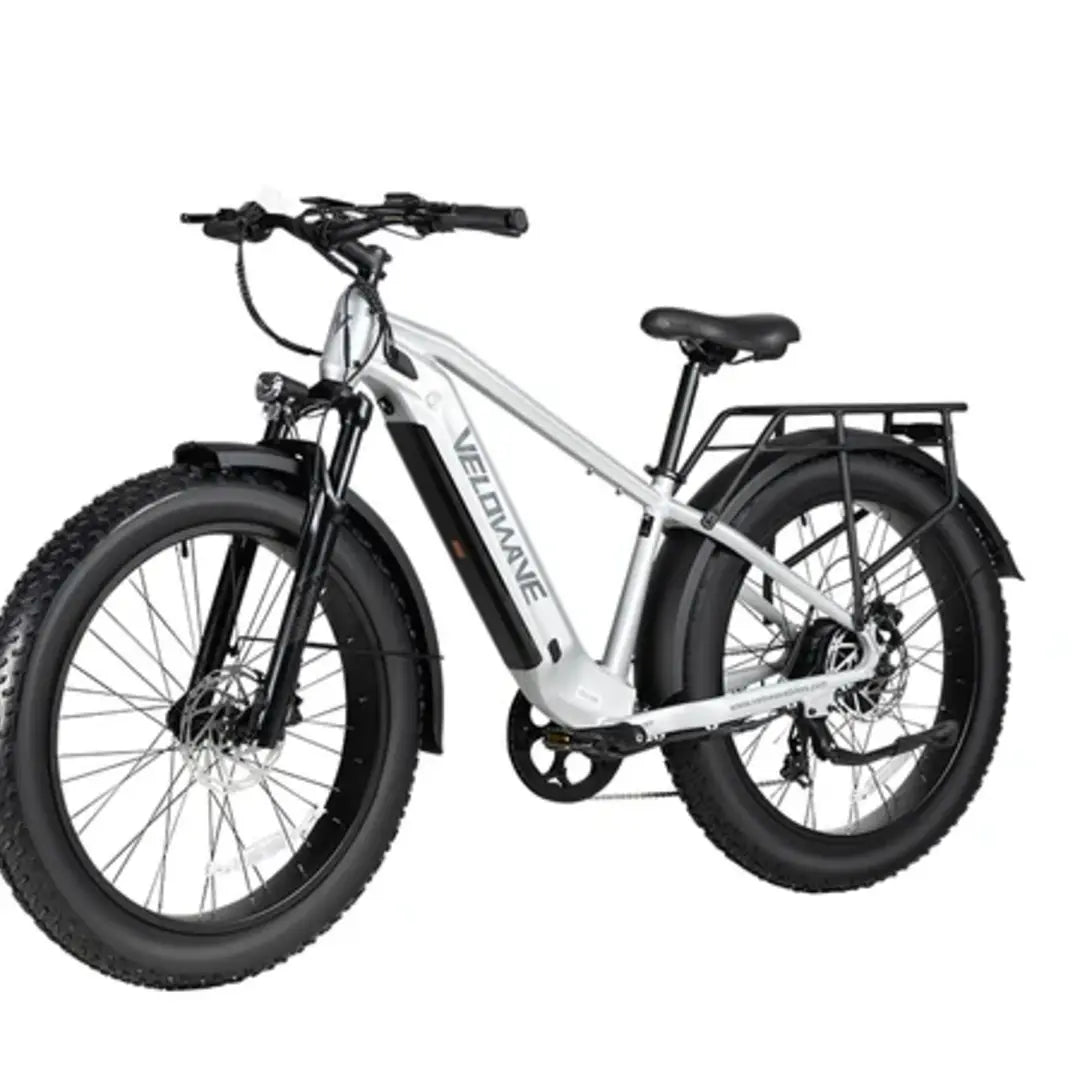

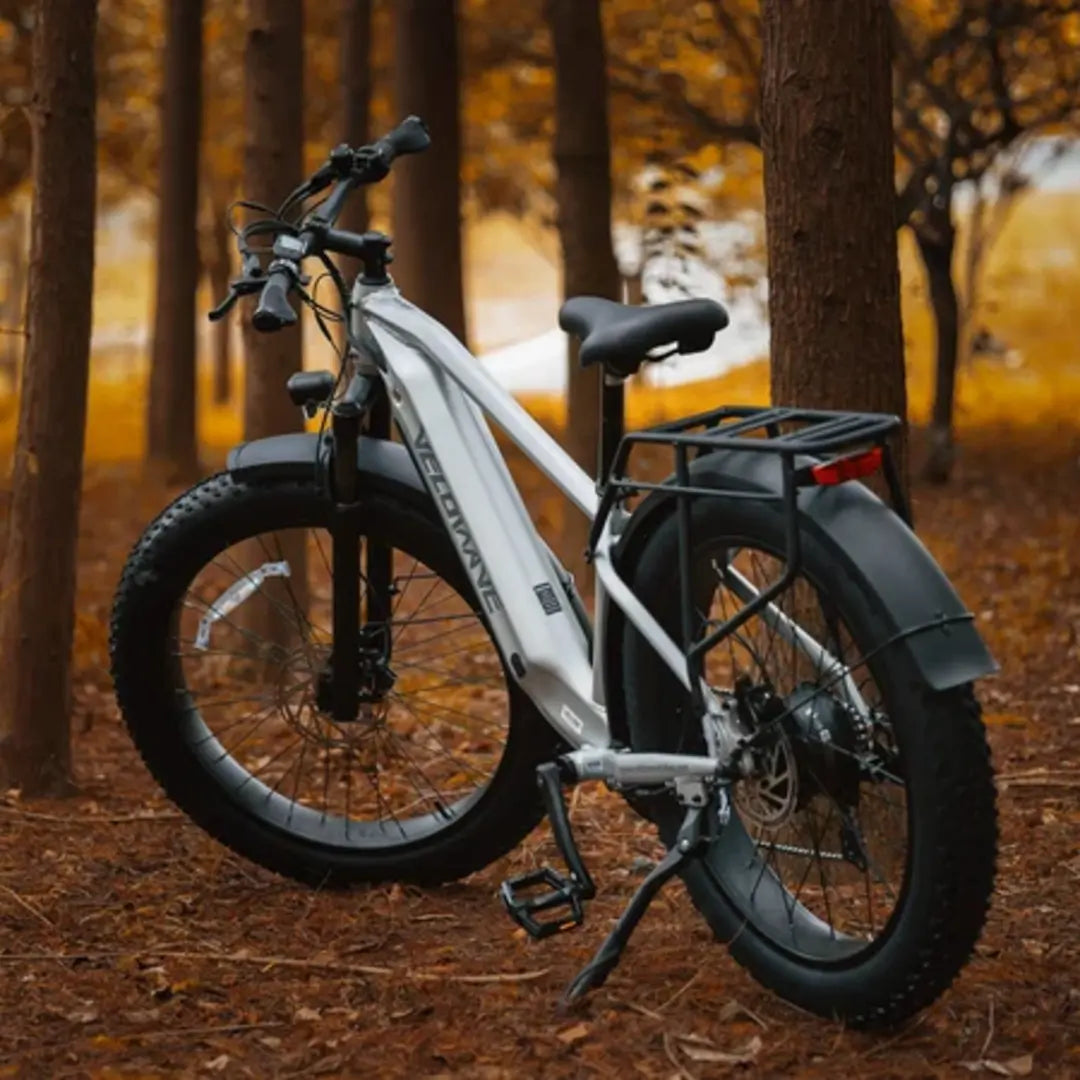

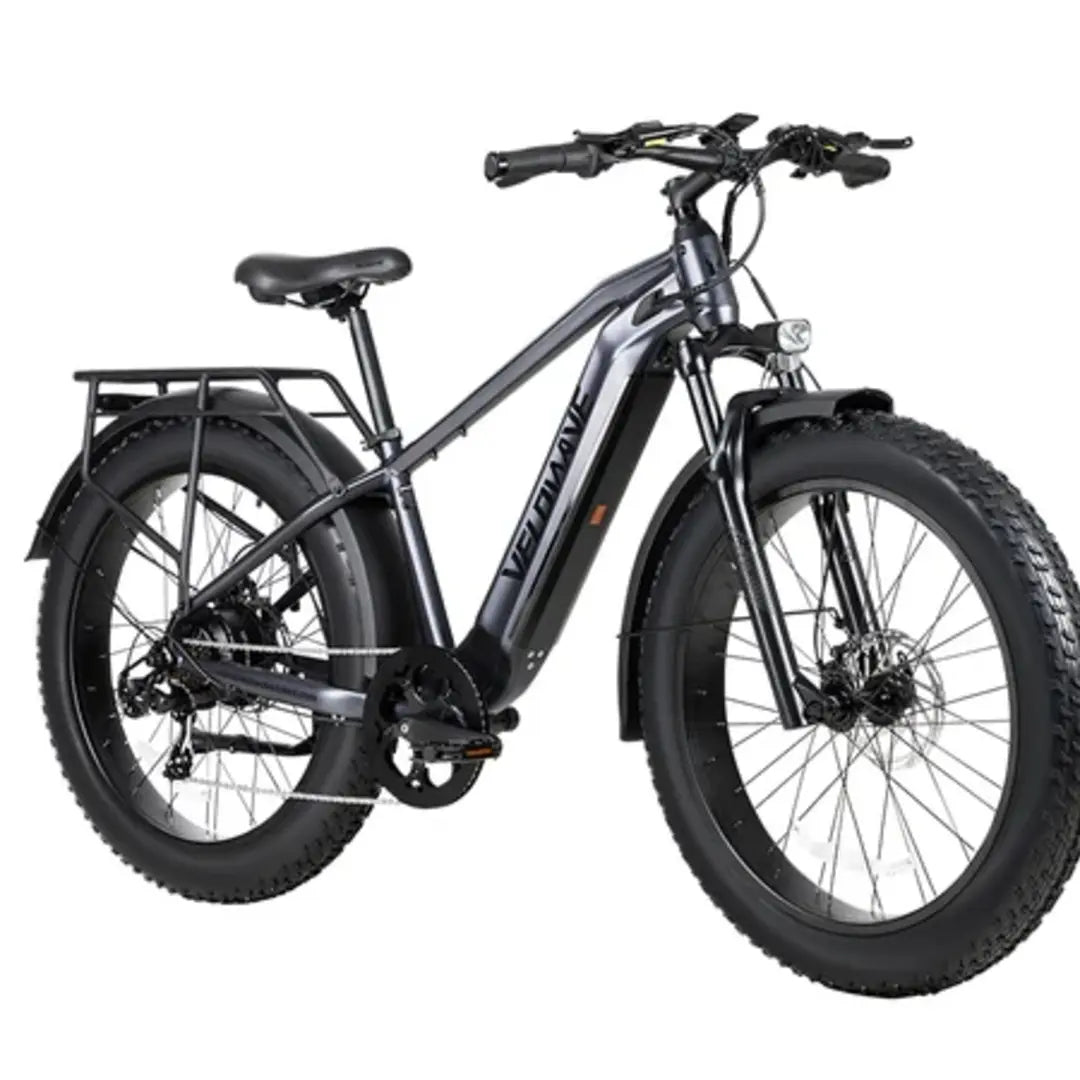

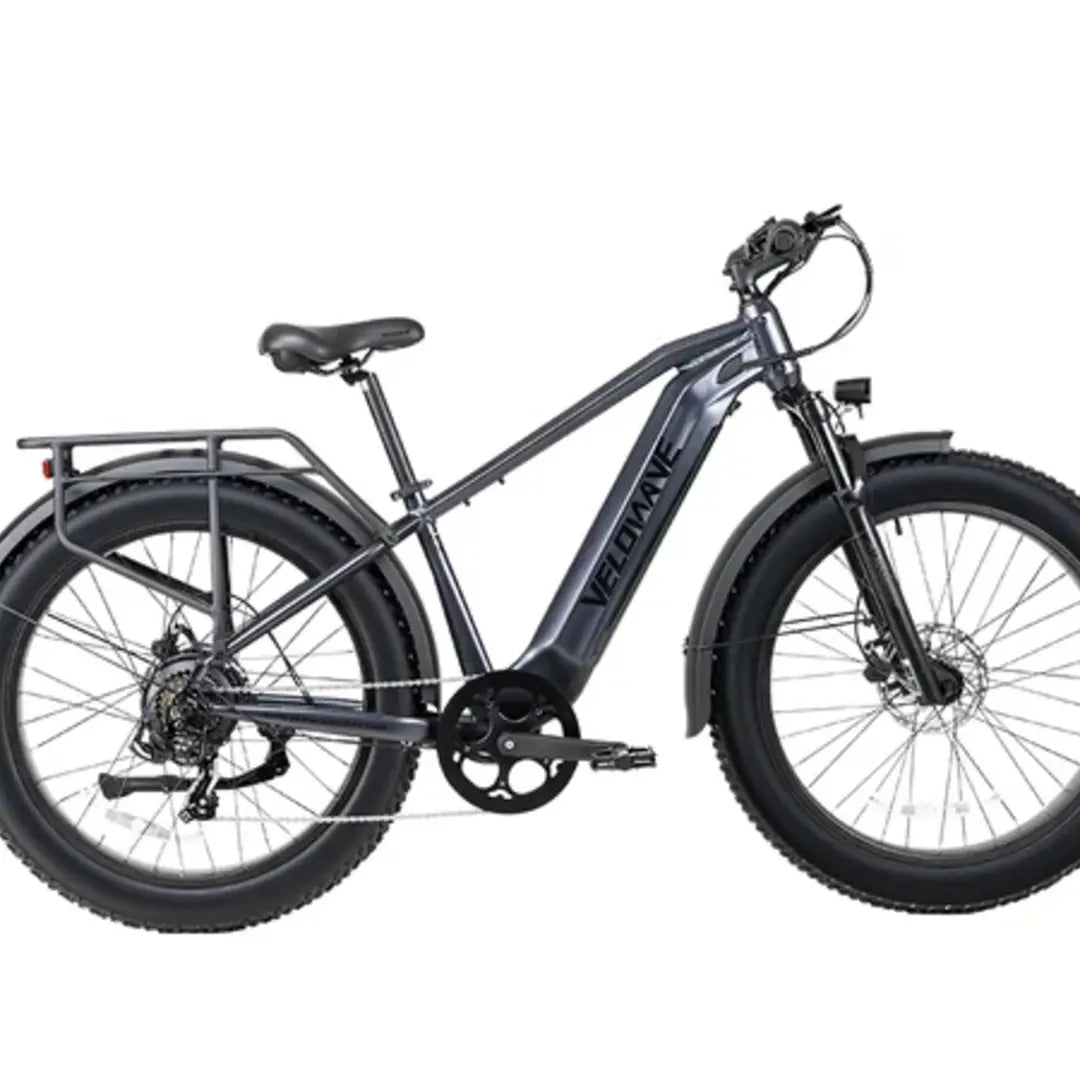

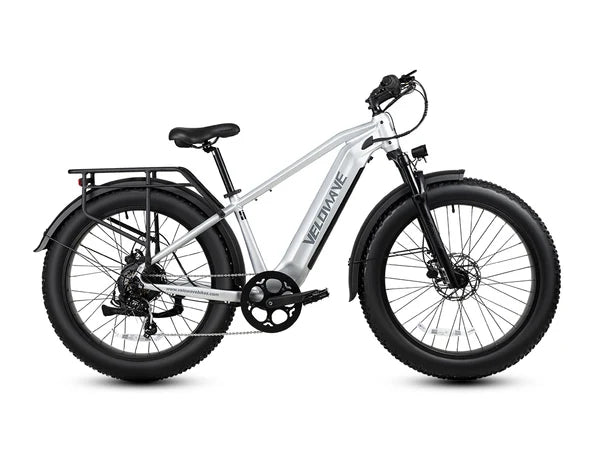

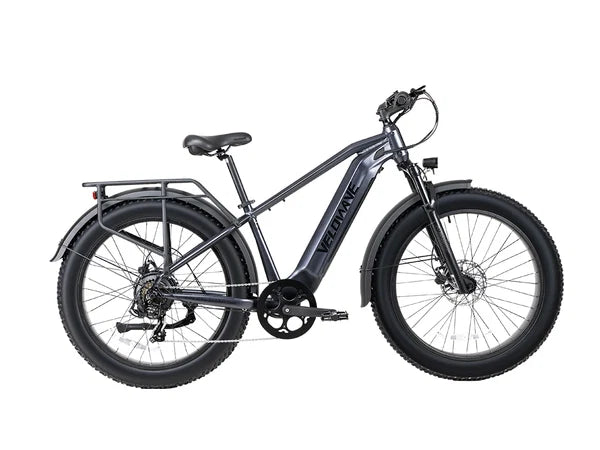

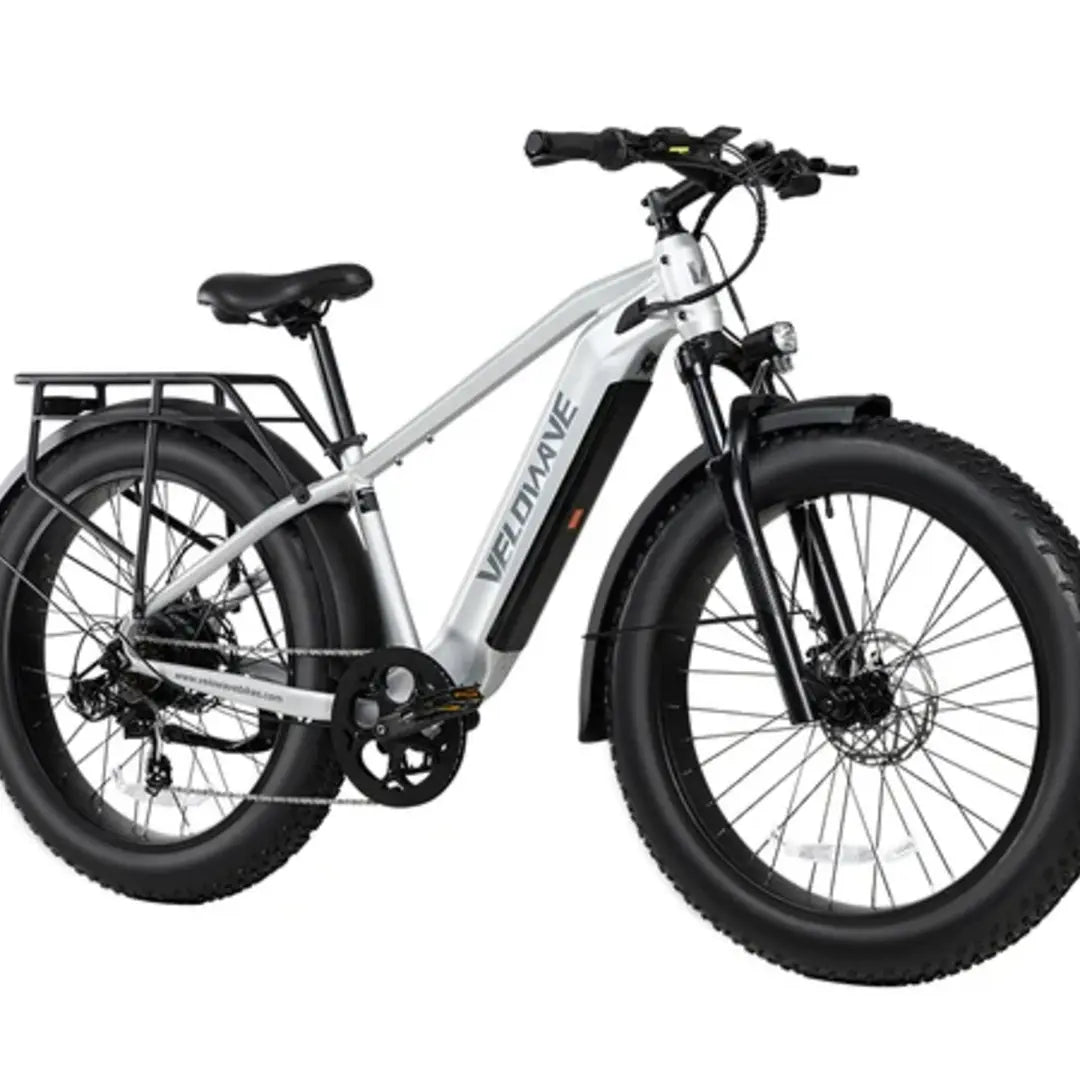

Velowave Ranger 3.0 Fat Tire All-Terrain Electric Bike

The Ranger 3.0 Fat Tire All-Terrain Electric Bike is a Class 3 electric bicycle designed for commuting and off-road riding. Its step-over frame uses 6061 aluminum alloy and is paired with 26 in. x 4.0 in. fat tires, hydraulic suspension, and hydraulic disc brakes for riding across varied terrain.

A 750W motor with up to 1000W peak output and 85Nm of torque works with a torque sensor and 5 levels of pedal assistance. The removable internal 48V 15Ah lithium-ion battery uses LG cells and has a 720Wh capacity. The bike reaches up to 28 MPH with pedal assist and up to 20 MPH using the throttle.

The bike also includes a color TFT display, front and rear lighting, a 7-speed drivetrain, fenders, and an aluminum alloy rear rack. The live product page lists an average PAS range of 65 miles, up to 90 miles on Level 1, and a maximum payload capacity of 300 lbs.

Key Features

Elevate Your Ride with Advanced Technology

The Ranger 3.0 is engineered to conquer off-road adventures with unparalleled ease and control. Its advanced torque sensor delivers responsive power from a robust 750W motor (peak 1000W) with a torque of 85Nm, effortlessly handling rugged terrains and steep inclines. With its advanced features and technology, the Ranger 3.0 sets a new standard for electric bikes, delivering exceptional performance and reliability wherever your adventure takes you.

❮

Sturdy Frame

Constructed from 6061 aluminum alloy, the Ranger 3.0 offers exceptional durability and stability, providing a solid and reliable ride even on the toughest off-road terrains. Whether for commuting or adventure, it makes you the center of attention.

Powerful Motor

Feel the adrenaline with the Ranger 3.0’s powerful 750W motor, capable of peaking at 1000W with 85Nm of torque. Reach speeds of up to 28 MPH with Pedal Assist, making every ride an exhilarating experience.

Long-Lasting Battery

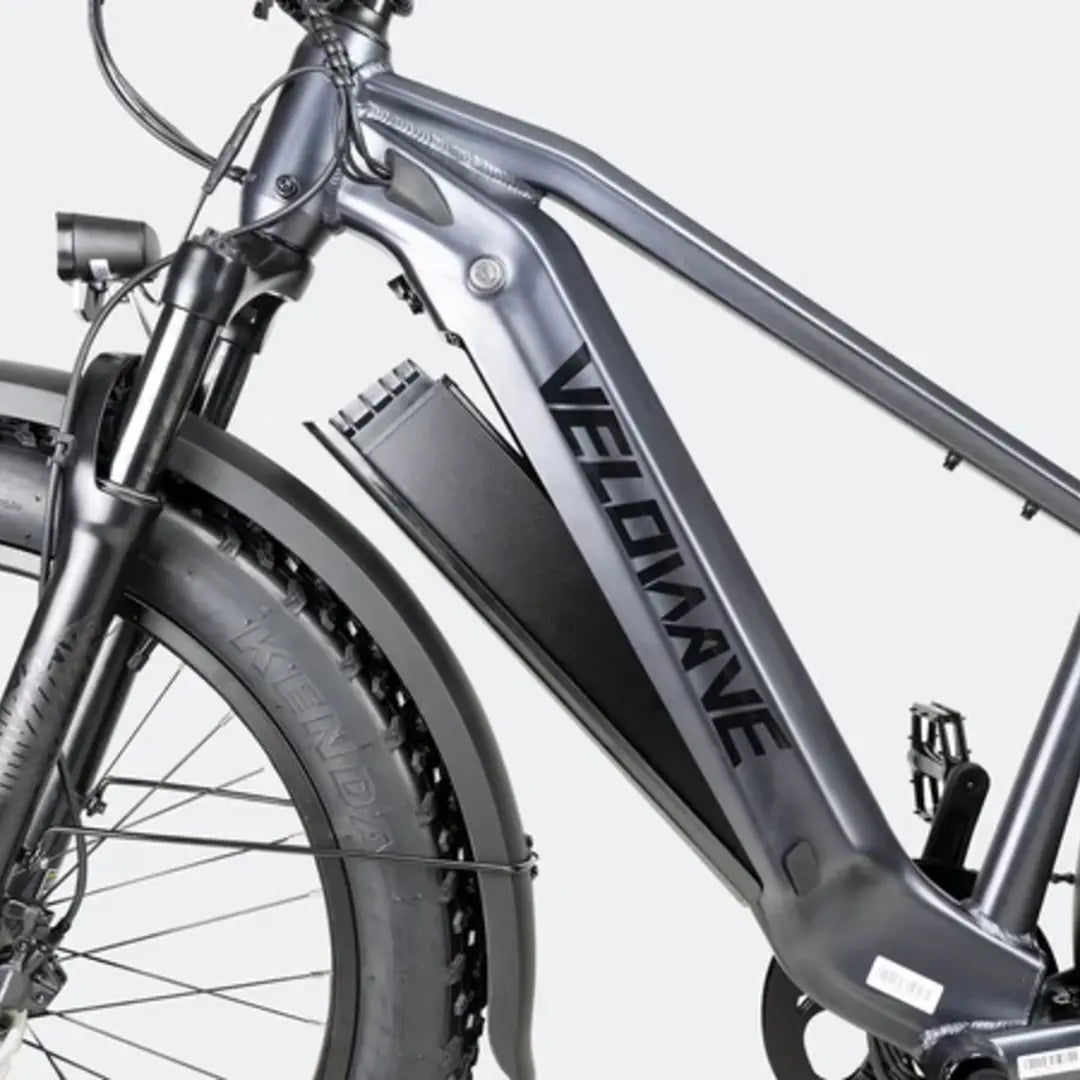

Equipped with a removable 48V 15Ah battery featuring LG cells, it provides an impressive range of up to 90 miles on PAS. The battery is seamlessly integrated into the frame, ensuring optimal performance while maintaining a sleek aesthetic.

Advanced Suspension

Enjoy a smooth and comfortable ride with the hydraulic suspension fork, offering 60mm of travel and a lockout capability. This system absorbs bumps and shocks, delivering a stable experience across all types of terrain.

Tail Light

The rear brake light, with a brightness of 12V 20 LUX, enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you, adding an extra layer of safety and confidence to your ride.

Torque Sensor

The torque sensor measures your pedaling force allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.

Smart and Responsive

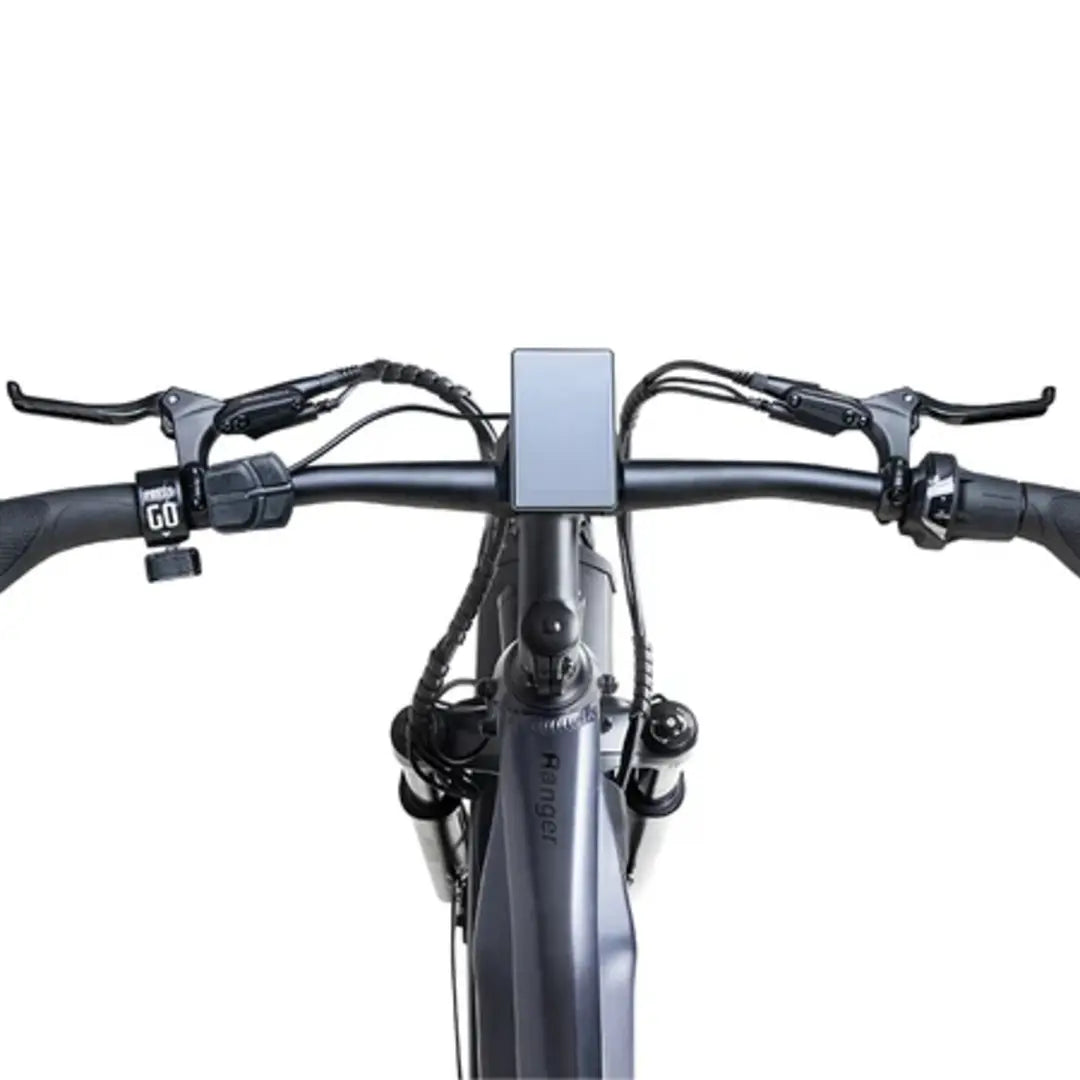

Stay informed and in control with the TFT Smart Display, featuring a colorful, backlit screen for clear visibility in any lighting condition. The integrated torque sensor provides a smooth and responsive ride, enhancing overall safety and comfort.

Reliable Braking

Safety is a top priority with the Ranger 3.0’s hydraulic disc brakes, which feature 180mm discs and a power cut-off function. This combination delivers dependable stopping power in all conditions.

❯

Specifications

• Class: Class 3
• Maximum Speed: Up to 28 MPH on pedal assist; 20 MPH on throttle
• Average Range: 65 miles on PAS
• Maximum Listed PAS Range: Up to 90 miles on Level 1
• Throttle Range: 30 miles
• Frame: 6061 aluminum alloy with internal battery
• Fork: Hydraulic suspension fork with 60 mm travel and lockout
• Rims: Aluminum 26 in., 36H front and rear
• Spokes: Black stainless; front 13G x 244/246 mm; rear 12G x 217/219 mm
• Hubs: Disc nutted front/rear axles
• Tires: Kenda 26 in. x 4.0 in. fat tires
• Tubes: Butyl rubber with Schrader valve
• Battery: Removable internal lithium-ion, 48V 15Ah, 720Wh, LG cells
• Charger: 48V 2A
• Approximate Charging Time: 8 hours
• Motor: 750W, peak 1000W, 85Nm
• Display: TFT smart color display with backlight
• Pedal Assist: 5 levels
• Sensor: Torque sensor
• Throttle: Throttle on demand from a complete stop

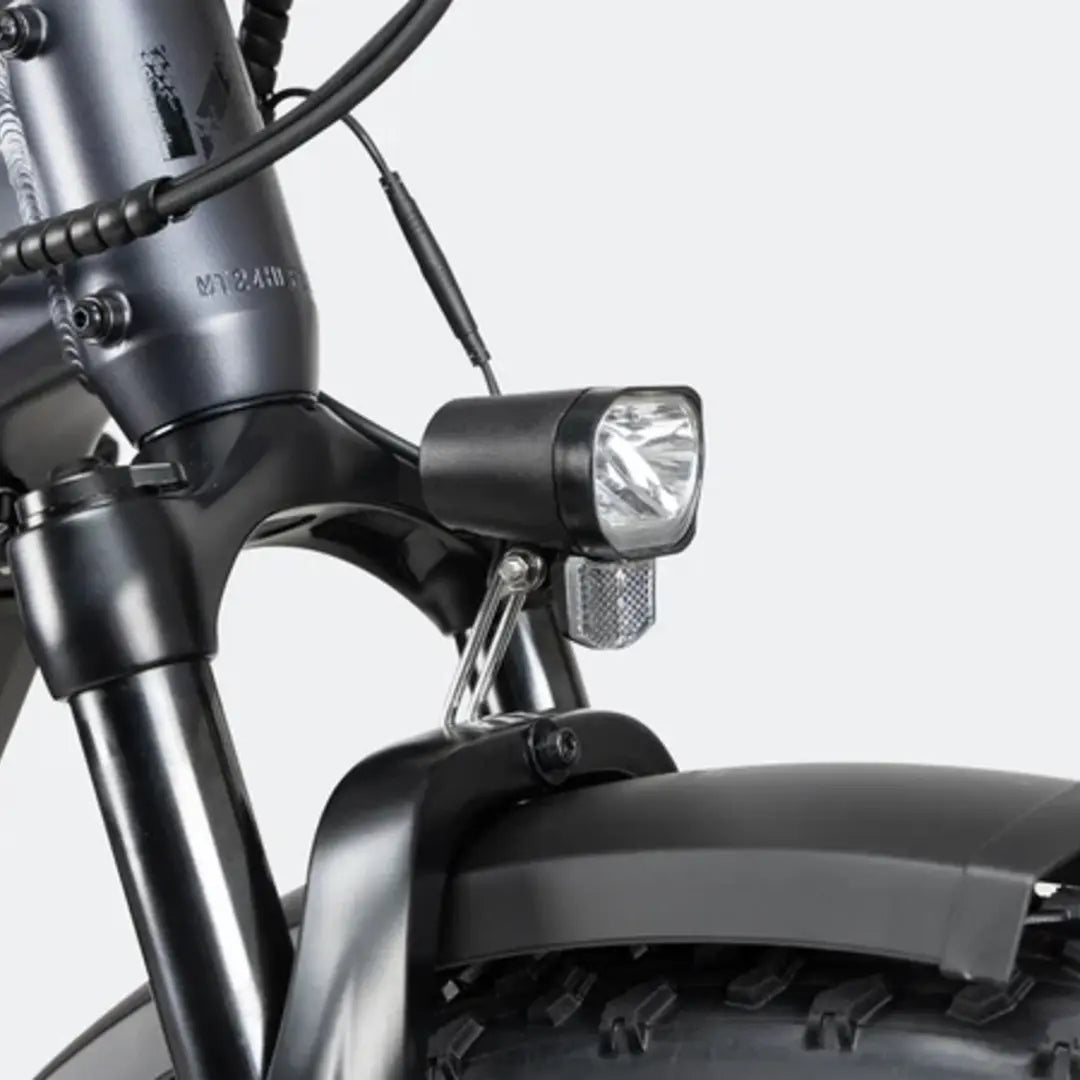

• Front Light: 48V LED, 75 LUX
• Tail Light: Rear brake light, 12V 20 LUX

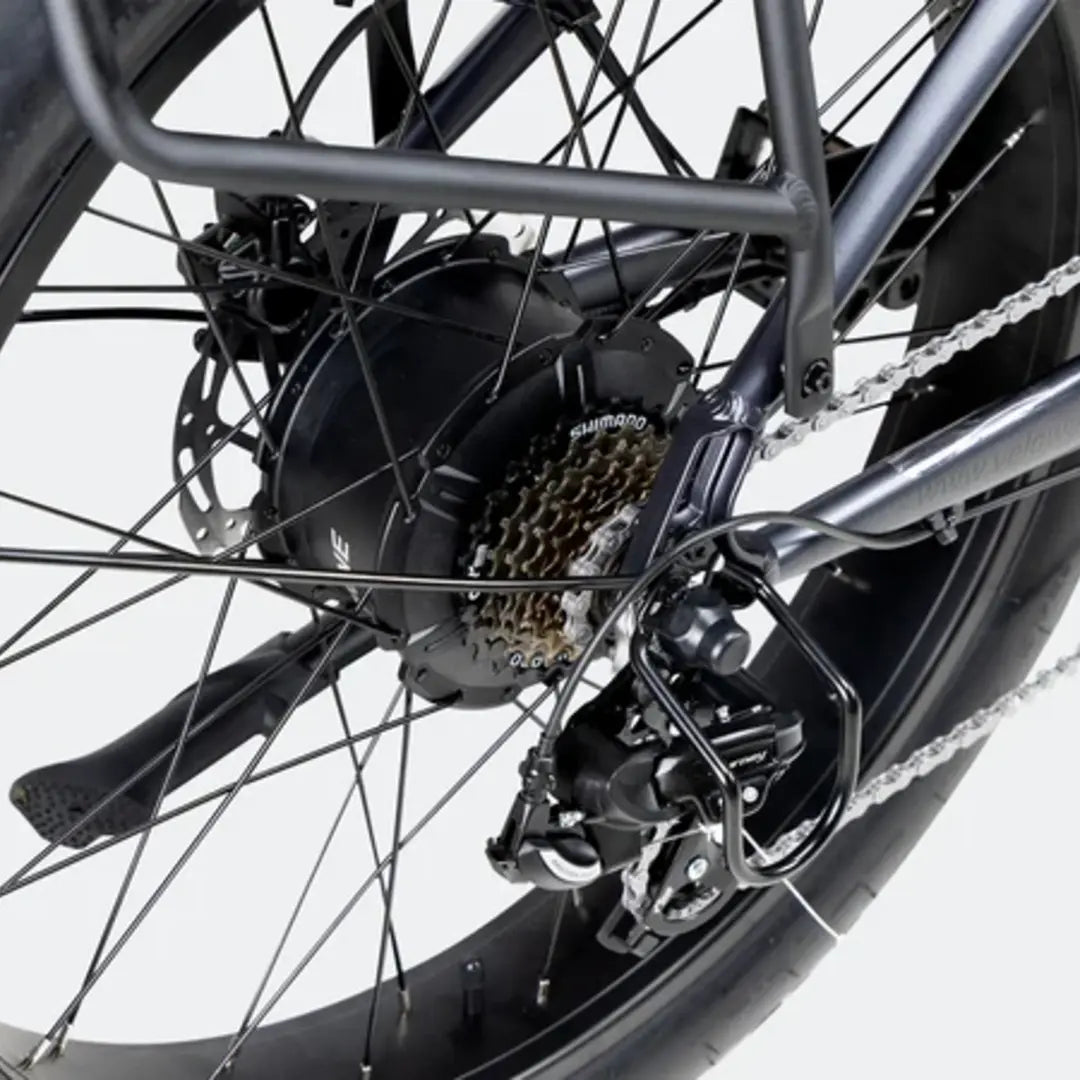

• Shifter: Shimano 7-Speed RevoShift
• Crankset: 170 mm with 52T
• Freewheel: Shimano 14-28T, 7-speed freewheel
• Pedals: Alloy platform
• Chain: KMC 124-link, 7-speed
• Rear Derailleur: Shimano ARDTY500D, 7-speed
• Saddle: Comfortable wide saddle
• Seatpost: Forged alloy, Ø30.4 x 350 mm
• Seat Clamp: Ø35 mm quick release
• Stem: Bar bore Ø31.8 mm; clamp I.D. Ø28.6 mm; height 70 mm; rise ±7°
• Handlebars: Aluminum Ø31.8 mm, 740 mm wide
• Headset: Sealed-bearing headset
• Grips: Ergonomic comfort grips
• Brakes: Hydraulic disc brakes with 180 mm discs and power cut-off function
• Kickstand: Alloy, rear mount
• Fenders: Plastic, 26 in. x 110 mm
• Rear Rack: Aluminum alloy rear rack
• Net Weight: 37.5 kg (82.67 lbs.), including battery
• Gross Weight: 45.6 kg (100.53 lbs.)
• Battery Weight: 4 kg (8.82 lbs.)
• Maximum Payload Capacity: 300 lbs.
• Product Size: 1930 x 755 x 1110 mm
• Packing Size: 1590 x 325 x 895 mm

Size Guide

• Frame Size: 16.7 in. / 42 cm
• Recommended Rider Height: 5 ft. 4 in. - 6 ft. 5 in. / 162 - 192 cm
• Recommended Inseam: 30 in. - 36 in. / 76 - 96 cm
• Handlebar Height: 1109 mm
• Reach: 404 mm
• Head Tube Length: 140 mm
• Seat Tube Length: 425 mm
• Standover Height: 753 mm
• Wheelbase: 1165 mm
• Total Length: 1914 mm
• Seat Height Min/Max: 823/1012 mm
• No size differences apply between included variants; the supplied product page presents this bike in the specified standard frame size.

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Front Light & Reflector Combo x 1
• Spare Screws x 2
• Front Axle Skewer x 1
• Pedals x 2
• Instruction Manual x 1
• Allen Wrench x 1
• Open End Wrench x 2

Warranty

2-year initial warranty service applies to the eBike. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years from the date of purchase. Bicycle frames are covered for 2 years against manufacturing defects, while mechanical components are covered for 1 year against manufacturing defects.
