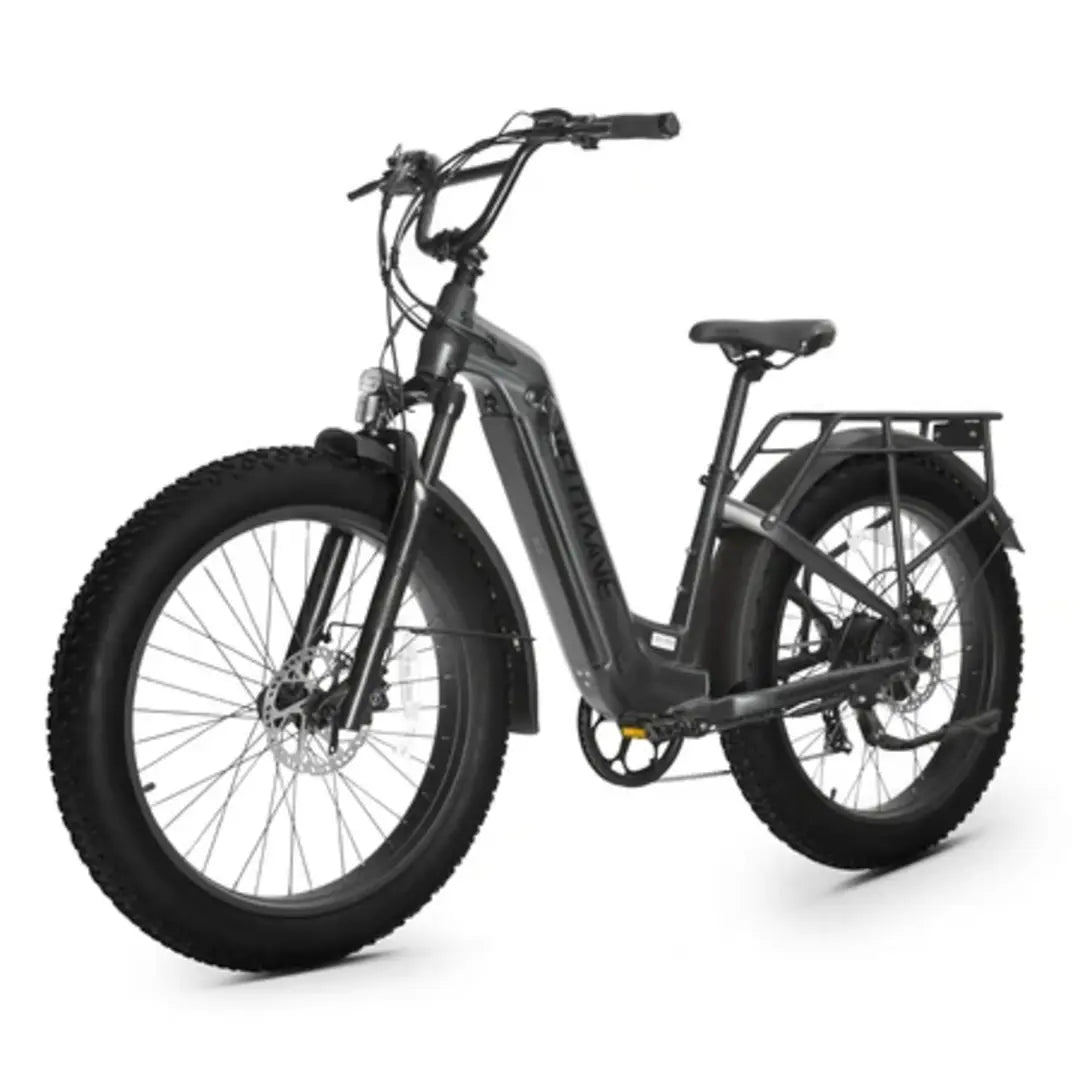

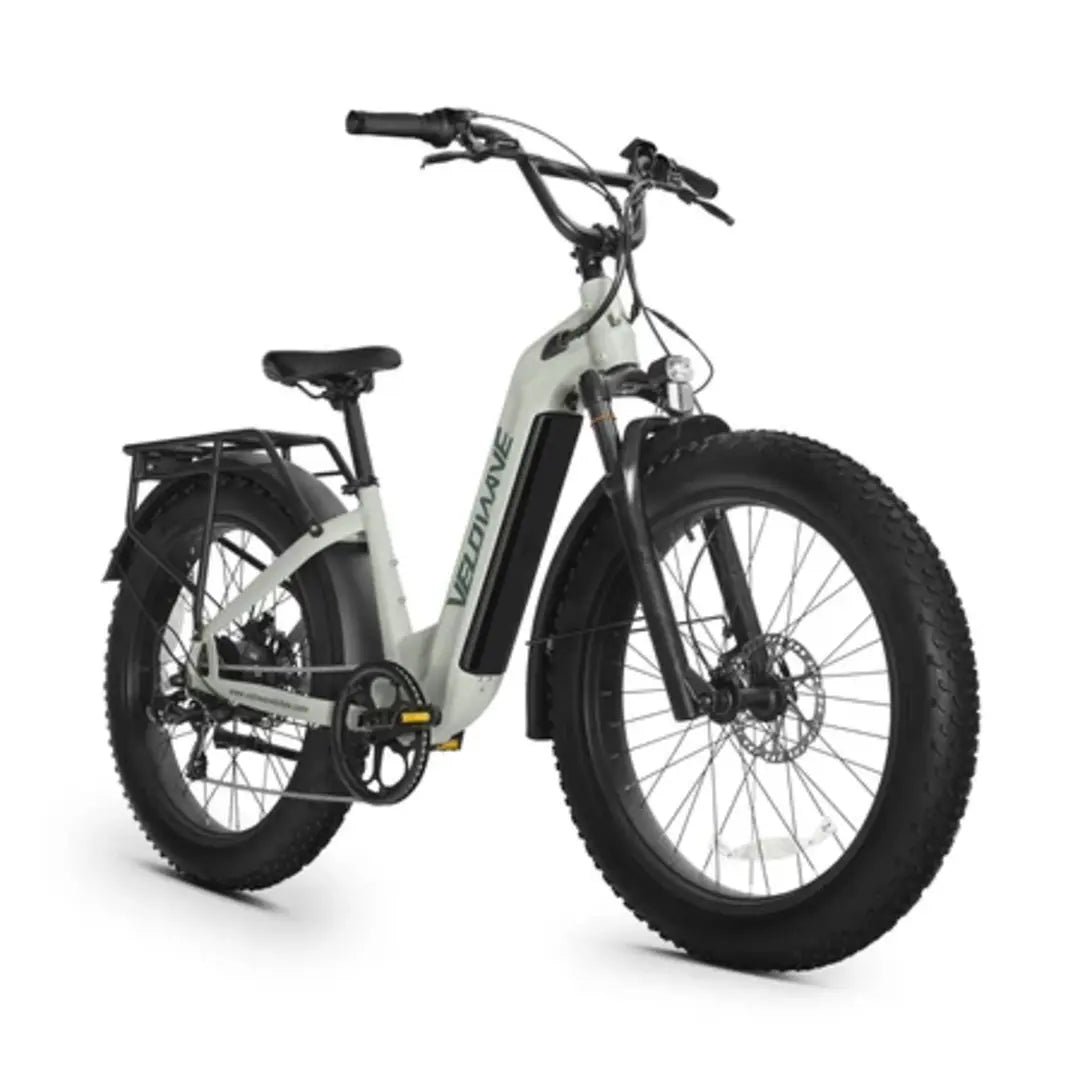

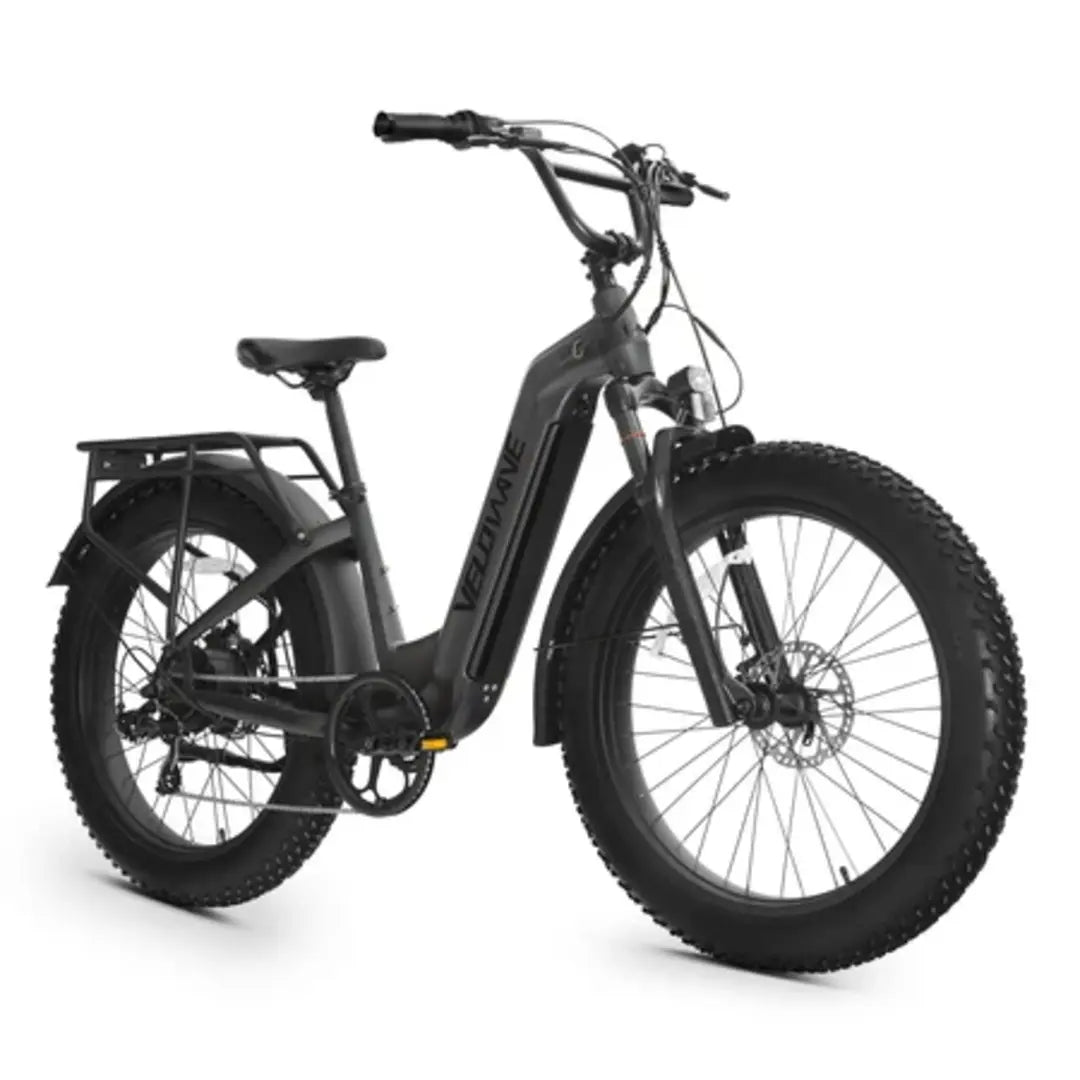

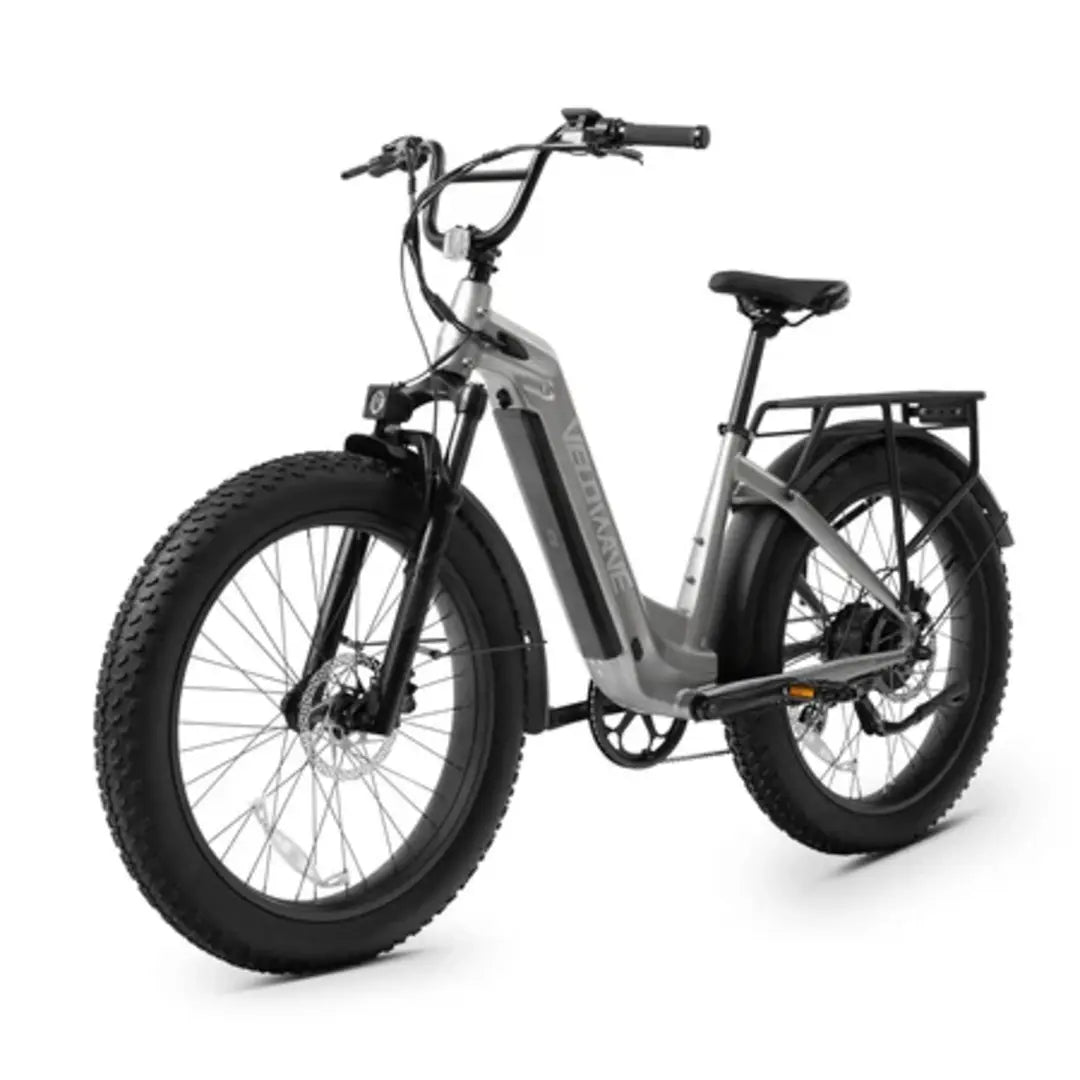

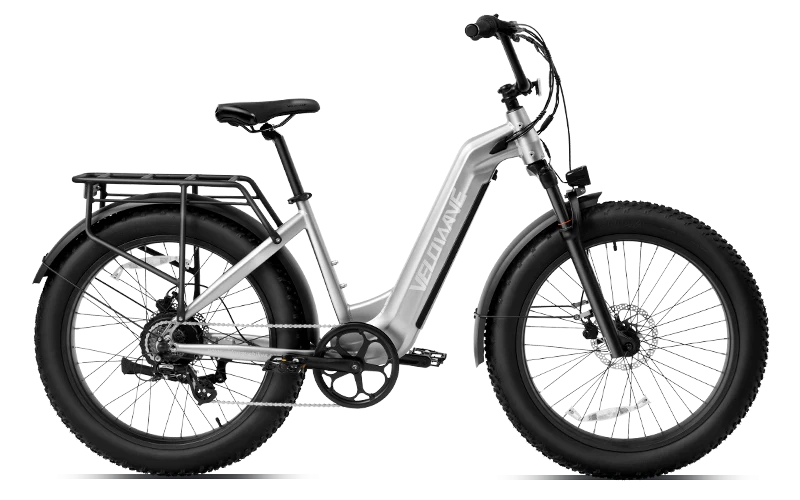

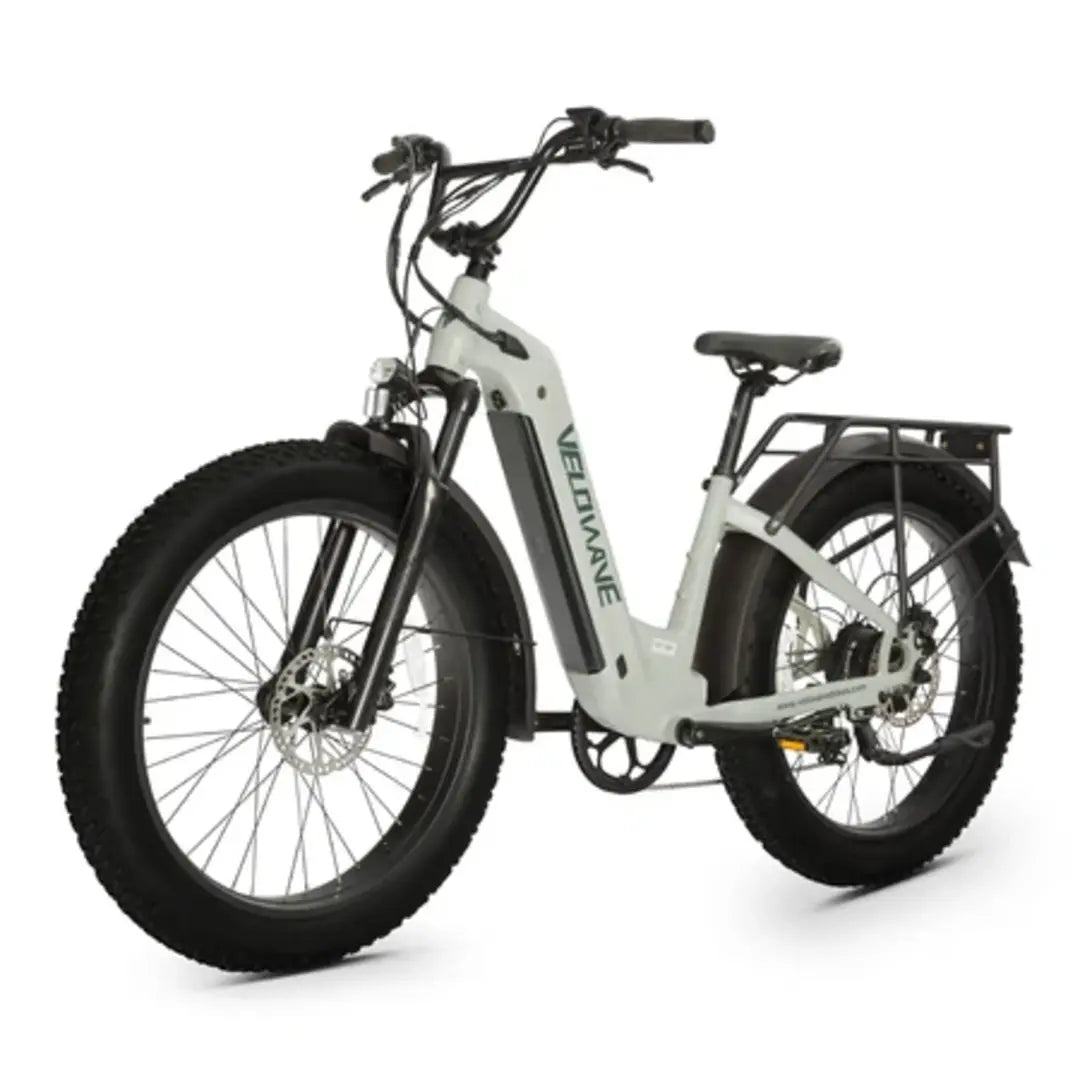

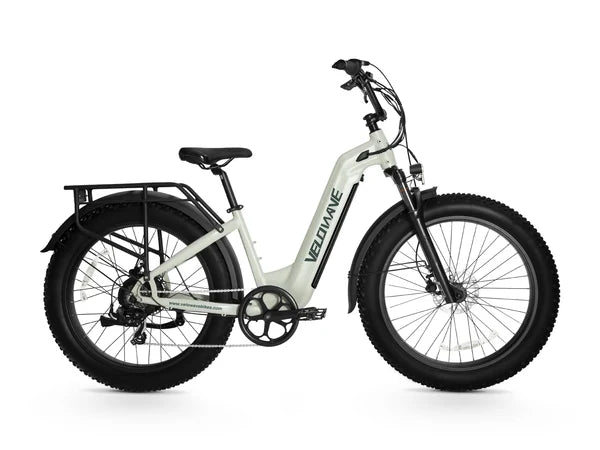

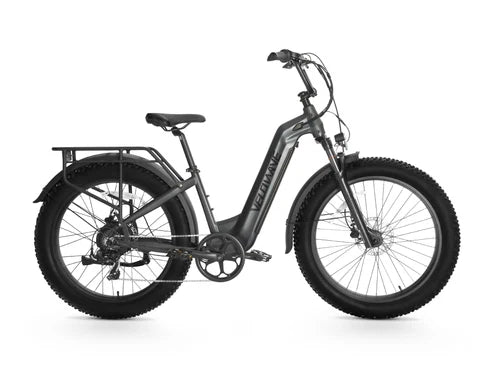

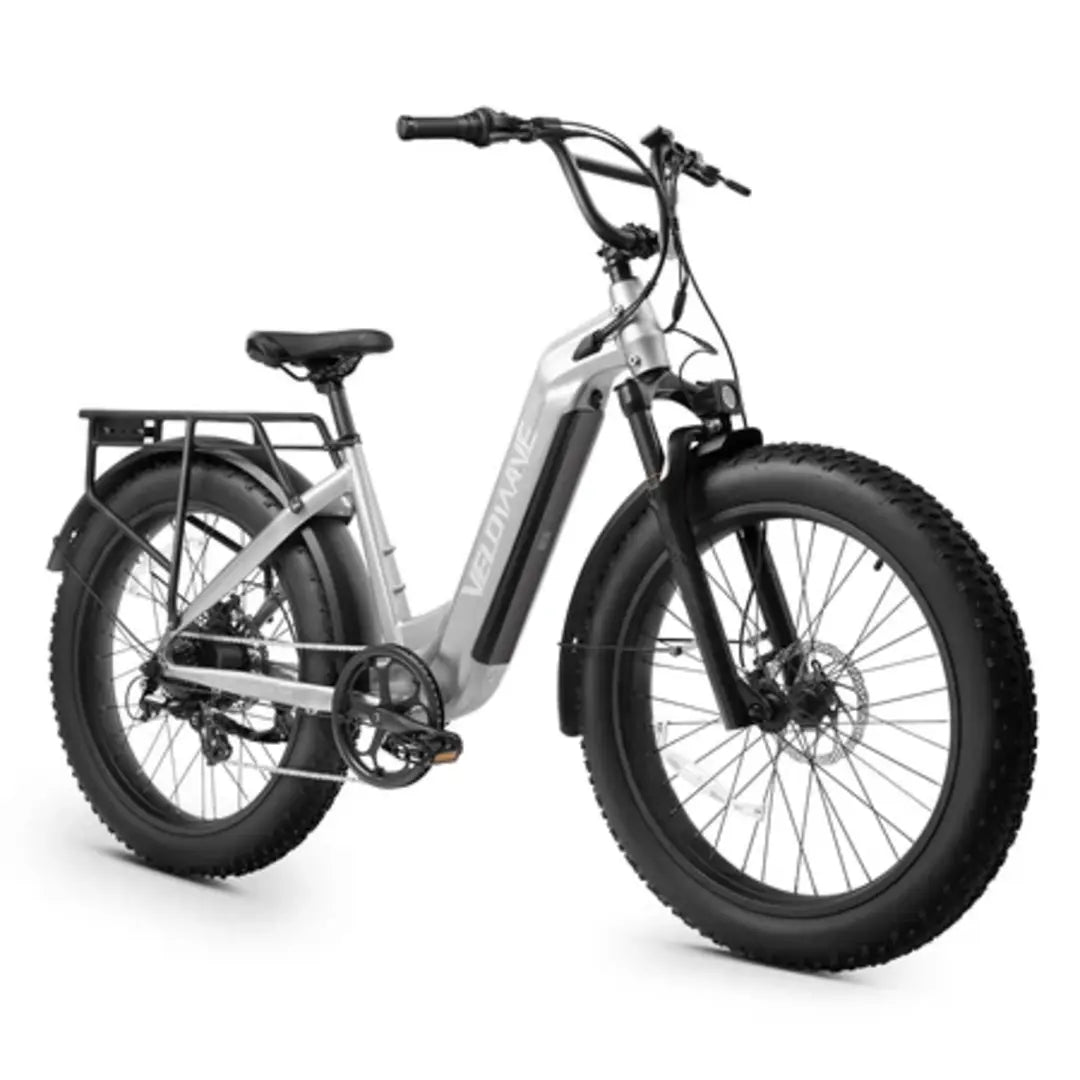

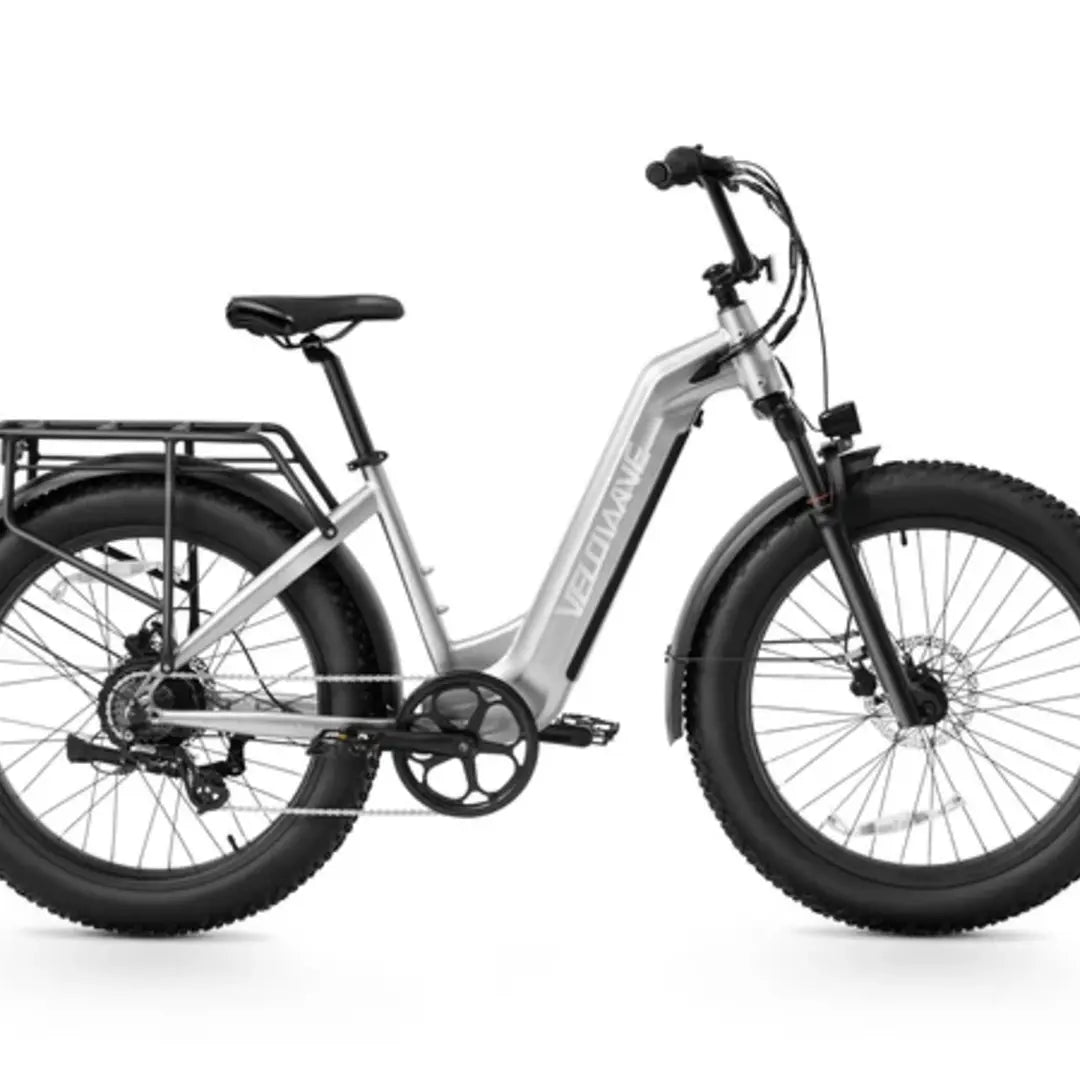

Velowave Ranger Step-Thru 2.0 Electric Bike

The Ranger Step-Thru 2.0 is a step-through electric bike built around a 750W geared hub motor, removable 48V 15Ah lithium-ion battery, and 26 in. x 4.0 in. fat tires. Its step-through aluminum frame is designed for easier mounting and dismounting, while a hydraulic suspension fork helps manage uneven riding surfaces. The bike is configured as a Class 3 e-bike with pedal-assist speeds up to 28 MPH and throttle speeds up to 20 MPH. Its detailed range specifications list an average of 65 miles on pedal assist, up to 90 miles on Level 1, and 30 miles on throttle, with actual range varying according to riding conditions and rider weight. A rear rack and fenders are included, along with hydraulic disc brakes, a multifunction color display, thumb throttle, 7-speed drivetrain, and front LED lighting.

Key Features

Ranger Step-Thru 2.0

Blending power, speed and convenience. The ranger step-through offers a top speed of 28 MPH with a dynamic 750W geared hub motor, powered by a removable 48V 15AH LG battery for an extended and adaptable ride covering 30 miles on a single charge, and up to 90 miles by pedal. Roll smoothly on sturdy 4" fat tires offering superior traction and stability on any terrain.

The step-through frame enhances accessibility making it an inclusive choice for a wide range of individuals. With a robust payload capacity of 300lbs.

Featuring a complimentary rear rack and fenders – all included with no extra cost !

❮

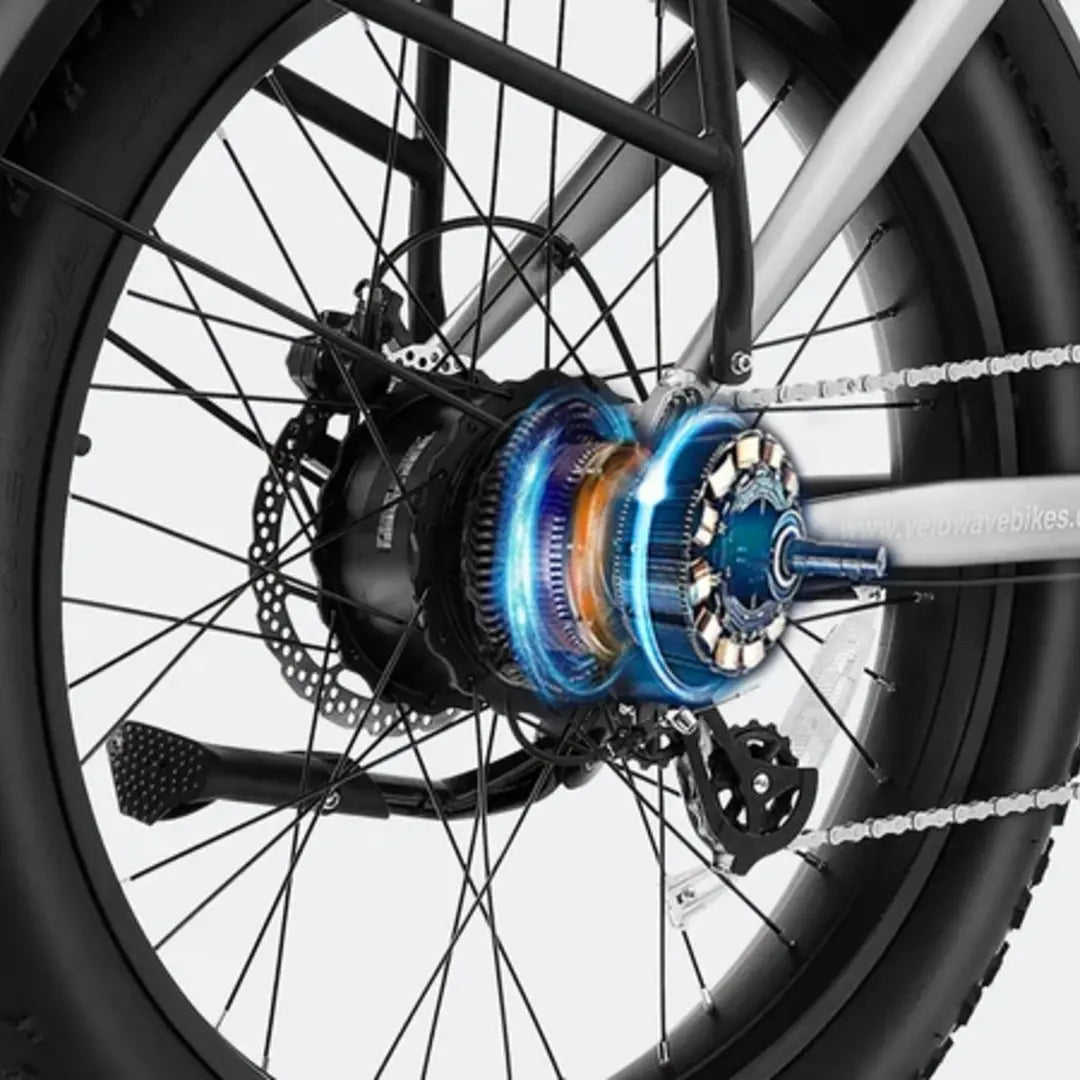

750W Hub Motor

Experience strong electric power and stability with our 750W Geared Hub Motor, making cruising effortless and hill-climbing a breeze.

Fat Tire Design

Our 26"×4.0" Fat Tire is anti-skidding and wear-resistant, adapting seamlessly to various terrains such as snow and sand, providing smooth rides on rugged landscapes.

Convenient Control

Enjoy multiple riding modes and reliable hydraulic disc brakes for perfect braking performance and a seamless riding experience.

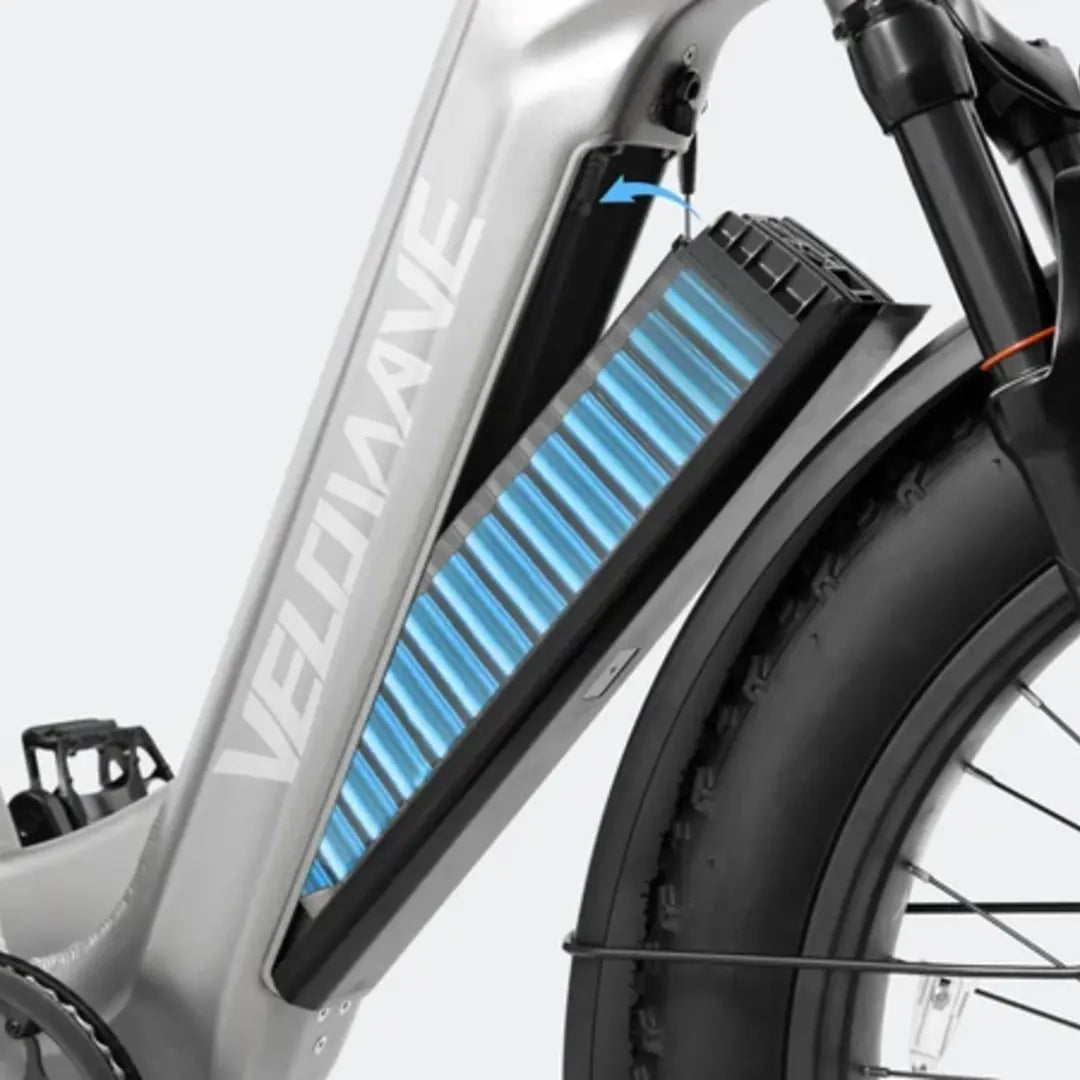

Removable LG Battery

Powered by a high-quality 48V 15AH LG battery, our e-bike covers up to 90 miles on a single charge and is conveniently lockable and removable for easy charging.

Shimano Derailleur

Conquer steep hills and cruise at high speeds effortlessly with our 7-speed cassette transmission featuring an 11T to 32T gear range.

Upright Handlebar

Embrace comfort and safety with our Ranger E-Bike's upright handlebars, providing a clear view of the road, reduced wrist pressure, and enhanced control for extended rides.

Rack & Fenders

Carry cargo effortlessly and maintain a stylishly clean appearance on- and off-road with our practical rear rack and upgraded 1-piece fender package.

6061 Aluminum Frame

Our Step-Thru Frame ensures easy on-off access for all riders, while the reinforced rear triangle supports up to 350 lbs, accommodating most users with ease.

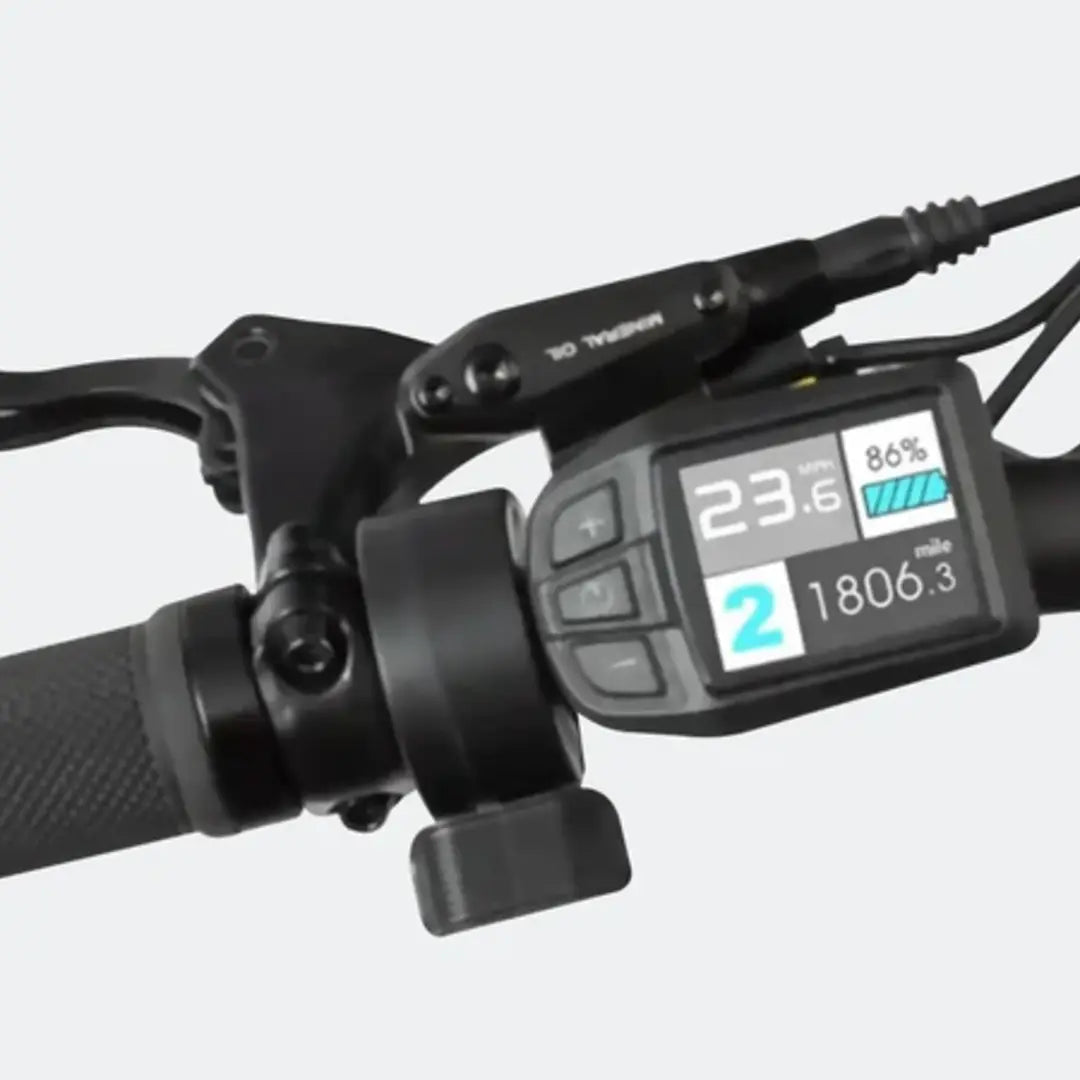

Throttle & Display

Experience power on demand with the intuitive thumb throttle and stay informed with real-time metrics and customizable riding modes on our advanced display.

❯

Specifications

• Class: Class 3
• Maximum Pedal-Assist Speed: 28 MPH
• Maximum Throttle Speed: 20 MPH
• Range: Average 65 miles on PAS; up to 90 miles on Level 1; 30 miles on throttle
• Pedal Assist Levels: 5
• Frame: 6061 aluminum, removable battery, internal routing
• Fork: Hydraulic suspension fork with 60 mm travel and lockout
• Rim Material: Aluminum
• Rim Size: 26 in., 36H front and rear
• Front Wheel Spokes: 13G x 244/246 mm, black stainless
• Rear Wheel Spokes: 12G x 217/219 mm, black stainless
• Tubes: Butyl rubber, Schrader valve
• Hubs: Disc nutted front/rear axles
• Tires: Kenda fat tires
• Tire Size: 26 in. x 4.0 in.
• Battery: Removable internal lithium-ion battery, 48V 15Ah, 720Wh, LG cells
• Charger: 48V 2A charger, approximately 8-hour charging, aviation connector, UL Listed
• Motor: Geared hub motor, rated 750W, peak 1200W
• Maximum Motor Torque: 80 Nm
• Controller: 48V 25A peak
• Display: Multifunctional color-screen display
• Pedal Assist Sensor: Speed sensor
• Throttle: Thumb throttle
• Front Light: 48V 10W LED, 30 LUX
• Shifter: Shimano 7-Speed RevoShift
• Rear Derailleur: Shimano ARDTY500D 7-speed, long cage
• Crank & Chainring: 52T, 170 mm alloy crank
• Freewheel: Shimano 14–28T, 7-speed freewheel
• Pedals: Alloy platform pedals
• Chain: KMC 124-link, 7-speed
• Saddle: Comfortable wide saddle
• Seatpost: Forged alloy, Ø30.4 x 350 mm
• Seat Clamp: Ø35 mm quick release
• Stem: Bar bore Ø31.8 mm; clamp I.D. Ø28.6 mm; height 70 mm; rise ±7°
• Handlebar: Aluminum Ø31.8 mm, 720 mm width
• Headset: Sealed bearing headset
• Grips: Nylon lock-on, ergonomic comfort
• Brakes: Front and rear hydraulic disc brakes with 180 mm discs and power-cut-off function
• Brake Rotor: 180 mm, 1.9 mm thick
• Kickstand: Alloy side kickstand, rear mount
• Fenders: Plastic, 26 in. x 110 mm
• Rear Rack: Aluminum alloy rear rack
• Net Weight: 34.9 kg (76.94 lb), including battery
• Gross Weight: 45.6 kg (100.53 lb)
• Battery Weight: 4 kg (8.82 lb)
• Payload Capacity: 136 kg (300 lb)
• Product Size: 1930 x 740 x 1210 mm
• Packing Size: 1570 x 330 x 900 mm

Size  Guide

• Frame Size: 18 in.
• Recommended Rider Height: 5 ft. 5 in.–6 ft. 5 in. / 165–192 cm
• Recommended Inseam: 31–36 in. / 80–92 cm
• Handlebar Height: 1206 mm
• Reach: 402 mm
• Head Tube Length: 140 mm
• Seat Tube Length: 425 mm
• Standover Height: 457 mm
• Wheelbase: 1172 mm
• Total Length: 1922 mm
• Seat Height Min/Max: 819/1009 mm

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Headlight x 1
• Spare Screws x 3
• Front Reflector x 1
• Front Axle Skewer x 1
• Pedals x 2
• Instruction Manual x 1
• Allen Wrench x 1
• Open End Wrench x 1

Warranty

Warranty: 2-year limited warranty for bikes purchased after March 22, 2024. The page states that battery packs, the motor, controller, display, charger, throttle, and bicycle frame receive 2-year coverage under the stated warranty terms, while mechanical components receive 1-year coverage against manufacturing defects.
