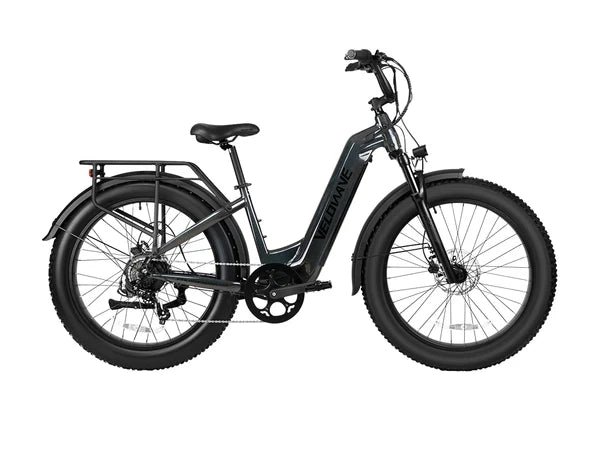

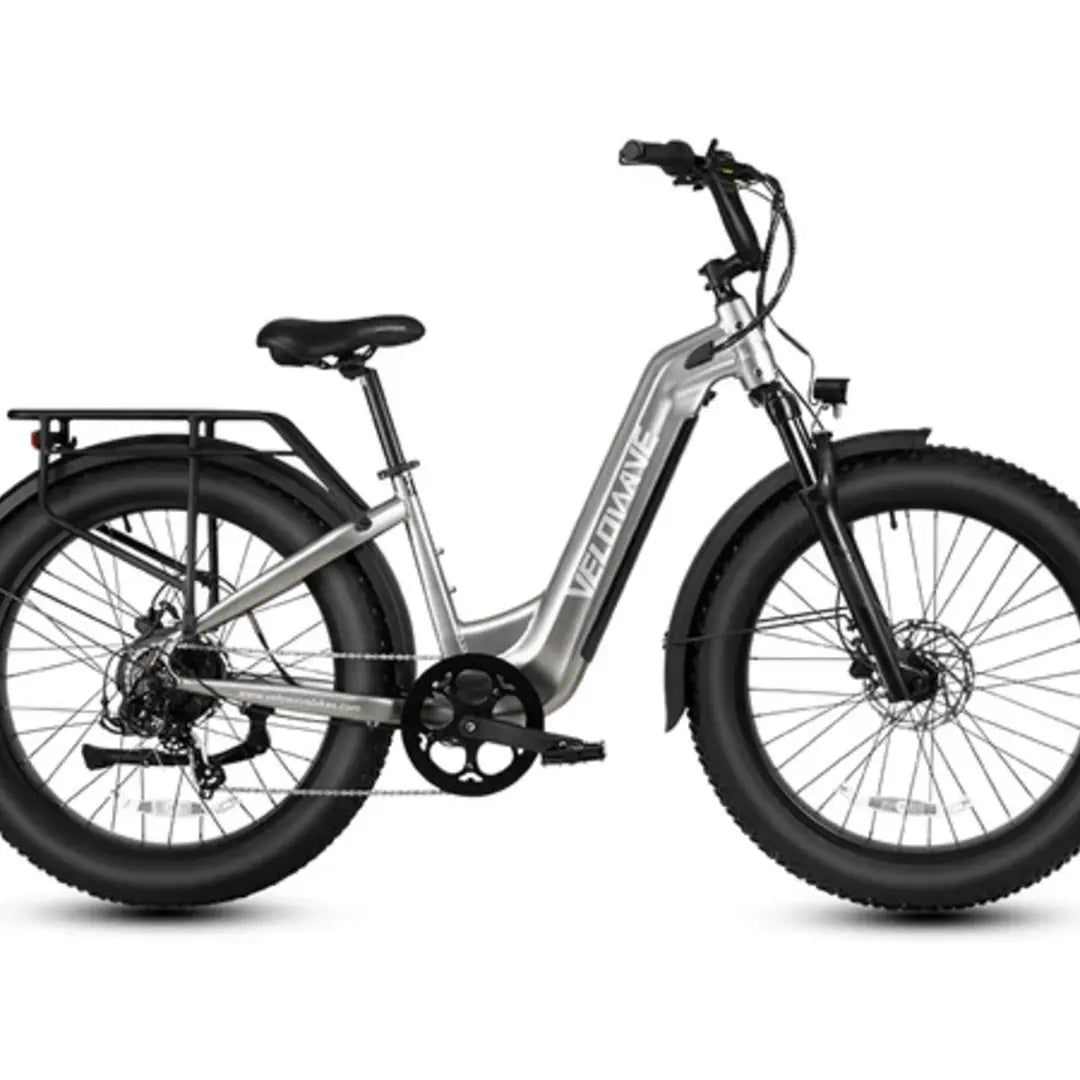

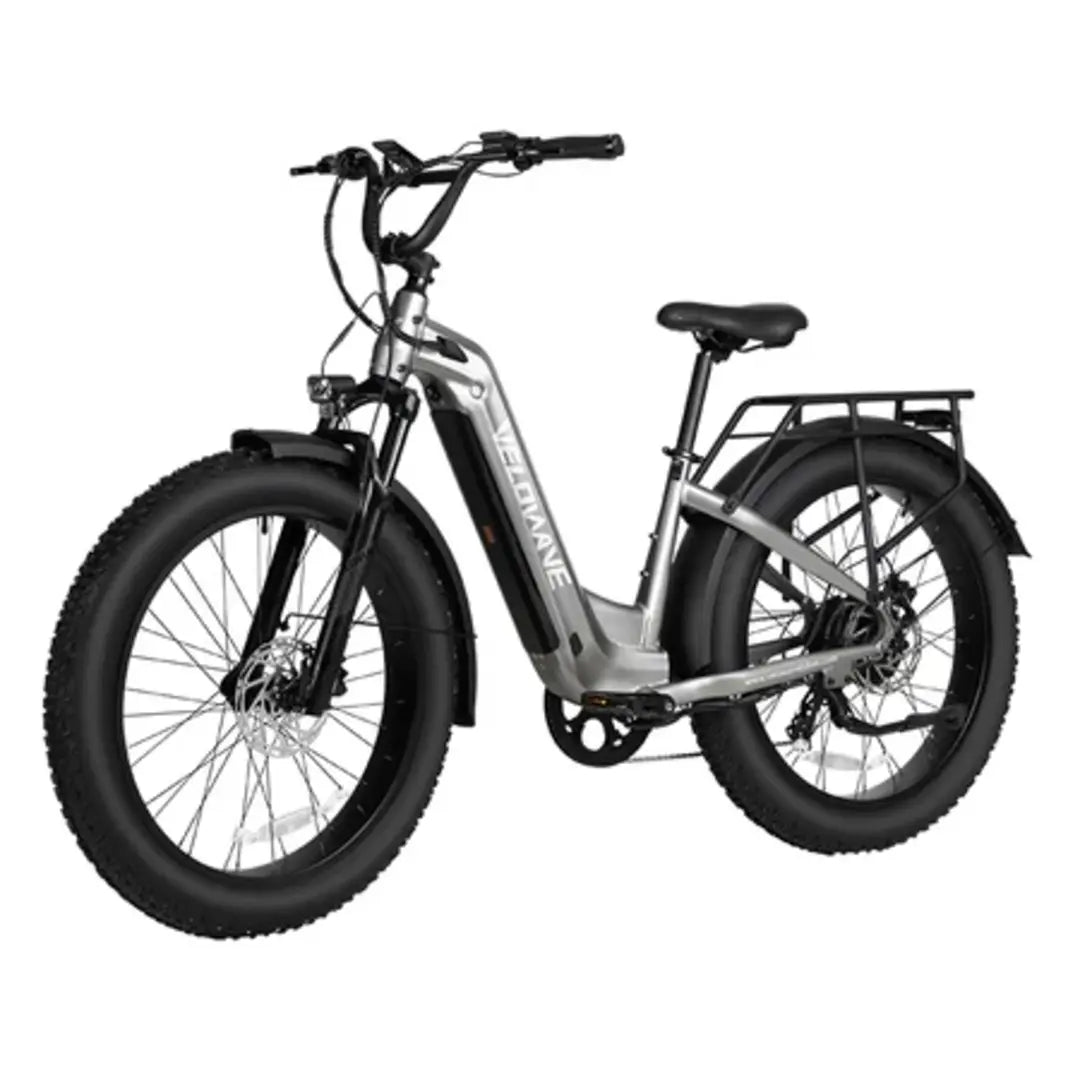

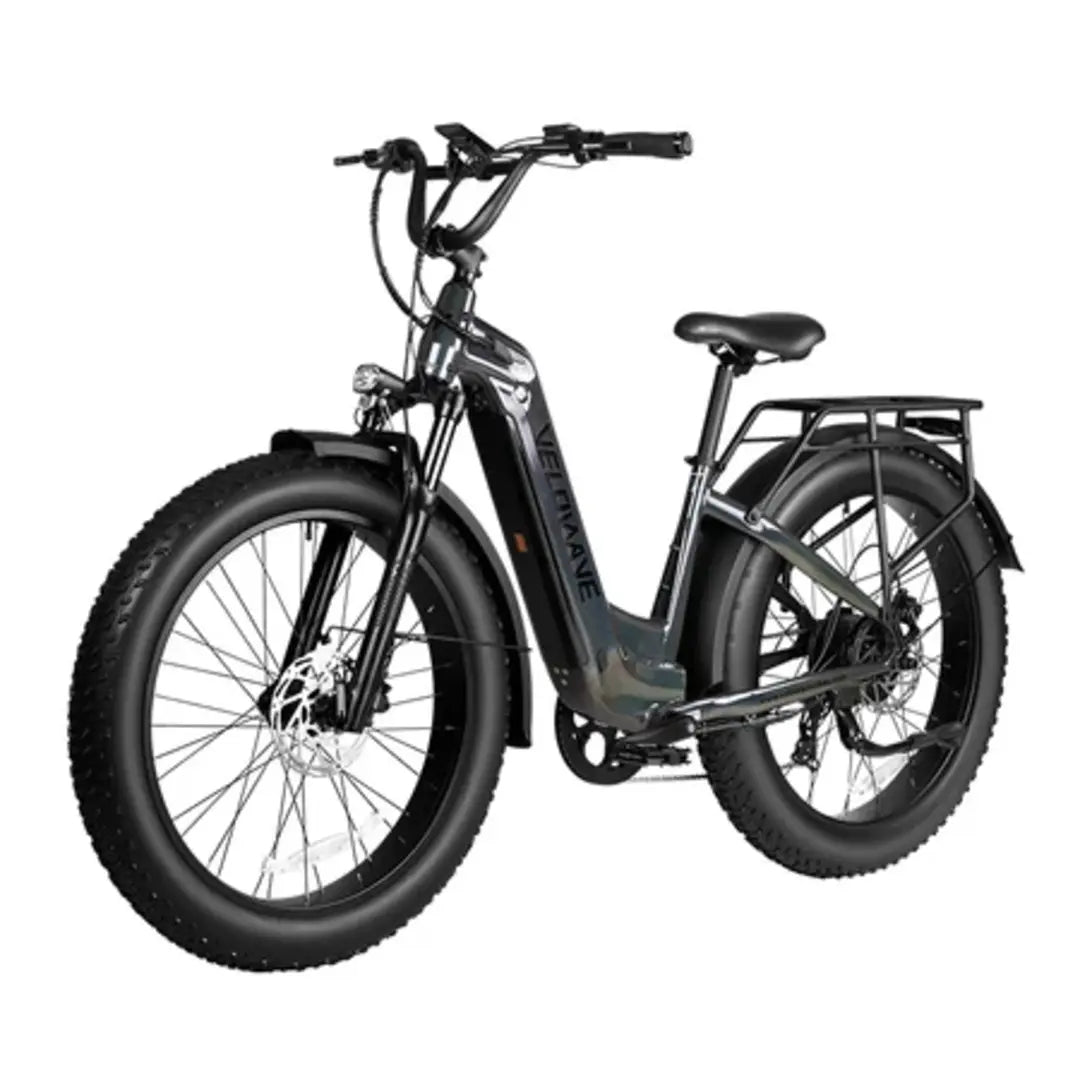

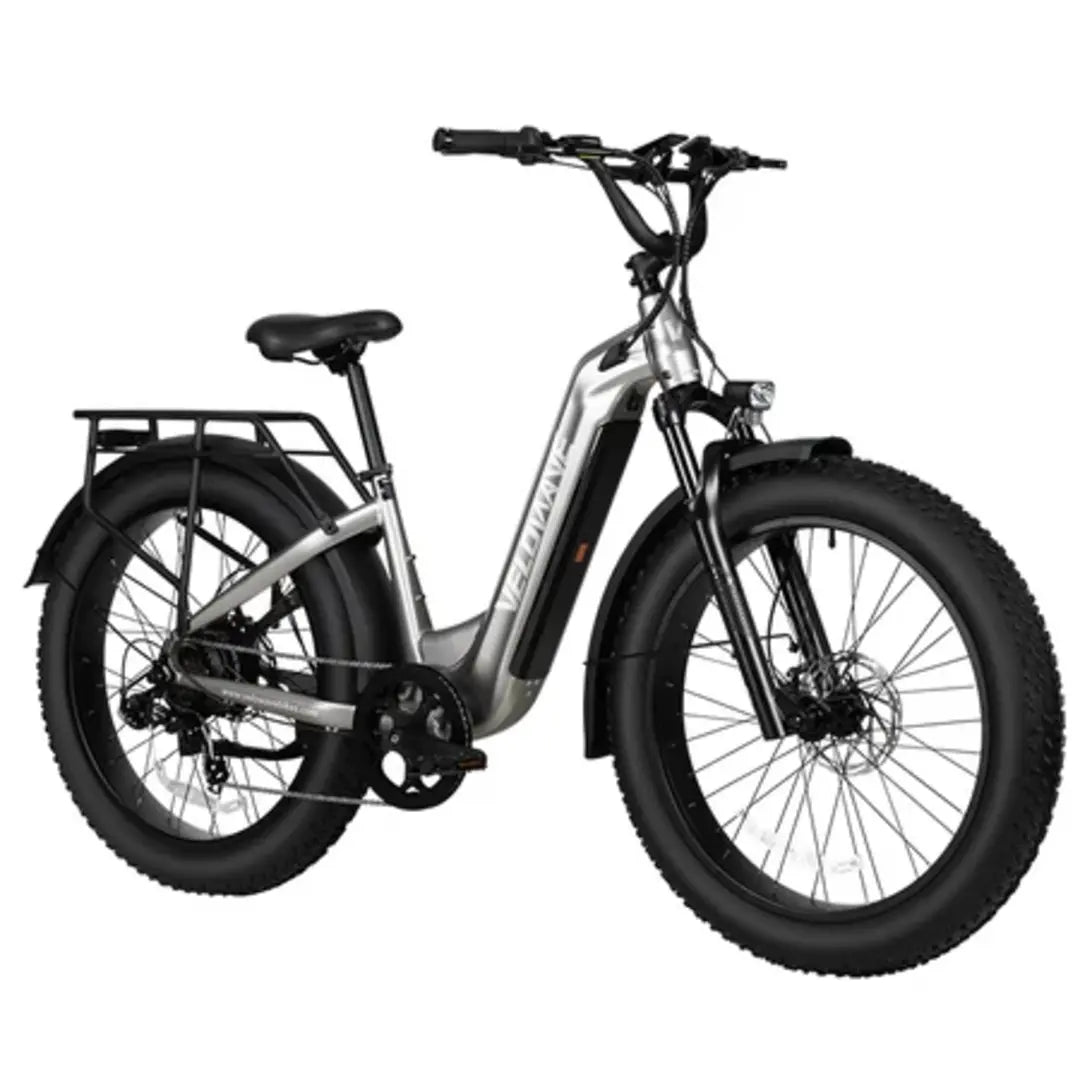

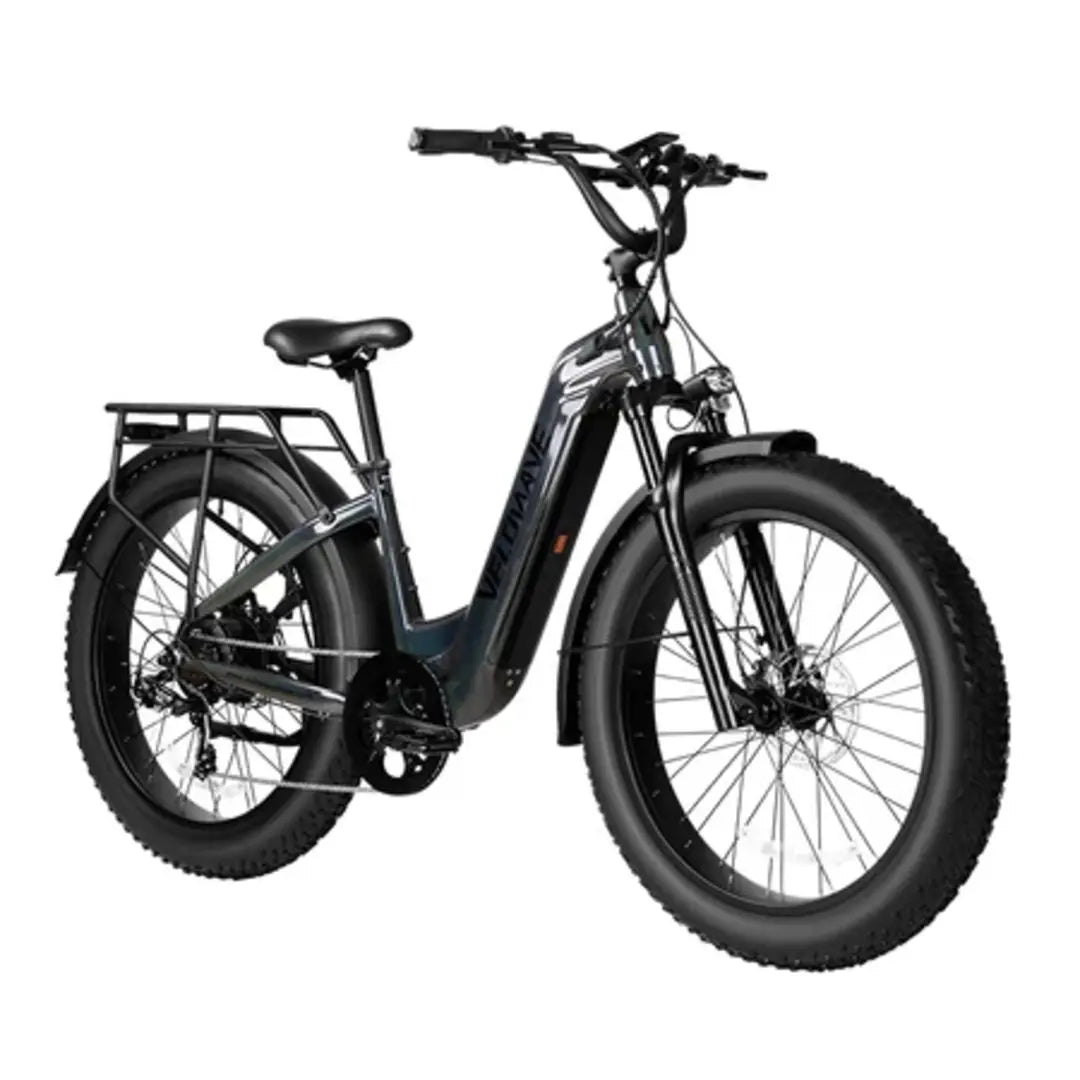

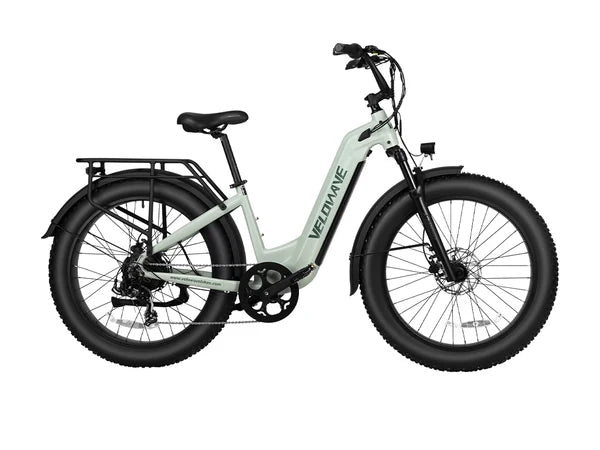

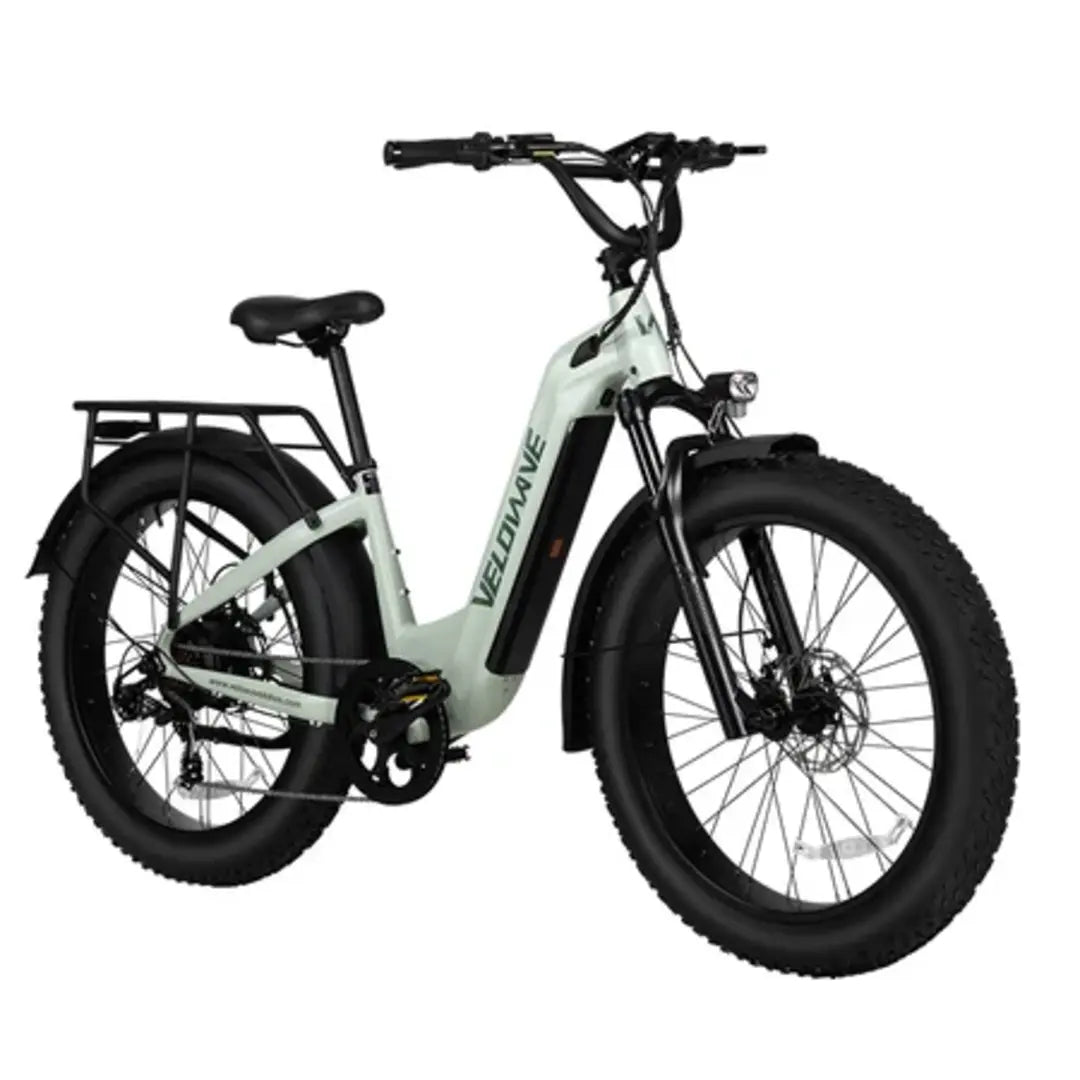

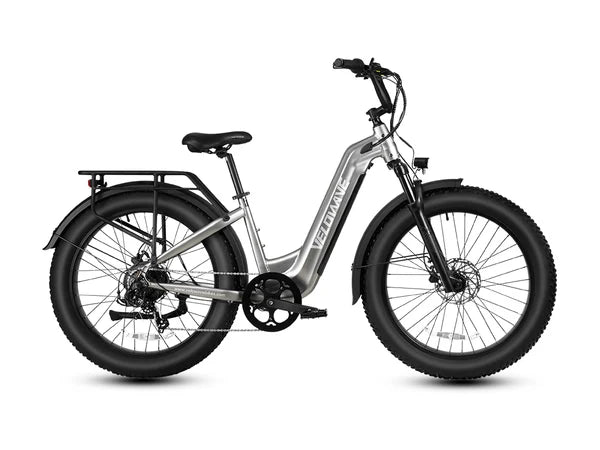

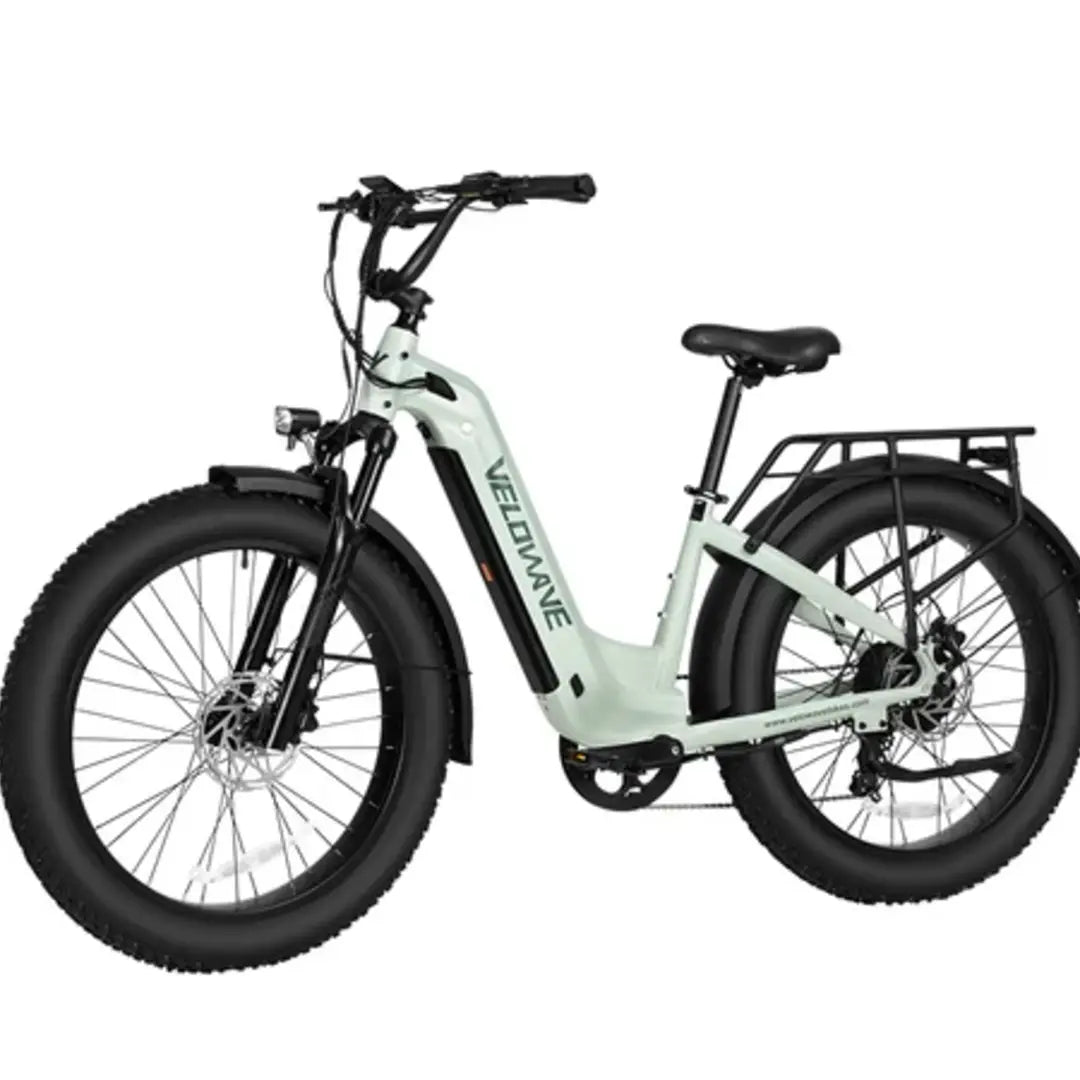

Velowave Ranger Step-Thru 3.0 Torque Sensor Electric Bike

The Ranger Step-Thru 3.0 is a Class 3 electric bike built around a 6061 aluminum-alloy step-through frame for easier mounting and dismounting. It combines 26" x 4.0" Kenda fat tires, hydraulic suspension, hydraulic disc brakes, and a torque-sensing pedal-assist system for commuting and riding across varied terrain.

A 750W motor with 1000W peak output and 85Nm of torque works with a removable 48V 15Ah, 720Wh lithium-ion battery using LG cells. The bike provides 5 pedal-assist levels, an average listed PAS range of 65 miles, up to 90 miles on Level 1, and 30 miles using the throttle.

A TFT color display, front and rear lighting, rear rack, fenders, 7-speed drivetrain, and 300-lb. payload capacity complete the configuration.

Key Features

Effortless Riding Meets Cutting-Edge Technology

Discover the perfect blend of comfort, power, and advanced technology with the Ranger 3.0 Step-Thru. Designed for smooth, easy access and a seamless riding experience, this bike is built to conquer both daily commutes and thrilling off-road adventures. Equipped with a responsive torque sensor and a robust 750W motor (peaking at 1000W), the Ranger 3.0 Step-Thru delivers effortless performance across all terrains. Whether you're navigating city streets or exploring nature trails, this bike is designed to elevate every ride.

❮

Torque Sensor

The torque sensor measures your pedaling force, allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.

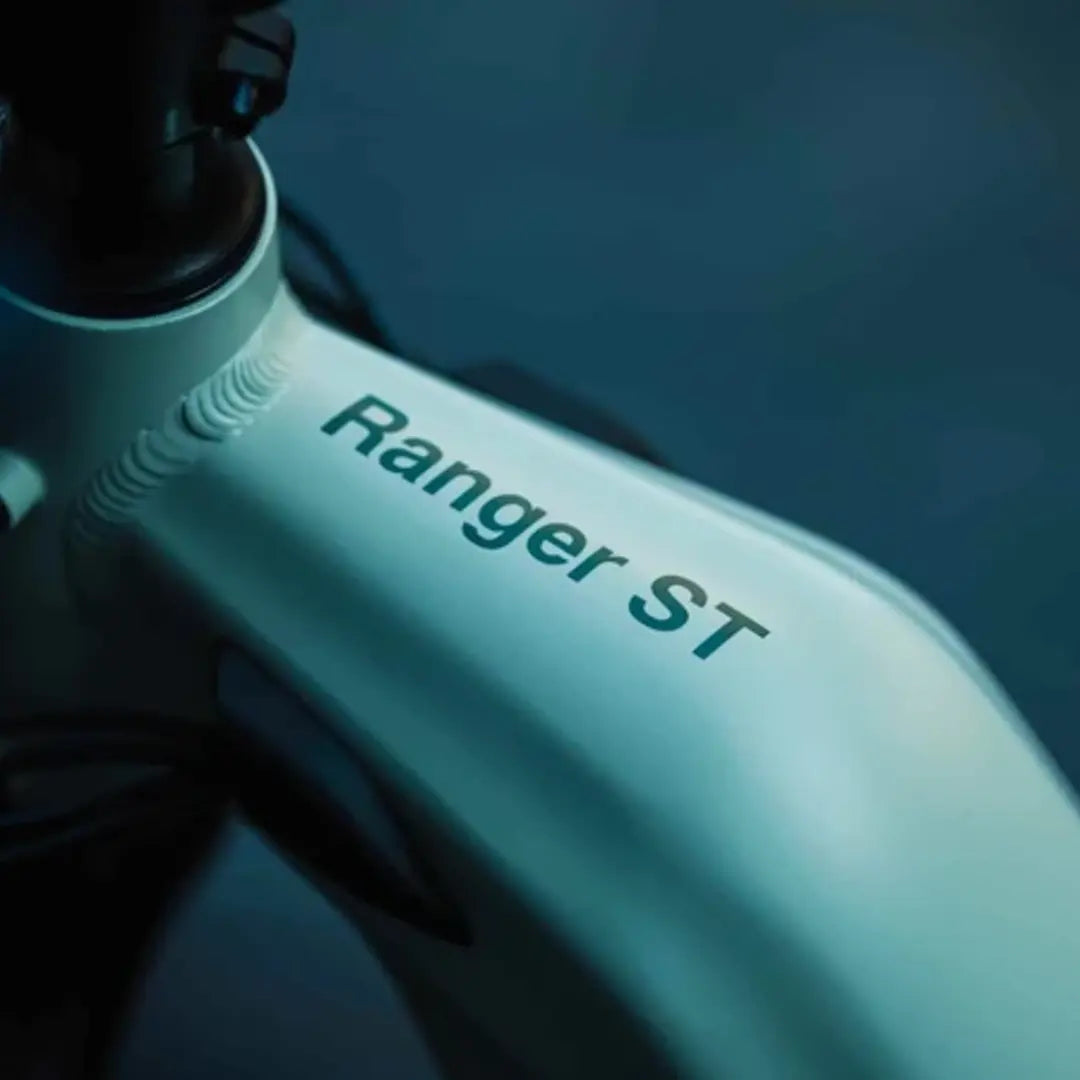

Durable Frame

Crafted from high-quality 6061 aluminum alloy, the step-thru frame ensures easy mounting and dismounting while providing strength and stability. Perfect for all riders, it combines sleek design with uncompromising durability, making every ride feel secure and comfortable.

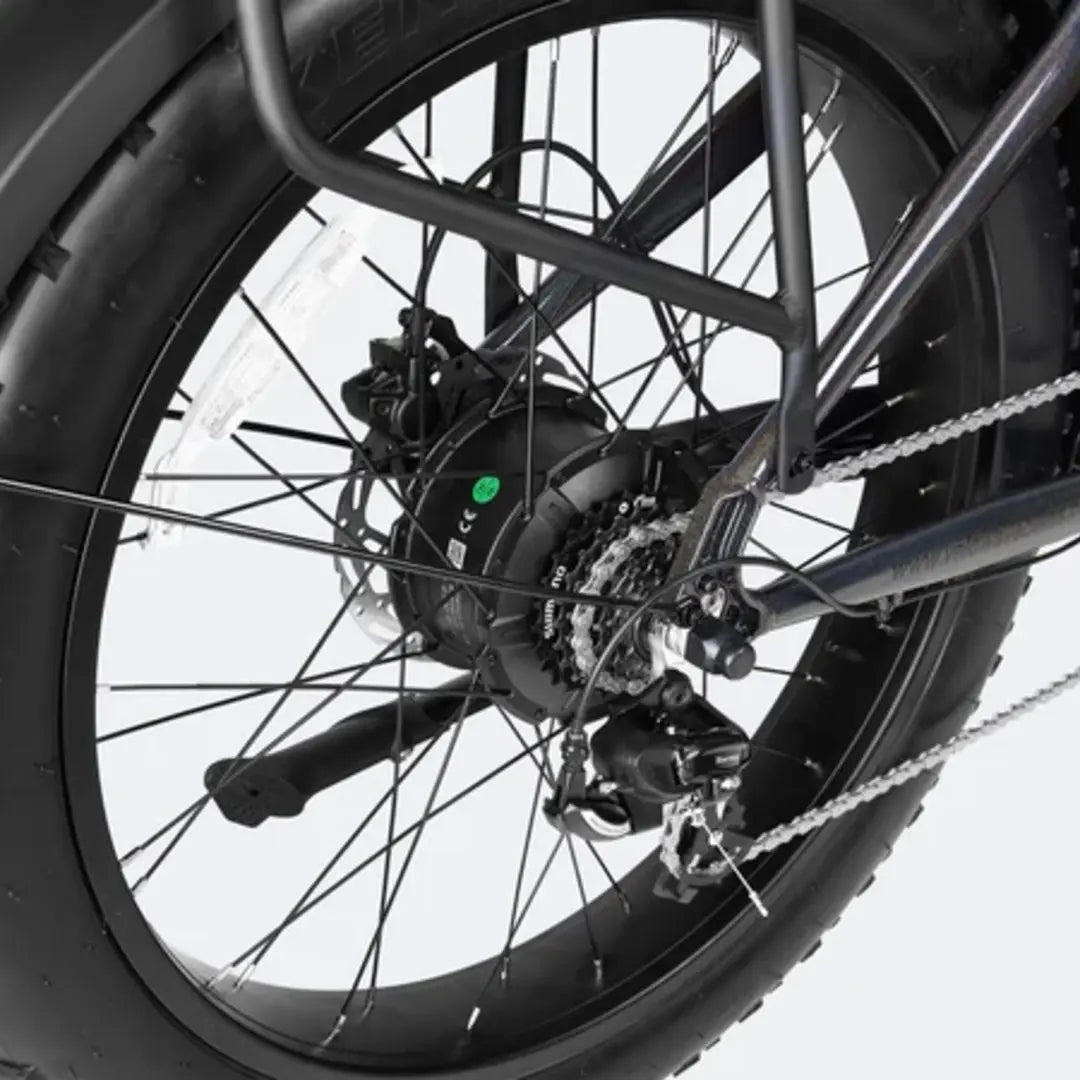

Powerful Motor

Feel the power of a 750W motor, reaching up to 1000W with 85Nm of torque. The Ranger 3.0 Step-Thru offers a dynamic riding experience, effortlessly reaching speeds of up to 28 MPH with Pedal Assist.

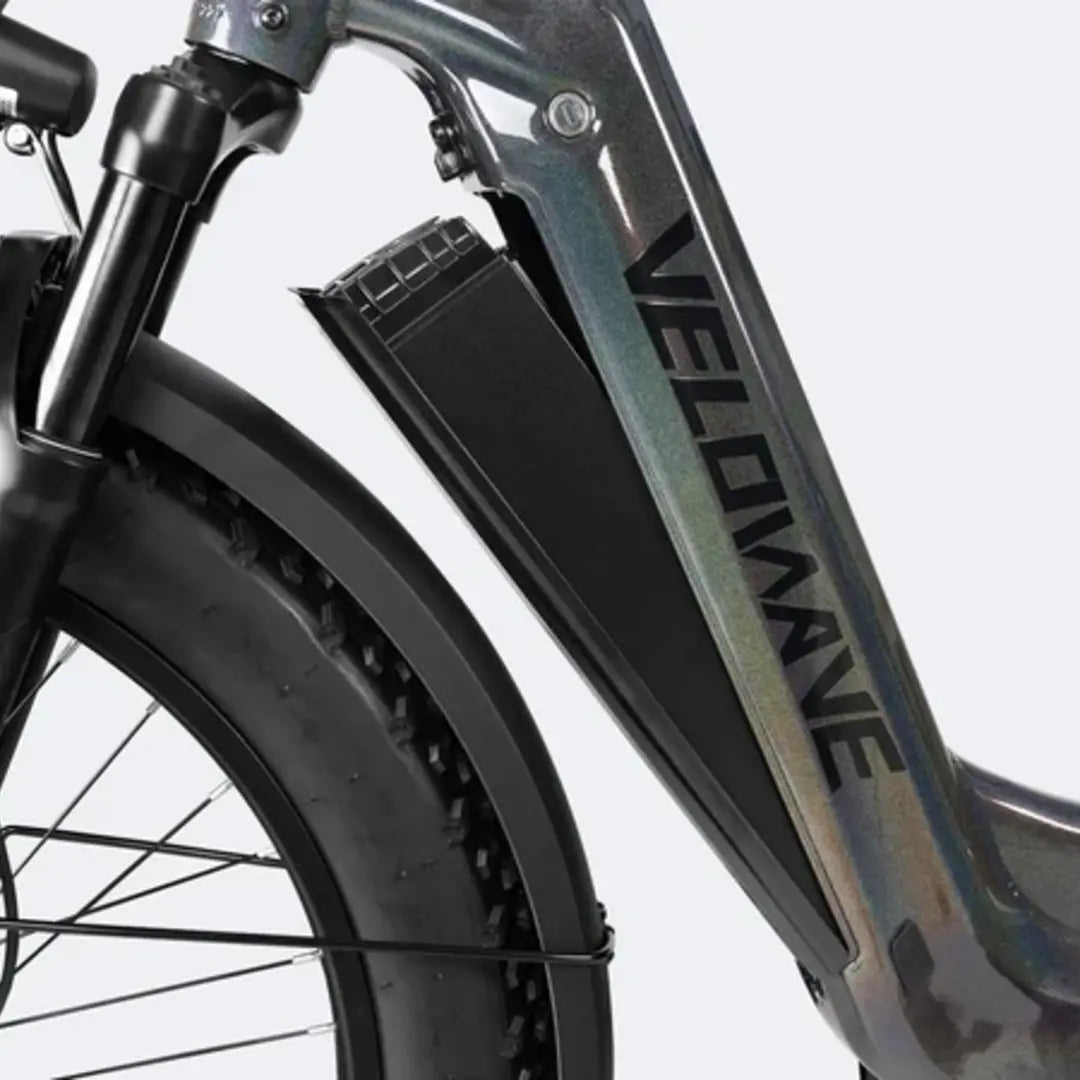

Long-Lasting Battery

Enjoy up to 90 miles on Pedal Assist with the removable 48V 15Ah battery powered by LG cells. Sleekly integrated into the frame, the battery maintains the bike’s streamlined look while ensuring reliable performance for long-distance adventures.

Advanced Suspension

Stay comfortable and in control with a hydraulic suspension fork featuring 60mm of travel and lockout capability. This suspension system absorbs shocks and vibrations, providing a smooth, stable ride over uneven terrain.

Smart and Responsive

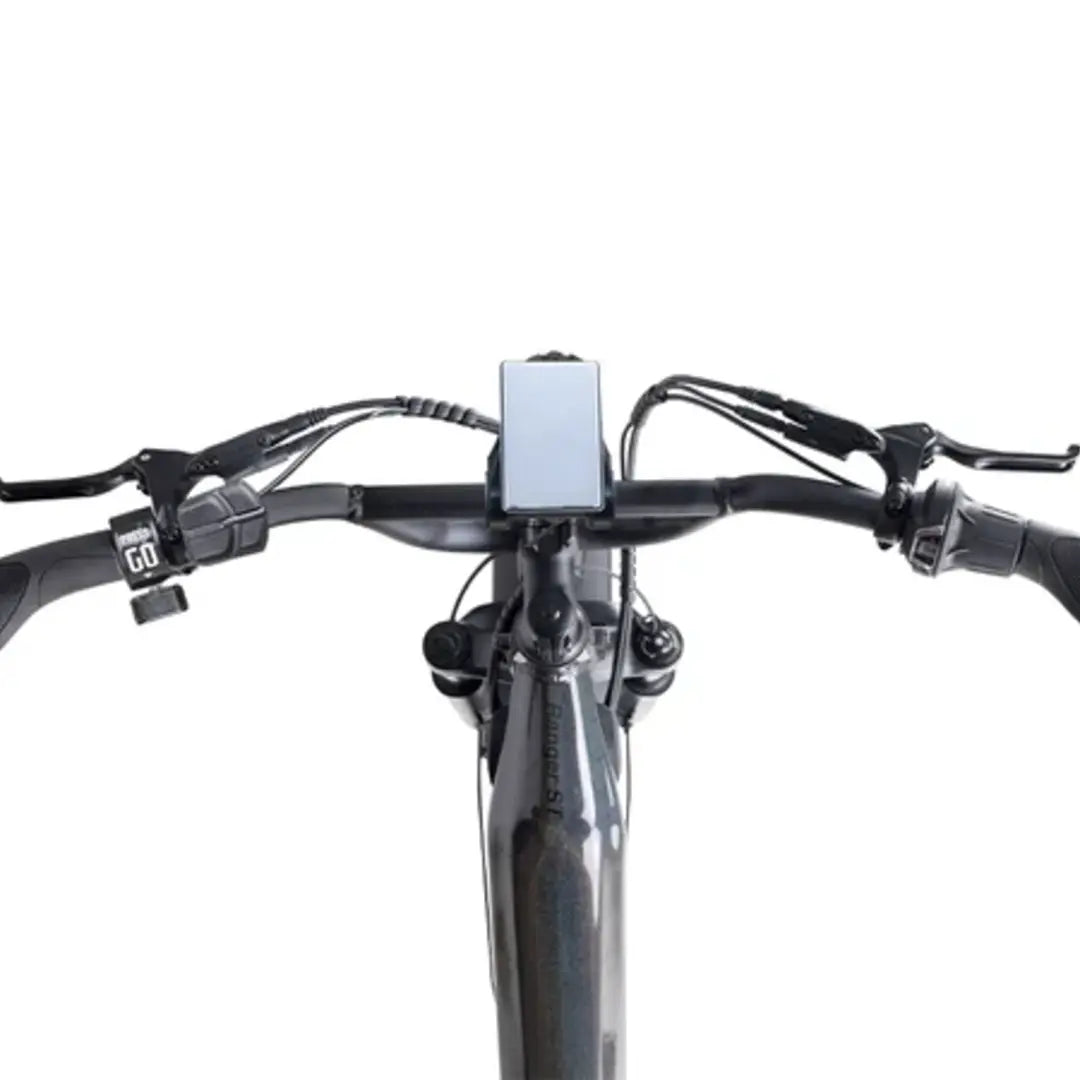

Stay informed and in control with the TFT Smart Display, featuring a colorful, backlit screen for clear visibility in any lighting condition. The integrated torque sensor provides a smooth and responsive ride, enhancing overall safety and comfort.

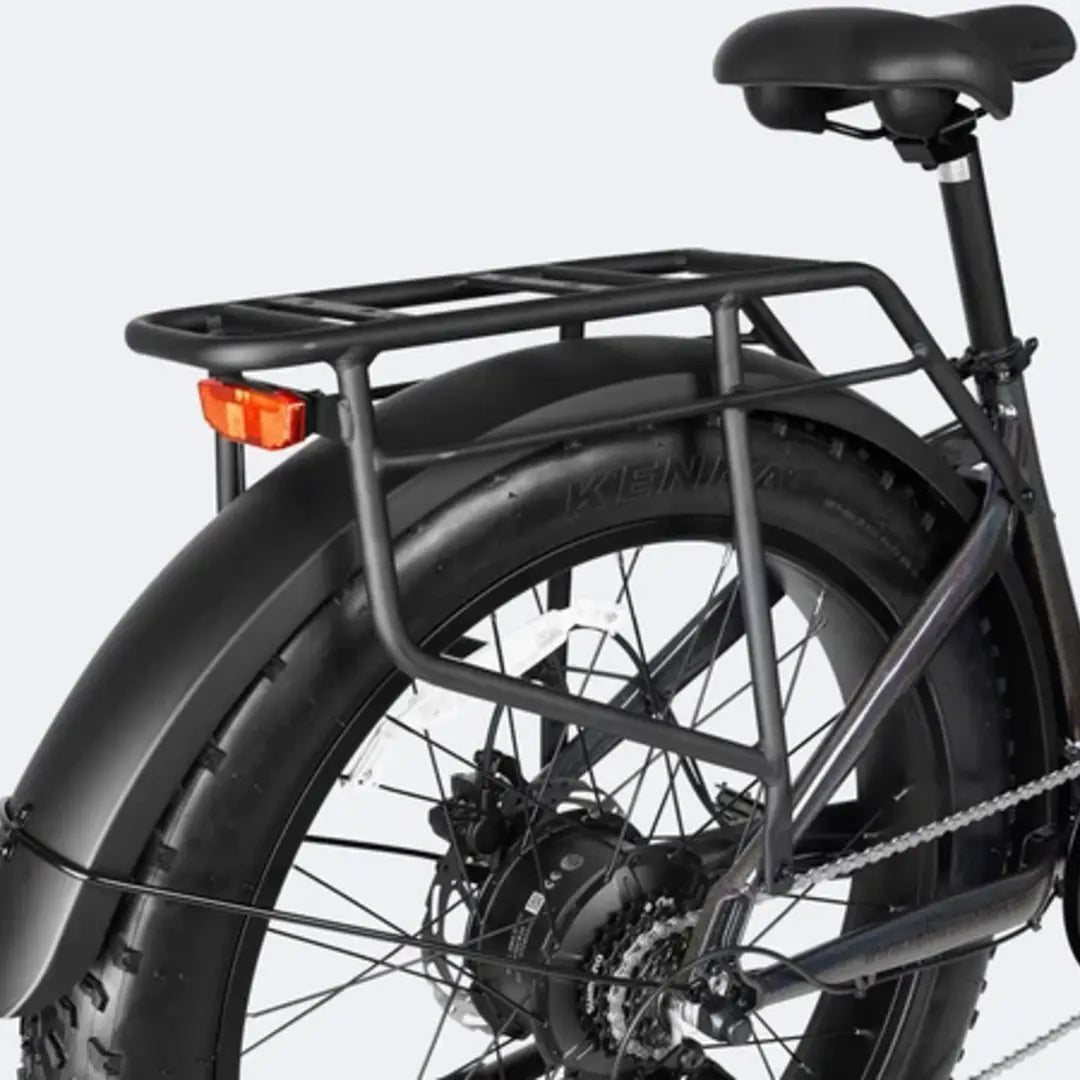

Tail Light

The rear brake light, with a brightness of 12V 20 LUX, enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you, adding an extra layer of safety and confidence to your ride.

Reliable Braking

Stay safe with the hydraulic disc brakes, equipped with 180mm rotors and a power cut-off function. This ensures strong, consistent braking in all weather and road conditions, giving you confidence on every ride.

All-Terrain Tires for Stability

The Ranger 3.0 Step-Thru is equipped with 26" × 4.0" Kenda fat tires, providing excellent traction and balance across various surfaces. From urban roads to off-road trails, these tires are designed for versatile performance and superior comfort.

❯

Specifications

• Class: Class 3
• Maximum Speed: Up to 28 MPH on pedal assist; 20 MPH on throttle
• Range: Average 65 miles on PAS; up to 90 miles on Level 1; 30 miles on throttle
• Pedal Assist Levels: 5
• Frame: 6061 aluminum alloy with internal battery
• Fork: Hydraulic suspension fork with 60mm travel and lockout
• Rim: Aluminum, 26", 36H front and rear
• Front Spokes: Black stainless, 13G x 244/246mm
• Rear Spokes: Black stainless, 12G x 217/219mm
• Hubs: Disc nutted front axles
• Tires: Kenda 26" x 4.0" fat tires
• Tubes: Butyl rubber, Schrader valve
• Motor: 750W, peak 1000W, 85Nm
• Throttle: Throttle on demand; throttle from a complete stop
• Display: TFT Smart Easy Read Display with backlight and colorful screen
• Battery: Removable internal lithium-ion battery, 48V 15Ah, 720Wh, LG cells
• Sensor: Torque sensor
• Charger: 48V 2 Amp charger, approximately 8-hour charging
• Front Light: 48V LED light, 75 LUX
• Tail Light: Rear brake light, 12V, 20 LUX
• Crankset: 170mm with 52T
• Rear Derailleur: Shimano ARDTY500D, 7-speed
• Freewheel: Shimano 14-28T, 7-speed freewheel
• Shift Lever: Shimano 7-Speed RevoShift
• Chain: KMC 124-link, 7-speed
• Pedals: Alloy platform
• Saddle: Comfortable wide saddle
• Seatpost: Forged alloy, Ø30.4 x 350mm
• Seat Clamp: Ø35mm quick release
• Stem: Bar bore Ø31.8mm; clamp I.D. Ø28.6mm; height 40mm; rise ±7°
• Handlebars: Aluminum Ø31.8mm, width 720mm
• Headset: Sealed bearing headset
• Grips: Ergonomic comfort
• Brakes: Hydraulic disc brakes with 180mm discs and power-cut-off function
• Kickstand: Alloy, rear mount
• Fenders: Plastic, 26" x 110mm
• Rear Rack: Aluminum-alloy rear rack
• Product Weight: 35.5 kg (78.26 lbs), including battery
• Package Weight: 43.6 kg (96.12 lbs)
• Battery Weight: 4 kg (8.82 lbs)
• Maximum Load Capacity: 300 lbs payload capacity
• Product Size: 1930 x 740 x 1210mm
• Package Size: 1590 x 325 x 895mm
• Handlebar Height: 1206mm
• Reach: 402mm
• Head Tube Length: 140mm
• Seat Tube Length: 425mm
• Standover Height: 457mm
• Wheelbase: 1172mm
• Total Length: 1922mm
• Seat Height Min/Max: 819/1009mm

Size Guide

• Frame Size: 16.7" / 42cm
• Recommended Rider Height: 5'4"–6'5" / 162–192cm

Included

• Electric Bike x 1
• Charger x 1
• Battery x 1
• Front Light & Reflector Combo x 1
• Spare Screws x 2
• Front Axle Skewer x 1
• Pedals x 2
• Instruction Manual x 1
• Allen Wrench x 1
• Open End Wrench x 2

Warranty

Warranty: 2-year initial warranty for e-bikes purchased after March 22, 2024. Battery packs are covered for 2 years from the original retail purchase date or up to 300 charging cycles, whichever occurs first. The motor, controller, display, charger, and throttle are covered for 2 years from the date of purchase. The bicycle frame is covered for 2 years against manufacturing defects, while mechanical components are covered for 1 year against manufacturing defects. Warranty terms, exclusions, limitations, and conditions apply.
