Rich Solar

Rich Solar 1200 Watt Solar Kit

SKU RS-K12004
$1,899.99
$1,899.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

This 1,200W solar charging system centers on six 200W monocrystalline solar panels for off-grid and mobile power applications. The standard configuration is described as a 24V system and includes a 60A MPPT solar charge controller, solar and battery cabling, mounting brackets, an inline fuse, and a parallel adapter.

Two selectable configurations are shown: Standard Kit and Standard kit without controller & fuse. The solar-panel information is centralized below because it applies to the shared 1,200W panel platform, while controller specifications are clearly identified as applying to the Standard Kit configuration that includes the controller.

RICH SOLAR MEGA 200 1200 Watt Solar Panel Kit

MEGA 200

200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

No. of Panels: 6 x MEGA 200 Watt Solar Panels
Wattage Per Panel: 200W
Total Wattage of Panels: 1200W

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR 60 Amp MPPT Solar Charge Controller

60 Amp MPPT Solar Charge Controller

Features:

  • Automatically detects 12V/24V/36V/48V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

  • 2-Year Warranty

Specifications:

Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77°F), 145V(-13°F)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each.
  • Solar Panel Weight: 24 lb each.
  • Charge Controller Dimensions — Standard Kit Only: 11.2 × 8.1 × 3.7 in.
  • Charge Controller Net Weight — Standard Kit Only: 7.94 lb.

Compatibility

Compatible Applications: Off-grid and mobile applications, including RVs, boats, trailers, and cabins.

Compatible Panel Mounting: Ground mounts, Z-brackets, pole mounts, and tilt mounts.

Compatible Inverters: The included solar panels are stated to be compatible with on-grid and off-grid inverters and with mainstream inverter and optimizer systems.

Compatible Battery Types — Standard Kit Controller: Sealed, Gel, Flooded, and Lithium deep-cycle batteries.

Bluetooth Communication — Standard Kit Controller: Supports communication with a BT-1 Bluetooth module through its RS232 port.

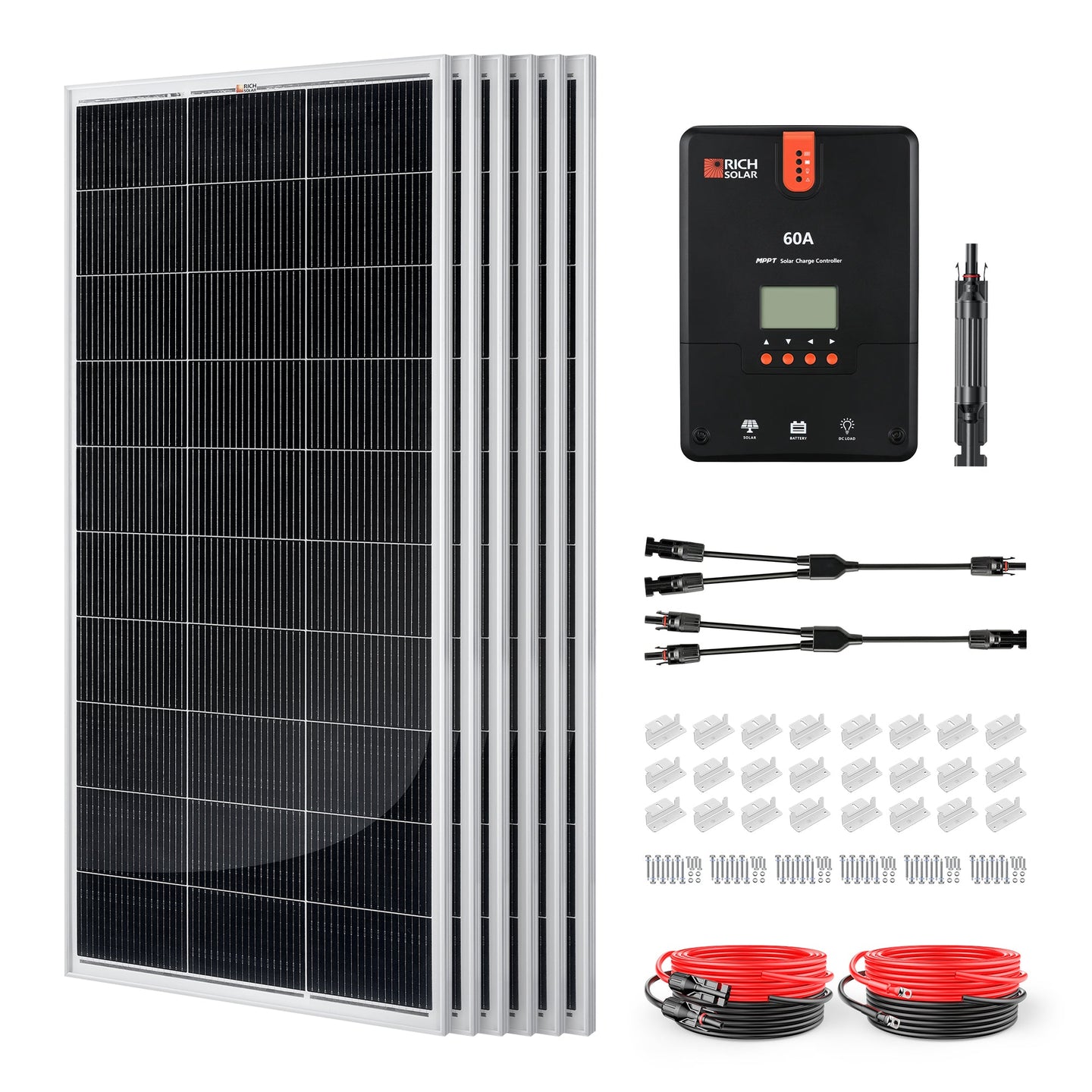

Included

Standard Kit

  • 6 × 200W monocrystalline solar panels.
  • 1 × 60A MPPT solar charge controller.
  • 1 × 20 ft #10 gauge red solar cable for panel-to-controller connection.
  • 1 × 20 ft #10 gauge black solar cable for panel-to-controller connection.
  • 1 × 10 ft #8 gauge red battery cable for controller-to-battery connection.
  • 1 × 10 ft #8 gauge black battery cable for controller-to-battery connection.
  • 6 × mounting Z-bracket sets, with four brackets per set.
  • 1 × 30A inline fuse holder with fuse.
  • 1 × Y-branch parallel adapter

Product Support

Full Specification

User Manual:

Warranty: Rigid solar panels — 25-year power output warranty and 10-year workmanship warranty. MPPT controller — 2-year warranty. The controller warranty applies to configurations that include the controller.
