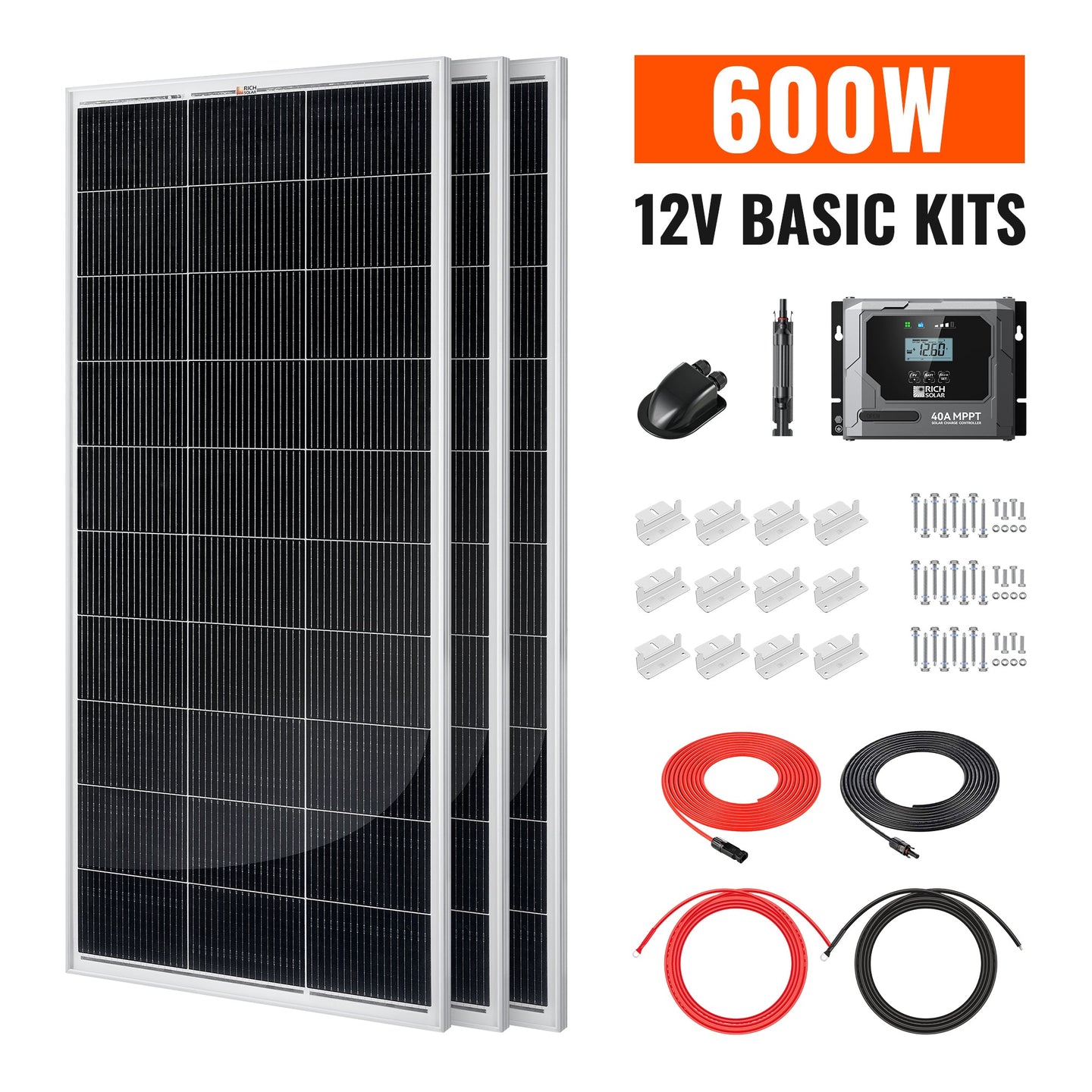

This 600W solar charging kit combines three 200W monocrystalline solar panels with a 40A MPPT charge controller and the mounting, fuse, cable-entry, and wiring components listed for installation. It is designed for off-grid and mobile applications including RVs, travel trailers, boats, and cabins.

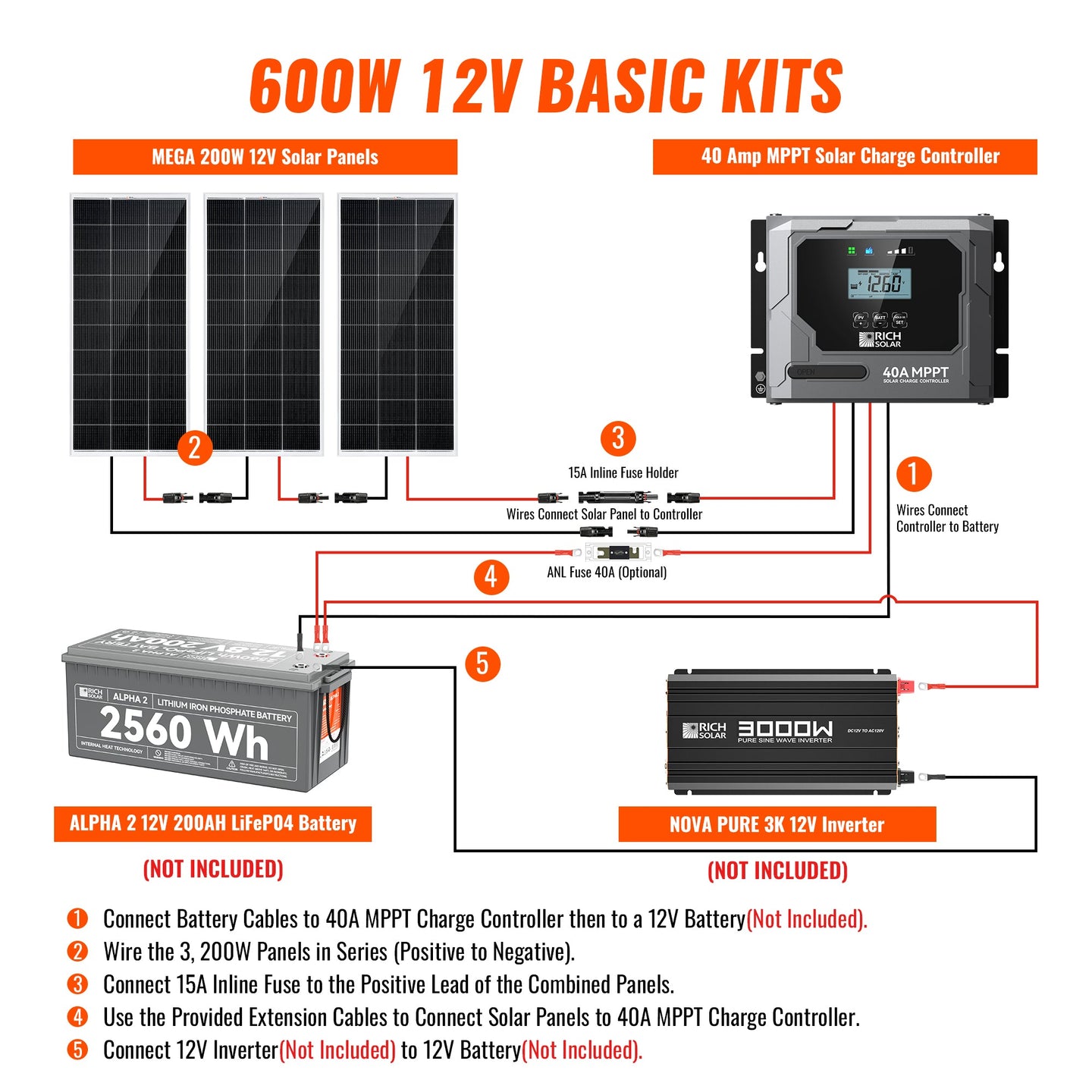

The panels support series or parallel connections and provide low-light performance for mornings, evenings, and cloudy conditions. The included MPPT controller supports automatic 12V/24V system operation, multiple lead-acid and lithium battery types, and a maximum recommended PV input of 600W on a 12V system or 1200W on a 24V system.

RICH SOLAR MEGA 200 12V 200W Solar Panel

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR BRAVO 40 40 Amp MPPT Solar Charge Controller

BRAVO 40

40 Amp MPPT Solar Charge Controller

Features:

  • MPPT
  • Tracking Efficiency Above 99.5%
  • Charge Conversion Efficiency as high as 98%
  • 12V/24V DC System Self-Adaptation
  • Reverse Discharge Protection
  • Targeted for Accuracy
  • Overvoltage Protection
  • Common Negative Connection
  • Charging Data Storage
  • Conformal Coating For Inside Board
  • Designed According to UL1741, EN/IEC 62109 1
  • In-house Design And Manufacture
  • Extensive Internal Electronics In-Circuit Protections And Safety Protections
  • Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
  • Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Warranty:

  • 2-Year Warranty

Specifications:

System Nominal Voltage: 12/24V Auto
Max. PV Open Circuit Voltage: 100VDC
Charging Technology: MPPT
Max PV Charging Current: 40A
Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.17kg / 2.58lb
Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each.
  • Solar Panel Weight: 24 lb each.
  • Charge Controller Dimensions: 7.7 × 5.5 × 2.9 in.
  • Charge Controller Net Weight: 2.58 lb.

Compatibility

Compatible Applications: High-end off-grid and mobile applications, including RVs, travel trailers, boats, and cabins.

Compatible Panel Mounting: Ground mounts, Z-brackets, pole mounts, and tilt mounts.

Compatible Inverters: The included panels are stated to be compatible with on-grid and off-grid inverters.

Compatible Battery Types: Crystal, Gel, AGM, WET, Calcium, LCO, LiFePO₄/LFP, and LTO batteries.

Battery Pairing: The kit page states that the system can be paired with a 100Ah 12V lithium battery; a battery is not listed among the included components of this Basic kit.

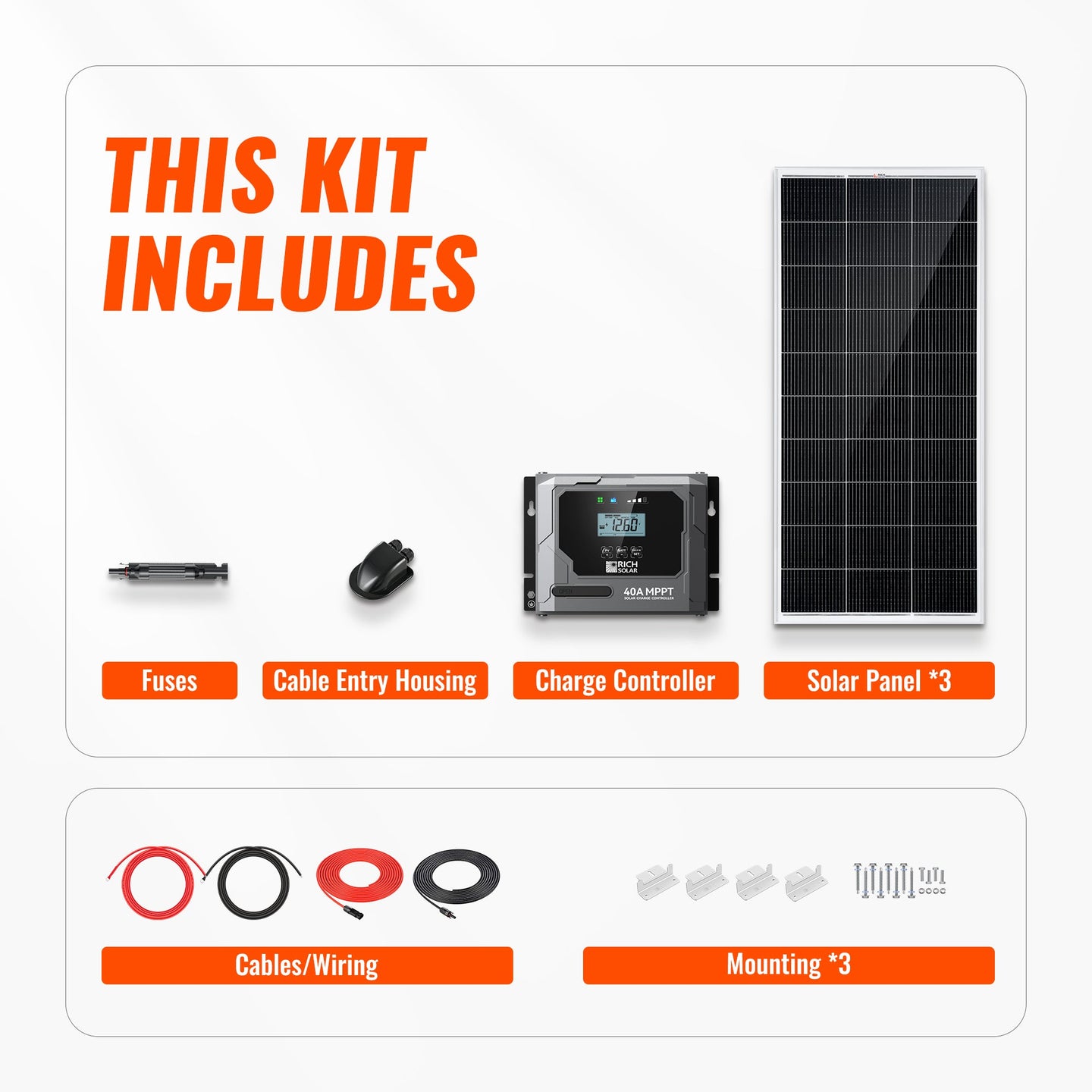

Included

  • 3 × 200W monocrystalline solar panels.
  • 1 × 40A MPPT charge controller.
  • 3 × mounting Z-bracket sets.
  • 1 × cable entry housing.
  • 1 × 15A inline fuse holder with fuse.
  • 1 × 30 ft 10AWG solar cable set for panel-to-controller connection.
  • 1 × 10 ft 10AWG battery cable set for controller-to-battery connection.

Product Support

Full Specification

User Manual:

Warranty: Rigid solar panels — 25-year power output warranty and 10-year workmanship warranty; controller — 2-year warranty.
