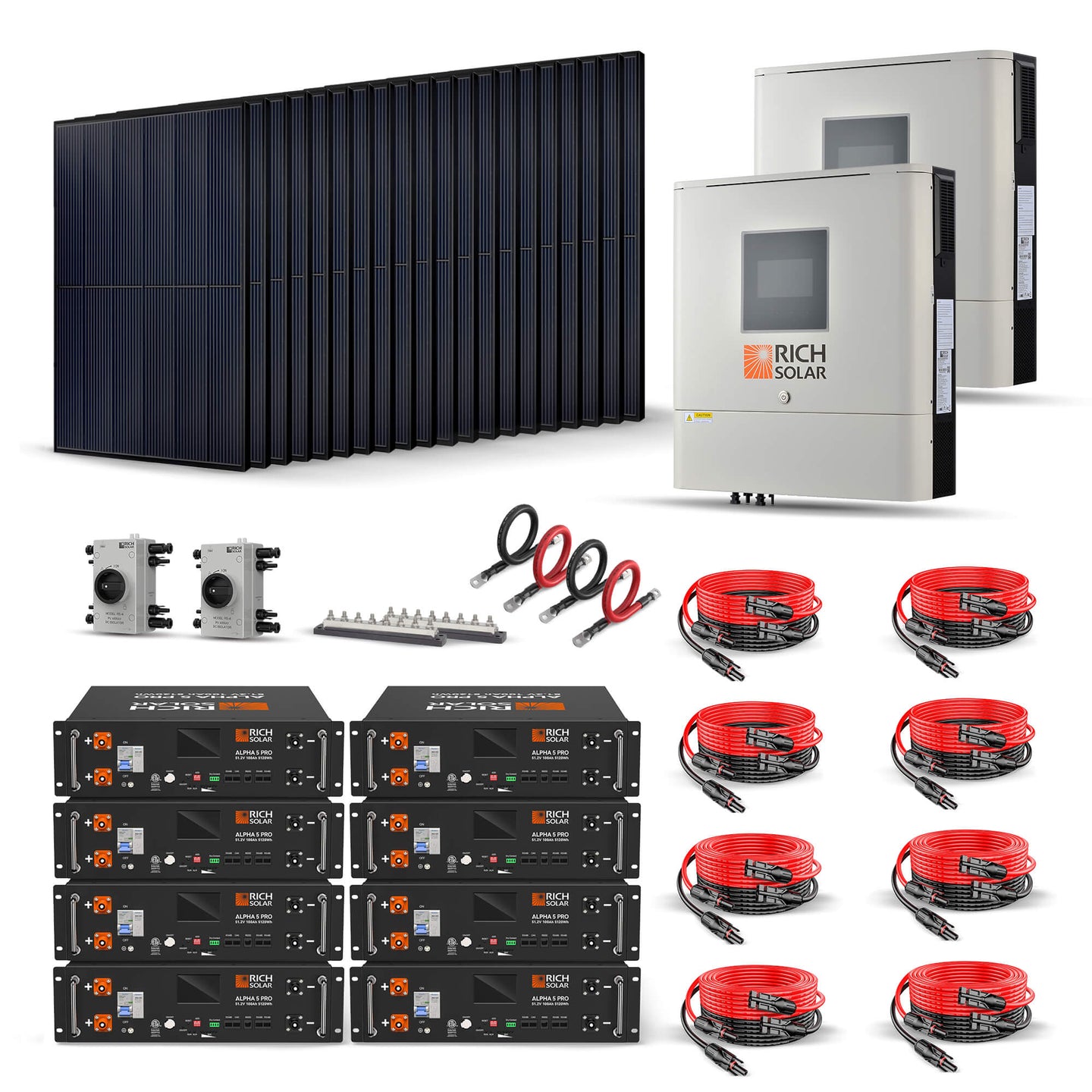

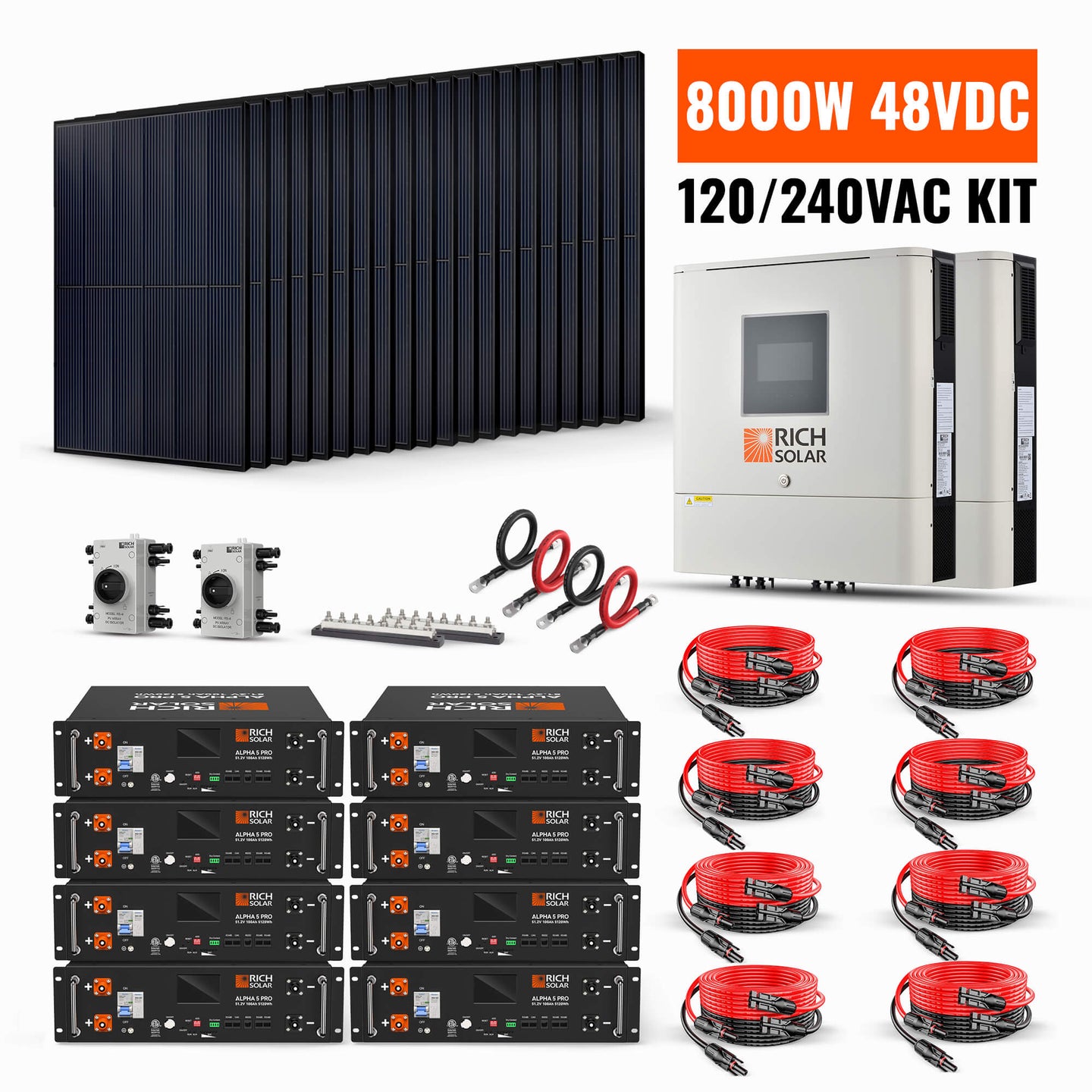

This complete solar power kit combines twenty 410W monocrystalline solar panels, two 6500W 48V off-grid hybrid inverters, and eight 51.2V 100Ah lithium iron phosphate server-rack batteries. The product is designated as an 8000W 48V-120/240VAC solar kit, while the exact product page separately identifies the included twenty-panel array as 8200W total panel wattage.
The system supports split-phase inverter operation, pure sine wave AC output, MPPT solar charging, Wi-Fi monitoring, configurable charging and power priorities, battery-management communication, and utility or generator input. Busbars, solar extension cables, PV DC disconnects, and battery cables are included with the main power components
MEGA 410
The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
Features:
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Installation:
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Warranty:
- 25-year output warranty
- 10-year workmanship warranty
Specifications:
ALPHA 5 PRO
Features:
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
- Compatible with multiple brands of inverters
- Low maintenance
- Over charging or discharging protection
- Overcurrent & short circuit protection
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With Sophisticated Battery Management System (BMS)
- 10 Years Lifespan
Warranty:
- *10-Year Warranty
Specifications:
NOVA 6500S
Inverter
Features:
- UL Certification
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS)
- Supports USB on-the-go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Adjustable high-power charging current
- Adjustable input voltage range for home appliances and personal computers
- Compatible with Utility Mains or generator input
- Built-in anti-dust kit
- Optional DC output for DC fan, LED bulb, router, etc.
- 6-unit parallel operation capabilities
Warranty:
- 3-Year Warranty
Specifications:
Size Guide
- Solar Panel Dimensions: 67.8 × 44.7 × 1.2 in each.
- Solar Panel Weight: 45.2 lb each.
- Battery Dimensions: 17.7 × 17.8 × 5.2 in each.
- Battery Weight: 99.2 lb each.
- Inverter Dimensions: 6.2 × 19.8 × 20.9 in each.
- Inverter Net Weight: 44 lb each.
Compatibility
Split-Phase Compatibility: The linked inverter manual supports split-phase operation for the 6.5kW inverter platform. A minimum of two and maximum of six inverter units may be configured for split-phase equipment, with one inverter required in each phase and selectable 120° or 180° phase difference for the second phase.
Compatible PV Module Types: Single-crystalline modules, Class A-rated polycrystalline modules, and CIGS modules are identified as acceptable by the inverter manual. CIGS modules must not be grounded.
Solar Panel Compatibility: The panels are designed for compatibility with mainstream optimizers, inverters, and mounting systems and are identified for high-end off-grid and mobile applications including RVs, cabins, and boats.
Solar Connection Compatibility: Solar connectors support both series and parallel configurations.
Mounting Compatibility: Ground mounts, Z-brackets, pole mounts, and tilt systems.
Battery/Inverter Compatibility: The included battery platform supports closed-loop communication with multiple inverter brands.
Battery Expansion Compatibility: Up to 15 batteries can be connected in parallel while maintaining BMS communications.
AC Source Compatibility: Utility mains or generator input.
Included
- 2 × 6500W 48V off-grid solar inverters.
- 20 × 410W solar panels.
- 8 × 5.12kWh server-rack lithium batteries.
- 2 × 600A busbars.
- 4 × 10AWG 30 ft extension cables.
- 4 × 10AWG 10 ft extension cables.
- 2 × PV DC quick disconnects.
- 2 × 4/0 AWG 5 ft battery cables.
Product Support
Full Specification
User Manual:
Warranty: Solar panels — 25-year output warranty and 10-year workmanship warranty; lithium batteries — 10-year warranty / 10 years manufacturer-defect coverage; hybrid solar inverters — 3-year warranty.
