Rich Solar

Rich Solar 520W Slim Kit

SKU RS-K520SL
$999.99
$999.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

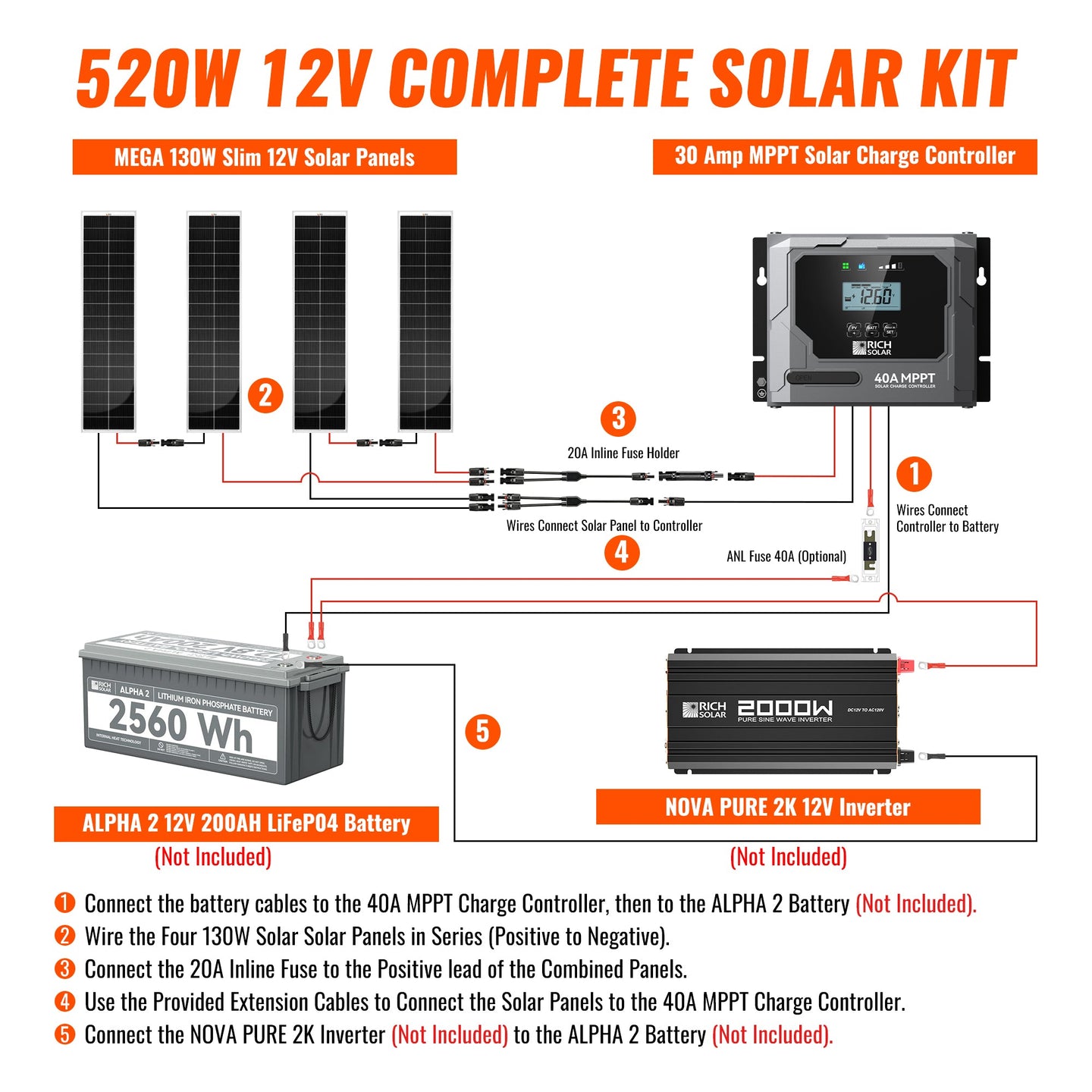

The 520W Slim Kit is a compact solar charging package built around four 130W slim monocrystalline solar panels and a 40A MPPT solar charge controller. The included panel platform is designed for off-grid and mobile installations, including RVs, cabins, and boats, with a narrow panel profile that supports flexible mounting configurations.

The system includes the solar array, MPPT charging, panel-to-controller and controller-to-battery cabling, a Y-branch parallel adapter, mounting hardware, and an inline solar fuse. The charge controller supports automatic 12V/24V detection, multiple lead-acid and lithium battery chemistries, built-in Bluetooth monitoring, and configurable charging parameters.

Key Features

  • 520W Solar Charging Kit: Includes four 130W slim solar panels as the kit's solar array.
  • N-Type TOPCon Solar Cells: The included 130W slim panels use N-Type TOPCon multi-busbar cell technology designed to improve light trapping, reduce series resistance, and enhance current collection.
  • 25.3% Maximum Cell Efficiency: The solar panel specification lists maximum cell efficiency of 25.3%.
  • Slim Panel Format: Each panel measures 65.0 × 15.8 × 1.2 in and weighs 15.4 lb.
  • Low-Light Performance: The panels are designed to maintain energy production during cloudy conditions and during mornings and evenings.
  • Durable Panel Construction: High-transmission anti-reflective coated tempered glass is paired with a lightweight, corrosion-resistant anodized aluminum-alloy frame.
  • Series or Parallel Connections: Plug-and-play solar connectors support both series and parallel panel configurations.
  • Flexible Mounting Options: Pre-drilled mounting holes support ground mounts, Z-brackets, pole mounts, and tilt systems.
  • Off-Grid and Mobile Applications: The panel specification identifies RVs, cabins, and boats among suitable off-grid and mobile applications.
  • Harsh-Environment Resistance: The panel design is specified for environments involving salt, ammonia, sand, high temperatures, and high humidity.
  • Mechanical Load Strength: Panel mechanical strength is certified for up to 5400 Pa positive load and 2400 Pa negative load.
  • 40A MPPT Solar Charging: The included controller uses true MPPT technology with tracking efficiency above 99.5% and charge conversion efficiency up to 98%.
  • Automatic 12V/24V Detection: The controller automatically supports 12V and 24V nominal battery systems.
  • Multiple Battery Chemistry Support: Supported battery presets include GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄/LFP, LTO, and LCO.
  • Multi-Peak MPPT Detection: The controller supports multi-peak detection for optimized tracking under shaded conditions.
  • Built-In Bluetooth: The controller includes a built-in Bluetooth module for monitoring and control.
  • LCD System Monitoring: A large LCD provides real-time solar input, battery status, and system-configuration information, supported by LED and transparent-window indicators.
  • Custom Charging Parameters: Charging parameters can be customized, and charging data can be stored by the controller.
  • Battery Recovery Function: The controller includes a deep-discharge battery recovery/restart function.
  • Electronic Protection: Controller protections include over-voltage protection, reverse-discharge protection, common-negative grounding, conformal-coated circuitry, and built-in circuit and safety protection.
  • Optional Temperature Sensor Support: The controller supports an optional external battery-temperature sensor.

Specifications

  • Total Solar Capacity: 520W.
  • Solar Panel Quantity: 4.
  • Solar Panel Rated Power: 130W each.
  • Solar Cell Technology: N-Type TOPCon multi-busbar.
  • Maximum Cell Efficiency: 25.3%.
  • Power Output Tolerance: 0 to +5W.
  • Maximum Power Voltage: 19.6V.
  • Maximum Power Current: 6.63A.
  • Open Circuit Voltage: 23.6V.
  • Short Circuit Current: 6.92A.
  • Maximum System Voltage: 1000VDC.
  • Panel Temperature Range: -40°F to 185°F.
  • Maximum Series Fuse Rating: 15A.
  • Module Efficiency: 19.8%.
  • Solar Cell Size: 7.2 × 3.6 in.
  • Cell Orientation: 34 cells (2 × 17).
  • Panel Glass: 0.13 in high-transmission, AR-coated tempered glass.
  • Panel Connector: Solar connectors.
  • Panel Frame: Anodized aluminum alloy.
  • Panel Junction Box: IP67 rated.
  • Panel Cable: #12 gauge photovoltaic cable, 35.4 in long.
  • Nominal Module Operating Temperature: Approximately 113°F ± 3.6°F.
  • Temperature Coefficient of Maximum Power: Approximately -0.194%/°F.
  • Temperature Coefficient of Open Circuit Voltage: Approximately -0.156%/°F.
  • Temperature Coefficient of Short Circuit Current: Approximately +0.025%/°F.
  • Controller Type: MPPT solar charge controller.
  • Controller Nominal System Voltage: 12V/24V automatic detection.
  • Maximum PV Open Circuit Voltage: 100VDC.
  • Maximum PV Charging Current: 40A.
  • Recommended PV Input Power: 600W at 12V / 1200W at 24V.
  • Charge Conversion Efficiency: Up to 98%.
  • MPPT Tracking Efficiency: Above 99.5%.
  • Compatible Battery Presets: GEL, AGM, WET, CRYSTAL, CALCIUM, LFP, LTO, LCO.
  • Controller Housing Color: Black + Grey.
  • Controller Protection Rating: IP43 for internal PCBA; IP22 at connectors.
  • Controller Standard: Designed to UL1741 standards.

Size Guide

  • Solar Panel Dimensions: 65.0 × 15.8 × 1.2 in each.
  • Solar Panel Weight: 15.4 lb each.
  • Charge Controller Dimensions: 7.7 × 5.5 × 2.9 in.
  • Charge Controller Net Weight: 2.58 lb.

Compatibility

Compatible Applications: Off-grid and mobile installations including RVs, cabins, and boats.

Solar Panel Compatibility: Designed for compatibility with mainstream optimizers, inverters, and mounting systems.

Solar Connection Compatibility: Supports series and parallel solar-panel configurations.

Mounting Compatibility: Ground mounts, Z-brackets, pole mounts, and tilt systems.

Compatible Battery Types: GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄/LFP, LTO, and LCO batteries.

System Voltage Compatibility: 12V and 24V systems with automatic controller detection.

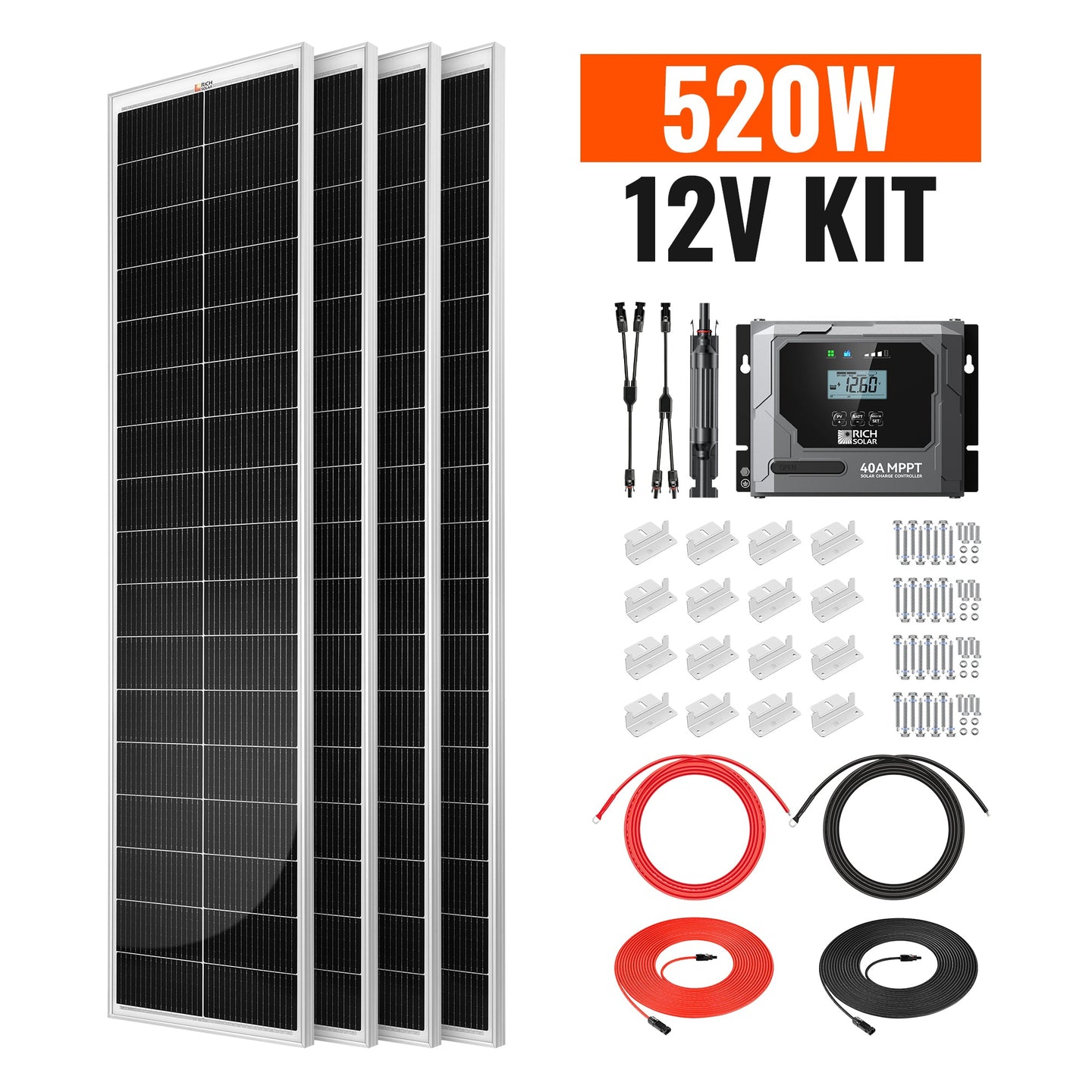

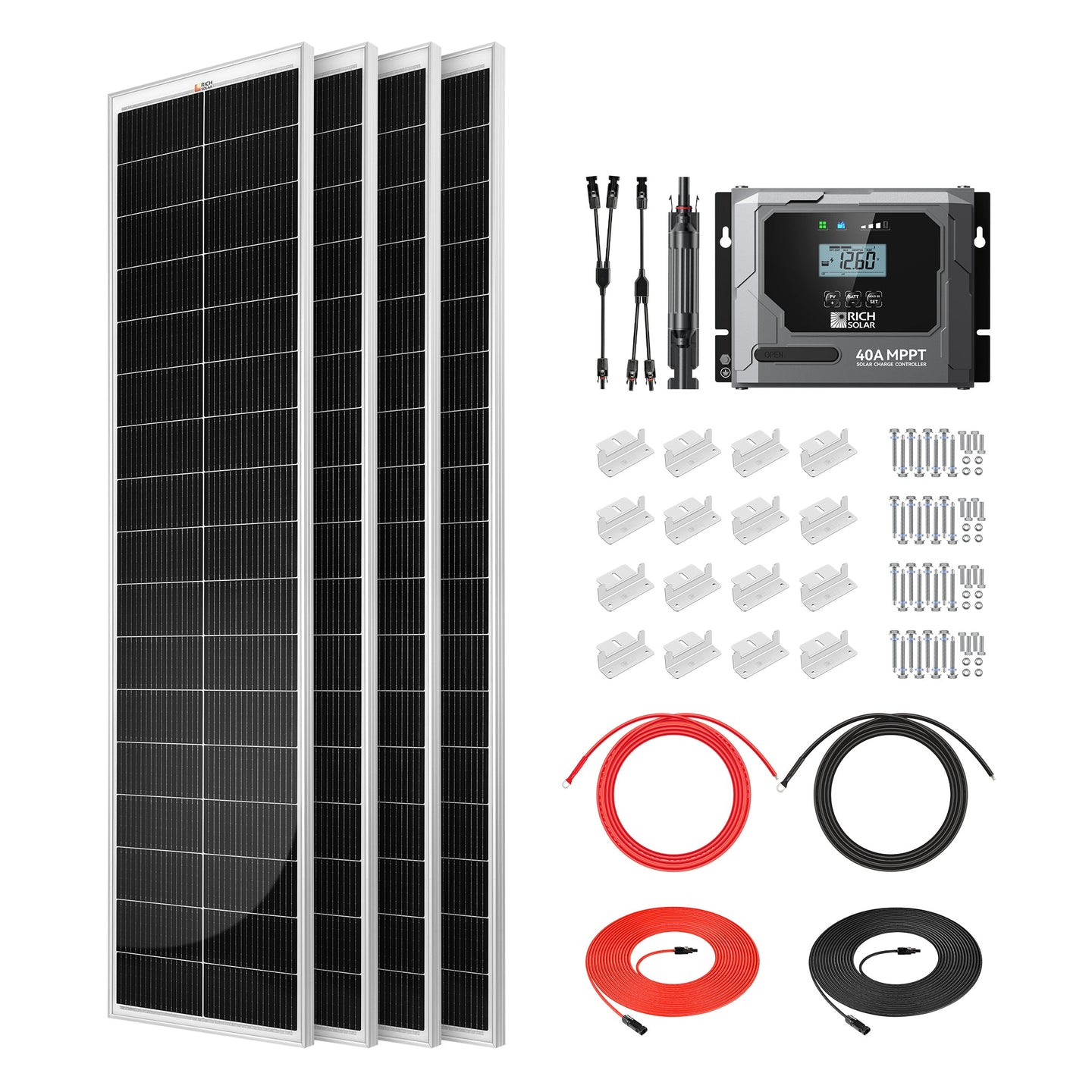

Included

  • 4 × 130W slim solar panels.
  • 1 × 40A MPPT solar charge controller.
  • 1 × 30 ft 10AWG solar cable set for panel-to-controller connection.
  • 1 × Y-branch parallel adapter.
  • 1 × 10 ft 8AWG battery cable for controller-to-12V-battery connection.
  • 1 × mounting Z-bracket set.
  • 1 × 20A solar-panel inline fuse holder

Product Support

Full Specification

User Manual:

    Warranty: Rigid solar panels — 25-year power output warranty and 10-year workmanship warranty. Controller on kits / MPPT controller — 2-year warranty.
