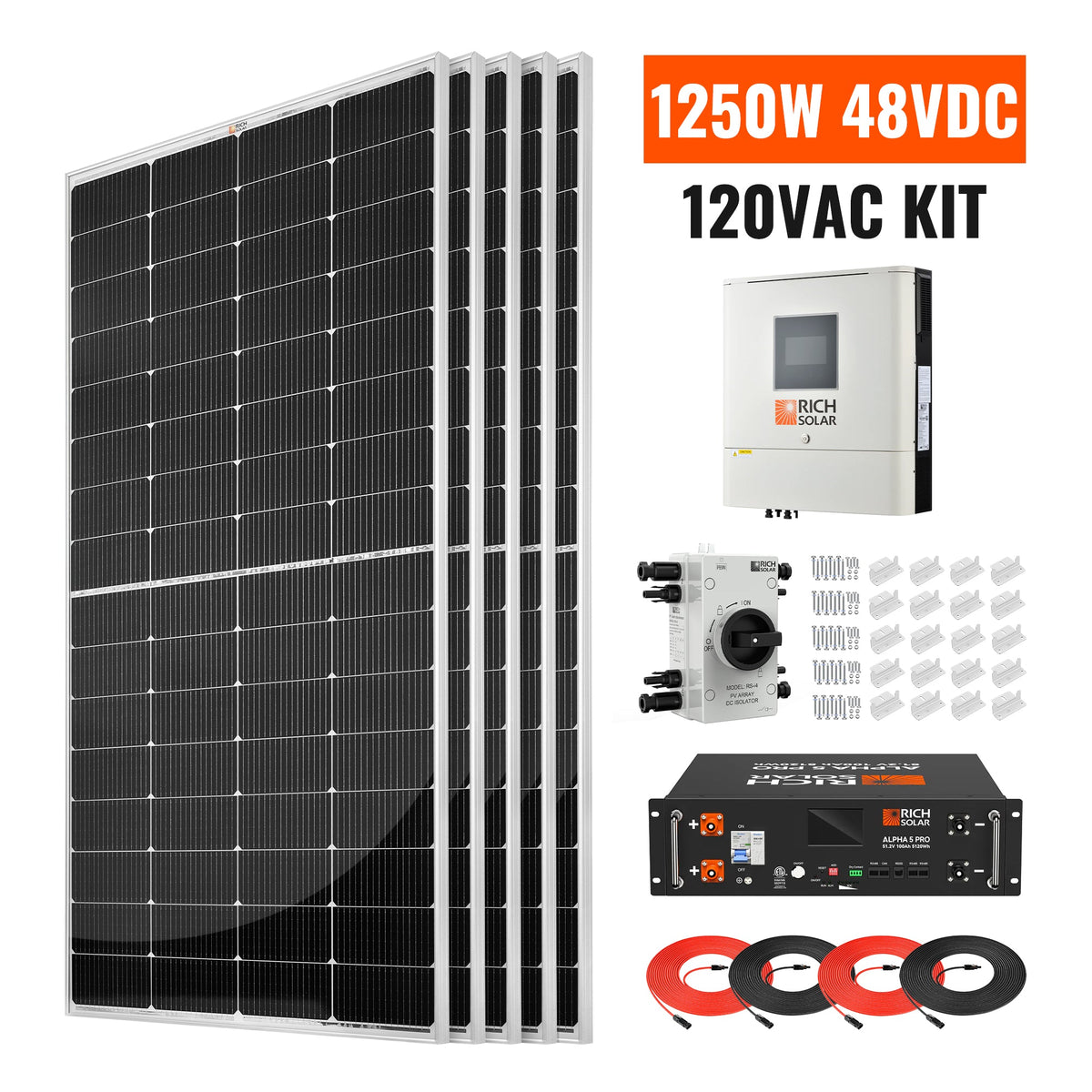

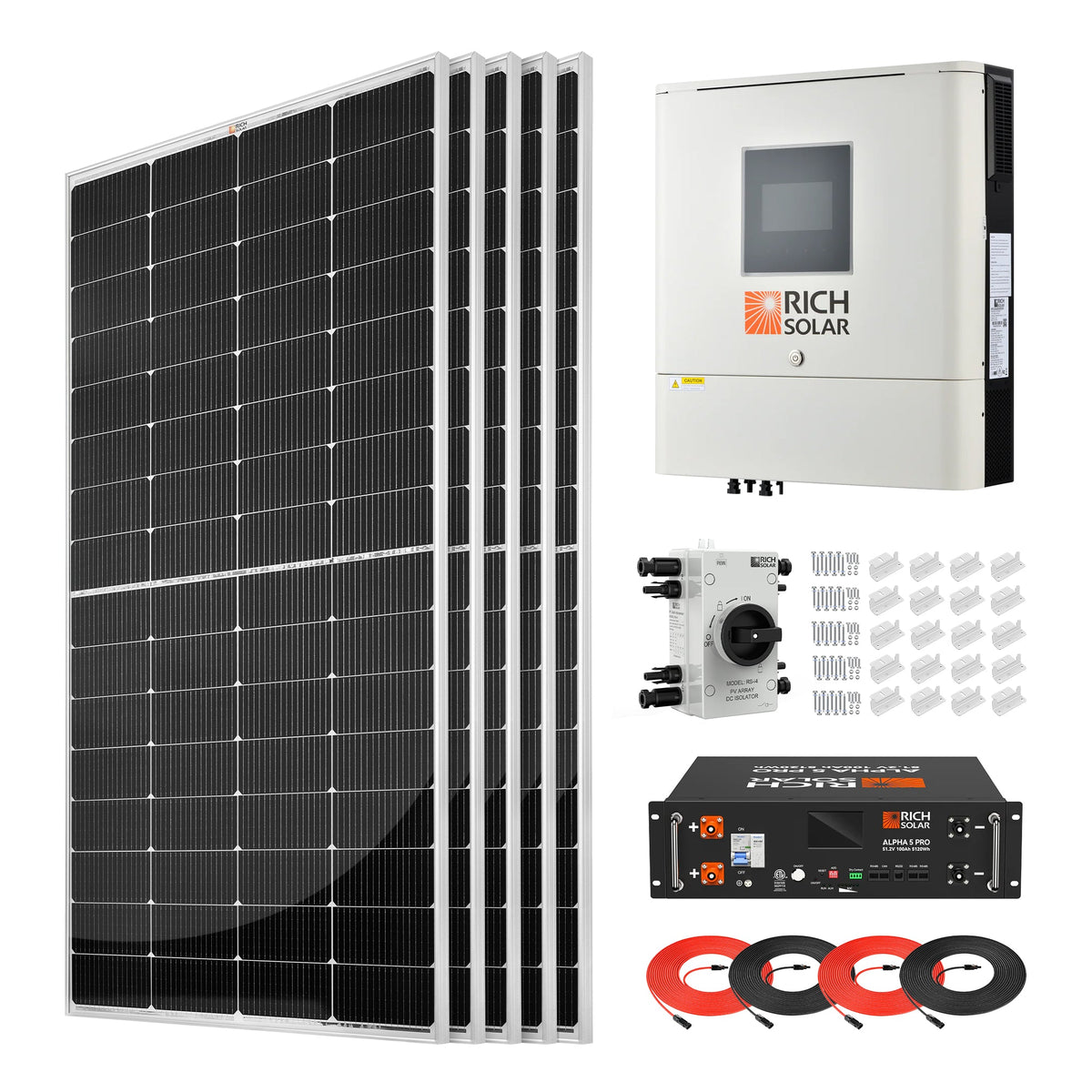

This complete 48VDC-to-120VAC solar kit combines a 1,250W solar array, a 6500W off-grid hybrid inverter/charger, and a 5.12kWh lithium iron phosphate battery into one integrated solar power package. Five 250W monocrystalline panels provide the included PV generation capacity.

The system provides pure sine wave AC output, MPPT solar charging, Wi-Fi monitoring, configurable AC/PV priorities, battery-management communication, and support for utility or generator input. Mounting brackets, solar extension cables, and a PV DC quick disconnect are also included.

MEGA 250

250 Watt Solar Panel

No. of Panels: 5 x MEGA 250Watt Solar Panels

Wattage Per Panel: 250W

Total Wattage of Panels: 1250W

Model: RS-M250

Maximum Power (Pmax): 250W

Maximum Power Voltage (Vmp): 18.9V

Maximum Power Current (Imp): 13.2A

Open Circuit Voltage (Voc): 22.8V

Short Circuit Current (Isc): 13.7A

Maximum System Voltage (Vmax): 1500VDC

Temperature Range: -40 ~ +185F

Weight: 26.9 lb

Dimensions: 60.6 x 29.9 x 1.2 in

ALPHA 5 PRO

51.2V 100Ah LiFePO4 Battery

Electrical Specifications

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah

Minimum Capacity: 99.5Ah

Nominal Capacity: 5120Wh

Operating Specifications

Charging Voltage: 56V

Discharging Cutoff Voltage: 44.8V

Maximum Charging Current: 100A

Continuous Charge Current: 100A

Maximum Discharge Current: 100A

Physical Specifications

Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

Battery Weight: 99.2 lb

Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

Server Rack Weight: 196.2 lb

BMS Operation

Operation Voltage: 43.2~58.4V

Maximum Charging Current: 100A

Maximum Discharging Current: 100A

Maximum Charge Voltage (CC/CV): 57.6V

Overcharge Protection Voltage (Battery): 58.4V

Overcharge Protection Release Voltage (Battery): 54V

Over Discharge Protection Voltage (Battery): 43.2V

Over Discharge Protection Release Voltage (Battery): 47.2V

Over Discharge Primary Charge Overcurrent Protection Value: 110A

First Stage Charge Over Current Delay: 1s

Primary Discharge Overcurrent Protection Value: 110A

Primary Discharge Overcurrent Protection Delay: 1s

Secondary Discharge Overcurrent Protection Value: 150A

Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

Charge Temperature: 0.1C@(32F~50F); 0.2C@(50F~68F); 0.5C@(68F~77F); 1C@(77F~113F); 0.3C@(113F~131F); 0.2C@(131F~140F)

Discharge Temperature: -4F~149F (The surface temperature of the cell should not exceed 149F)

Storage Temperature: -4F~113F 90%RH Max(1 month); 32F~95F 90RH Max(6 Months)

Recommended Storage Temperature: 32F~113F 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Certification: UL1973, UL9540A, FCC

Max. Expansion: 15 pcs in parallel

Communication Ports: RS485/RS232/CAN

Model: RS-H6548S

Rated Inverter Power: 6500VA/6500W

PARALLEL CAPABILITY: Yes, 6 units

INPUT

Voltage: 120 VAC

Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)

Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 120 VAC +/- 5%

Surge Power: 13000VA

Efficiency (Peak): 91%

Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)

Waveform: Pure Sine Wave

No Load Power Consumption: <75W

DC Voltage: 12 VDC +/- 5%, 100W

BATTERY

Battery Voltage: 48 VDC

Float Charging Voltage: 54 VDC

Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT

Maximum PV Array Power: 8000W (4000W x 2)

MPPT Operating Voltage Range: 90 ~ 230 VDC

Maximum PV Array Open Circuit Voltage: 250 VDC

Maximum Solar Charge Current: 120A

Maximum AC Charge Current: 120A

Maximum Charge Current: 120A

PHYSICAL

Dimension (D x W x H): 6.2 x 19.8 x 20.9 in

Net Weight: 44 lb

Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature: 14F to 104F

Storage Temperature: 5F to 140F

STANDARD

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
  • NOVA 6500S 48V 6500W Inverter
  • MEGA 250 Solar Panel

User Manual:

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery
  • NOVA 6500S 48V 6500W Inverter

  • 16-busbar solar cell configuration
  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug and play junction box
  • Industry standard quick-connect cables work in series or parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low-light performance on cloudy days, mornings and evenings
  • Certification: UL1973, UL9540A, FCC
  • 7,000 Deep Cycles Life
  • 5120 Watt Hours Energy
  • 100A Continuous Charge Current
  • Compatible with multiple brands of inverters
  • Low maintenance
  • Over charging or discharging protection
  • Overcurrent & short circuit protection
  • Parallel up to 15 Batteries
  • Connect in Parallel for Larger Capacity
  • With Sophisticated Battery Management System (BMS)
  • 10 Years Lifespan
  • UL Certification
  • Status indication with RGB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS)
  • Supports USB on-the-go function
  • Data log events stored in the inverter
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Adjustable high-power charging current
  • Adjustable input voltage range for home appliances and personal computers
  • Compatible with Utility Mains or generator input
  • Built-in anti-dust kit
  • Optional DC output for DC fan, LED bulb, router, etc.
  • 6-unit parallel operation capabilities
