Rich Solar 2500W 48VDC-240VAC Solar Kit

SKU RS-CBK2500240
$9,499.99
$9,499.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee. Damaged, defective, or incorrect items are not charged a restocking fee.

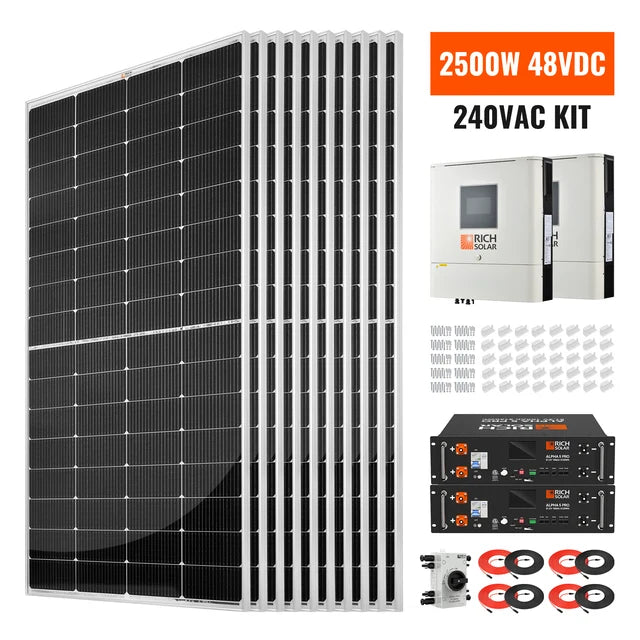

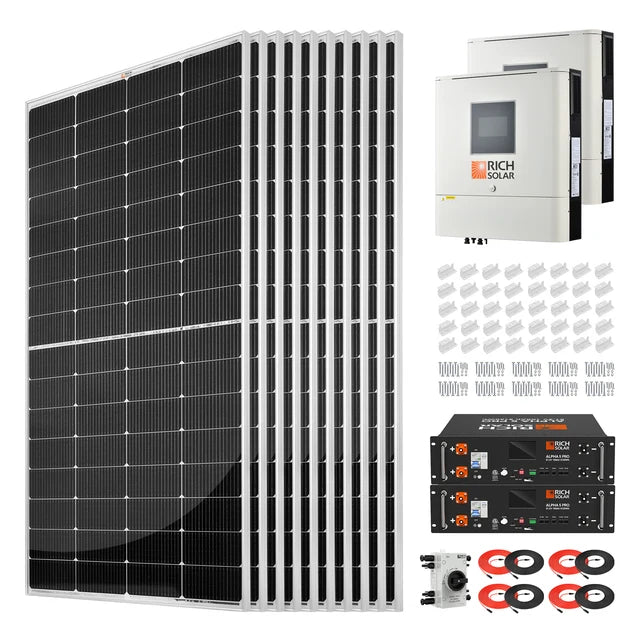

This 2,500W solar kit combines ten 250W monocrystalline solar panels, two 6500W 48V off-grid hybrid solar inverters, and two 51.2V 100Ah lithium iron phosphate batteries in a complete 48VDC power package. The kit is offered as a 48VDC-to-240VAC configuration, while each included inverter is individually specified for 120VAC output in battery mode.

The system provides pure sine wave inverter output, MPPT solar charging, Wi-Fi mobile monitoring, configurable AC/PV priorities, battery-management communication, and support for utility or generator input. Solar extension cables, Z-brackets, and a PV DC quick disconnect are also included.

MEGA 250

250 Watt Solar Panel

No. of Panels: 10 x MEGA 250Watt Solar Panels

Wattage Per Panel: 250W

Total Wattage of Panels: 2500W

Model: RS-M250

Maximum Power (Pmax): 250W

Maximum Power Voltage (Vmp): 18.9V

Maximum Power Current (Imp): 13.2A

Open Circuit Voltage (Voc): 22.8V

Short Circuit Current (Isc): 13.7A

Maximum System Voltage (Vmax): 1500VDC

Temperature Range: -40 ~ +185F

Weight: 26.9 lb

Dimensions: 60.6 x 29.9 x 1.2 in

ALPHA 5 PRO

51.2V 100Ah LiFePO4 Battery

No. of Batteries: 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

Electrical Specifications

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah

Minimum Capacity: 99.5Ah

Nominal Capacity: 5120Wh

Operating Specifications

Charging Voltage: 56V

Discharging Cutoff Voltage: 44.8V

Maximum Charging Current: 100A

Continuous Charge Current: 100A

Maximum Discharge Current: 100A

Physical Specifications

Battery Dimensions: 17.7"L x 17.8"W x 5.2"H

Battery Weight: 99.2 lb

Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)

Server Rack Weight: 196.2 lb

BMS Operation

Operation Voltage: 43.2~58.4V

Maximum Charging Current: 100A

Maximum Discharging Current: 100A

Maximum Charge Voltage (CC/CV): 57.6V

Overcharge Protection Voltage (Battery): 58.4V

Overcharge Protection Release Voltage (Battery): 54V

Over Discharge Protection Voltage (Battery): 43.2V

Over Discharge Protection Release Voltage (Battery): 47.2V

Over Discharge Primary Charge Overcurrent Protection Value: 110A

First Stage Charge Over Current Delay: 1s

Primary Discharge Overcurrent Protection Value: 110A

Primary Discharge Overcurrent Protection Delay: 1s

Secondary Discharge Overcurrent Protection Value: 150A

Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

Charge Temperature: 0.1C@(32F~50F); 0.2C@(50F~68F); 0.5C@(68F~77F); 1C@(77F~113F); 0.3C@(113F~131F); 0.2C@(131F~140F)

Discharge Temperature: -4F~149F (The surface temperature of the cell should not exceed 149F)

Storage Temperature: -4F~113F 90%RH Max(1 month); 32F~95F 90RH Max(6 Months)

Recommended Storage Temperature: 32F~113F 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Certification: UL1973, UL9540A, FCC

Max. Expansion: 15 pcs in parallel

Communication Ports: RS485/RS232/CAN

Model: RS-H6548S

Rated Inverter Power: 6500VA/6500W

PARALLEL CAPABILITY: Yes, 6 units

INPUT

Voltage: 120 VAC

Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)

Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 120 VAC +/- 5%

Surge Power: 13000VA

Efficiency (Peak): 91%

Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)

Waveform: Pure Sine Wave

No Load Power Consumption: <75W

DC Voltage: 12 VDC +/- 5%, 100W

BATTERY

Battery Voltage: 48 VDC

Float Charging Voltage: 54 VDC

Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT

Maximum PV Array Power: 8000W (4000W x 2)

MPPT Operating Voltage Range: 90 ~ 230 VDC

Maximum PV Array Open Circuit Voltage: 250 VDC

Maximum Solar Charge Current: 120A

Maximum AC Charge Current: 120A

Maximum Charge Current: 120A

PHYSICAL

Dimension (D x W x H): 6.2 x 19.8 x 20.9 in

Net Weight: 44 lb

Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)

Operating Temperature: 14F to 104F

Storage Temperature: 5F to 140F

STANDARD

  • 16-busbar solar cell configuration
  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug and play junction box
  • Industry standard quick-connect cables work in series or parallel
  • Certified to withstand challenging environmental conditions
  • Excellent low-light performance on cloudy days, mornings and evenings
  • Certification: UL1973, UL9540A, FCC
  • 7,000 Deep Cycles Life
  • 5120 Watt Hours Energy
  • 100A Continuous Charge Current
  • Compatible with multiple brands of inverters
  • Low maintenance
  • Over charging or discharging protection
  • Overcurrent & short circuit protection
  • Parallel up to 15 Batteries
  • Connect in Parallel for Larger Capacity
  • With Sophisticated Battery Management System (BMS)
  • 10 Years Lifespan
  • UL Certification
  • Status indication with RGB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS)
  • Supports USB on-the-go function
  • Data log events stored in the inverter
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Adjustable high-power charging current
  • Adjustable input voltage range for home appliances and personal computers
  • Compatible with Utility Mains or generator input
  • Built-in anti-dust kit
  • Optional DC output for DC fan, LED bulb, router, etc.
  • 6-unit parallel operation capabilities
