Rich Solar

Rich Solar Basic 800 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications

SKU RS-K8004
$1,399.99
$1,399.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

Change-of-mind returns are subject to a 25% restocking fee. Damaged, defective, or incorrect items are not charged a restocking fee.

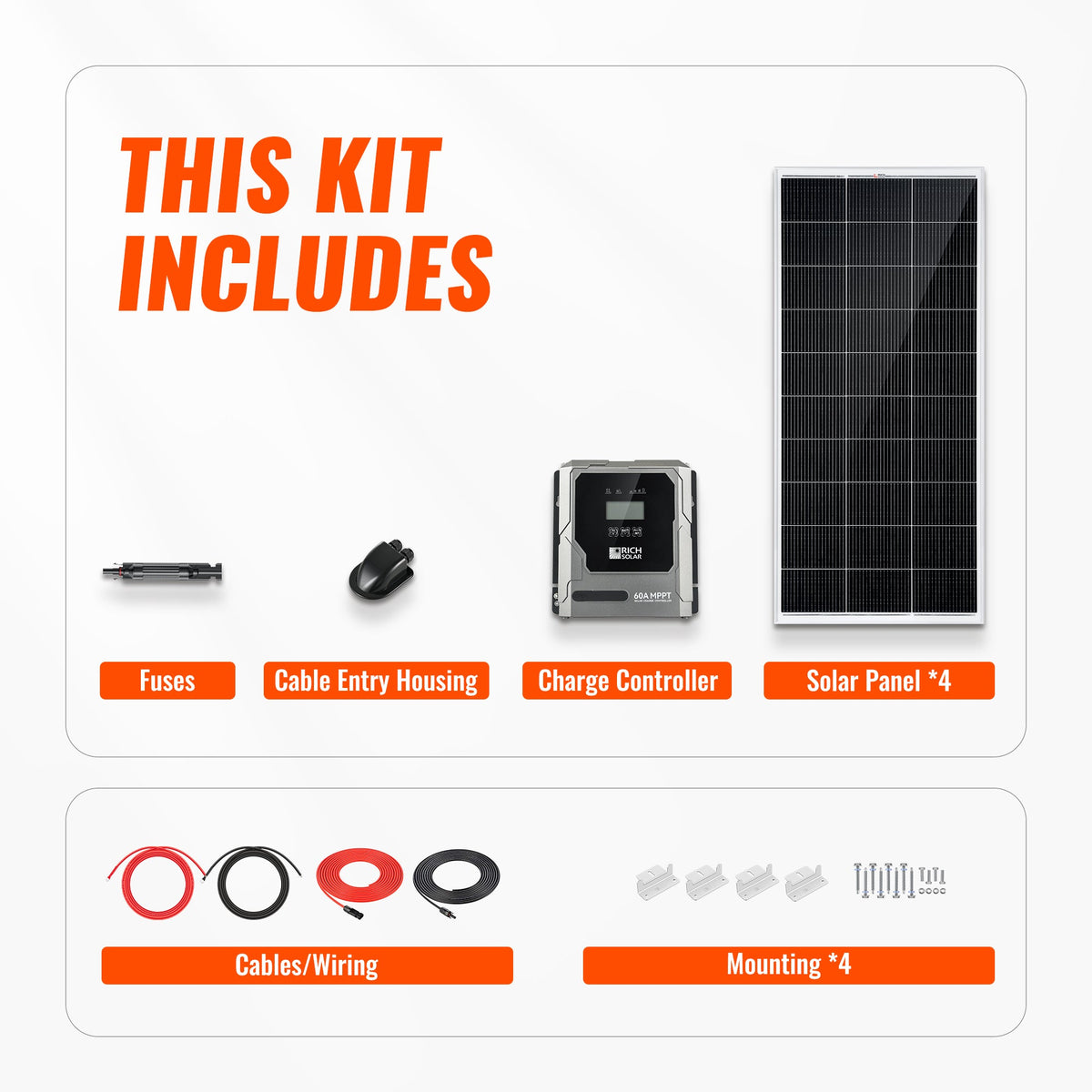

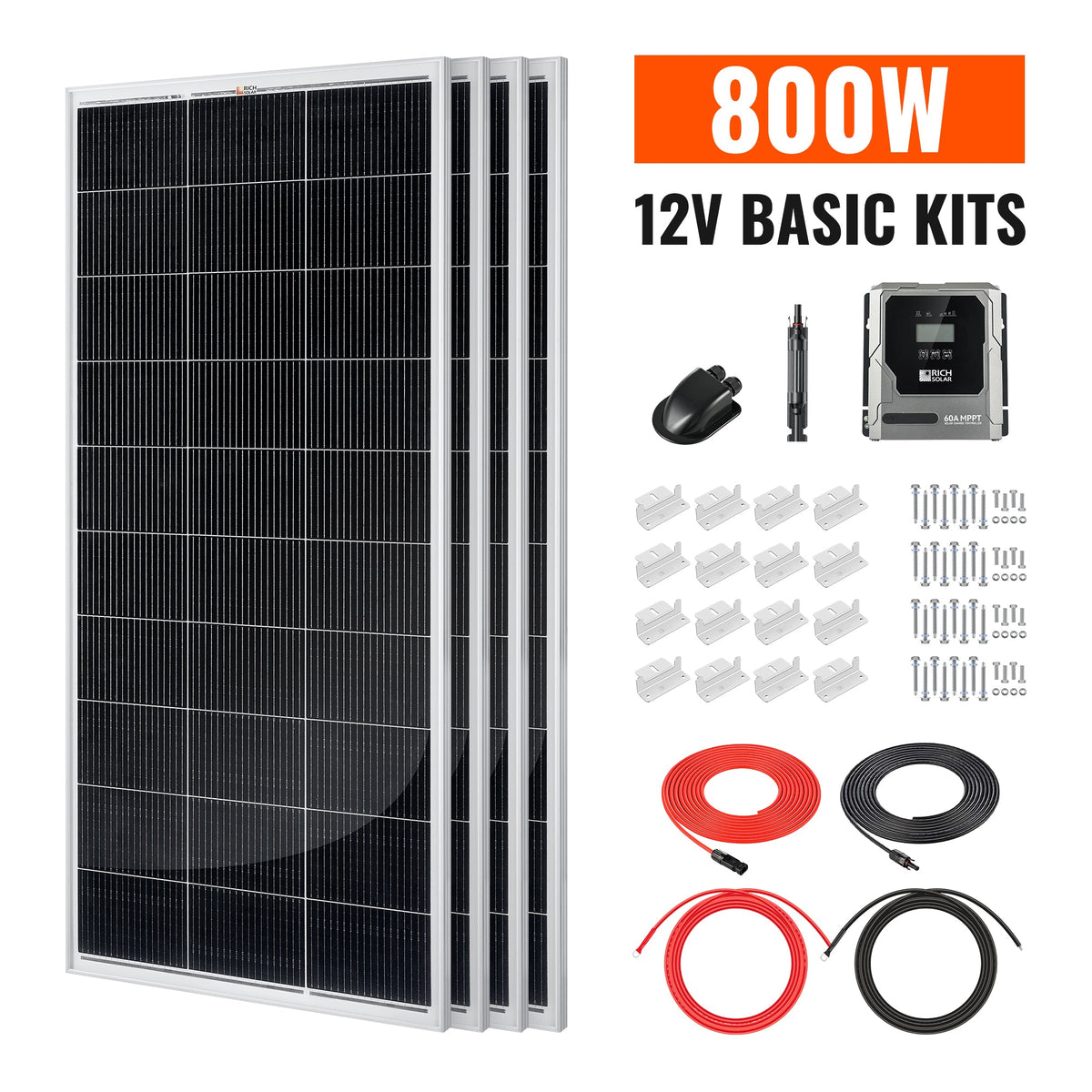

The Basic 800 Watt Solar Kit combines four 200W monocrystalline solar panels with a 60A MPPT solar charge controller for off-grid and mobile solar charging applications. It is designed for applications such as RVs, travel trailers, boats, cabins, and other off-grid installations. The system provides 800W of total solar-panel capacity and supports automatic 12V/24V system detection. The included MPPT controller supports multiple lead-acid and lithium battery types, offers built-in Bluetooth monitoring, and provides configurable charging and system-monitoring functions. MEGA 200 12V 200W Watt Solar Panel The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Maximum Power(Pmax): 200W

Maximum Power Voltage(Vmp): 18.4V

Maximum Power Current(Imp): 10.9A

Open Circuit Voltage(Voc): 21.8V

Short Circuit Current(Isc): 11.6A

Temperature Range: -40 ~ +185F

Maximum Series Fuse Rating: 15A

Weight: 24 lb

Dimensions: 58.7 x 26.8 x 1.2 in

BRAVO 60

60A MPPT Solar Charge Controller

System Nominal Voltage: 12/24V Auto

Max PV Open Circuit Voltage: 100V DC

Charging Technology: MPPT

Max PV Charging Current: 60A

Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)

Charge Conversion Efficiency: <=98%

MPPT Tracking Efficiency: >99.5%

Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO

Housing Case Color: Black / Grey

IP Grade: IP43 for Inside PCBA, IP22 for Connection Area

Net Weight: 1.90kg / 4.18lb

Dimensions (LxWxH): 201x195x85mm (7.9x7.7x3.3in)

Size Guide

  • Solar Panel Dimensions: 58.7 x 26.8 x 1.2 in each
  • Solar Panel Weight: 24 lb each
  • Charge Controller Dimensions: 7.9 x 7.7 x 3.3 in
  • Charge Controller Net Weight: 4.18 lb

Compatibility

Compatible Applications: Off-grid and mobile solar applications including RVs, travel trailers, boats, cabins, and similar installations.

Compatible Battery Systems: 12V and 24V systems; the controller supports GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO4/LFP, LTO, and LCO battery types.

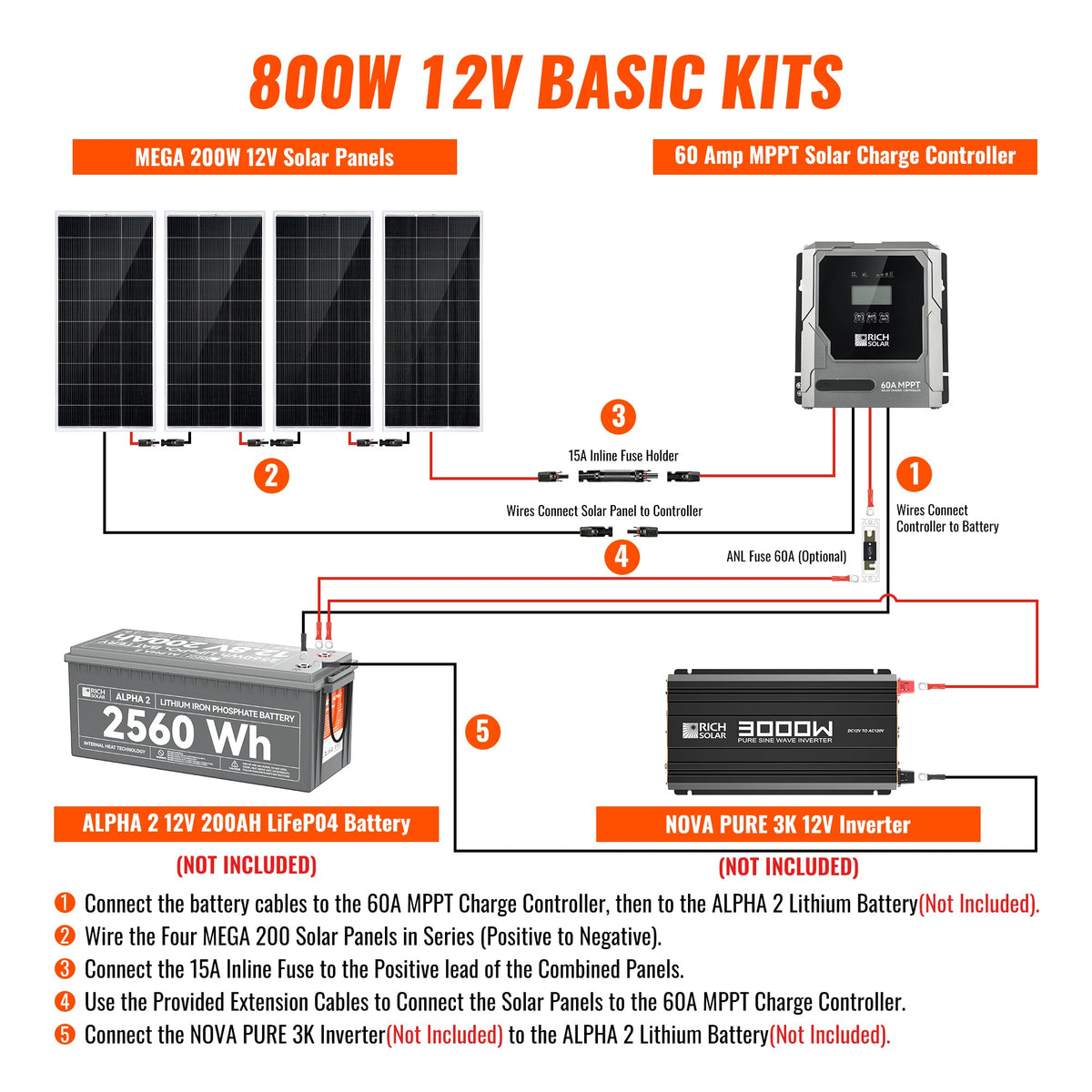

Solar Connection Compatibility: Series and parallel panel configurations.

Inverter Compatibility: The solar panels are compatible with on-grid and off-grid inverters.

Mounting Compatibility: Ground mounts, Z-brackets, pole mounts, and tilt mounts.

  • MEGA 200 Solar Panel
  • BRAVO 60 60A MPPT Solar Charge Controller

User Manual:

  • BRAVO 60 60A MPPT Solar Charge Controller

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission "anti-reflective" coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters
  • True MPPT
  • Tracking Efficiency Above 99.5%
  • Charge Conversion Efficiency as High as 98%
  • 12V/24V DC System Self-Adaptation
  • Reverse Discharge Protection
  • Targeted for Accuracy
  • Overvoltage Protection
  • Common Negative Connection
  • Charging Data Storage
  • External Battery Temp Sensor-Optional
  • Conformal Coating for Inside Board
  • External Digital Remote Display-Optional
  • In-house Design and Manufacture
  • Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
  • Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
  • Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections
