Rich Solar 1200 Watt 24V Complete Solar Kit

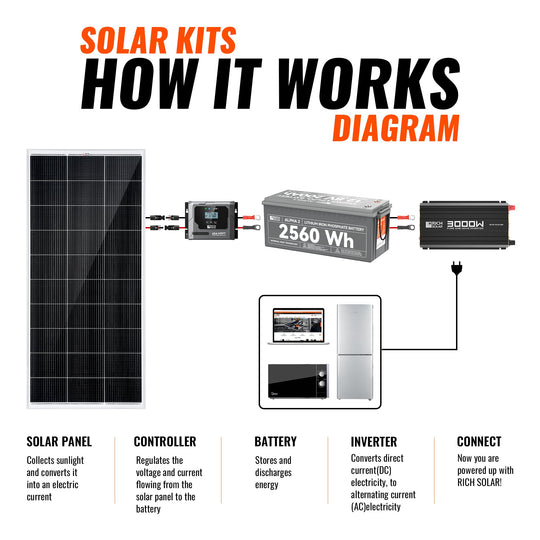

The 1200 Watt 24V Complete Solar Kit combines solar generation, lithium battery storage, MPPT charge control, and pure sine wave AC power conversion in a complete 24V off-grid system. The kit includes six 200W solar panels for 1200W total solar capacity, two 24V 100Ah LiFePO₄ batteries, a 60A MPPT solar charge controller, and a 3000W 24V pure sine wave inverter.

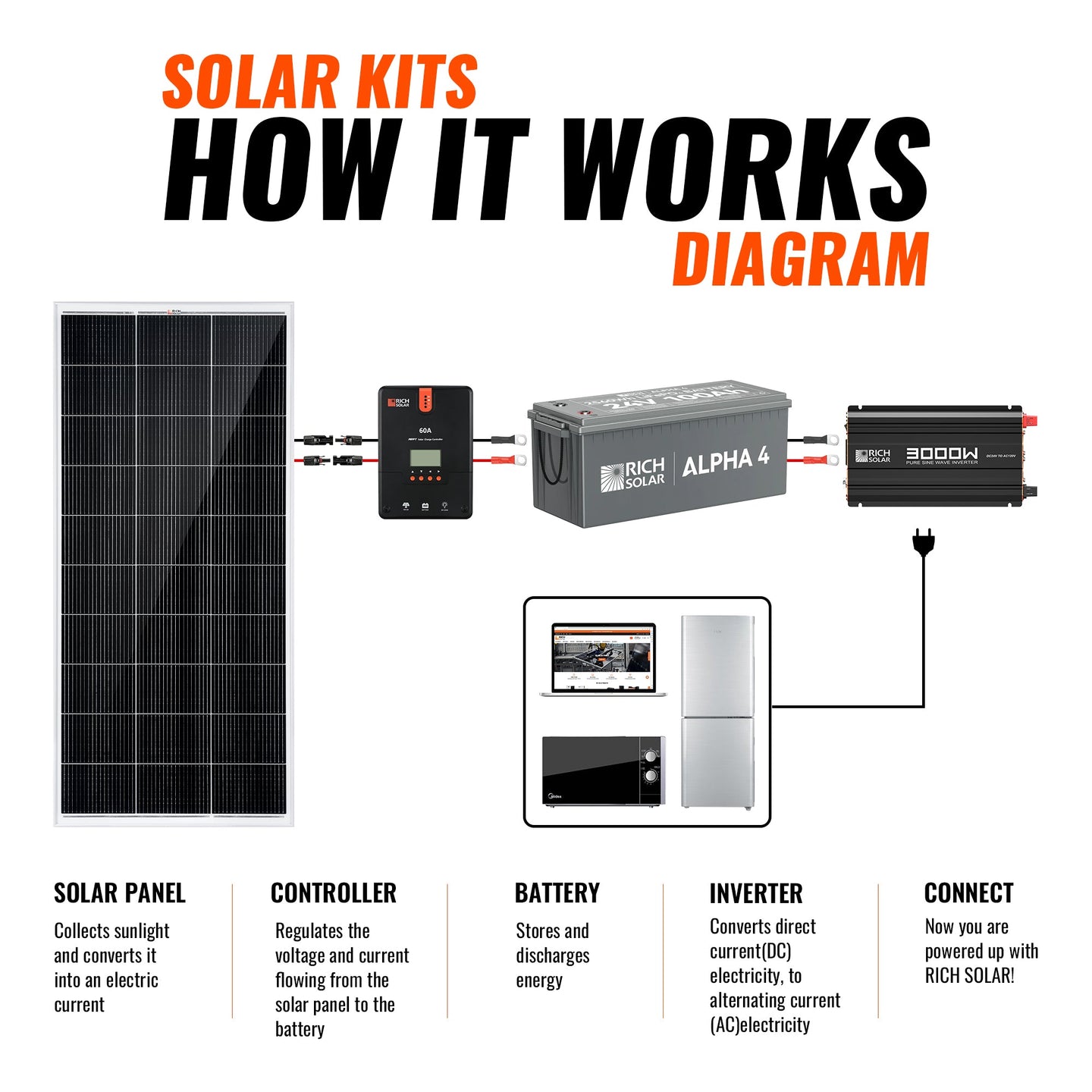

Designed for RVs, tiny homes, and other off-grid or mobile installations, the system provides the major components required to collect solar energy, store it in lithium batteries, and supply 120V AC power. Mounting hardware, solar protection components, parallel adapters, and the primary solar, controller, battery, and inverter cables are also included

MEGA 200

200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

No. of Panels: 6 x MEGA 200 Watt Solar Panels

Wattage Per Panel: 200W

Total Wattage of Panels: 1200W

Features:

• Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
• Excellent low-light performance even on early mornings, evenings, and cloudy days.
• Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
• Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
• 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
• Compatible with on-grid and off-grid inverters

Warranty:

• 25-year limited power output warranty
• 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W

Maximum Power Voltage(Vmp): 18.4V

Maximum Power Current(Imp): 10.9A

Open Circuit Voltage(Voc): 21.8V

Short Circuit Current(Isc): 11.6A

Temperature Range: -40 ~ +185°F

Maximum Series Fuse Rating: 15A

Weight: 24 lb

Dimensions: 58.7 x 26.8 x 1.2 in

Alpha 4

24V 100Ah LiFePO4 Battery

Features:

• Stay powered in low temps with advanced internal heating tech
• Track battery health in real time from your phone
• Over 5,000 cycles with UL94 V-0 flame-retardant protection
• IP65 waterproof, dustproof, and tested for extreme safety
• Free of toxic metals—safe for you and the planet
• Lightweight design, heavy-duty performance
• ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

• *5-Year Warranty

Specifications:

4°F to 140°F (-20°C to 60°C)

Battery

Cell Type: Lifepo4 Battery

Nominal Voltage: 25.6V

Nominal Capacity: 100Ah

Nominal Energy: 2560Wh

Cycle Life: 5000 Cycles

BMS

BMS: 100A

Maximum Charging Current: 100A

Maximum Continuous Discharge Current: 100A

Maximum Discharge Current 10 Seconds: 110A

Charge

Charge Method: CC/CV

Charge Voltage: 14.4V ± 0.2V

Recommend Charge Current: 50A (0.5C)

Temperature

Charge Temperature: 32°F to 131°F (0°C to 55°C)

Discharge Temperature: -4°F to 140°F (-20°C to 60°C)

Storage Temperature: 14°F to 95°F (-10°C to 35°C)

Self-heating

External Power Draw: 100W

Internal Heating Starts: < 41°F (5°C)

Internal Heating Stops: > 50°F (10°C)

Others

Net Battery Weight: 48.5lb

Size(LxWxH): 20.9x8.1x8.5in

Housing Material: ABS (Flame Retardant Plastic)

Protection Class: IP65

Warranty: 5 Years

NOVA PURE MAX 3K

3000W 24V Pure Sine Wave
Inverter

Features:

• Electronic overload protection with automatic shutdown.
• Built-in internal backup DC fuse provides added safety.
• Low battery voltage protection with automatic shutdown.
• Over-temperature protection with automatic shutdown.
• Output short-circuit protection.

Warranty:

• 2-Year Warranty

Specifications:

Model: RS-V3P24

Rated Voltage: 24V DC

Continuous Power: 3000W

Peak Surge: 6000W

Waveform: Pure Sine Wave

Input Voltage: 24V DC

Output Voltage: 120V AC

Output Frequency: 60 Hz

Output Efficiency: >88%

AC Output Sockets: 3

USB Power Port: 5V / 2.1A

Power Output Control: AC On/Off Switch

Operating Temperature: 14°F to 122°F

Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)

Weight: 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar
Charge Controller

Features:

• Automatically detects 12V/24V/36V/48V DC system voltages.
• Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
• Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
• LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
• Features diverse load control; also capable of charging over-discharged lithium batteries.
• Die-cast aluminum design allows for efficient heat dissipation.
• RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

• 2-Year Warranty

Specifications:

Rated Battery Current: 60A

Rated Load Current: 20A

Max Solar Input Voltage: 150V(77°F), 145V(-13°F)

Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Charge Circuit Voltage Drop: ≤0.26V

Discharge Circuit Voltage Drop: ≤0.15V

Operating Temperature: -31°F to 113°F

Max Terminal Size: <11mm

Overall Dimensions: 11.2 x 8.1 x 3.7 in

Net Weight: 7.94 lb

Size Guide

• Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each.
• Solar Panel Weight: 24 lb each.
• Battery Dimensions: 20.9 × 8.1 × 8.5 in each.
• Battery Weight: 48.5 lb each.
• Inverter Dimensions: 18.7 × 9.6 × 4.0 in.
• Inverter Weight: 12.1 lb.
• Charge Controller Dimensions: 11.2 × 8.1 × 3.7 in.
• Charge Controller Net Weight: 7.94 lb.

Compatibility

Compatible Applications: RVs, tiny homes, and other off-grid or mobile solar installations. The solar-panel and inverter documentation also identifies RVs, cabins, and boats as applicable off-grid uses.

Compatible Battery Types: The charge controller supports Sealed, Gel, Flooded, and Lithium deep-cycle batteries.

Compatible System Voltages: The charge controller automatically recognizes 12V, 24V, 36V, and 48V systems; the included inverter is specifically designed for a 24V DC system.

Solar Connection Compatibility: Solar panels support series and parallel configurations.

Solar Equipment Compatibility: The panels are designed for compatibility with mainstream optimizers, inverters, and mounting systems.

Mounting Compatibility: Ground mounts, Z-brackets, pole mounts, and tilt mounting systems.

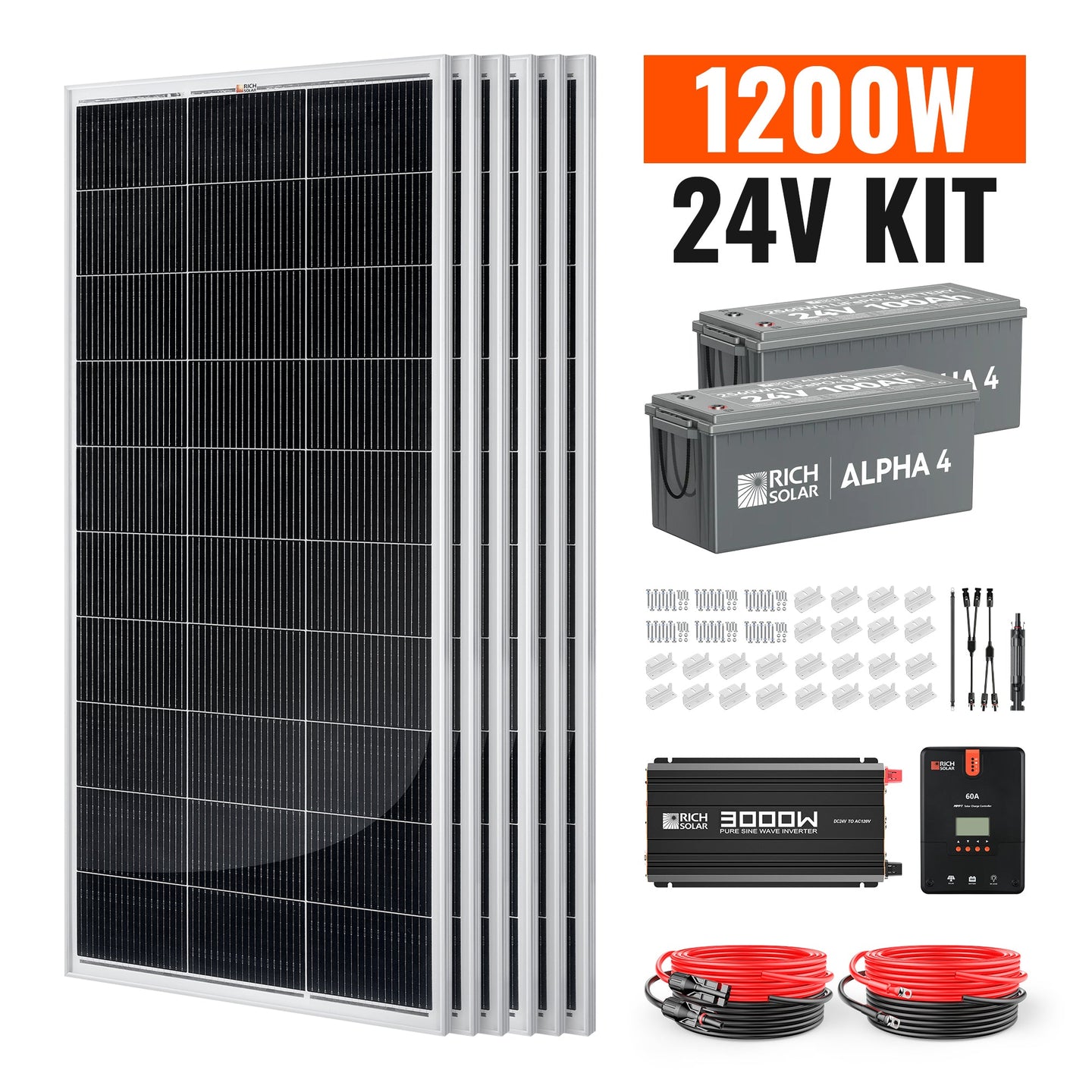

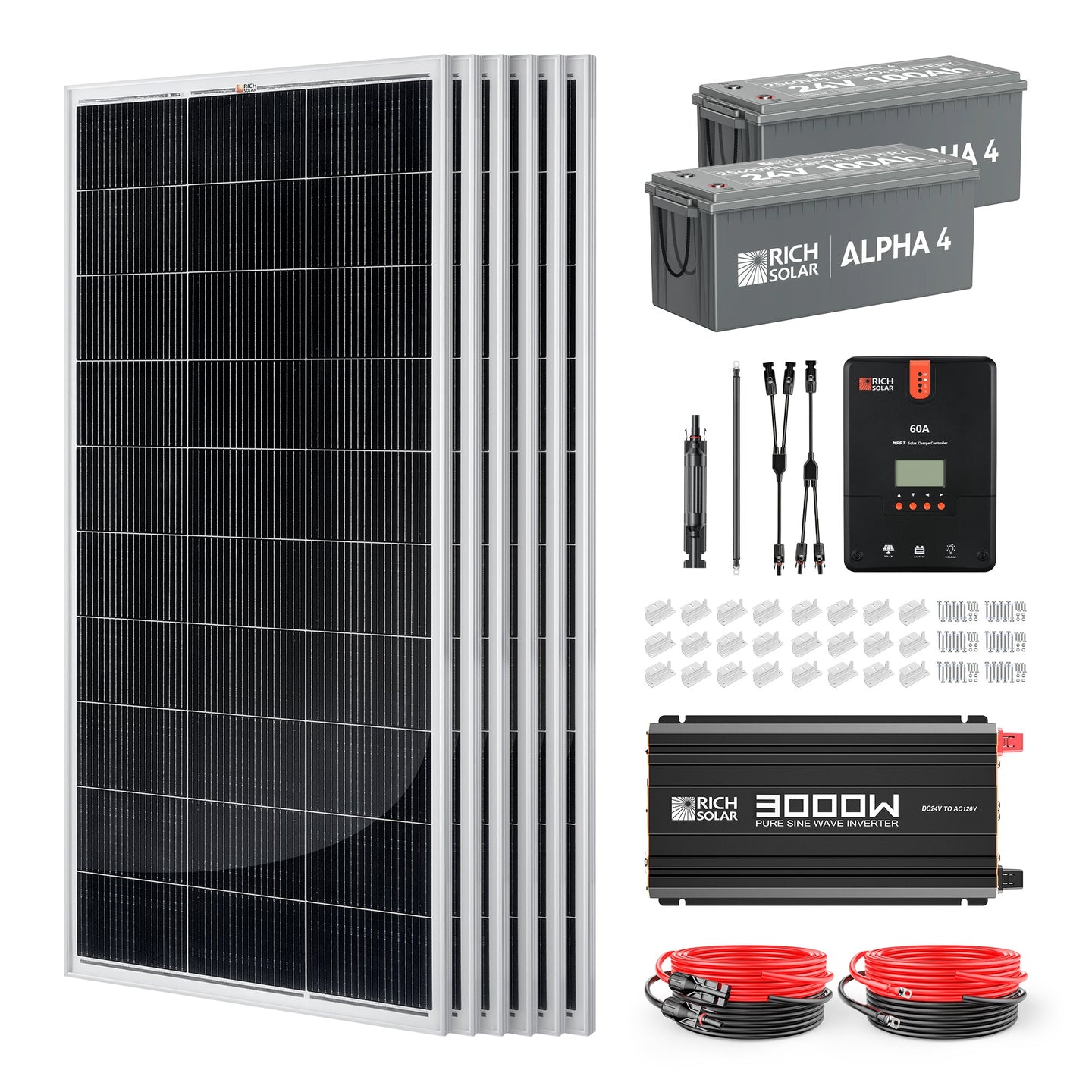

Included

• 6 × 200W 12V Solar Panels.
• 2 × 24V 100Ah Lithium Batteries.
• 1 × 3000W 24V Inverter.
• 1 × 60A MPPT Charge Controller.
• 6 × Z Bracket Sets.
• 1 × 30A Inline Fuse Holder.
• 1 × Y Branch Parallel Adapter.
• 1 × 2 Gauge 1 ft Red Inverter Battery Cable.
• 1 × 2 Gauge 1 ft Black Inverter Battery Cable.
• 1 × 30 ft 10 AWG Solar Cable Set — Panel to Controller.
• 1 × 10 ft 8 AWG Solar Cable Set — Controller to Battery.
• 1 × 4 AWG 8 ft Battery Cable Set.

Product Support

Full Specification

• MEGA 200 Solar Panel

• ALPHA 4 24V 100Ah LiFePO4 Battery

• NOVA PURE MAX 3K 24V 3000W Pure Sine Wave Inverter

• 60 Amp MPPT Solar Charge Controller

User Manual:

• ALPHA 4 24V 100Ah LiFePO4 Battery

• NOVA PURE MAX 3K 24V 3000W Pure Sine Wave Inverter

• 60 Amp MPPT Solar Charge Controller

Warranty: Solar panels — 25-year limited power output warranty and 10-year workmanship warranty; ALPHA 4 lithium batteries — 5-year warranty; 3000W pure sine wave inverter — 2-year warranty; 60A MPPT solar charge controller — 2-year warranty.
