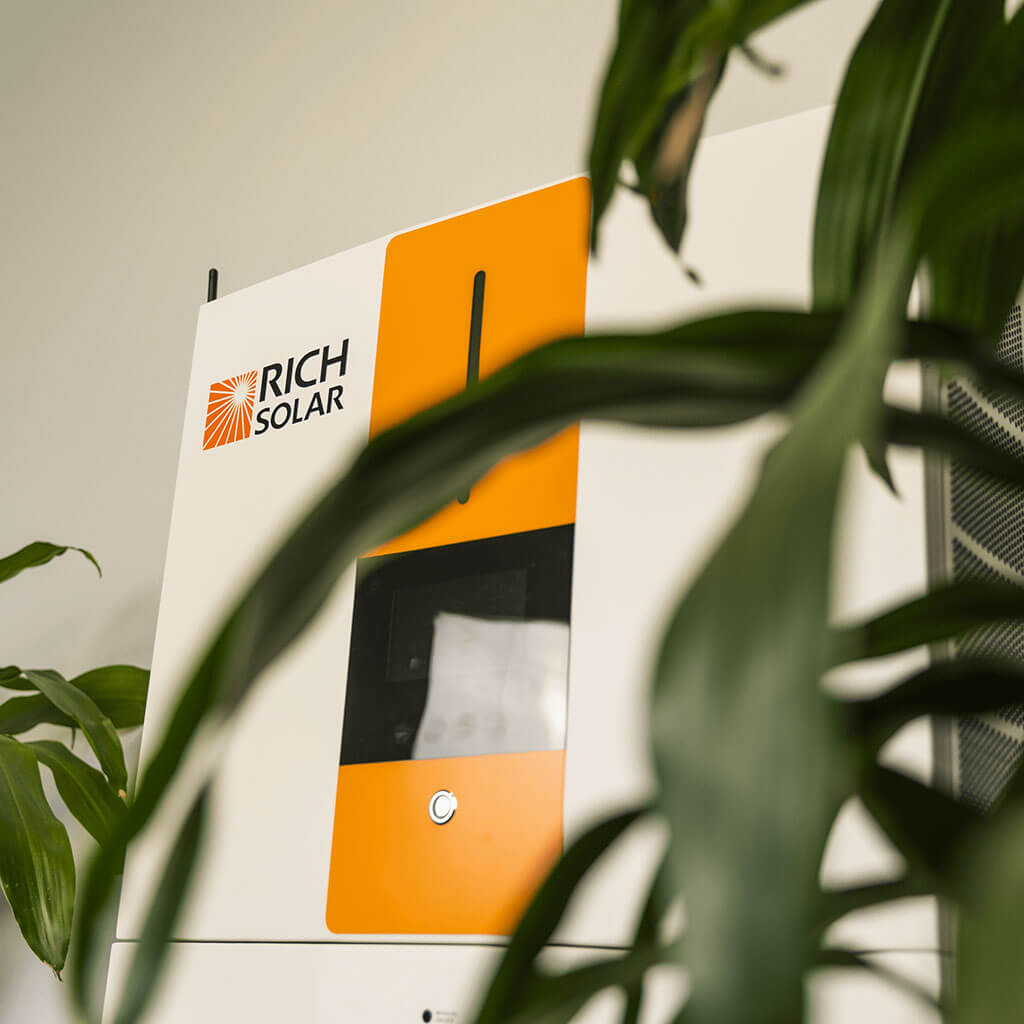

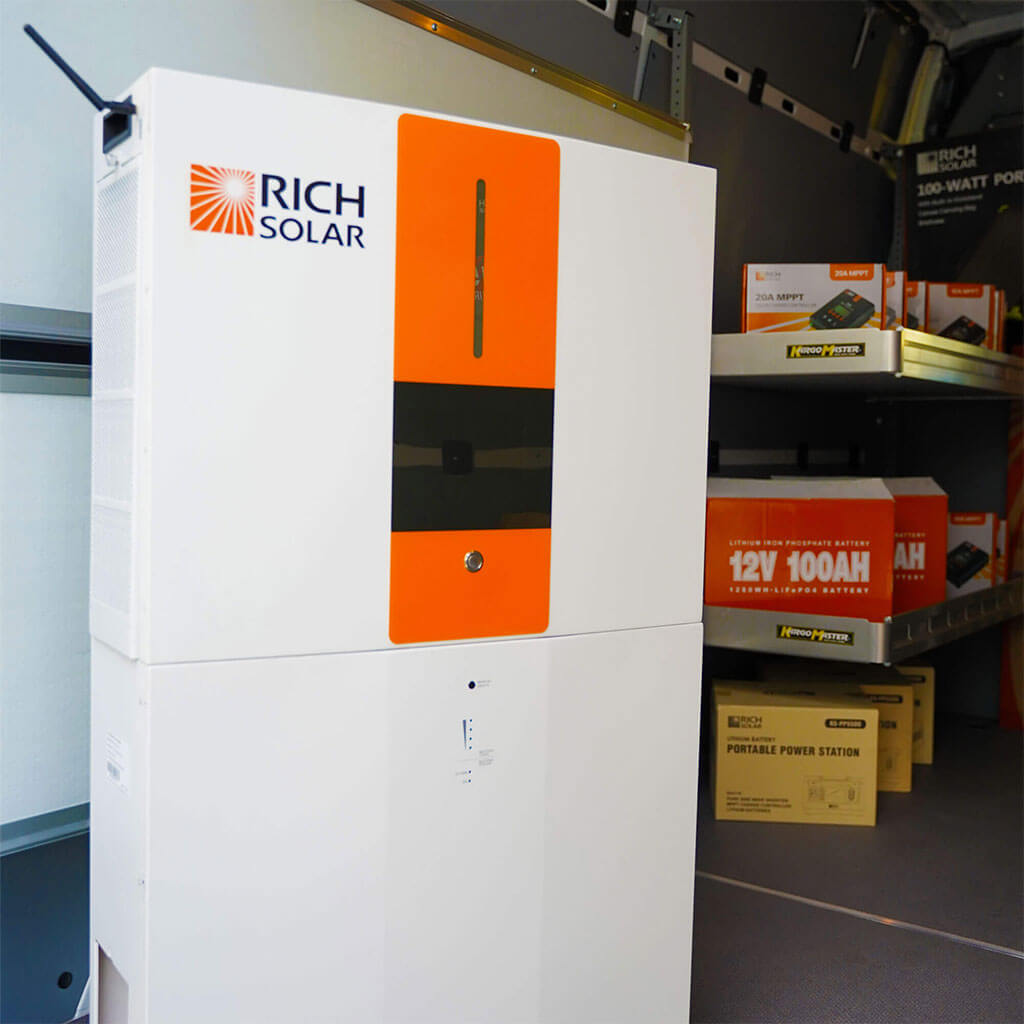

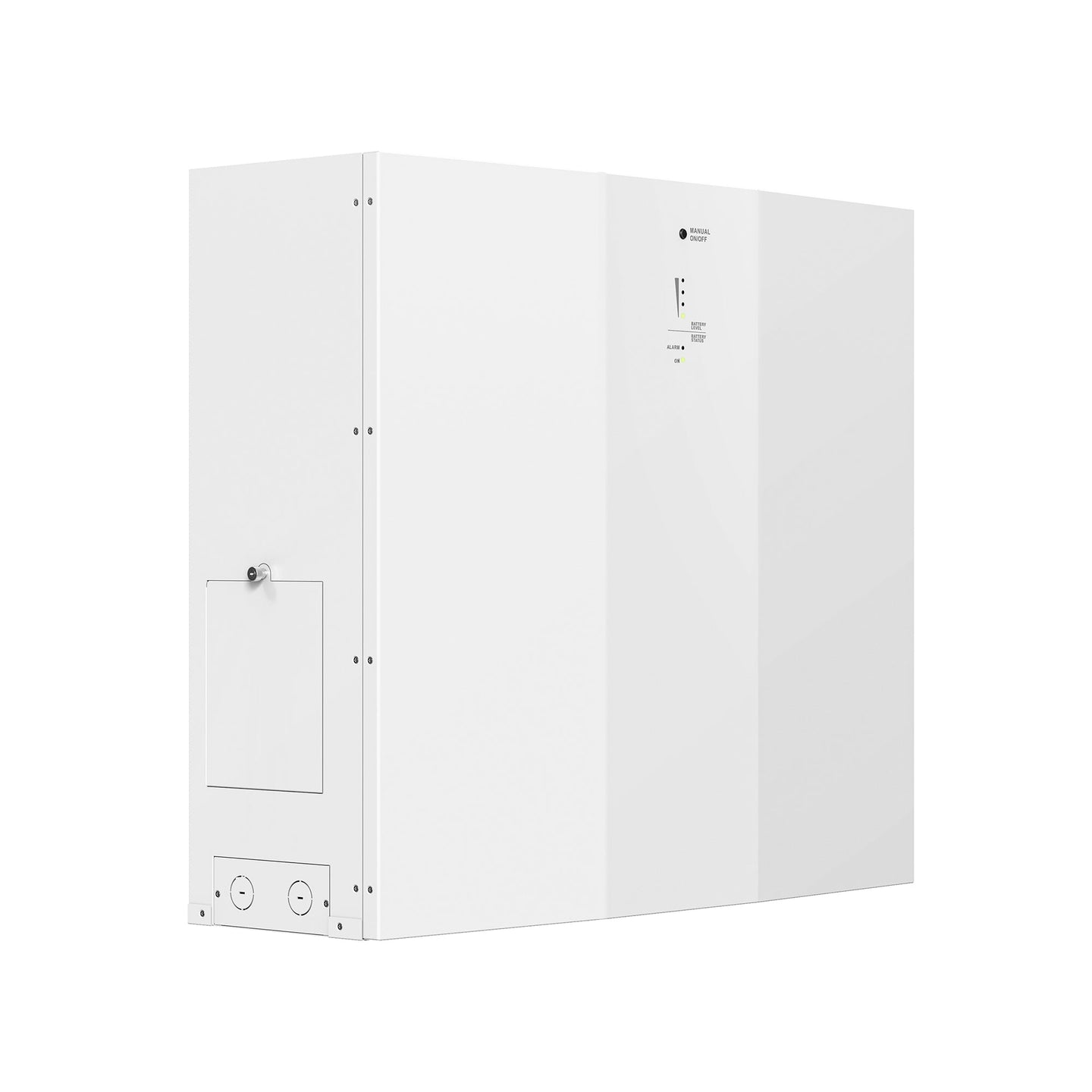

RIch Solar All-in-One Energy Storage System

SKU RS-A10
$6,999.99
$6,999.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

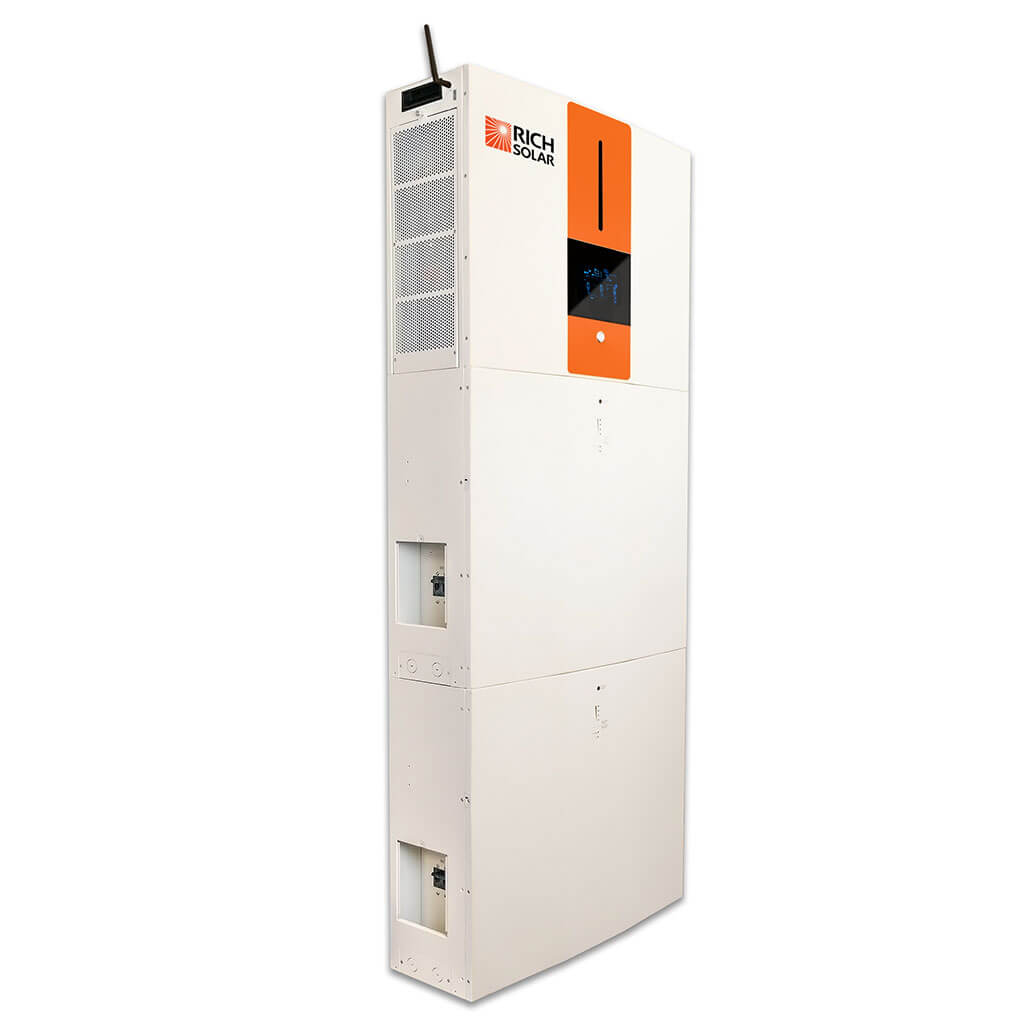

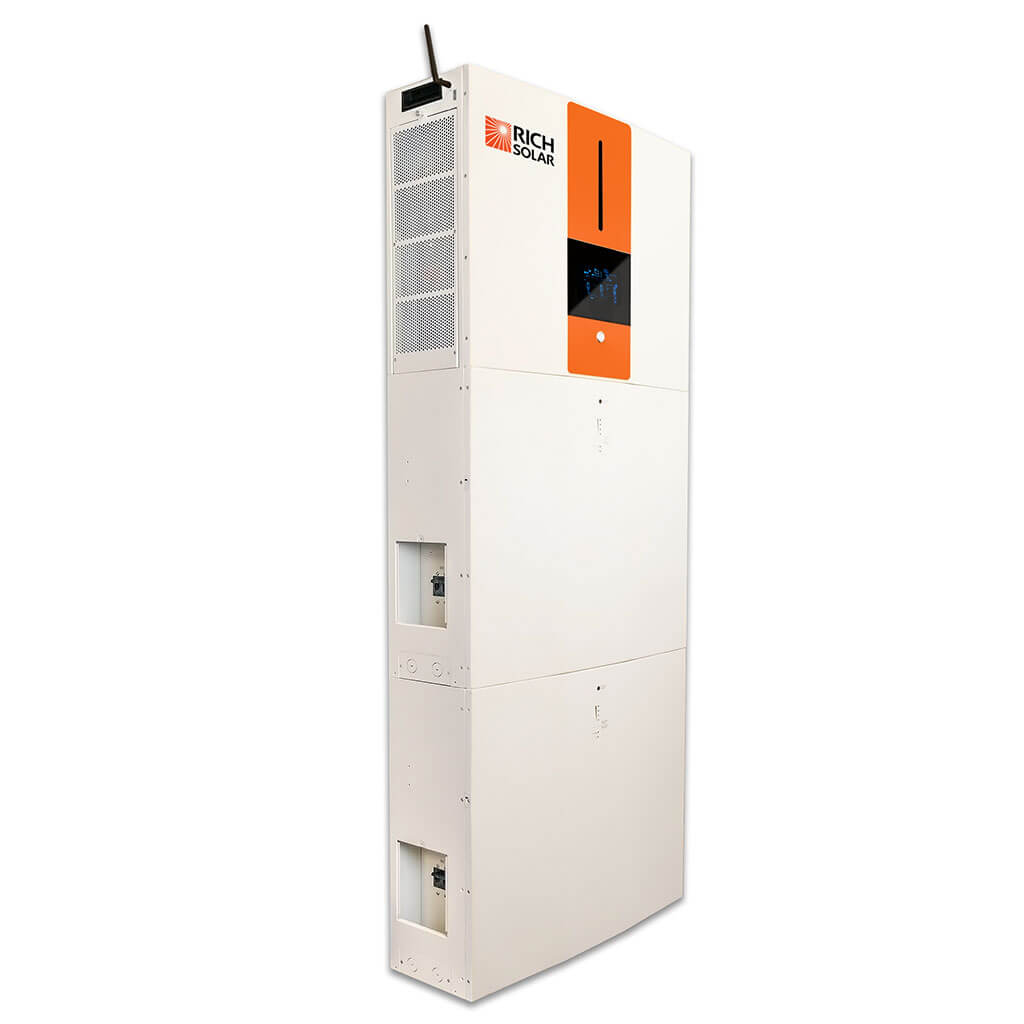

This energy storage solution is available in two clearly defined options: a complete system with an inverter, charge controller, and 51.2V 100Ah lithium iron phosphate battery, or the 51.2V 100Ah battery module by itself. Customers should select the complete-system option when the integrated power-conversion equipment is required, or the battery-only option for compatible battery expansion.

The complete system provides 6,500W rated output, accepts up to 8,000W of photovoltaic input, and produces pure sine wave AC power for off-grid applications. It supports programmable power-source priority, adjustable charging parameters, real-time mobile monitoring, and operation with utility or generator power.

Key Features

  • Two Purchasing Options: Choose the complete energy storage system or the 51.2V 100Ah battery module only.

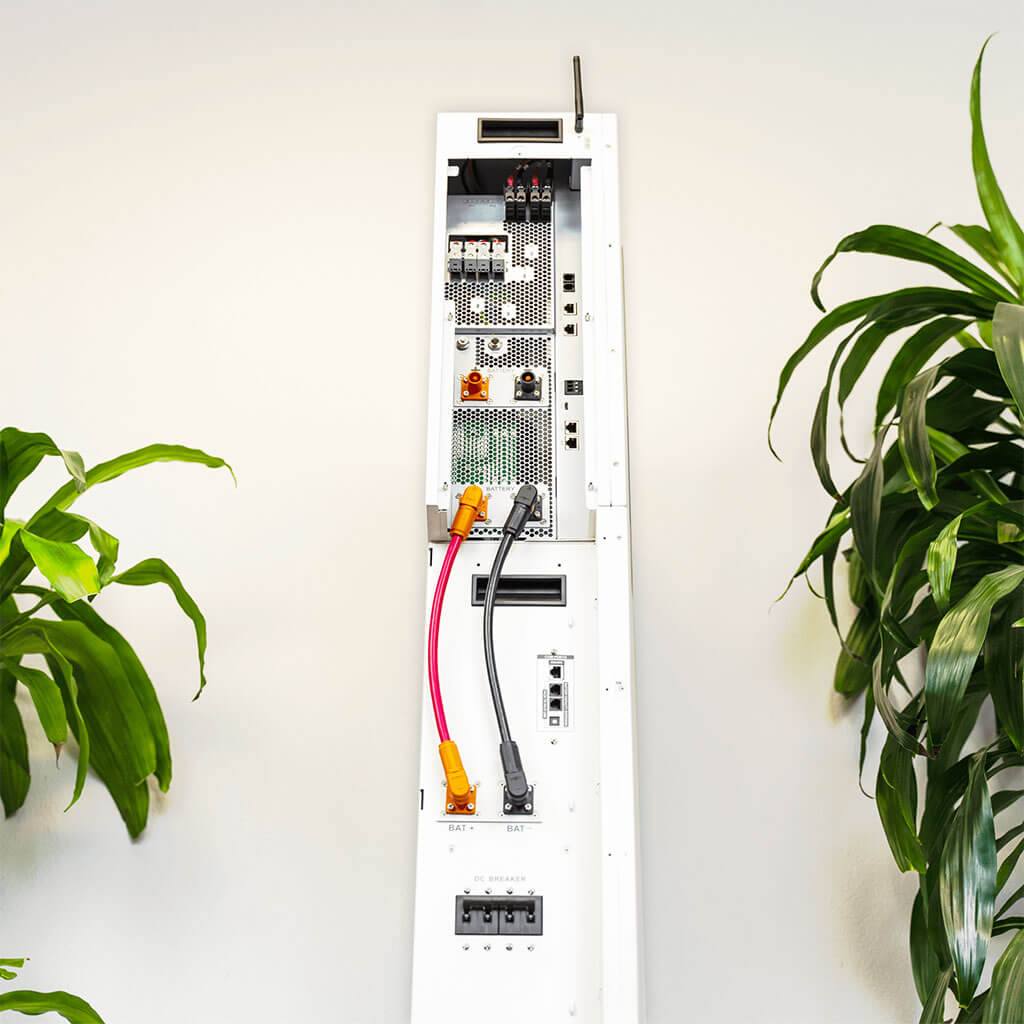

  • Integrated Design: The complete-system option combines an inverter, charge controller, and battery in one installation.
  • Pure Sine Wave Output: Produces pure sine wave AC power for connected equipment and appliances.
  • Programmable Supply Priority: Allows PV, battery, or grid power to be prioritized.
  • Adjustable Charging: Battery charging current and voltage can be adjusted by the user.
  • Dual MPPT Tracking: The complete system includes two MPPT trackers and an AC/solar charger rated up to 120A.
  • Mobile Monitoring: The compatible Android and iOS app provides real-time status monitoring and parameter control.
  • Multiple Communication Methods: Supports USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi communication.

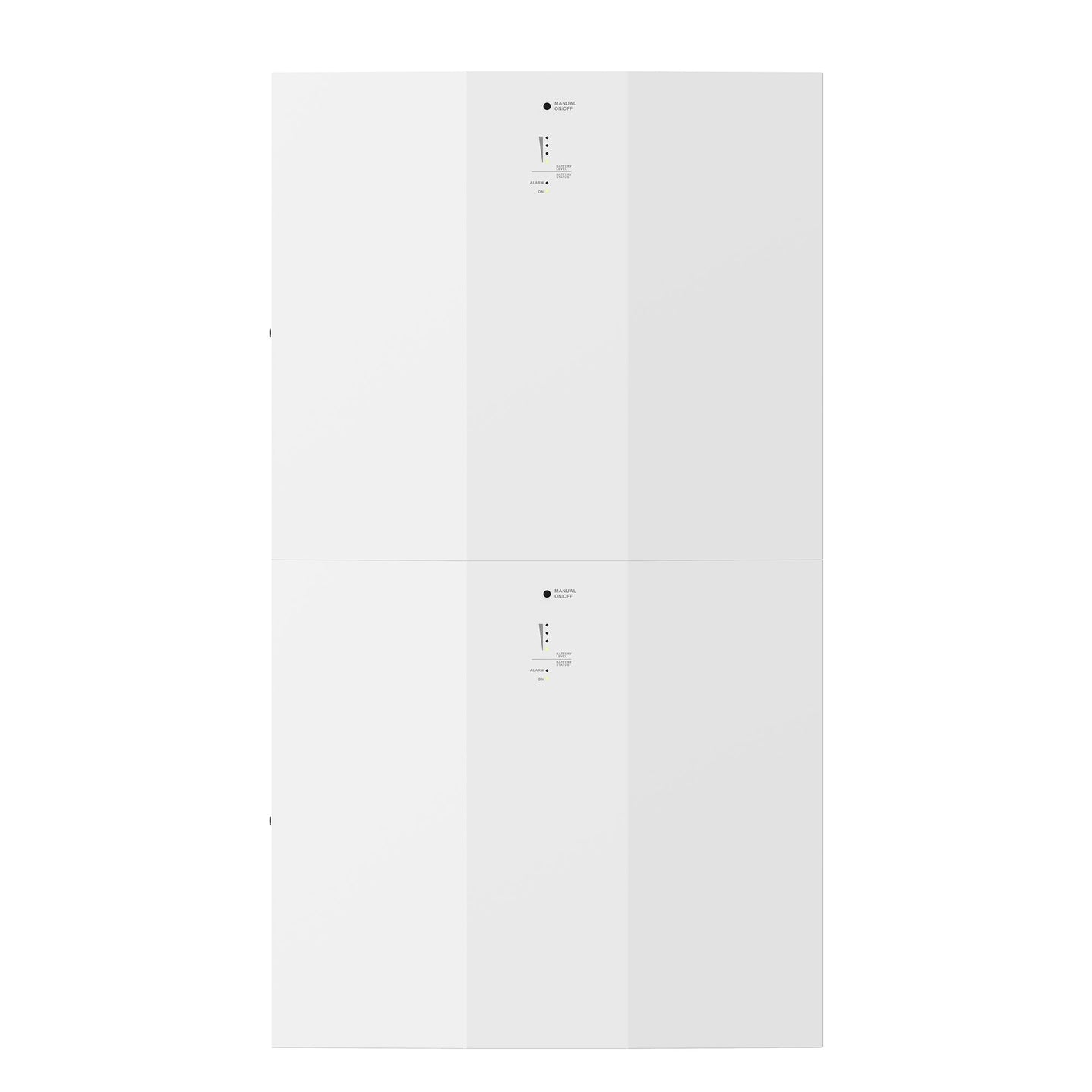

  • Expandable Battery Storage: Supports scalable lithium-ion battery expansion.
  • Battery Protection: The battery module incorporates a battery management system and breaker.
  • Internal Heating: The battery specification sheet confirms internal heating technology.
  • Protected Enclosure: The battery specification sheet identifies IP65 water and dust protection and a UL94 V-0 flame-retardant rating.

Specifications

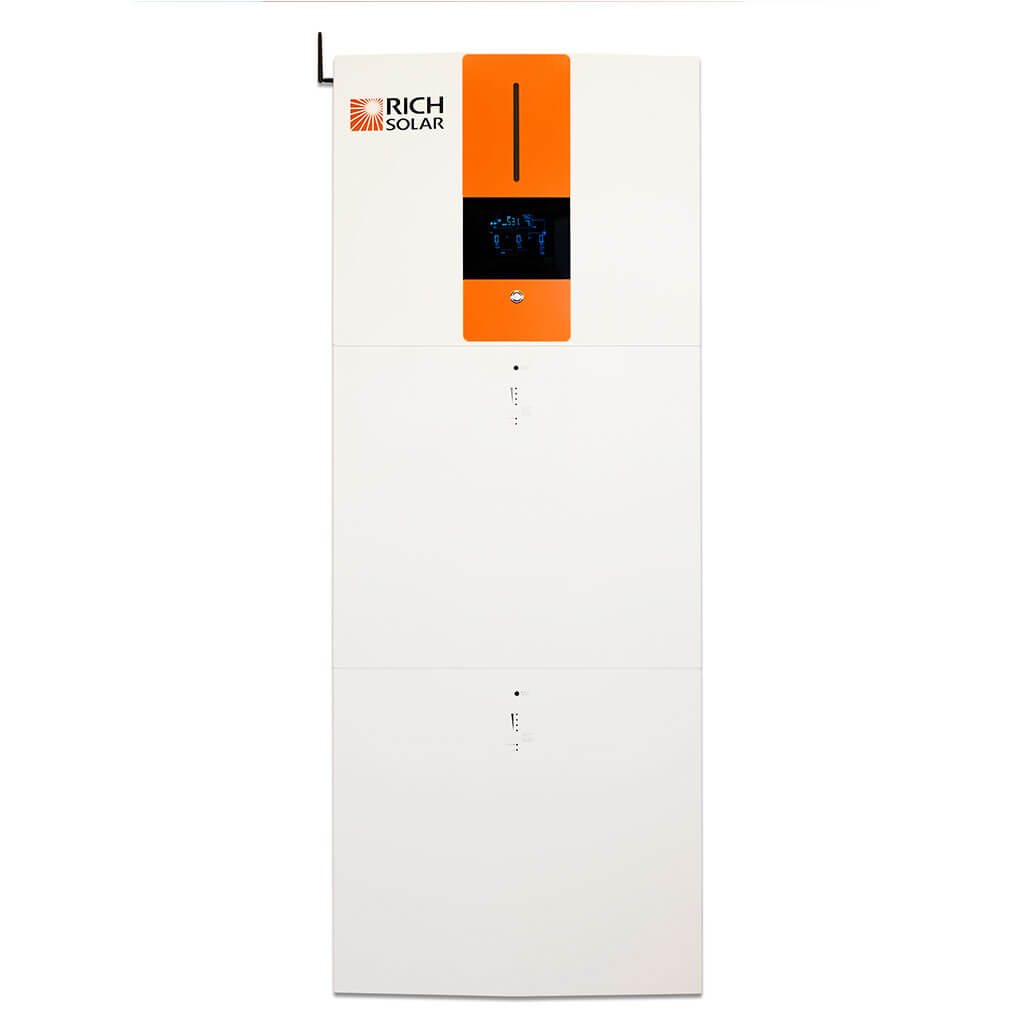

Complete-System Option

  • Maximum PV Input Power: 8,000W
  • Rated Output Power: 6,500W
  • Maximum Charging Power: 6,500W
  • Output Waveform: Pure sine wave
  • Application: Off-grid
  • MPPT Operating Voltage Range: 90–230VDC
  • Maximum PV Array Open-Circuit Voltage: 250VDC
  • Maximum Solar-Charging Current: 120A
  • MPP Trackers and Maximum Input Current: 2 trackers; 2 × 18A
  • Computer-Equipment AC Input Range: 90–140VAC
  • Home-Appliance AC Input Range: 80–140VAC
  • Maximum AC Input Current: 60A
  • Nominal AC Output Voltage: 120VAC
  • Maximum DC-to-AC Conversion Efficiency: 93%
  • Nominal Battery-Side DC Voltage: 48VDC
  • Maximum System Charging Current: 120A
  • Communication: USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi
  • Mobile App Support: Android and iOS
  • Compliance: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No. 107.1-16, and FCC Part 15B
  • Complete-System Net Weight: 287 lb

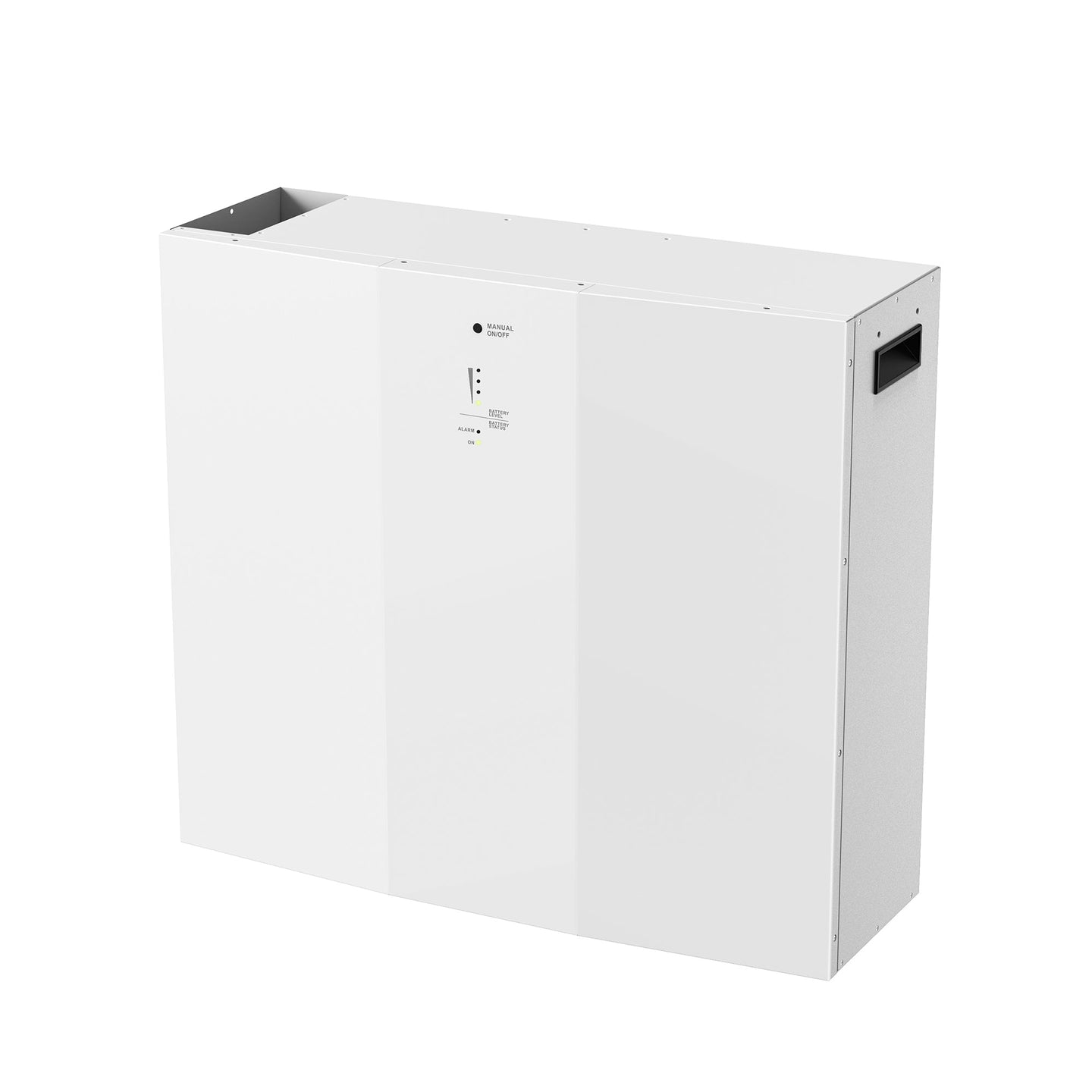

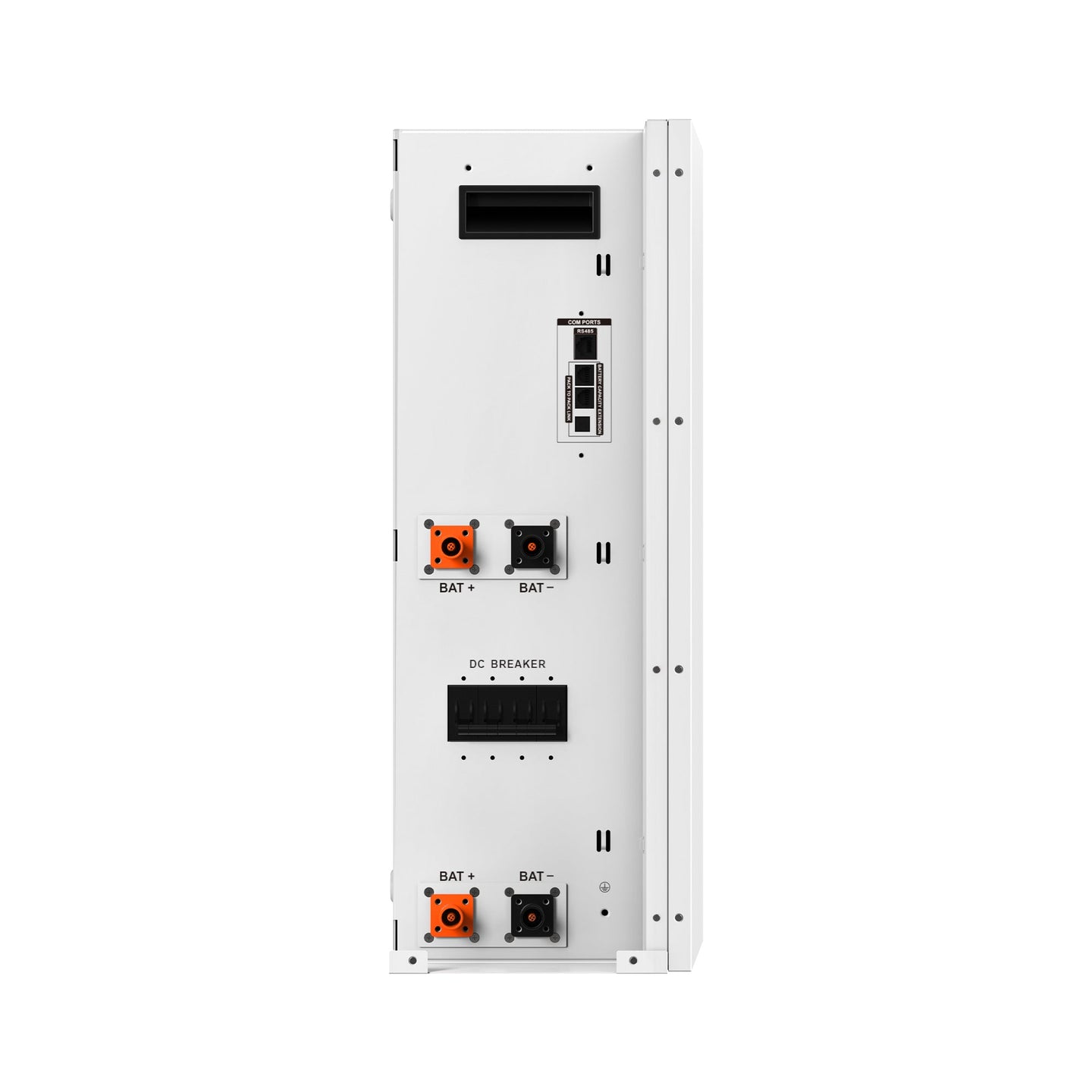

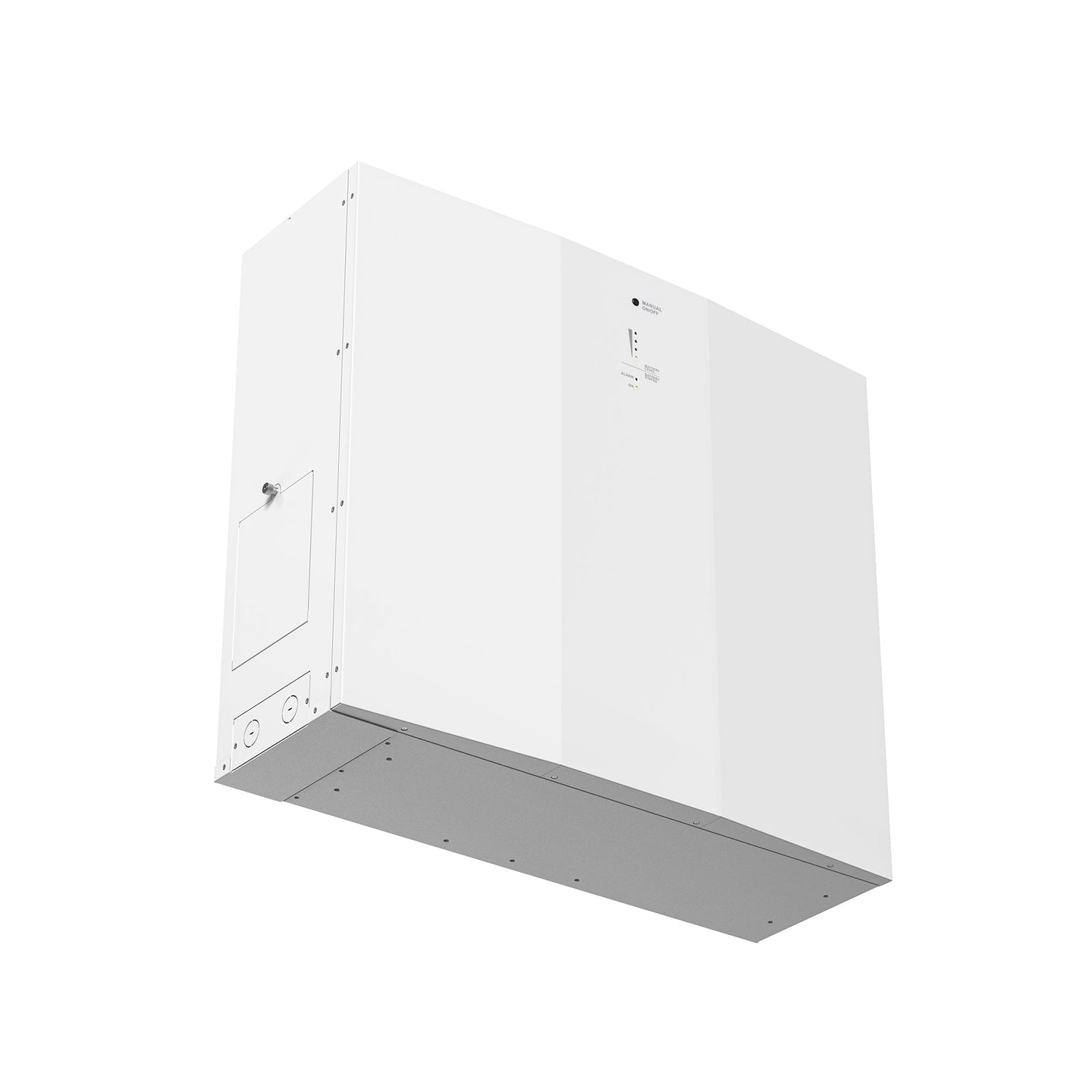

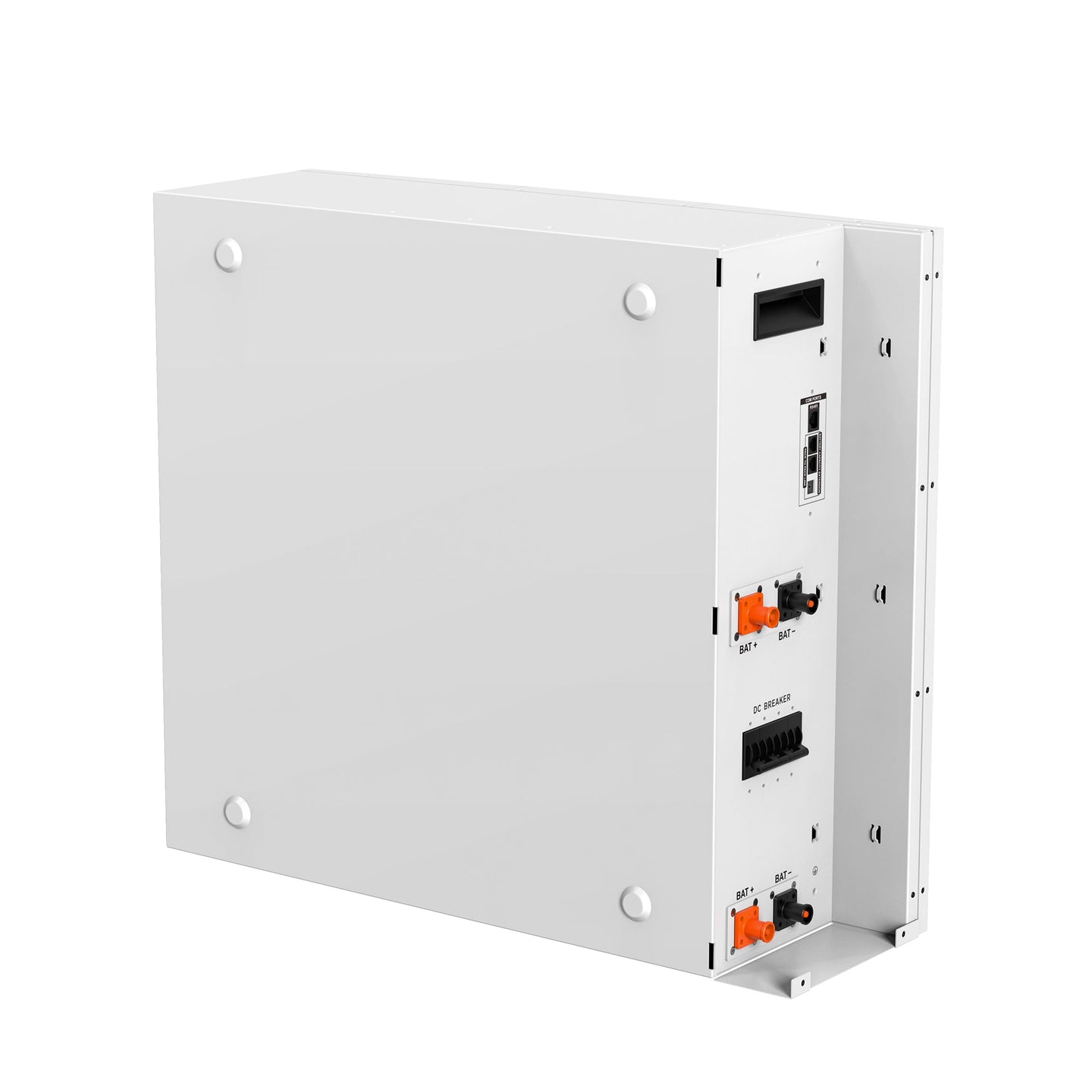

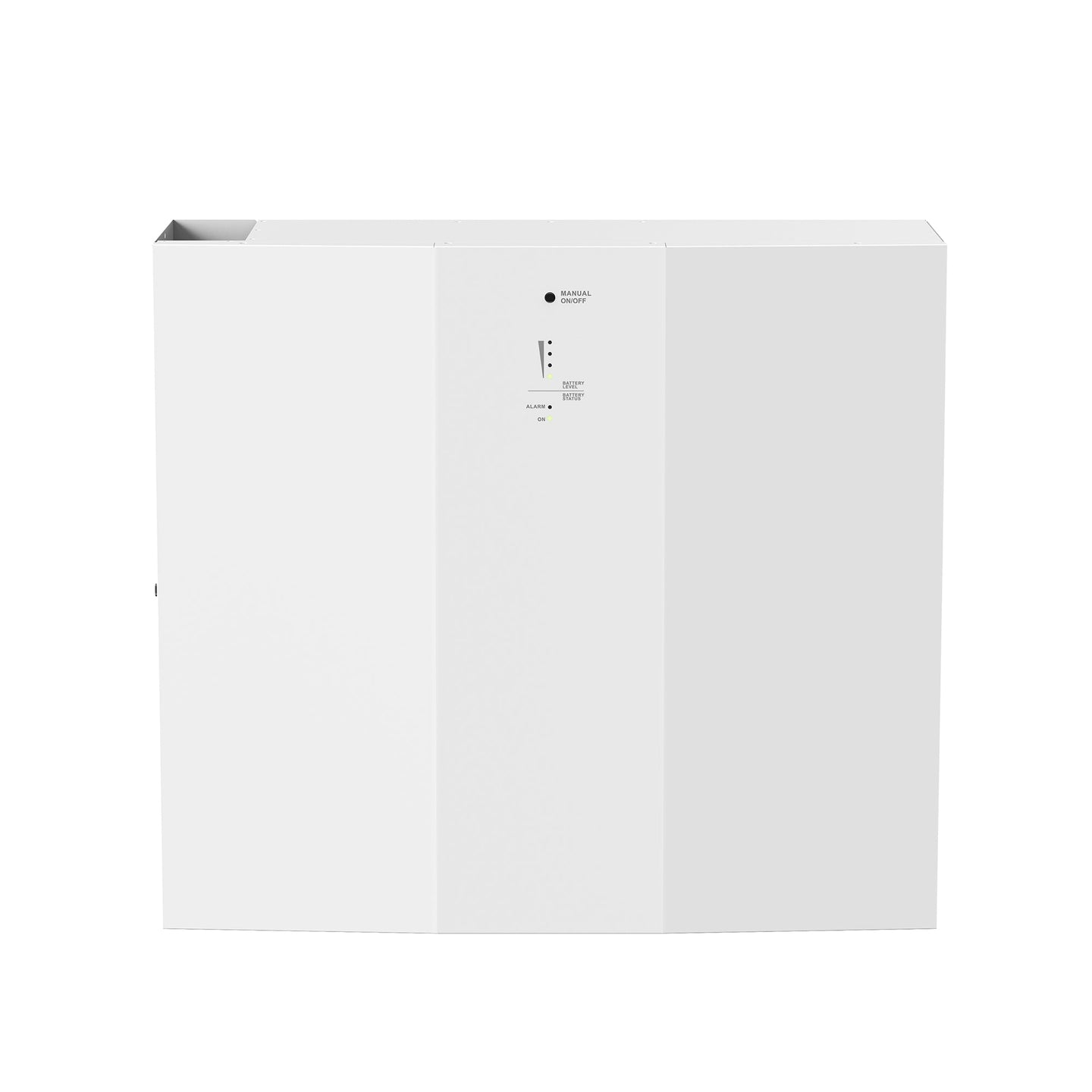

Battery-Only Option

  • Battery Chemistry: Lithium iron phosphate
  • Energy Capacity: 5,120Wh
  • Nominal Voltage: 51.2VDC
  • Typical Capacity: 100Ah
  • Full-Charge Voltage: 56V
  • Full-Discharge Voltage: 42V
  • Float-Charge Voltage: 52.5V
  • Standard Charging Current: 20A at 0.2C
  • Maximum Battery Charging Current: 50A at 0.5C
  • Maximum Continuous Discharge Current: 120A
  • Maximum Discharge Current: 192A for 1 minute
  • Standard Charging Method: 0.2C constant-current charging to full-charge voltage, followed by constant-voltage charging until the charging current falls below 0.05C
  • Internal Resistance: 20mΩ or less
  • Protection: Battery management system and breaker
  • Enclosure Protection: IP65
  • Flame-Retardant Rating: UL94 V-0
  • Battery-Module Net Weight: 99 lb

Size Guide

  • Complete-System Dimensions: 19.7 × 26 × 49.2 in
  • Battery-Module Dimensions: 8.4 × 24.4 × 19.7 in

Compatibility

  • Compatible With: Utility power, generator power, photovoltaic input, Android and iOS monitoring devices, and supported lithium-ion battery expansion.
  • Communication Compatibility: USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi.

Included

Complete-System Option

  • Inverter module
  • 51.2V 100Ah battery module
  • Battery cable for connecting the battery and inverter
  • Software CD
  • User manual
  • Wi-Fi antenna
  • Battery-management communication cable
  • Mounting brackets
  • Mounting hardware
  • Bracket covers
  • Parallel cable
  • Current-sharing cable
  • Battery-to-battery cable
  • Top battery bracket
  • Bottom battery bracket
  • L-shaped plates
  • Battery communication cables

Battery-Only Option

  • 51.2V 100Ah battery module
  • Battery-to-battery cable
  • Top battery bracket
  • Bottom battery bracket
  • L-shaped plates
  • Mounting hardware
  • Battery communication cables
