Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery

SKU RS-B4811
$48,111,599.99
$48,111,599.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

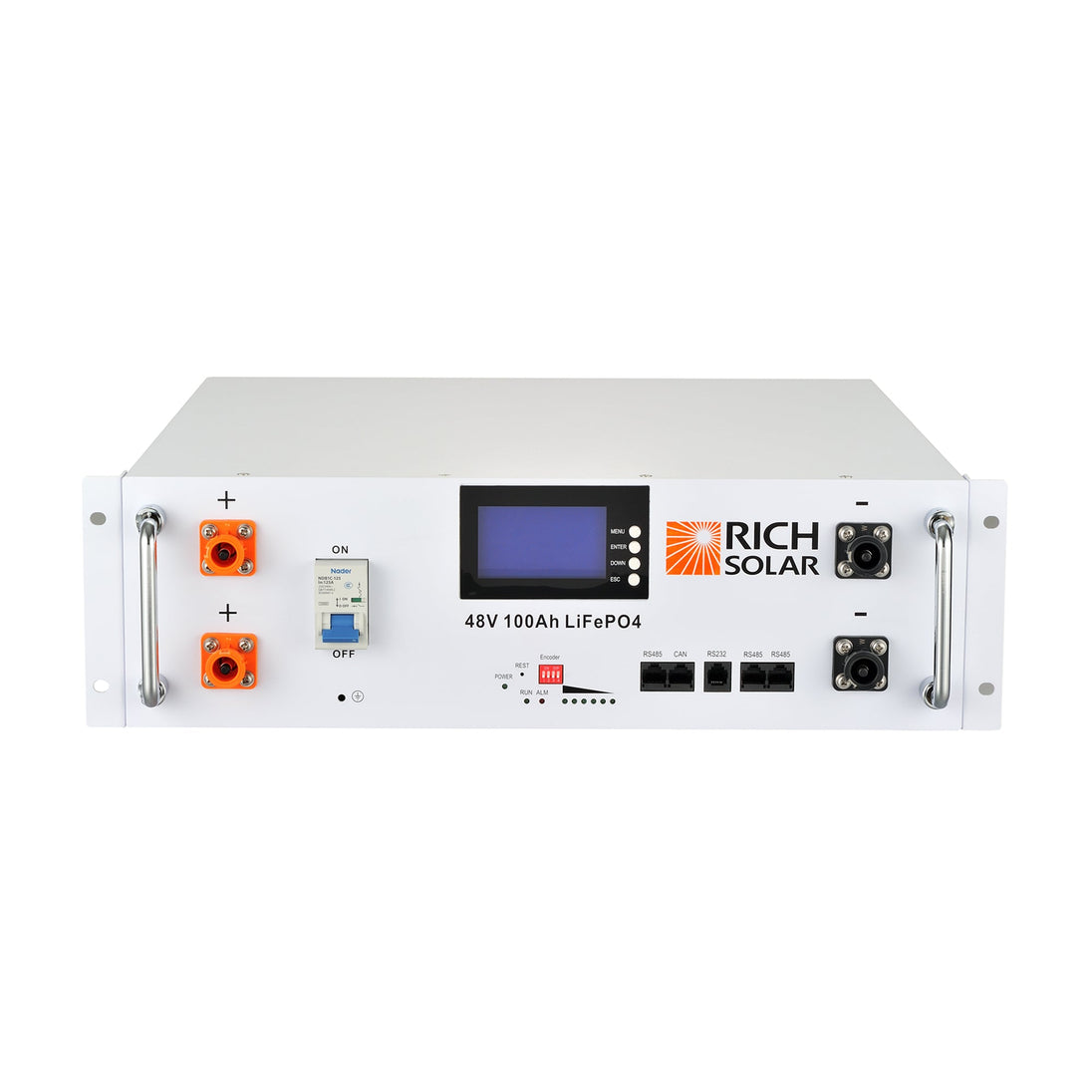

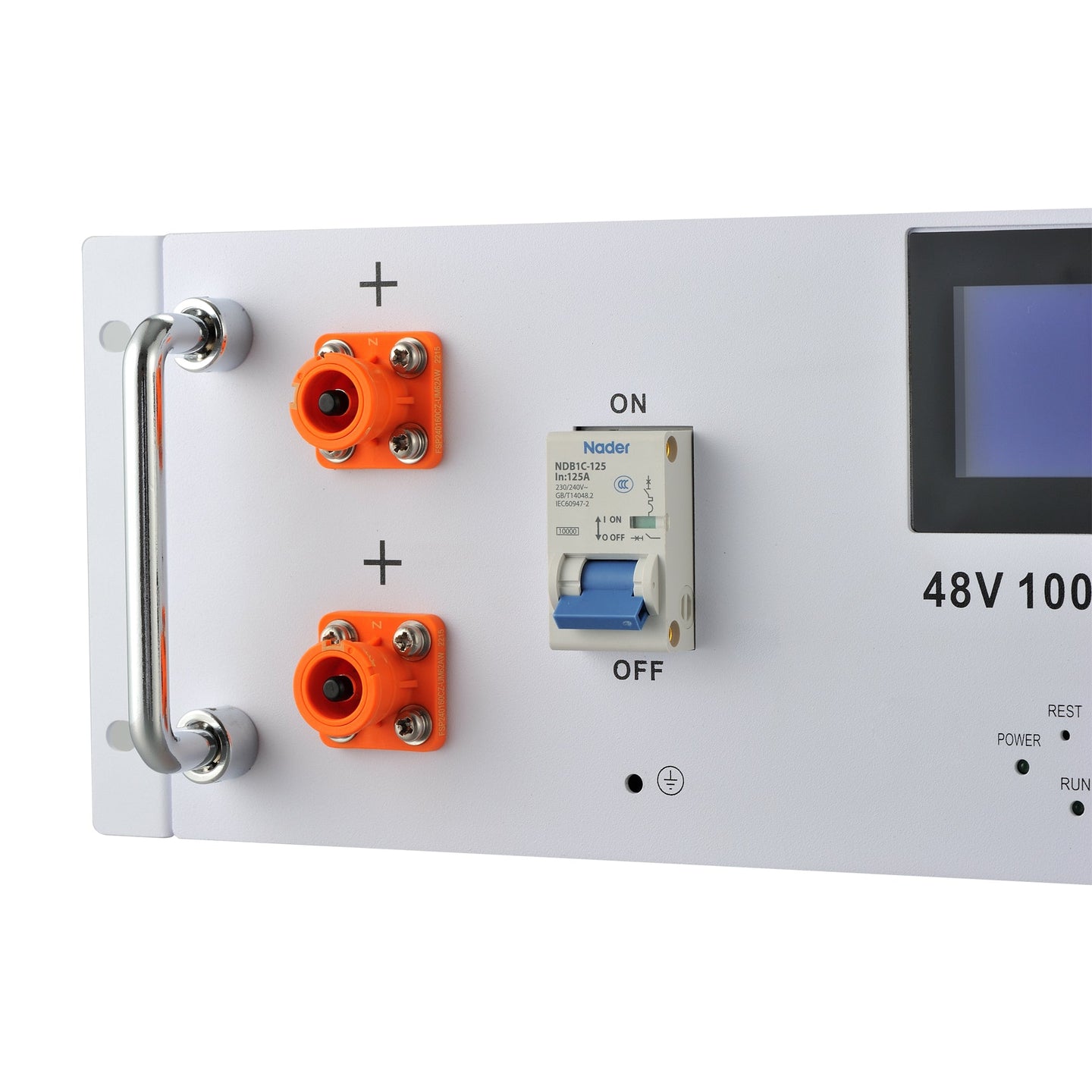

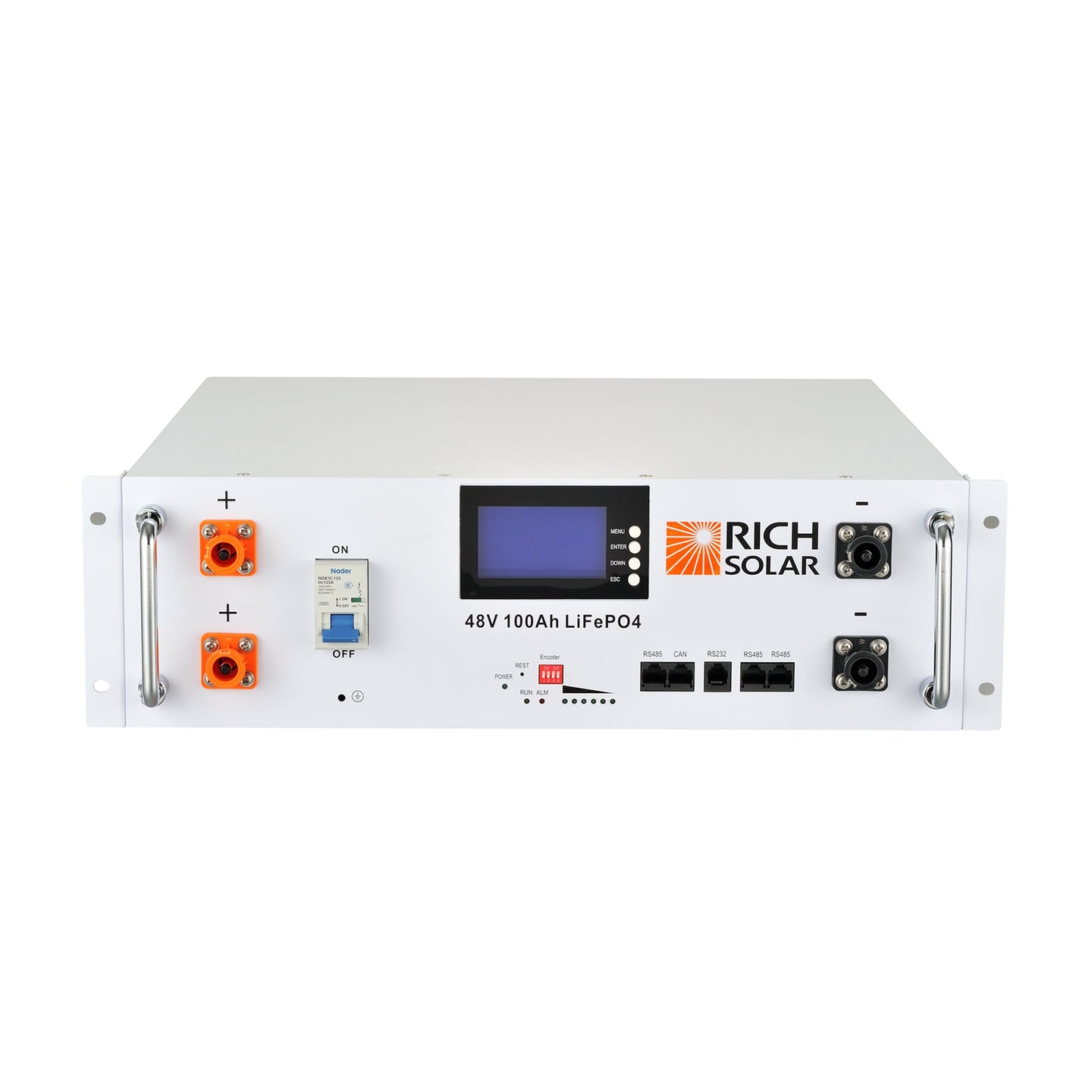

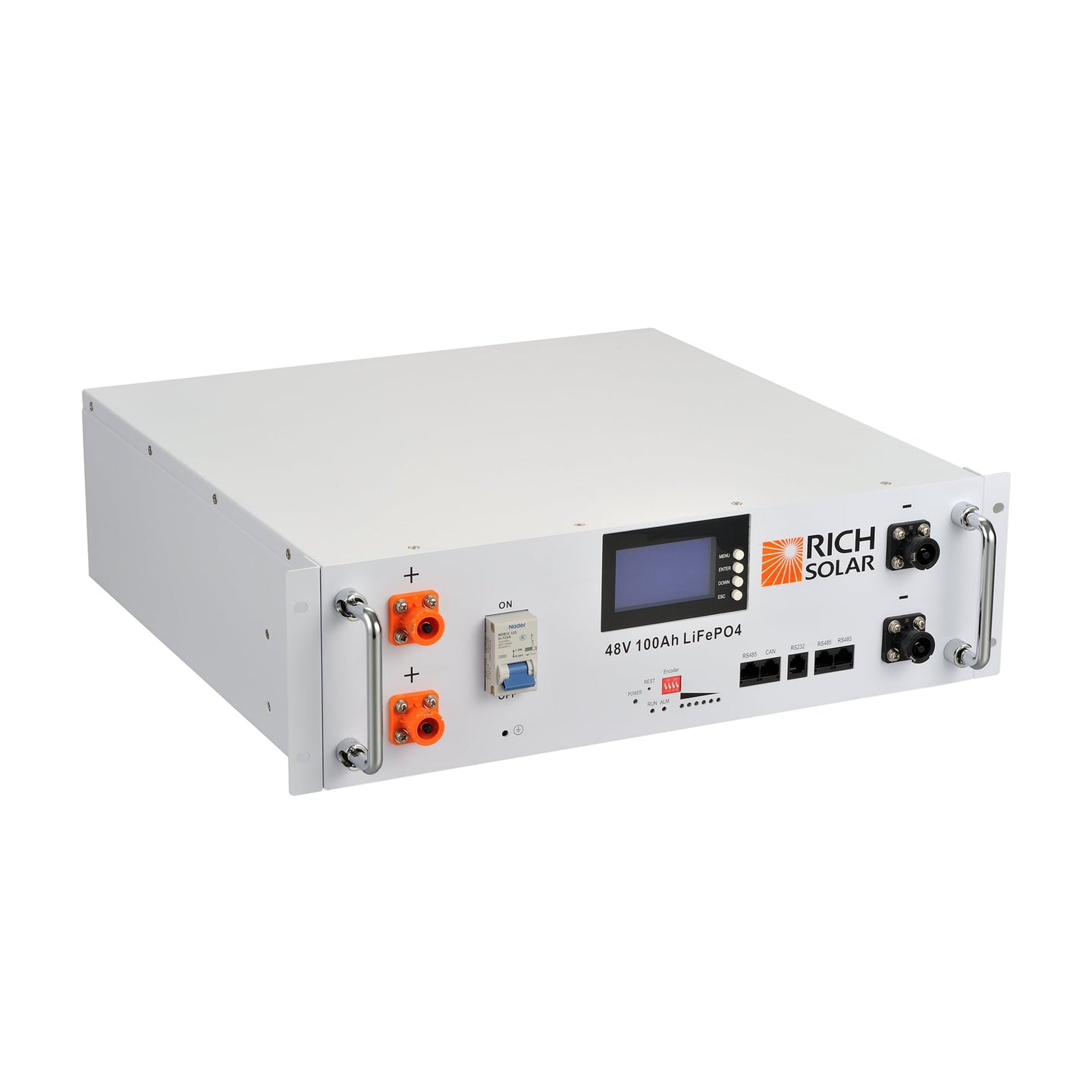

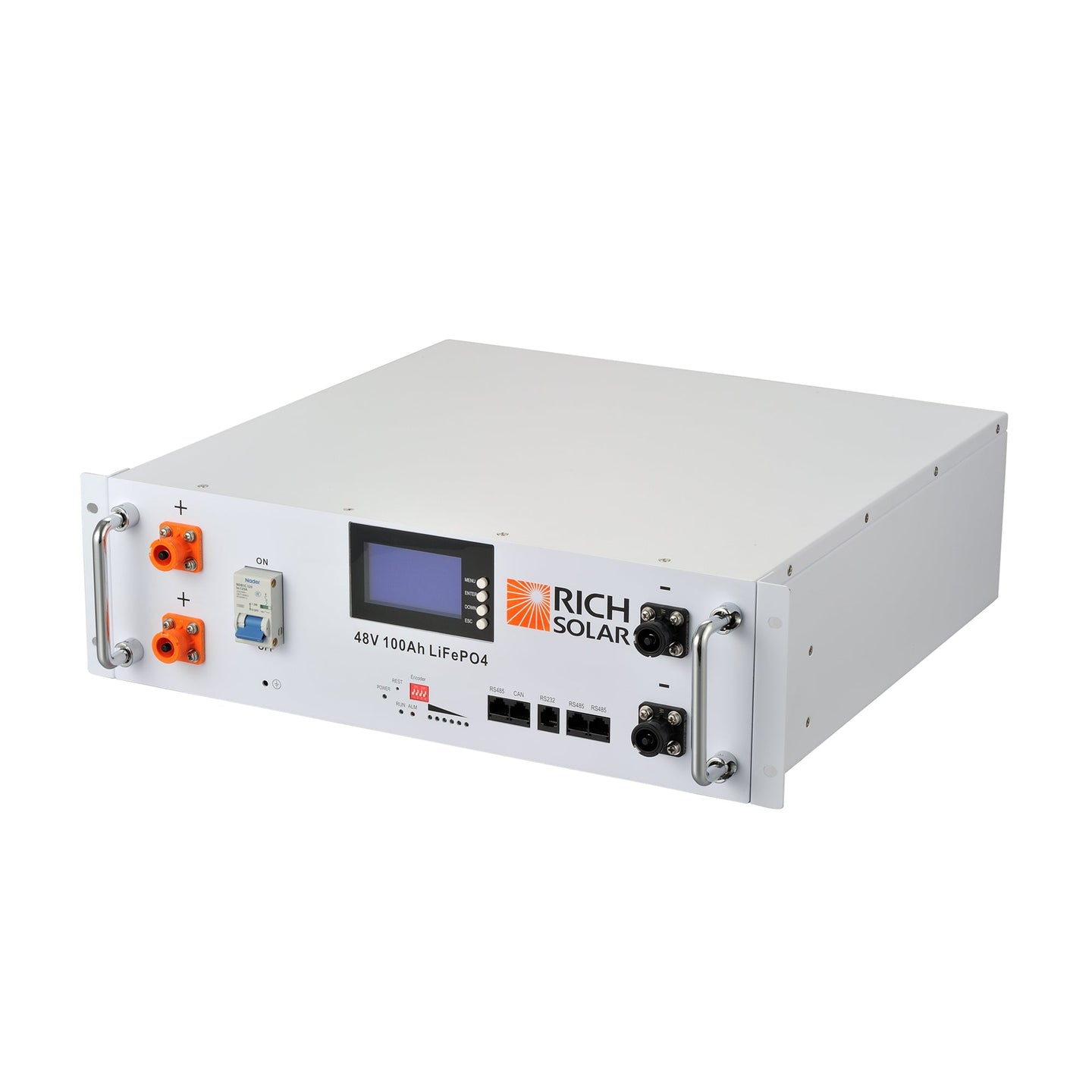

This 48V 100Ah lithium iron phosphate battery is designed for residential, commercial, and off-grid energy-storage applications. It provides 4,800 watt-hours of energy and supports parallel connections when additional storage capacity is needed.

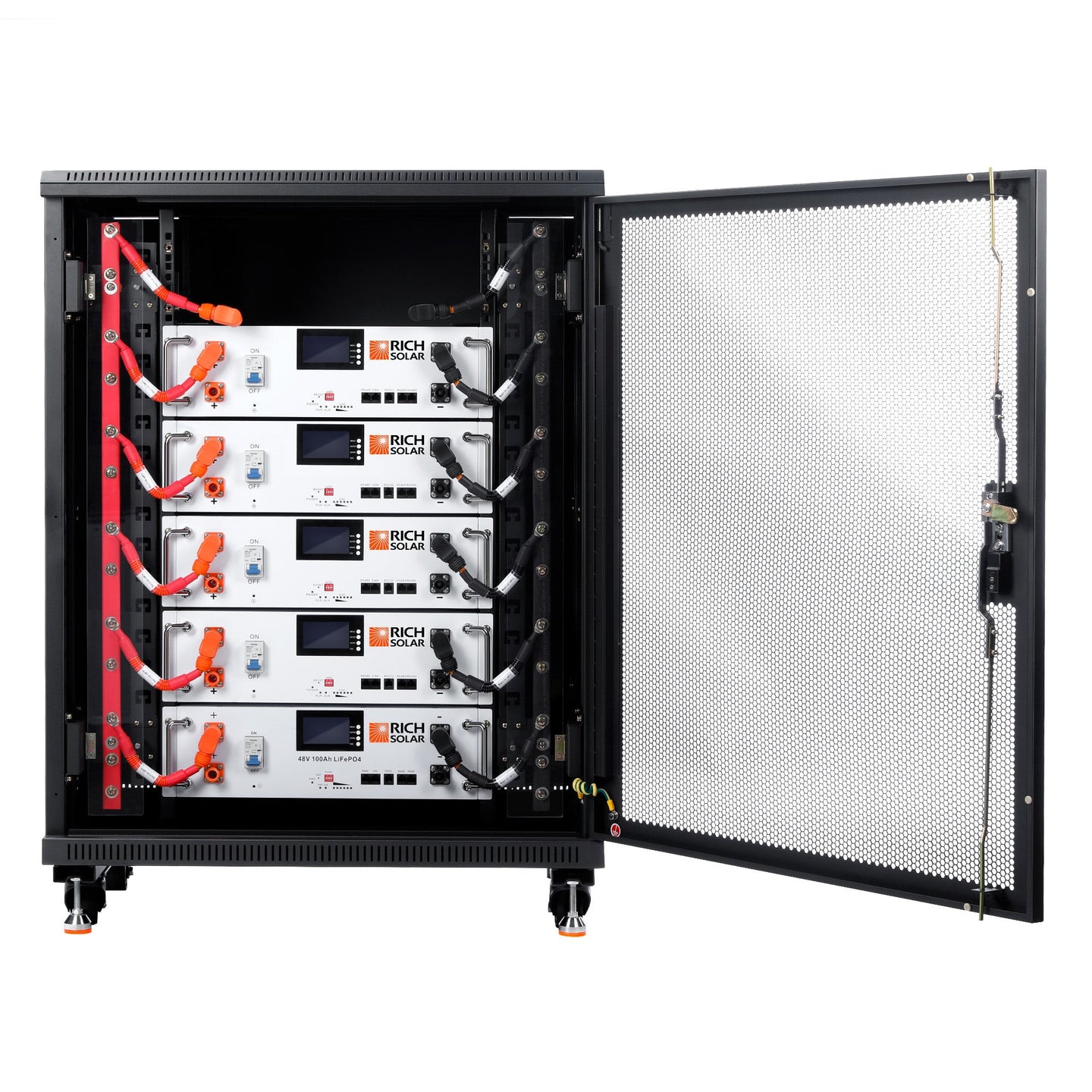

Seven configurations are available: one battery, two batteries, three to six batteries with a free server rack, or the battery server rack by itself. Each battery configuration includes the communication and parallel cables specified below. This product is available for pre-order only, with up to 60 days allowed for delivery.

Key Features

  • Long Cycle Life: Rated for more than 7,000 cycles at a 1C charge and discharge rate, 77°F, and 80% depth of discharge.
  • Expected Lifespan: Designed for a 20-year lifespan with proper maintenance.
  • Smart Battery Management: The built-in BMS provides overcharge, over-discharge, overcurrent, short-circuit, and high- and low-temperature protection.
  • Cell-Level Protection: Each cell is fused so that a failed cell can be isolated while helping prevent damage to the remaining cells.

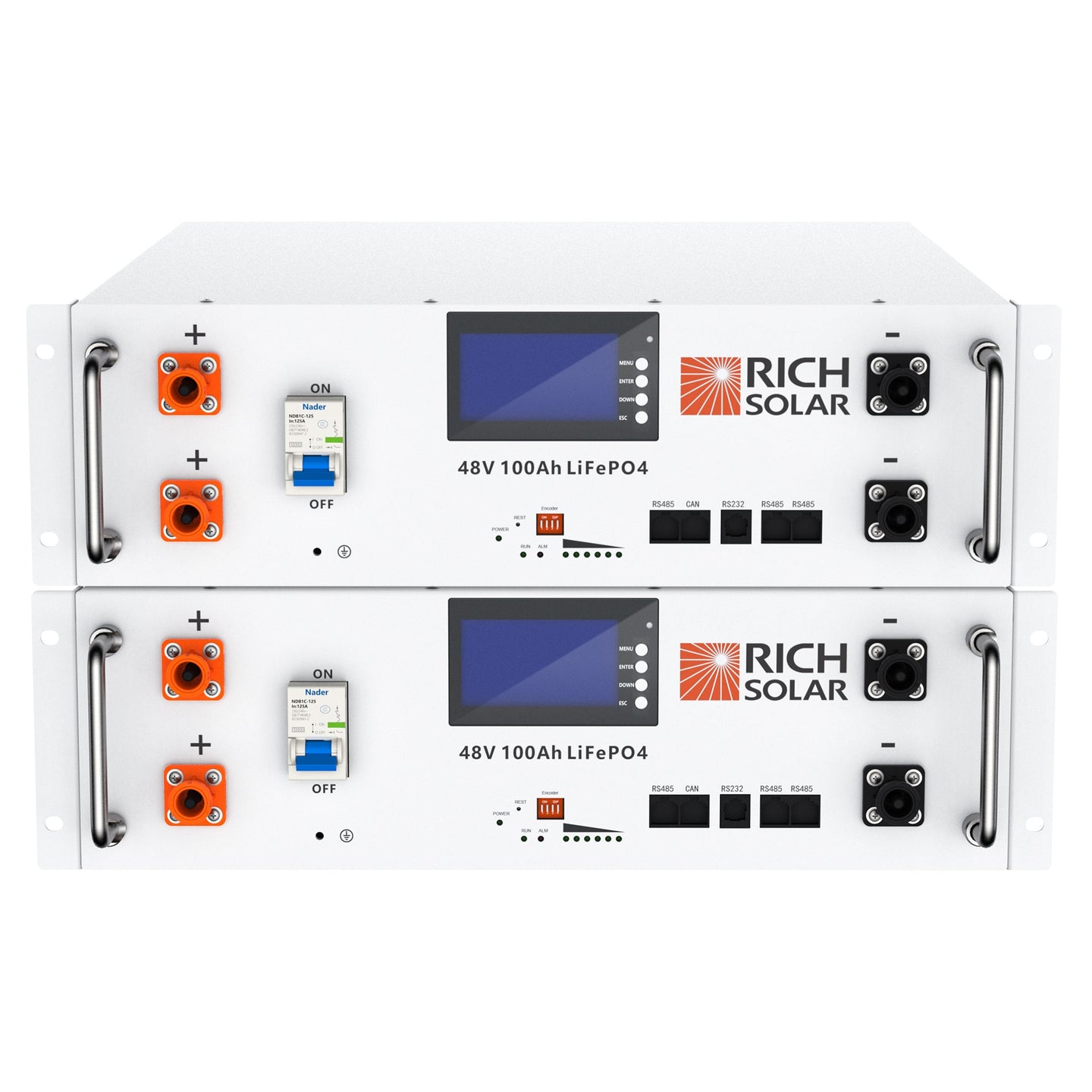

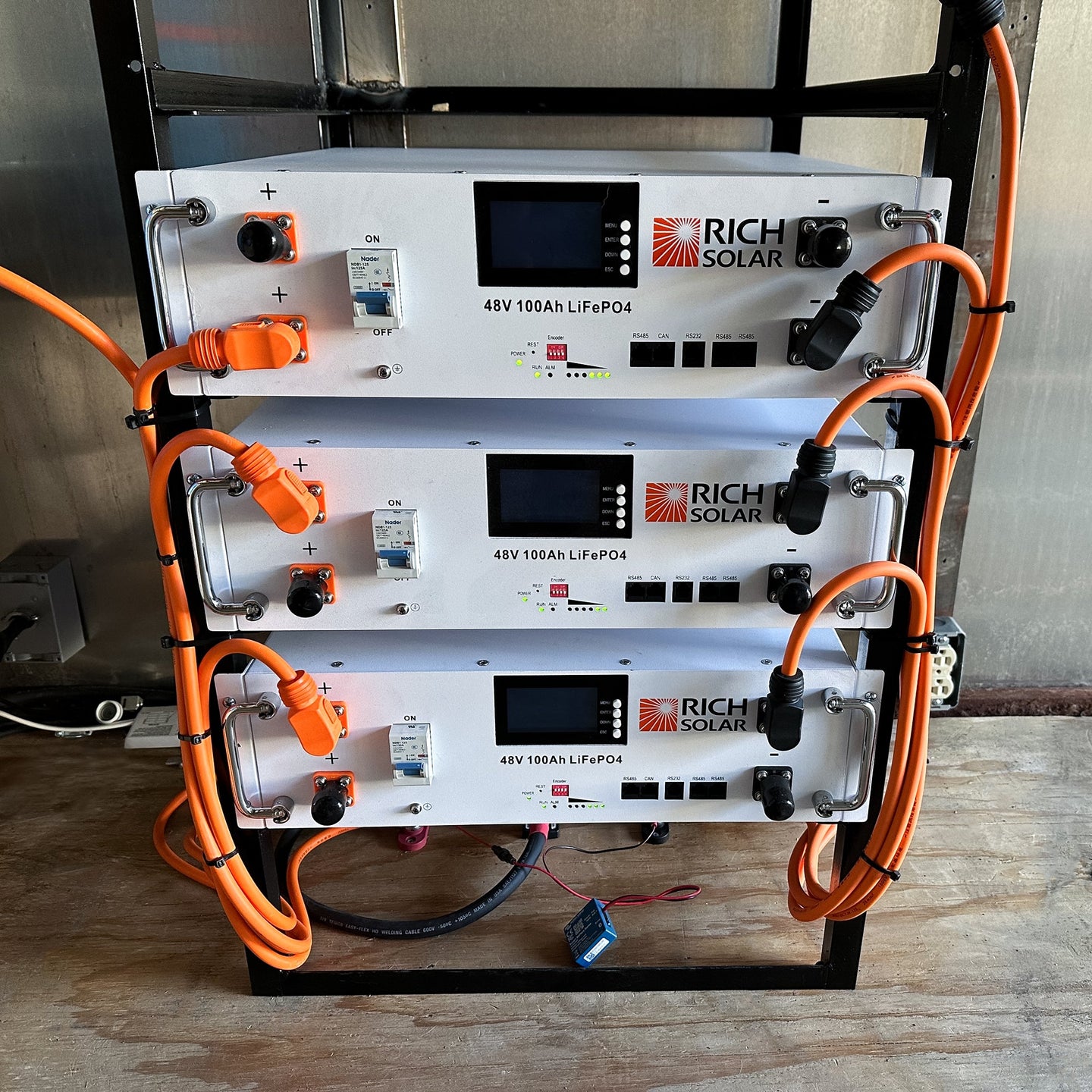

  • Parallel Connection: Batteries can be connected in parallel to increase total storage capacity.
  • Stable Performance: Provides stable output voltage, low self-discharge, high amp capacity, and a wide operating-temperature range.
  • Maintenance: LiFePO4 chemistry requires low maintenance and provides improved thermal and chemical stability.
  • Carry Handles: Removable handles assist with carrying and installation.
  • Pre-Order Availability: Produced based on demand and may require up to 60 days for delivery.

Specifications

  • Battery Chemistry: Lithium iron phosphate (LiFePO4)
  • Nominal Voltage: 48V
  • Operating Voltage: 48V
  • Nominal Capacity: 100Ah at 0.5C and 77°F
  • Minimum Capacity: 99.5Ah at 0.5C and 77°F
  • Energy: 4,800 watt-hours
  • Expected Cycle Life: More than 7,000 cycles at a 1C charge and discharge rate, 77°F, and 80% depth of discharge
  • Charge Method: Smart charger using constant current and constant voltage
  • Charge Voltage Range: 52.0–52.5V
  • Maximum Charge Current: 100A
  • Continuous Charge Current: 100A
  • Maximum Discharge Current: 100A
  • Continuous Discharge Current: 100A
  • Overvoltage Shutdown: 52.5V ± 0.2V
  • Discharge Cut-Off Voltage: 42V ± 0.5V
  • Self-Discharge: Less than 3% per month when stored at 50% state of charge
  • Protection Level: IP20
  • Charge Temperature: 32°F to 113°F
  • Discharge Temperature: -4°F to 122°F
  • Storage Temperature: -4°F to 122°F
  • BMS High-Temperature Cut-Off: 149°F
  • BMS Low-Temperature Cut-Off: 32°F
  • Overcharge Detection Voltage: 3.9V ± 0.05V
  • Overcharge Detection Delay: 0.96–1.4 seconds
  • Overcharge Release Voltage: 3.80V ± 0.05V
  • Maximum Cell Charge Voltage: 3.65V ± 0.05V
  • Over-Discharge Detection Voltage: 2.0V ± 0.05V
  • Over-Discharge Detection Delay: 115–173 milliseconds
  • Over-Discharge Release Voltage: 2.3V ± 0.10V
  • Overcurrent Protection Delay: 9 ± 2 milliseconds
  • Overcurrent Release Condition: Cut load
  • Battery Weight: 92.6 lb
  • Server Rack Weight: 196 lb
  • Server Rack Material: High-quality cold-rolled steel plate
  • Server Rack Protection Level: IP20
  • Server Rack Frame Thickness: Approximately 0.059 in
  • Server Rack Top and Bottom Plate Thickness: Approximately 0.047 in
  • Server Rack Column Thickness: Approximately 0.079 in
  • Server Rack Mesh Door Plate Thickness: Approximately 0.047 in
  • Server Rack Side Plate Thickness: Approximately 0.039 in
  • Server Rack L-Shaped Bracket Thickness: Approximately 0.079 in

Size Guide

  • Battery Dimensions (L × W × H): 19 × 17.7 × 5.2 in
  • Battery Server Rack Dimensions (L × W × H): 27.6 × 27.6 × 44 in

Included

Each battery includes:

  • One 4.8 kWh, 48V 100Ah lithium iron phosphate battery

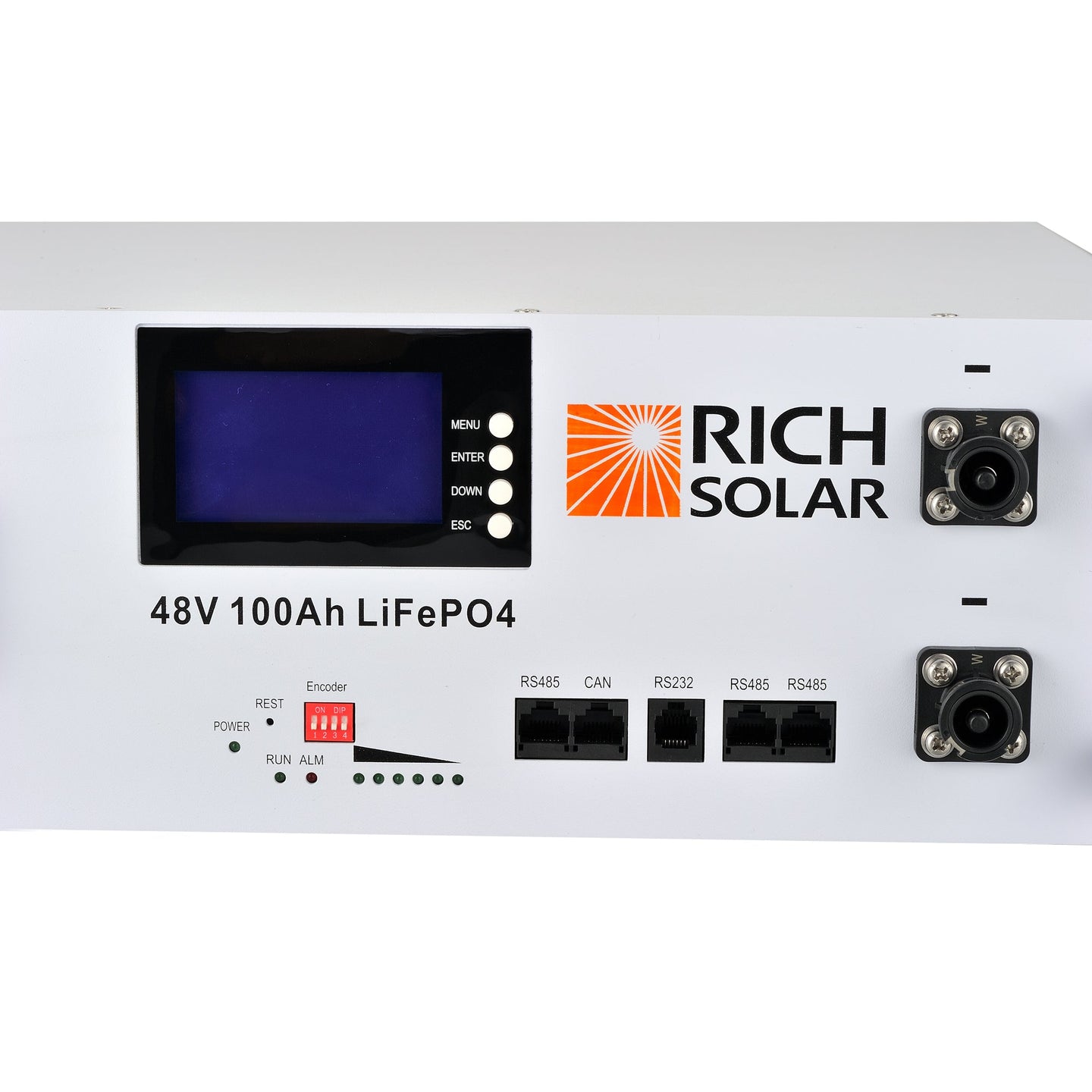

  • One 1-ft RS485 communication cable
  • One set of parallel cables per battery

Configuration-specific contents:

  • 1 Battery Only: One battery and its included cables
  • 2 Batteries Only: Two batteries and included cables for each battery

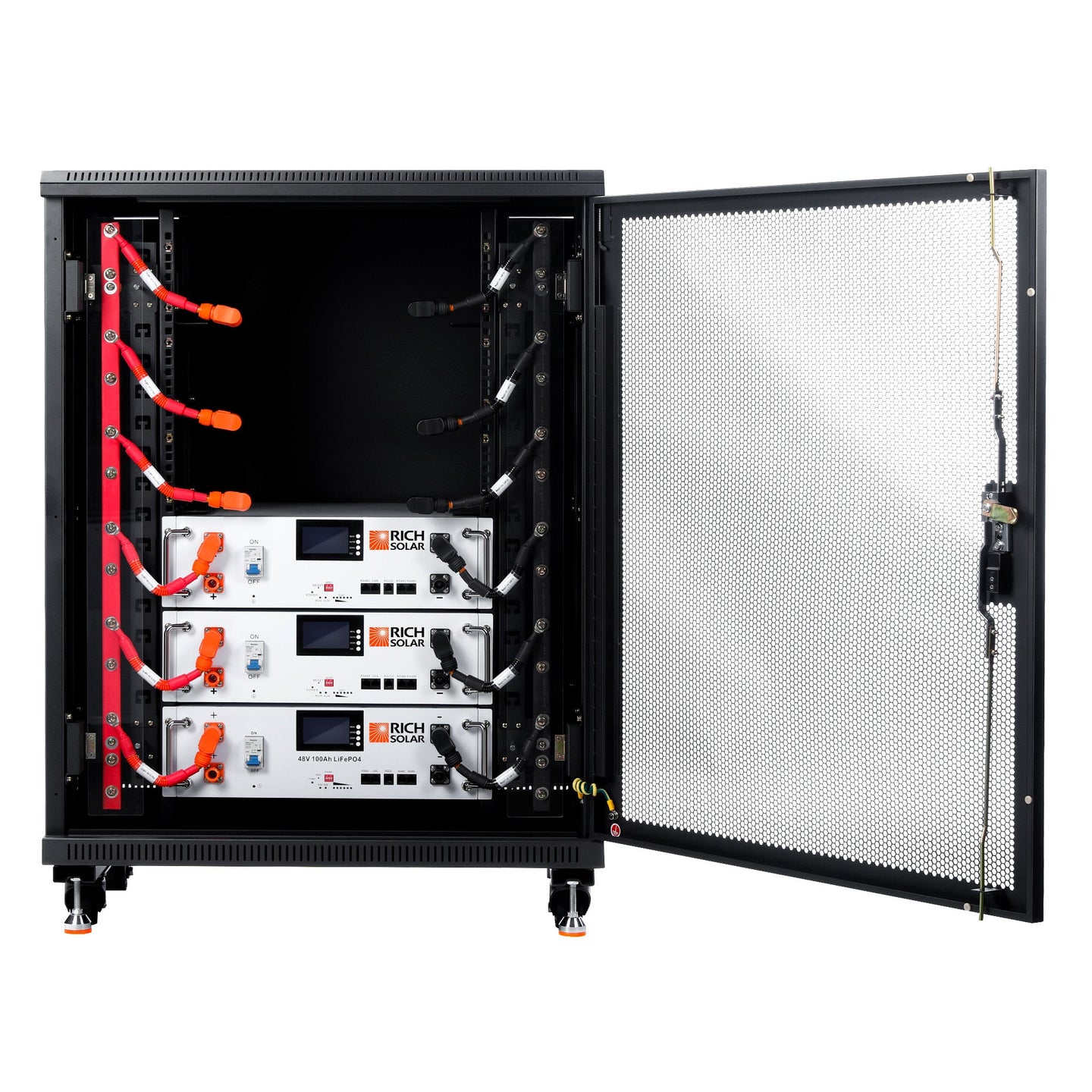

  • 3 Batteries + Free Rack: Three batteries, included cables for each battery, and one free rack

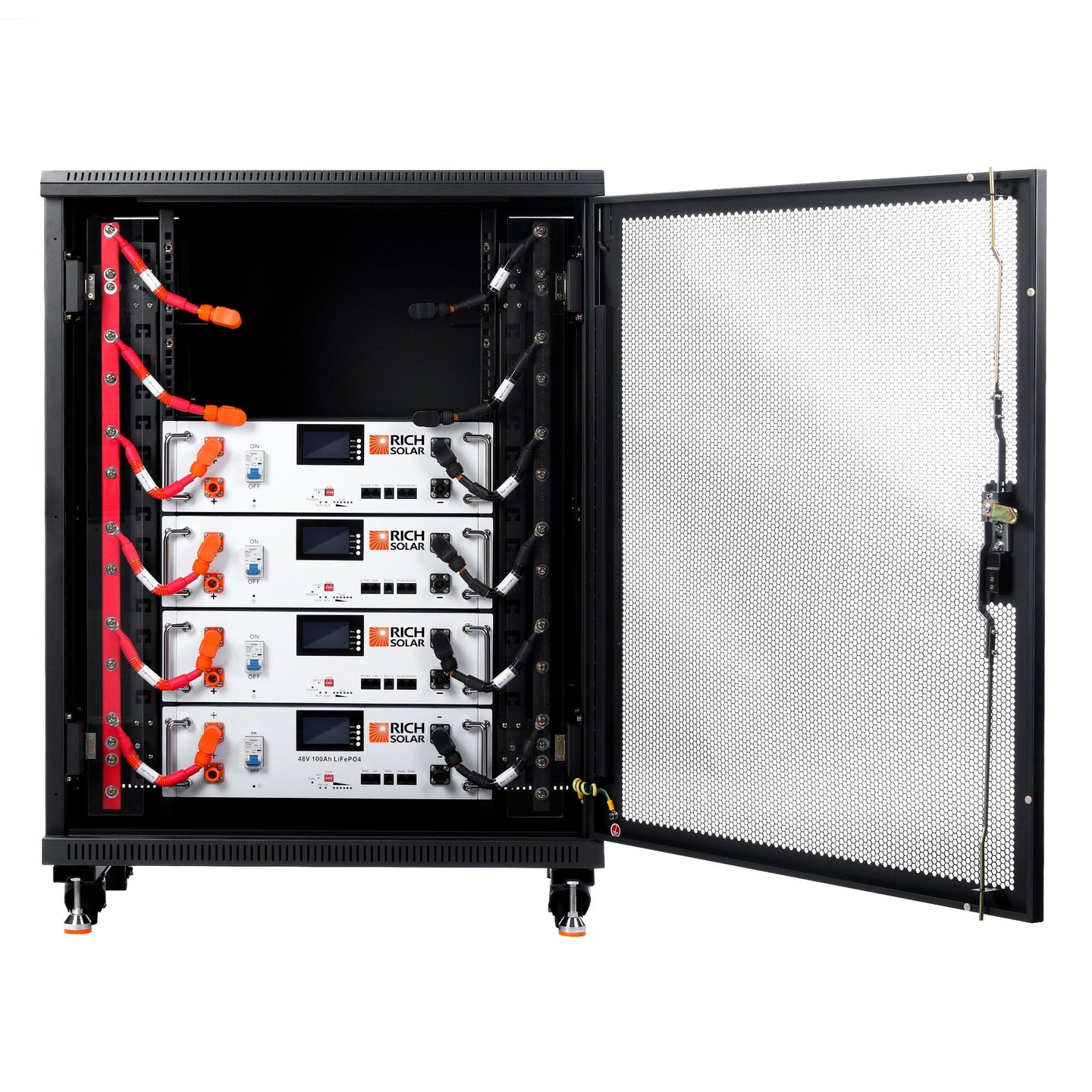

  • 4 Batteries + Free Rack: Four batteries, included cables for each battery, and one free rack
  • 5 Batteries + Free Rack: Five batteries, included cables for each battery, and one free rack

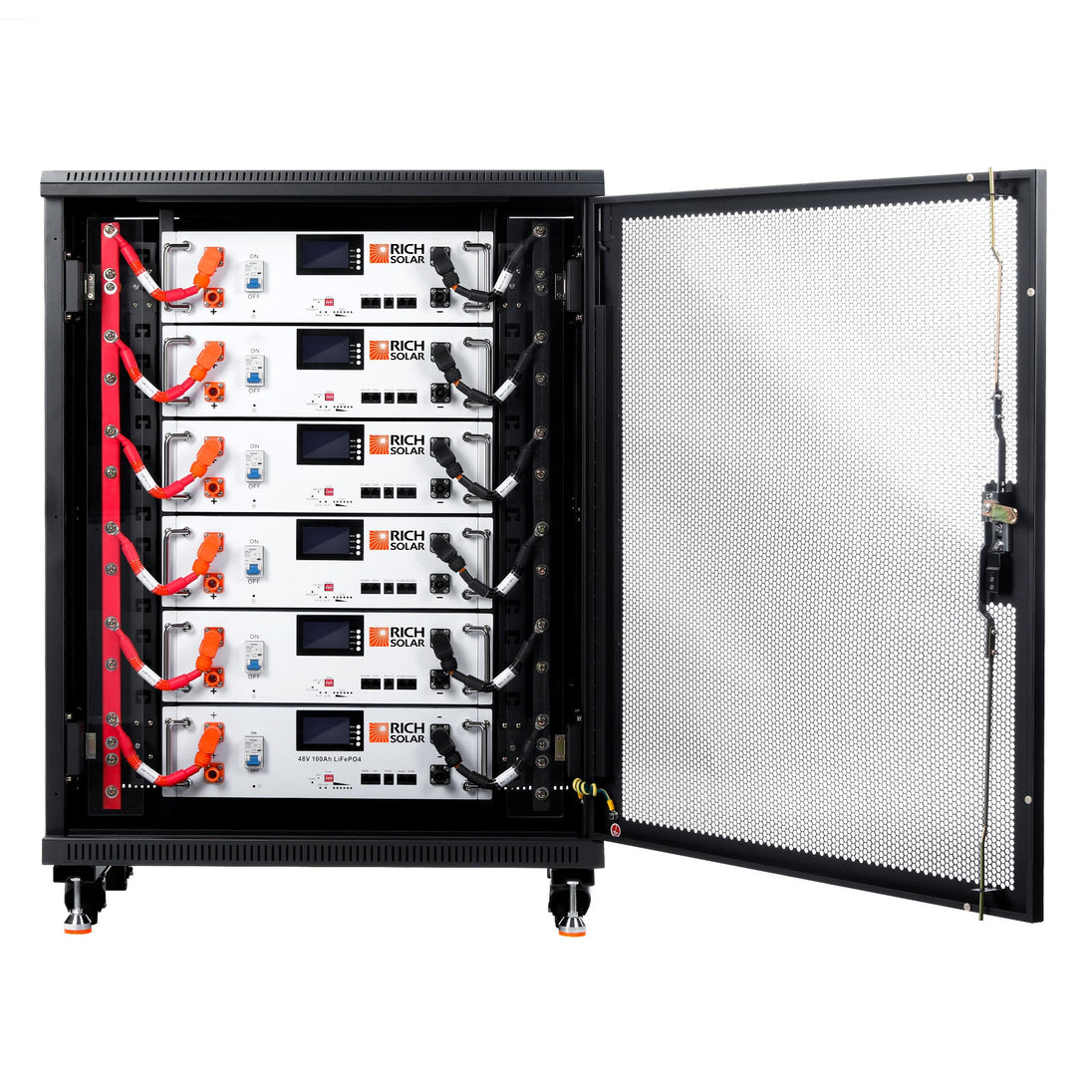

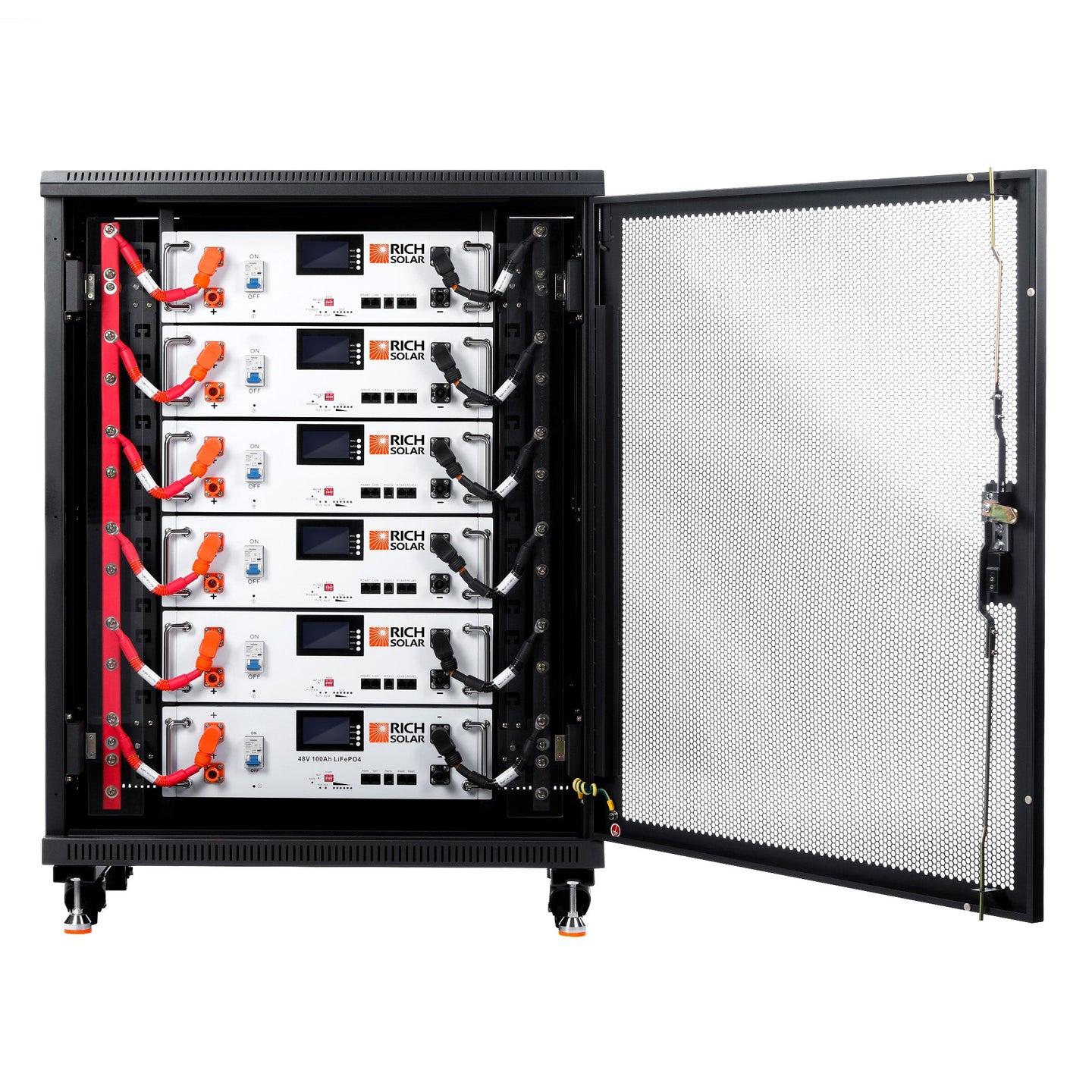

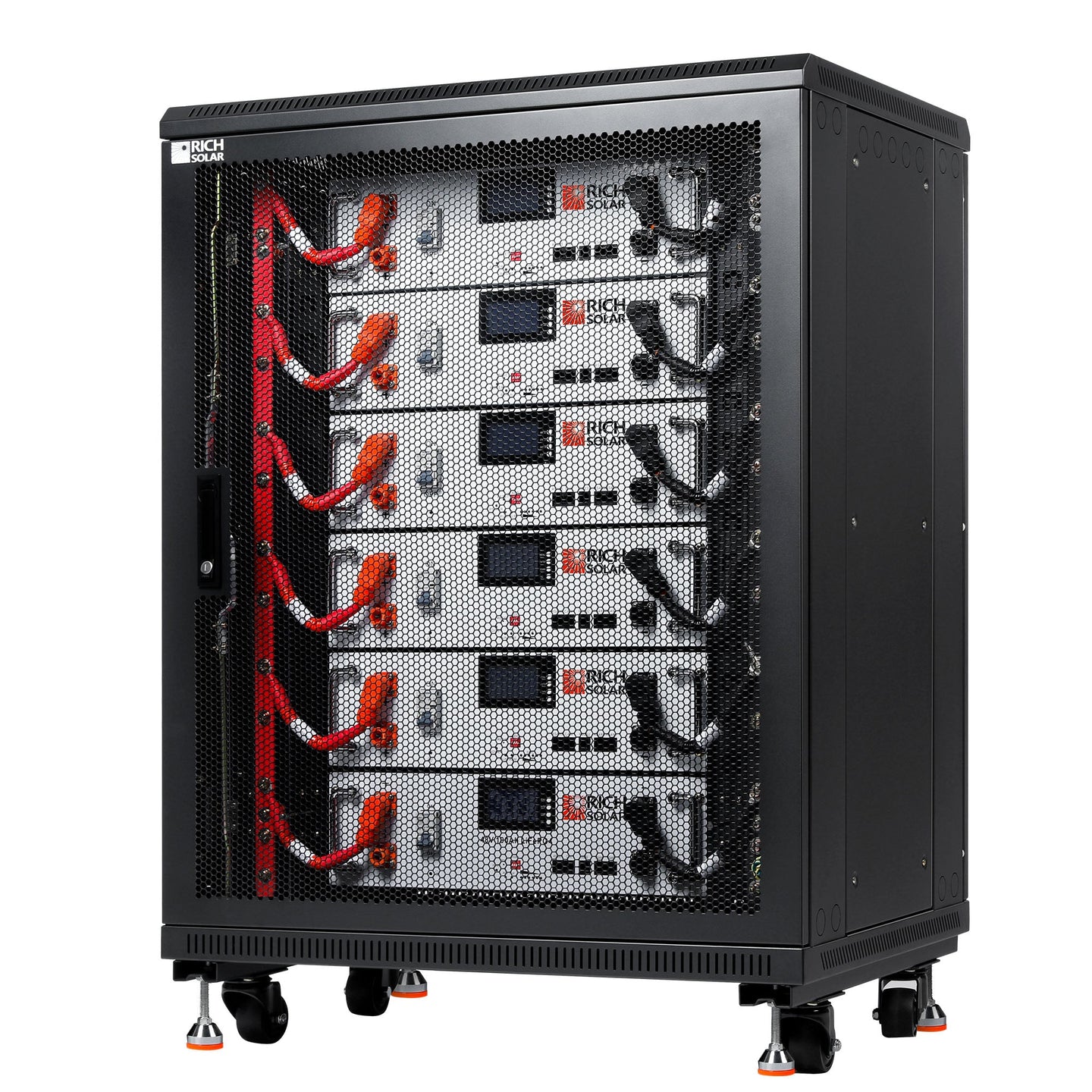

  • 6 Batteries + Free Rack: Six batteries, included cables for each battery, and one free rack

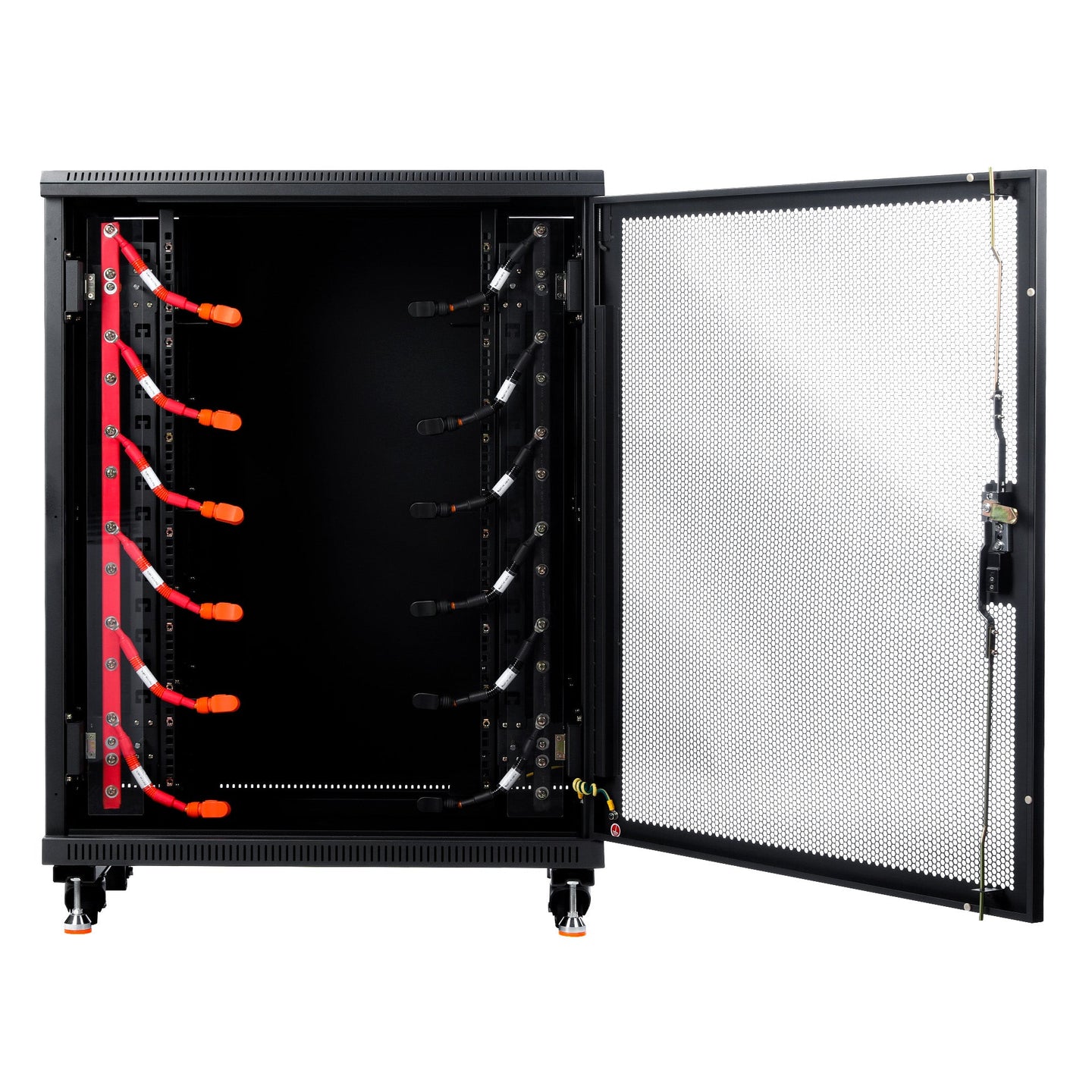

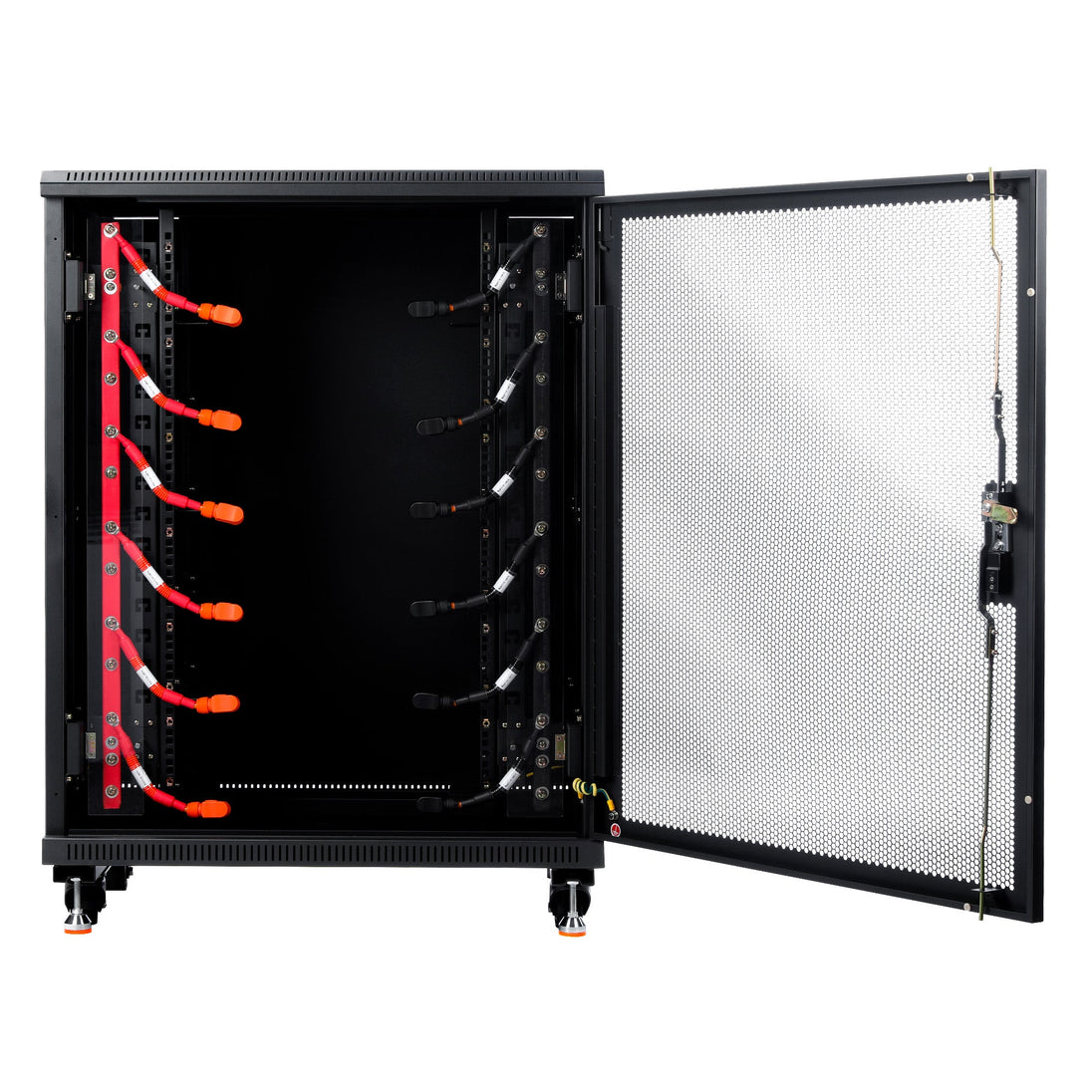

  • Battery Server Rack: Battery server rack
