Rich Solar ALPHA 1 PRO | 12V 100Ah LiFePO4 Battery

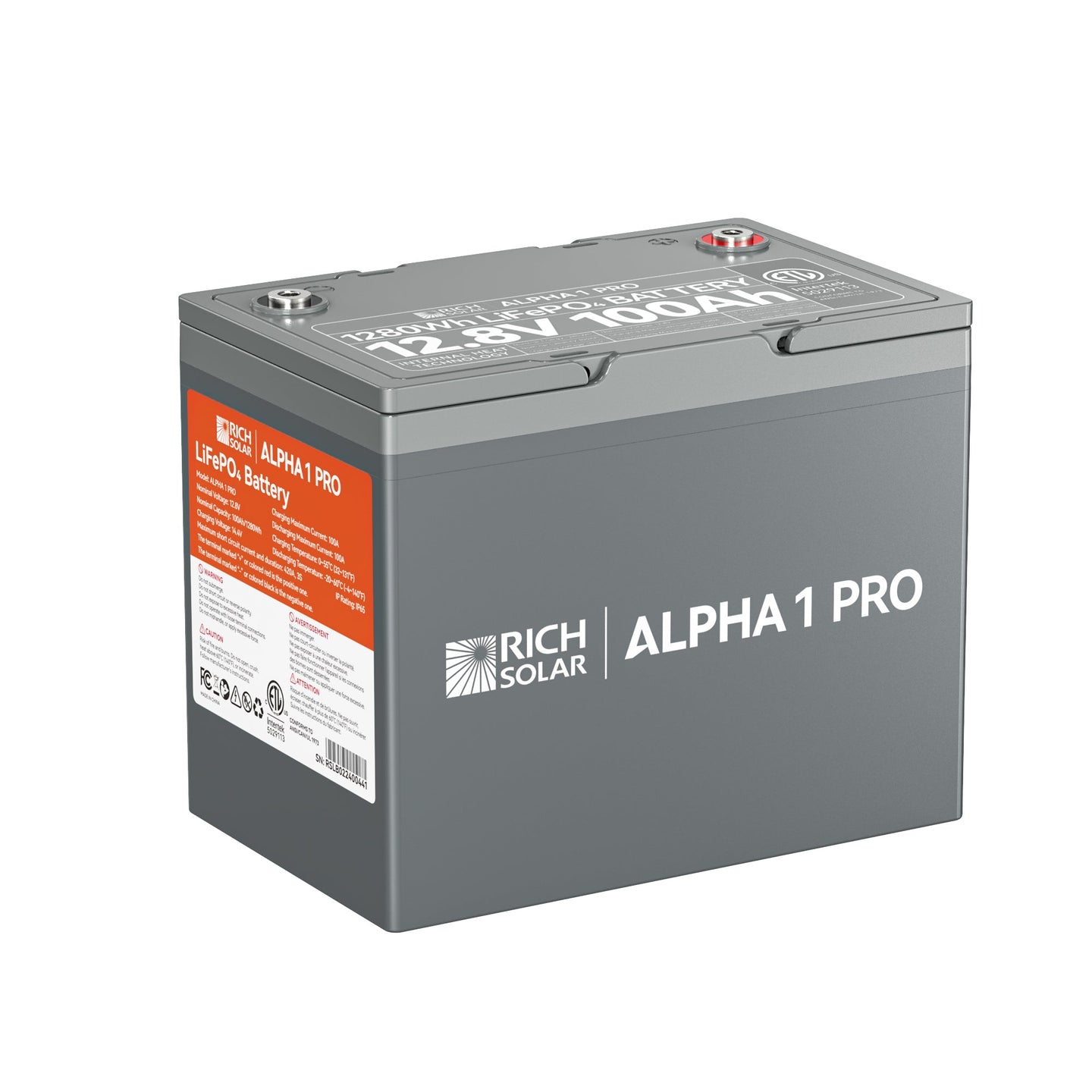

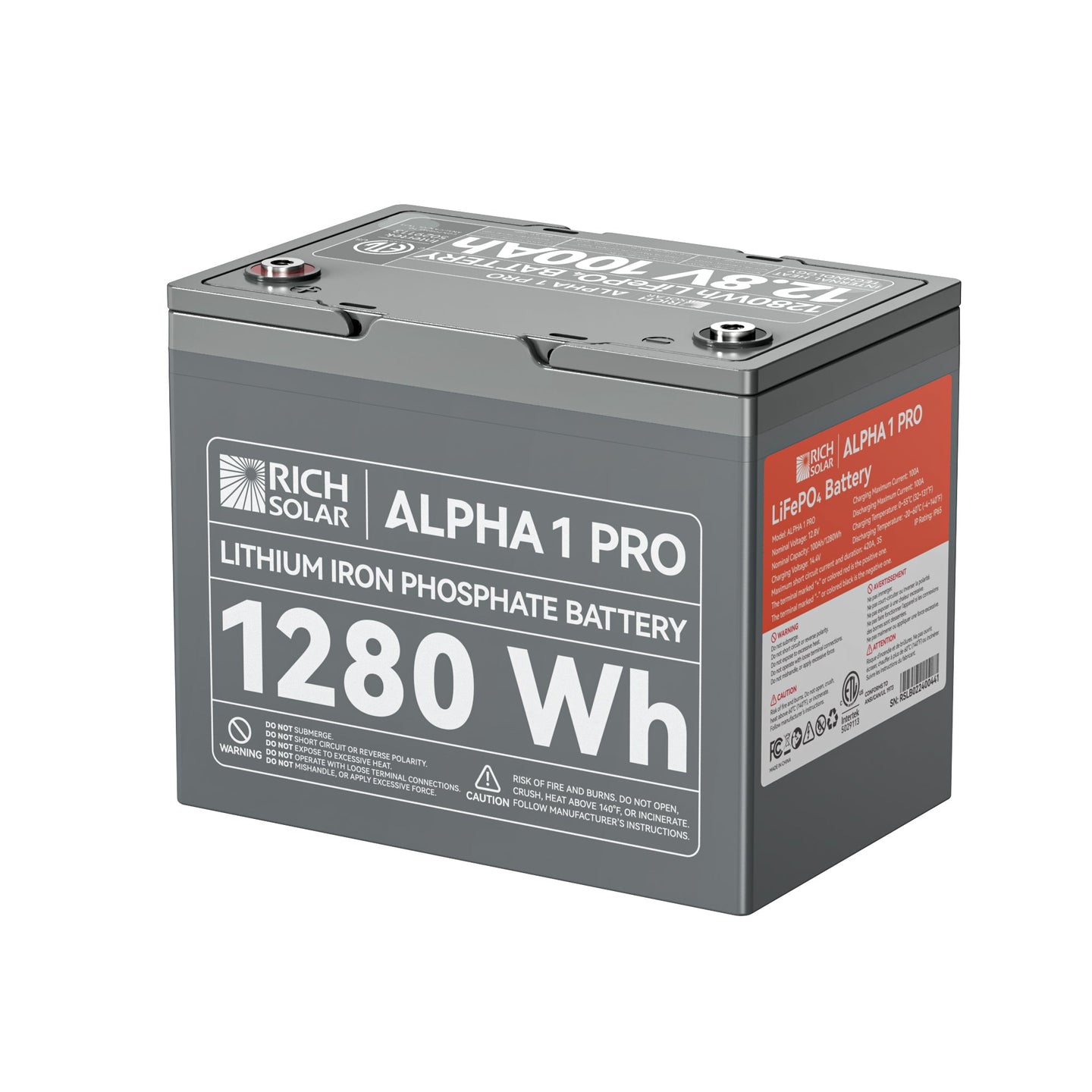

This 12.8V 100Ah lithium iron phosphate battery provides 1,280Wh of electrical energy storage for off-grid systems, RVs, motorhomes, camping, and boats. Its compact plastic enclosure measures 10.2 × 6.6 × 8.3 inches and weighs approximately 24.3 pounds.

Built-in Bluetooth provides mobile access to state of charge, voltage, current, temperature, and capacity data. Internal heating, an integrated battery management system, and multiple official certifications support operation across a range of mobile and off-grid power applications.

Key Features

• Bluetooth Monitoring: View state of charge, voltage, current, temperature, and capacity through the mobile app.
• Barcode Pairing: Supports quick mobile-app setup by scanning the battery barcode.
• Remote Power Control: The mobile app provides remote battery power on/off control.
• Internal Heating Technology: An integrated 100W heater supports charging under low-temperature conditions.
• Automatic Heating Control: Heating activates at an internal temperature of 41°F or lower while charging current is present and stops when the charger is disconnected or the temperature reaches at least 50°F.
• Integrated Battery Management System: Provides overcharge, over-discharge, over-current, short-circuit, cell-balancing, and temperature protection.
• Premium EV-Grade Cells: Uses A+ grade LiFePO4 cells.
• Extended Cycle Life: Rated for at least 7,000 charge and discharge cycles.
• Certified Safety: Holds UL 1973, FCC, UN38.3, and MSDS certifications.
• IP65 Enclosure: The official specification sheet identifies the enclosure as waterproof and dustproof to an IP65 rating.
• Flame-Retardant Shell: The plastic enclosure has a UL94 V-0 flame-retardant rating.
• Parallel Configuration: Supports up to four matching batteries connected in parallel when installed according to the official manual.

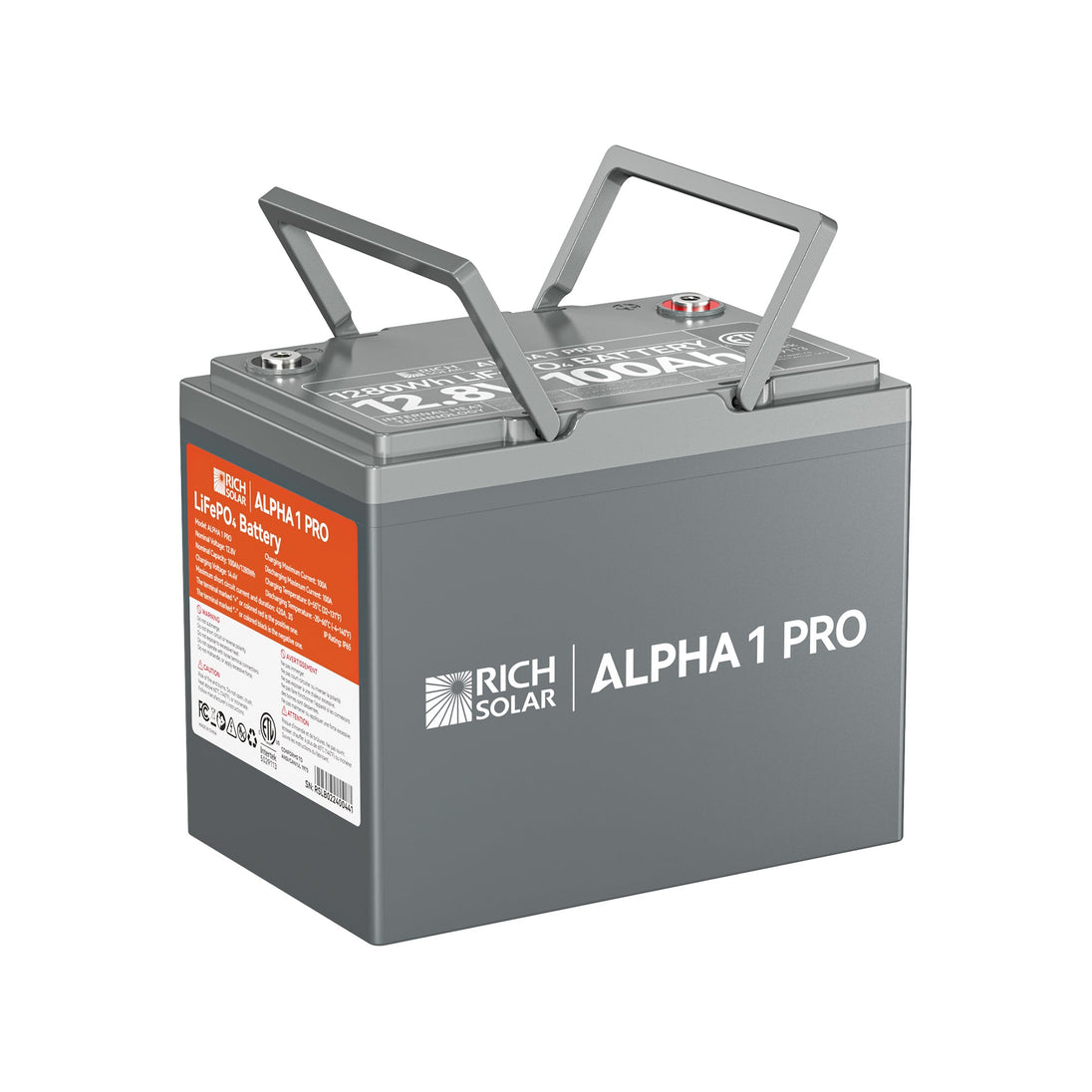

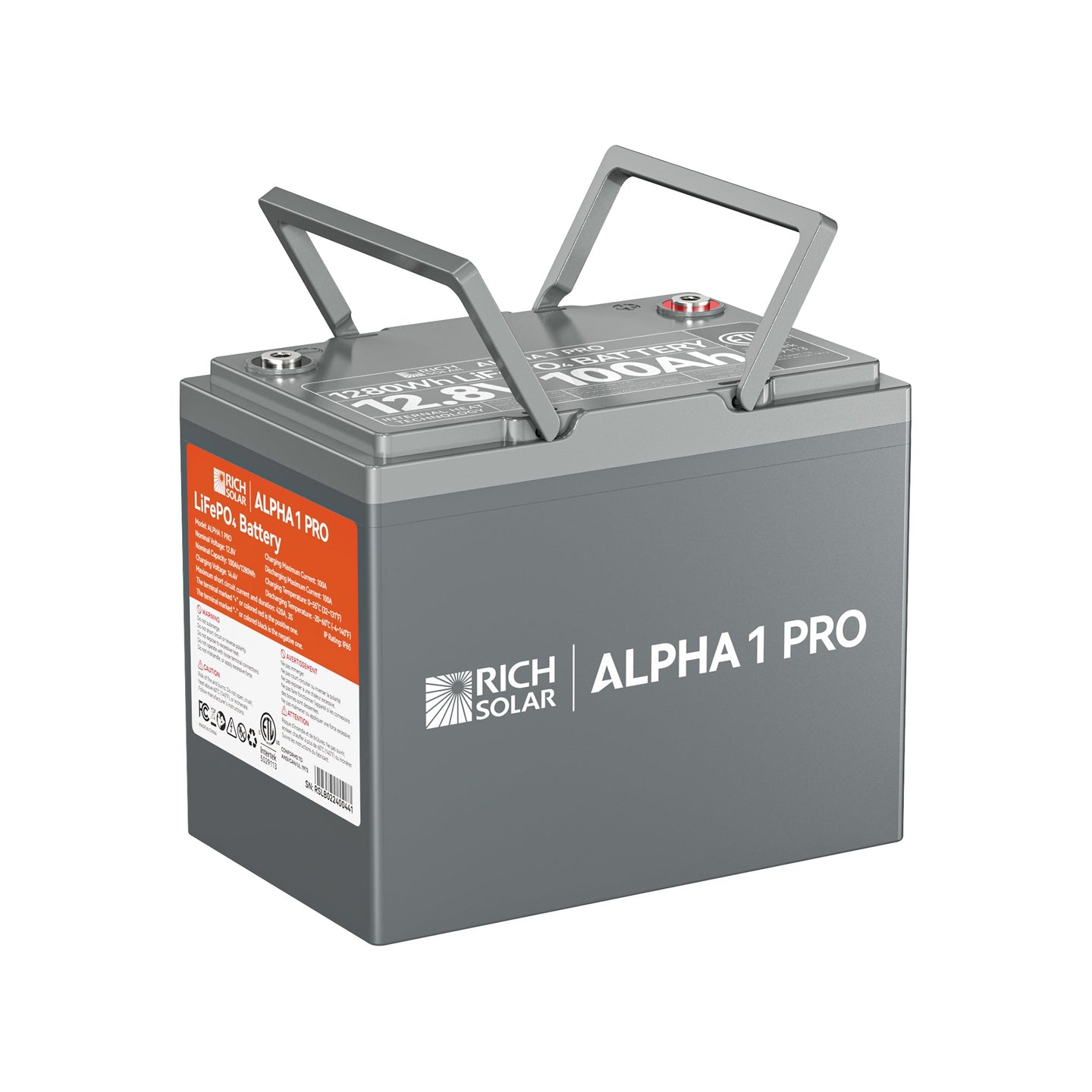

• Integrated Carrying Handle: Includes a case handle for transport and positioning.

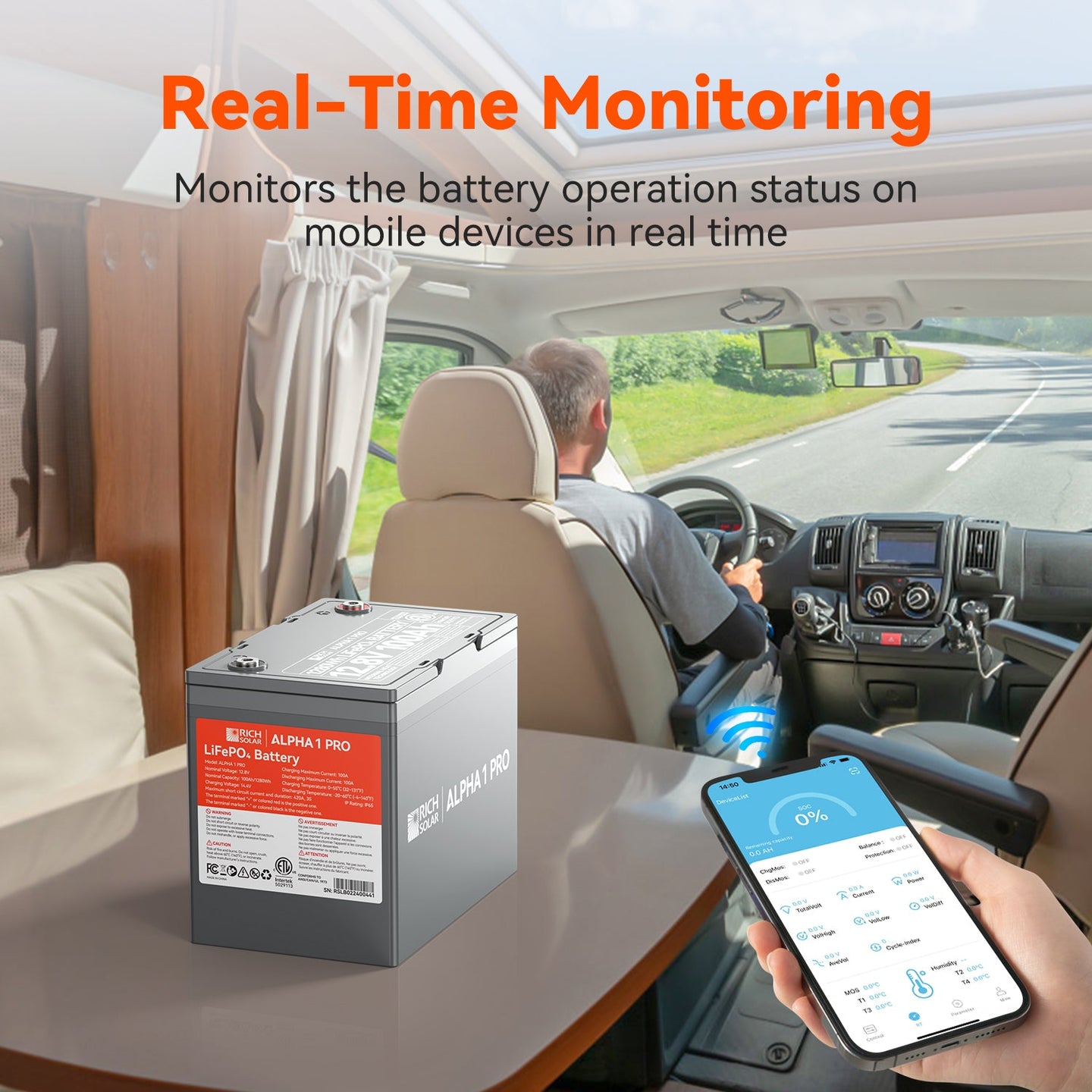

Bluetooth Monitoring with App
Control

• Real-Time Data: Instantly track SOC, voltage, current, temperature, and capacity through the mobile app.
• Easy Pairing & Control: Quick setup with barcode scanning and remote power on/off at your fingertips.
• Peace of Mind Anywhere: Monitor and manage your battery anytime—even off-grid or on the move.

Reliable Protection, Certified
Safety

The 12V 100Ah LiFePO4 battery features a smart BMS and holds UL1973, FCC, UN38.3, and MSDS certifications, ensuring reliable electrical and thermal safety.

• Over Charge Protection
• Over Discharge Protection
• Over Current Protection
• Short Circuit Protection
• Cell Balance Function
• Temperature Protection

Premium A+ Grade Cells

This battery is powered by premium EV-grade LiFePO4 cells, engineered for maximum lifespan, higher efficiency, and zero compromises on safety.

• Built to Last: 7,000+ cycles and a 10-year performance guarantee.
• High Energy Density: Same power output at just one-third the weight.
• Clean & Green: Toxin-free, fully recyclable, and built for a sustainable future.

Specifications

• Battery Type: LiFePO4 battery
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Minimum Capacity: 100Ah
• Nominal Energy: 1,280Wh
• Charging Voltage: 14.4V ± 0.2V
• Discharge Cutoff Voltage: 11.2V
• Standard Charging Current: 50A
• Maximum Charging Current: 100A
• Standard Discharge Current: 50A
• Continuous Discharge Current: 100A
• Maximum Discharge Current: 100A
• Charge Temperature: 32°F to 131°F
• Discharge Temperature: -4°F to 140°F
• Discharge High-Temperature Protection: 149°F ± 9°F
• Discharge High-Temperature Recovery: 140°F ± 9°F
• Charging High-Temperature Protection: 131°F ± 9°F
• Charging High-Temperature Recovery: 122°F ± 9°F
• Charging Low-Temperature Protection: 41°F ± 9°F
• Charging Low-Temperature Recovery: 50°F ± 9°F
• Heating Power: 100W
• Communication Mode: Bluetooth
• Shell Material: Plastic
• Weight: Approximately 24.3 lb
• Initial Internal Resistance: ≤50mΩ at 1000Hz
• Monthly Self-Discharge Rate: ≤5%
• Cycle Life: At least 7,000 cycles
• Ingress Protection Rating: IP65
• Flame-Retardant Rating: UL94 V-0 plastic shell
• Conformance: ANSI/CAN/UL 1973
• Certifications: UL 1973, FCC, UN38.3, MSDS, and ETL
• Battery Terminals: Positive and negative M8 terminals
• Operating Temperature: -4°F to 167°F
• Storage Temperature: 23°F to 104°F at less than 70% humidity for up to one year
• Short-Term Storage Temperature: -22°F to 131°F at 90% RH maximum for less than one month
• Long-Term Storage Temperature: 14°F to 113°F at 90% RH maximum for more than three months
• Recommended Storage Temperature: 14°F to 95°F at 85% RH maximum

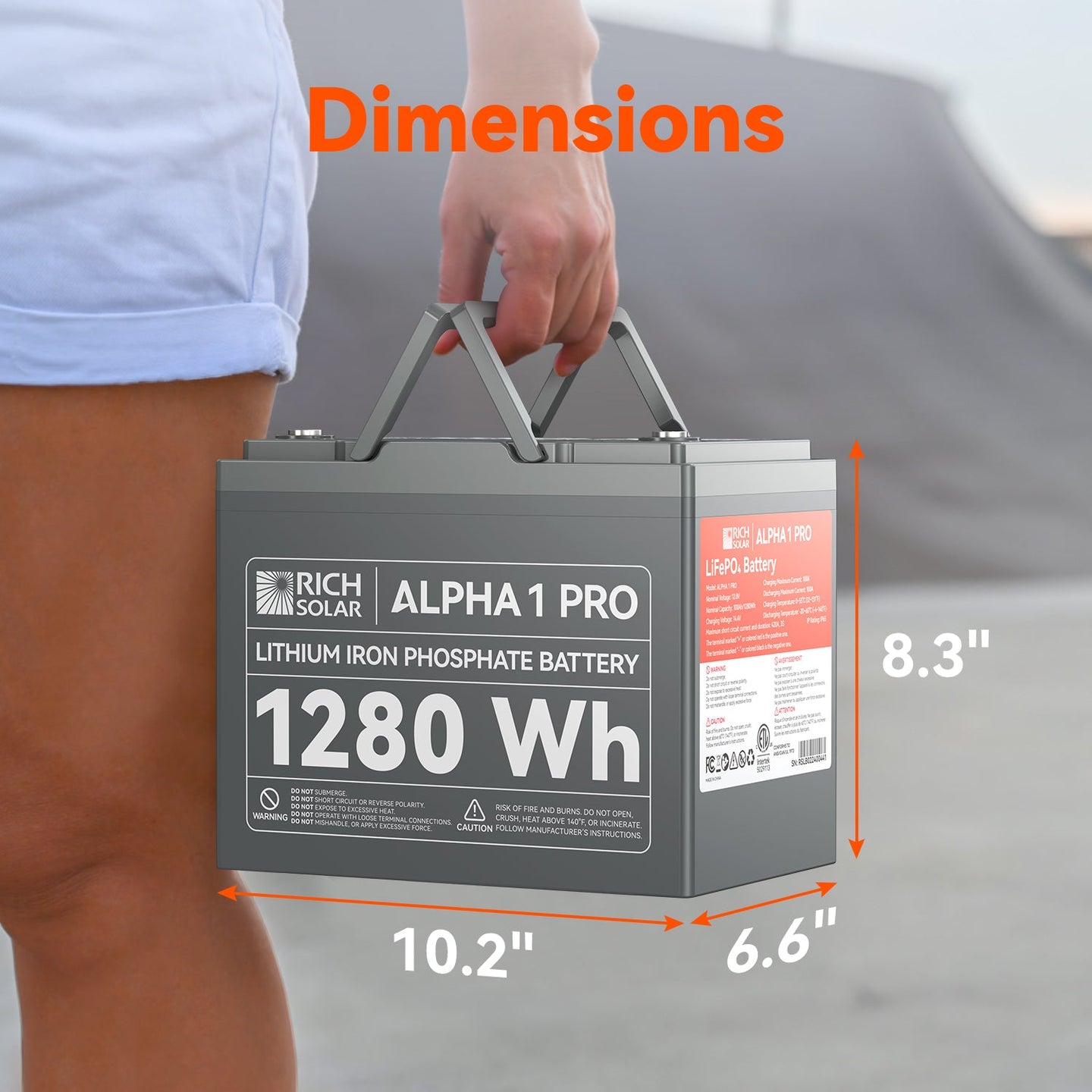

Size Guide

• Overall Dimensions: 10.2 × 6.6 × 8.3 in.
• Dimension Order: Length × width × height

Compatibility

Compatible With: Electrical-power storage systems for off-grid applications, motorhomes, RVs, camping, and boats.

Parallel Configuration: Up to four matching batteries may be connected in parallel according to the official installation manual.

Charging Methods: A 14.4V LiFePO4 charger, a solar-panel system rated above 400W, or a generator with a 20A DC-to-DC charger.

Included

• One 12.8V 100Ah LiFePO4 battery
• Two SUS304 M8 × 12 triple-combination machine screws
• Two SUS304 M8 × 16 triple-combination machine screws
• Two SUS304 M8 × 20 triple-combination machine screws
• One user manual
