Rich Solar

Rich Solar Basic 200 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications

SKU RS-K2002
$1,199.99
$1,199.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

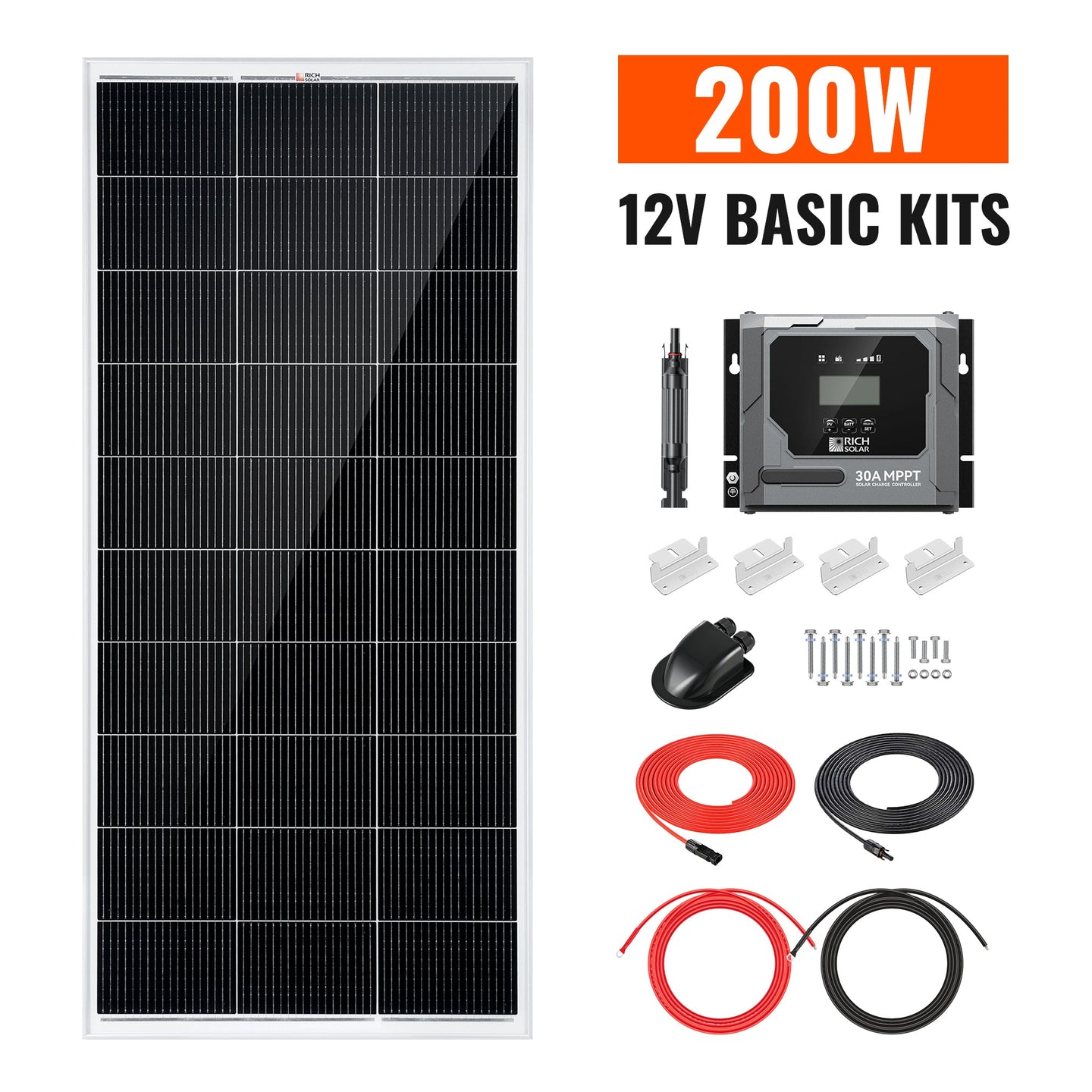

This 200-watt solar charging kit combines a monocrystalline solar panel, a 30-amp MPPT charge controller, mounting hardware, protection components, and the cables needed to connect the panel, controller, and battery. It is intended for RVs, vans, travel trailers, and other mobile or off-grid applications.

The included controller automatically detects 12V or 24V systems and supports multiple battery chemistries. This listing is exclusively for the 200W Basic Solar Kit and does not include a battery or inverter.

Key Features

  • Complete Solar Charging Package: Includes a solar panel, MPPT controller, mounting brackets, cable-entry housing, inline fuse, and connecting cables.
  • Monocrystalline Solar Panel: Uses an 18-busbar monocrystalline panel rated for 200 watts.
  • Low-Light Operation: The panel is designed to maintain production during mornings, evenings, cloudy weather, and other low-light conditions.
  • Durable Panel Construction: Features high-transmission, anti-reflective coated tempered glass and an anodized aluminum frame.
  • Flexible Mounting: Fourteen pre-drilled holes support installation with Z-brackets, ground mounts, pole mounts, and tilt mounts.
  • Series or Parallel Wiring: The panel includes quick-connect cables and supports series or parallel configurations.
  • MPPT Charging Technology: The controller provides up to 99.5% MPPT tracking efficiency and up to 98% conversion efficiency.
  • Automatic Voltage Detection: The controller automatically detects 12V and 24V battery systems.
  • Multiple Battery Profiles: Supports GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO4, LTO, LCO, and custom battery settings.
  • Configurable Charging: Uses a multistage charging algorithm with customizable parameters.
  • Integrated Monitoring: The LCD and LED display shows solar input, battery status, and configurable settings.
  • Bluetooth Connectivity: Built-in Bluetooth enables monitoring through the mobile application.
  • Electrical Protection: Includes overvoltage, reverse-polarity, short-circuit, and over-temperature protection.
  • Weather-Resistant Controller Construction: Features an IP43-rated PCBA and IP22-rated connections.
RICH SOLAR MEGA 200 200W Solar Panel

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR Bravo 30A MPPT Solar Charge Controller

Bravo 30A

30 Amp MPPT Solar Charge Controller

Features:

1. Advanced MPPT Technology

  • Advanced MPPT algorithm with up to 99.5% tracking efficiency
  • 98% conversion efficiency for maximum solar energy utilization
  • Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

  • Auto-detects 12V/24V systems for seamless integration
  • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
  • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

  • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
  • Weather-resistant build with IP43-rated PCBA and IP22 connectors
  • Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

  • LCD + LED display: Real-time solar input, battery status, and customizable parameters
  • Built-in Bluetooth for App monitoring (Rich Solar App)
  • Optional remote meter and temperature sensor for enhanced control

Specifications:

Maximum Solar Input Current: 30A
Maximum Charging Current: 30A
Recommended Solar Power: 500W (12V) / 1000W (24V)
Nominal System Voltage: 12V/24V Auto-Detect
Solar Input Voltage Range: 8V-100V
MPPT Voltage Range: 15V-72V
Maximum Conversion Efficiency: 98%
Maximum MPPT Tracking Efficiency: 99.5%
Battery Compatibility: GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, Custom
Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating: IP43 PCBA, IP22 Connection
Net Weight: 1.8 lb
Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in


Compatibility

Compatible With: 12V and 24V battery systems; GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO4, LTO, LCO, and custom battery profiles; RVs, vans, travel trailers, boats, cabins, mobile installations, and off-grid applications

Compatible Mounting Systems: Z-brackets, ground mounts, pole mounts, and tilt mounts

Compatible Inverter Applications: On-grid and off-grid inverters

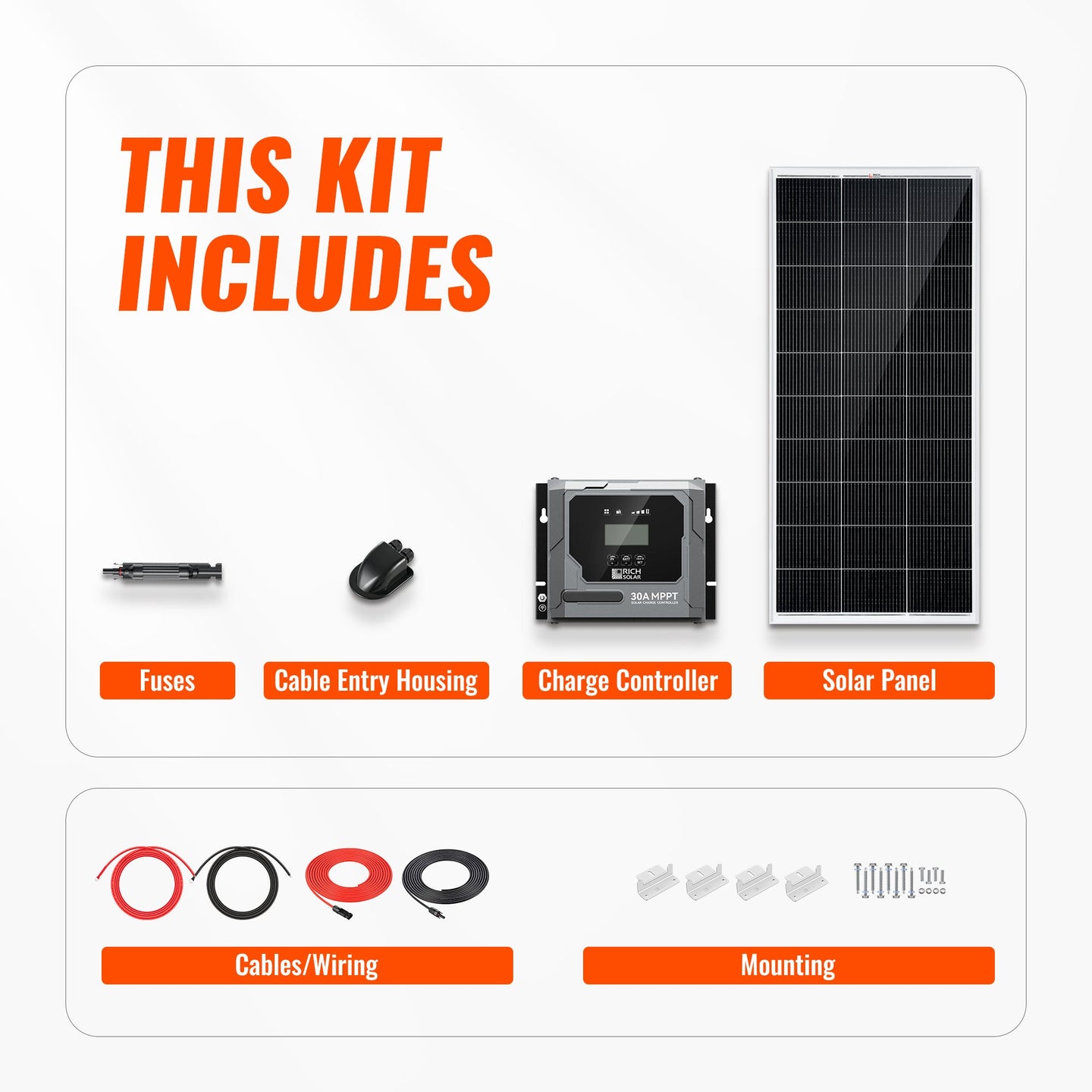

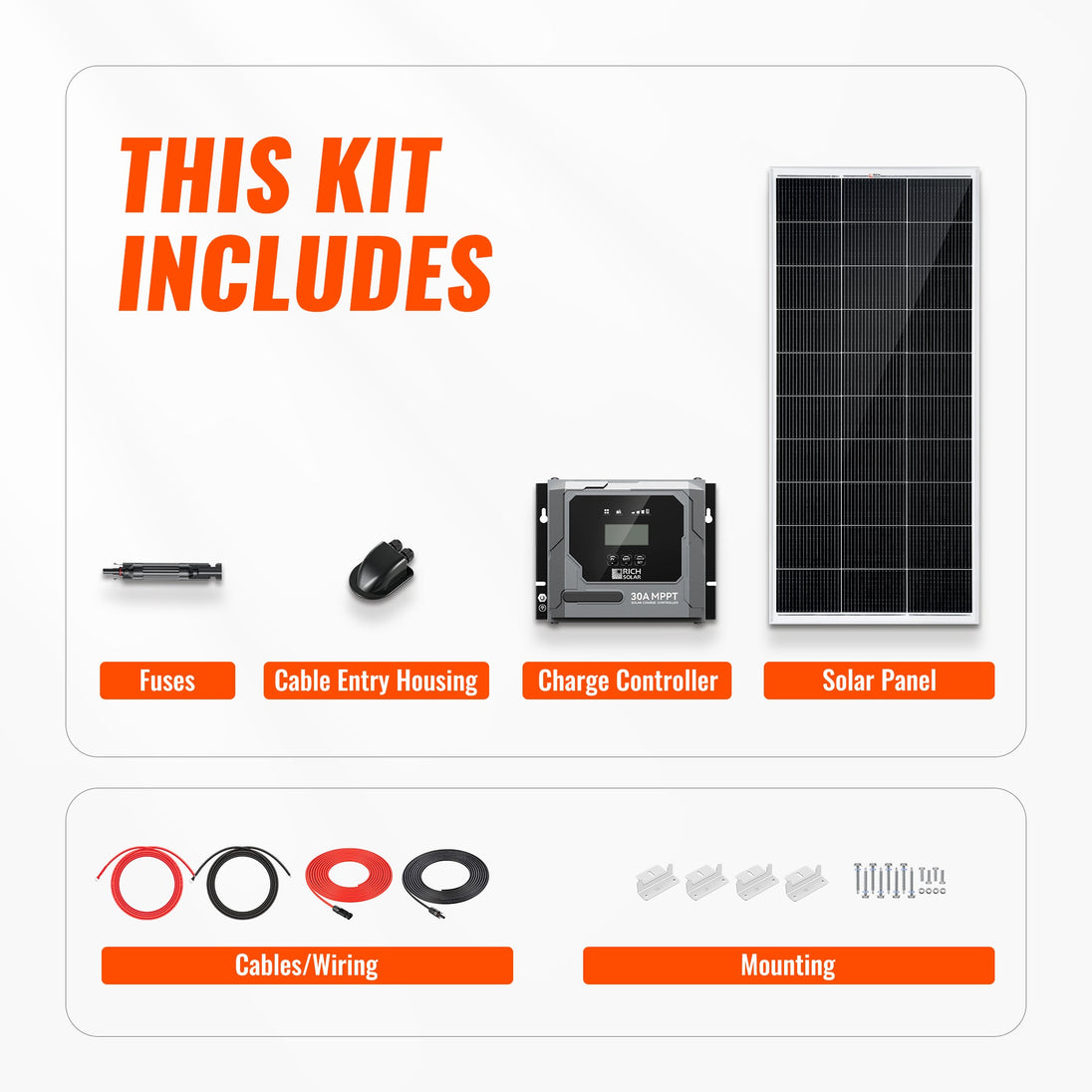

Included

  • One 200W monocrystalline solar panel
  • One 30A MPPT solar charge controller
  • One set of mounting Z-brackets
  • One cable-entry housing
  • One 15A inline fuse holder with fuse
  • One 30 ft 10 AWG solar cable set for connecting the panel to the controller
  • One 10 ft 10 AWG battery cable set for connecting the controller to a battery

Product Support

Full Specification:

User Manual:

Warranty: Included rigid solar panel: 25-year power-output warranty and 10-year workmanship warranty. Included MPPT controller: 2-year warranty. Other included products and components: one-year limited warranty.
