Rich Solar

Rich Solar Basic 400 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications

SKU RS-K4004
$799.99
$799.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

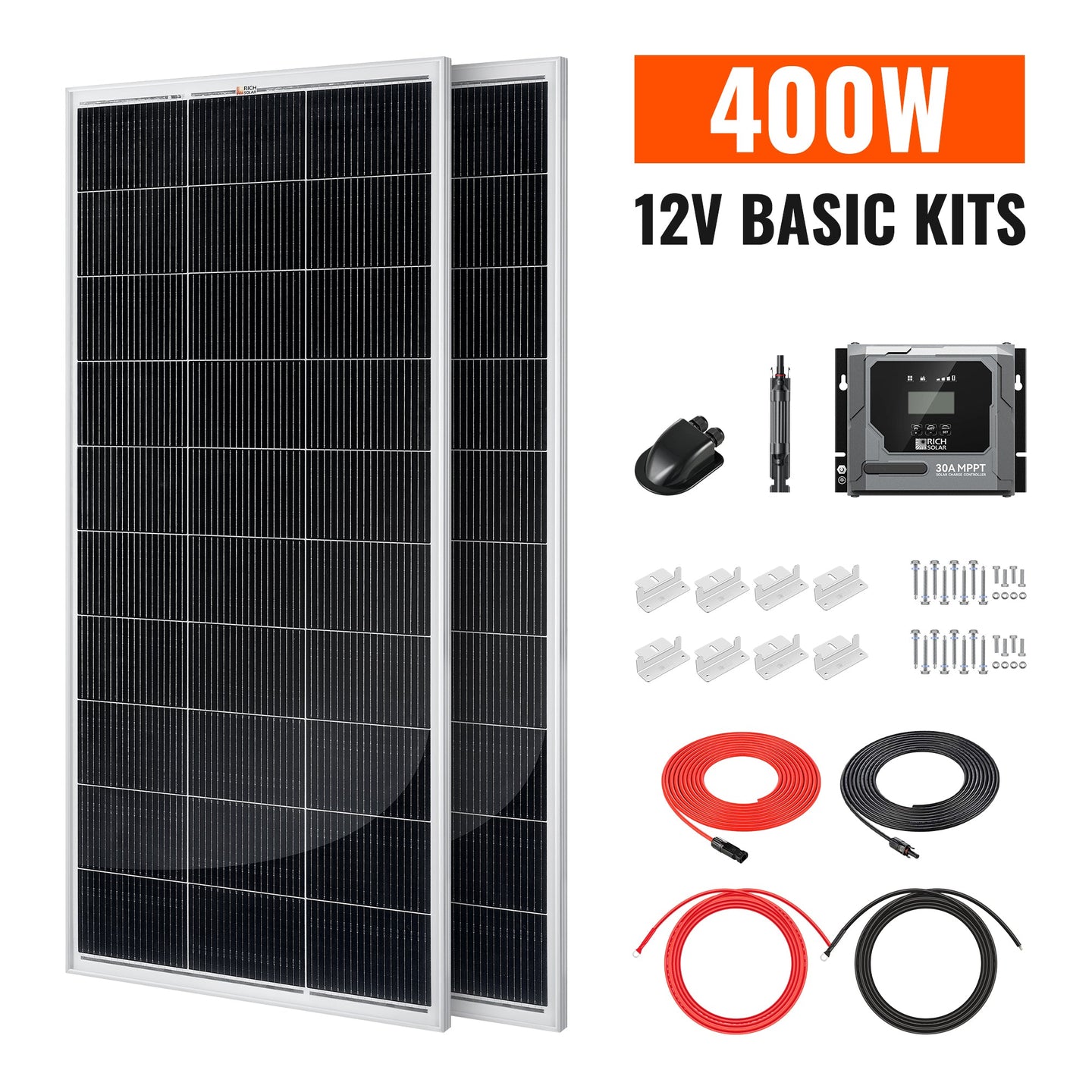

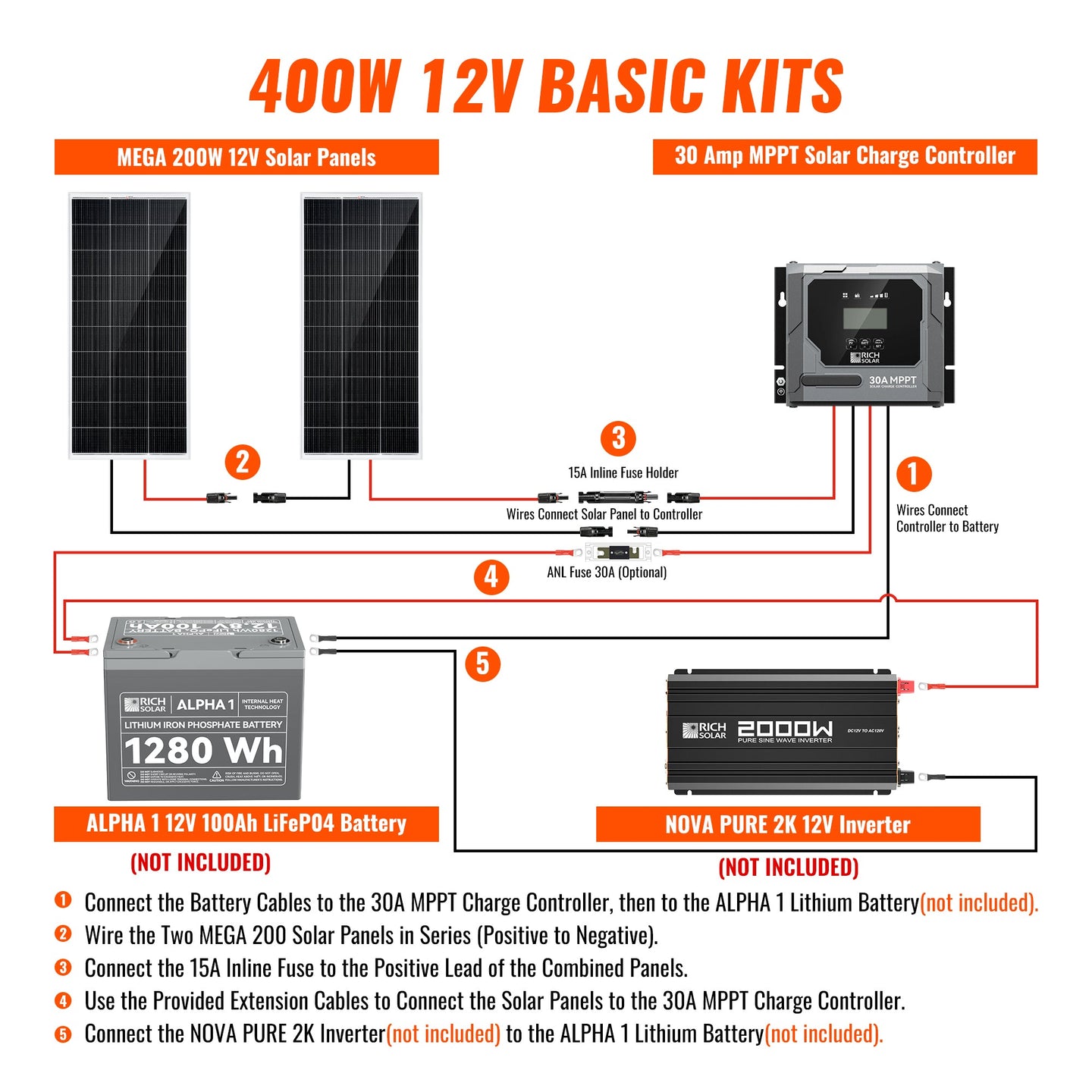

 The Basic 400 Watt Solar Kit is a solar charging package designed for RVs, vans, travel trailers, cabins, boats, and other off-grid or mobile applications. It combines two 200W monocrystalline solar panels with a 30A MPPT charge controller and the primary mounting and cabling components needed to connect the solar array to a battery system.

The included charge controller automatically detects 12V or 24V systems and supports multiple battery chemistries. Built-in Bluetooth monitoring, MPPT tracking, configurable charging parameters, and multiple electrical protections provide system monitoring and charging control for off-grid solar installations.

RICH SOLAR MEGA 200 12V 200W Solar Panel

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR Bravo 30A MPPT Solar Charge Controller

Bravo 30A

30 Amp MPPT Solar Charge Controller

Features:

1. Advanced MPPT Technology

  • Advanced MPPT algorithm with up to 99.5% tracking efficiency
  • 98% conversion efficiency for maximum solar energy utilization
  • Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

  • Auto-detects 12V/24V systems for seamless integration
  • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
  • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

  • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
  • Weather-resistant build with IP43-rated PCBA and IP22 connectors
  • Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

  • LCD + LED display: Real-time solar input, battery status, and customizable parameters
  • Built-in Bluetooth for App monitoring (Rich Solar App)
  • Optional remote meter and temperature sensor for enhanced control

Specifications:

Maximum Solar Input Current: 30A
Maximum Charging Current: 30A
Recommended Solar Power: 500W (12V) / 1000W (24V)
Nominal System Voltage: 12V/24V Auto-Detect
Solar Input Voltage Range: 8V-100V
MPPT Voltage Range: 15V-72V
Maximum Conversion Efficiency: 98%
Maximum MPPT Tracking Efficiency: 99.5%
Battery Compatibility: GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, Custom
Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating: IP43 PCBA, IP22 Connection
Net Weight: 1.8 lb
Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in
  • Solar Panel Weight: 24 lb each
  • Charge Controller Dimensions: 7.0 × 5.5 × 2.9 in
  • Charge Controller Net Weight: 1.8 lb

Compatibility

Compatible With: 12V and 24V battery systems through the included auto-detect MPPT controller; GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom battery settings.

Solar Panel Mounting Compatibility: Standard Z-brackets, ground mounts, pole mounts, and tilt mounts.

Solar System Compatibility: The solar panels support series or parallel configurations and are compatible with on-grid and off-grid inverters.

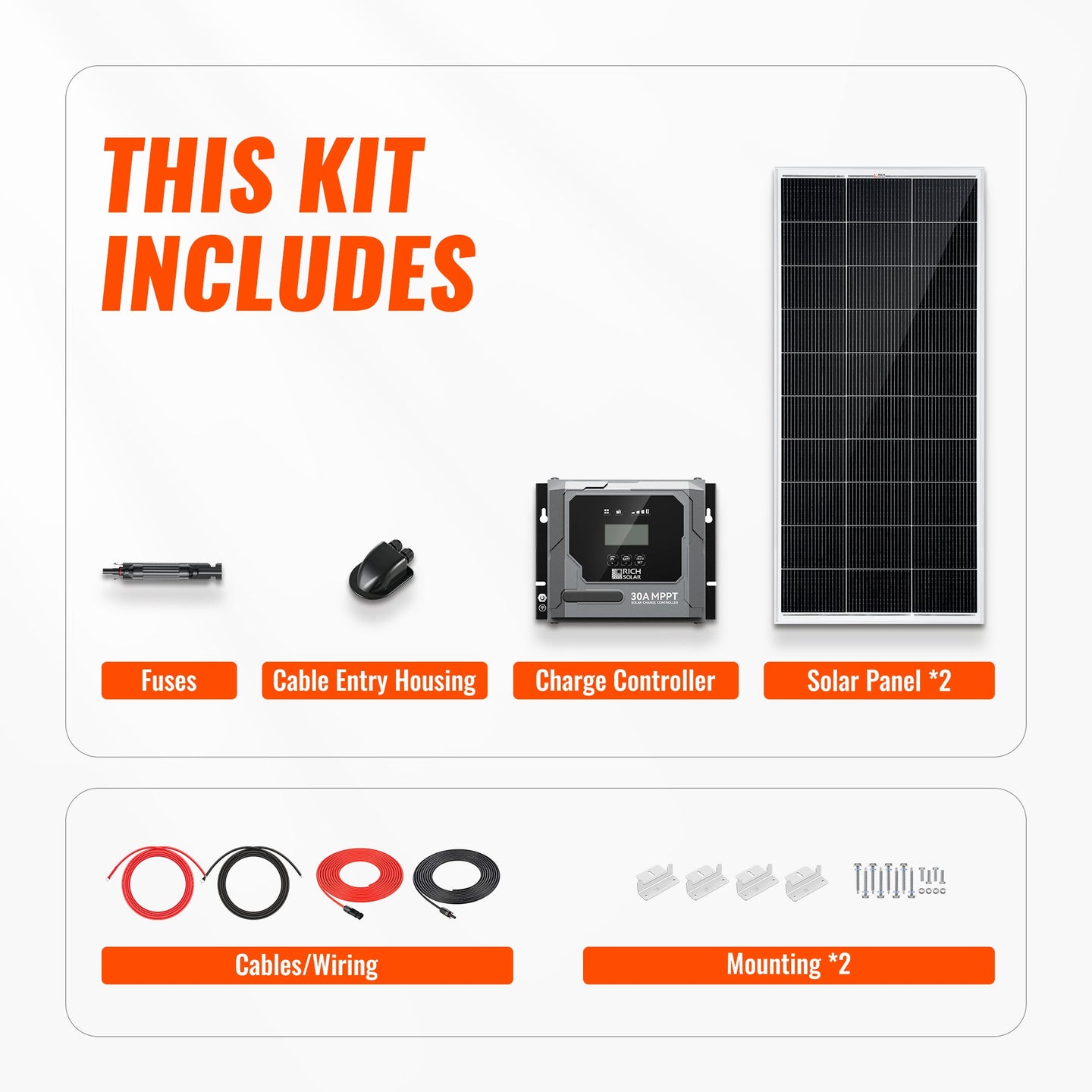

Included

  • 2 × 200 Watt Monocrystalline Solar Panels
  • 1 × 30A MPPT Charge Controller
  • 2 × Mounting Z Brackets (one set)
  • 1 × Cable Entry Housing
  • 1 × 15A Inline Fuse Holder with Fuse
  • 1 × 30 ft 10 AWG Solar Cable Set (Panel to Controller)
  • 1 × 10 ft 10 AWG Battery Cable Set (Controller to Battery)

Product Support

Full Specification

User Manual:

Warranty: Included rigid solar panels — 25-year limited power output warranty and 10-year workmanship warranty. Included MPPT charge controller — 2-year warranty.
