Rich Solar

Rich Solar Complete 400W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power

SKU RS-CK400
$1,599.99
$1,599.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

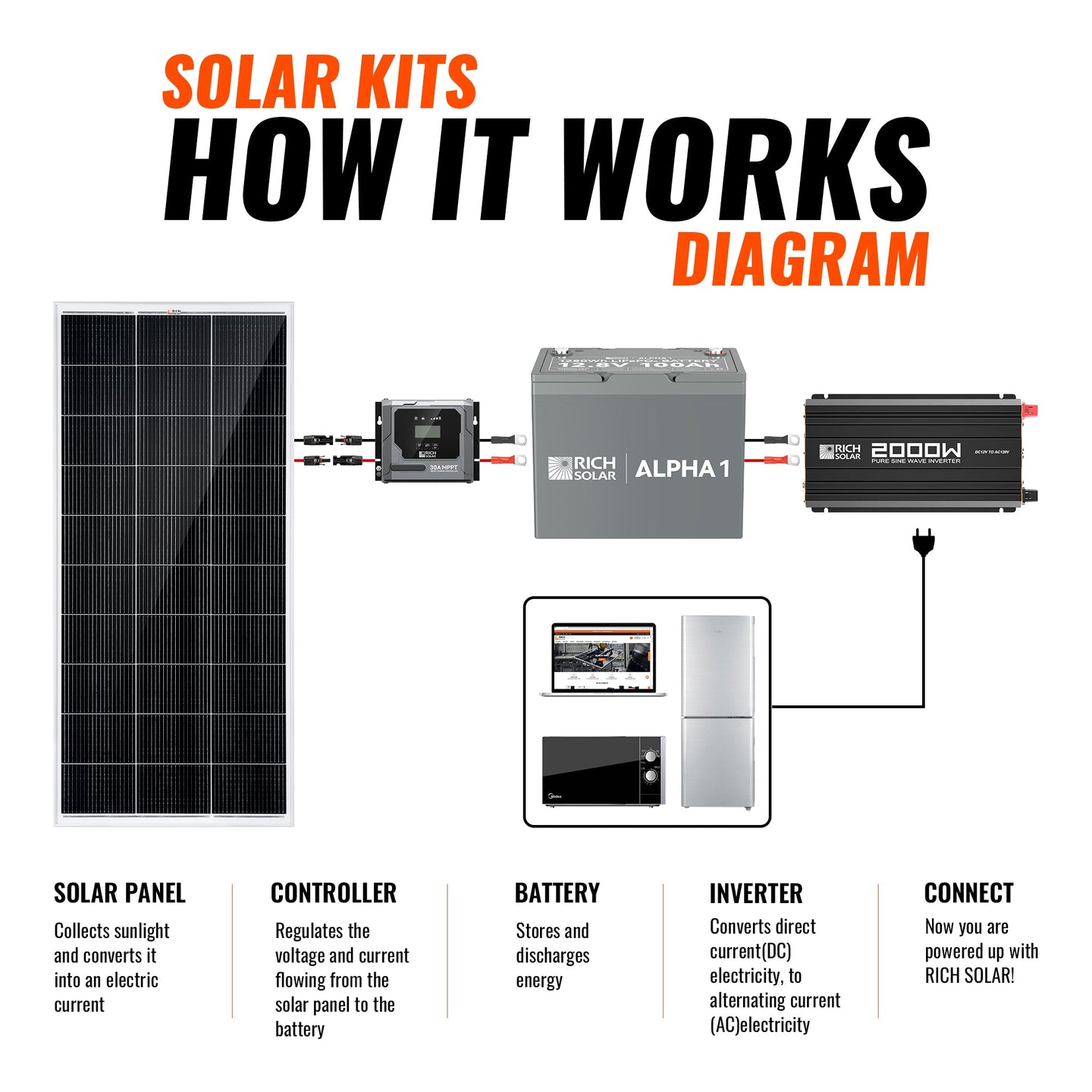

The complete 400W solar kit combines solar generation, lithium energy storage, charge control, and AC power conversion in one off-grid package. It includes two 200W monocrystalline solar panels, a 30A MPPT charge controller, a 12V 100Ah LiFePO₄ battery, and a 2000W pure sine wave inverter, along with mounting and connection components.

Designed for RVs, tiny homes, cabins, boats, and other mobile or off-grid applications, the system supports solar charging, battery storage, and 120V AC output. Bluetooth monitoring is provided for the charge controller and battery, while the inverter supplies three AC outlets and a USB power port.

RICH SOLAR MEGA 200 12V 200W Solar Panel

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR Bravo 30A MPPT Solar Charge Controller

Bravo 30A

30 Amp MPPT Solar Charge
Controller

Features:

1. Advanced MPPT Technology

  • Advanced MPPT algorithm with up to 99.5% tracking efficiency
  • 98% conversion efficiency for maximum solar energy utilization
  • Stable operation under low-light or partial shading conditions

2. Flexible Battery Compatibility

  • Auto-detects 12V/24V systems for seamless integration
  • Supports 8 + 1 battery types, including GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom
  • Multi-stage charging algorithm with customizable parameters helps extend battery lifespan

3. Advanced Protection System

  • Multiple safety protections: Over-voltage, reverse polarity, short-circuit, and over-temperature
  • Weather-resistant build with IP43-rated PCBA and IP22 connectors
  • Certified to ETL, FCC, CE, ROHS

4. Intelligent Monitoring System

  • LCD + LED display: Real-time solar input, battery status, and customizable parameters
  • Built-in Bluetooth for App monitoring (Rich Solar App)
  • Optional remote meter and temperature sensor for enhanced control

Specifications:

Maximum Solar Input Current: 30A
Maximum Charging Current: 30A
Recommended Solar Power: 500W (12V) / 1000W (24V)
Nominal System Voltage: 12V/24V Auto-Detect
Solar Input Voltage Range: 8V-100V
MPPT Voltage Range: 15V-72V
Maximum Conversion Efficiency: 98%
Maximum MPPT Tracking Efficiency: 99.5%
Battery Compatibility: GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, Custom
Connectivity: Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating: IP43 PCBA, IP22 Connection
Net Weight: 1.8 lb
Dimensions (LxWxH): 7.0 x 5.5 x 2.9 in
RICH SOLAR ALPHA 1 12V 100Ah LiFePO4 Battery

ALPHA 1

12V 100Ah LiFePO4 Battery

Features:

  • Stay powered in low temps with advanced internal heating tech
  • Track battery health in real time from your phone
  • Over 5,000 cycles with UL94 V-0 flame-retardant protection
  • IP65 waterproof, dustproof, and tested for extreme safety
  • Free of toxic metals—safe for you and the planet
  • Lightweight design, heavy-duty performance
  • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

  • *5-Year Warranty

Specifications:

Battery
Cell Type: LiFePO4 Battery
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Nominal Energy: 1280Wh
Cycle Life: 5000 cycles
BMS
BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A
Charge
Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.5C)
Temperature
Charge Temperature: 32°F to 131°F (0°C to 55°C)
Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: 14°F to 113°F (-10°C to 45°C)
Self-heating
External Power Draw: 100W
Internal Heating Starts: < 41°F (5°C)
Internal Heating Stops: > 50°F (10°C)
Others
Net Battery Weight: 24.0lb
Size(LxWxH): 10.2x6.6x8.3in (Group 24 size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65
Warranty: 5 Years
RICH SOLAR NOVA PURE 2K 12V 2000W Pure Sine Wave Inverter

NOVA PURE 2K

12V 2000W Pure Sine Wave
Inverter

Features:

  • Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
  • Offers high-quality waveform with little harmonic distortion.
  • Overload protection for both DC input and AC output to prevent damage to the components and the unit.
  • Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
  • High-speed ventilation fans to help keep the inverter running at a low temperature.
  • 120V AC outlets allow for the operation of more than one appliance simultaneously.
  • Quiet, no static or humming noises.

Warranty:

  • 2-Year Warranty

Specifications:

Model: RS-V2P12
Rated Voltage: 12V DC
Continuous Power: 2000W
Peak Surge: 4000W
Waveform: Pure Sine Wave
Input Voltage: 12V DC
Output Voltage: 120V AC
Output Frequency: 60 Hz
Output Efficiency: > 88%
AC Output Sockets: 3
USB Power Port: 5V / 2.1A
Power Output Control: AC On/Off Switch
Operating Temperature: 14°F to 122°F
Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
Weight: 10.1 (lb) / 4.6 (kg)

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each
  • Solar Panel Weight: 24 lb each
  • Charge Controller Dimensions: 7.0 × 5.5 × 2.9 in
  • Charge Controller Weight: 1.8 lb
  • Battery Dimensions: 10.2 × 6.6 × 8.3 in (Group 24 size)
  • Battery Weight: 24 lb
  • Inverter Dimensions: 16.1 × 9.6 × 4.0 in
  • Inverter Weight: 10.1 lb

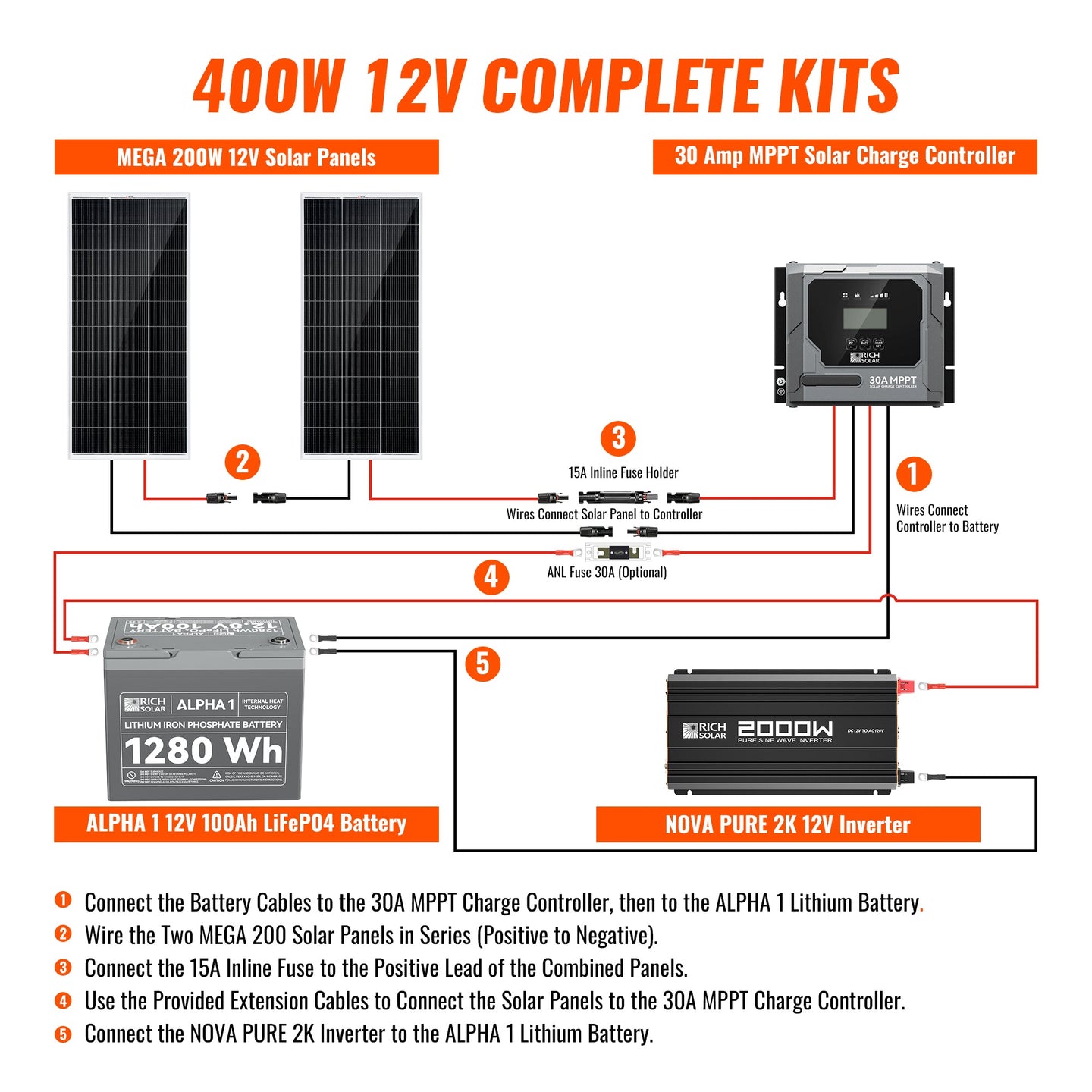

Compatibility

Compatible Applications: RVs, tiny homes, cabins, boats, and other off-grid or mobile solar installations.

Compatible Battery Systems: The charge controller supports 12V and 24V systems with GEL, AGM, WET, CRYSTAL, CALCIUM, LiFePO₄, LTO, LCO, and Custom battery profiles.

Solar Connection Compatibility: The solar panels support series and parallel configurations.

Inverter System Compatibility: The included pure sine wave inverter is designed for 12V DC systems and provides 120V AC output.

Mounting Compatibility: Pre-drilled panel holes support Z-brackets, ground mounts, pole mounts, and tilt mounts.

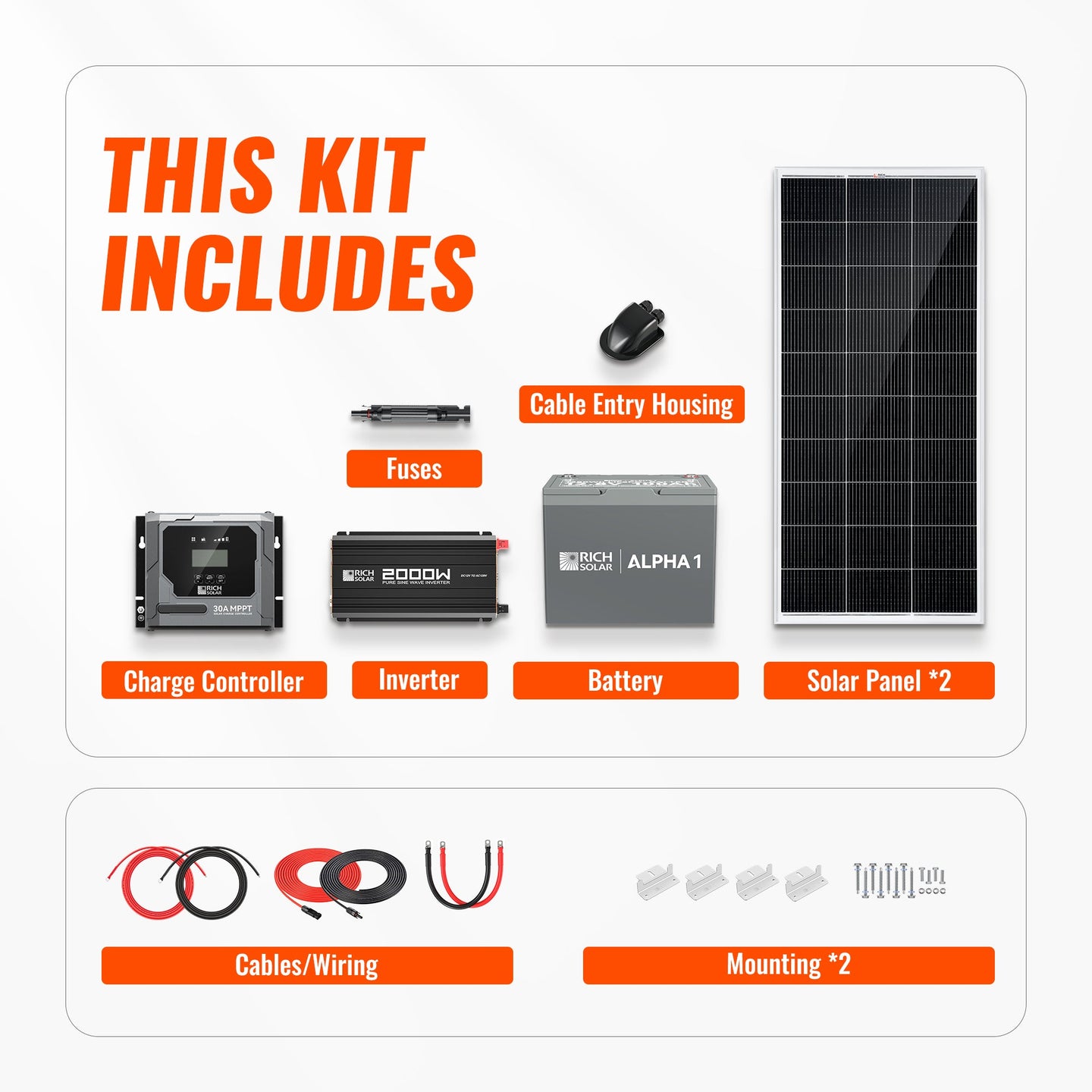

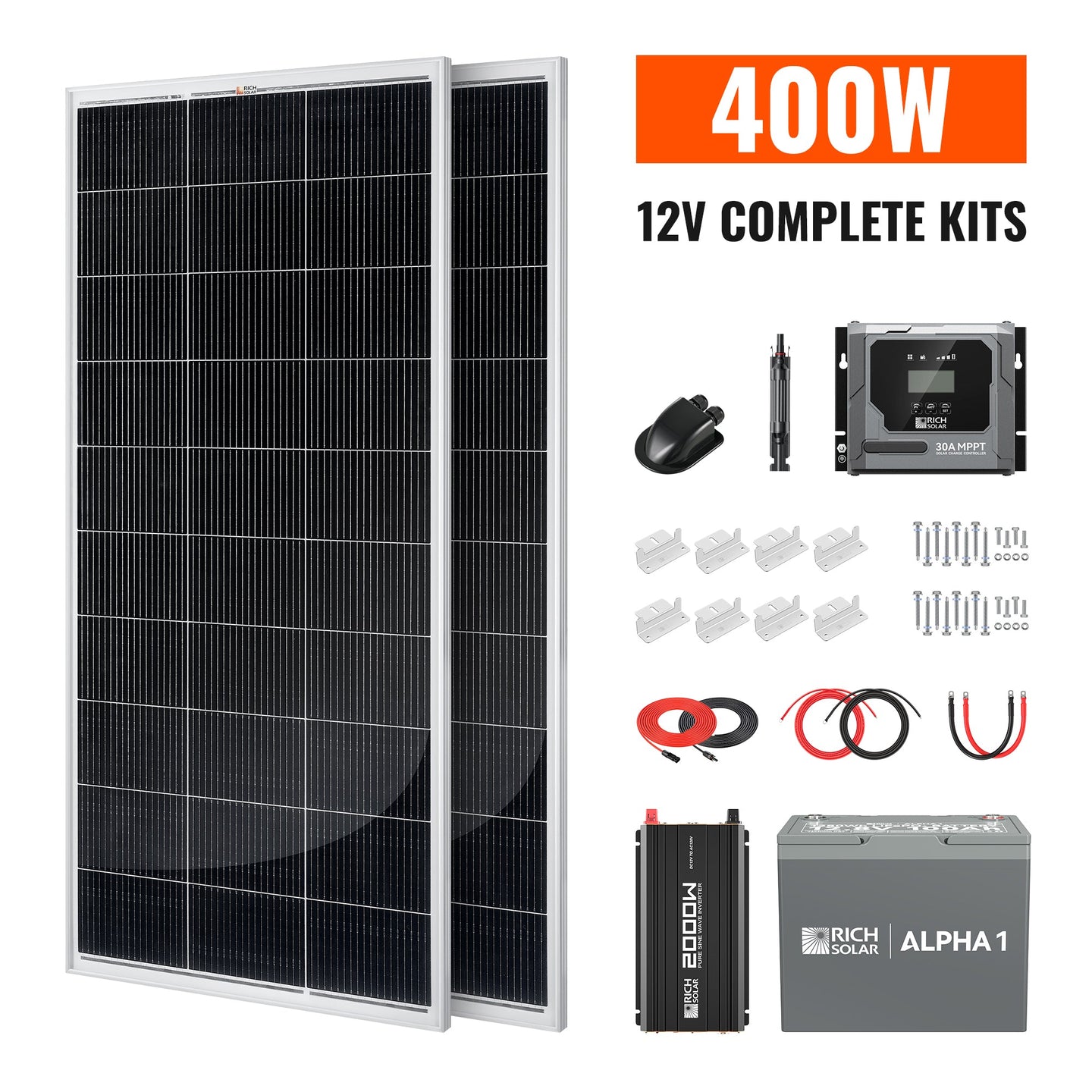

Included

  • 2 × MEGA 200W 12V Solar Panels
  • 1 × Bravo 30A MPPT Charge Controller
  • 1 × ALPHA 1 Lithium Battery
  • 1 × NOVA 2000W 12V Inverter
  • 2 × Z Bracket Sets
  • 1 × Cable Entry Housing
  • 1 × 15A Solar Panel Inline Fuse Holder
  • 1 × 30 ft 10 AWG Solar Cable Set (Panel to Controller)
  • 1 × 10 ft 10 AWG Battery Cable Set (Controller to Battery)
  • 1 × 4 ft 2/0 Gauge 3/8 in Battery Cable Set (Inverter to Battery)

Product Support

Full Specification


User Manual:

Warranty: Rigid solar panels — 25-year power output warranty and 10-year workmanship warranty; MPPT charge controller — 2-year warranty; ALPHA Series battery — 5-year warranty; pure sine wave inverter — 2-year warranty.
