RIch Solar Complete 800W Solar Kit with Battery & Inverter | Off-Grid Solar Power System for RVs, Vans, Cabins & Backup Power

SKU RS-CK800
$2,699.99
$2,699.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

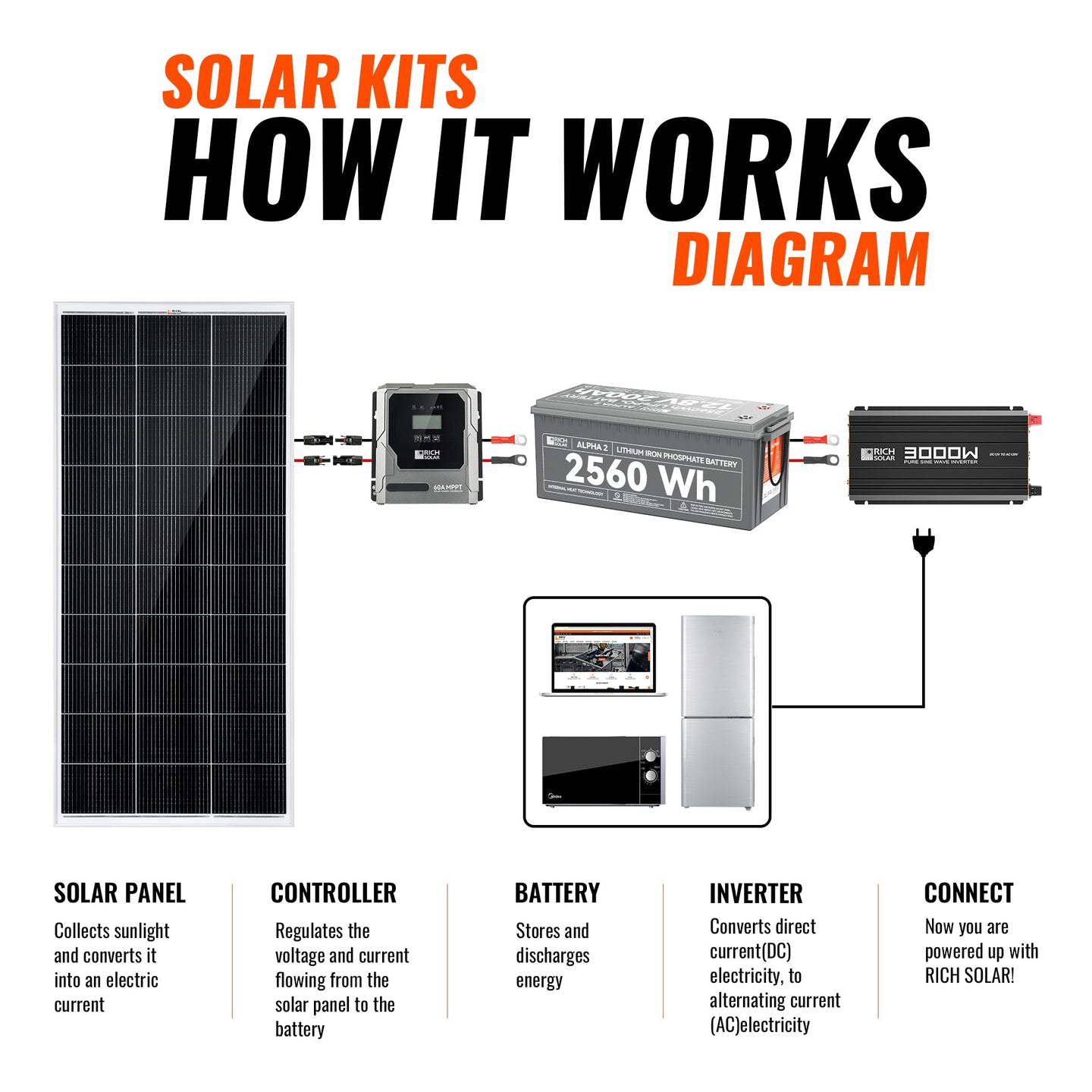

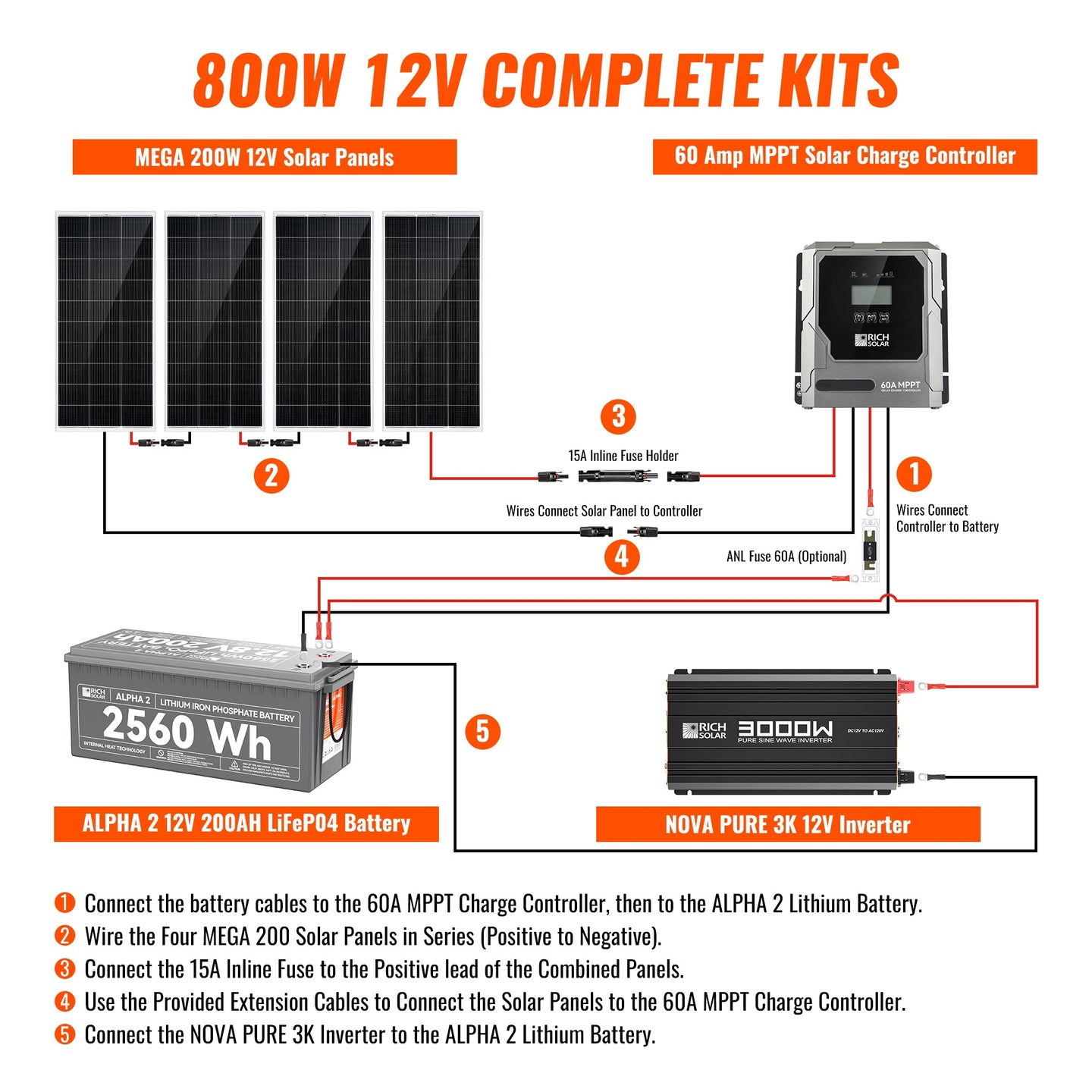

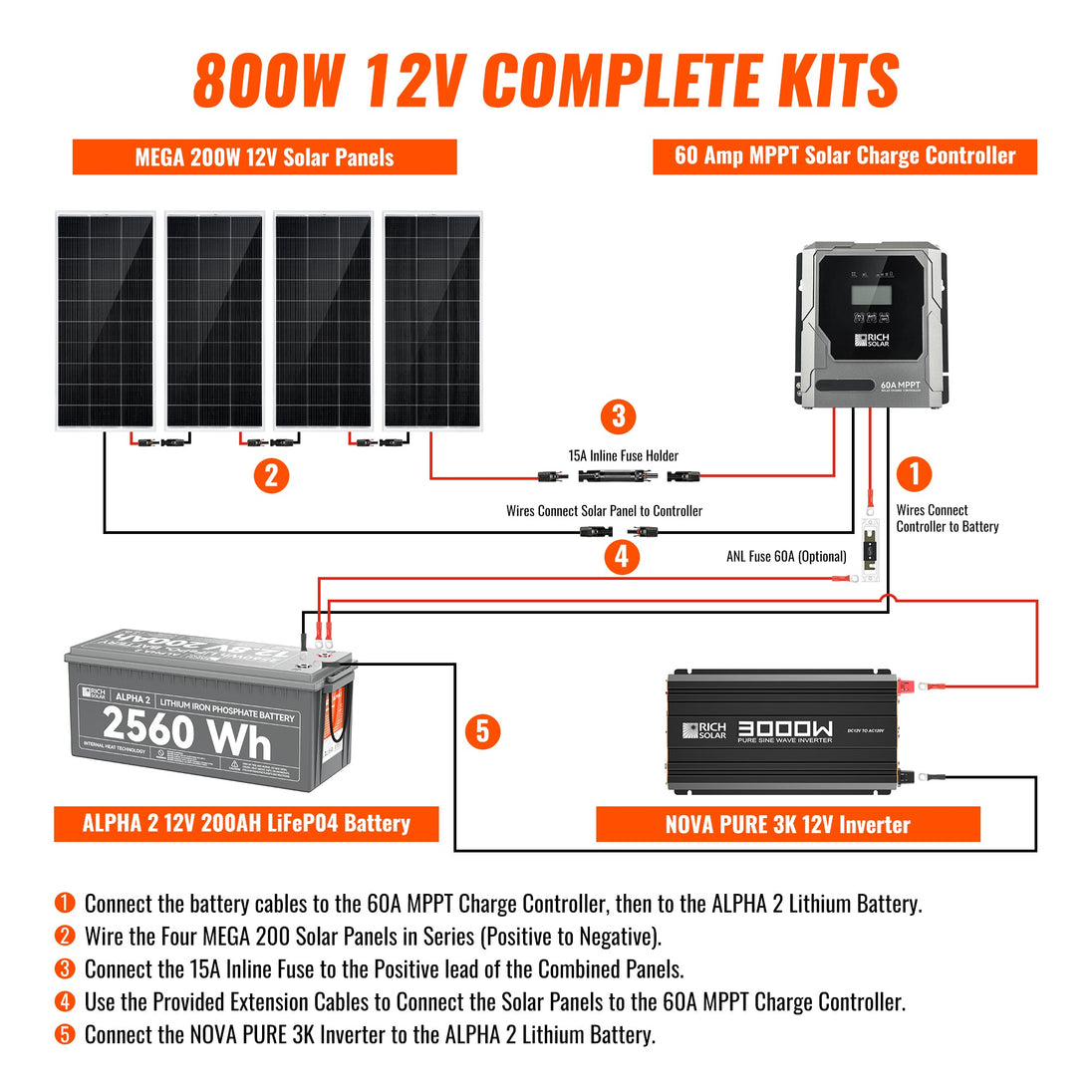

The Complete 800W Solar Kit with Battery & Inverter combines solar generation, lithium energy storage, MPPT charge control, and AC power conversion in one off-grid package. It includes four 200W solar panels, a 60A MPPT solar charge controller, a 12.8V 200Ah LiFePO₄ battery, and a 3000W pure sine wave inverter.

Designed for RVs, tiny homes, cabins, boats, and other mobile or off-grid installations, the system provides 800W of solar-panel capacity, 2,560Wh of nominal battery energy, and 3000W of continuous 120V AC output. The system also incorporates Bluetooth monitoring, internal battery heating, MPPT charging, and multiple electrical protection functions

RICH SOLAR MEGA 200 12V 200W Solar Panel

MEGA 200

12V 200W Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

Features:

  • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
  • Excellent low-light performance even on early mornings, evenings, and cloudy days.
  • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
  • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
  • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • 25-year limited power output warranty
  • 10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in
RICH SOLAR ALPHA 2 12V 200Ah LiFePO4 Battery

ALPHA 2

12V 200Ah LiFePO4 Battery

Features:

  • Stay powered in low temps with advanced internal heating tech
  • Track battery health in real time from your phone
  • Over 5,000 cycles with UL94 V-0 flame-retardant protection
  • IP65 waterproof, dustproof, and tested for extreme safety
  • Free of toxic metals—safe for you and the planet
  • Lightweight design, heavy-duty performance
  • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

  • *5-Year Warranty

Specifications:

Battery

Cell Type: Lifepo4 Battery
Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Nominal Energy: 2560Wh
Cycle Life: 5000 Cycles

BMS

BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A

Charge

Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.2C)

Temperature

Charge Temperature: 32°F to 131°F (0°C to 55°C)
Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: 14°F to 113°F (-10°C to 45°C)

Self-heating

External Power Draw: 100W
Internal Heating Starts: < 41°F (5°C)
Internal Heating Stops: > 50°F (10°C)

Others

Net Battery Weight: 48.5lb
Size(LxWxH): 20.9x8.1x8.5in (Group 31 Size)
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65
RICH SOLAR NOVA PURE 3K 12V 3000W Pure Sine Wave Inverter

NOVA PURE 3K

12V 3000W Pure Sine Wave
Inverter

This is a compact and highly portable power inverter that has an excellent track record in the field of high-frequency inverters. From the 12V DC outlet in your applications e.g., vehicle or boat, or directly from a dedicated 12V DC battery, this inverter can efficiently and reliably power a wide variety of household AC products, such as TV, Computers, Air-conditioning units, etc.

Features:

Features

  • Optimized for 12 VDC system voltage; a great addition to any off-grid solar power system.
  • Offers a high-quality waveform with minimal harmonic distortion.
  • Overload protection for both DC input and AC output to prevent damage to the components and the unit.
  • Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short-circuit indication.
  • High-speed ventilation fans to help keep the inverter running at a low temperature.
  • 120 Volt AC outlets allow for the operation of more than one appliance simultaneously.
  • Quiet, no static or humming noises.

Specifications:

Specifications
Model: RS-V3P12
Rated Voltage: 12V DC
Continuous Power: 3000W
Peak Surge: 6000W
Waveform: Pure Sine Wave
Input Voltage: 12V DC
Output Voltage: 120V AC
Output Frequency: 60 Hz
Output Efficiency: > 88%
AC Output Sockets: 3
USB Power Port: 5V / 2.1A
Power Output Control: AC On/Off Switch
Operating Temperature: 14°F to 122°F
Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
Weight: 12.1 (lb) / 5.5 (kg)
Certifications: UL 458, CSA C22.2
The NOVA PURE series includes a remote control, allowing you to operate the unit remotely if desired.
RICH SOLAR BRAVO 60 60A MPPT Solar Charge Controller

BRAVO 60

60A MPPT Solar Charge
Controller

Features:

  • True MPPT
  • Tracking Efficiency Above 99.5%
  • Charge Conversion Efficiency as High as 98%
  • 12V/24V DC System Self-Adaptation
  • Reverse Discharge Protection
  • Targeted for Accuracy
  • Overvoltage Protection
  • Common Negative Connection
  • Charging Data Storage
  • External Battery Temp Sensor-Optional
  • Conformal Coating for Inside Board
  • External Digital Remote Display-Optional
  • In-house Design and Manufacture
  • Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
  • Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
  • Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Specifications:

System Nominal Voltage: 12/24V Auto
Max PV Open Circuit Voltage: 100V DC
Charging Technology: MPPT
Max PV Charging Current: 60A
Max. Recommended PV Input Power: 900 Watt (12V) / 1800 Watt (24V)
Charge Conversion Efficiency: ≤98%
MPPT Tracking Efficiency: >99.5%
Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
Housing Case Color: Black / Grey
IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
Net Weight: 1.90kg / 4.18lb
Dimensions (L×W×H): 201×195×85mm (7.9×7.7×3.3in)

Size Guide

  • Solar Panel Dimensions: 58.7 × 26.8 × 1.2 in each.
  • Solar Panel Weight: 24 lb each.
  • Charge Controller Dimensions: 7.9 × 7.7 × 3.3 in.
  • Charge Controller Net Weight: 4.18 lb.
  • Battery Dimensions: 20.9 × 8.1 × 8.5 in (Group 31 size).
  • Battery Weight: 48.5 lb.
  • Inverter Dimensions: 18.7 × 9.6 × 4.0 in.
  • Inverter Weight: 12.1 lb.

Compatibility

Compatible Applications: RVs, tiny homes, cabins, boats, and other mobile or off-grid solar installations.

Compatible Battery Systems: The charge controller supports automatic 12V/24V operation and GEL, AGM, WET, CRYSTAL, CALCIUM, LFP/LiFePO₄, LTO, and LCO battery types.

Solar Connection Compatibility: The solar panels support both series and parallel configurations.

Solar Equipment Compatibility: The panel specification sheet states compatibility with mainstream optimizers, inverters, and mounting systems.

Inverter System Compatibility: The included inverter is designed for 12V DC systems and provides 120V AC output.

Mounting Compatibility: Ground mounts, Z-brackets, pole mounts, and tilt mounting systems.

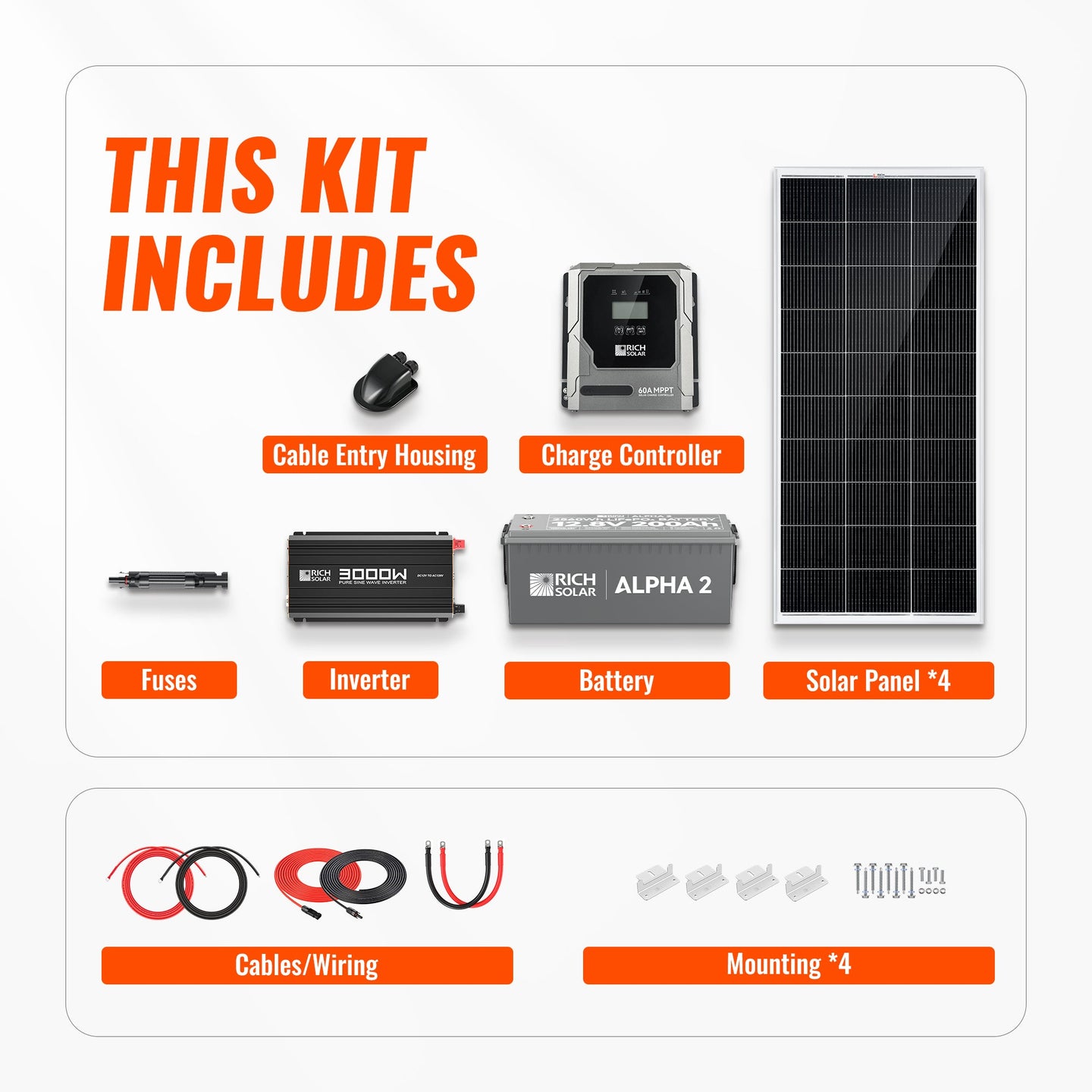

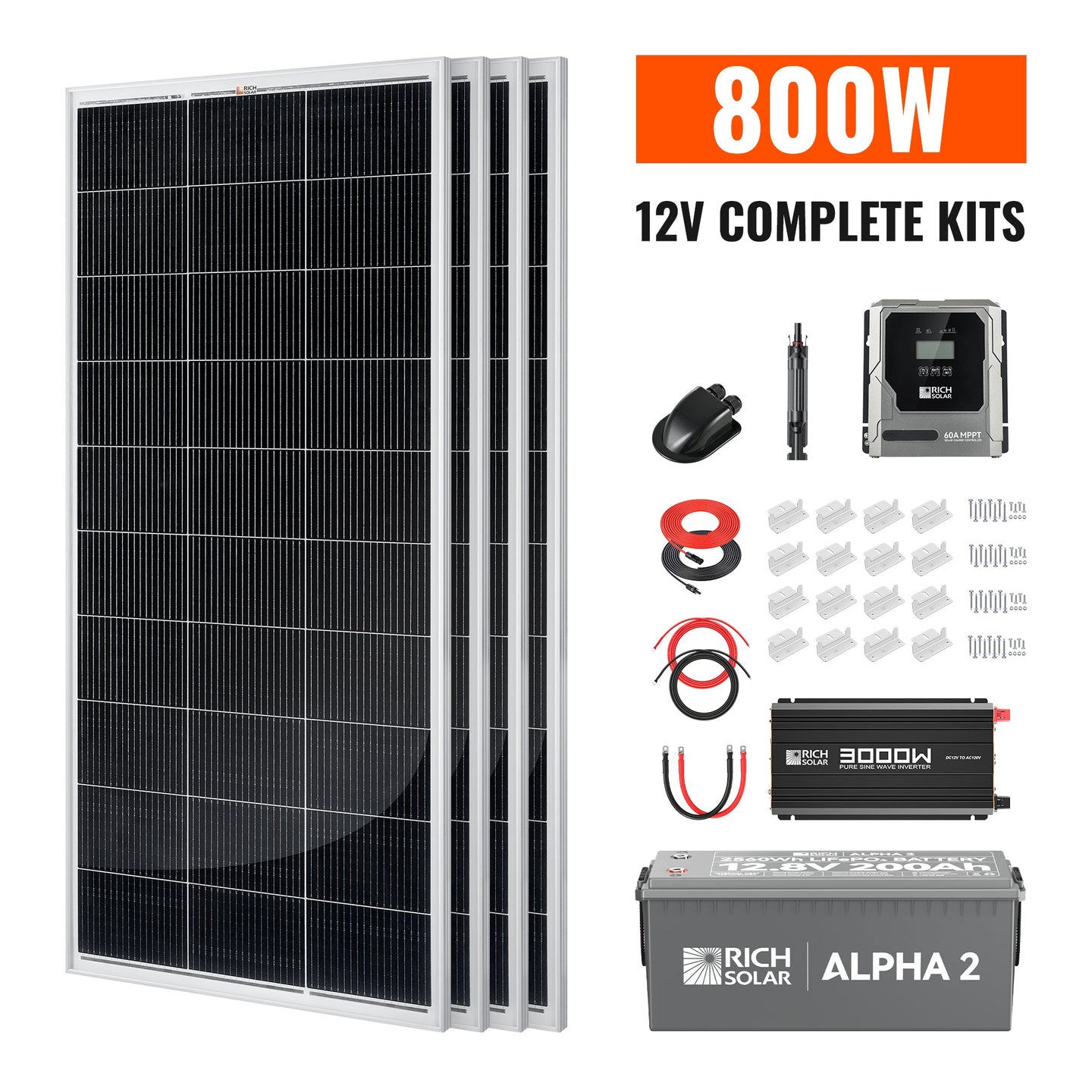

Included

  • 4 × MEGA 200W 12V Panels.
  • 1 × Bravo 60A MPPT Charge Controller.
  • 1 × ALPHA 2 Lithium Battery.
  • 1 × NOVA 3000W 12V Inverter.
  • 4 × Z Bracket Sets.
  • 1 × Cable Entry Housing.
  • 1 × 15A Solar Panel Inline Fuse Holder.
  • 1 × 30 ft 10 AWG Solar Cable Set — Panel to Controller.
  • 1 × 10 ft 8 AWG Solar Cable Set — Controller to Battery.
  • 1 × 4/0 Gauge 3/8 in Battery Cable Set, 3 ft — Inverter to Battery.

Product Support

Full Specification

User Manual:

Warranty: MEGA 200 solar panels — 25-year limited power output warranty and 10-year workmanship warranty. ALPHA 2 battery — 5-year warranty. No separate controller or inverter warranty duration is stated in the product information displayed on the exact kit page.
