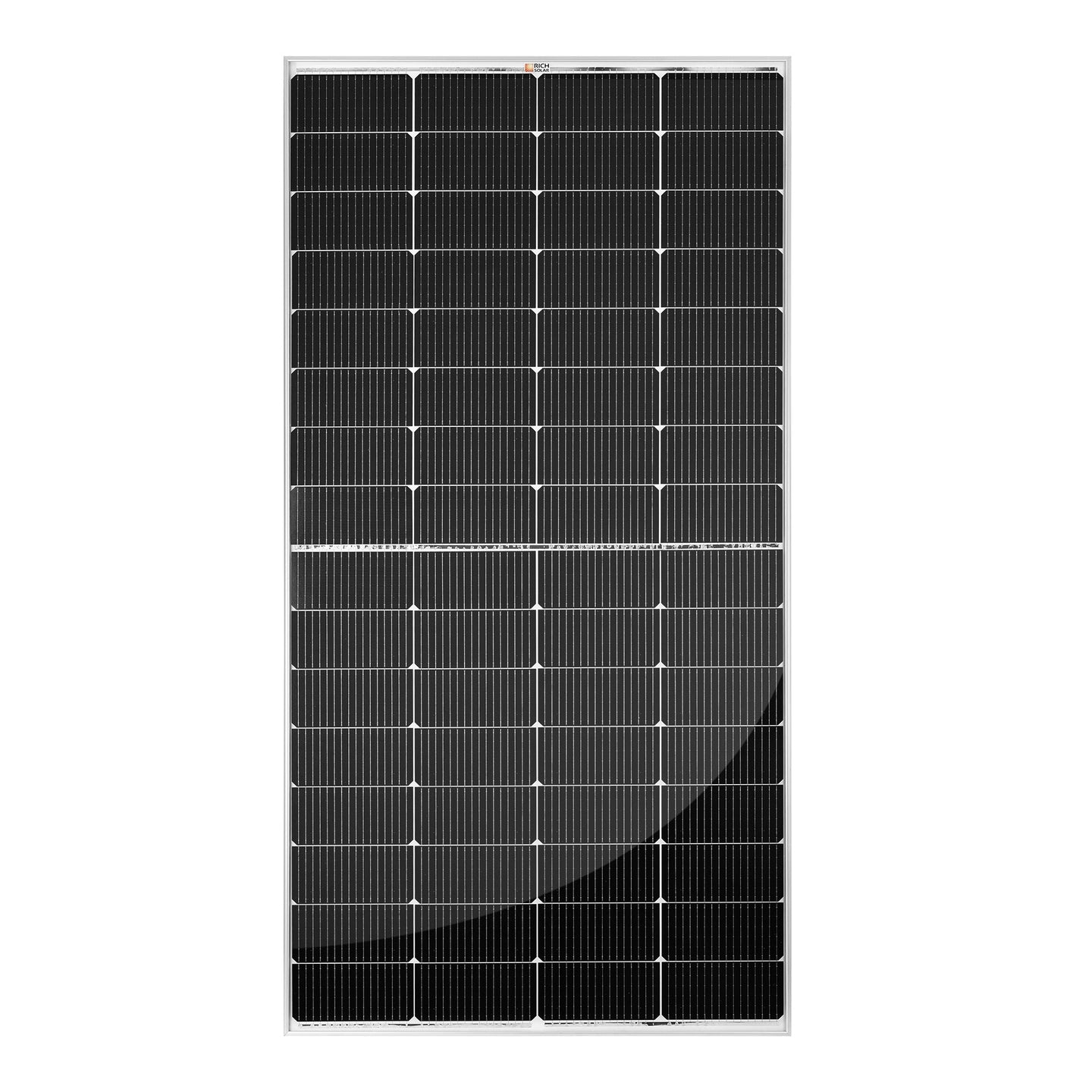

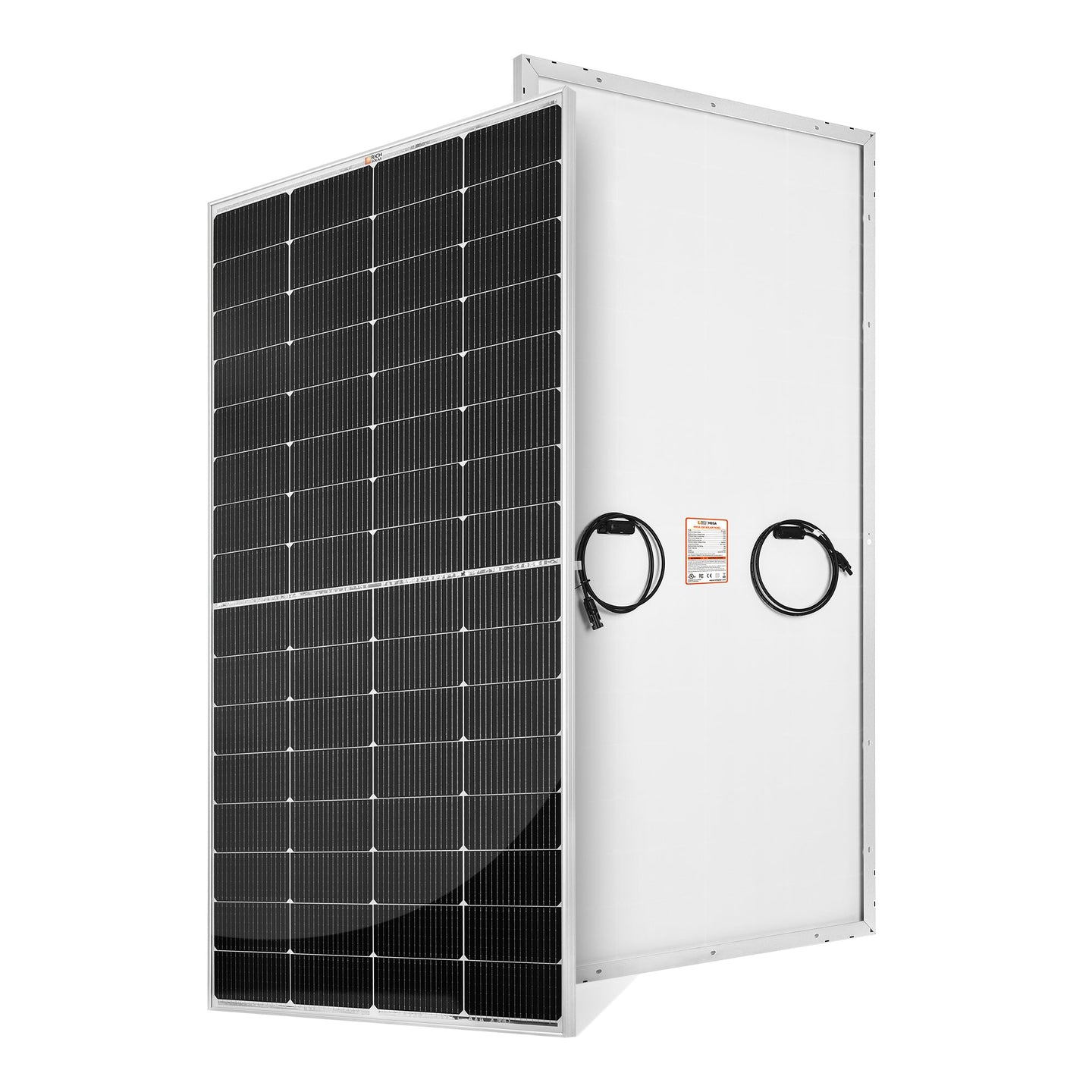

Rich Solar MEGA 250 | 250 Watt Solar Panel

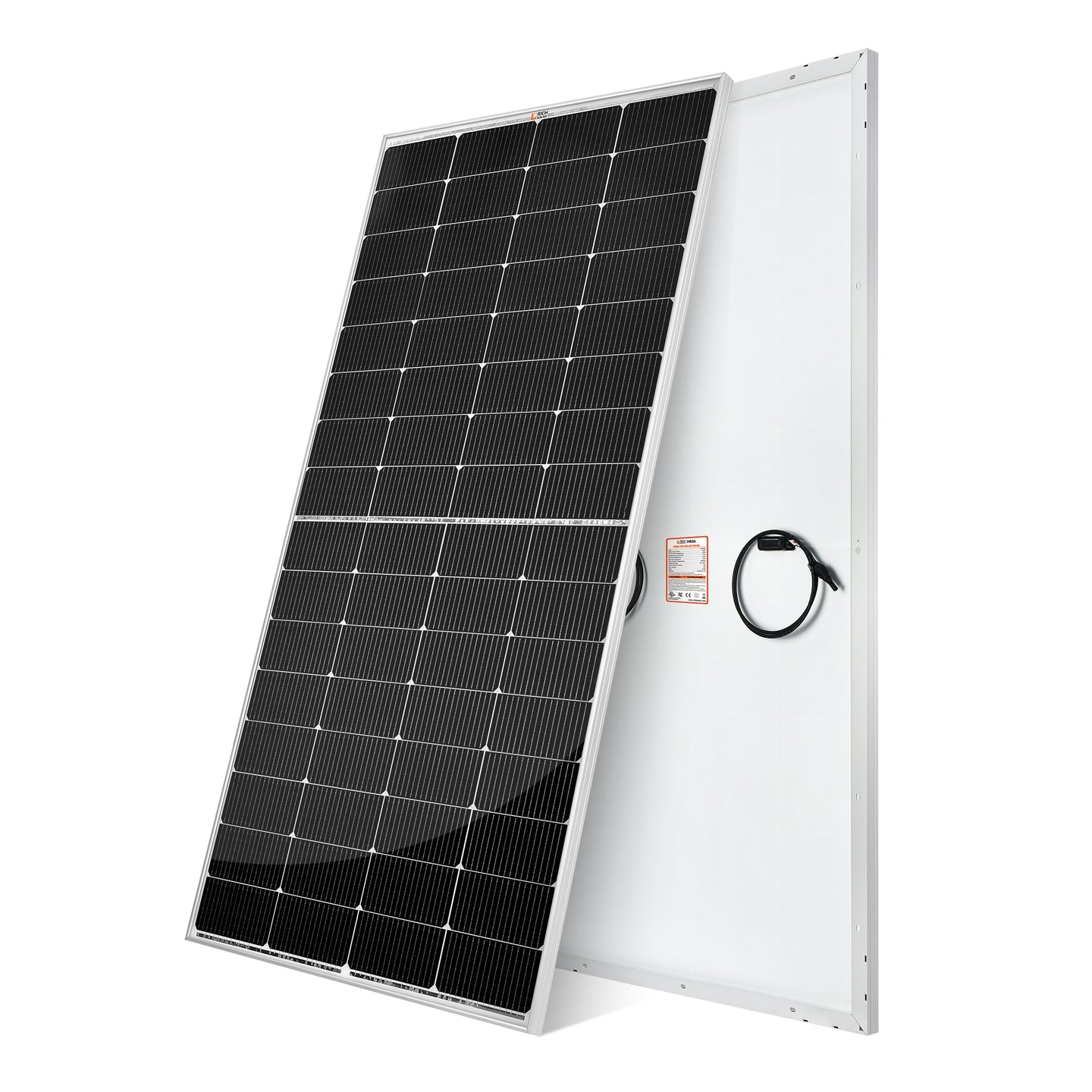

The MEGA 250 is a 250-watt, 12-volt rigid solar panel designed for off-grid and mobile power systems. Its compact footprint makes it suitable for space-limited installations on RVs, vans, trailers, boats, cabins, and motorhomes.

N-Type TOPCon cells, a half-cut 16-busbar design, and AR-coated tempered glass support efficient light capture and low-light performance. Bypass diodes help maintain stable operation in partial shade.

The panel has a corrosion-resistant anodized aluminum frame, pre-drilled mounting holes, and plug-and-play solar connectors. It is designed to withstand demanding outdoor conditions, including wind, snow, hail, moisture, salt, sand, heat, and humidity.

Key Features

• N-Type TOPCon Technology: Designed for high efficiency, lower degradation, and extended operating life.

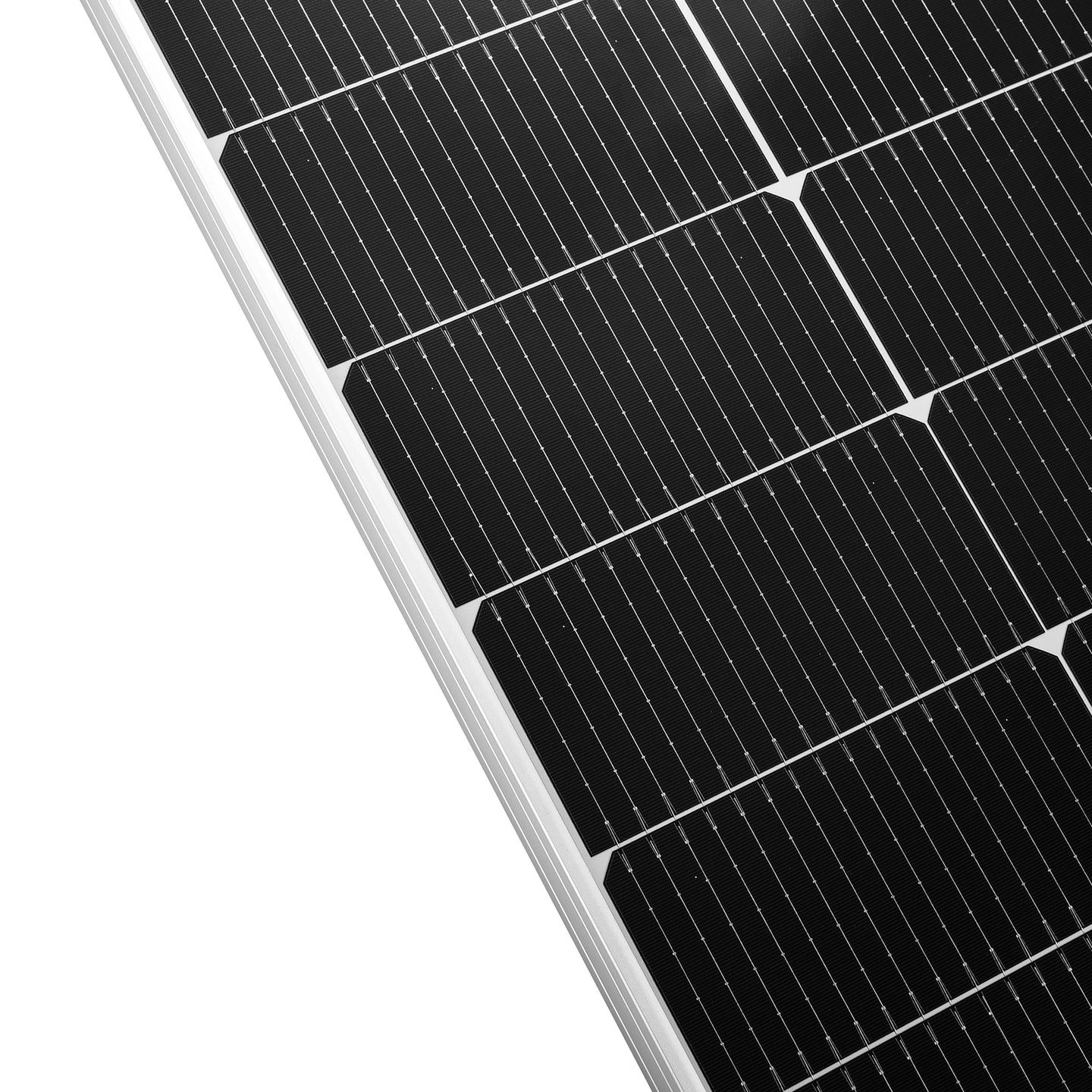

• Half-Cut 16-Busbar Design: Reduces power loss, minimizes hot spots, and improves current collection.
• Low-Light Performance: N-Type TOPCon cells, 16 busbars, and AR-coated glass support power production during cloudy and low-light conditions.
• Compact Design: Approximately 10% smaller than standard 10-busbar 250-watt panels, making it suitable for tight RV, van, and trailer roofs.
• Partial-Shade Performance: Integrated bypass diodes help maintain stable output when part of the panel is shaded.
• Weatherproof Construction: Features an IP68-rated junction box and IP67-rated connectors.
• Mechanical Strength: Withstands positive loads up to 5,400 Pa and negative loads up to 2,400 Pa.
• Impact Resistance: Designed to withstand hail measuring approximately 1.38 inches at approximately 60.3 mph.
• Grade A+ Solar Cells: Built for efficiency, stability, and long-term reliability.
• Quality Testing: Undergoes more than 30 mechanical and electrical tests, including PID-resistance and electroluminescence diagnostics.
• Easy Installation: Pre-drilled holes support multiple mounting options.
• Plug-and-Play Connection: Solar connectors support series and parallel configurations.
• Corrosion-Resistant Frame: Anodized aluminum alloy construction supports long-term outdoor use.
• Multiple Applications: Suitable for RVs, vans, boats, cabins, motorhomes, DIY solar power, and off-grid installations.

Tough Solar Panels for
Tougher Environments

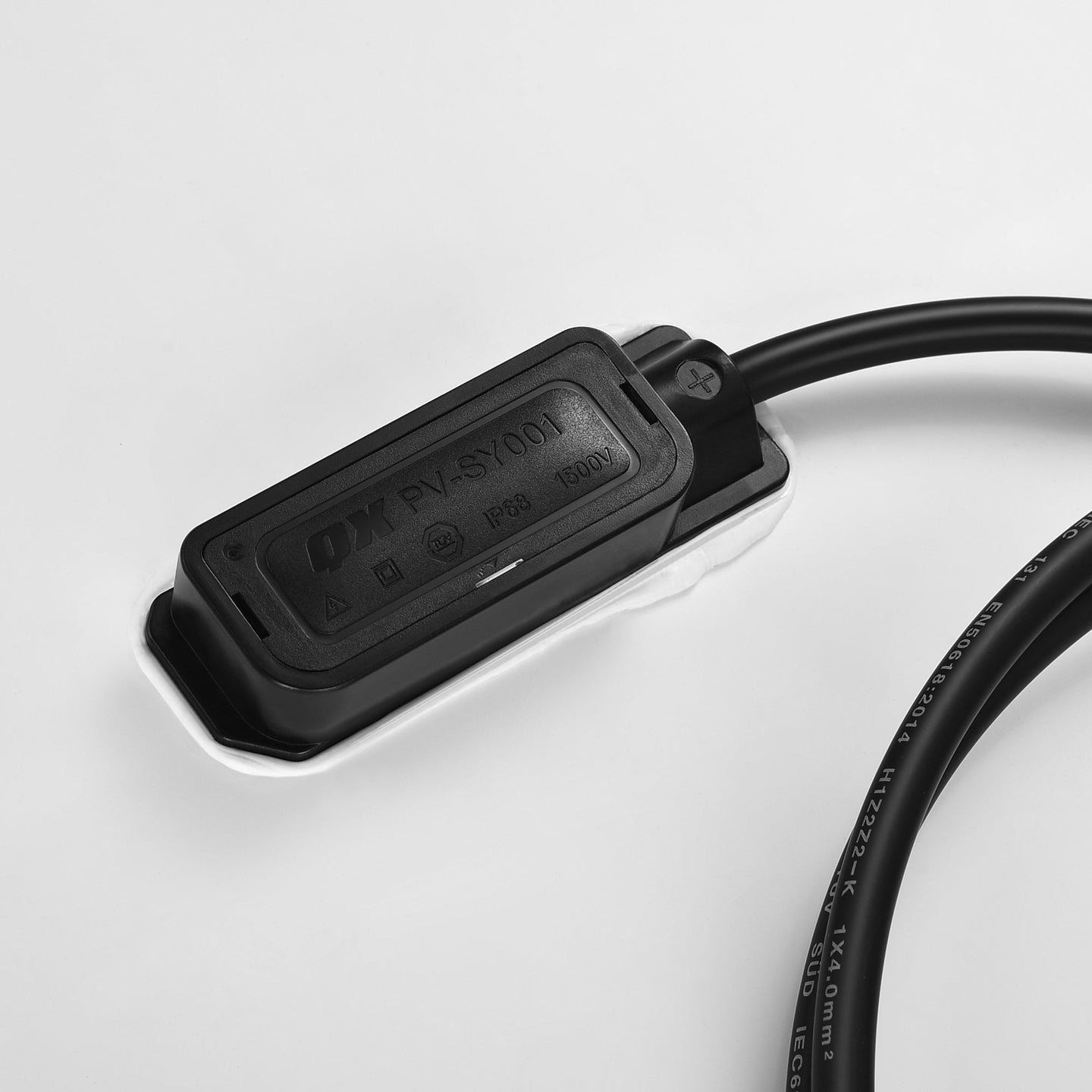

• IP68 Weatherproof Build: Durable IP68 junction box and IP67 connectors for all-weather reliability.
• Certified Strength: Withstand up to 2400 Pa wind and 5400 Pa snow load for dependable performance.
• Impact Resistant: Durable against hail up to 35 mm at speeds of 97 km/h, ensuring long-term reliability.

Superior Performance and
Reliability

• Premium Solar Cells: Built with Grade A+ cells for exceptional efficiency, stability, and long-lasting reliability.
• Rigorous Testing: Each panel undergoes 30+ mechanical and electrical tests, including PID resistance and EL diagnostics, to ensure quality.
• Low-Light Performance: N-Type TopCon cells, 16 busbars, and AR-coated glass work together to capture more light and deliver steady power even in cloudy or low-light conditions.

Compact Solar Panel with 25.1%
Efficiency

• Compact Size: 10% smaller than standard 10BB 250W panels, perfect for tight RV, van, or trailer roofs.
• N-Type TopCon Technology: Higher efficiency, lower degradation, and longer lifespan.
• Half-Cut + 16-Busbar Design: Reduces power loss, minimizes hotspots, and maximizes power output.
• Shading-Resistant: Bypass diodes maintain stable performance in partial shade.

Quick Install, Durable Solar Panel

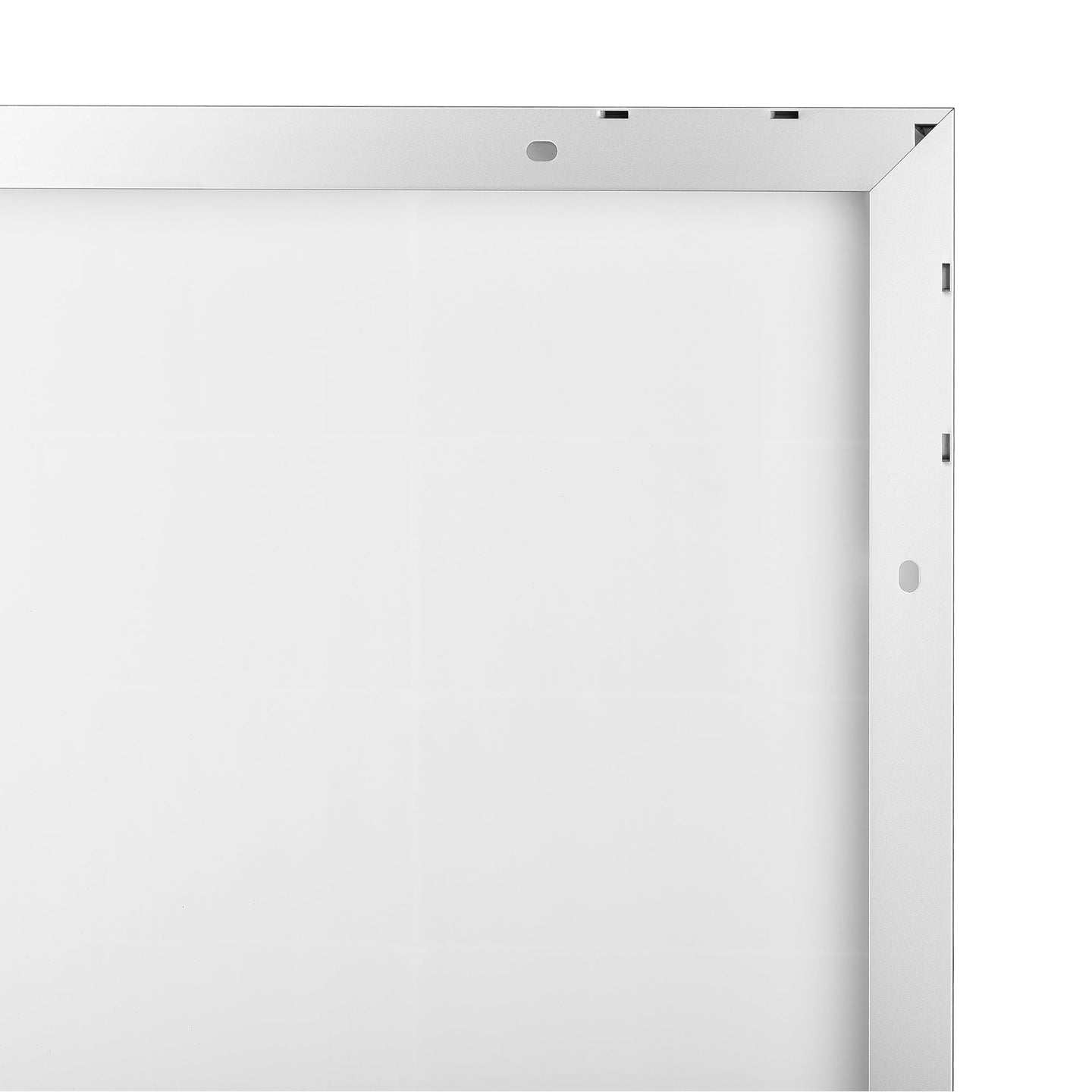

• Easy Installation: Pre-drilled holes provide multiple mounting options for a fast and hassle-free setup.

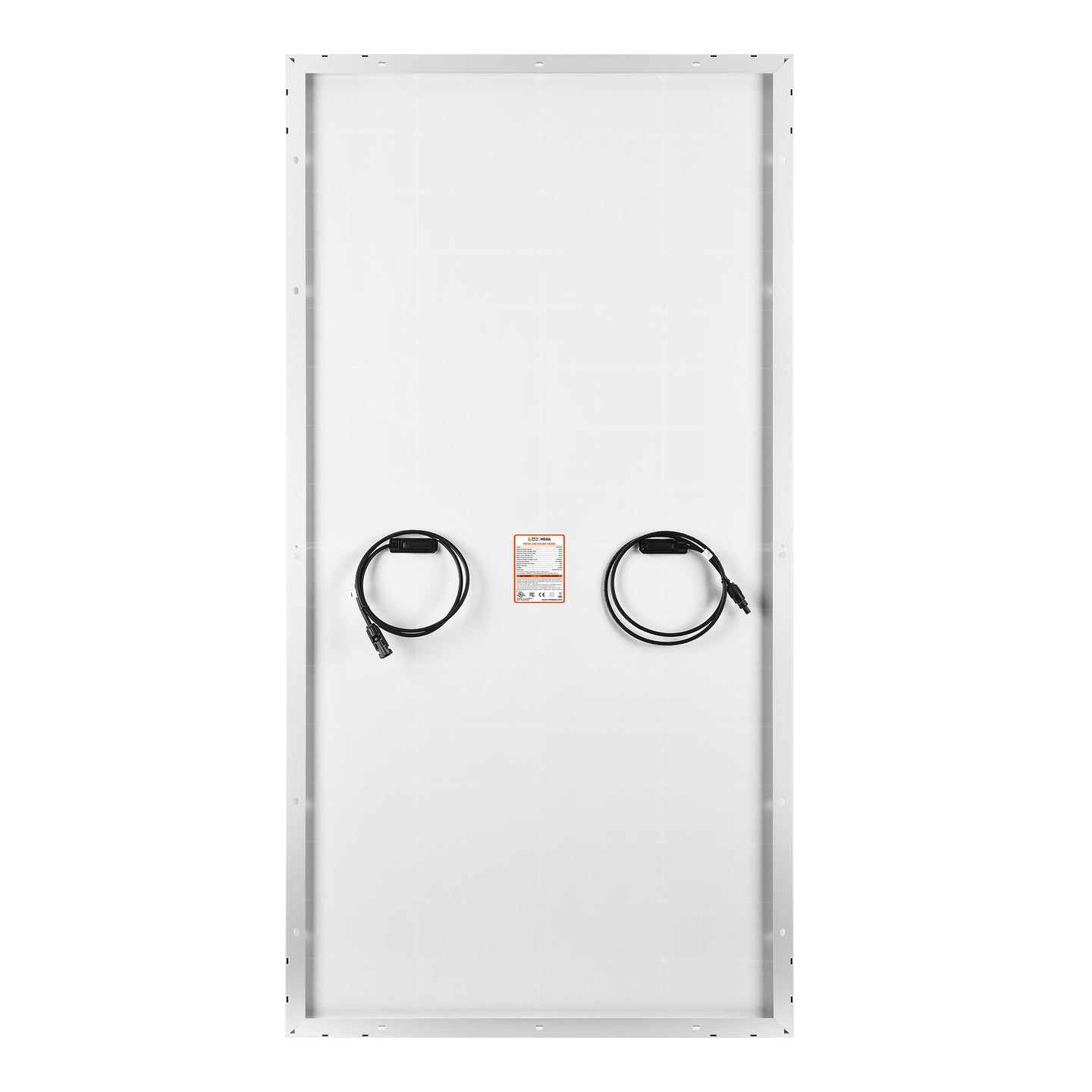

• Plug-and-Play: MC4 connectors with 3ft pre-attached cables for easy connection to other solar panels.

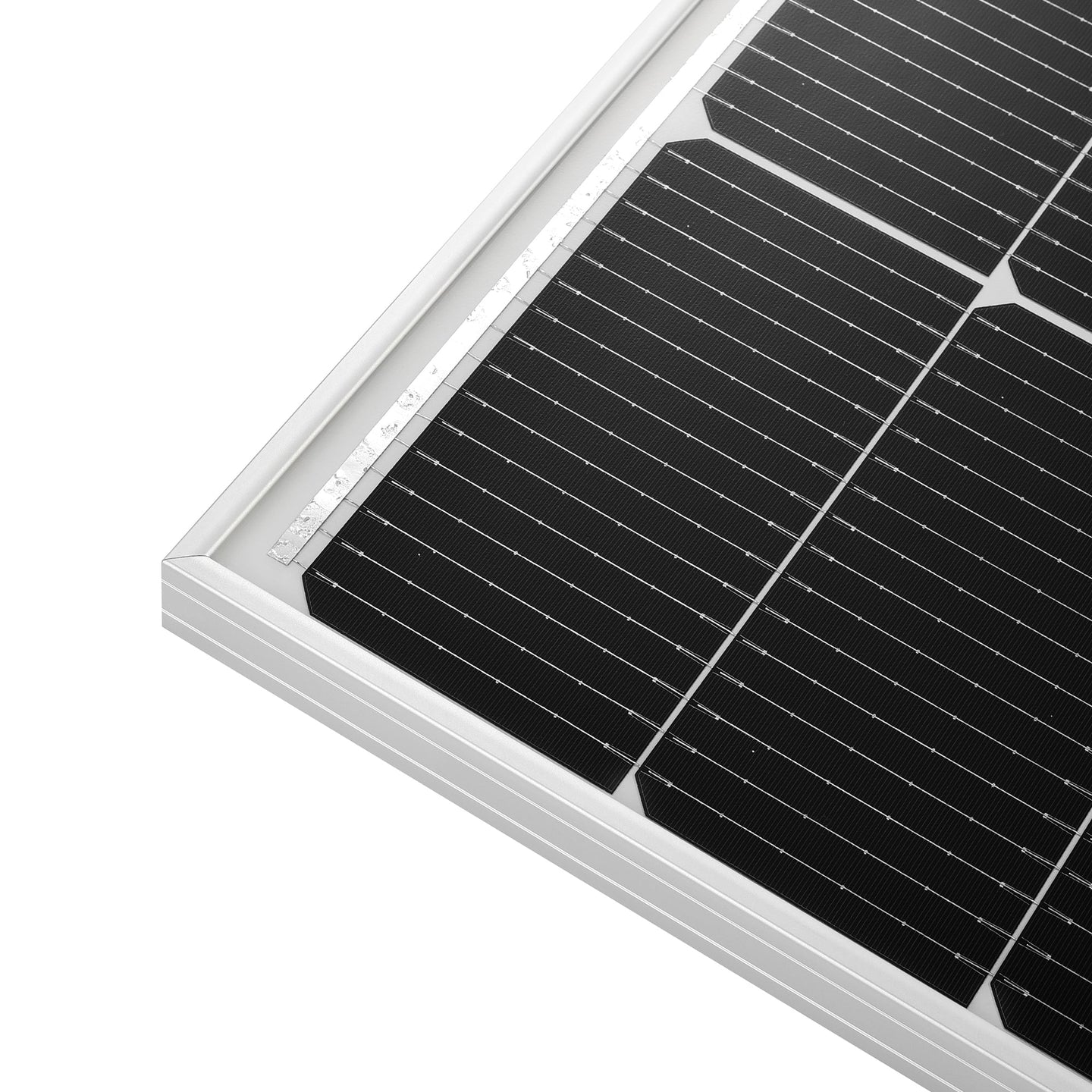

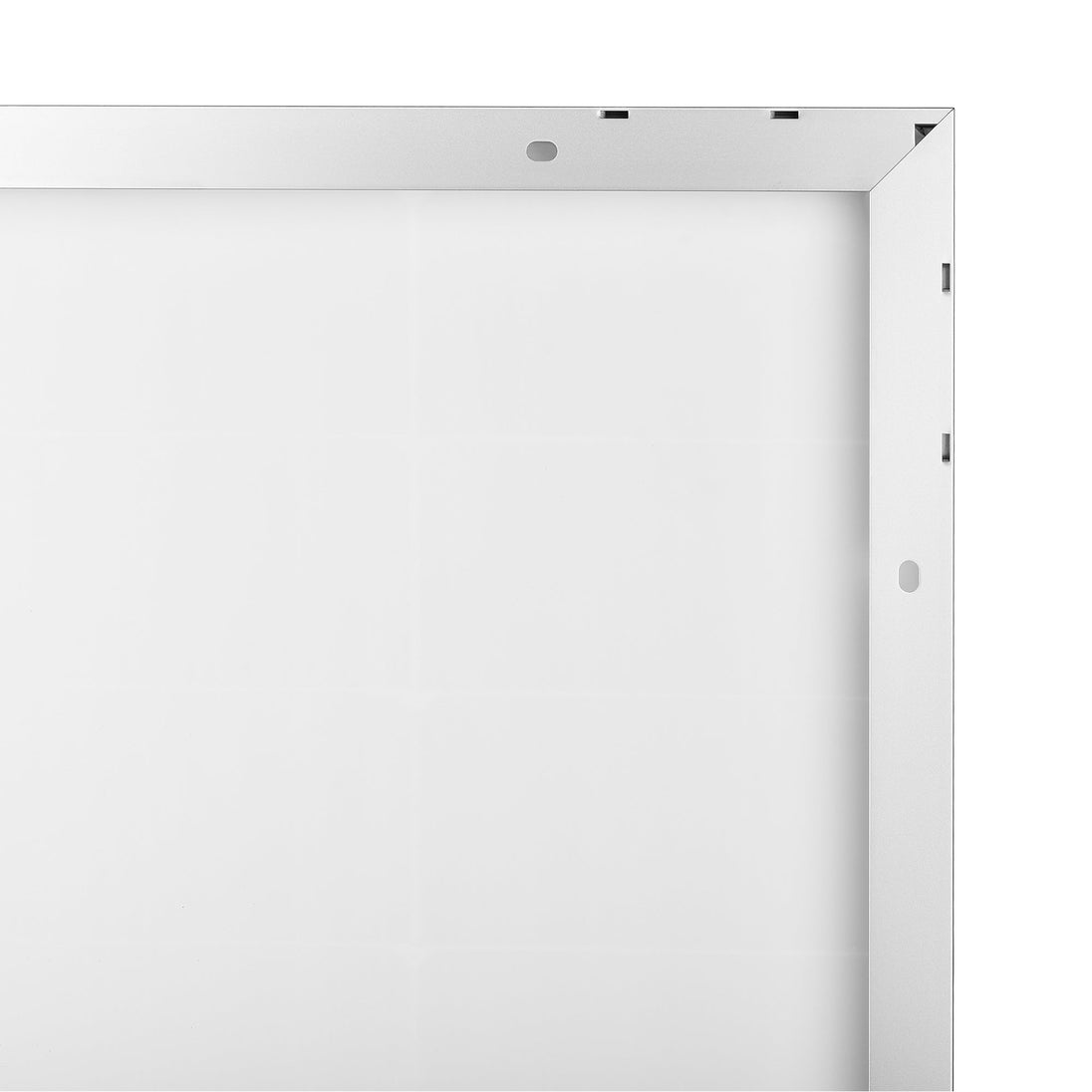

• 1.3mm Thick Aluminum Frame: Reinforced for strength and corrosion resistance, ensuring long-lasting outdoor performance.

Specifications

• Maximum Power Output: 250W
• Nominal Voltage: 12V
• Maximum Cell Efficiency: 25.1%
• Module Efficiency: 21.4%
• Positive Power Tolerance: 0 to +5W
• Maximum Power Voltage: 18.9V
• Maximum Power Current: 13.2A
• Open-Circuit Voltage: 22.8V
• Short-Circuit Current: 13.7A
• Maximum System Voltage: 1,500 VDC
• Maximum Series Fuse Rating: 20A
• Operating Temperature Range: -40°F to 185°F
• Nominal Module Operating Temperature: Approximately 113°F ± 3.6°F
• Maximum Power Temperature Coefficient: Approximately -0.194%/°F
• Open-Circuit Voltage Temperature Coefficient: Approximately -0.156%/°F
• Short-Circuit Current Temperature Coefficient: Approximately 0.025%/°F
• Solar Cell Type: N-Type TOPCon
• Cell Dimensions: 7.2 × 3.6 inches
• Cell Orientation: 64 cells arranged 4 × 8 × 2
• Glass: Approximately 0.13-inch high-transmission, AR-coated tempered glass

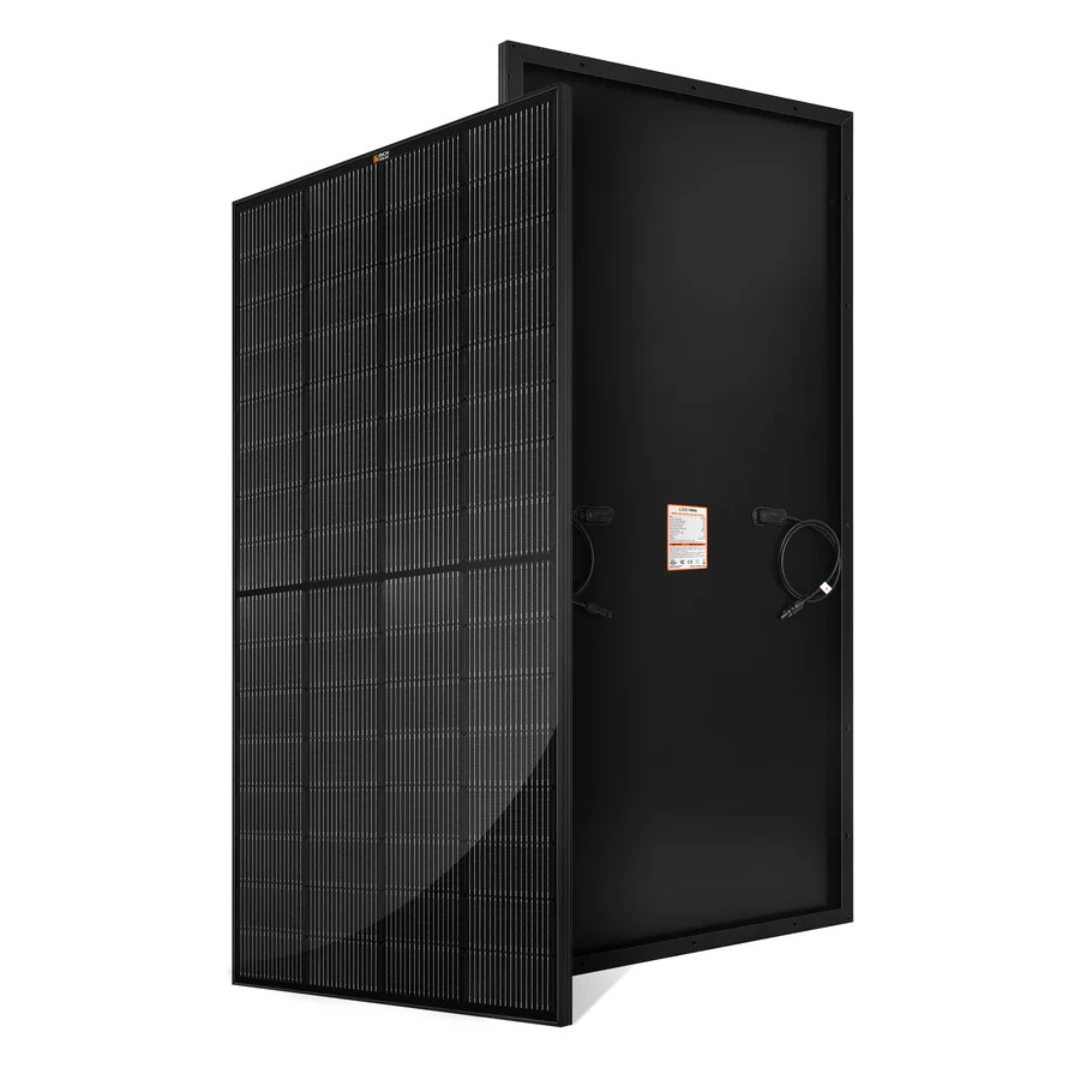

• Backsheet: White or black, depending on the selected model
• Connector Type: Solar connectors
• Frame: Anodized aluminum alloy
• Junction Box Rating: IP68
• Connector Rating: IP67
• Cable Type: No. 12-gauge photovoltaic cable
• Cable Length: 47.2 inches
• Weight: 26.9 lb
• Positive Load Capacity: 5,400 Pa
• Negative Load Capacity: 2,400 Pa

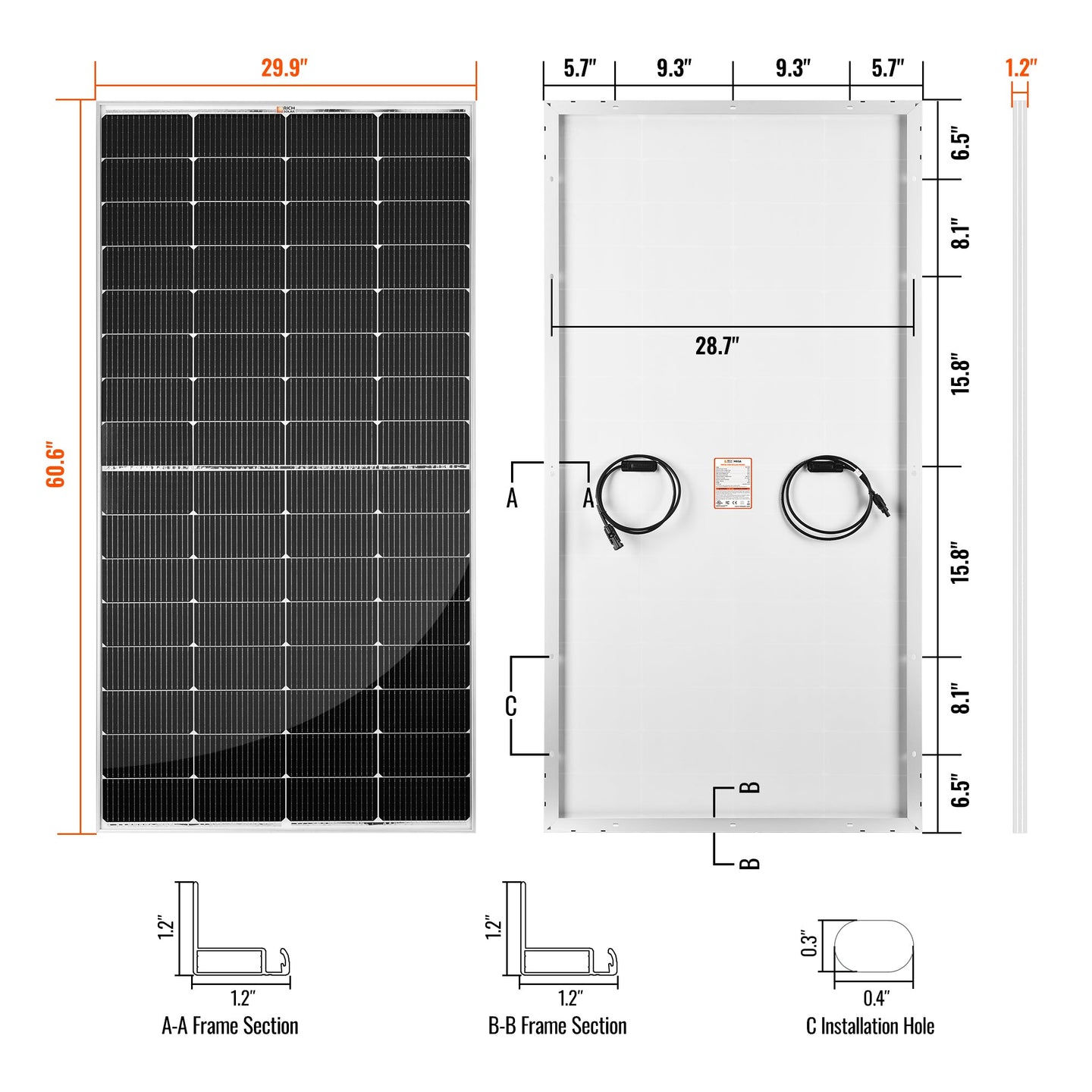

Size Guide

• Overall Dimensions: 60.6 × 29.9 × 1.2 inches
• Dimensional Tolerance: Actual dimensions may vary by ±0.1 inch

Compatibility

• Compatible With: Existing mainstream optimizers, inverters, and mounting systems
• Connection Configurations: Series and parallel configurations
• Supported Mounting Options: Ground mounts, Z-brackets, poles, and tilt systems
• Suitable Applications: RVs, vans, boats, cabins, motorhomes, trailers, mobile solar installations, stationary solar installations, DIY solar power, and off-grid systems

Included

• Package contents are not specifically listed on the official product page.

Warranty: 25-year power output warranty and 10-year workmanship warranty for rigid solar panels
