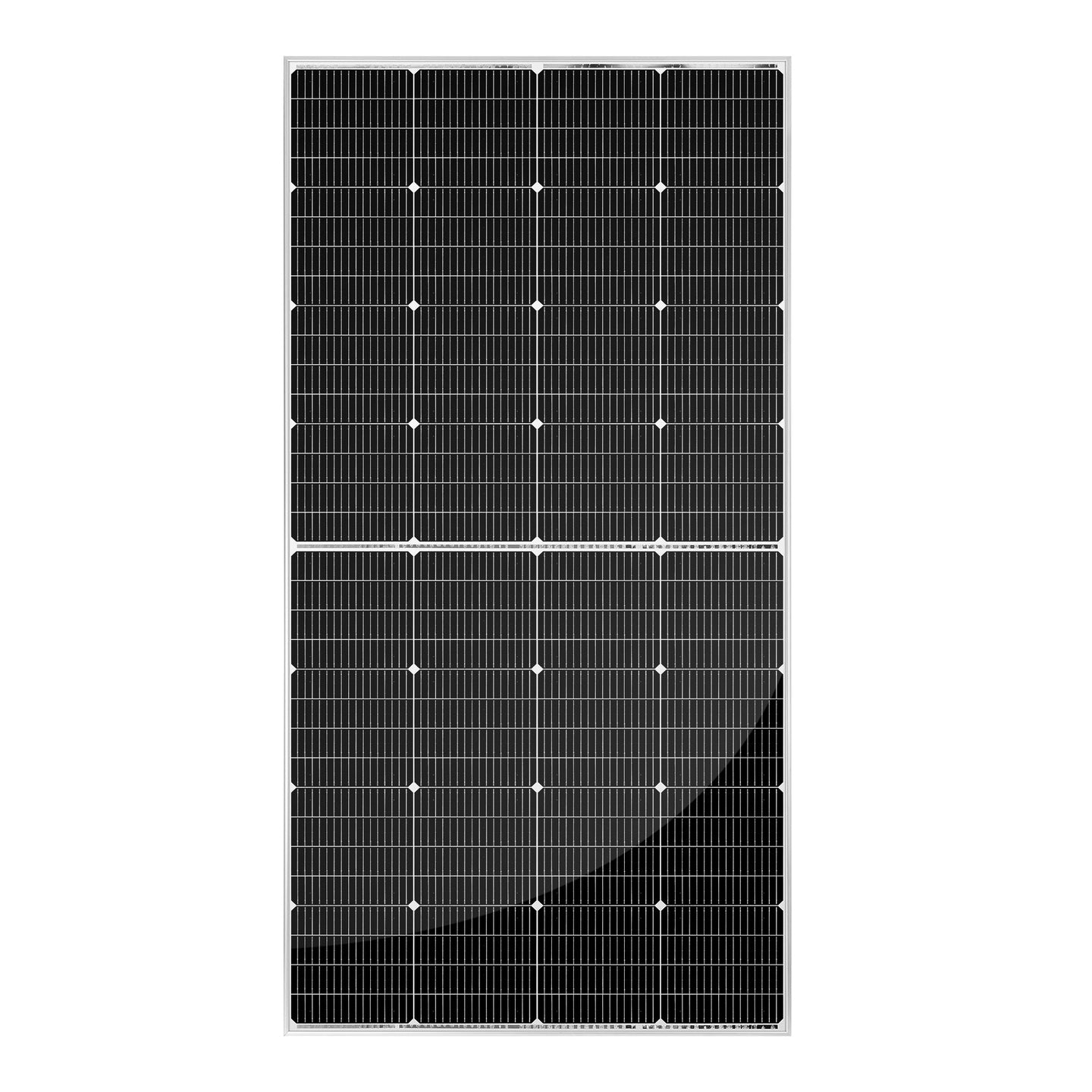

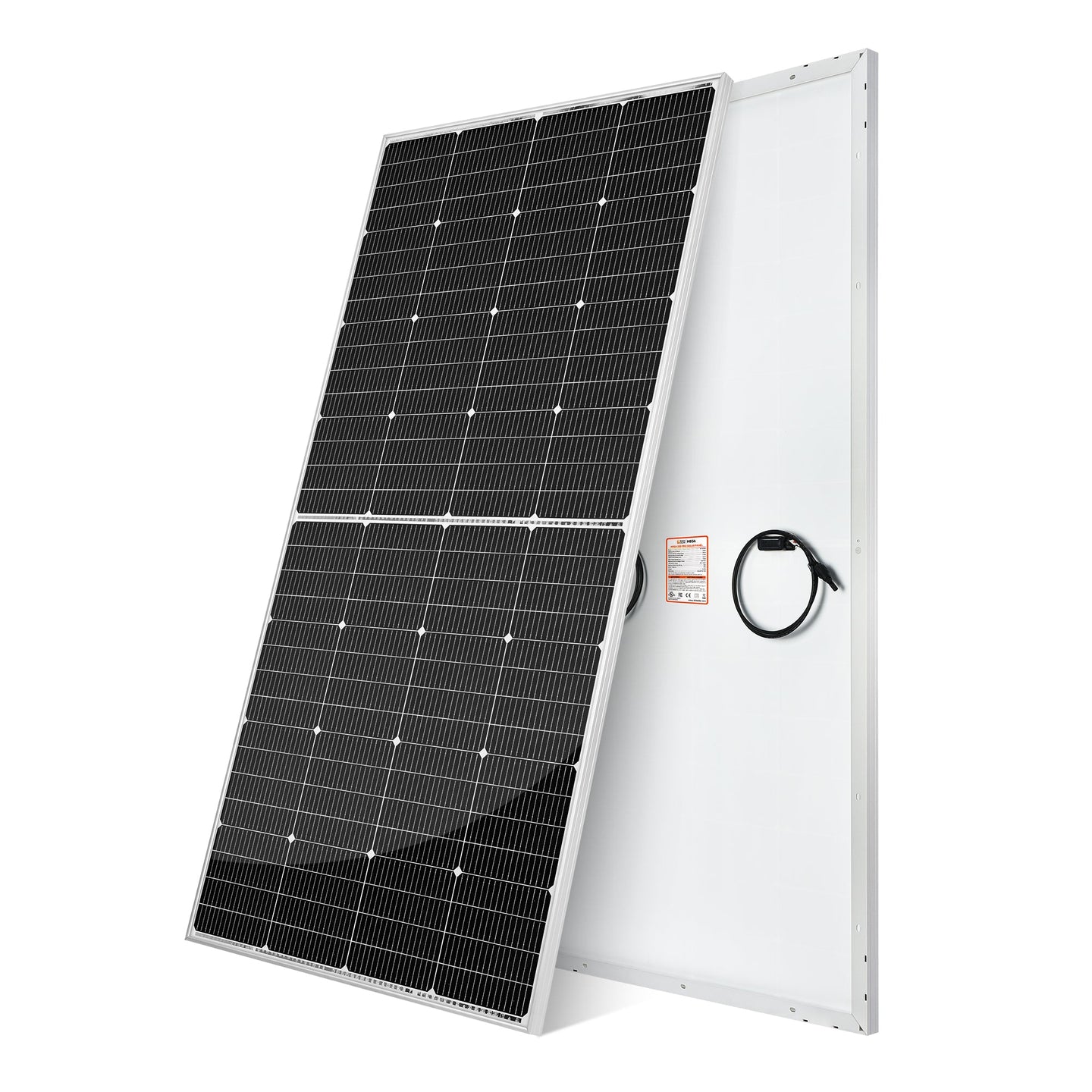

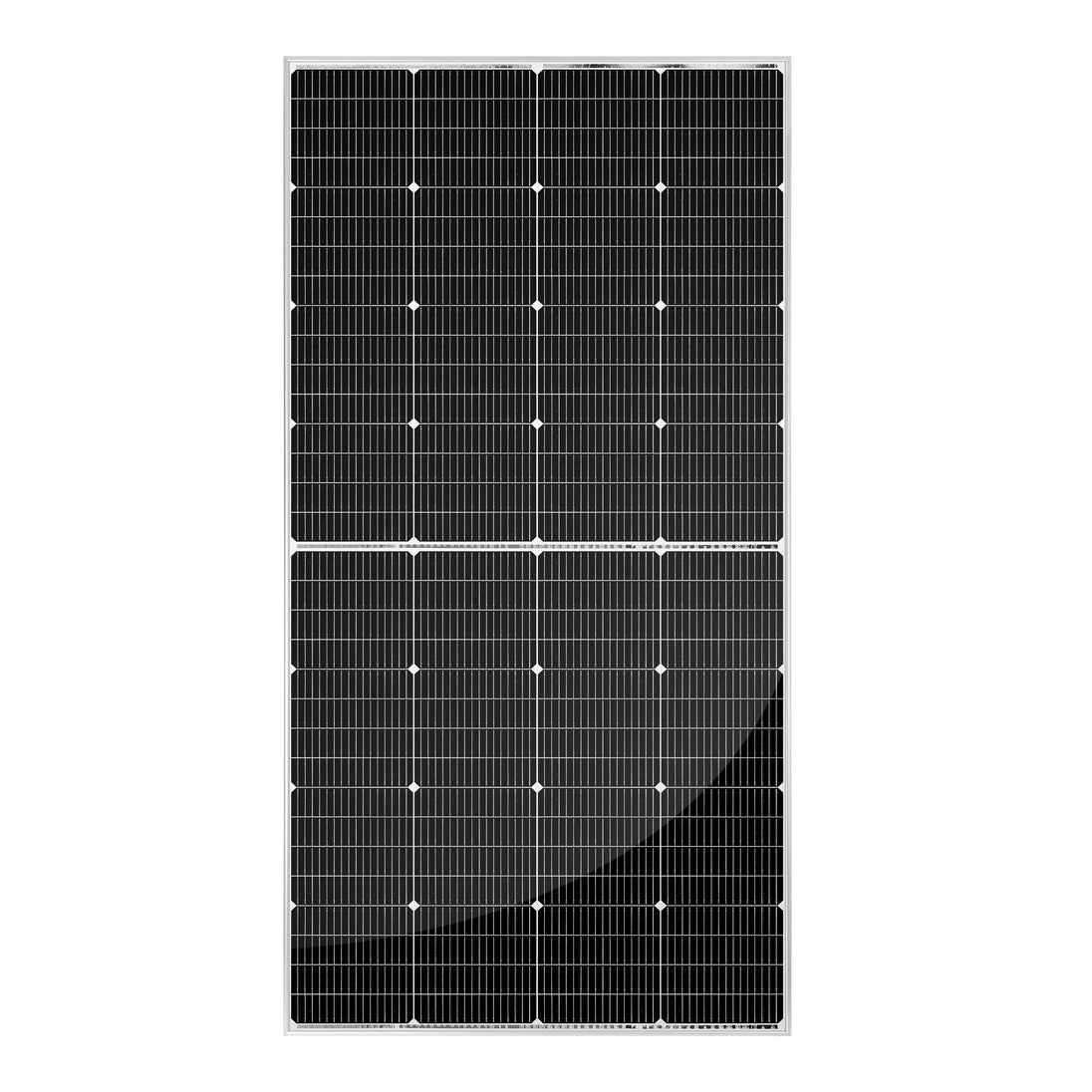

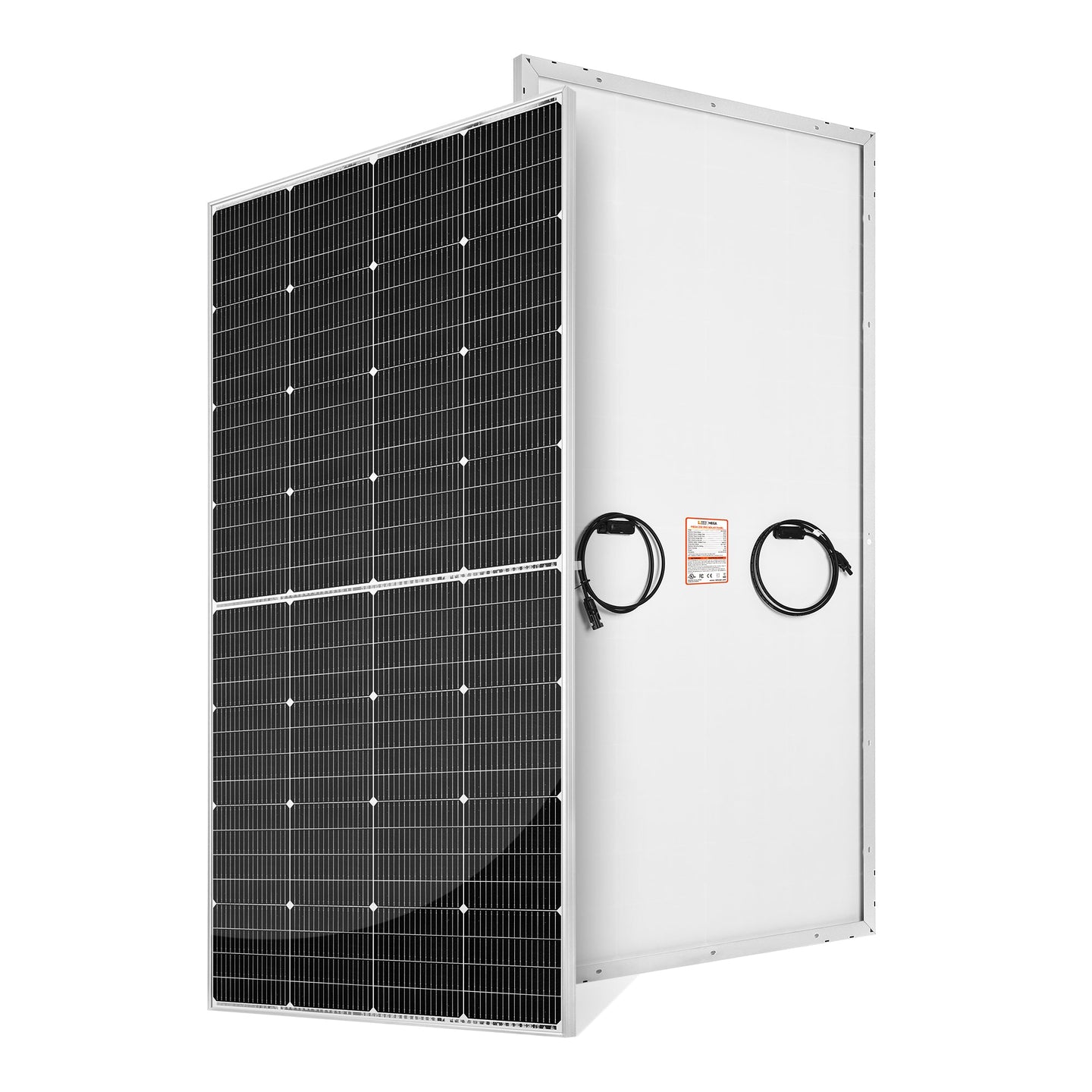

RIch Solar MEGA 250 PRO | 250 Watt 24 Volt Solar Panel

The MEGA 250 PRO is a 250-watt, 24-volt rigid solar panel designed for high-power mobile and off-grid systems. It is suitable for campers, RVs, motorhomes, boats, cabins, tiny homes, DIY solar projects, and larger solar arrays.

N-Type TOPCon cells with a 16-busbar configuration support efficient light capture and low-light performance. High-transmission AR-coated tempered glass, an anodized aluminum frame, and weather-protected electrical components provide durability for outdoor installations.

Pre-drilled mounting holes and pre-attached solar cables support straightforward installation. One panel supports 12V and 24V systems, while two or more panels can be configured for systems operating at 48V or higher.

Key Features

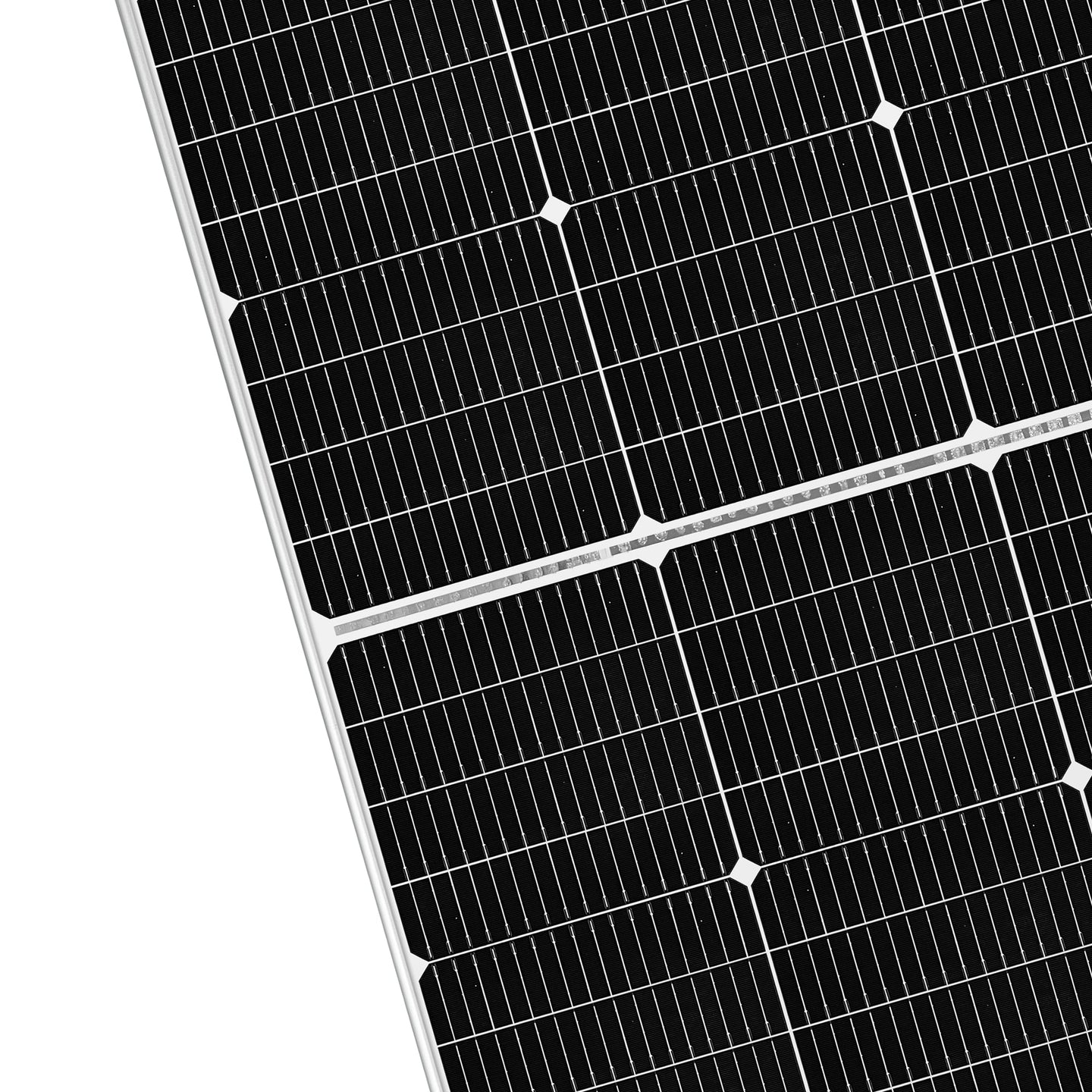

• N-Type TOPCon Cells: Multi-busbar cell technology improves light trapping, reduces series resistance, and enhances current collection.
• 16-Busbar Configuration: Designed to improve real-world power output through better light capture and lower electrical resistance.
• Low-Light Performance: Maintains energy production during cloudy conditions and lower-light periods such as mornings and evenings.
• Positive Power Tolerance: A 0 to +5W tolerance helps ensure at least the rated output.
• High-Transmission Glass: AR-coated tempered glass enhances sunlight absorption while supporting outdoor durability.
• Weather-Resistant Construction: Designed to withstand salt, ammonia, sand, elevated temperatures, and high humidity.
• IP68 Protection: The sealed junction box and solar connectors provide weather protection.
• PID Resistance: Advanced cell processing and module material control help resist potential-induced degradation.
• Double EL Inspection: Fully inspected twice through electroluminescence testing to help identify microcracks.
• Extensive Testing: Undergoes more than 30 in-house tests, including UV exposure, thermal cycling, and high-frequency testing.
• Certified Mechanical Strength: Withstands positive loads up to 5,400 Pa and negative loads up to 2,400 Pa.
• Flexible Installation: Pre-drilled holes support ground mounts, Z-brackets, pole mounts, and tilt systems.
• Plug-and-Play Connection: Solar connectors with 4-foot pre-attached cables support connection to other panels.
• Simplified High-Power Configuration: One panel supports 12V and 24V systems, while two or more panels can support systems operating at 48V or higher.

Powerful Output in Every
Condition

• TOPCon N-Type + 16-Busbar Cells: Boosts real-world output with better light capture and lower resistance.
• 3.2mm AR-Coated Tempered Glass: Enhances sunlight absorption and ensures lasting durability.
• All-Weather Performance: Strong low-light output and a -0.35%/°C temperature coefficient for stable power.

Engineered for Extreme
Durability

Built to withstand harsh environments, including salt, ammonia, sand, high temperatures, and high humidity.

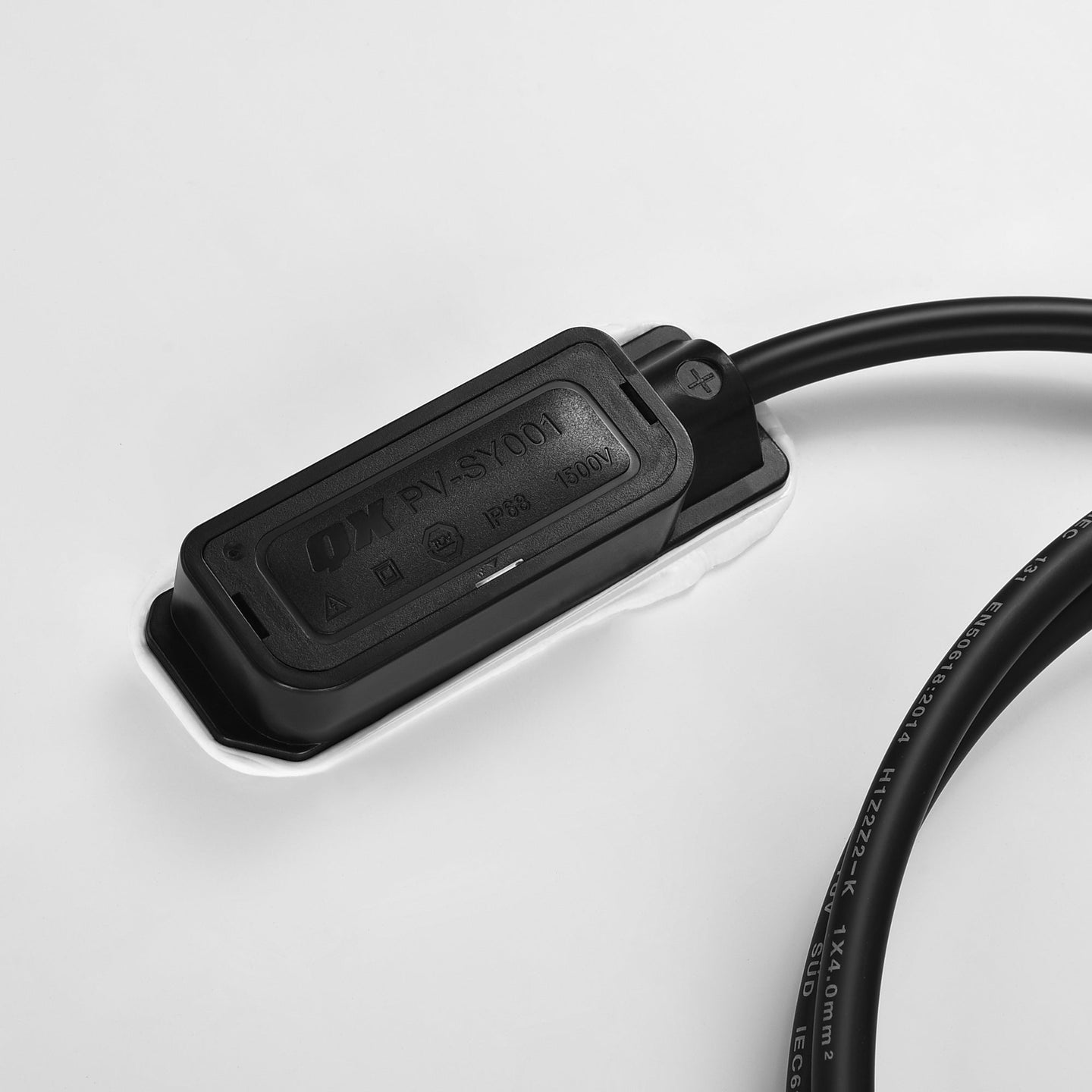

• IP68 Waterproof Rating: Sealed junction box and MC4 connectors for all-weather protection.
• Rigorous Testing: Over 30 in-house tests, including UV, thermal cycling, and high-frequency testing, ensure durability.
• PID-Resistant & 100% Double EL Inspected: Prevents micro-cracks and guarantees module integrity.

Effortless Installation

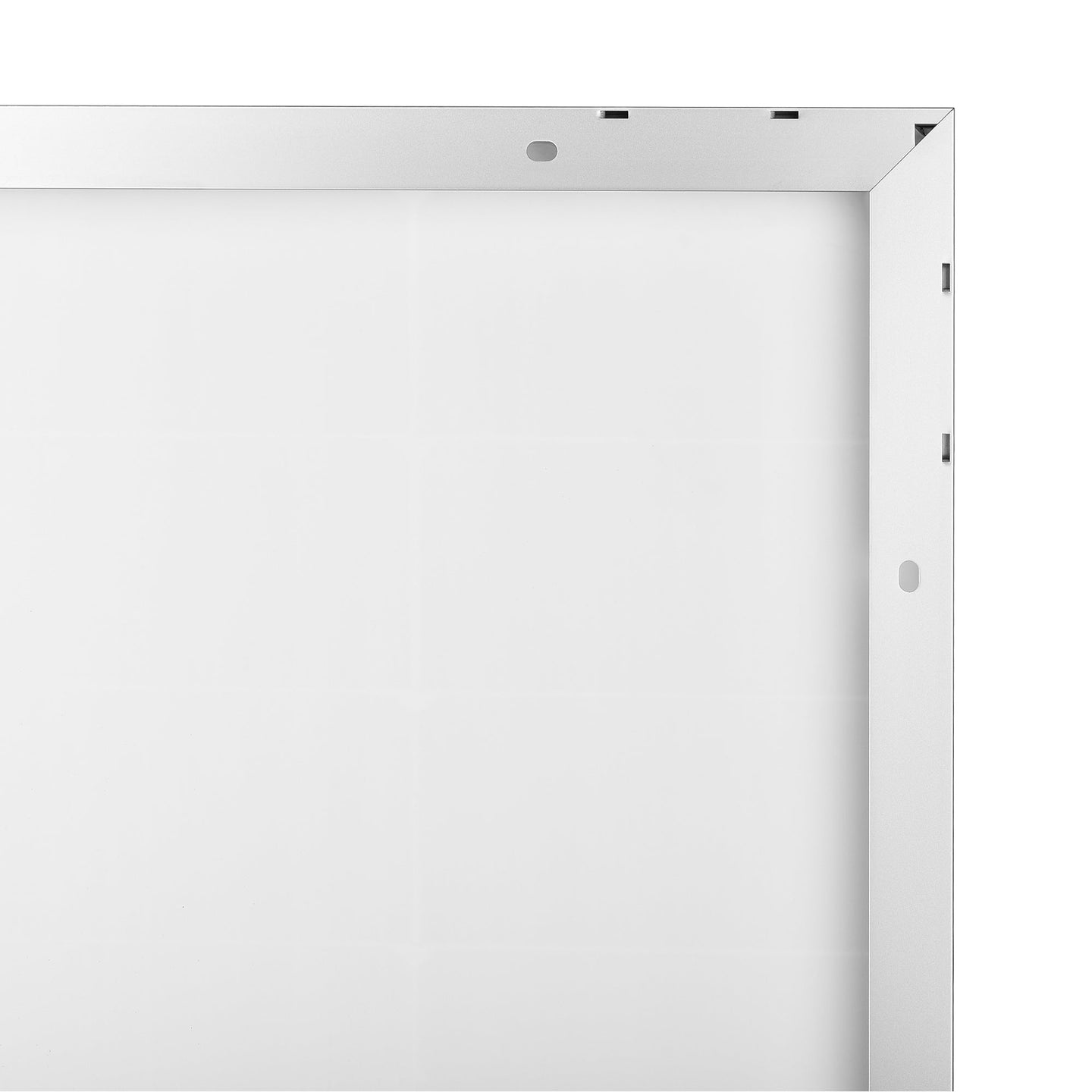

• Quick Setup: Pre-drilled holes allow flexible mounting options for fast, hassle-free installation.
• Plug & Play: MC4 connectors with 4ft pre-attached cables for easy connection to other solar panels.
• High Compatibility: Works seamlessly with PWM/MPPT controllers and on/off-grid inverters for versatile system integration.

Simplified High-Power Solutions

• Fewer Panels Needed: One panel supports 12V/24V systems; two or more panels power 48V+ systems.
• Simpler Wiring: Reduce cable complexity and connection points for faster, easier installation.
• Ideal for High-Wattage Systems: Perfect choice for off-grid homes, RVs, and large solar arrays.

Specifications

• Maximum Power Output: 250W
• Nominal Voltage: 24V
• Maximum Cell Efficiency: 25.1%
• Module Efficiency: 21.4%
• Positive Power Tolerance: 0 to +5W
• Maximum Power Voltage: 36.9V
• Maximum Power Current: 6.78A
• Open-Circuit Voltage: 44.7V
• Short-Circuit Current: 7.24A
• Maximum System Voltage: 1,500 VDC
• Maximum Series Fuse Rating: 20A
• Operating Temperature Range: -40°F to 185°F
• Nominal Module Operating Temperature: Approximately 113°F ± 3.6°F
• Maximum Power Temperature Coefficient: Approximately -0.194%/°F
• Open-Circuit Voltage Temperature Coefficient: Approximately -0.156%/°F
• Short-Circuit Current Temperature Coefficient: Approximately 0.025%/°F
• Solar Cell Type: N-Type TOPCon
• Cell Dimensions: 7.2 × 1.8 inches
• Cell Configuration: 128 cells arranged 4 × 16 × 2
• Glass: Approximately 0.13-inch high-transmission, AR-coated tempered glass

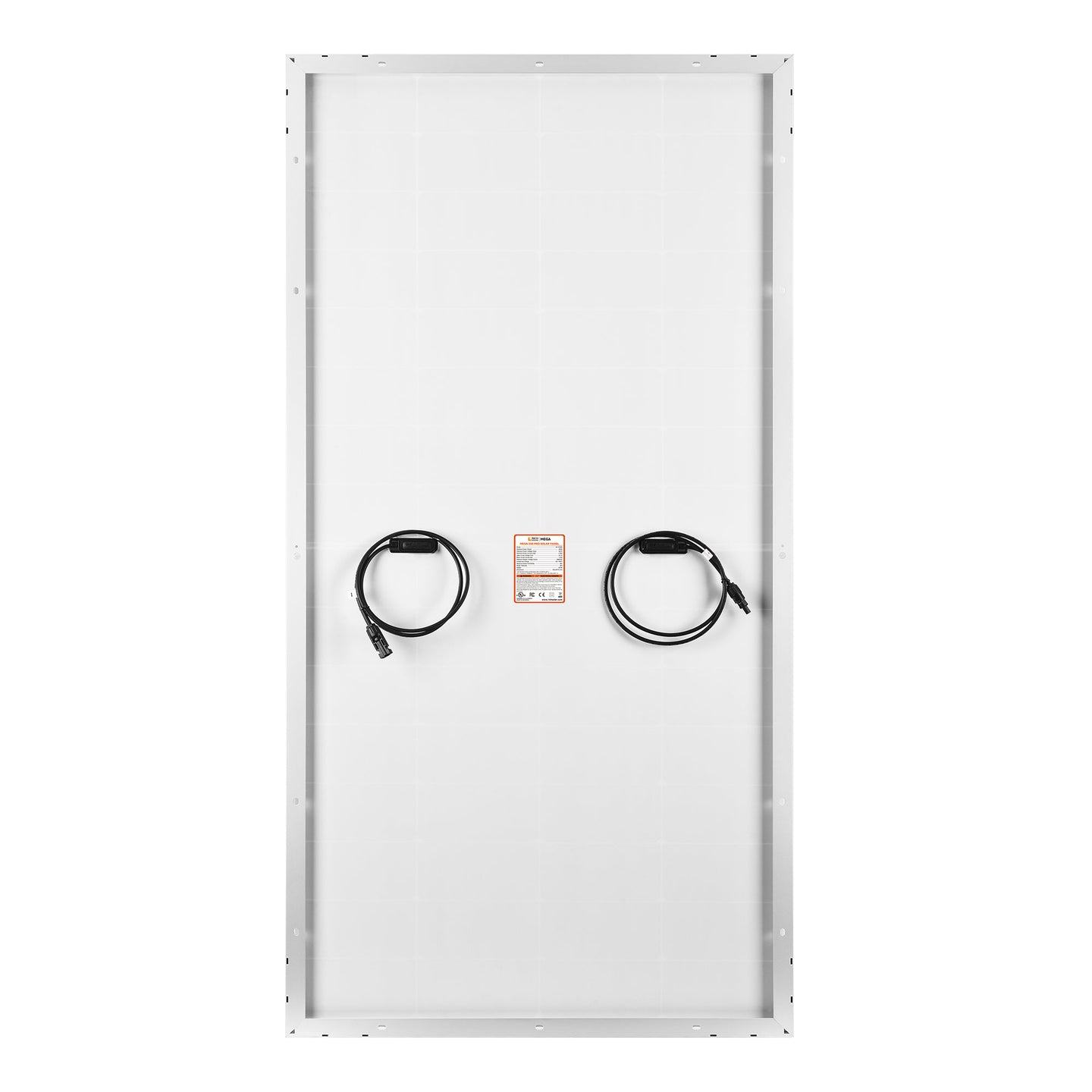

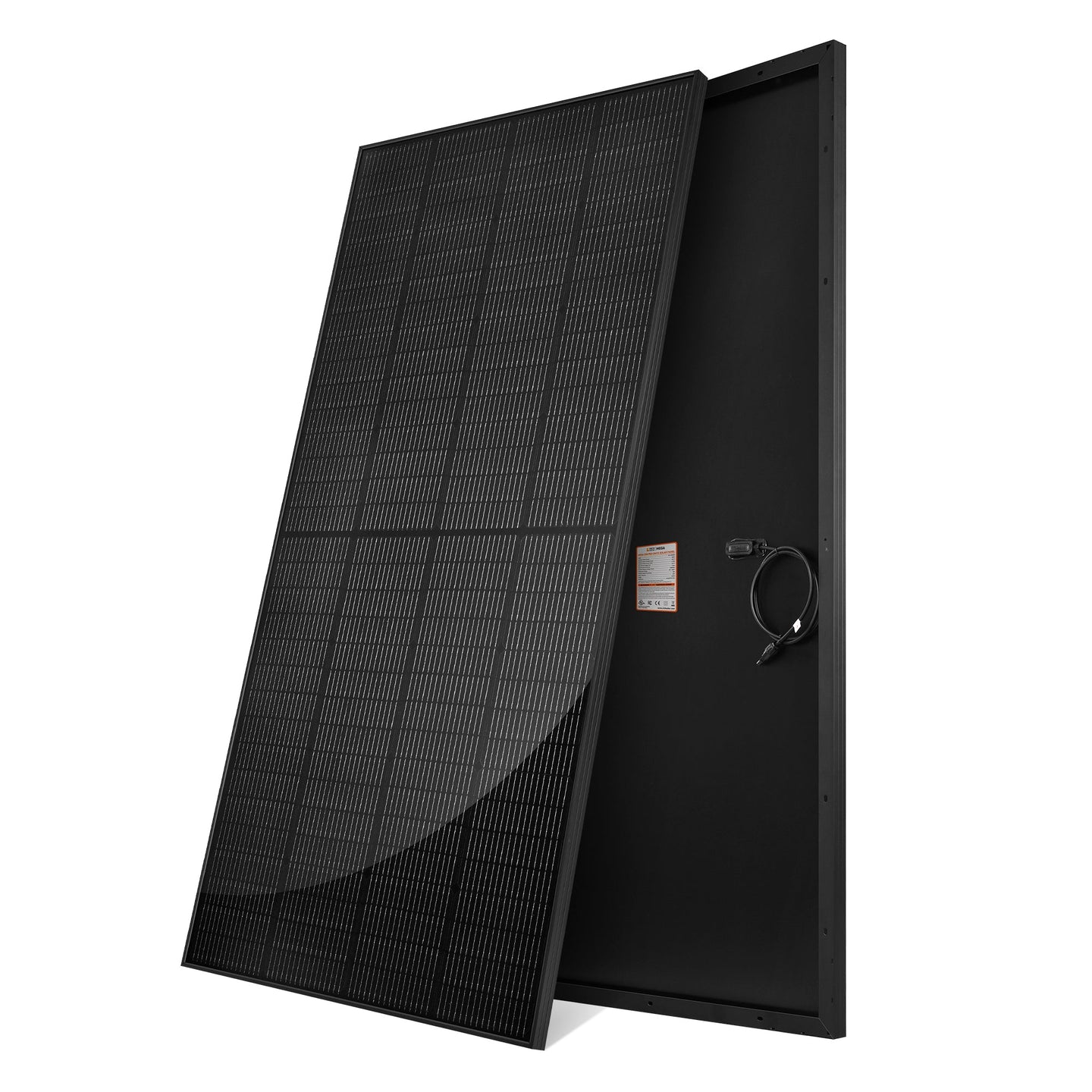

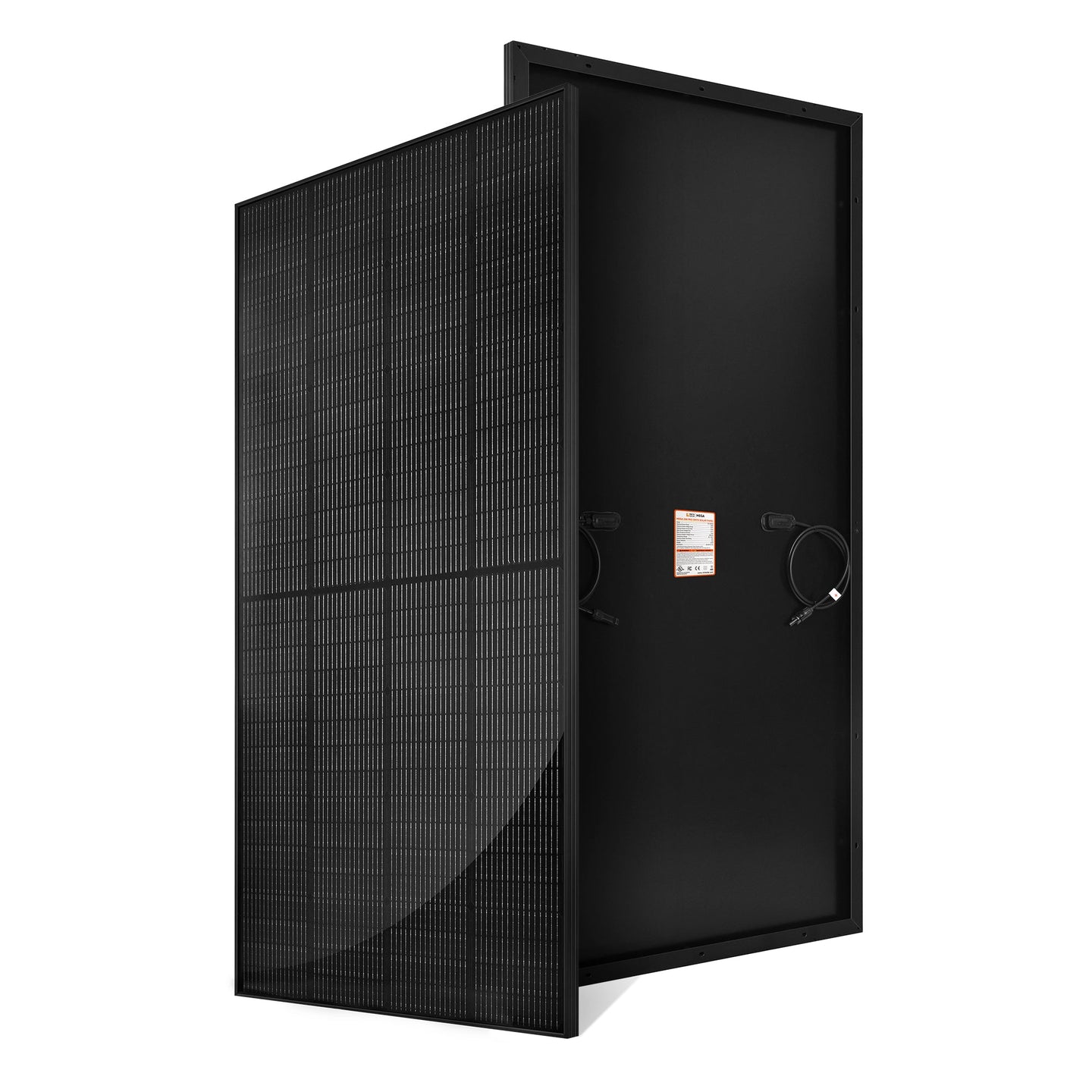

• Backsheet: White or black, depending on the selected model
• Connector Type: Solar connectors

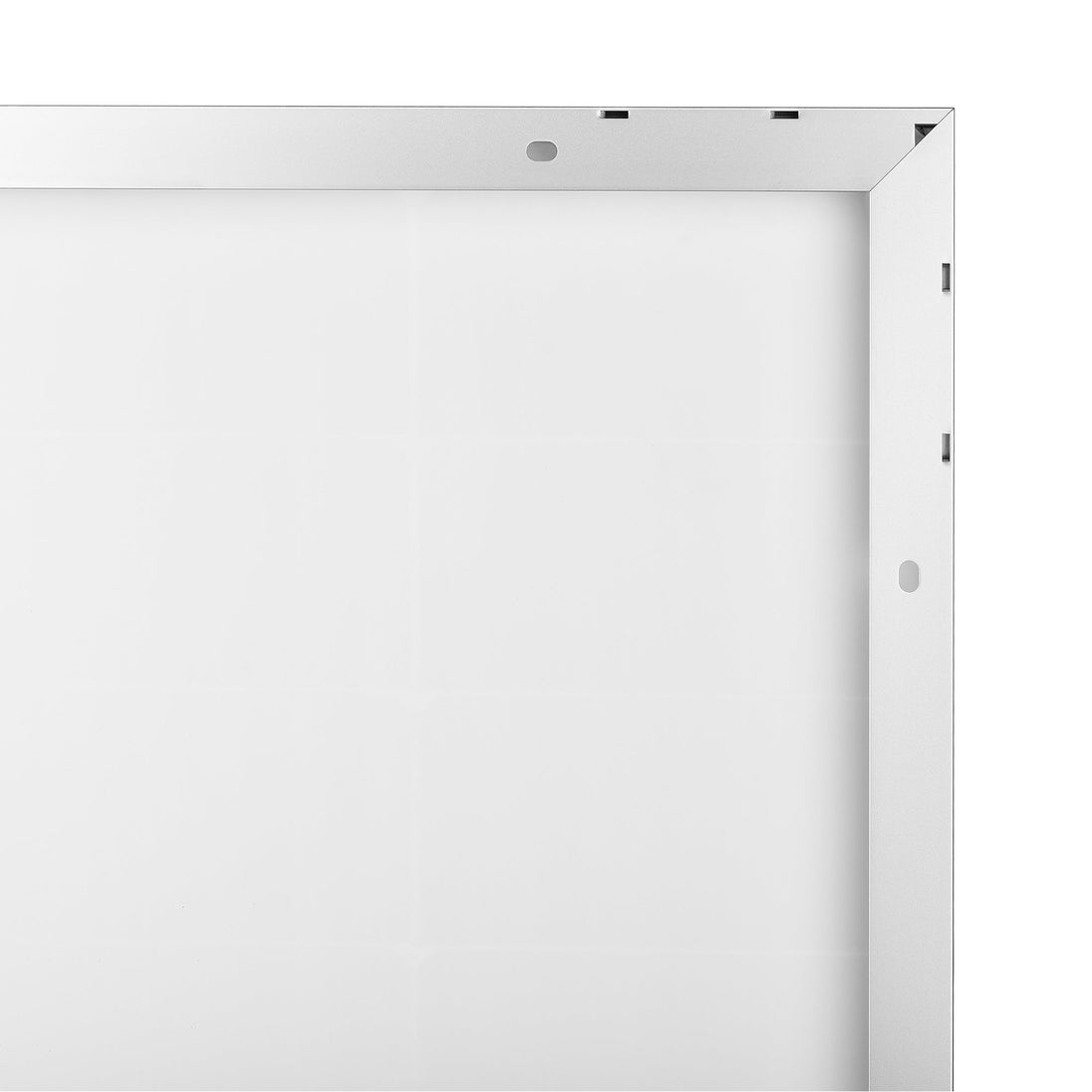

• Frame: Anodized aluminum alloy
• Junction Box Rating: IP68
• Solar Connector Rating: IP68
• Cable Type: No. 12-gauge photovoltaic cable
• Cable Length: 4 feet
• Number of Pre-Drilled Mounting Holes: 14
• Weight: 26.9 lb
• Positive Load Capacity: 5,400 Pa
• Negative Load Capacity: 2,400 Pa

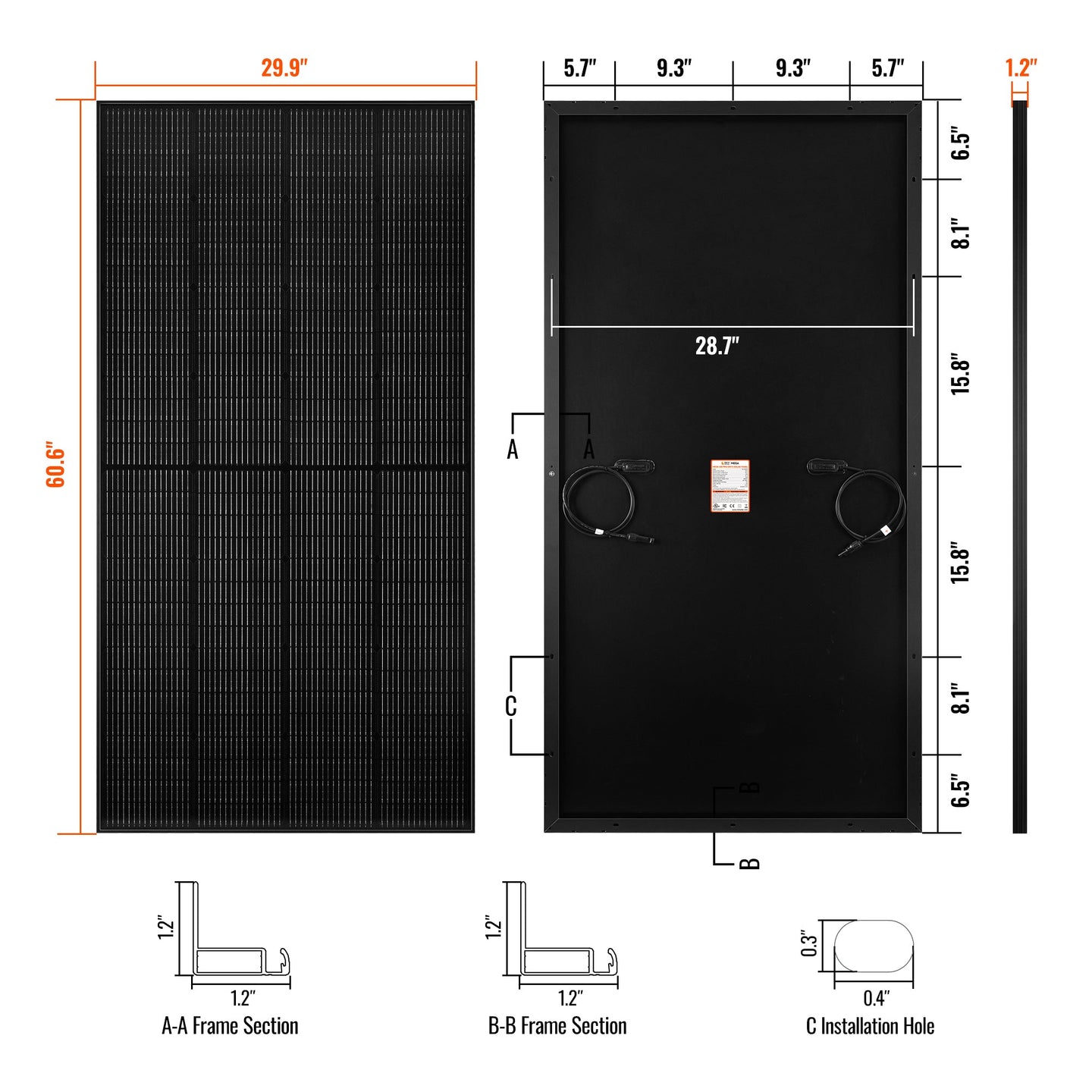

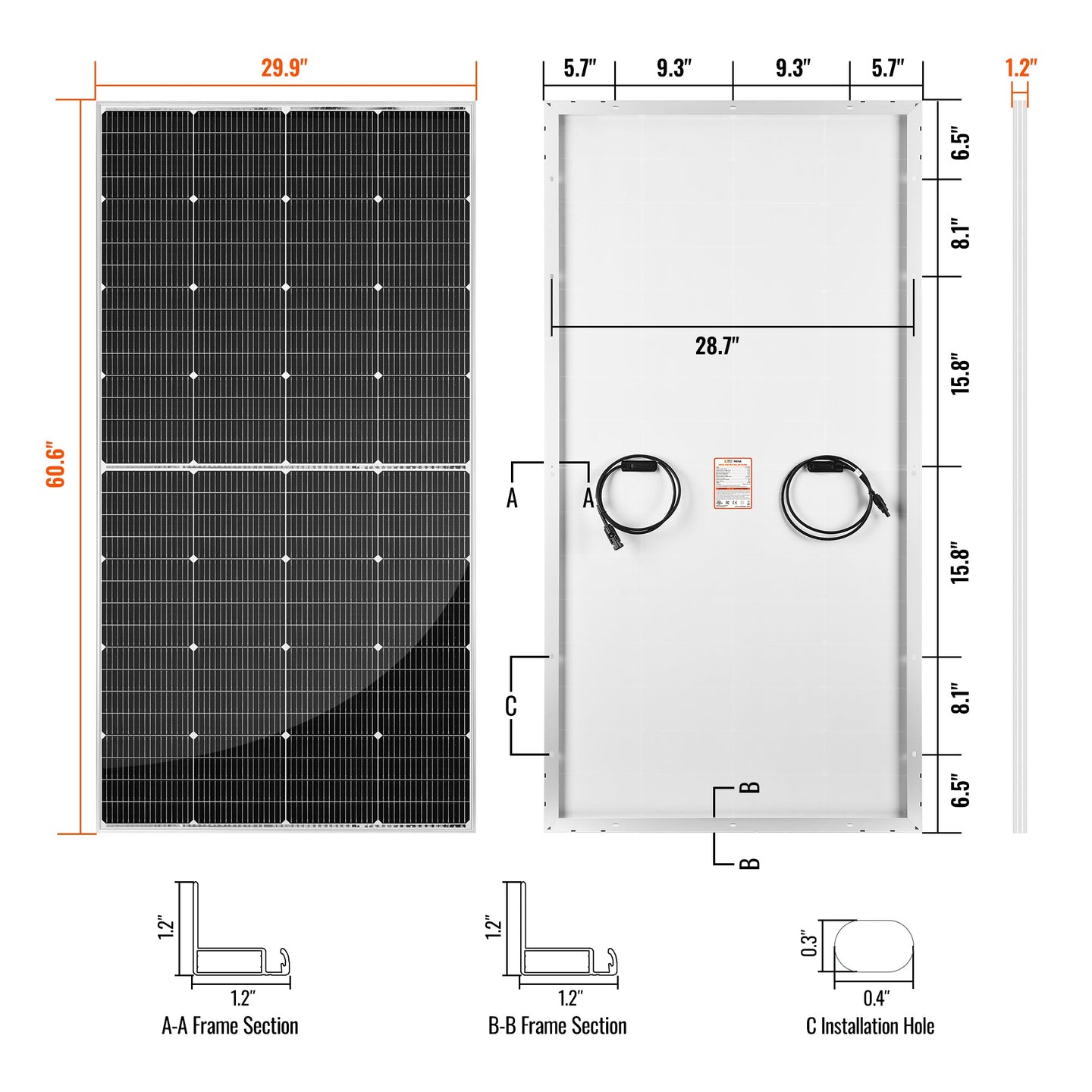

Size Guide

• Overall Dimensions: 60.6 × 29.9 × 1.2 inches
• Dimensional Tolerance: Actual dimensions may vary by ±0.1 inch

Compatibility

Compatible With: PWM and MPPT charge controllers, on-grid and off-grid inverters, mainstream optimizers, inverters, and mounting systems

System Voltage Support: One panel supports 12V and 24V systems; two or more panels can power systems operating at 48V or higher

Connection Configurations: Series and parallel configurations

Supported Mounting Options: Ground mounts, Z-brackets, pole mounts, and tilt systems

Suitable Applications: Campers, RVs, motorhomes, boats, cabins, tiny homes, DIY solar systems, off-grid homes, mobile installations, and large solar arrays
