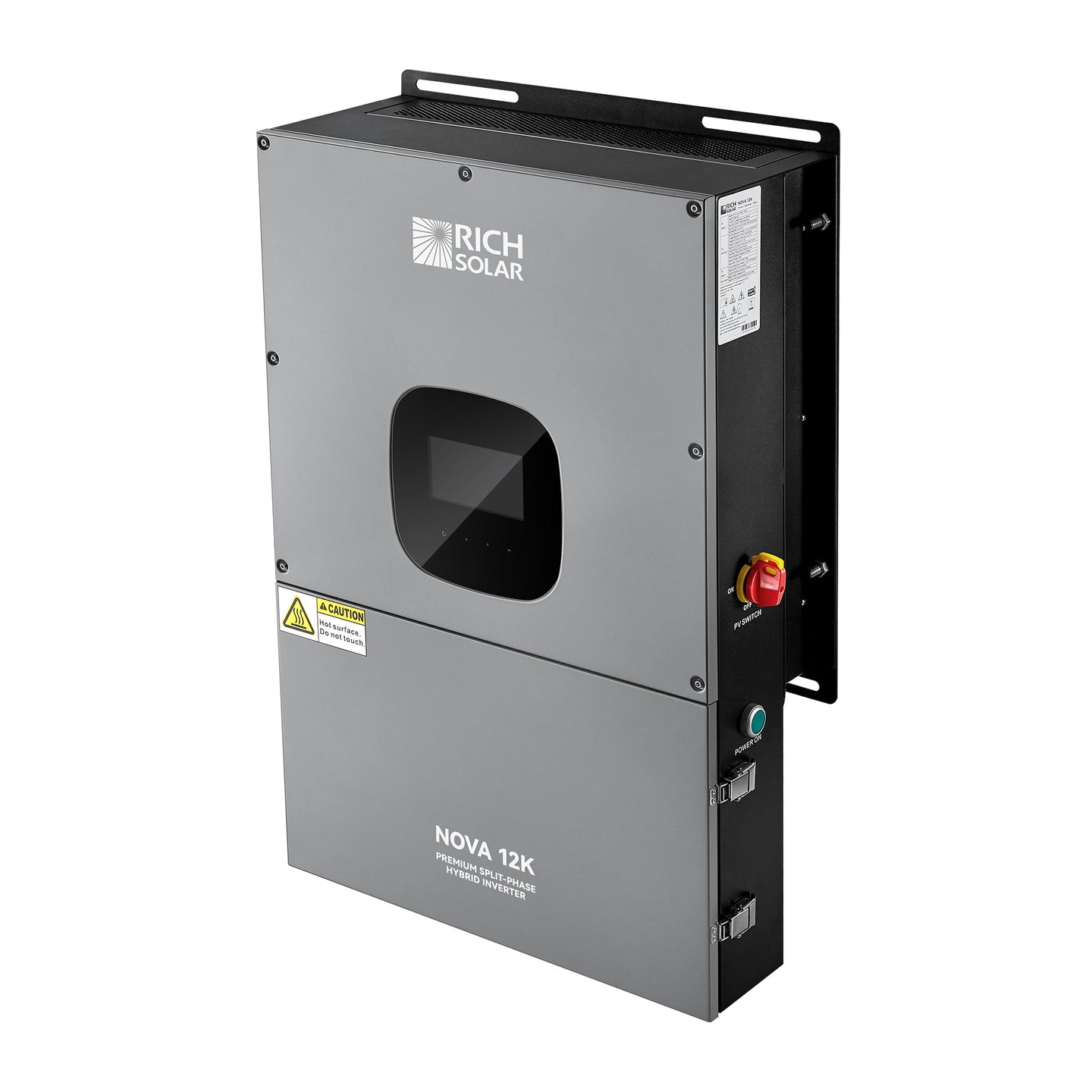

RIch Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter

SKU RS-H12K
$2,999.99
$2,999.99

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Northgrid Supply, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@northgridsupply.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

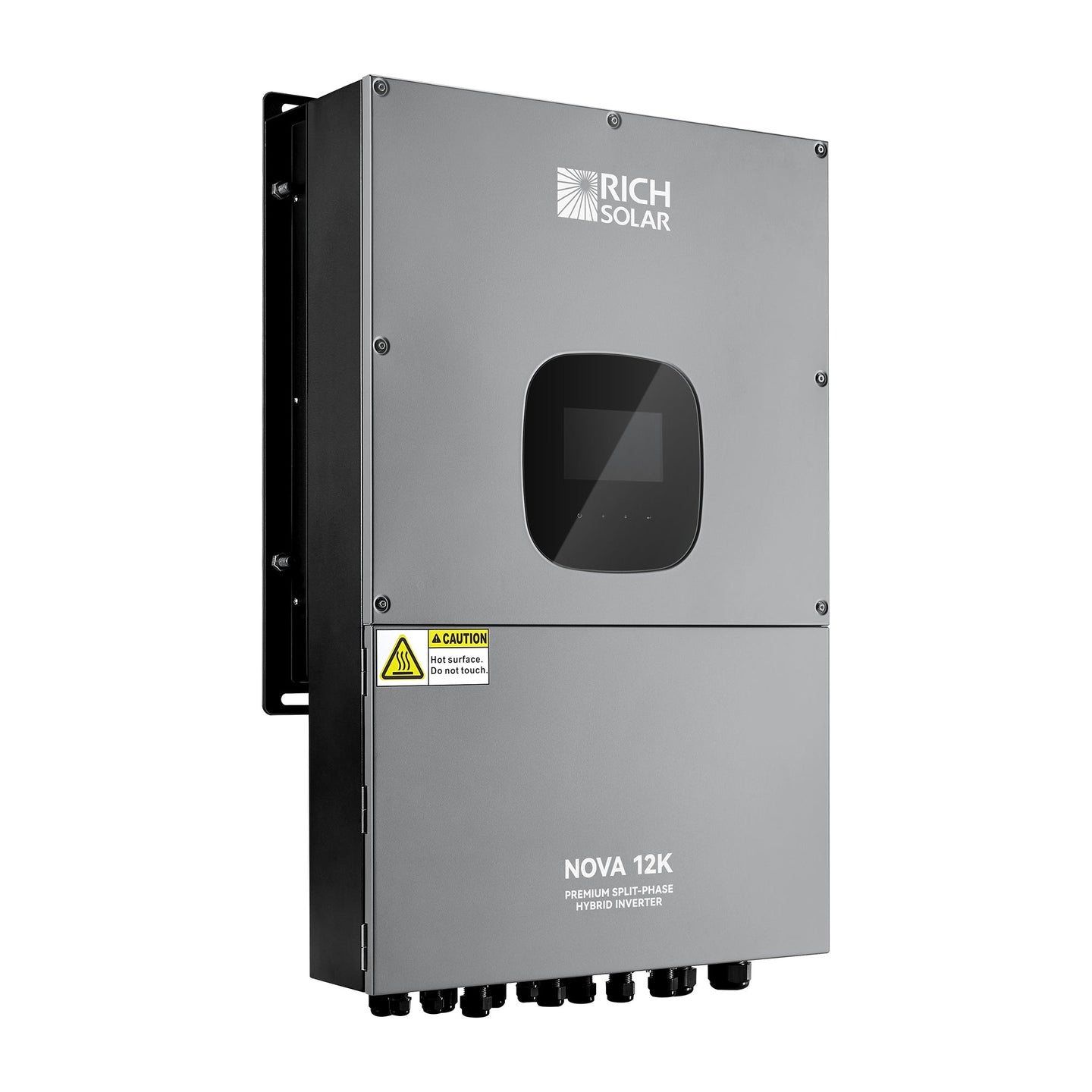

This split-phase hybrid inverter combines solar, battery, utility-grid, and generator power management in one unit for cabins, accessory dwelling units, tiny homes, residential properties, agricultural applications, and off-grid or grid-connected systems. It supports grid-tie, off-grid, and hybrid operating modes with pure sine-wave output.

For clarity, the unit accepts up to 12,000W of PV input and provides 10,000W of rated continuous AC output. It is offered in one configuration only, with no selectable product variants. Up to six identical units can be connected in parallel for expanded system capacity.

Key Features

  • Split-Phase Output: Supports 120/240V split-phase and 120/208V split-phase configurations.
  • Multiple Operating Modes: Supports grid-tie, off-grid, and hybrid operation.

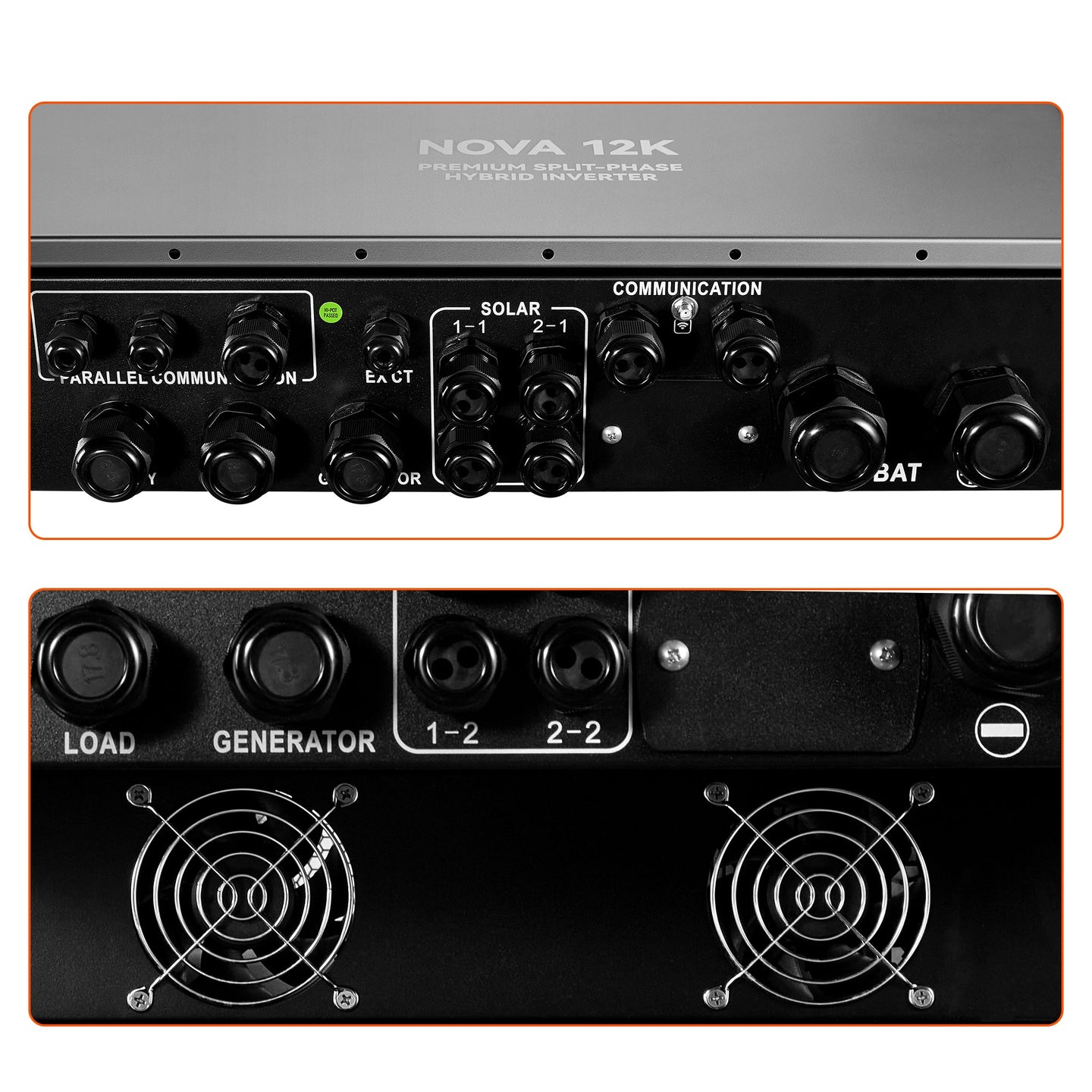

  • Flexible Power Sources: Accepts solar PV, battery, utility-grid, and generator inputs.
  • AC Coupling: Built-in AC-coupled functionality supports system integration.
  • Parallel Expansion: Supports parallel operation of up to six identical units.
  • Pure Sine-Wave Output: Produces pure sine-wave AC power with 91% DC-to-AC efficiency.
  • Wireless Monitoring: Built-in Wi-Fi supports real-time monitoring through a mobile application.
  • Battery Communication: RS485 connectivity supports battery-management-system integration.
  • External Energy Monitoring: Uses an external CT sensor to support 100% self-consumption control.

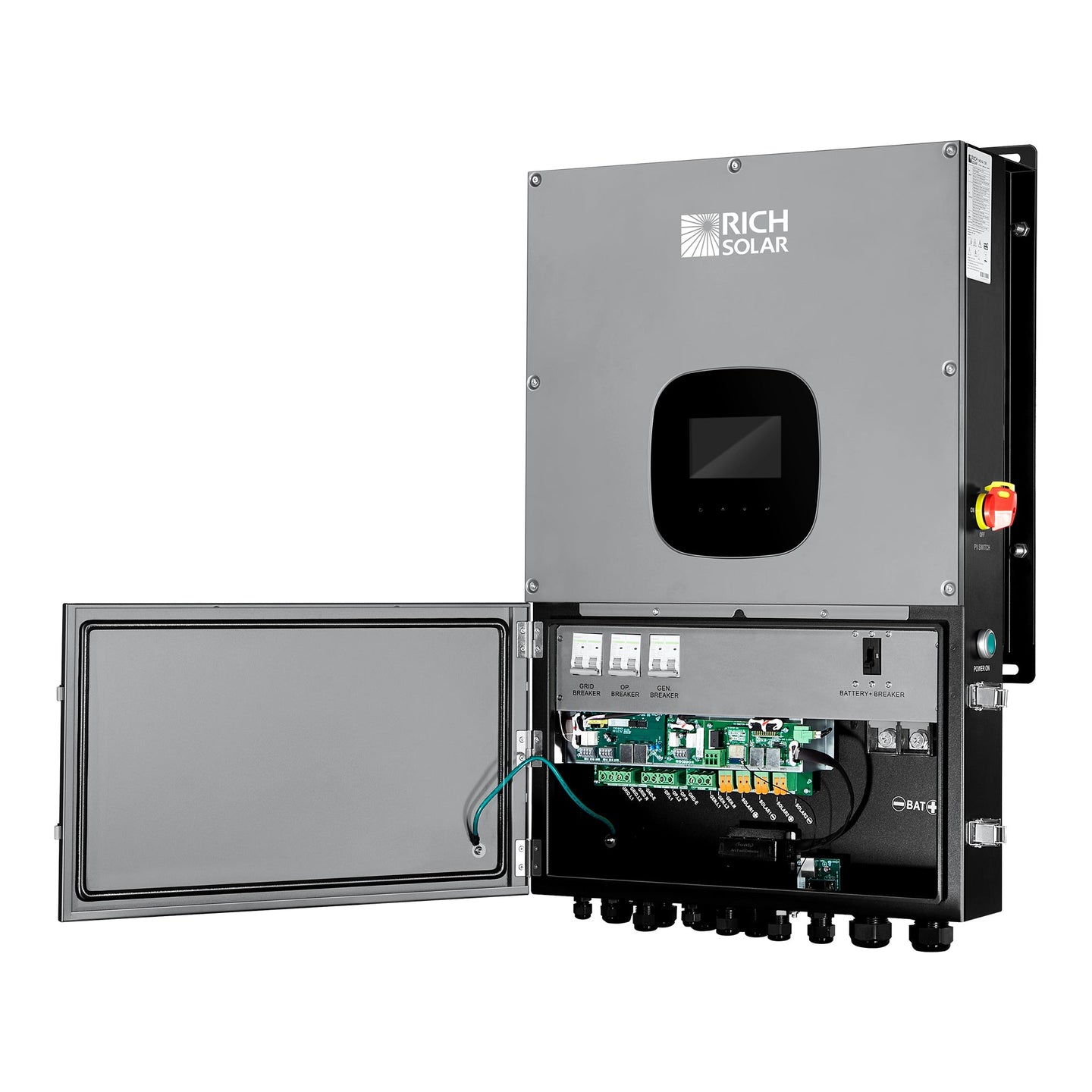

  • Integrated Breakers: Includes an integrated 300A DC breaker and 60A AC breaker.
  • Arc-Fault and Rapid-Shutdown Functions: Includes AFD and RSD functions associated with NEC 690.11 and NEC 690.12.
  • Ground-Fault Detection: Provides ground-fault detection associated with NEC 690.5.
  • PV Protection: Includes PV-input lightning protection.
  • Outdoor-Rated Enclosure: IP65-rated enclosure supports indoor or outdoor installation when installed according to the official manual.
  • Single Configuration: No selectable size, voltage, bundle, or quantity options are shown.

Specifications

  • Maximum PV Input Power: 12,000W
  • Rated AC Output Power: 10,000VA / 10,000W
  • Maximum DC Voltage: 600VDC
  • Nominal DC Voltage: 360VDC
  • Working DC Voltage Range: 120–550VDC
  • Startup Voltage: 125VDC
  • Initial Feeding Voltage: 160VDC
  • MPPT Voltage Range: 120–550VDC
  • MPPT Inputs: Dual inputs
  • Maximum PV Input Current: 2 × 18A, 30A peak
  • Maximum PV Short-Circuit Current: 2 × 18A, 30A maximum
  • Inverter Backfeed Current to PV Array: 0A
  • Nominal Output Voltage: 120VAC phase-to-neutral; 208VAC or 240VAC phase-to-phase
  • Output Voltage Range: 105.5–132VAC per phase
  • Nominal Output Current: 41.7A per phase
  • Output Frequency: 50Hz or 60Hz, auto-sensing
  • Output Frequency Range: 47.5–51.5Hz or 59.3–60.5Hz
  • Output Waveform: Pure sine wave
  • DC-to-AC Efficiency: 91%
  • Power Factor Range: 0.9 leading to 0.9 lagging
  • Inrush Current and Duration: 50A per phase for 20 milliseconds
  • Maximum Output Fault Current and Duration: 90A per phase for 1 millisecond
  • Maximum Output Overcurrent Protection: 90A per phase
  • AC Startup Voltage: 85VAC per phase
  • AC Auto-Restart Voltage: 90VAC per phase
  • Acceptable AC Input Voltage Range: 85–140VAC per phase
  • AC Input Power: 10,000VA / 10,000W
  • Maximum AC Input Current: 60A
  • AC Input Inrush Current: 60A for 1 millisecond
  • Nominal Battery Voltage: 48VDC
  • Battery DC Voltage Range: 40–62VDC
  • Maximum Battery Discharge Current: 200A
  • Maximum Solar Charging Current: 200A
  • Maximum AC Charging Current: 200A
  • Maximum Combined Charging Current: 200A
  • Parallel Capability: Up to six units
  • Integrated DC Breaker: 300A
  • Integrated AC Breaker: 60A
  • Protection Rating: IP65
  • Protective Class: Class I
  • Operating Temperature: -13°F to 140°F, with power derating above 113°F
  • Humidity: 0–90% relative humidity, non-condensing
  • Maximum Operating Altitude: Approximately 6,562 ft; power derates by 1% for every approximately 328 ft above approximately 3,281 ft
  • Communication: RS232, RS485, Wi-Fi, and USB
  • Net Weight: 112 lb
  • Certifications and Compliance: UL 1741SA/SB, CSA C22.2 No. 107.1, IEEE 1547, CEC-listed, FCC Part 15 Class B, California Rule 21, and HECO Rule 14H

Size Guide

  • Dimensions (D × W × H): 8.5 × 20.3 × 28.1 in
  • Recommended Installation Clearance: Approximately 19.7 in at each side, above, and below; approximately 39.4 in in front

Compatibility

Compatible With: Lead-acid, lithium-ion, and nickel-cadmium battery systems operating within the specified 40–62VDC battery range; single-crystalline and polycrystalline solar modules; utility-grid and generator inputs.

Not Compatible With: PV module types other than single-crystalline and polycrystalline modules, as stated in the official manual.

Included

  • One hybrid inverter unit
  • One RS232 cable
  • One parallel cable
  • Current-sharing wires
  • One external CT sensor
  • One user manual
  • One software CD
  • Fixing screws
  • One Wi-Fi antenna

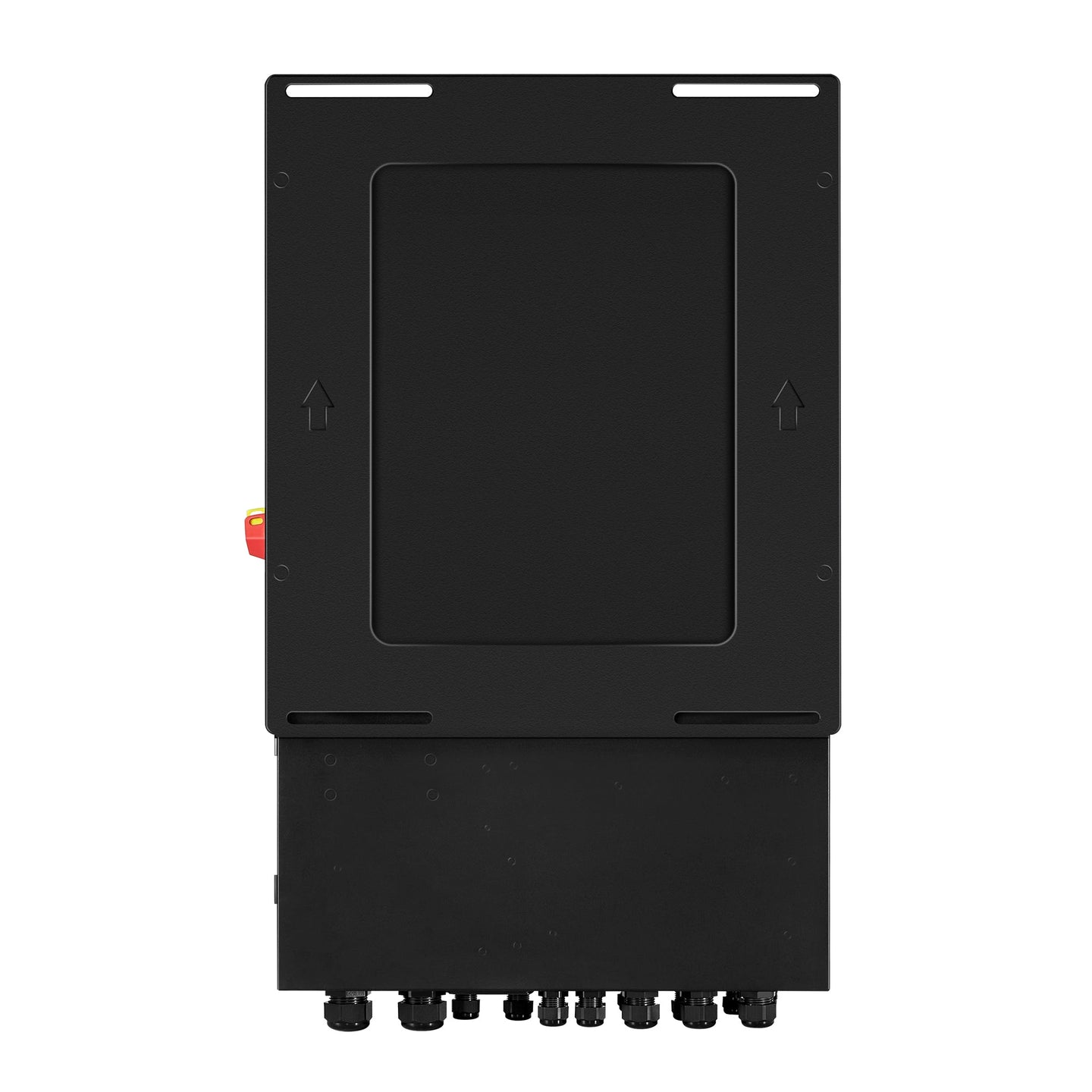

  • One wall-mount bracket
